springcloud微服务学习笔记51：Config配置总控中心搭建

springcloud微服务学习笔记目录：

一、Config服务端配置与测试
1.用你自己的账号在GitHub上新建一-个名为springcloud-config的新Repository

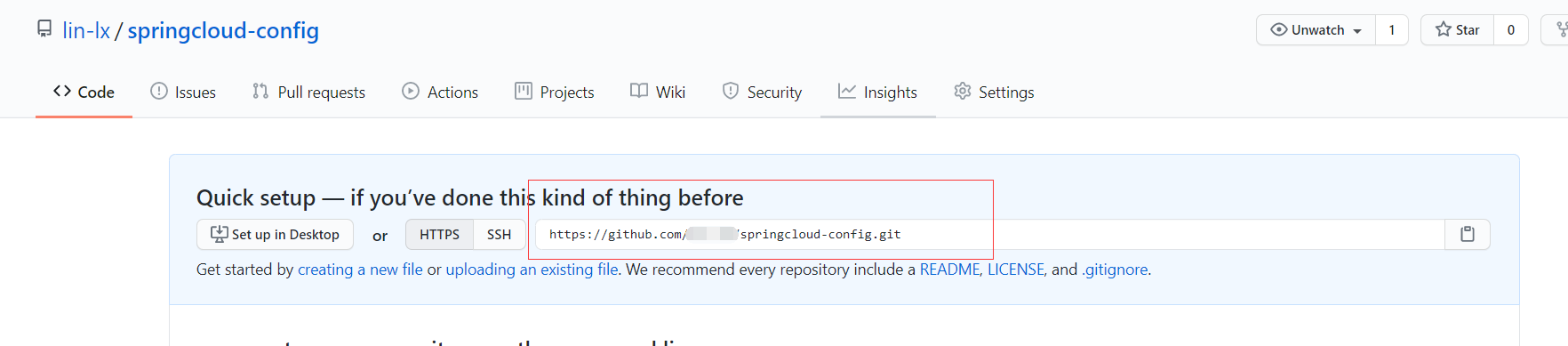

2.由上一步获得刚新建的git地址

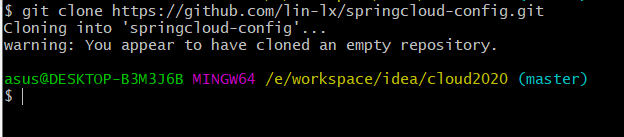

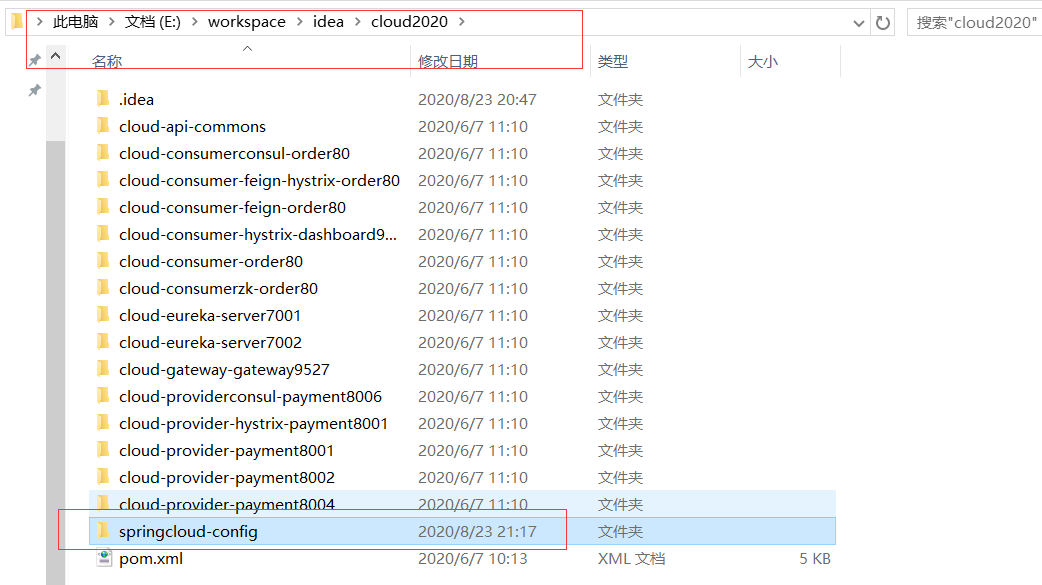

3.本地硬盘目录上新建git仓库并clone


4.新建Module模块cloud-config-center-3344，它即为Cloud的配置中心模块cloudConfig Center
5.pom文件

<dependencies>
    <!--config server-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-config-server</artifactId>
    </dependency>
    <dependency><!-- 引用自己定义的api通用包，可以使用Payment支付Entity -->
        <groupId>com.eiletxie.springcloud</groupId>
        <artifactId>cloud-api-commons</artifactId>
        <version>${project.version}</version>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--监控-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-actuator</artifactId>
    </dependency>
    <!--eureka client-->
    <dependency>
        <groupId>org.springframework.cloud</groupId>
        <artifactId>spring-cloud-starter-netflix-eureka-client</artifactId>
    </dependency>
    <!--热部署-->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <optional>true</optional>
    </dependency>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
</dependencies>





6.yml文件

server:
  port: 3344

spring:
  application:
    name: cloud-config-center
  cloud:
    config:
      server:
        git:
          uri: https://github.com/lin-lx/springcloud-config.git #Github上的git仓库名字
          ##搜索目录.这个目录指的是github上的目录
          search-paths:
            - springcloud-config
      ##读取分支
      label: master

eureka:
  client:
    service-url:
      defaultZone: http://eureka7001.com:7001/eureka/



7.主启动类

@SpringBootApplication
@EnableConfigServer
public class ConfigCenterMain3344 {

    public static void main(String[] args) {
        SpringApplication.run(ConfigCenterMain3344.class,args);
    }
}

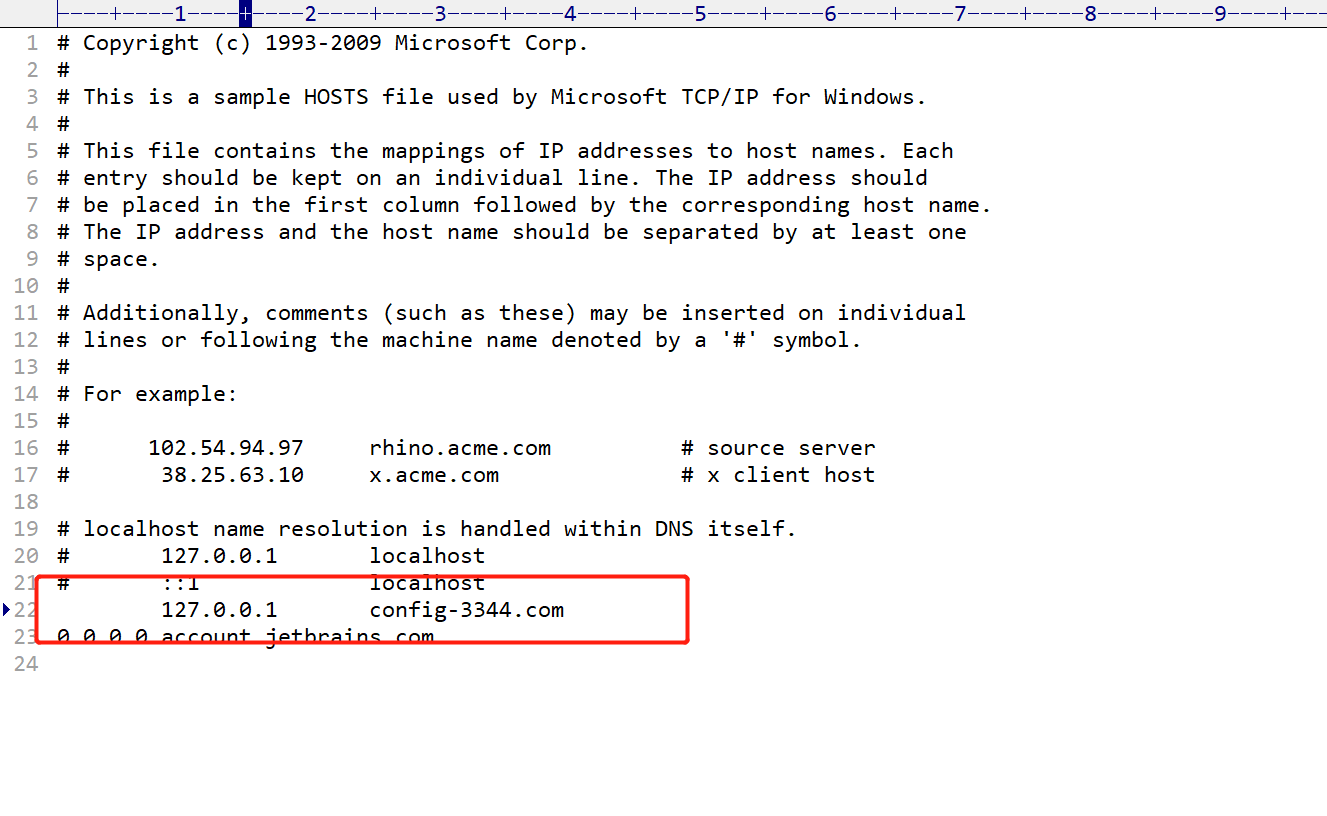

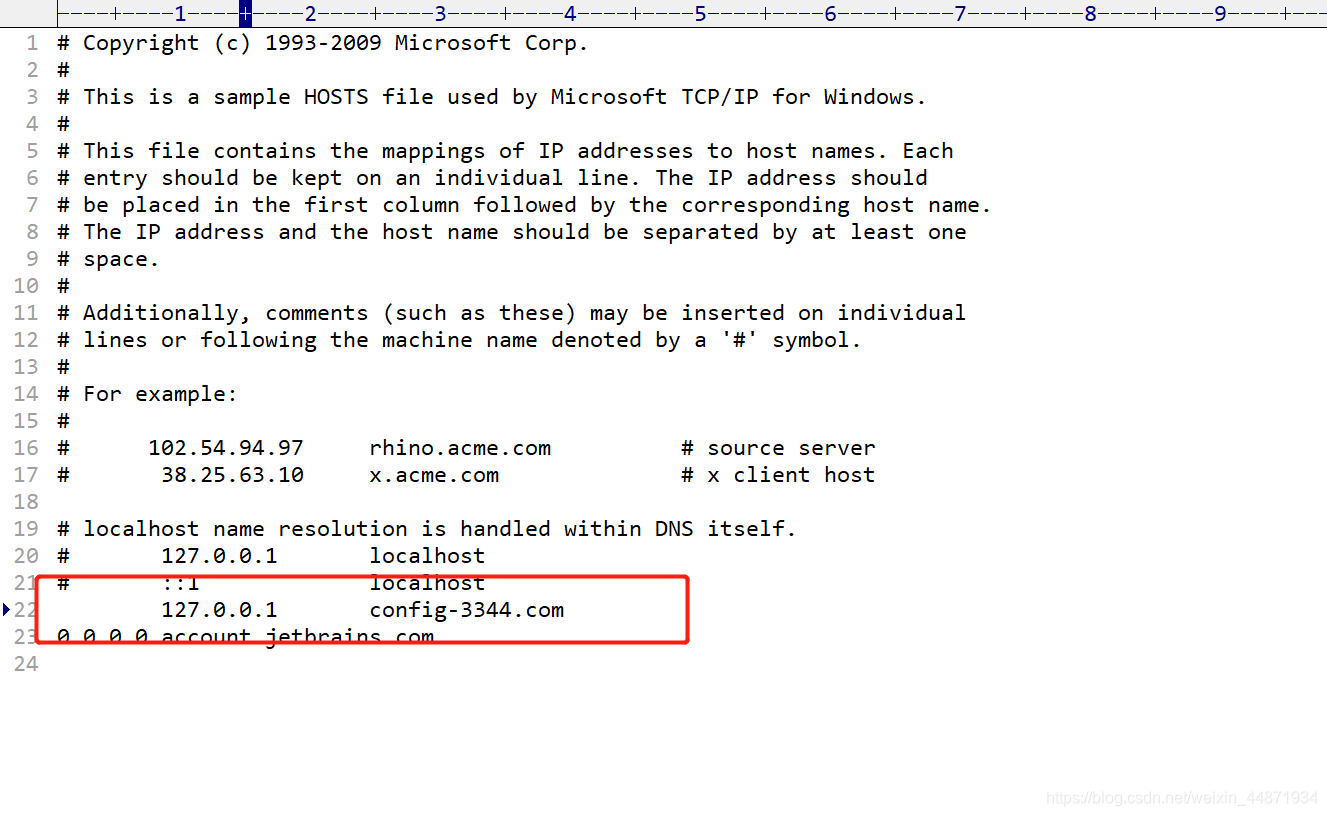

8.windows下修改hosts文件，增加映射（127.0.0.1 config-3344.com
）
C:\Windows\System32\drivers\etc

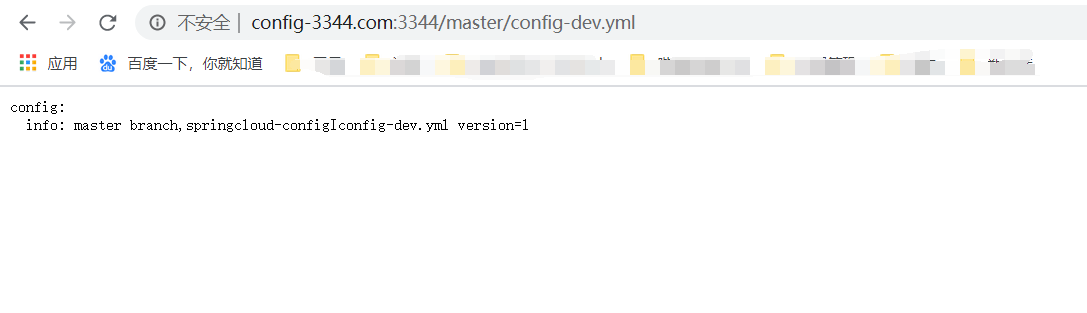

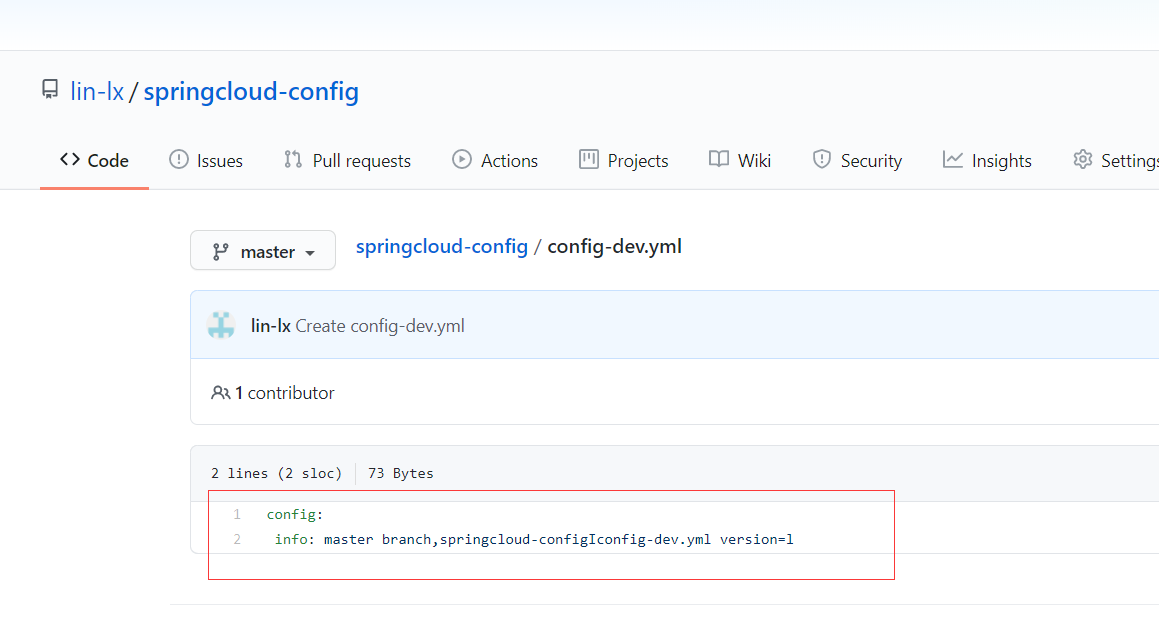

9.测试通过Config微服务是否可以从GitHub,上获取配置内容
启动微服务3344

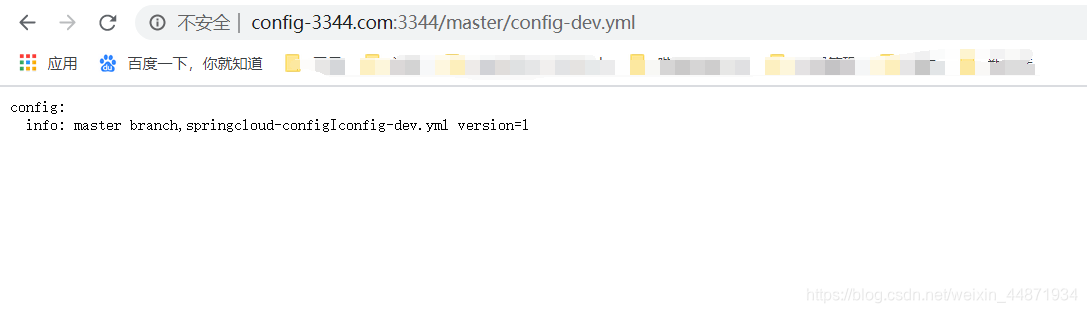

http://config-3344.com:3344/master/config-dev.yml
