.net6 prism wpf 8.1使用 halcondotnet 程序集

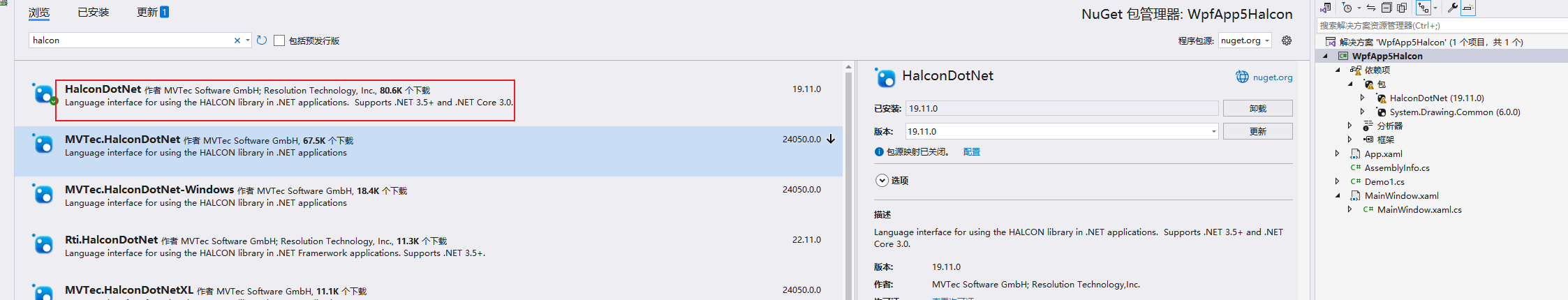

1、nuget安装HalconDotNet包



2、报错 System.Drawing.Common问题

      nuget安装包 System.Drawing.Common

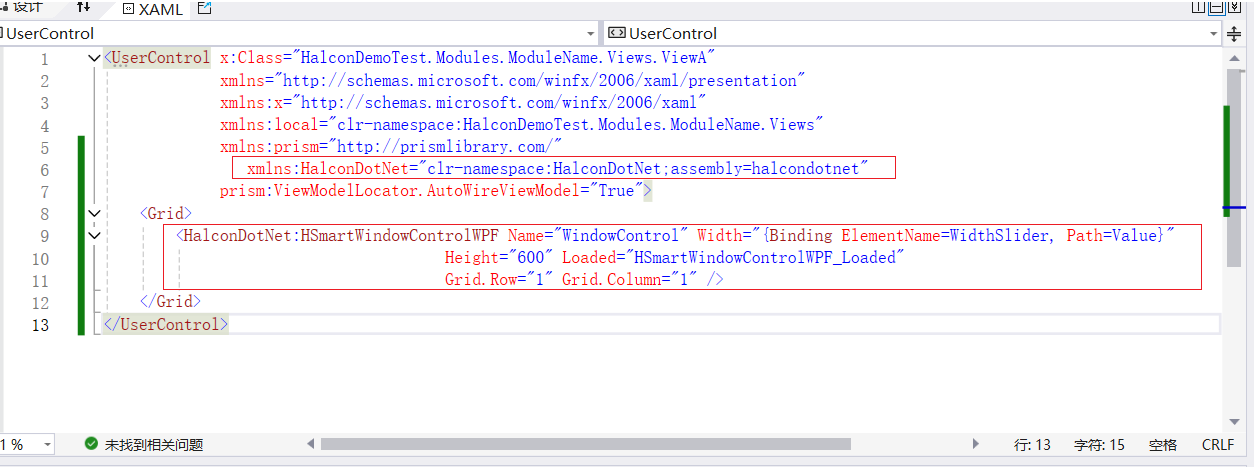

3、wpf使用halcondotnet.dll 程序集







<UserControl x:Class="HalconDemoTest.Modules.ModuleName.Views.ViewA"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:HalconDemoTest.Modules.ModuleName.Views"
             xmlns:prism="http://prismlibrary.com/"
                xmlns:HalconDotNet="clr-namespace:HalconDotNet;assembly=halcondotnet"
             prism:ViewModelLocator.AutoWireViewModel="True">
    <Grid>
        <HalconDotNet:HSmartWindowControlWPF Name="WindowControl" Width="{Binding ElementName=WidthSlider, Path=Value}"
                                      Height="600" Loaded="HSmartWindowControlWPF_Loaded"
                                      Grid.Row="1" Grid.Column="1" />
    </Grid>
</UserControl>



using HalconDotNet;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace HalconDemoTest.Modules.ModuleName.Views
{
    /// <summary>
    /// Interaction logic for ViewA.xaml
    /// </summary>
    public partial class ViewA : UserControl
    {
        public ViewA()
        {
            InitializeComponent();
        }

        private void HSmartWindowControlWPF_Loaded(object sender, RoutedEventArgs e)
        {
            var pictureCtrl = sender as HSmartWindowControlWPF;

            HImage img = new HImage("1.png");
            pictureCtrl.HalconWindow.DispImage(img);
        }
    }
}





4、显示

记得设置图片的位置

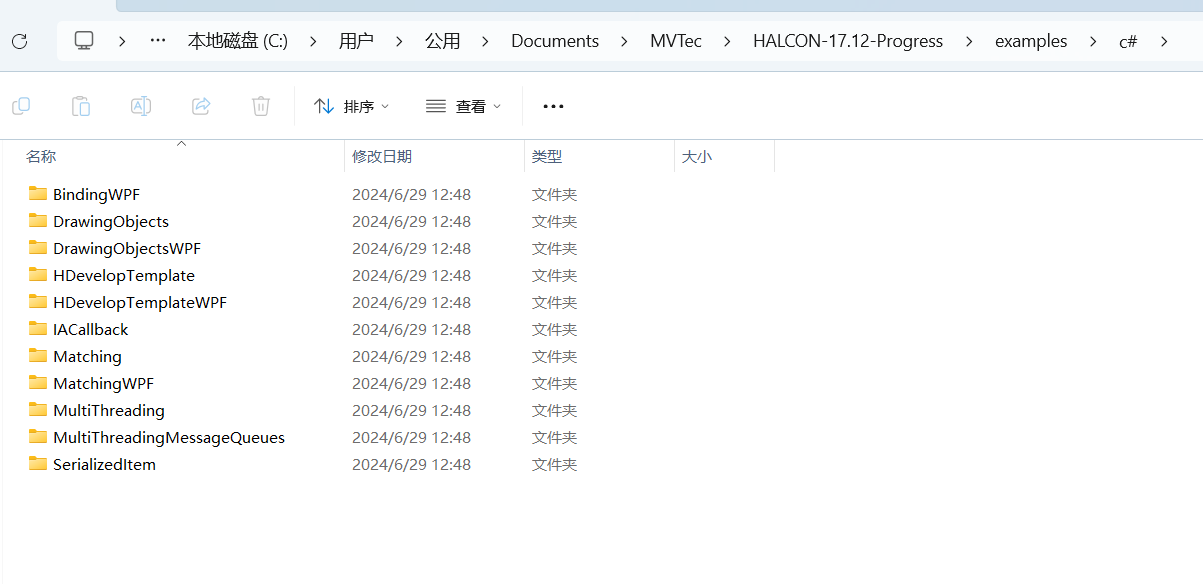

5、其他 halcon官方的wpf示例目录：

C:\Users\Public\Documents\MVTec\HALCON-17.12-Progress\examples\c#
