华为交换机16700 配置端口镜像

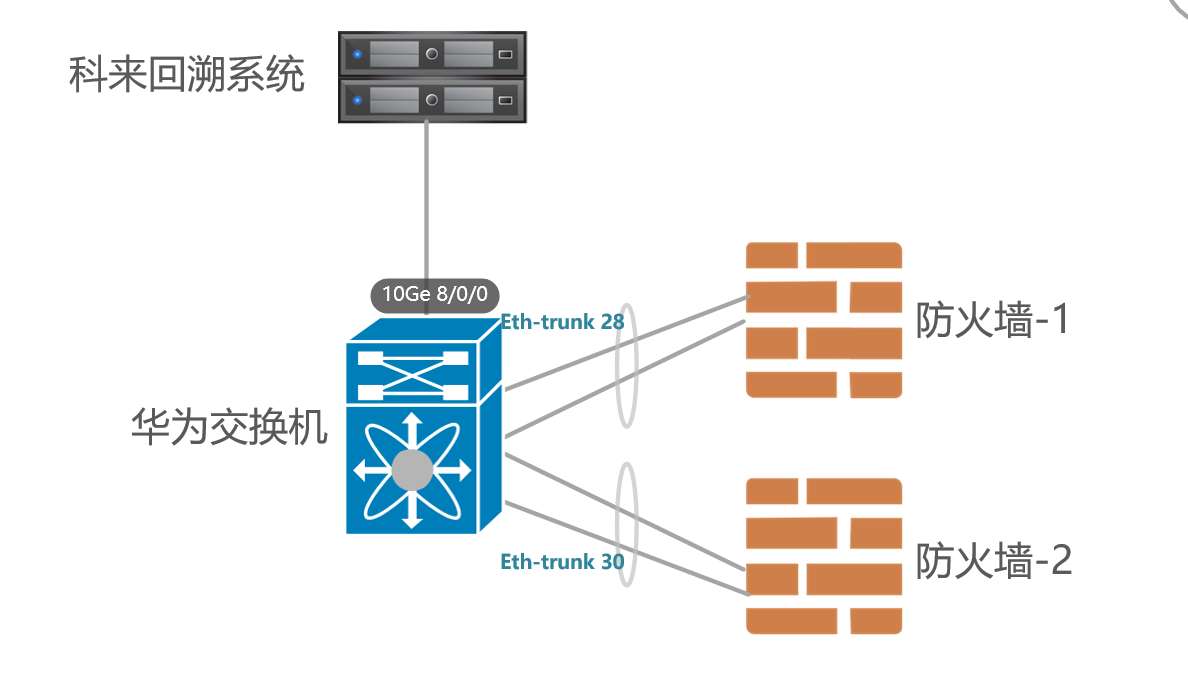

镜像需求

镜像流量：连接防火墙的所有流量
源端口：eth-trunk 28 ， 30
目标端口：10ge8/0/0

镜像配置

observe-port 1 interface 10ge8/0/0

int Eth-Trunk 28
port-mirroring observe-port 1 both
int Eth-Trunk 30
port-mirroring observe-port 1 both

配置完成后，查看镜像状态

<HW-16700>display observe-port
  -----------------------------------------------------------------------------
  Index    : 1
  Interface: 10GE8/0/0
  -----------------------------------------------------------------------------

<HW-16700>display port-mirroring
  Observe port mirroring:
  -----------------------------------------------------------------------------
  MirroringPort         Direction        ObservePort : Interface
  -----------------------------------------------------------------------------
  Eth-Trunk28           Inbound                    1 : 10GE8/0/0
                        Outbound                   1 : 10GE8/0/0
  Eth-Trunk30           Inbound                    1 : 10GE8/0/0
                        Outbound                   1 : 10GE8/0/0
  -----------------------------------------------------------------------------
<HW-16700>
