Cisco Nexus VPC配置模板configuration example
Cisco Nexus VPC配置模板
目录
1 简介 1
1.1 拓扑 2
1.2 端口规划 2
2 配置步骤 2
2.1 开启特性 2
2.2 Keeplive相关配置 3
2.2.1 创建vrf，用于keepalive 3
2.2.2 物理接口配置 3
2.3 建立VPC domain 4
2.3.1 第1台93128 4
2.3.2 第2台93128 4
2.4 Peerlink配置 4
2.4.1 物理接口配置，加入捆绑组 4
2.5 Peer gateway 5
2.6 针对下连配置VPC 5
2.6.1 Nexus下连端口配置 5
2.6.2 下连普通交换机端口配置 8
2.7 验证及排错 9
3 扫盲 11
3.1 Peer keepalive和peer link作用分别是什么？ 11
3.2 为什么故障时要关闭secondary 上的成员端口？ 11
3.3 Peer keepalive和peer link故障场景分析 11
3.4 VPC keepalive通过普通3层接口建立 12
3.5 Nexus 2000 1
3.6 About 5000 and 6000 1
4 VPC其他参数 1
4.1 Peer gateway 2
4.2 Peer-switch 3
4.2.1 正常情况下 3
4.2.2 取消peer-switch 4
4.2.3 再次查看 4
4.3 Auto recovery 5
5 其他命令 7
5.1 如何查看vpc的角色 7
5.2 如何查看peer-keepalive的端口号 7
5.3 如何查看peer-Link的端口号 8
5.4 查看某个vpc状态 8
5.5 一致性检查 9
5.5.1 verify specified vpc 9
5.5.2 verify vlans 10
5.5.3 verify global 10
5.5.4 verify the orphan port 11
5.5.5 verify statistics of peer-keepalive and peerlink 12
5.5.6 XX 13
1 简介
vPC即跨设备的port-channel。Virtual port-channel。VPC是cisco的叫法，公用标准一般称为MClag， Multi chassis link aggregation.
对于下面的交换机来说，可以将对端2台Nexus交换机看做1台设备，配置普通的port-channel即可。
哪些型号支持vpc？
Nexus全产品系都支持。7000, 5000,6000,3000。包括后来出的9000 series.

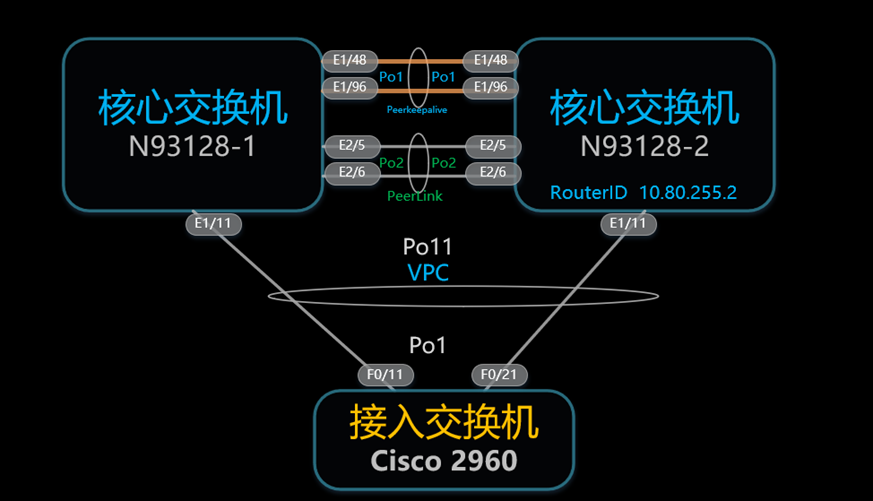

1.1 拓扑

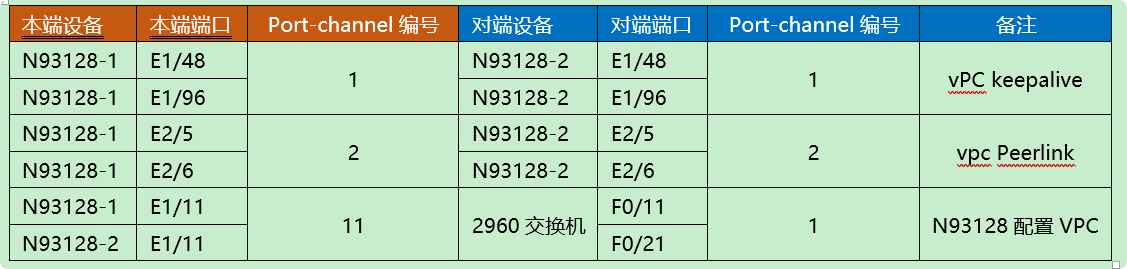

1.2 端口规划
2 配置步骤
2.1 开启特性
Nexus系列使用的IOS是NX-OS，所携带的所有特性默认是关闭的，都需要通过feature xx进行启用。
Feature vpc
2.2 Keeplive相关配置
2.2.1 创建vrf，用于keepalive
VRF的名称可以自定义
vrf context vpc-keepalive
2.2.2 物理接口配置
物理口加入portchannel
Portchannel接口划入vrf，并配置IP
第1台Nexus交换机
interface Ethernet1/48
no switchport
channel-group 1 mode active
no shutdown
interface Ethernet1/96
no switchport
channel-group 1 mode active
no shutdown
interface port-channel1
no switchport
vrf member vpc-keepalive
ip address 10.6.128.89/30
第2台Nexus交换机
interface Ethernet1/48
no switchport
channel-group 1 mode active
no shutdown
interface Ethernet1/96
no switchport
channel-group 1 mode active
no shutdown
interface port-channel1
no switchport
vrf member vpc-keepalive
ip address 10.6.128.90/30
2.3 建立VPC domain
指定VPC domain编号，一台设备只能有1个domain，但可以有多个VPC
指定本地优先级
指定对端IP和本地IP
物理端口千兆，万兆，40G都可以
2.3.1 第1台93128
vpc domain 1
role priority 5000
peer-keepalive destination 10.6.128.90 source 10.6.128.89 vrf vpc-keepalive
2.3.2 第2台93128
vpc domain 1
role priority 2000
peer-keepalive destination 10.6.128.89 source 10.6.128.90 vrf vpc-keepalive
2.4 Peerlink配置
2.4.1 物理接口配置，加入捆绑组
两台设备配置一致
可以单链路，但建议2根以上做port-channel
端口速率必须为10G或以上，千兆端口无法做为peerlink
Portchannel接口加入vpc peer-link
interface Ethernet2/5
switchport mode trunk
channel-group 2 mode active
interface Ethernet2/6
switchport mode trunk
channel-group 2 mode active
interface port-channel2
switchport mode trunk
vpc peer-link
配置后STP端口类型从network变为vPC peer-，STP Bridge Assurance将会开启，并且不能被关闭。
2.5 Peer gateway
vpc domain 1
peer-gateway
VPC最终配置如下：
93128-1# sh run vpc
feature vpc
vpc domain 1
peer-switch
role priority 5000
peer-keepalive destination 10.6.130.68 source 10.6.130.69 vrf default
peer-gateway
auto-recovery
ip arp synchronize
interface port-channel2
vpc peer-link
2.6 针对下连配置VPC
2.6.1 Nexus下连端口配置
93128-1 93128-2
93128-1#show run interface E1/11
interface Ethernet1/11
description 2960-1:F0/11
switchport mode trunk
channel-group 12 mode active
interface port-channel12
switchport mode trunk
vpc 12
93128-2# sh run int e1/11
interface Ethernet1/11
description 2960-2:F0/21
switchport mode trunk
channel-group 12 mode active
interface port-channel12
switchport mode trunk
vpc 12
查看VPC状态,第1台
93128-1# show vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : success
vPC role : primary
Number of vPCs configured : 2
Peer Gateway : Enabled
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Enabled, timer is off.(timeout = 240s)
Delay-restore status : Timer is off.(timeout = 30s)
Delay-restore SVI status : Timer is off.(timeout = 10s)
vPC Peer-link status
---------------------------------------------------------------------
id Port Status Active vlans
-- ---- ------ --------------------------------------------------
1 Po2 up 1,50,176-177,3900
vPC status
----------------------------------------------------------------------
id Port Status Consistency Reason Active vlans
-- ---- ------ ----------- ------ ------------
12 Po12 up success success 1,50,176-17
7,3900
第2台93128查看状态
93128-1# sh vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : success
vPC role : secondary
Number of vPCs configured : 2
Peer Gateway : Enabled
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Enabled, timer is off.(timeout = 240s)
Delay-restore status : Timer is off.(timeout = 30s)
Delay-restore SVI status : Timer is off.(timeout = 10s)
vPC Peer-link status
---------------------------------------------------------------------
id Port Status Active vlans
-- ---- ------ --------------------------------------------------
1 Po2 up 1,50,176-177,3900
vPC status
----------------------------------------------------------------------
id Port Status Consistency Reason Active vlans
-- ---- ------ ----------- ------ ------------
12 Po12 up success success 1,50,176-17
7,3900
7,3900
93128-1# show port-channel summary
Flags: D - Down P - Up in port-channel (members)
I - Individual H - Hot-standby (LACP only)
s - Suspended r - Module-removed
S - Switched R - Routed
U - Up (port-channel)
p - Up in delay-lacp mode (member)
M - Not in use. Min-links not met
--------------------------------------------------------------------------------
Group Port- Type Protocol Member Ports
Channel
--------------------------------------------------------------------------------
1 Po1(RU) Eth LACP Eth1/48(P) Eth1/96(P)
2 Po2(SU) Eth LACP Eth2/5(P) Eth2/6(P)
12 Po12(SU) Eth LACP Eth1/11(P)
2.6.2 下连2960交换机端口配置
interface FastEthernet0/11
switchport mode trunk
channel-group 2 mode active
interface FastEthernet0/21
switchport mode trunk
channel-group 2 mode active
2960-2#sh etherchannel summary
Flags: D - down P - in port-channel
I - stand-alone s - suspended
H - Hot-standby (LACP only)
R - Layer3 S - Layer2
U - in use f - failed to allocate aggregator
u - unsuitable for bundling
w - waiting to be aggregated
d - default port
Number of channel-groups in use: 1
Number of aggregators: 1
Group Port-channel Protocol Ports
------+-------------+-----------+-----------------------------------------------
2 Po2(SU) LACP Fa0/11(P) Fa0/21(P)
最终Neuxs上的配置如下：
93128-1# sh run vpc
feature vpc
vpc domain 1
peer-switch
role priority 5000
peer-keepalive destination 10.6.130.68 source 10.6.130.69 vrf default
peer-gateway
auto-recovery
ip arp synchronize
interface port-channel2
vpc peer-link
interface port-channel12
vpc 12
2.7 验证及排错
验证：
Egypt# show vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status: success
vPC role : secondary
Number of vPCs configured : 0
Peer Gateway : Disabled
Dual-active excluded VLANs : -
vPC Peer-link status
---------------------------------------------------------------------id Port Status Active vlans
-- ---- ------ --------------------------------------------------1 Po100 up 1-20,100
如果Configuration consistency status状态为any，可以通过下面命令检查具体不一致的信息
Congo# show vpc consistency-parameters global
Legend:
Type 1 : vPC will be suspended in case of mismatch
Name Type Local Value Peer Value
------------- ---- ---------------------- -----------------------
STP Mode 1 Rapid-PVST Rapid-PVST
STP Disabled 1 VLANs 91 VLANs 91
STP MST Region Name 1 customer customer
STP MST Region Revision 1 1 1
STP MST Region Instance to 1
VLAN Mapping
STP Loopguard 1 Disabled Disabled
STP Bridge Assurance 1 Enabled Enabled
STP Port Type, Edge 1 Normal, Disabled, Normal,Disabled,
BPDUFilter, Edge BPDUGuard Disabled Disabled
STP MST Simulate PVST 1 Enabled Enabled
Interface-vlan admin up 2 40-43,50,60,70-71,91,1 40-43,50,60,70-71,91,100-103 00-103
Allowed VLANs - 40-43,50,60,91,100-103 9,40-43,50,60,91,100-1,1000 03,1000
Local suspended VLANs - - -
配置完成员端口后再查看
验证VPC
Congo# show vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status: success
vPC role : primary
Number of vPCs configured : 1
Peer Gateway : Disabled
Dual-active excluded VLANs : -vPC Peer-link status
---------------------------------------------------------------------id Port Status Active vlans
-- ---- ------ --------------------------------------------------1 Po100 up 1-20,100
vPC status
----------------------------------------------------------------------id Port Status Consistency Reason Active vlans
-- ---- ------ ----------- -------------------------- ------------1 Po1 up success success 1-20,100
3 扫盲
3.1 Peer keepalive和peer link作用分别是什么？
首先，peer keepalive链路上是不会有任何数据流量的，只有VPC 检测报文，只是一条心跳线。
在正常情况下，peer keepalive没有任何作用。只有当peer link中断时，才会触发行为。
3.2 为什么故障时要关闭secondary 上的成员端口？
当peer-link中断，而keepalive正常时，Secondary设备会关闭自己的所有vpc memberport 和SVI，为何这样设计？如果不这样设计会有什么问题？
已有表象的流量(如mac,)不受影响，但新的单播会受影响，可能收到重复数据包。
3.3 Peer keepalive和peer link故障场景分析
分为以下情况
Peer keepalive中断，但peer link正常
正常转发，不受影响
Peer keepalive正常，但peer link中断
Secondary角色的设备会将所有vpc成员端口shutdown
3.4 VPC keepalive通过普通3层接口建立
普遍的做法是2台交换机之间通过物理端口直连网线或光纤，用作keepalive链路。
实际上也可以直接通过3层来实现，即只要定义的两个IP地址可达，keepalive状态就是成功的。例如新建1个loopack 接口，并通过underlay可达。
设备可以节省物理端口占用，另外只要3层可达，则keepalive状态一直是OK的。
当然思科推荐还是物理口直连。以下是思科的建议：
SW1 SW2
93128-1# sh run int loopback 1
!Command: show running-config interface loopback1
!Time: Wed Jul 27 15:12:21 2016
version 7.0(3)I2(2e)
interface loopback1
description vpc-keeplive
ip address 10.6.130.68/32
ip router ospf 100 area 0.0.0.0
93128-2# sh run int loopback 1
!Command: show running-config interface loopback1
!Time: Wed Jul 27 15:15:45 2016
version 7.0(3)I2(2e)
interface loopback1
description vpc-keeplive
ip address 10.6.130.69/32
ip router ospf 100 area 0.0.0.0
SW1 SW2
vpc domain 1
peer-switch
role priority 2000
peer-keepalive destination 10.6.130.69 source 10.6.130.68
peer-gateway
auto-recovery
ip arp synchronize vpc domain 1
peer-switch
role priority 5000
peer-keepalive destination 10.6.130.68 source 10.6.130.69
peer-gateway
auto-recovery
ip arp synchronize
配置后出现log
93128-1(config-vpc-domain)# 2016 Jul 27 15:18:26 93128-1 %VPC-2-PEER_KEEP_ALIVE_SEND_FAIL: In domain 1, VPC peer keep-alive send has failed
查看VPC状态
93128-1# show vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is not reachable through peer-keepalive
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : success
vPC role : primary
Number of vPCs configured : 0
Peer Gateway : Enabled
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Enabled, timer is off.(timeout = 240s)
Delay-restore status : Timer is off.(timeout = 30s)
Delay-restore SVI status : Timer is off.(timeout = 10s)
vPC Peer-link status
---------------------------------------------------------------------
id Port Status Active vlans
-- ---- ------ --------------------------------------------------
1 Po2 up 1,50,176-177,3900
经过检查发现即使是在全局路由下,也必须加vrf default，
vpc domain 1
peer-switch
role priority 2000
peer-keepalive destination 10.6.130.69 source 10.6.130.68 vrf default
peer-gateway
auto-recovery
ip arp synchronize
最后添加vrf default后正常。
当一边加，一边不加vrf default时，2侧的VPC keeplive状态也不一样。
Swi1
Sw2
vpc domain 1
peer-switch
role priority 2000
peer-keepalive destination 10.6.130.69 source 10.6.130.68
peer-gateway
auto-recovery
ip arp synchronize
vpc domain 1
peer-switch
role priority 5000
peer-keepalive destination 10.6.130.68 source 10.6.130.69 vrf default
peer-gateway
auto-recovery
ip arp synchronize
93128-1# sh vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : success
vPC role : primary
Number of vPCs configured : 0
Peer Gateway : Enabled
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Enabled, timer is off.(timeout = 240s)
Delay-restore status : Timer is off.(timeout = 30s)
Delay-restore SVI status : Timer is off.(timeout = 10s) 93128-2# sh vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : Suspended (Destination IP not reachable)
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : success
vPC role : secondary
Number of vPCs configured : 0
Peer Gateway : Enabled
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Enabled, timer is off.(timeout = 240s)
Delay-restore status : Timer is off.(timeout = 30s)
Delay-restore SVI status : Timer is off.(timeout = 10s)
全部加上vrf default 后正常
Swi1
Sw2
vpc domain 1
peer-switch
role priority 2000
peer-keepalive destination 10.6.130.69 source 10.6.130.68 vrf default
peer-gateway
auto-recovery
ip arp synchronize
vpc domain 1
peer-switch
role priority 5000
peer-keepalive destination 10.6.130.68 source 10.6.130.69 vrf default
peer-gateway
auto-recovery
ip arp synchronize
93128-1# sh vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : success
vPC role : primary
Number of vPCs configured : 0
Peer Gateway : Enabled
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Enabled, timer is off.(timeout = 240s)
Delay-restore status : Timer is off.(timeout = 30s)
Delay-restore SVI status : Timer is off.(timeout = 10s) 93128-2# sh vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : success
vPC role : secondary
Number of vPCs configured : 0
Peer Gateway : Enabled
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Enabled, timer is off.(timeout = 240s)
Delay-restore status : Timer is off.(timeout = 30s)
Delay-restore SVI status : Timer is off.(timeout = 10s)
3.5 Nexus 2000
Nexus 2000可以看作是一块line card，本身没有任何转发能力，所以即使你将2台终端连接在Nexus 2000上也是无法通信的。必须上连到母体，，即9K,7K,5K,3K，作为一块远端板卡。Nexus 2000下挂的终端通信流量必须上行到父系交换机。
而且Nexus 2000设备本身也没有console口。
而且Nexus 2000所有端口属于host interface，即主机端口。不能下连交换机。
What happened if connect a switch to Nexus 2000
The interface will be in err-disable status once received any BPDU.
3.6 About 5000 and 6000
原来是两个不同的平台，后来cisco将其合并，现在系列为56系列。
4 VPC其他参数
VPC有一些优化的配置，命令如下：
4.1 Peer gateway
vpc domain 1
peer-switch
role priority 5000
peer-keepalive destination 10.6.130.68 source 10.6.130.69 vrf default
peer-gateway
auto-recovery
ip arp synchronize
Peer-Gateway用于fast-path functionality。（存储，应用服务器）
节点发送返回流量到发送方的一个特殊的mac地址而不是hsrp mac地址（由于VPC防环机制，默认情况这种流量会被丢弃------不允许将VPC peer link收到的流量发送到VPC端口–VPC防环机制）
VPC Peer-Gateway使VPC对端（peer）设备转发目的MAC地址为对端路由器的本地mac地址的流量
配置：Congo(config-vpc-domain)# peer-gateway
应用场景：
有一些NAS设备（ NETAPP Fast-Path 或 EMC IP-Reflect ） 回应的时候使用的是发送设备的实MAC地址，而不是HSRP网关的虚拟MAC地址
报文被负载分担到非实MAC所在VPC设备时，会通过peer-link发送到实MAC所在的VPC设备上，而由于重复帧防护机制，该设备会把报文丢弃.
Vpc peer-gateway 解决方案:
当目标MAC地址为peer vpc设备的三层报文发送到本地时，该功能允许本地vpc设备网关正常转发该报文.
4.2 Peer-switch
2台设备都成为spanning tree的ROOT。
那问题来了？ 通过peer-switch使用2台设备都成为spannning tree的ROOT，作用何在？
4.2.1 正常情况下
使2台设备都成为spanning tree Root
93128-1# sh spanning-tree root
Root Hello Max Fwd
Vlan Root ID Cost Time Age Dly Root Port
---------------- -------------------- ------- ----- --- --- ----------------
VLAN0001 32769 0023.04ee.be01 0 2 20 15 This bridge is root
VLAN0050 32818 0023.04ee.be01 0 2 20 15 This bridge is root
VLAN0176 32944 0023.04ee.be01 0 2 20 15 This bridge is root
VLAN0177 32945 0023.04ee.be01 0 2 20 15 This bridge is root
VLAN3900 36668 0023.04ee.be01 0 2 20 15 This bridge is root
93128-1# sh spanning-tree root
Root Hello Max Fwd
Vlan Root ID Cost Time Age Dly Root Port
---------------- -------------------- ------- ----- --- --- ----------------
VLAN0001 32769 0023.04ee.be01 0 2 20 15 This bridge is root
VLAN0050 32818 0023.04ee.be01 0 2 20 15 This bridge is root
VLAN0176 32944 0023.04ee.be01 0 2 20 15 This bridge is root
VLAN0177 32945 0023.04ee.be01 0 2 20 15 This bridge is root
VLAN3900 36668 0023.04ee.be01 0 2 20 15 This bridge is root
4.2.2 取消peer-switch
93128-1(config-vpc-domain)# no peer-switch
93128-1(config-vpc-domain)# 2016 Jul 27 15:49:13 93128-1 %STP-2-VPC_PEERSWITCH_CONFIG_DISABLED: vPC peer-switch configuration is disabled. Please make sure to change spanning tree "bridge" priority as per the recommended guidelines.
4.2.3 再次查看
4.2.3.1 N93128-1
93128-1# sh spanning-tree root
Root Hello Max Fwd
Vlan Root ID Cost Time Age Dly Root Port
---------------- -------------------- ------- ----- --- --- ----------------
VLAN0001 32769 0024.98d5.ea80 19 2 20 15 Ethernet1/11
VLAN0050 32818 5c83.8f5f.1da3 0 2 20 15 This bridge is root
VLAN0176 32944 0024.98d6.1980 20 2 20 15 port-channel2
VLAN0177 32945 5c83.8f5f.1da3 0 2 20 15 This bridge is root
VLAN3900 36668 5c83.8f5f.1da3 0 2 20 15 This bridge is root
4.2.3.2 N93128-2
93128-1# sh spanning-tree root
Root Hello Max Fwd
Vlan Root ID Cost Time Age Dly Root Port
---------------- -------------------- ------- ----- --- --- ----------------
VLAN0001 32769 0024.98d5.ea80 20 2 20 15 port-channel2
VLAN0050 32818 5c83.8f5f.1da3 1 2 20 15 port-channel2
VLAN0176 32944 0024.98d6.1980 19 2 20 15 Ethernet1/59
VLAN0177 32945 5c83.8f5f.1da3 1 2 20 15 port-channel2
VLAN3900 36668 5c83.8f5f.1da3 1 2 20 15 port-channel2
4.3 Auto recovery
字面直译是自动恢复，那是恢复了个啥？
这个特性主要是在以下的场景发挥作用。
场景 1：
在数据中心停机或断电时，导致2台Nexus都断电。这时如果只有其中一台Nexus加电（这种场景在生产环境中遇到过多次，比如另1台在重启时失败，或电源出现故障）
由于另1台Nexus处于关闭状态，因此peer-link 和peer-keepalive也处于关闭状态。这种情况下，已经开机的这1台nexus也不会打开vPC。所有vPC配置都必须从该Nexus的端口通道中删除，以使端口通道工作。
啥意思呢？ 就是说这时vpc状态就是卡死的，无法正常转发，需要删除vpc的配置，
操作就是删除port-channel接口下的vpc xx，命令如下：
Interface port-channel 11
No vpc 11
场景 2：
由于某种原因，vPC peer-link断开。由于vPC peer-keepalive链路还是正常状态，因此vPC secondary会由于双活检测而关闭其所有vPC成员端口。因此，所有流量都通过vPC主交换机。如果这时由于某种原因（比如掉电），vPC主交换机也关闭。此交换机问题会使流量黑洞，因为secondary这台交换机vPC仍处于关闭状态，因为它在vPC主交换机关闭之前检测到双活检测。
说了这么多，怎么解决？
加1条命令
SW1(config)# vpc domain 1
SW1(config-vpc-domain)# auto-recovery
加上这条命令后再次show vpc
SW1# show vpc
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : success
vPC role : primary
Number of vPCs configured : 1
Peer Gateway : Enabled
Peer gateway excluded VLANs : -
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Enabled (timeout = 240 seconds)
现在解释一下工作原理
本节分别讨论背景部分中提到的两个场景。（假设在两个交换机上都配置了vPC auto-recovery，并相应保存到启动配置中）
场景1：
SW1和SW2同时关电，只有SW2再次启动的场景
SW2等待vPC auto-recovery超时(默认为240秒，可以使用 auto-recovery reload-delay x 命令进行配置，其中x为240-3600秒)，以验证vPC peer-link或 peer-keepalive link状态是否开启。如果其中任何一个链路处于打开状态，则不会触发 auto-recovery 。
超时之后，如果两个链路都处于关闭状态，则vPC将启用自动恢复，SW2将成为主设备并启动其本地vPC。由于没有peers，所以会绕过一致性检查。
之后SW1启动恢复，此时SW2保留其主角色，SW1作为备角色，执行一致性检查，并采取适当的操作。
场景2：
首先vPC peer-link关闭，然后vPC主设备关闭的场景
SW2等待三个连续peer-keepalive消息丢失。出于某种原因，如果vPC peer-link恢复或者SW2收到peer-keepalive消息，那么auto-recovery将不会启用。
如果vPC peer-link仍然中断，并且丢失了三个连续的peer-keepalive消息，则vPC auto-recovery 启用。
SW2承担主角色，并启用它的本地vPC，会绕过一致性检查。
之后SW1启动恢复，此时SW2仍保留其主角色，SW1作为备角色，执行一致性检查，并采取适当的操作。
5 其他命令
5.1 如何查看vpc的角色
Nexus# show vpc role
vPC Role status
----------------------------------------------------
vPC role : primary, operational secondary
Dual Active Detection Status : 0
vPC system-mac : 00:23:04:ee:be:01
vPC system-priority : 32667
vPC local system-mac : a0:23:9f:80:9f:7c
vPC local role-priority : 100
vPC local config role-priority : 100
vPC peer system-mac : 70:70:8b:df:d6:01
vPC peer role-priority : 150
vPC peer config role-priority : 150
5.2 如何查看peer-keepalive的端口号
NEXUS# sh vpc peer-keepalive
vPC keep-alive status : peer is alive
--Peer is alive for : (130945) seconds, (483) msec
--Send status : Success
--Last send at : 2019.03.11 13:34:50 312 ms
--Sent on interface : Po100
--Receive status : Success
--Last receive at : 2019.03.11 13:34:50 313 ms
--Received on interface : Po100
--Last update from peer : (0) seconds, (287) msec
vPC Keep-alive parameters
--Destination : 1.1.1.2
--Keepalive interval : 1000 msec
--Keepalive timeout : 5 seconds
--Keepalive hold timeout : 3 seconds
--Keepalive vrf : vpc-keepalive
--Keepalive udp port : 3200
--Keepalive tos : 192
NEXUS#
5.3 如何查看peer-Link的端口号
NEXUS# show vpc brief
Legend:
(*) - local vPC is down, forwarding via vPC peer-link
vPC domain id : 1
Peer status : peer adjacency formed ok
vPC keep-alive status : peer is alive
Configuration consistency status : success
Per-vlan consistency status : success
Type-2 consistency status : failed
Type-2 inconsistency reason : SVI type-2 configuration incompatible
vPC role : primary, operational secondary
Number of vPCs configured : 16
Peer Gateway : Enabled
Dual-active excluded VLANs : -
Graceful Consistency Check : Enabled
Auto-recovery status : Enabled, timer is off.(timeout = 240s)
Delay-restore status : Timer is off.(timeout = 30s)
Delay-restore SVI status : Timer is off.(timeout = 10s)
Operational Layer3 Peer-router : Disabled
vPC Peer-link status
---------------------------------------------------------------------
id Port Status Active vlans
-- ---- ------ -------------------------------------------------
1 Po101 up 1,2000-2010,2021-2028,2041-2048,2061-2062,2101-2110
5.4 查看某个vpc状态
NEXUS# show vpc 23
vPC status
----------------------------------------------------------------------------
Id Port Status Consistency Reason Active vlans
-- ------------ ------ ----------- ------ ---------------
23 Po23 up success success 2101-2110
5.5 一致性检查
5.5.1 verify specified vpc
NEXUS# show vpc consistency-parameters vpc 23
Legend:
Type 1 : vPC will be suspended in case of mismatch
Name Type Local Value Peer Value
------------- ---- ---------------------- -----------------------
delayed-lacp 1 disabled disabled
mode 1 active active
Switchport Isolated 1 0 0
Interface type 1 port-channel port-channel
LACP Mode 1 on on
Virtual-ethernet-bridge 1 Disabled Disabled
Speed 1 10 Gb/s 10 Gb/s
Duplex 1 full full
MTU 1 1500 1500
Port Mode 1 trunk trunk
Native Vlan 1 1 1
Admin port mode 1 trunk trunk
STP Port Guard 1 Default Default
STP Port Type 1 Default Default
STP MST Simulate PVST 1 Default Default
lag-id 1 [(7f9b, [(7f9b,
0-23-4-ee-be-1, 8017, 0-23-4-ee-be-1, 8017,
0, 0), (8000, 0, 0), (8000,
70-70-8b-b8-14-93, 1, 70-70-8b-b8-14-93, 1,
0, 0)] 0, 0)]
Allow-Multi-Tag 1 Disabled Disabled
Vlan xlt mapping 1 Disabled Disabled
vPC card type 1 N3K N3K
Allowed VLANs - 2101-2110 2101-2110
Local suspended VLANs - - -
NEXUS#
5.5.2 verify vlans
NEXUS# show vpc consistency-parameters vlans
Name Type Reason Code Pass Vlans
------------- ---- ---------------------- -----------------------
STP MST Simulate PVST 1 success 0-4095
STP Port Type, Edge 1 success 0-4095
BPDUFilter, Edge BPDUGuard
STP MST Region Name 1 success 0-4095
STP Disabled 1 success 0-4095
STP Mode 1 success 0-4095
STP Bridge Assurance 1 success 0-4095
STP Loopguard 1 success 0-4095
STP MST Region Instance to 1 success 0-4095
VLAN Mapping
STP MST Region Revision 1 success 0-4095
Pass Vlans - 0-4095
NEXUS# ^C
5.5.3 verify global
NEXUS# show vpc consistency-parameters global
Legend:
Type 1 : vPC will be suspended in case of mismatch
Name Type Local Value Peer Value
------------- ---- ---------------------- -----------------------
STP MST Simulate PVST 1 Enabled Enabled
STP Port Type, Edge 1 Normal, Disabled, Normal, Disabled,
BPDUFilter, Edge BPDUGuard Disabled Disabled
STP MST Region Name 1 "" ""
STP Disabled 1 None None
STP Mode 1 Rapid-PVST Rapid-PVST
STP Bridge Assurance 1 Enabled Enabled
STP Loopguard 1 Disabled Disabled
STP MST Region Instance to 1
VLAN Mapping
STP MST Region Revision 1 0 0
Interface-vlan admin up 2 2009-2010
Interface-vlan routing 2 1,2009-2010 1
capability
QoS (Cos) 2 ([0-7], [], [], [], ([0-7], [], [], [],
[], []) [], [])
Network QoS (MTU) 2 (1500, 1500, 1500, (1500, 1500, 1500,
1500, 1500, 1500) 1500, 1500, 1500)
Network Qos (Pause: 2 (F, F, F, F, F, F) (F, F, F, F, F, F)
T->Enabled, F->Disabled)
Input Queuing (Bandwidth) 2 (100, 0, 0, 0, 0, 0) (100, 0, 0, 0, 0, 0)
Input Queuing (Absolute 2 (F, F, F, F, F, F) (F, F, F, F, F, F)
Priority: T->Enabled,
F->Disabled)
Output Queuing (Bandwidth 2 (100, 0, 0, 0, 0, 0) (100, 0, 0, 0, 0, 0)
Remaining)
Output Queuing (Absolute 2 (F, F, F, F, F, F) (F, F, F, F, F, F)
Priority: T->Enabled,
F->Disabled)
HW profile Forwarding Mode 1 normal normal
Allowed VLANs - 1,100,2000-2010,2021-2 1,2000-2010,2021-2028,
028,2041-2048,2061-206 2041-2048,2061-2062,21
2,2101-2110 01-2110
Local suspended VLANs - 100 -
NEXUS#
5.5.4 verify the orphan port
NEXUS# sh vpc orphan-ports
Note:
--------::Going through port database. Please be patient.::--------
VLAN Orphan Ports
------- -------------------------
1 Eth1/3, Eth1/4
2009 Eth1/25
2010 Eth1/27
5.5.5 verify statistics of peer-keepalive and peerlink
NEXUS# show vpc statistics peer-keepalive
vPC keep-alive statistics
----------------------------------------------------
peer-keepalive tx count: 131917
peer-keepalive rx count: 131890
average interval for peer rx: 986
Count of peer state changes: 0
NEXUS#
NEXUS#
NEXUS# show vpc statistics peer-link
port-channel101 is up
admin state is up,
Hardware: Port-Channel, address: a023.9f80.9f56 (bia a023.9f80.9f56)
Description: ***To_CN-QDP1-BD04-WAN-DS02_PeerLink***
MTU 9216 bytes, BW 20000000 Kbit, DLY 10 usec
reliability 255/255, txload 1/255, rxload 1/255
Encapsulation ARPA, medium is broadcast
Port mode is trunk
full-duplex, 10 Gb/s
Input flow-control is off, output flow-control is off
Auto-mdix is turned off
Switchport monitor is off
EtherType is 0x8100
Members in this channel: Eth1/47, Eth1/48
Last clearing of "show interface" counters never
1 interface resets
Load-Interval #1: 30 seconds
30 seconds input rate 34320 bits/sec, 32 packets/sec
30 seconds output rate 1051776 bits/sec, 308 packets/sec
input rate 34.32 Kbps, 32 pps; output rate 1.05 Mbps, 308 pps
Load-Interval #2: 5 minute (300 seconds)
300 seconds input rate 32944 bits/sec, 29 packets/sec
300 seconds output rate 1118816 bits/sec, 241 packets/sec
input rate 32.94 Kbps, 29 pps; output rate 1.12 Mbps, 241 pps
RX
264875 unicast packets 5337108 multicast packets 1198 broadcast packets
5603181 input packets 574344157 bytes
0 jumbo packets 0 storm suppression packets
0 runts 0 giants 0 CRC 0 no buffer
0 input error 0 short frame 0 overrun 0 underrun 0 ignored
0 watchdog 0 bad etype drop 0 bad proto drop 0 if down drop
0 input with dribble 0 input discard
0 Rx pause
TX
14170085 unicast packets 2004227 multicast packets 529134 broadcast packets
16703446 output packets 4760929780 bytes
0 jumbo packets
0 output error 0 collision 0 deferred 0 late collision
0 lost carrier 0 no carrier 0 babble 0 output discard
0 Tx pause
浙公网安备 33010602011771号
