华为CE6800交换机堆叠配置案例
新到了2台华为CE6857交换机， 需要配置堆叠
硬件型号：CE6857F-48S6CQ

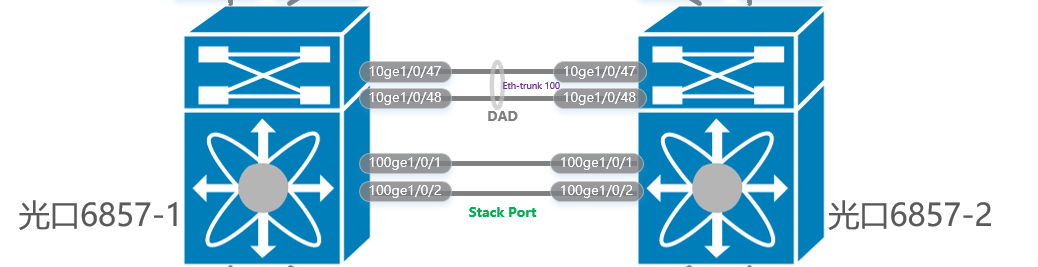

示例拓扑：

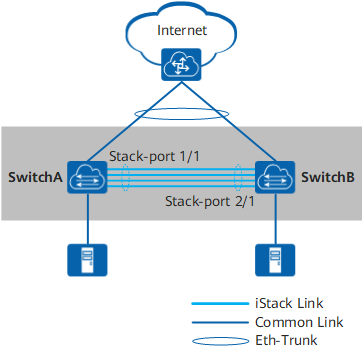

实际物理拓扑
配置思路
采用如下的思路配置：
- 提前规划好堆叠方案。
- 按照前期的规划，完成各台交换机的堆叠配置，包括堆叠成员ID、堆叠优先级、堆叠域编号、堆叠端口等。完成后保存配置并将交换机下电。
- 连接交换机之间的堆叠线缆，然后将交换机上电。
- 检查堆叠组建是否成功。
操作步骤
1 提前规划堆叠方案。
规划SwitchA的堆叠成员ID为1，SwitchB的成员ID为2。
规划SwitchA作为主交换机，其堆叠优先级最高，为150。SwitchB的堆叠优先级为120。
规划堆叠域编号（Domain ID）为10，不与网络中其他堆叠系统的域编号冲突。
规划SwitchA和SwitchB用于堆叠连接的端口为100GE1/0/1～100GE1/0/2。
2 配置堆叠属性。
配置SwitchA的堆叠优先级为150，Domain ID为10。缺省情况下，设备的堆叠成员ID为1。此处默认SwitchA的堆叠成员ID为1，无需配置。
<HUAWEI> system-view
[~HUAWEI] sysname SwitchA
[*HUAWEI] commit
[~SwitchA] stack
[~SwitchA-stack] stack member 1 priority 150
Info: The operation will take effect after reboot.
[*SwitchA-stack] stack member 1 domain 10
Info: The operation takes effect only after the save command is executed. The device with a lower priority then will be reset in the stack merging scenario.
[*SwitchA-stack] quit
[*SwitchA] commit
** 配置SwitchB的堆叠成员ID为2，优先级为120，Domain ID为10。**
<HUAWEI> system-view
[~HUAWEI] sysname SwitchB
[*HUAWEI] commit
[~SwitchB] stack
[~SwitchB-stack] stack member 1 priority 120
Info: The operation will take effect after reboot.
[*SwitchB-stack] stack member 1 domain 10
Info: The operation takes effect only after the save command is executed. The device with a lower priority then will be reset in the stack merging scenario.
[*SwitchB-stack] stack member 1 renumber 2 inherit-config
Warning: The stack configuration of member ID 1 will be inherited to member ID 2 after the device resets. Continue? [Y/N]: y
[*SwitchB-stack] quit
[*SwitchB] commit
说明：
由于SwitchB尚未重启，当前堆叠成员ID为1，此时需要使用member 1来进行堆叠配置。
Switch B使用stack member 1 renumber 2 inherit-config命令修改堆叠成员ID时，需要指定inherit-config参数。
如果不指定inherit-config参数，member 2不会继承member 1的堆叠配置，需要使用member 2重新进行堆叠配置。
指定inherit-config参数后，member 2可直接继承member 1的堆叠配置。
3 配置堆叠端口
配置堆叠端口。
将SwitchA的业务口100GE1/0/1～100GE1/0/2加入堆叠端口1/1。
[~SwitchA] interface stack-port 1/1
[*SwitchA-Stack-Port1/1] port member-group interface 100ge 1/0/1 to 1/0/2
Warning: After the configuration is complete,
1.The interface(s) (100GE1/0/1-1/0/2) will be converted to stack mode and be configured with the port crc-statistics trigger error-down command if the configuration does not exist.
2.The interface(s) may go Error-Down (crc-statistics) because there is no shutdown configuration on the interfaces.Continue? [Y/N]: y
[*SwitchA-Stack-Port1/1] commit
[~SwitchA-Stack-Port1/1] return
被配置为堆叠物理成员端口后，端口下会自动配置port crc-statistics trigger error-down。
将SwitchB的业务口100GE1/0/1～10GE1/0/2加入堆叠端口1/1。
[~SwitchB] interface stack-port 1/1
[*SwitchB-Stack-Port1/1] port member-group interface 100ge 1/0/1 to 1/0/2
Warning: After the configuration is complete,
1.The interface(s) (100GE1/0/1-1/0/2) will be converted to stack mode and be configured with the port crc-statistics trigger error-down command if the configuration does not exist.
2.The interface(s) may go Error-Down (crc-statistics) because there is no shutdown configuration on the interfaces.Continue? [Y/N]: y
[*SwitchB-Stack-Port1/1] commit
[~SwitchB-Stack-Port1/1] return
4 检查堆叠配置信息。
上述配置完成后，执行命令display stack configuration查看配置是否与规划的一致，如果不一致，需要修改配置。以查看SwitchA为例。
<SwitchA> display stack configuration
Oper : Operation
Conf : Configuration
* : Offline configuration
Isolated Port : The port is in stack mode, but does not belong to any Stack-Port
Attribute Configuration:
-----------------------------------------
MemberID Domain Priority
Oper(Conf) Oper(Conf) Oper(Conf)
-----------------------------------------
1(1) --(10) 100(150)
-----------------------------------------
Stack-Port Configuration:
--------------------------------------------------------------------------------
Stack-Port Member Ports
--------------------------------------------------------------------------------
Stack-Port1/1 100GE1/0/1 100GE1/0/2
--------------------------------------------------------------------------------
5 保存配置后将设备下电。
保存SwitchA和SwitchB的配置，然后将设备下电。SwitchB的配置与SwitchA相同，略。
save
Warning: The current configuration will be written to the device. Continue? [Y/N]: y
6 按照前期规划及配置，连接堆叠线缆。线缆连接完成后将设备上电。
建议先将高优先级设备上电，以使其先完成启动，优先竞争为主交换机。
7 验证配置结果。
等待几分钟后，在主交换机SwitchA上使用命令display stack查看堆叠是否组建成功。
<SwitchA>display stack
--------------------------------------------------------------------------------
MemberID Role MAC Priority DeviceType Description
--------------------------------------------------------------------------------
1 Master 7c33-f906-6880 150 CE6857F-48S6CQ
2 Standby e4dc-ccc3-08f0 120 CE6857F-48S6CQ
--------------------------------------------------------------------------------
如上所示，显示两台交换机的信息，表示堆叠建立成功，且主交换机为成员ID为1的设备，即SwitchA。
查看堆叠系统拓扑信息。
<SwitchA> display stack topology
Stack Topology:
----------------------------------------------
Stack-Port 1 Stack-Port 2
MemberID Status Neighbor Status Neighbor
----------------------------------------------
1 up 2 -- --
2 up 1 -- --
----------------------------------------------
Stack Link:
----------------------------------------------------------------------------
Stack-Port Port Status PeerPort PeerStatus
----------------------------------------------------------------------------
Stack-Port1/1 100GE1/0/1 up 100GE2/0/1 up
Stack-Port1/1 100GE1/0/2 up 100GE2/0/2 up
Stack-Port2/1 100GE2/0/1 up 100GE1/0/1 up
Stack-Port2/1 100GE2/0/2 up 100GE1/0/2 up
----------------------------------------------------------------------------
8 保存堆叠系统配置。
<SwitchA> save
Warning: The current configuration will be written to the device. Continue? [Y/N]: y
配置文件
堆叠系统的配置文件
#
sysname SwitchA
#
stack
#
stack member 1 domain 10
stack member 1 priority 150
#
stack member 2 domain 10
stack member 2 priority 120
#
interface Stack-Port1/1
#
interface Stack-Port2/1
#
interface 100GE1/0/1
port mode stack
stack-port 1/1
port crc-statistics trigger error-down
#
interface 100GE1/0/2
port mode stack
stack-port 1/1
port crc-statistics trigger error-down
#
interface 100GE2/0/1
port mode stack
stack-port 2/1
port crc-statistics trigger error-down
#
interface 100GE2/0/2
port mode stack
stack-port 2/1
port crc-statistics trigger error-down
#
return
**至此，堆叠完成， 但为了防止2条堆叠线缆都中断引发的脑裂，建议配置双活检测 dual-active **
9 双活检测配置
接口为2台交换机的47，48直连，放到同1个eth-trunk中
interface Eth-Trunk100
stp disable
dual-active detect mode relay
#
interface 10GE1/0/47
eth-trunk 100
#
interface 10GE1/0/48
eth-trunk 100
#
interface 10GE2/0/47
eth-trunk 100
#
interface 10GE2/0/48
eth-trunk 100
确认dual active已经生效
<SwitchA>display dual-active
Stack domainID: 10
Dual-active status: Normal
Dual-active detect mode: Relay
Dual-active detect configuration of MEth: Disable
Dual-active direct detect interfaces configured:
--
Dual-active relay detect interfaces configured:
Eth-Trunk100
10GE1/0/47 up (Physical) up (Protocol) 10 (PeerDomain)
10GE1/0/48 up (Physical) up (Protocol) 10 (PeerDomain)
10GE2/0/47 up (Physical) up (Protocol) 10 (PeerDomain)
10GE2/0/48 up (Physical) up (Protocol) 10 (PeerDomain)
Excluded ports(configurable):
--
Excluded ports(can not be configured):
100GE1/0/1
100GE1/0/2
100GE2/0/1
100GE2/0/2
