实验五：开源控制器实践——POX

基础要求

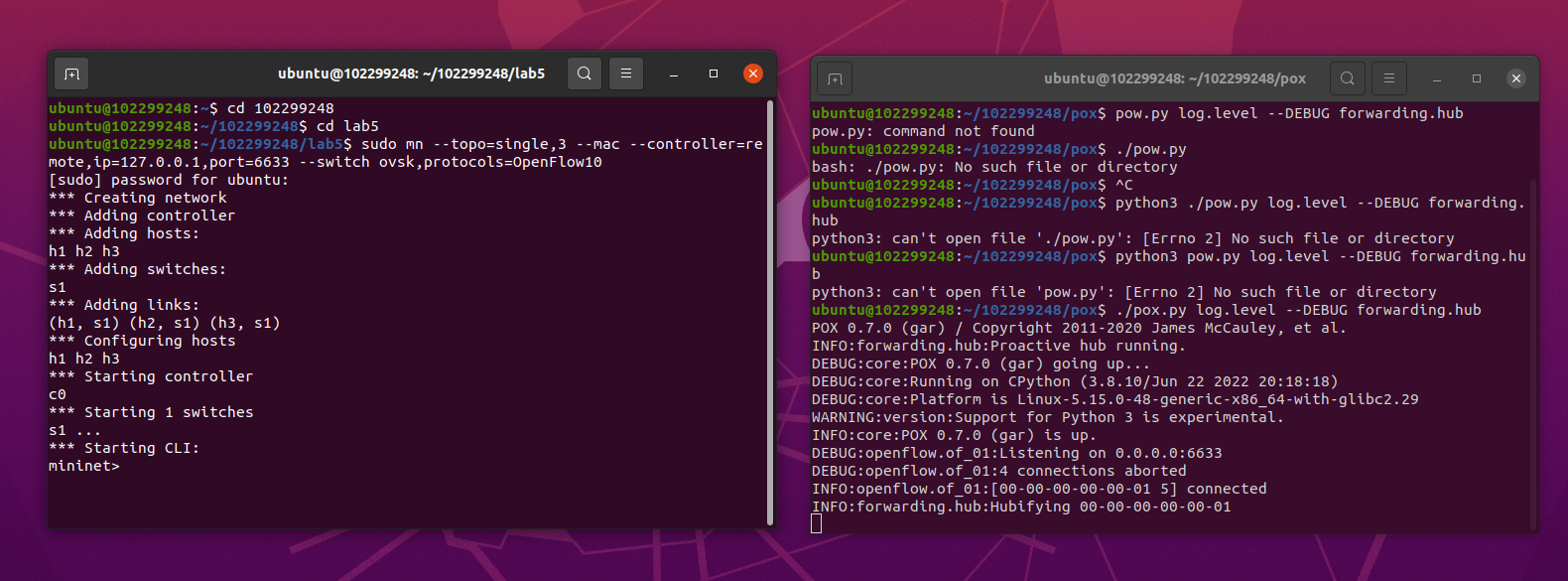

构建拓扑并打开pox控制器

开启POX： ./pox.py log.level --DEBUG forwarding.hub
开启主机终端mininet> xterm h2 h3
监视h2-eth0与h3-eth0

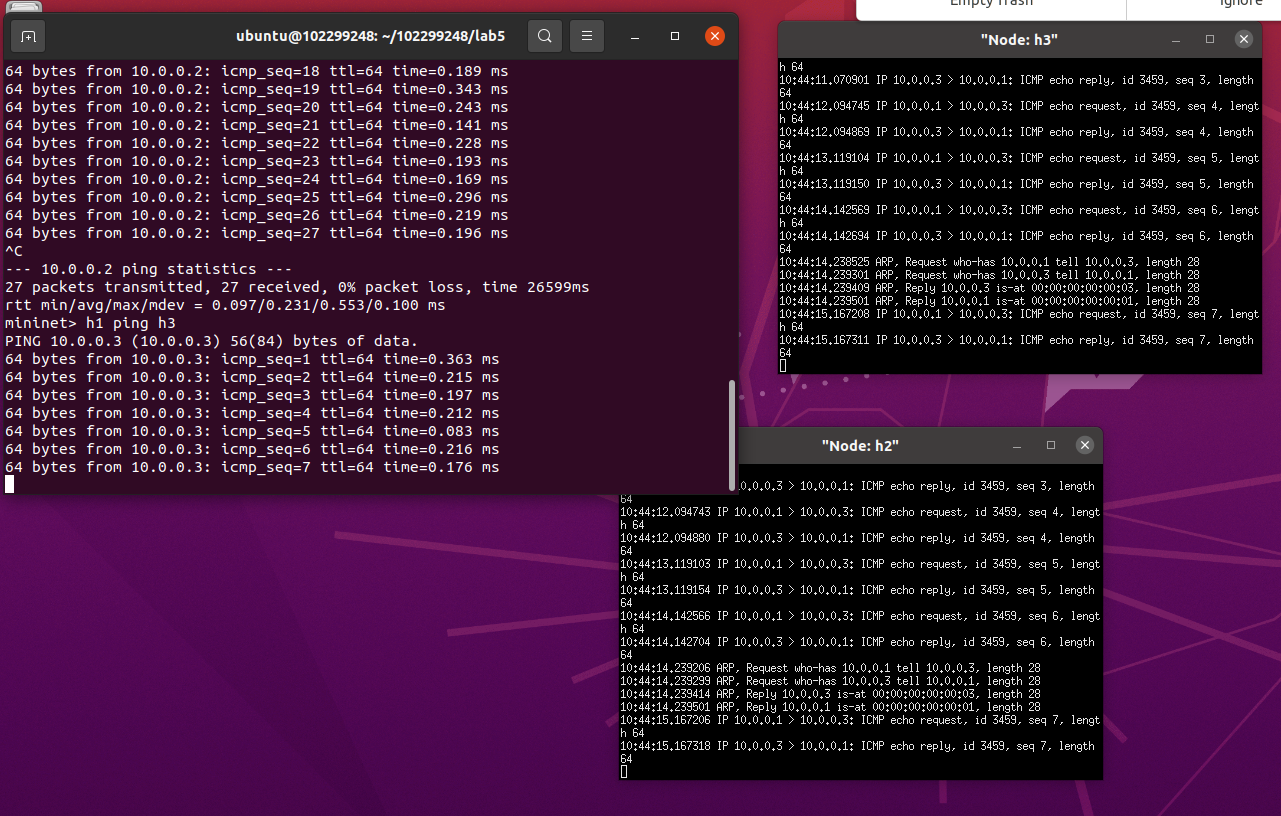

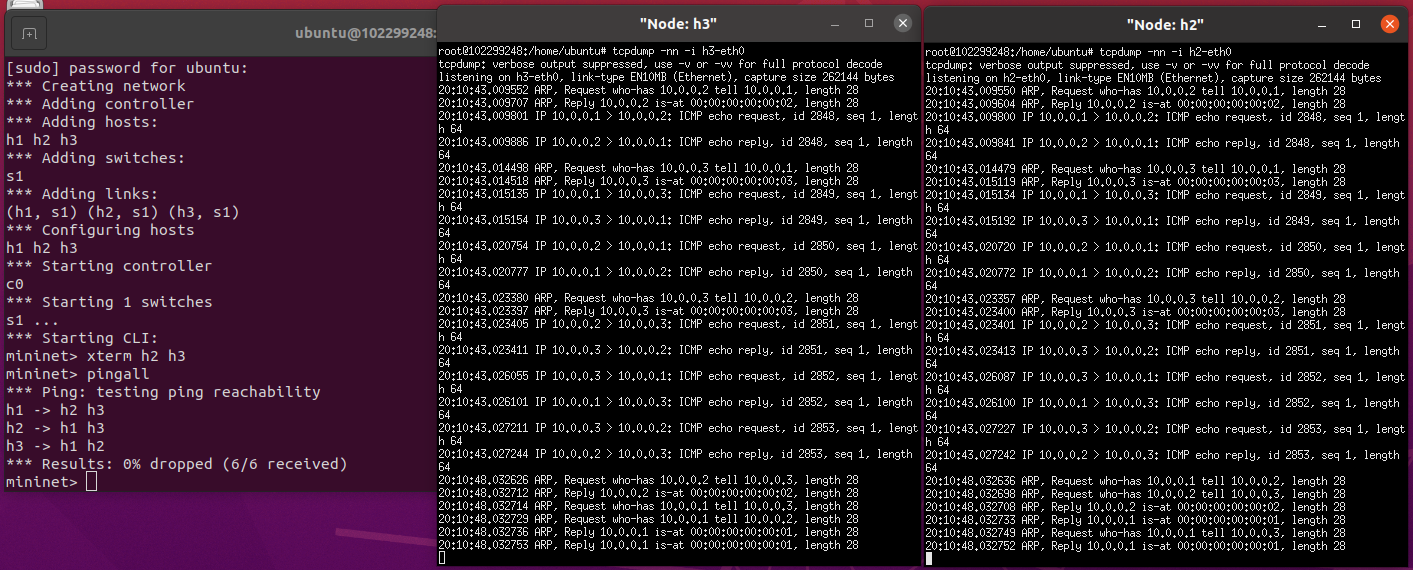

h1 ping h2,h1 ping h3,ping all,h2与h3均会同时收到数据

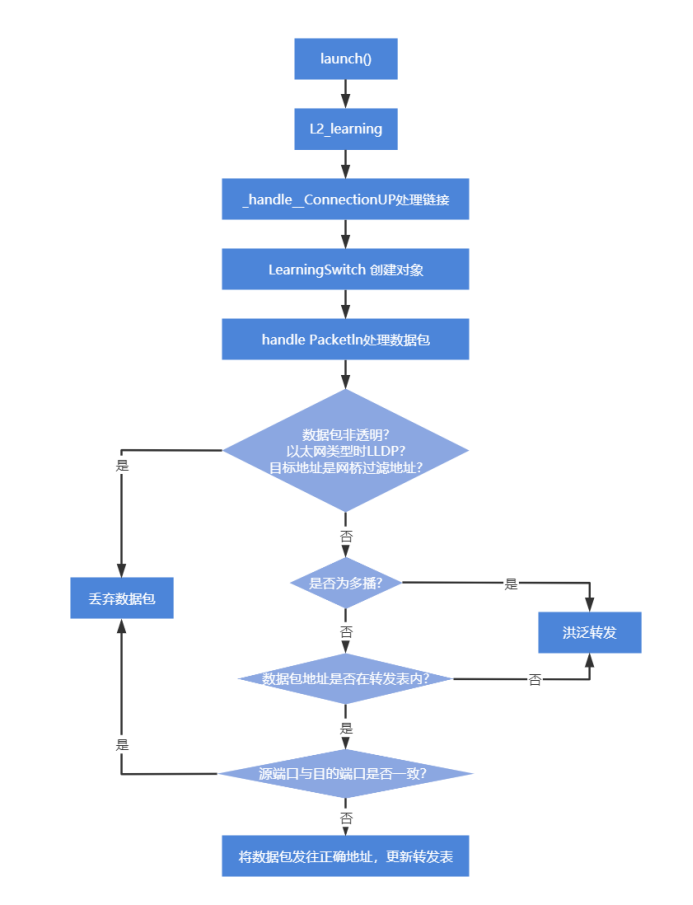

L2_learning模块代码流程图

开启pox，运行L2_learning

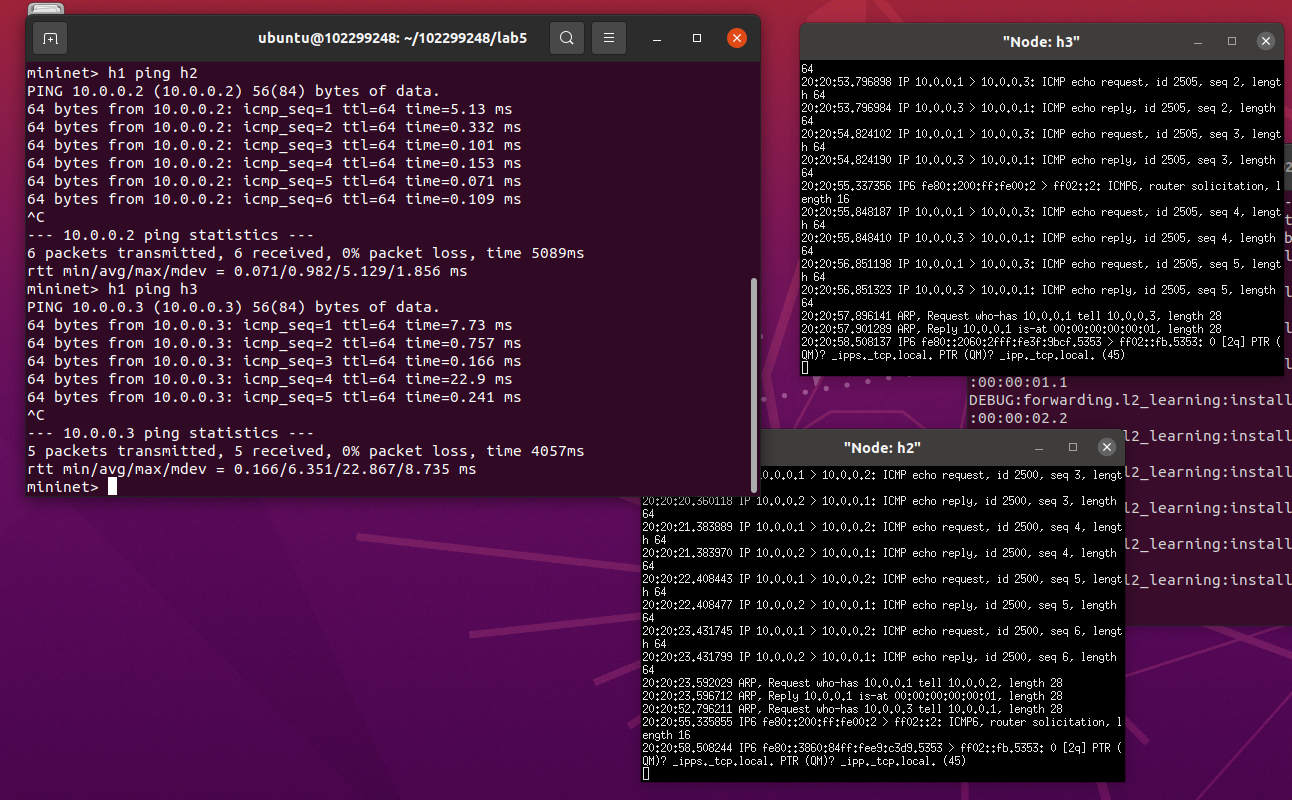

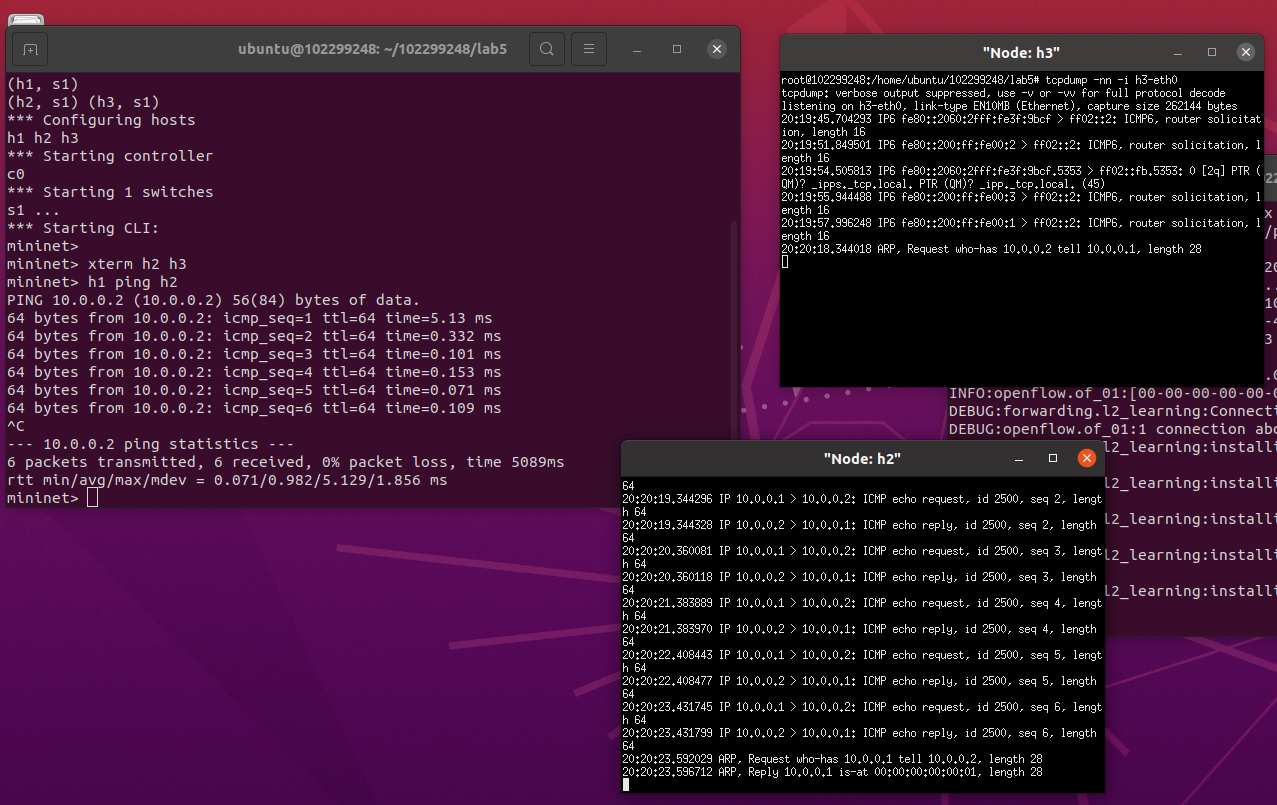

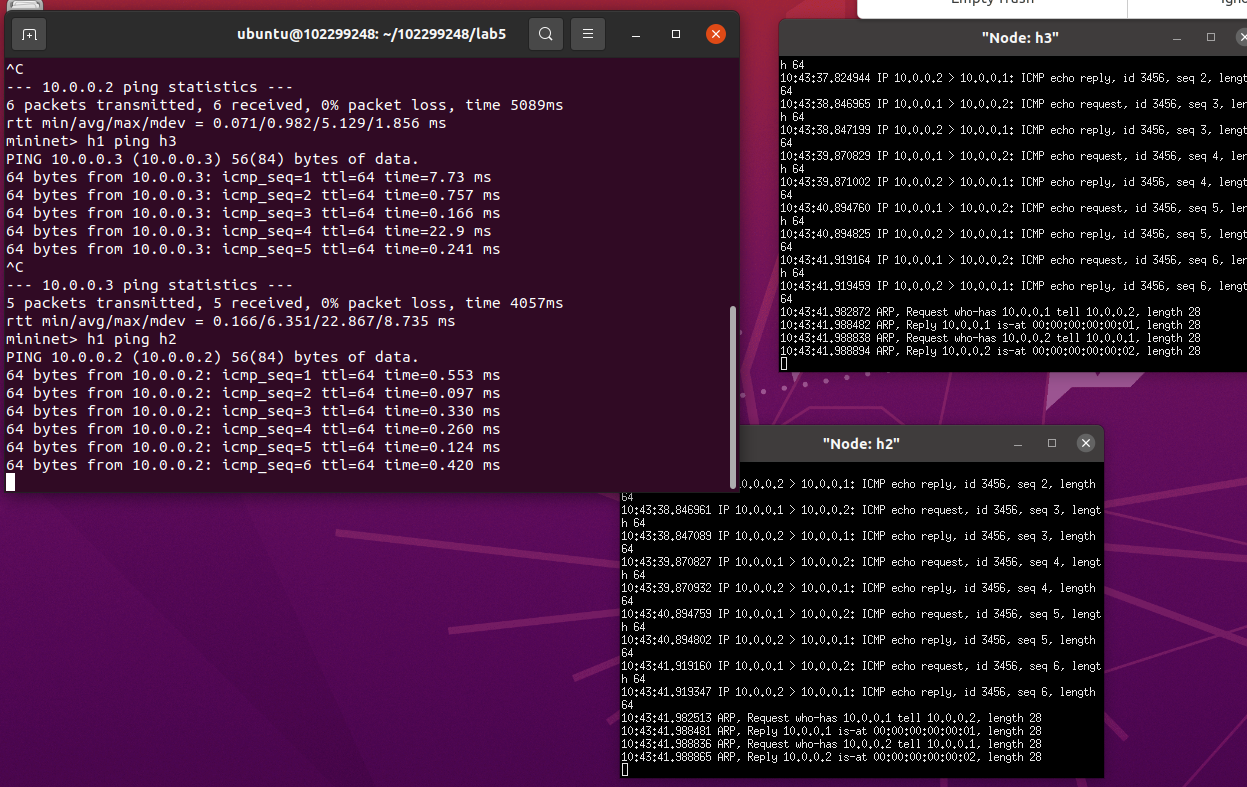

h1 ping h2,h1 ping h3均只有各自端口收到数据包

进阶要求

1.重新搭建（一）的拓扑，此时交换机内无流表规则，拓扑内主机互不相通；编写Python程序自定义一个POX模块SendFlowInSingle3，并且将拓扑连接至SendFlowInSingle3（默认端口6633），实现向s1发送流表规则使得所有主机两两互通。
SendFlowInSingle3代码

点击查看代码

`from pox.core import core
import pox.openflow.libopenflow_01 as of

class SendFlowInSingle3(object):
    def __init__(self):
        core.openflow.addListeners(self)
    def _handle_ConnectionUp(self, event):
        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 1
        msg.actions.append(of.ofp_action_output(port=2))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 2
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 3
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=2))
        event.connection.send(msg)

def launch():
    core.registerNew(SendFlowInSingle3)`

ping通
TimeOut代码

点击查看代码

from pox.core import core
import pox.openflow.libopenflow_01 as of

class SendPoxHardTimeOut(object):
    def __init__(self):
        core.openflow.addListeners(self)
    def _handle_ConnectionUp(self, event):

        msg = of.ofp_flow_mod()
        msg.priority = 2
        msg.match.in_port = 1
        msg.hard_timeout = 10
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 1
        msg.actions.append(of.ofp_action_output(port=2))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 2
        msg.match.in_port = 2
        msg.hard_timeout = 10
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 2
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 2
        msg.match.in_port = 3
        msg.hard_timeout = 10
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 3
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=2))
        event.connection.send(msg)

def launch():
    core.registerNew(SendPoxHardTimeOut)

SendFlowInSingle3代码

点击查看代码

`from pox.core import core
import pox.openflow.libopenflow_01 as of

class SendFlowInSingle3(object):
    def __init__(self):
        core.openflow.addListeners(self)
    def _handle_ConnectionUp(self, event):
        msg = of.ofp_flow_mod()  # 使用ofp_flow_mod()方法向交换机下发流表
        msg.priority = 1
        msg.match.in_port = 1
       # msg.actions.append(of.ofp_action_output(port=2))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 2
       # msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=3))
        event.connection.send(msg)

        msg = of.ofp_flow_mod()
        msg.priority = 1
        msg.match.in_port = 3
        msg.actions.append(of.ofp_action_output(port=1))
        msg.actions.append(of.ofp_action_output(port=2))
        event.connection.send(msg)

def launch():
    core.registerNew(SendFlowInSingle3)`

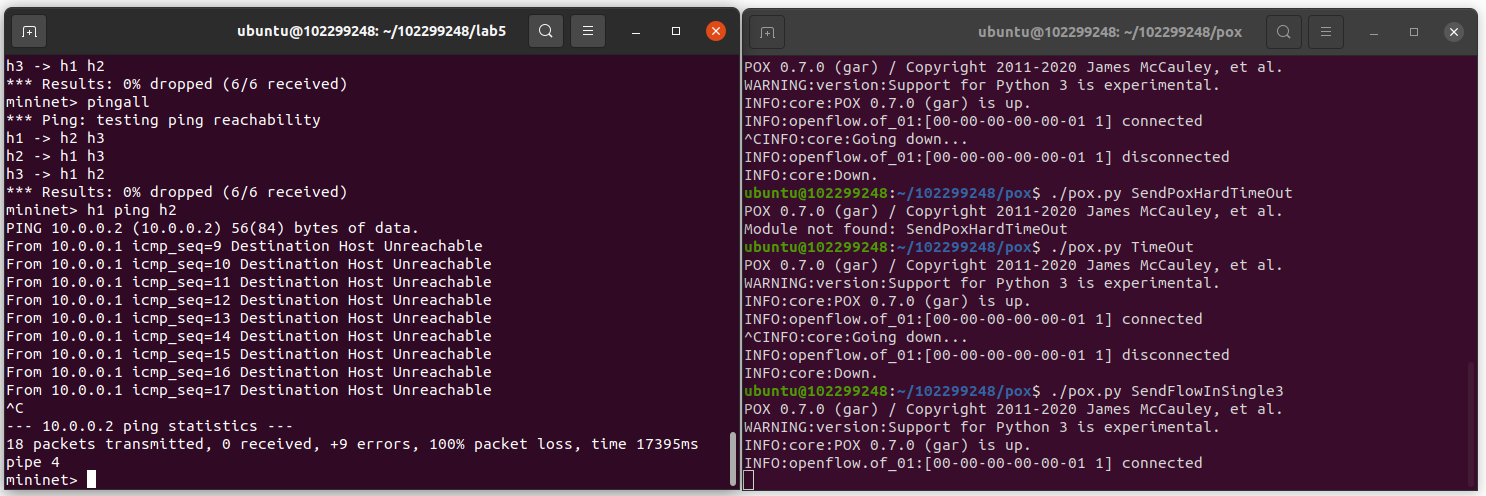

实现十秒硬延时

个人总结

本次实验学习了POX的使用，使用过程中曾经出现没有正常退出控制器导致的端口占用问题，需要使用重启或者杀进程的方式才能重新打开POX，xterm和TCPDUMP的使用，进阶部分较难，尤其是进阶二，虽然实现了断十秒但是后续无法再通。
