WPF Prism.Wpf RegionManager

Install-Package Prism.Wpf;
Install-Package Prism.DryIOC;



<Window x:Class="WpfApp28.Views.MainWin"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:prism="http://prismlibrary.com/"
        xmlns:local="clr-namespace:WpfApp28.Views"
        WindowState="Maximized"
        mc:Ignorable="d"
        Title="MainWin" Height="450" Width="800"
        prism:ViewModelLocator.AutoWireViewModel="True" >
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition/>
            <ColumnDefinition/>
        </Grid.ColumnDefinitions>
        <TextBlock Text="{Binding MainStatus}" Grid.Row="0" Grid.Column="0" Grid.ColumnSpan="2"
                   FontSize="30"/>

        <ContentControl Grid.Row="1" Grid.Column="0"
                        prism:RegionManager.RegionName="DgRegion"/>

        <ContentControl Grid.Row="1" Grid.Column="1"
                        prism:RegionManager.RegionName="ImageRegion"/>

    </Grid>
</Window>


using System.Configuration;
using System.Data;
using System.Windows;
using WpfApp28.Services;
using WpfApp28.ViewModels;
using WpfApp28.Views;

namespace WpfApp28
{
    /// <summary>
    /// Interaction logic for App.xaml
    /// </summary>

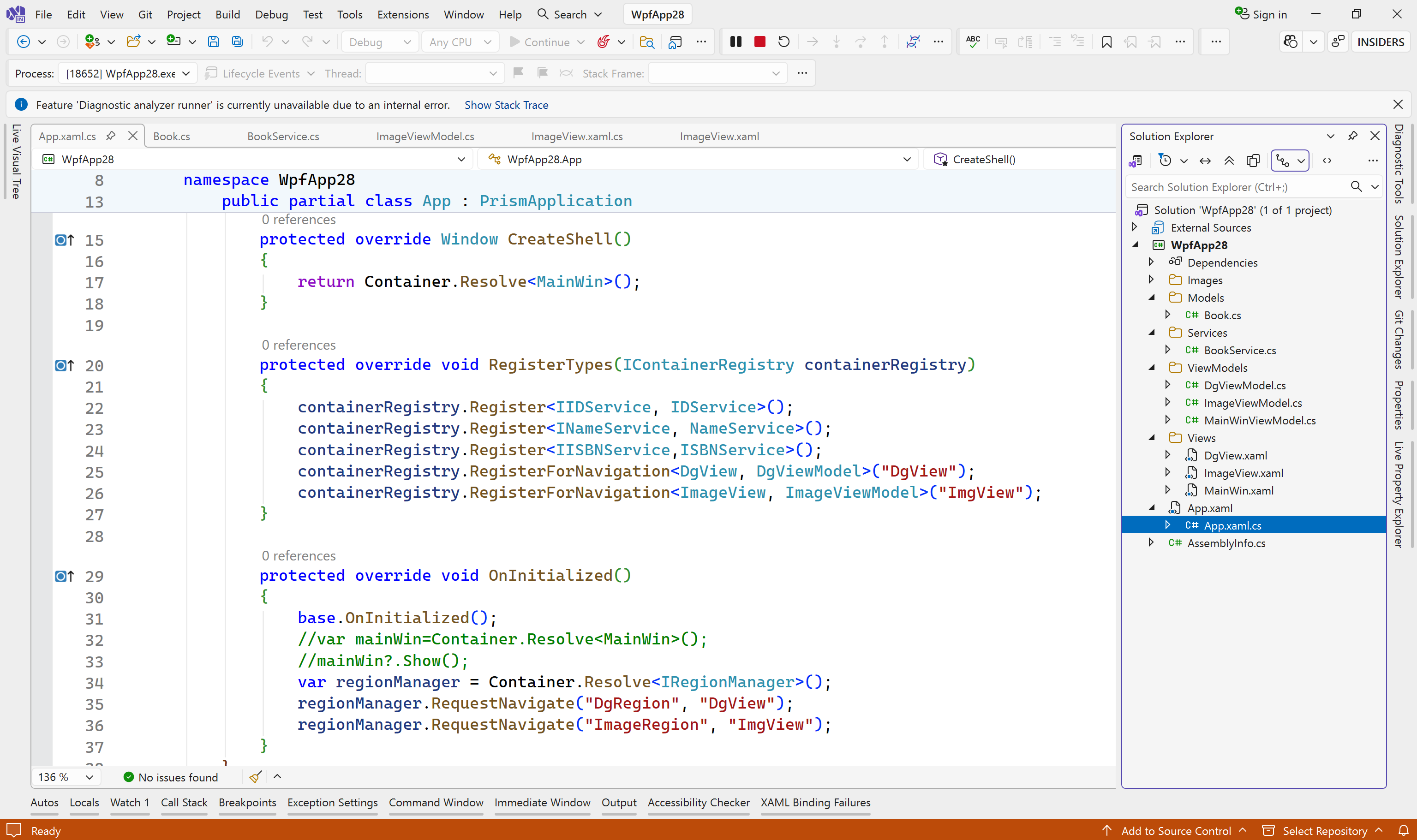

    public partial class App : PrismApplication
    {
        protected override Window CreateShell()
        {
            return Container.Resolve<MainWin>();
        }

        protected override void RegisterTypes(IContainerRegistry containerRegistry)
        {
            containerRegistry.Register<IIDService, IDService>();
            containerRegistry.Register<INameService, NameService>();
            containerRegistry.Register<IISBNService,ISBNService>();
            containerRegistry.RegisterForNavigation<DgView, DgViewModel>("DgView");
            containerRegistry.RegisterForNavigation<ImageView, ImageViewModel>("ImgView");
        }

        protected override void OnInitialized()
        {
            base.OnInitialized();
            //var mainWin=Container.Resolve<MainWin>();
            //mainWin?.Show();
            var regionManager = Container.Resolve<IRegionManager>();
            regionManager.RequestNavigate("DgRegion", "DgView");
            regionManager.RequestNavigate("ImageRegion", "ImgView");
        }
    }

}



































//MainWin.xaml
<Window x:Class="WpfApp28.Views.MainWin"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:prism="http://prismlibrary.com/"
        xmlns:local="clr-namespace:WpfApp28.Views"
        WindowState="Maximized"
        mc:Ignorable="d"
        Title="MainWin" Height="450" Width="800"
        prism:ViewModelLocator.AutoWireViewModel="True" >
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition/>
            <ColumnDefinition/>
        </Grid.ColumnDefinitions>
        <TextBlock Text="{Binding MainStatus}" Grid.Row="0" Grid.Column="0" Grid.ColumnSpan="2"
                   FontSize="30"/>

        <ContentControl Grid.Row="1" Grid.Column="0"
                        prism:RegionManager.RegionName="DgRegion"/>

        <ContentControl Grid.Row="1" Grid.Column="1"
                        prism:RegionManager.RegionName="ImageRegion"/>

    </Grid>
</Window>
//MainWinViewModel.cs
using System;
using System.Collections.Generic;
using System.Text;

namespace WpfApp28.ViewModels
{
    public class MainWinViewModel:BindableBase
    {
        UInt128 idx = 0;
        public MainWinViewModel()
        {
            MainStatus = $"{++idx}_{Guid.NewGuid():N}_" +
                $"{DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss.fff")}";
            Task.Run(() =>
            {
                InitTimer();
            });
        }

        private void InitTimer()
        {
            System.Timers.Timer tmr=new System.Timers.Timer();
            tmr.Interval = 1000;
            tmr.Elapsed += Tmr_Elapsed;
            tmr.Start();
        }

        private void Tmr_Elapsed(object? sender, System.Timers.ElapsedEventArgs e)
        {
            MainStatus = $"{++idx}_{Guid.NewGuid():N}_" +
                $"{DateTime.Now.ToString("yyyy-MM-dd HH:mm:ss.fff")}";
        }

        private string mainStatus;
        public string MainStatus
        {
            get
            {
                return mainStatus;
            }
            set
            {
                SetProperty(ref mainStatus, value);
            }
        }
    }
}


//App.xaml
<prism:PrismApplication x:Class="WpfApp28.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:WpfApp28"
             xmlns:prism="http://prismlibrary.com/">
</prism:PrismApplication>


//App.xaml.cs
using System.Configuration;
using System.Data;
using System.Windows;
using WpfApp28.Services;
using WpfApp28.ViewModels;
using WpfApp28.Views;

namespace WpfApp28
{
    /// <summary>
    /// Interaction logic for App.xaml
    /// </summary>
    public partial class App : PrismApplication
    {
        protected override Window CreateShell()
        {
            return Container.Resolve<MainWin>();
        }

        protected override void RegisterTypes(IContainerRegistry containerRegistry)
        {
            containerRegistry.Register<IIDService, IDService>();
            containerRegistry.Register<INameService, NameService>();
            containerRegistry.Register<IISBNService,ISBNService>();
            containerRegistry.RegisterForNavigation<DgView, DgViewModel>("DgView");
            containerRegistry.RegisterForNavigation<ImageView, ImageViewModel>("ImgView");
        }

        protected override void OnInitialized()
        {
            base.OnInitialized();
            //var mainWin=Container.Resolve<MainWin>();
            //mainWin?.Show();
            var regionManager = Container.Resolve<IRegionManager>();
            regionManager.RequestNavigate("DgRegion", "DgView");
            regionManager.RequestNavigate("ImageRegion", "ImgView");
        }
    }

}


//DgView.xaml
<UserControl x:Class="WpfApp28.Views.DgView"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:prism="http://prismlibrary.com/"
             VerticalAlignment="Stretch"
             HorizontalAlignment="Stretch"
             prism:ViewModelLocator.AutoWireViewModel="True"
             xmlns:local="clr-namespace:WpfApp28.Views"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">
    <Grid>
        <DataGrid ItemsSource="{Binding BooksCollection,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
                  VirtualizingPanel.IsVirtualizing="True"
                  VirtualizingPanel.VirtualizationMode="Recycling"
                  VirtualizingPanel.CacheLengthUnit="Item"
                  VirtualizingPanel.CacheLength="2,2"
                  ScrollViewer.IsDeferredScrollingEnabled="True"
                  ScrollViewer.CanContentScroll="True"
                  AutoGenerateColumns="True"
                  FontSize="20"
                  CanUserAddRows="False">
        </DataGrid>
    </Grid>
</UserControl>

//DgView.xaml.cs
using System;
using System.Collections.Generic;
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using WpfApp28.ViewModels;

namespace WpfApp28.Views
{
    /// <summary>
    /// Interaction logic for DgView.xaml
    /// </summary>
    public partial class DgView : UserControl
    {
        public DgView()
        {
            InitializeComponent();
            this.Loaded += async (s, e) =>
            {
                var vm = this.DataContext as DgViewModel;
                if (vm != null)
                {
                    await vm.InitBooksCollection();
                }
            };
        }
    }
}

//DgViewModel.cs
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Configuration;
using System.Text;
using WpfApp28.Models;
using WpfApp28.Services;

namespace WpfApp28.ViewModels
{
    public class DgViewModel:BindableBase
    {
        IIDService idService;
        INameService nameService;
        IISBNService isbnService;

        public DgViewModel(IIDService idServiceValue,INameService nameServiceValue,
            IISBNService isbnServiceValue)
        {
            idService = idServiceValue;
            nameService = nameServiceValue;
            isbnService = isbnServiceValue;
        }

        public async Task InitBooksCollection()
        {
            BooksCollection = new ObservableCollection<Book>();
            List<Book> booksList= new List<Book>();
            for(int i=1;i<1000001;i++)
            {
                booksList.Add(new Book()
                {
                    Id = idService.GetID(),
                    Name = nameService.GetName(),
                    ISBN = isbnService.GetISBN(),
                    Title = $"Title_{i}",
                    Topic = $"Topic_{i}"
                });

                if (i % 10000 == 0)
                {
                    await PopulateBooksCollectionAsync(booksList);
                }
            }

            if(booksList.Any())
            {
                await PopulateBooksCollectionAsync(booksList);
            }
        }

        private async Task PopulateBooksCollectionAsync(List<Book> booksList)
        {
            var tempList = booksList.ToList();
            booksList.Clear();
            await System.Windows.Application.Current.Dispatcher.InvokeAsync(async () =>
            {
                foreach (var bk in tempList)
                {
                    BooksCollection.Add(bk);
                }
            }, System.Windows.Threading.DispatcherPriority.Background);
        }

        private ObservableCollection<Book> booksCollection;
        public ObservableCollection<Book> BooksCollection
        {
            get
            {
                return booksCollection;
            }
            set
            {
                SetProperty(ref booksCollection, value);
            }
        }
    }
}


//ImageView.xaml
<UserControl x:Class="WpfApp28.Views.ImageView"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:prism="http://prismlibrary.com/"
             prism:ViewModelLocator.AutoWireViewModel="True"
             VerticalAlignment="Stretch"
             HorizontalAlignment="Stretch"
             xmlns:local="clr-namespace:WpfApp28.Views"
             mc:Ignorable="d"
             d:DesignHeight="450" d:DesignWidth="800">
    <Grid>
        <Grid.Background>
            <ImageBrush ImageSource="{Binding ImgSource}" Stretch="Uniform"/>
        </Grid.Background>
        <TextBlock Text="{Binding ImgUrl}"
                   HorizontalAlignment="Stretch"
                   VerticalAlignment="Center"
                   Foreground="Red"
                   FontSize="50"
                   TextWrapping="Wrap"/>
    </Grid>
</UserControl>

//ImageViewModel.cs
using System;
using System.Collections.Generic;
using System.IO;
using System.Text;
using System.Windows.Media;
using System.Windows.Media.Imaging;

namespace WpfApp28.ViewModels
{
    public class ImageViewModel : BindableBase
    {
        List<string> imgsList = new List<string>();
        int imgsCount = 0;
        int imgIdx = 0;
        public ImageViewModel()
        {
            InitImgs();
            Task.Run(() =>
            {
                InitTimer();
            });
        }

        private void InitTimer()
        {
            System.Timers.Timer tmr=new System.Timers.Timer();
            tmr.Interval = 1000;
            tmr.Elapsed += Tmr_Elapsed;
            tmr.Start();
        }

        private void Tmr_Elapsed(object? sender, System.Timers.ElapsedEventArgs e)
        {
            System.Windows.Application.Current.Dispatcher.Invoke(new Action(() =>
            {
                ImgUrl = System.IO.Path.GetFullPath(imgsList[(++imgIdx) % imgsCount]);
                ImgSource = GenImageSourceViaUrl(ImgUrl);
            }));
        }

        private void InitImgs()
        {
            string imgDir = @"../../../Images";
            if (!Directory.Exists(imgDir))
            {
                return;
            }

            imgsList = Directory.GetFiles(imgDir).ToList();
            if (imgsList == null || !imgsList.Any())
            {
                return;
            }
            imgsCount = imgsList.Count;
            ImgUrl = System.IO.Path.GetFullPath(imgsList[0]);
            ImgSource = GenImageSourceViaUrl(ImgUrl);
        }

        private ImageSource GenImageSourceViaUrl(string imgUrl)
        {
            BitmapImage bmi = new BitmapImage();
            if(!File.Exists(imgUrl))
            {
                return bmi;
            }
            bmi.BeginInit();
            bmi.UriSource=new Uri(imgUrl,UriKind.RelativeOrAbsolute);
            bmi.EndInit();
            if(bmi.CanFreeze)
            {
                bmi.Freeze();
            }
            return bmi;
        }

        private ImageSource imgSource;
        public ImageSource ImgSource
        {
            get
            {
                return imgSource;
            }
            set
            {
                SetProperty(ref imgSource, value);
            }
        }

        private string imgUrl;
        public string ImgUrl
        {
            get
            {
                return imgUrl;
            }
            set
            {
                SetProperty(ref imgUrl, value);
            }
        }
    }
}


//Service.cs
using System;
using System.Collections.Generic;
using System.Text;

namespace WpfApp28.Services
{

    public interface IIDService
    {
        int GetID();
    }

    public class IDService : IIDService
    {
        int idx = 0;
        public int GetID()
        {
             return Interlocked.Increment(ref idx);
        }
    }

    public interface INameService
    {
        string GetName();
    }

    public class NameService : INameService
    {
        int idx = 0;
        public string GetName()
        {
            return $"Name_{Interlocked.Increment(ref idx)}";
        }
    }

    public interface IISBNService
    {
        string GetISBN();
    }


    public class ISBNService:IISBNService
    {
        int idx = 0;

        public string GetISBN()
        {
            return $"ISBN_{Interlocked.Increment(ref idx)}_{Guid.NewGuid():N}";
        }
    }
}


//Book.cs
using System;
using System.Collections.Generic;
using System.Text;

namespace WpfApp28.Models
{
    public class Book
    {
        public int Id { get; set; }
        public string Name { get; set; }
        public string ISBN { get; set;  }
        public string Title { get;set;  }
        public string Topic { get; set;  }
    }
}
