WPF MVVM FindVisualChildren get all elements, get element by name, get elements by type

 public List<Visual> FindVisualChildren(DependencyObject dpObj)
 {
     List<Visual> childrenList = new List<Visual>();
     int childrenCount = VisualTreeHelper.GetChildrenCount(dpObj);
     for (int i = 0; i < childrenCount; i++)
     {
         var child = VisualTreeHelper.GetChild(dpObj, i) as Visual;
         if (child != null)
         {
             childrenList.Add(child);
             childrenList.AddRange(FindVisualChildren(child));
         }
     }
     return childrenList;
 }

 public List<Visual> FindVisualChildrenByType(DependencyObject dpObj, string typeName)
 {
     List<Visual> visualsList = FindVisualChildren(dpObj)?.Where(x => x.GetType().Name == typeName).ToList();
     return visualsList;
 }

 public Visual FindVisualChildrenByName(DependencyObject dpObj, string elementName)
 {
     var element = FindVisualChildren(dpObj)?.Where(x => ((FrameworkElement)x).Name == elementName).FirstOrDefault();
     return element;
 }









Border
AdornerDecorator
ContentPresenter
Grid
ToolBar
Grid,Grid
Grid,OverflowGrid
ToggleButton,OverflowButton
Border,Bd
Canvas
Path
Path
Path
Path
Popup,OverflowPopup
Border,MainPanelBorder
DockPanel
Thumb,ToolBarThumb
Border
Rectangle
ContentPresenter,ToolBarHeader
ToolBarPanel,PART_ToolBarPanel
Button
Border,Bd
ContentPresenter
TextBlock
Button
Border,Bd
ContentPresenter
TextBlock
Button
Border,Bd
ContentPresenter
TextBlock
TextBox
Border,Border
ScrollViewer,PART_ContentHost
Grid
Rectangle
ScrollContentPresenter
TextBoxView
AdornerLayer
ScrollBar
ScrollBar
TextBox
Border,Border
ScrollViewer,PART_ContentHost
Grid
Rectangle
ScrollContentPresenter
TextBoxView
AdornerLayer
ScrollBar
ScrollBar
DataGrid
Border
ScrollViewer,DG_ScrollViewer
Grid
Button
Grid
Rectangle,Border
Polygon,Arrow
DataGridColumnHeadersPresenter,PART_ColumnHeadersPresenter
Grid
DataGridColumnHeader,PART_FillerColumnHeader
Grid
DataGridHeaderBorder
ContentPresenter
Thumb,PART_LeftHeaderGripper
Border
Thumb,PART_RightHeaderGripper
Border
ItemsPresenter
DataGridCellsPanel
ScrollContentPresenter,PART_ScrollContentPresenter
ItemsPresenter
DataGridRowsPresenter,PART_RowsPresenter
AdornerLayer
ScrollBar,PART_VerticalScrollBar
Grid
ScrollBar,PART_HorizontalScrollBar
DataGrid,dg1
Border
ScrollViewer,DG_ScrollViewer
Grid
Button
Grid
Rectangle,Border
Polygon,Arrow
DataGridColumnHeadersPresenter,PART_ColumnHeadersPresenter
Grid
DataGridColumnHeader,PART_FillerColumnHeader
Grid
DataGridHeaderBorder
ContentPresenter
Thumb,PART_LeftHeaderGripper
Border
Thumb,PART_RightHeaderGripper
Border
ItemsPresenter
DataGridCellsPanel
ScrollContentPresenter,PART_ScrollContentPresenter
ItemsPresenter
DataGridRowsPresenter,PART_RowsPresenter
AdornerLayer
ScrollBar,PART_VerticalScrollBar
Grid
ScrollBar,PART_HorizontalScrollBar
Canvas
ListBox,lv
Border,Bd
ScrollViewer
Grid
Rectangle
ScrollContentPresenter
ItemsPresenter
VirtualizingStackPanel
AdornerLayer
ScrollBar
ScrollBar
AdornerLayer

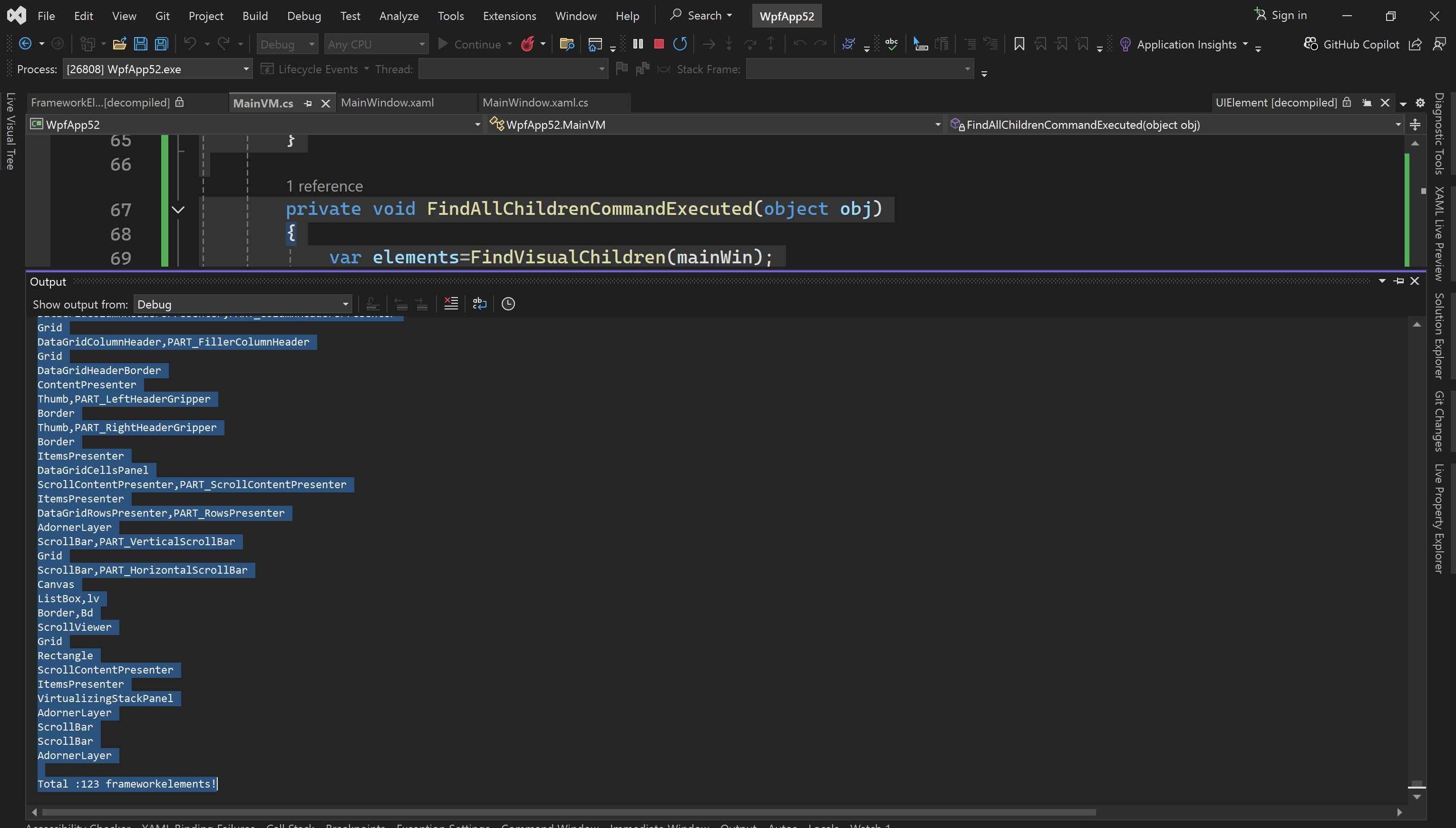

Total :123 frameworkelements!



















//xaml
<Window x:Class="WpfApp52.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        WindowState="Maximized"
        xmlns:local="clr-namespace:WpfApp52"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Window.Resources>
        <Style x:Key="{x:Static ToolBar.ButtonStyleKey}" TargetType="{x:Type Button}">
            <Setter Property="FontSize" Value="20"/>
            <Setter Property="Foreground" Value="Black"/>
            <Setter Property="Width" Value="200"/>
            <Style.Triggers>
                <Trigger Property="IsMouseOver" Value="True">
                    <Setter Property="Foreground" Value="Red"/>
                    <Setter Property="FontSize" Value="30"/>
                    <Setter Property="Width" Value="300"/>
                </Trigger>
            </Style.Triggers>
        </Style>
        <Style x:Key="{x:Static ToolBar.TextBoxStyleKey}" TargetType="{x:Type TextBox}">
            <Setter Property="FontSize" Value="20"/>
            <Setter Property="Width" Value="200"/>
            <Setter Property="BorderBrush" Value="Blue"/>
            <Setter Property="BorderThickness" Value="5"/>
        </Style>
    </Window.Resources>
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="50"/>
            <RowDefinition/>
            <RowDefinition/>
        </Grid.RowDefinitions>
        <Grid.ColumnDefinitions>
            <ColumnDefinition/>
            <ColumnDefinition/>
        </Grid.ColumnDefinitions>
        <ToolBar Grid.Row="0" Grid.Column="0" Grid.ColumnSpan="2">
            <Button Content="Find All Children"
                    Command="{Binding FindAllChildrenCommand}"/>
            <Button Content="Find Children by Type"
                    Command="{Binding FindChildrenByTypeCommand}"/>
            <Button Content="Find Children by Name"
                    Command="{Binding FindChildrenByNameCommand}"/>
            <TextBox Text="{Binding ChildTypeName,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
                     ToolTip="Child Type Name" />
            <TextBox Text="{Binding ChildName,Mode=TwoWay,UpdateSourceTrigger=PropertyChanged}"
                     ToolTip="Child Name"/>
        </ToolBar>
        <DataGrid Grid.Row="1" Grid.Column="0"
                  BorderBrush="Blue"
                  BorderThickness="5"/>
        <DataGrid  x:Name="dg1" Grid.Row="1" Grid.Column="1"
                   BorderBrush="Blue" BorderThickness="5"/>
        <Canvas Grid.Row="2" Grid.Column="0"/>
        <ListBox x:Name="lv" Grid.Row="2" Grid.Column="1"
                 BorderBrush="Blue" BorderThickness="5"/>
    </Grid>
</Window>



//window.cs
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace WpfApp52
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        public MainWindow()
        {
            InitializeComponent();
            var vm = new MainVM(this);
            this.DataContext = vm;
        }
    }
}


//viewmodel.cs
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Input;
using System.Windows.Media;

namespace WpfApp52
{
    public class MainVM: INotifyPropertyChanged
    {
        private Window mainWin;
        public MainVM(Window win)
        {
            mainWin = win;
            InitCommands();
        }

        private void InitCommands()
        {
            FindAllChildrenCommand = new DelCommand(FindAllChildrenCommandExecuted);
            FindChildrenByTypeCommand = new DelCommand(FindChildrenByTypeCommandExecuted, FindChildrenByTypeCommandCanExecute);
            FindChildrenByNameCommand = new DelCommand(FindChildrenByNameCommandExecuted, FindChildrenByNameCommandCanExecute);
        }

        private bool FindChildrenByNameCommandCanExecute(object obj)
        {
            if(!string.IsNullOrWhiteSpace(ChildName))
            {
                return true;
            }
            return false;
        }

        private bool FindChildrenByTypeCommandCanExecute(object obj)
        {
            if(!string.IsNullOrWhiteSpace(ChildTypeName))
            {
                return true;
            }
            return false;
        }

        private void FindChildrenByNameCommandExecuted(object obj)
        {
            var element = FindVisualChildren(mainWin).Where(x => (x as FrameworkElement)?.Name == ChildName)?.FirstOrDefault();
            MessageBox.Show($"Name:{ChildName}");
        }

        private void FindChildrenByTypeCommandExecuted(object obj)
        {
            var typedElemnts = FindVisualChildren(mainWin).Where(x => x.GetType().Name == ChildTypeName)?.ToList();
            if(typedElemnts!=null && typedElemnts.Any())
            {
                StringBuilder typeBuilder = new StringBuilder();
                foreach(var element in  typedElemnts)
                {
                    typeBuilder.AppendLine(element.GetType().Name+" "+(element as FrameworkElement)?.Name);
                }
                Console.WriteLine(typeBuilder.ToString());
            }
        }

        private void FindAllChildrenCommandExecuted(object obj)
        {
            var elements=FindVisualChildren(mainWin);
            if(elements!=null)
            {
                StringBuilder builder = new StringBuilder();
                foreach(var element in elements)
                {
                    var fe = element as FrameworkElement;
                    if(fe!=null)
                    {
                        string info = $"{fe.GetType().Name}";
                        if(!string.IsNullOrWhiteSpace(fe.Name))
                        {
                            info += $",{fe.Name}";
                        }
                        builder.AppendLine(info);
                    }
                    Console.WriteLine(builder.ToString());
                    Console.WriteLine($"Total :{elements.Count} frameworkelements!");
                }
            }
        }



        public event PropertyChangedEventHandler PropertyChanged;
        private void OnPropertyChanged(string propName)
        {
            var handler = PropertyChanged;
            if(handler!=null)
            {
                handler?.Invoke(this, new PropertyChangedEventArgs(propName));
            }
        }

        private string childName;
        public string ChildName
        {
            get
            {
               return childName;
            }
            set
            {
                if(value!=childName)
                {
                    childName = value;
                    OnPropertyChanged(nameof(ChildName));
                }
            }
        }

        private string childTypeName;

        public string ChildTypeName
        {
            get
            {
                return childTypeName;
            }
            set
            {
                if(value!=childTypeName)
                {
                    childTypeName = value;
                    OnPropertyChanged(nameof(ChildTypeName));
                }
            }
        }

        public DelCommand FindAllChildrenCommand { get; set; }
        public DelCommand FindChildrenByTypeCommand { get; set; }
        public DelCommand FindChildrenByNameCommand { get; set; }

        public List<Visual> FindVisualChildren(DependencyObject dpObj)
        {
            List<Visual> childrenList = new List<Visual>();
            int childrenCount = VisualTreeHelper.GetChildrenCount(dpObj);
            for (int i = 0; i < childrenCount; i++)
            {
                var child = VisualTreeHelper.GetChild(dpObj, i) as Visual;
                if (child != null)
                {
                    childrenList.Add(child);
                    childrenList.AddRange(FindVisualChildren(child));
                }
            }
            return childrenList;
        }

        public List<Visual> FindVisualChildrenByType(DependencyObject dpObj, string typeName)
        {
            List<Visual> visualsList = FindVisualChildren(dpObj)?.Where(x => x.GetType().Name == typeName).ToList();
            return visualsList;
        }

        public Visual FindVisualChildrenByName(DependencyObject dpObj, string elementName)
        {
            var element = FindVisualChildren(dpObj)?.Where(x => ((FrameworkElement)x).Name == elementName).FirstOrDefault();
            return element;
        }
    }

    public class DelCommand : ICommand
    {
        private Action<object> execute;
        private Predicate<object> canExecute;

        public DelCommand(Action<object> executeValue, Predicate<object> canExecuteValue = null)
        {
            execute = executeValue;
            canExecute = canExecuteValue;
        }
        public event EventHandler CanExecuteChanged
        {
            add
            {
                CommandManager.RequerySuggested += value;
            }
            remove
            {
                CommandManager.RequerySuggested -= value;
            }
        }

        public bool CanExecute(object parameter)
        {
            if (canExecute == null)
            {
                return true;
            }
            return canExecute(parameter);
        }

        public void Execute(object parameter)
        {
            execute(parameter);
        }
    }
}
