实验四

任务一

GradeCalc.hpp

#pragma once

#include <vector>
#include <array>
#include <string>

class GradeCalc {
public:
    GradeCalc(const std::string &cname);
    void input(int n);                         // 录入n个成绩
    void output() const;                      // 输出成绩
    void sort(bool ascending = false);        // 排序 (默认降序)
    int min() const;                          // 返回最低分（如成绩未录入，返回-1)
    int max() const;                          // 返回最高分 （如成绩未录入，返回-1)
    double average() const;                   // 返回平均分 （如成绩未录入，返回0.0)
    void info();                      // 输出课程成绩信息

private:
    void compute();     // 成绩统计

private:
    std::string course_name;     // 课程名
    std::vector<int> grades;     // 课程成绩
    std::array<int, 5> counts;      // 保存各分数段人数（[0, 60), [60, 70), [70, 80), [80, 90), [90, 100]
    std::array<double, 5> rates;    // 保存各分数段人数占比
    bool is_dirty;      // 脏标记，记录是否成绩信息有变更
};

GradeCalc.cpp

#include <algorithm>
#include <array>
#include <cstdlib>
#include <iomanip>
#include <iostream>
#include <numeric>
#include <string>
#include <vector>

#include "GradeCalc.hpp"

GradeCalc::GradeCalc(const std::string &cname):course_name{cname},is_dirty{true} {
    counts.fill(0);
    rates.fill(0);
}

void GradeCalc::input(int n) {
    if(n < 0) {
        std::cerr << "无效输入! 人数不能为负数\n";
        std::exit(1);
    }

    grades.reserve(n);

    int grade;

    for(int i = 0; i < n;) {
        std::cin >> grade;

        if(grade < 0 || grade > 100) {
            std::cerr << "无效输入! 分数须在[0,100]\n";
            continue;
        }

        grades.push_back(grade);
        ++i;
    }

    is_dirty = true;  // 设置脏标记：成绩信息有变更
}

void GradeCalc::output() const {
    for(auto grade: grades)
        std::cout << grade << ' ';
    std::cout << std::endl;
}

void GradeCalc::sort(bool ascending) {
    if(ascending)
        std::sort(grades.begin(), grades.end());
    else
        std::sort(grades.begin(), grades.end(), std::greater<int>());
}

int GradeCalc::min() const {
    if(grades.empty())
        return -1;

    auto it = std::min_element(grades.begin(), grades.end());
    return *it;
}

int GradeCalc::max() const {
    if(grades.empty())
        return -1;

    auto it = std::max_element(grades.begin(), grades.end());
    return *it;
}

double GradeCalc::average() const {
    if(grades.empty())
        return 0.0;

    double avg = std::accumulate(grades.begin(), grades.end(), 0.0)/grades.size();
    return avg;
}

void GradeCalc::info() {
    if(is_dirty)
       compute();

    std::cout << "课程名称:\t" << course_name << std::endl;
    std::cout << "平均分:\t" << std::fixed << std::setprecision(2) << average() << std::endl;
    std::cout << "最高分:\t" << max() << std::endl;
    std::cout << "最低分:\t" << min() << std::endl;

    const std::array<std::string, 5> grade_range{"[0, 60) ",
                                           "[60, 70)",
                                           "[70, 80)",
                                           "[80, 90)",
                                           "[90, 100]"};

    for(int i = static_cast<int>(grade_range.size())-1; i >= 0; --i)
        std::cout << grade_range[i] << "\t: " << counts[i] << "人\t"
                  << std::fixed << std::setprecision(2) << rates[i]*100 << "%\n";
}

void GradeCalc::compute() {
    if(grades.empty())
        return;

    counts.fill(0);
    rates.fill(0.0);

    // 统计各分数段人数
    for(auto grade:grades) {
        if(grade < 60)
            ++counts[0];        // [0, 60)
        else if (grade < 70)
            ++counts[1];        // [60, 70)
        else if (grade < 80)
            ++counts[2];        // [70, 80)
        else if (grade < 90)
            ++counts[3];        // [80, 90)
        else
            ++counts[4];        // [90, 100]
    }

    // 统计各分数段比例
    for(size_t i = 0; i < rates.size(); ++i)
        rates[i] = counts[i] * 1.0 / grades.size();

    is_dirty = false;  // 更新脏标记
}

task1.cpp

#include <iostream>
#include <string>
#include "GradeCalc.hpp"

void test() {
    GradeCalc c1("OOP");

    std::cout << "录入成绩:\n";
    c1.input(5);

    std::cout << "输出成绩:\n";
    c1.output();

    std::cout << "排序后成绩:\n";
    c1.sort(); c1.output();

    std::cout << "*************成绩统计信息*************\n";
    c1.info();

}

int main() {
    test();
}

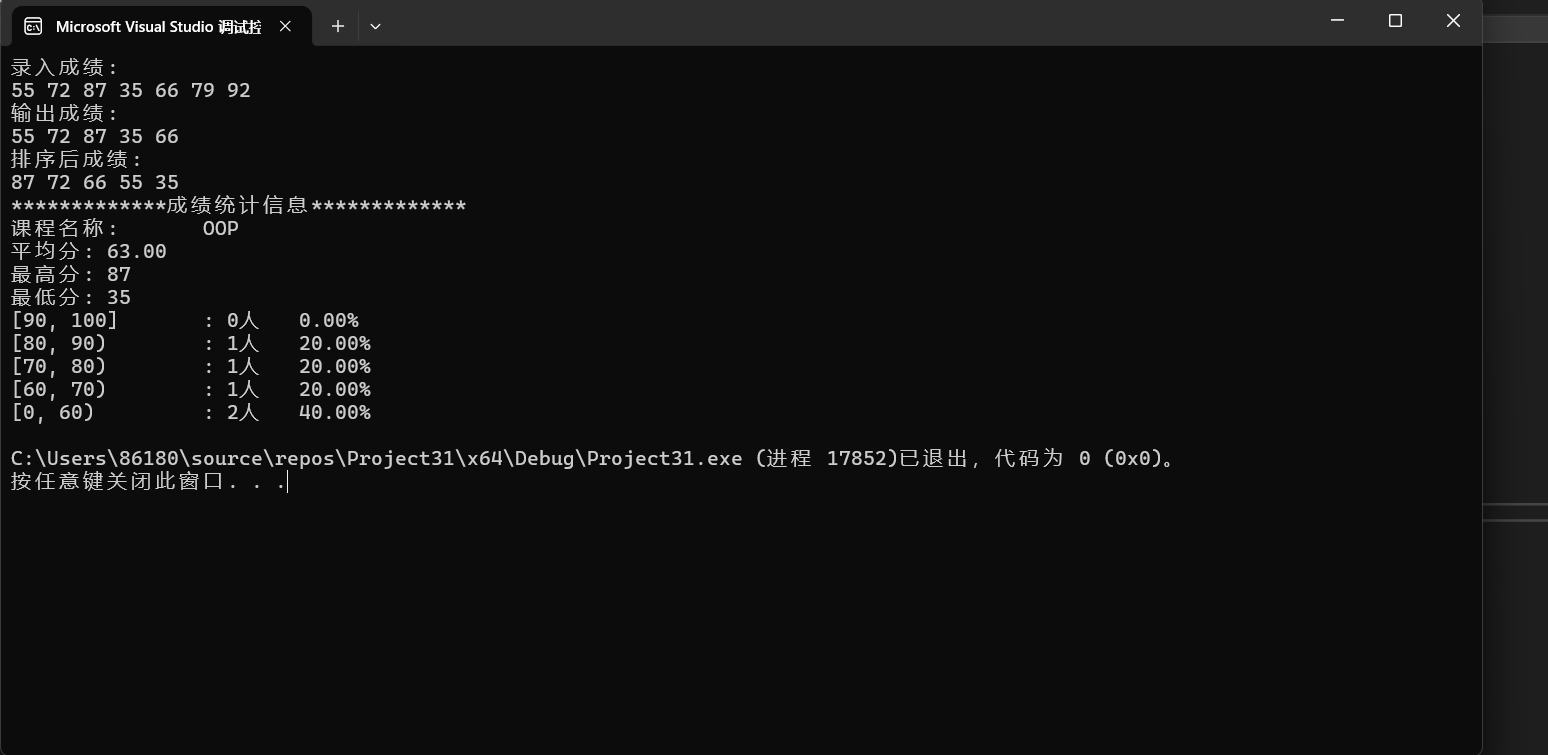

结果

1.std::vector<int>grades  std::array<int,5>counts  std::array<double,5>rates

2.push_back是std::vector的成员函数，而grades是GradeCalc的私有成员，外部无法直接访问

3.1次，记录成绩是否有变更

4.

在info处添加

double median() const {
    if (grades.empty()) return 0.0;
    std::vector<int> sorted = grades;
    std::sort(sorted.begin(), sorted.end());
    int n = sorted.size();
    if (n % 2 == 1)
        return sorted[n/2];
    else
        return (sorted[n/2 - 1] + sorted[n/2]) / 2.0;
}

5.不能

多次调用compute并且列表长度保持不变时

6.（1）没有

（2）有



任务二

GradeCalc.hpp

#pragma once

#include <array>
#include <string>
#include <vector>

class GradeCalc: private std::vector<int> {
public:
    GradeCalc(const std::string &cname);
    void input(int n);                        // 录入n个成绩
    void output() const;                      // 输出成绩
    void sort(bool ascending = false);        // 排序 (默认降序)
    int min() const;                          // 返回最低分
    int max() const;                          // 返回最高分
    double average() const;                   // 返回平均分
    void info();                              // 输出成绩统计信息

private:
    void compute();               // 计算成绩统计信息

private:
    std::string course_name;     // 课程名
    std::array<int, 5> counts;   // 保存各分数段人数（[0, 60), [60, 70), [70, 80), [80, 90), [90, 100]
    std::array<double, 5> rates; // 保存各分数段占比
    bool is_dirty;      // 脏标记，记录是否成绩信息有变更
};

GradeCalc.cpp

#include <algorithm>
#include <array>
#include <cstdlib>
#include <iomanip>
#include <iostream>
#include <numeric>
#include <string>
#include <vector>
#include "GradeCalc.hpp"


GradeCalc::GradeCalc(const std::string &cname): course_name{cname}, is_dirty{true}{
    counts.fill(0);
    rates.fill(0);
}

void GradeCalc::input(int n) {
    if(n < 0) {
        std::cerr << "无效输入! 人数不能为负数\n";
        return;
    }

    this->reserve(n);

    int grade;

    for(int i = 0; i < n;) {
        std::cin >> grade;
        if(grade < 0 || grade > 100) {
            std::cerr << "无效输入! 分数须在[0,100]\n";
            continue;
        }

        this->push_back(grade);
        ++i;
    }

    is_dirty = true;
}

void GradeCalc::output() const {
    for(auto grade: *this)
        std::cout << grade << ' ';
    std::cout << std::endl;
}

void GradeCalc::sort(bool ascending) {
    if(ascending)
        std::sort(this->begin(), this->end());
    else
        std::sort(this->begin(), this->end(), std::greater<int>());
}

int GradeCalc::min() const {
    if(this->empty())
        return -1;

    return *std::min_element(this->begin(), this->end());
}

int GradeCalc::max() const {
    if(this->empty())
        return -1;

    return *std::max_element(this->begin(), this->end());
}

double GradeCalc::average() const {
    if(this->empty())
        return 0.0;

    double avg = std::accumulate(this->begin(), this->end(), 0.0) / this->size();
    return avg;
}

void GradeCalc::info() {
    if(is_dirty)
        compute();

    std::cout << "课程名称:\t" << course_name << std::endl;
    std::cout << "平均分:\t" << std::fixed << std::setprecision(2) << average() << std::endl;
    std::cout << "最高分:\t" << max() << std::endl;
    std::cout << "最低分:\t" << min() << std::endl;

    const std::array<std::string, 5> grade_range{"[0, 60) ",
                                           "[60, 70)",
                                           "[70, 80)",
                                           "[80, 90)",
                                           "[90, 100]"};

    for(int i = static_cast<int>(grade_range.size())-1; i >= 0; --i)
        std::cout << grade_range[i] << "\t: " << counts[i] << "人\t"
                  << std::fixed << std::setprecision(2) << rates[i]*100 << "%\n";
}

void GradeCalc::compute() {
    if(this->empty())
        return;

    counts.fill(0);
    rates.fill(0);

    // 统计各分数段人数
    for(int grade: *this) {
        if(grade < 60)
            ++counts[0];        // [0, 60)
        else if (grade < 70)
            ++counts[1];        // [60, 70)
        else if (grade < 80)
            ++counts[2];        // [70, 80)
        else if (grade < 90)
            ++counts[3];        // [80, 90)
        else
            ++counts[4];        // [90, 100]
    }

    // 统计各分数段比例
    for(size_t i = 0; i < rates.size(); ++i)
        rates[i] = counts[i] * 1.0 / this->size();

    is_dirty = false;
}

task2.cpp

#include <iostream>
#include <string>
#include "GradeCalc.hpp"

void test() {
    GradeCalc c1("OOP");

    std::cout << "录入成绩:\n";
    c1.input(5);

    std::cout << "输出成绩:\n";
    c1.output();

    std::cout << "排序后成绩:\n";
    c1.sort(); c1.output();

    std::cout << "*************成绩统计信息*************\n";
    c1.info();

}

int main() {
    test();
}

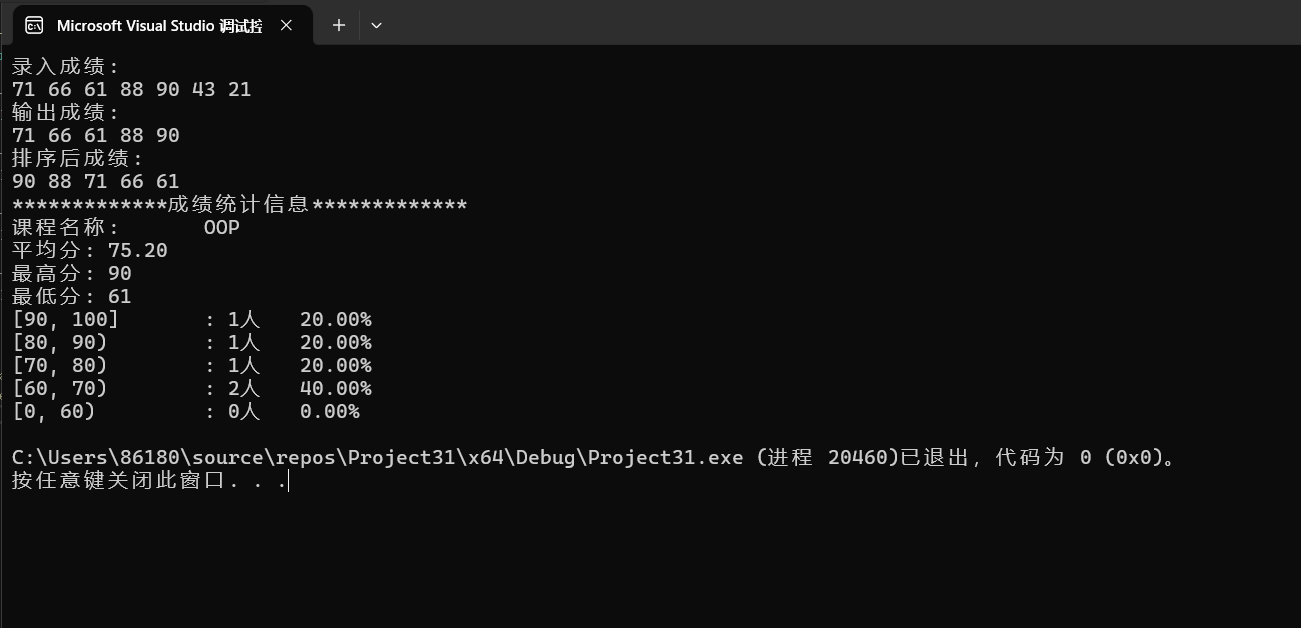

结果

1.





 1.class GradeCalc : private std::vector<int> {}

2.不能 private会将基类成员变为private 无法外部调用push_back

3.第一个使用grade访问

第二个使用this指针

4.组合 因为组合的封装性更好 继承的维护难度较大

任务三

Graph.hpp

#pragma once

#include <string>
#include <vector>

enum class GraphType {circle, triangle, rectangle};

// Graph类定义
class Graph {
public:
    virtual void draw() {}
    virtual ~Graph() = default;
};

// Circle类声明
class Circle : public Graph {
public:
    void draw();
};

// Triangle类声明
class Triangle : public Graph {
public:
    void draw();
};

// Rectangle类声明
class Rectangle : public Graph {
public:
    void draw();
};

// Canvas类声明
class Canvas {
public:
    void add(const std::string& type);   // 根据字符串添加图形
    void paint() const;                  // 使用统一接口绘制所有图形
    ~Canvas();                           // 手动释放资源

private:
    std::vector<Graph*> graphs;
};

// 4. 工具函数
GraphType str_to_GraphType(const std::string& s);  // 字符串转枚举类型
Graph* make_graph(const std::string& type);  // 创建图形，返回堆对象指针

Graph.cpp

#include <algorithm>
#include <cctype>
#include <iostream>
#include <string>

#include "Graph.hpp"

// Circle类实现
void Circle::draw()     { std::cout << "draw a circle...\n"; }

// Triangle类实现
void Triangle::draw()   { std::cout << "draw a triangle...\n"; }

// Rectangle类实现
void Rectangle::draw()  { std::cout << "draw a rectangle...\n"; }

// Canvas类实现
void Canvas::add(const std::string& type) {
    Graph* g = make_graph(type);
    if (g)
        graphs.push_back(g);
}

void Canvas::paint() const {
    for (Graph* g : graphs)
        g->draw();
}

Canvas::~Canvas() {
    for (Graph* g : graphs)
        delete g;
}

// 工具函数实现
// 字符串 → 枚举转换
GraphType str_to_GraphType(const std::string& s) {
    std::string t = s;
    std::transform(s.begin(), s.end(), t.begin(),
                   [](unsigned char c) { return std::tolower(c);});

    if (t == "circle")
        return GraphType::circle;

    if (t == "triangle")
        return GraphType::triangle;

    if (t == "rectangle")
        return GraphType::rectangle;

    return GraphType::circle;   // 缺省返回
}

// 创建图形，返回堆对象指针
Graph* make_graph(const std::string& type) {
    switch (str_to_GraphType(type)) {
    case GraphType::circle:     return new Circle;
    case GraphType::triangle:   return new Triangle;
    case GraphType::rectangle:  return new Rectangle;
    default: return nullptr;
    }
}

demo3.cpp

#include <string>
#include "Graph.hpp"

void test() {
    Canvas canvas;

    canvas.add("circle");
    canvas.add("triangle");
    canvas.add("rectangle");
    canvas.paint();
}

int main() {
    test();
}

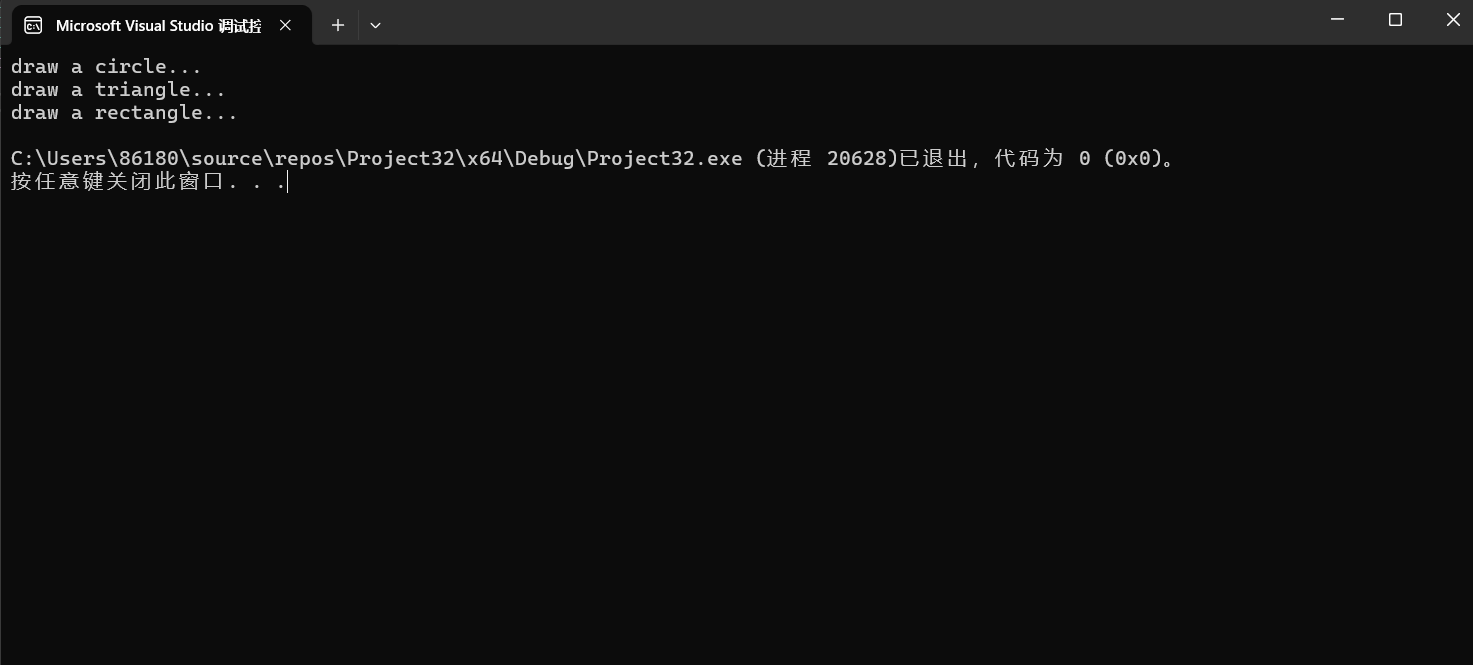

结果

1.组合：std::vector<Graph*> graphs;

  继承：class Circle :public Graph

            class Triangle:public Graph

           class Rectangle:public Graph

2.（1）无论g指向哪个派生类对象，都会调用基类Graph中的draw()

     (2)  始终调用Graph::draw(),无法调用draw函数

   （3）只会调用基类的析构函数，而不会调用派生类的

3.Graph.hpp : class Star: public Graph

   Graph.cpp:在str_to_GraphType中添加对于star的转换

                     在make_graph的switch中添加 case GraphType::star

4.(1)在Canvas的析构函数中被释放

   (2)控制灵活，无需额外内存  但必须手动释放内存，不方便

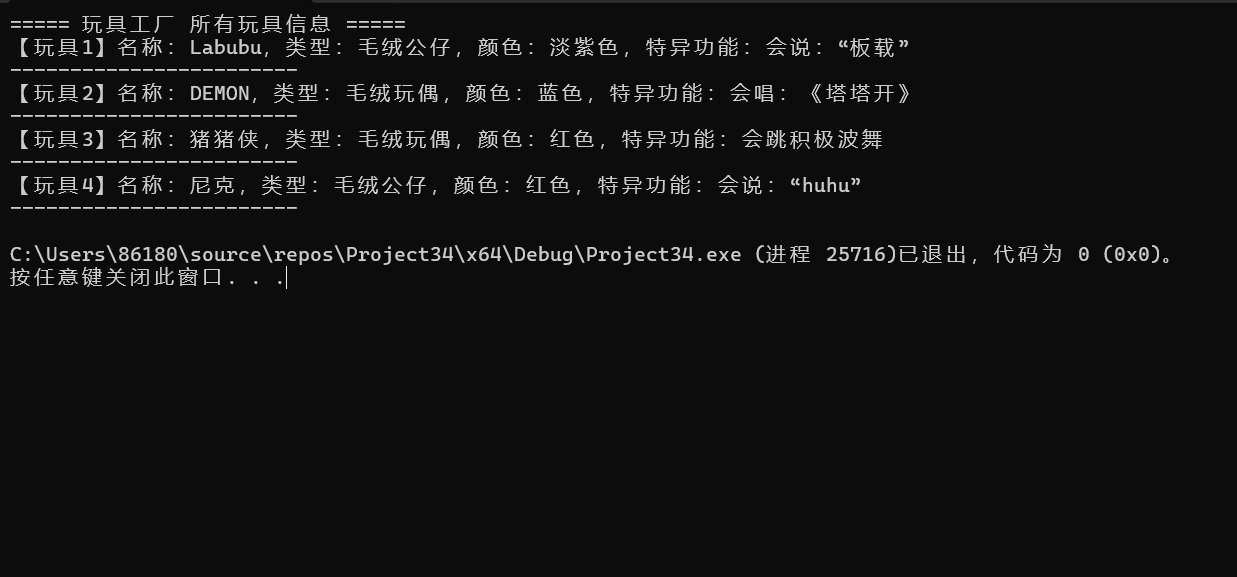

任务4

toy.hpp

#ifndef TOY_HPP
#define TOY_HPP

#include <string>
#include <vector>
using namespace std;

class Toy {
protected:
    string name;
    string type;
    string color;
public:
    Toy(string n, string t, string c);
    virtual ~Toy();
    void showBasicInfo() const;
    virtual void showSpecialAbility() const = 0;
};

class TalkingToy : public Toy {
private:
    string phrase;
public:
    TalkingToy(string n, string t, string c, string p);
    void showSpecialAbility() const override;
};

class SingingToy : public Toy {
private:
    string song;
public:
    SingingToy(string n, string t, string c, string s);
    void showSpecialAbility() const override;
};

class DancingToy : public Toy {
private:
    string danceType;
public:
    DancingToy(string n, string t, string c, string d);
    void showSpecialAbility() const override;
};

class ToyFactory {
private:
    vector<Toy*> toyList;
public:
    void addToy(Toy* toy);
    void showAllToys() const;
    ~ToyFactory();
};

#endif // TOY_HPP

toy.cpp



#include "toy.hpp"
#include <iostream>
using namespace std;

Toy::Toy(string n, string t, string c) : name(n), type(t), color(c) {}

Toy::~Toy() {}

void Toy::showBasicInfo() const {
    cout << "名称：" << name << "，类型：" << type << "，颜色：" << color;
}

TalkingToy::TalkingToy(string n, string t, string c, string p)
    : Toy(n, t, c), phrase(p) {
}

void TalkingToy::showSpecialAbility() const {
    cout << "，特异功能：会说：“" << phrase << "”" << endl;
}

SingingToy::SingingToy(string n, string t, string c, string s)
    : Toy(n, t, c), song(s) {
}

void SingingToy::showSpecialAbility() const {
    cout << "，特异功能：会唱：《" << song << "》" << endl;
}

DancingToy::DancingToy(string n, string t, string c, string d)
    : Toy(n, t, c), danceType(d) {
}

void DancingToy::showSpecialAbility() const {
    cout << "，特异功能：会跳" << danceType << "舞" << endl;
}

void ToyFactory::addToy(Toy* toy) {
    toyList.push_back(toy);
}

void ToyFactory::showAllToys() const {
    cout << "===== 玩具工厂 所有玩具信息 =====" << endl;
    for (size_t i = 0; i < toyList.size(); ++i) {
        cout << "【玩具" << i + 1 << "】";
        toyList[i]->showBasicInfo();
        toyList[i]->showSpecialAbility();
        cout << "------------------------" << endl;
    }
}

ToyFactory::~ToyFactory() {
    for (Toy* toy : toyList) {
        delete toy;
    }
    toyList.clear();
}

demo4.cpp



#include "toy.hpp"
#include <iostream>
using namespace std;

int main() {
    ToyFactory myFactory;

    myFactory.addToy(new TalkingToy("Labubu", "毛绒公仔", "淡紫色", "板载"));
    myFactory.addToy(new SingingToy("DEMON", "毛绒玩偶", "蓝色", "塔塔开"));
    myFactory.addToy(new DancingToy("猪猪侠", "毛绒玩偶", "红色", "积极波"));
    myFactory.addToy(new TalkingToy("尼克", "毛绒公仔", "红色", “呼呼"));

    myFactory.showAllToys();

    return 0;
}

结果
