Linux 环境下，Apache DolphinScheduler 如何驱动 Flink 消费 Kafka 数据？
已经在虚拟机部署好Apache DolphinScheduler了，想尝试下在Flink新建一个Flink节点，然后用Flink消费Kafka数据。
Apache DolphinScheduler用的是单机部署，具体操作可以参考官方文档：DolphinScheduler | 文档中心(https://dolphinscheduler.apache.org/zh-cn/docs/3.3.2/guide/installation/standalone).

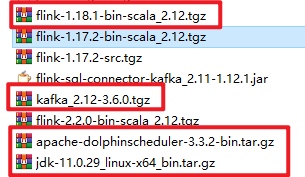

- 前置条件：已经安装Java 11、DolphinScheduler 3.3.2、Flink 1.18.1、Kafka 3.6.0，Zookeeper用Kafka内置的。建议这些安装都下载二进制的安装包到虚拟机安装，用命令安装的不可控，我下载的二进制包如下：
配置好Flink的环境变量

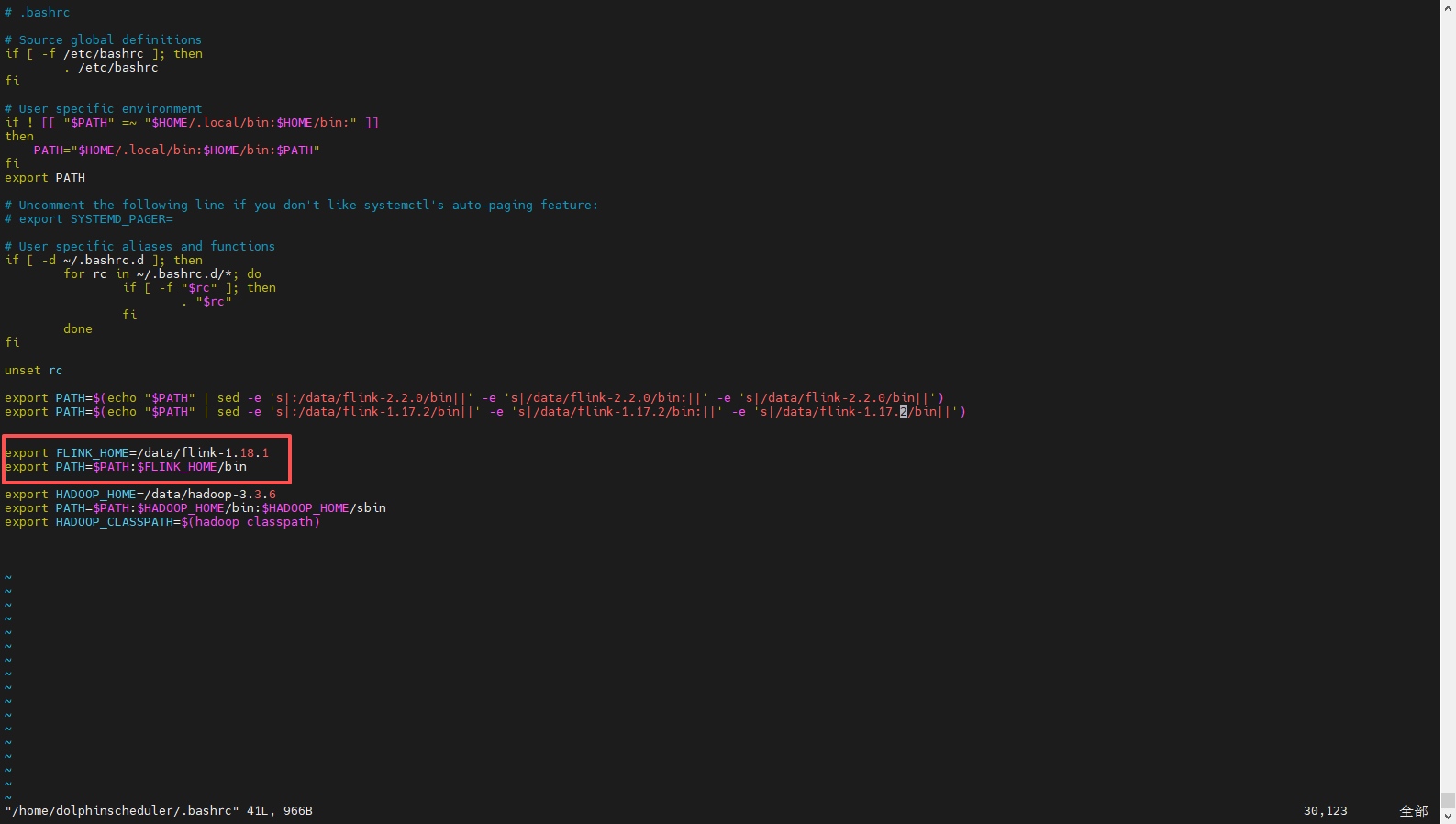

1、编辑环境变量：
sudo vim ~/.bashrc
增加Flink的路径
2、使环境变量生效：
#使环境变量生效
source ~/.bashrc
#查看环境变量
echo $Flink_HOME
修改Kafka、Flink以及DolphinScheduler的配置文件
因为用的是虚拟机，为了让外面的主机能够访问到虚拟机的网络，需要修改下配置文件
- 修改Kafka配置：找到Kafka安装包下的config文件夹，修改config下的server.properties文件，修改listeners是为了外面的主机能够访问到虚拟机的Kafka，还有把advertised.listeners改成虚拟机地址，写样例的时候能连上虚拟机的Kafka地址，不然默认连localhost
broker.id=0
listeners=PLAINTEXT://0.0.0.0:9092
#192.168.146.132修改成虚拟机ip
advertised.listeners=PLAINTEXT://192.168.146.132:9092

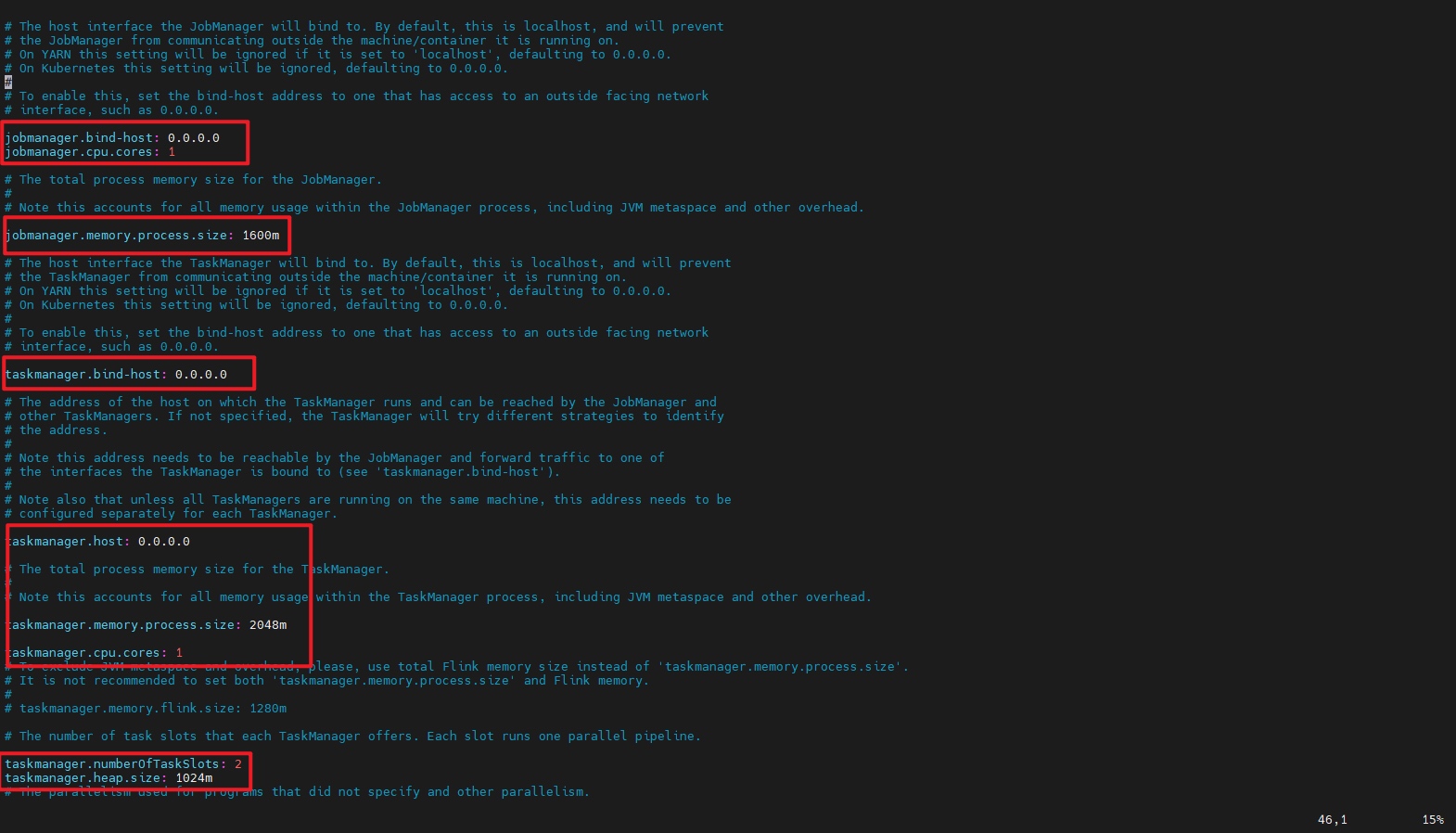

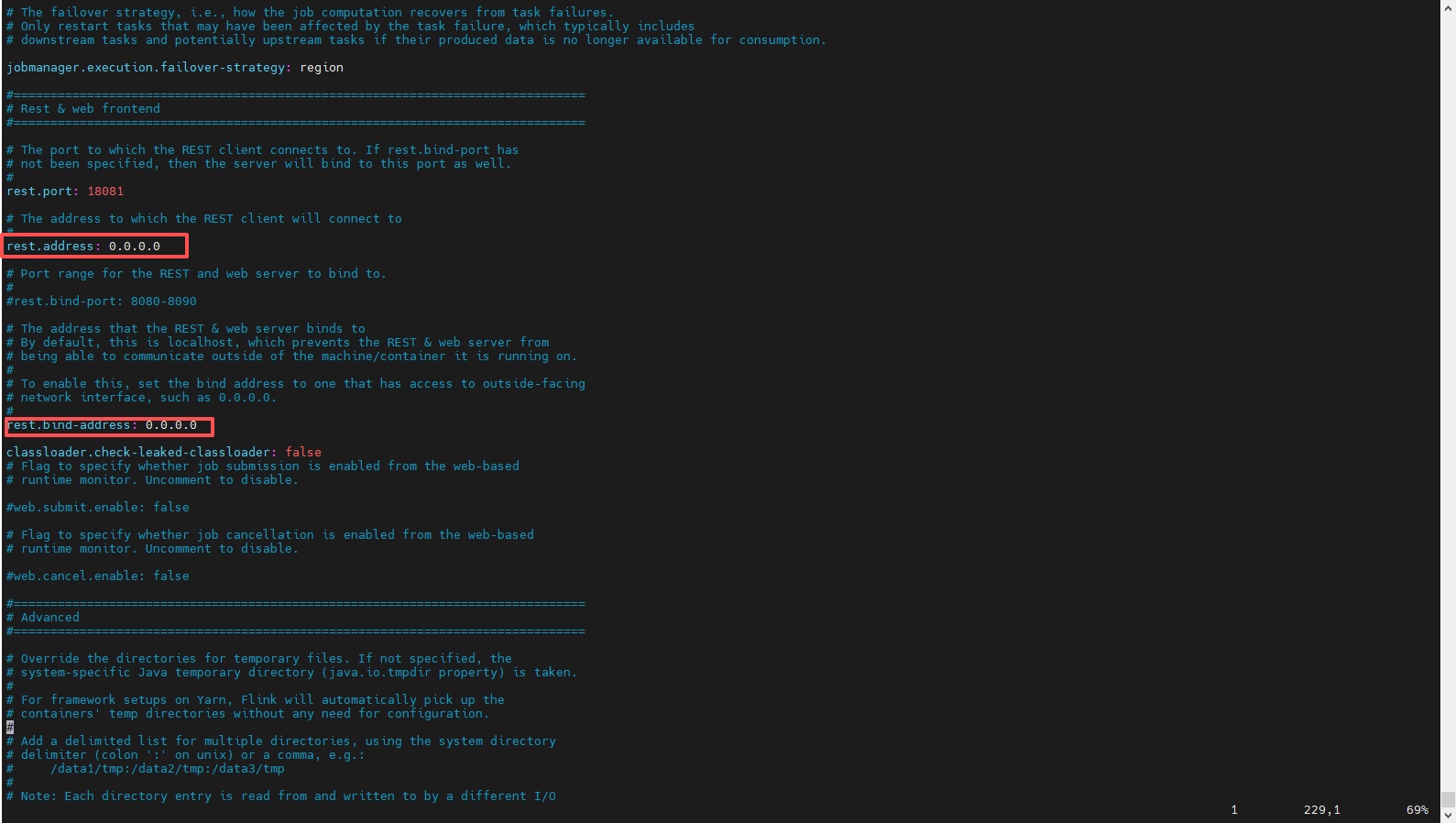

- 修改Flink配置：找到Flink安装包下的conf文件夹，修改conf下的Flink-conf.yaml文件，把里面所有的localhost地址全部改成0.0.0.0，以便主机能访问到虚拟机的Flink。还有增加jobmanager和taskmanager的内存
jobmanager.rpc.address: 0.0.0.0
jobmanager.bind-host: 0.0.0.0
jobmanager.cpu.cores: 1
jobmanager.memory.process.size: 1600m
taskmanager.bind-host: 0.0.0.0
taskmanager.host: 0.0.0.0
taskmanager.memory.process.size: 2048m
taskmanager.cpu.cores: 1
- 修改Apache DolphinScheduler的配置文件，从Apache DolphinScheduler的启动脚本文件
dolphinscheduler-daemon.sh可以看出，配置环境变量用的是bin/env文件夹下的dolphinscheduler_env.sh。

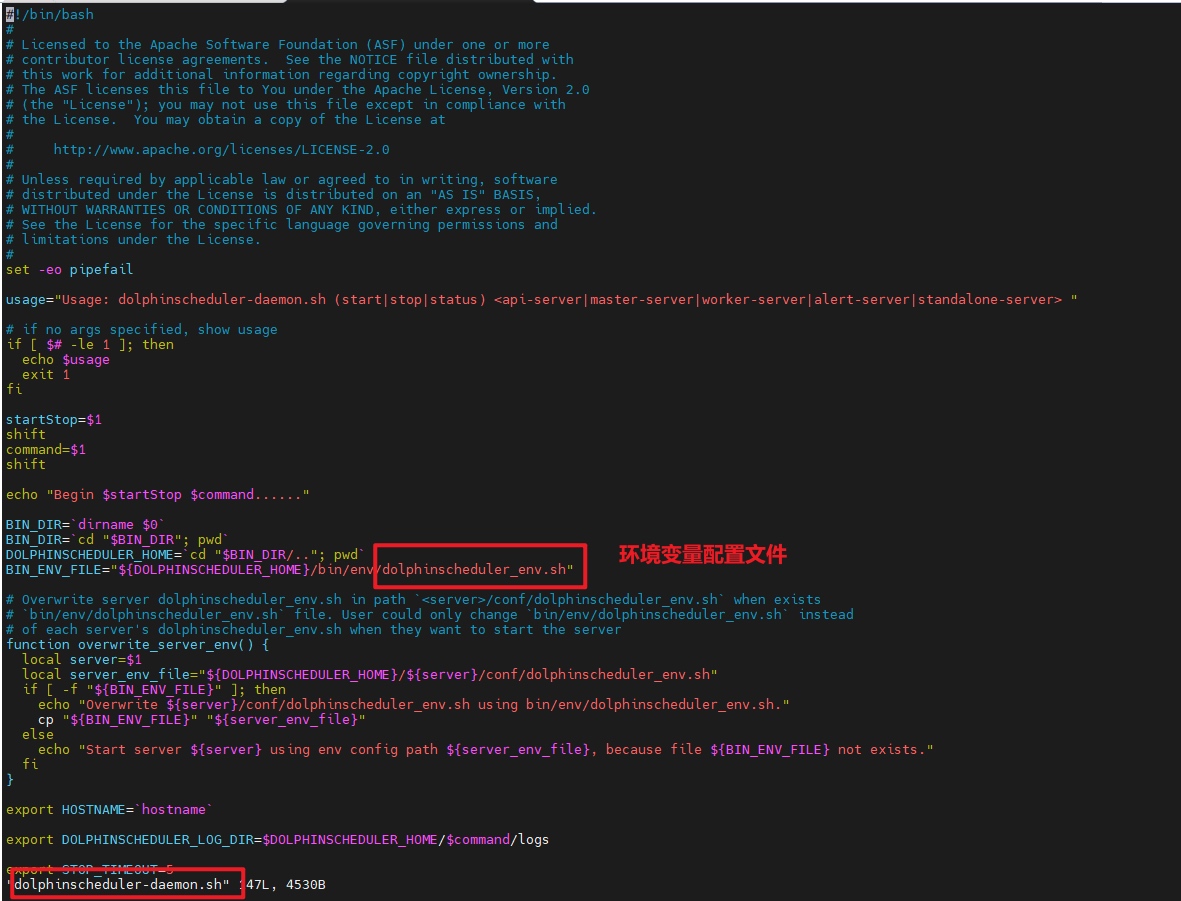

查看dolphinscheduler-daemon.sh文件：

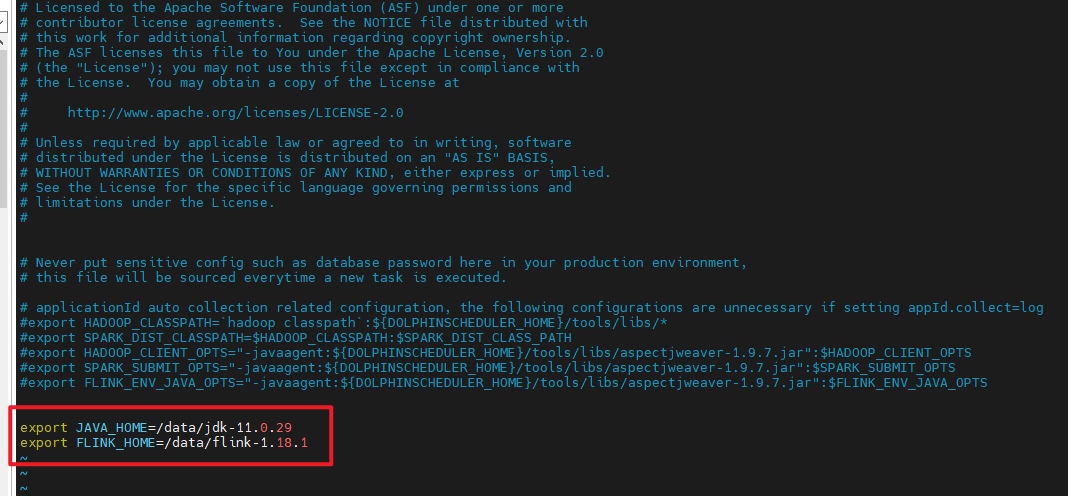

修改dolphinscheduler_env.sh文件，新增JAVA、Flink路径：
#修改成自己的JAVA、Flink路径
export JAVA_HOME=/data/jdk-11.0.29
export Flink_HOME=/data/Flink-1.18.1
关闭防火墙，启动应用
启动应用，包括Zookeeper、Kafka、Flink以及Apache DolphinScheduler。
#关闭防火墙
sudo systemctl stop firewalld
# 在 Flink 根目录下，执行以下命令启动 Flink 集群
bin/start-cluster.sh
# 启动 ZooKeeper
bin/zookeeper-server-start.sh config/zookeeper.properties &
# 启动 Kafka 服务器
bin/Kafka-server-start.sh config/server.properties &
#创建 Kafka 主题
bin/Kafka-topics.sh --create --topic test --bootstrap-server localhost:9092 --partitions 1 --replication-factor 1
#使用命令行生产者发送消息
bin/Kafka-console-producer.sh --topic test --bootstrap-server localhost:9092
#消费
bin/Kafka-console-consumer.sh --topic test --from-beginning --bootstrap-server localhost:9092
# 启动 Standalone Server 服务
bash ./bin/dolphinscheduler-daemon.sh start standalone-server
测试

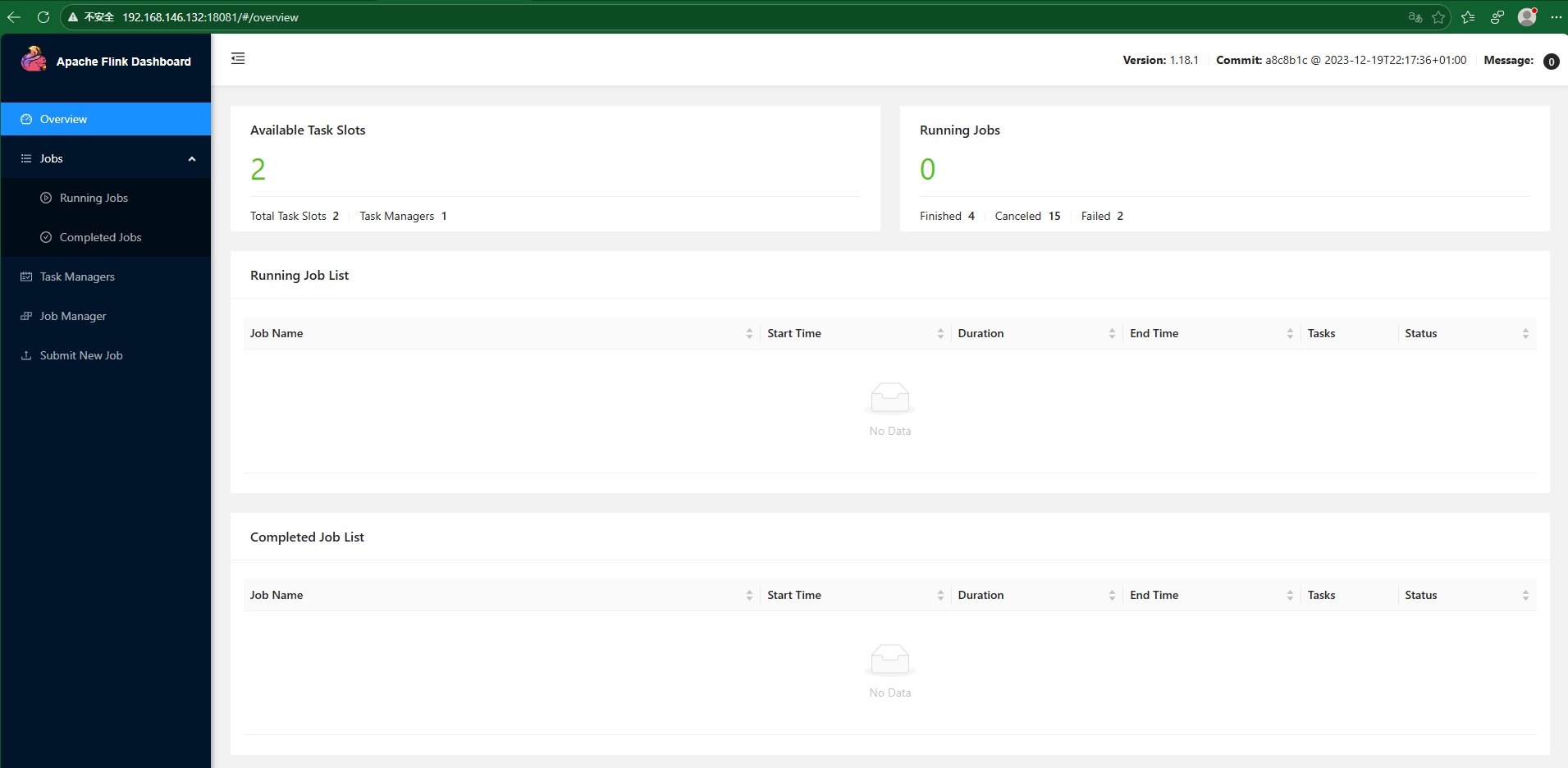

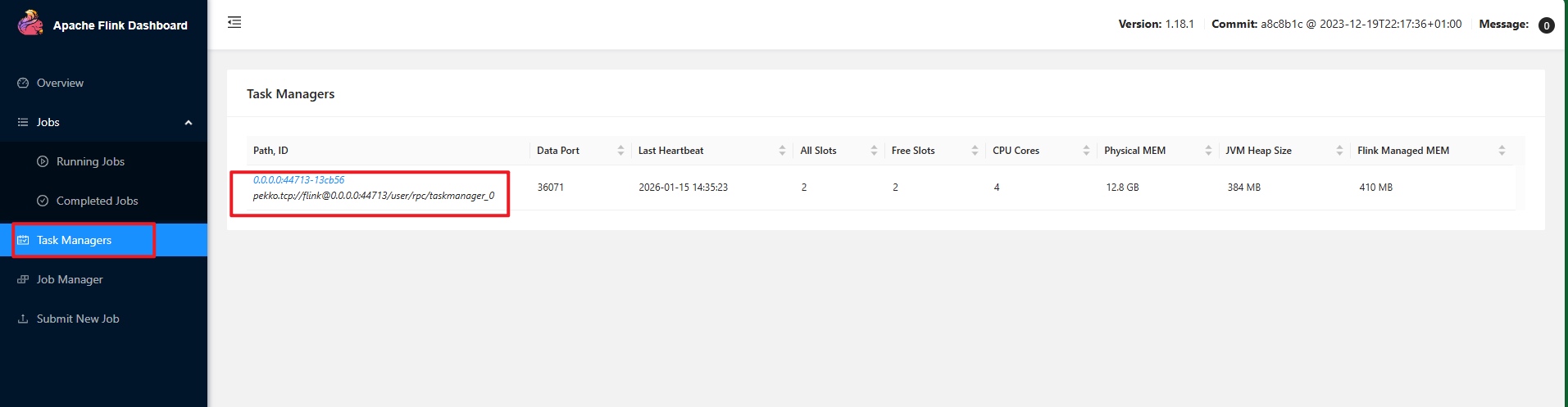

测试Flink、Apache DolphinScheduler是否能访问成功。

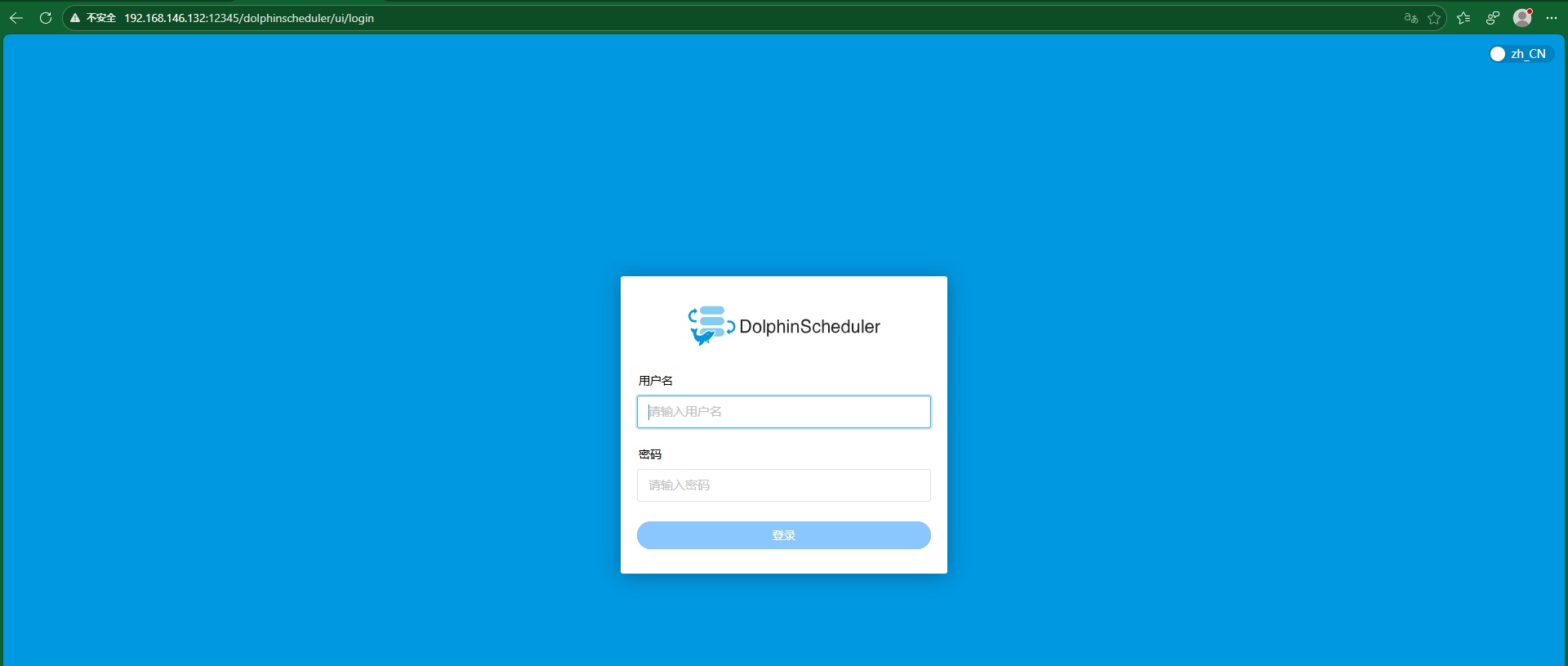

- Apache DolphinScheduler访问地址：http://localhost:12345/dolphinscheduler/ui ，localhost改成自己虚拟机地址即可登录系统 UI。默认的用户名和密码是 admin/dolphinscheduler123
编写样例
用Flink消费Kafka数据，然后打包上传到Apache DolphinScheduler，启动Flink任务：
- 编写样例：
pom.xml
<project xmlns="http://maven.apache.org/POM/4.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
<modelVersion>4.0.0</modelVersion>
<groupId>com.example</groupId>
<artifactId>Flink-Kafka-demo</artifactId>
<version>1.0-SNAPSHOT</version>
<properties>
<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
<Flink.version>1.18.1</Flink.version>
<scala.binary.version>2.12</scala.binary.version>
<Kafka.version>3.6.0</Kafka.version>
</properties>
<dependencies>
<!-- Flink核心依赖 -->
<dependency>
<groupId>org.apache.Flink</groupId>
<artifactId>Flink-java</artifactId>
<version>${Flink.version}</version>
</dependency>
<dependency>
<groupId>org.apache.Flink</groupId>
<artifactId>Flink-streaming-java</artifactId>
<version>${Flink.version}</version>
</dependency>
<dependency>
<groupId>org.apache.Flink</groupId>
<artifactId>Flink-clients</artifactId>
<version>${Flink.version}</version>
</dependency>
<!-- 连接器基础依赖 -->
<dependency>
<groupId>org.apache.Flink</groupId>
<artifactId>Flink-connector-base</artifactId>
<version>${Flink.version}</version>
</dependency>
<!-- Kafka连接器（关键修改点） -->
<dependency>
<groupId>org.apache.Flink</groupId>
<artifactId>Flink-connector-Kafka</artifactId>
<version>3.1.0-1.18</version>
</dependency>
<dependency>
<groupId>org.apache.Kafka</groupId>
<artifactId>Kafka-clients</artifactId>
<version>${Kafka.version}</version>
</dependency>
<!-- 日志依赖 -->
<dependency>
<groupId>org.slf4j</groupId>
<artifactId>slf4j-simple</artifactId>
<version>1.7.36</version>
<scope>runtime</scope>
</dependency>
</dependencies>
<repositories>
<repository>
<id>aliyun</id>
<url>https://maven.aliyun.com/repository/public</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>false</enabled>
</snapshots>
</repository>
<repository>
<id>apache-releases</id>
<url>https://repository.apache.org/content/repositories/releases/</url>
</repository>
</repositories>
<build>
<plugins>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-compiler-plugin</artifactId>
<version>3.8.1</version>
<configuration>
<source>${maven.compiler.source}</source>
<target>${maven.compiler.target}</target>
</configuration>
</plugin>
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<version>3.2.4</version>
<executions>
<execution>
<phase>package</phase>
<goals>
<goal>shade</goal>
</goals>
<configuration>
<artifactSet>
<excludes>
<exclude>org.apache.Flink:force-shading</exclude>
<exclude>com.google.code.findbugs:jsr305</exclude>
<exclude>org.slf4j:*</exclude>
</excludes>
</artifactSet>
<filters>
<filter>
<artifact>*:*</artifact>
<excludes>
<exclude>META-INF/*.SF</exclude>
<exclude>META-INF/*.DSA</exclude>
<exclude>META-INF/*.RSA</exclude>
</excludes>
</filter>
</filters>
</configuration>
</execution>
</executions>
</plugin>
</plugins>
</build>
</project>
FlinkKafkaConsumerExample.java
import org.apache.Flink.api.common.functions.FlatMapFunction;
import org.apache.Flink.api.java.tuple.Tuple2;
import org.apache.Flink.api.java.utils.ParameterTool;
import org.apache.Flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.Flink.streaming.api.datastream.DataStream;
import org.apache.Flink.streaming.api.functions.ProcessFunction;
import org.apache.Flink.streaming.api.functions.sink.RichSinkFunction;
import org.apache.Flink.util.Collector;
import org.apache.Flink.streaming.connectors.Kafka.FlinkKafkaConsumer;
import org.apache.Flink.api.common.serialization.SimpleStringSchema;
import org.apache.Kafka.clients.consumer.ConsumerConfig;
import org.apache.Kafka.common.serialization.StringDeserializer;
import java.util.Properties;
import java.util.concurrent.CompletableFuture;
public class FlinkKafkaConsumerExample {
private static volatile int messageCount = 0;
private static volatile boolean shouldStop = false;
public static void main(String[] args) throws Exception {
// 设置执行环境
final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
// Kafka 配置
Properties properties = new Properties();
properties.setProperty(ConsumerConfig.BOOTSTRAP_SERVERS_CONFIG, "192.168.146.132:9092"); // Kafka broker 地址
properties.setProperty(ConsumerConfig.GROUP_ID_CONFIG, "test-group"); // 消费者组
properties.setProperty(ConsumerConfig.KEY_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class.getName());
properties.setProperty(ConsumerConfig.VALUE_DESERIALIZER_CLASS_CONFIG, StringDeserializer.class.getName());
// 创建 Kafka 消费者
FlinkKafkaConsumer<String> KafkaConsumer = new FlinkKafkaConsumer<>("test", new SimpleStringSchema(), properties);
KafkaConsumer.setStartFromEarliest(); // 从最早的消息开始消费
DataStream<String> stream = env.addSource(KafkaConsumer);
// 处理数据：分词和计数
DataStream<Tuple2<String, Integer>> counts = stream
.flatMap(new Tokenizer())
.keyBy(value -> value.f0)
.sum(1);
counts.addSink(new RichSinkFunction<Tuple2<String, Integer>>() {
@Override
public void invoke(Tuple2<String, Integer> value, Context context) {
System.out.println(value);
messageCount++;
// 检查是否达到停止条件
if (messageCount >= 2 && !shouldStop) {
System.out.println("Processed 2 messages, stopping job.");
shouldStop = true; // 设置标志位，表示应该停止
}
}
});
// 执行作业并获取 JobClient
CompletableFuture<Void> future = CompletableFuture.runAsync(() -> {
try {
// 启动作业并获取 JobClient
org.apache.Flink.core.execution.JobClient jobClient = env.executeAsync("Flink Kafka WordCount");
System.out.println("Job ID: " + jobClient.getJobID());
// 监测条件并取消作业
while (!shouldStop) {
Thread.sleep(100); // 每100毫秒检查一次
}
// 达到停止条件时取消作业
if (shouldStop) {
System.out.println("Cancelling the job...");
jobClient.cancel().get(); // 取消作业
}
} catch (Exception e) {
e.printStackTrace();
}
});
// 在主线程中等待作业结束
future.join(); // 等待作业完成
}
// Tokenizer 类用于将输入字符串转化为单词
public static final class Tokenizer implements FlatMapFunction<String, Tuple2<String, Integer>> {
@Override
public void flatMap(String value, Collector<Tuple2<String, Integer>> out) {
String[] tokens = value.toLowerCase().split("\\W+");
for (String token : tokens) {
if (token.length() > 0) {
out.collect(new Tuple2<>(token, 1));
}
}
}
}
}

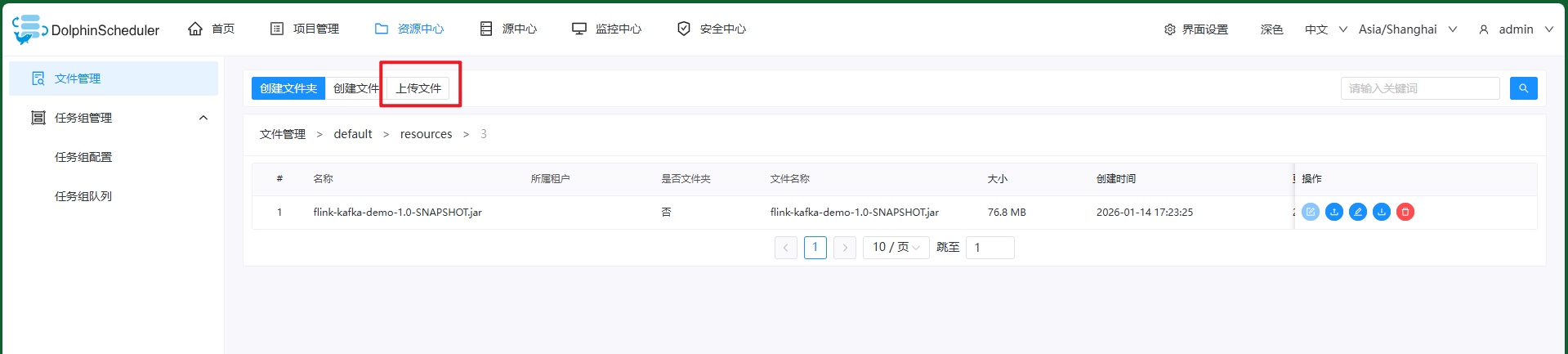

- 打包上传到Apache DolphinScheduler

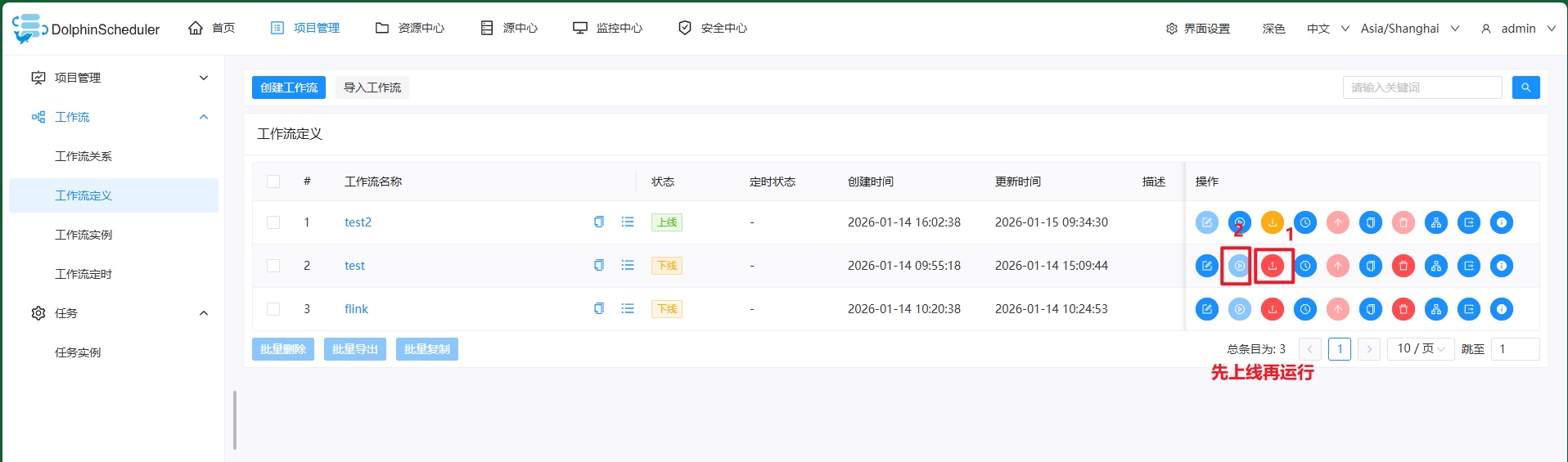

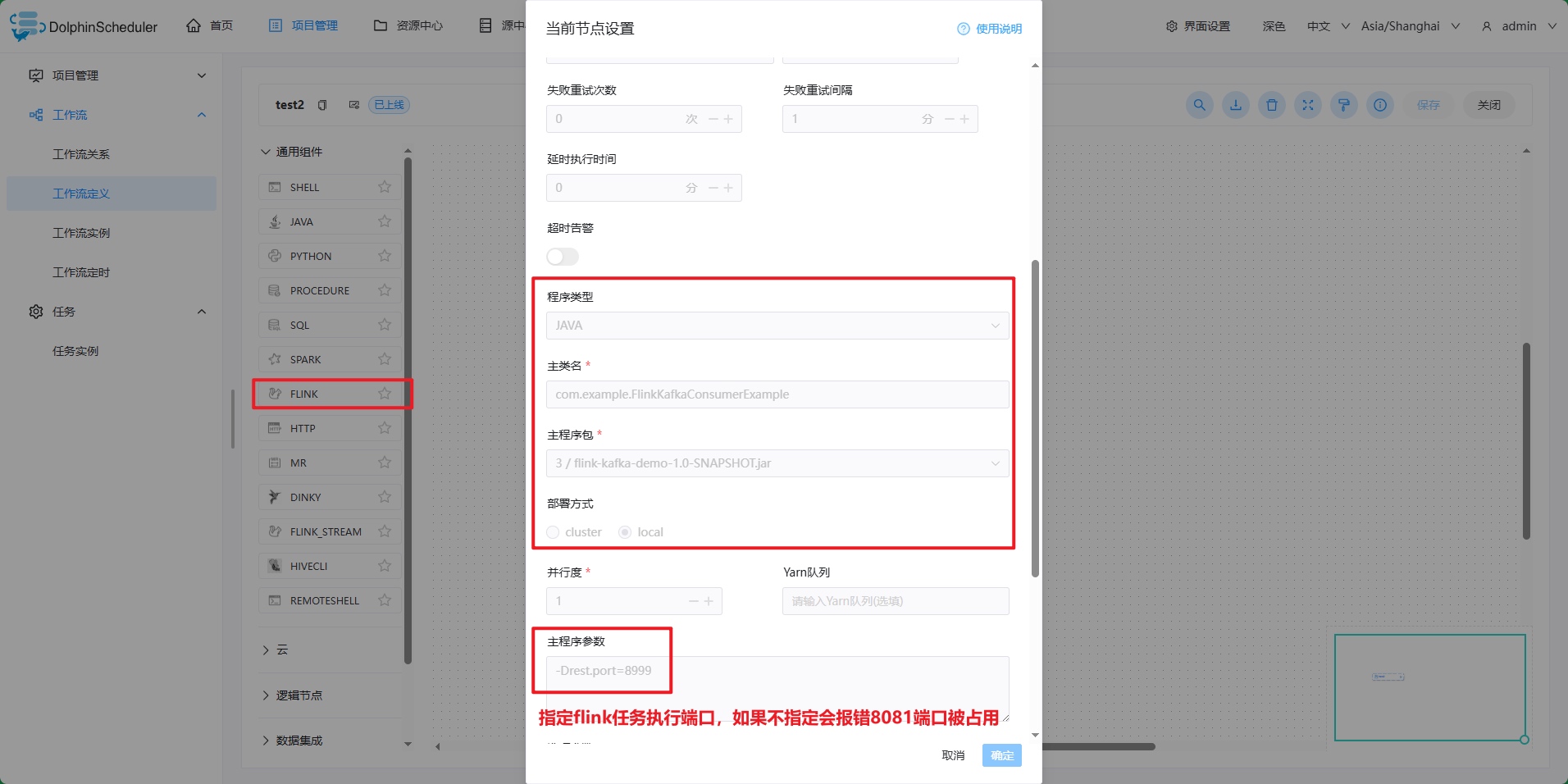

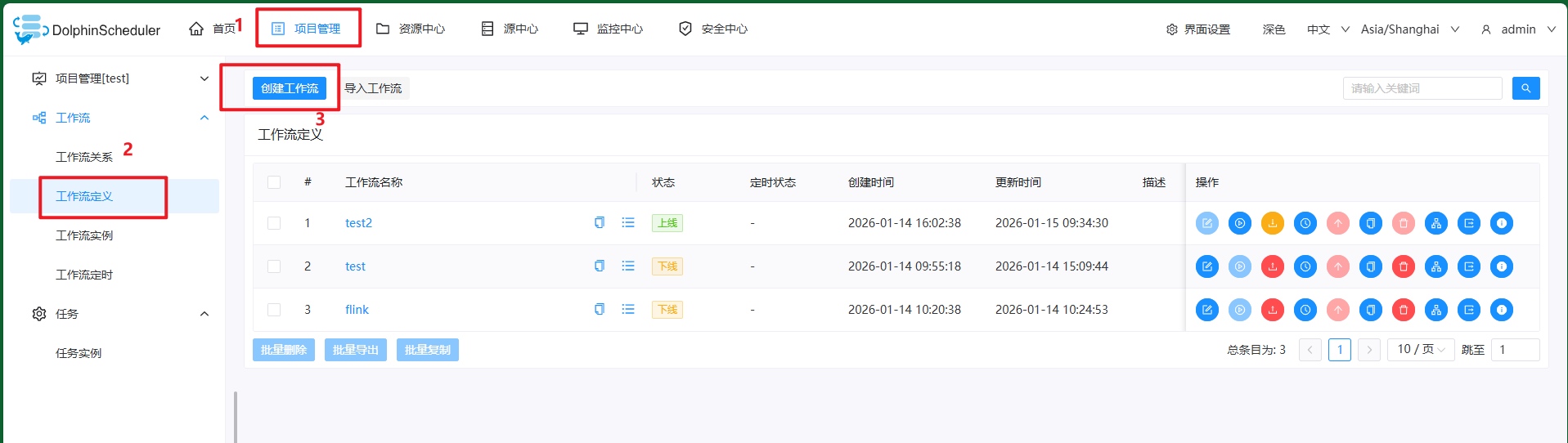

- 新建Flink节点，并启动

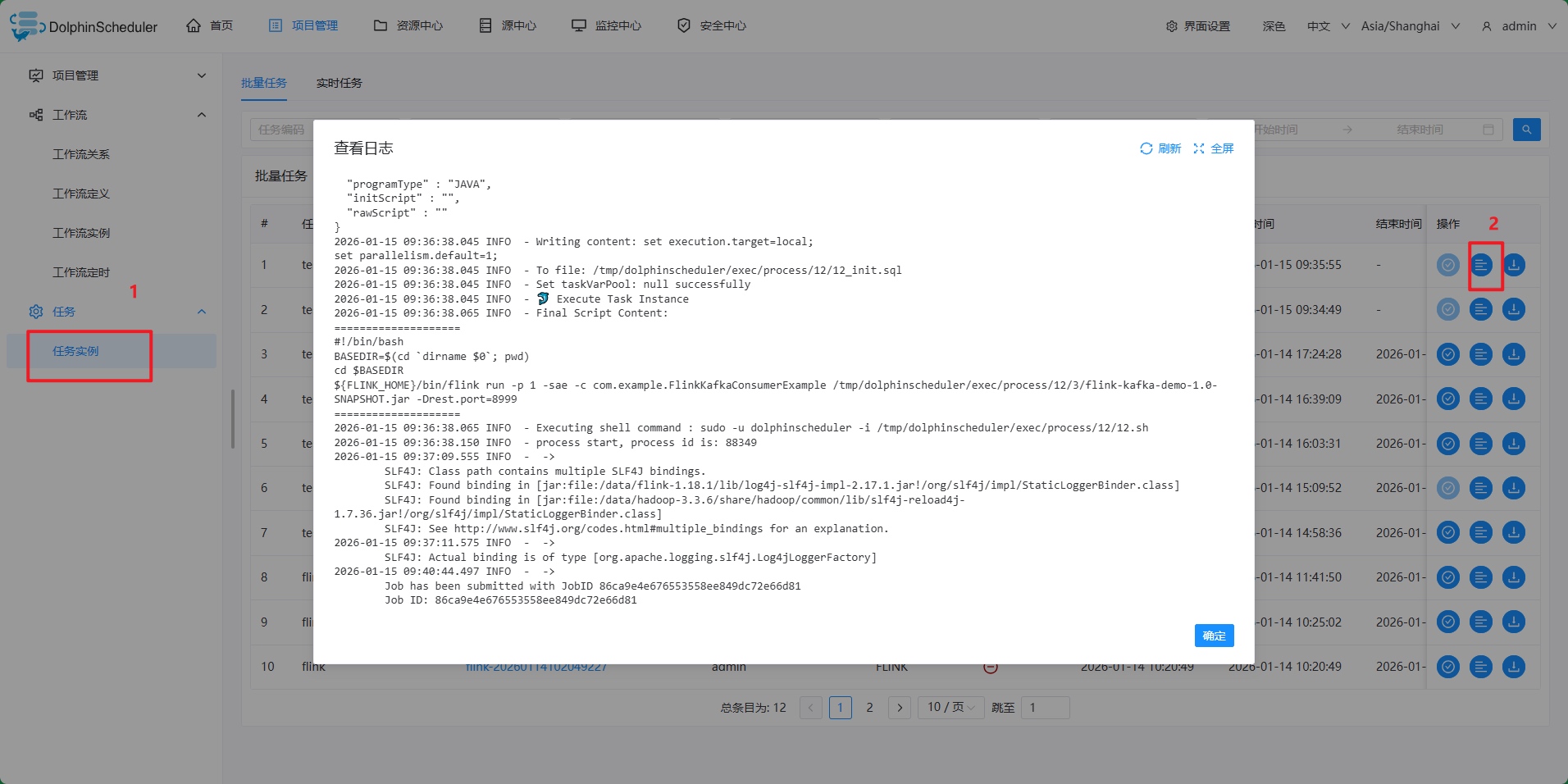

在Apache DolphinScheduler的任务实例看启动日志：

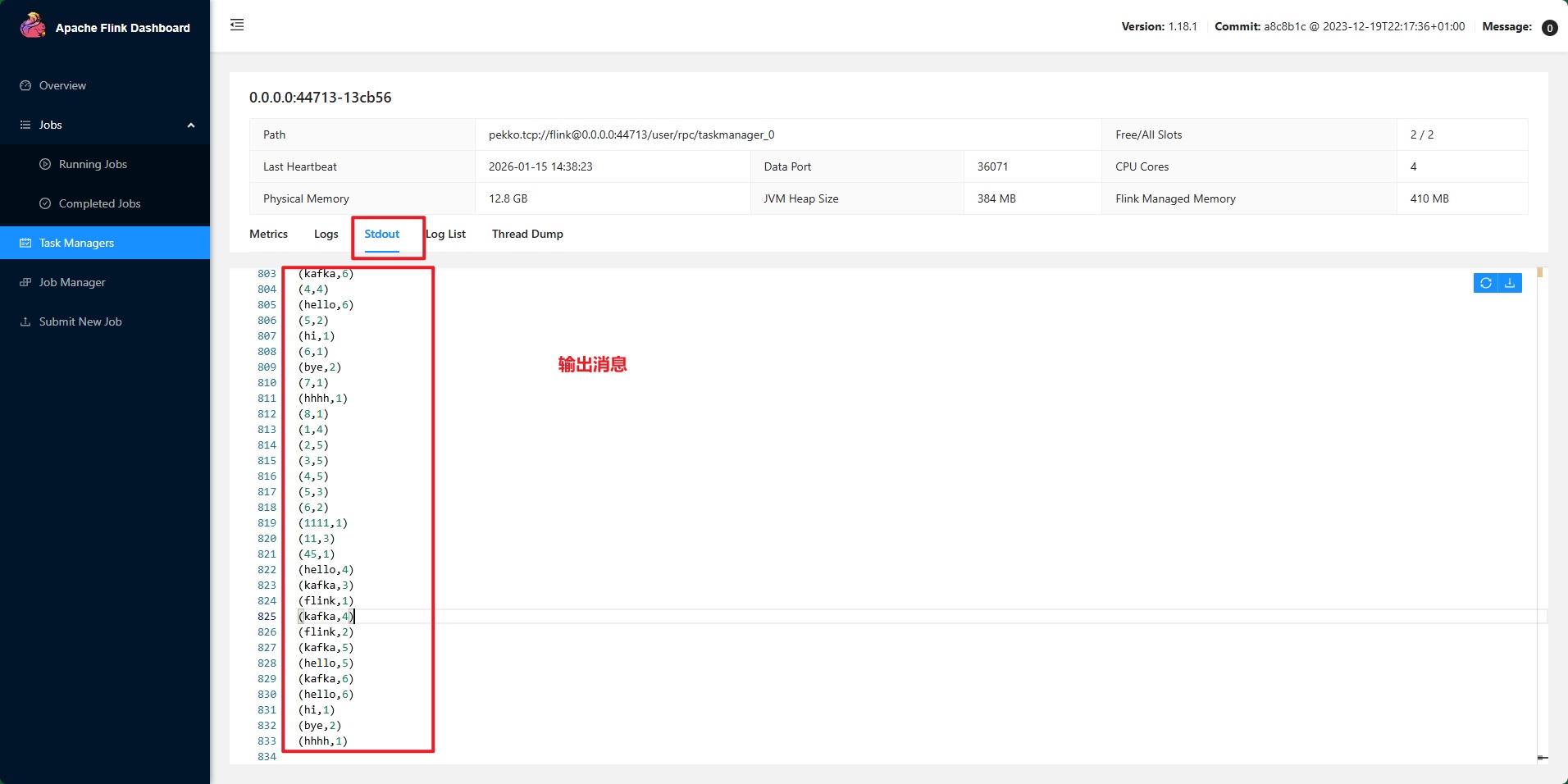

在虚拟机启动生产者，输出字符串，然后可以在Flink查看输出Kafka生产的消息：
