使用TEF-GTK用户界面控制的TEF6686(V102) Arduino Radio最简单的pcb
目录
概述
TEF6686是一款收音机芯片，使用I2C控制，只使用两根杜邦线（除了电源和地），即可完成Arduino Nano控制6686芯片，通过串口通信，用户可通过TEF-GTK用户界面对6686收音机芯片进行控制
TEF6686 V102 相关图示

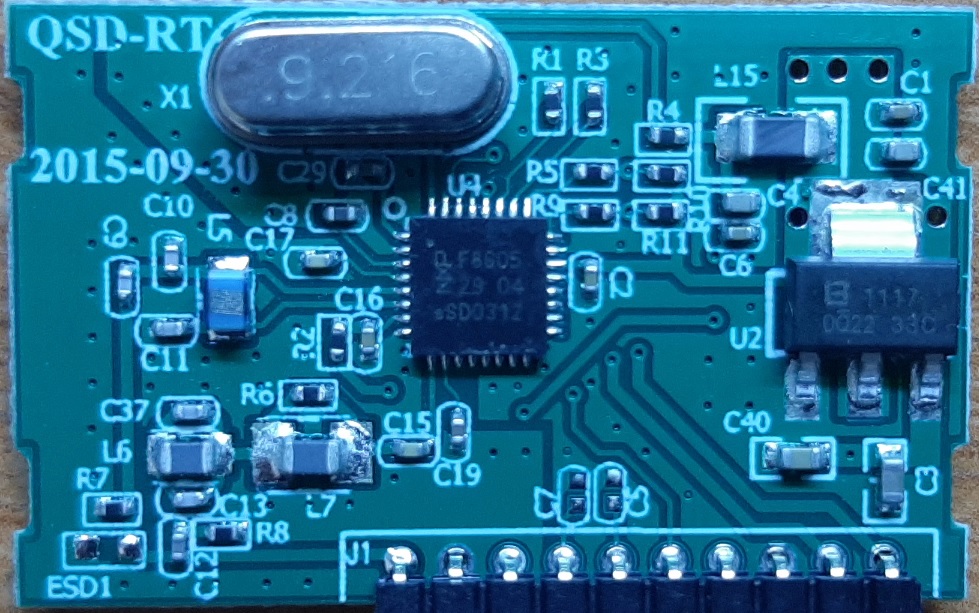

芯片图示

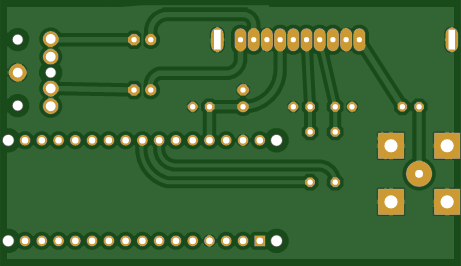

PCB图 （正面）
PCB图 （反面）
arduino nano与6686引脚连接图
相关函数（GitHub开源，随便移植的）
/*
by Eustake (marsel90)

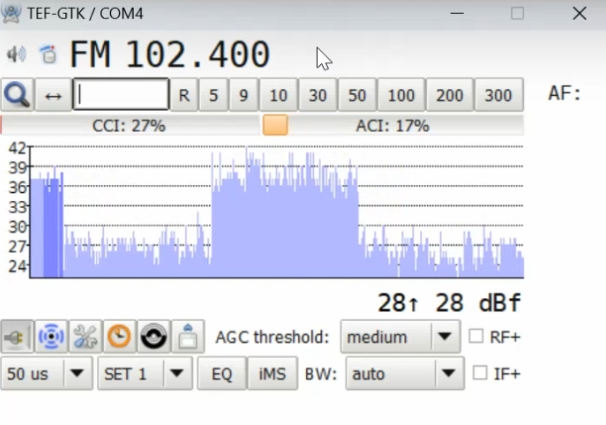

With this sketch it is recommended to use together with TEF-GTK v1.1.2
changes:
Sketch compatible with NXP-TEF6686 (F8602 or F8605)
Add = MPX out mode ( DAC_Left : FM MPX (DARC) signal / DAC_Right : mono audio ) + MPX obtion in TEF-GTK
Check signal level and 19kHz subcarrier every TIMER_INTERVAL. Now in TEF-GTK appear MO for mono and ST for stereo.
Without IF+ and RF+ - RF Gain is 0db
Only RF+ - RF Gain max +6db
Only IF+ - RF Gain max +9db
Both IF+ & RF+ - RF Gain max +15db
ChannelEqualizer obtion - on/off use TEF-GTK button EQ
MphSuppression iMS obtion - on/off use TEF-GTK button iMS
+6dB analog radio sound gain - in TEF-GTK enable Show antenna input alignment - NO AM
#
by VoXiTPro
changes:
all warnings are removed (unsigned int to signed int did go wrong)
Filters are now switchable (AUTO is max 236khz, manual you can set 311Khz)
Stereo on/off
Signal measurement improvements
Keep filter (to do) and frequency settings when switching from AM to FM / FM to AM
Settings are now from Eustake (marsel90)
AGC is now switchable (now for FM/AM and reversed the settings)
Removed some settings from Eustake, FMSI stereo improvement only for tef6687 and tef6689, Softmute_mod AM only, Wavegen and I2S audio (only using internal audio)
You can now change settings with the antenne switch ANT A = default settings, ANT B = Improved settings, ANT C = Eustake Settings
Settings are now A,B,C from eustake. D are improved settings from prog manual.
AGC, Deemphasis, IF+ RF+ are now in subroutines so you can set them at other moments. If you change settings the old values will be reapplied.
IF+ RF+ works now also for AM.
Squelch will change volume scale for AM. if you have the right value change the define AM_VOL_SCALE too that value (now -1)
*/
/*
If you have changed the above value squelch will be off again.
Switching from AM to FM or from FM to AM filter settings are kept
Thanks also to:
- FMDXklaas for testing
- ODJeetje
- Eustake for default and improved settings
and many others ...
Tested on Arduino Nano V3.0 at 5V
*/
