Delphi 经典游戏程序设计40例 的学习 例25 数字钟

unit R25;

interface

uses
  Windows, Messages, SysUtils, Variants, Classes, Graphics, Controls, Forms,
  Dialogs, ExtCtrls;

type
  TRei25 = class(TForm)
    Bevel1: TBevel;

    Timer1: TTimer;
    procedure FormCreate(Sender: TObject);
    procedure FormClose(Sender: TObject; var Action: TCloseAction);
    procedure Timer1Timer(Sender: TObject);


  private
    { Private declarations }
    procedure DpDgt(Dt:Byte;X,Y:Word);
  public
    { Public declarations }
  end;

var
  Rei25: TRei25;
  DigitBmap : TBitmap;
  MakeBmap : TBitmap;
  RectS,RectD : TRect;

  Duse : array[0..9] of Byte = (
    $77,$60,$3e,$7c,$69,$5d,$5f,$64,$7f,$7d);



implementation

{$R *.dfm}





procedure TRei25.FormCreate(Sender: TObject);
begin
  Rei25.Canvas.CopyMode := cmSrcCopy;
  DigitBmap := TBitmap.Create;
  DigitBmap.LoadFromFile(GetCurrentDir + '\Digit.bmp');

  MakeBmap := TBitmap.Create;
  MakeBmap.Height := 70;
  MakeBmap.Width := 440;

  MakeBmap.Canvas.Brush.Color := clWhite;
  RectD := Rect(0,0,MakeBmap.Width,MakeBmap.Height);
  MakeBmap.Canvas.FillRect(RectD);
  MakeBmap.Canvas.CopyMode := cmSrcCopy;
  RectS := Rect(58,8,72,40);
  RectD := Rect(106,18,122,50);
  MakeBmap.Canvas.CopyRect(RectD,DigitBmap.Canvas,RectS);
  RectS := Rect(56,24,72,40);
  RectD := Rect(294,42,310,58);
  MakeBmap.Canvas.CopyRect(RectD,DigitBmap.Canvas,RectS);
end;

procedure TRei25.DpDgt(Dt:Byte;X,Y:Word);
begin
  RectS := Rect(24,0,56,48);
  RectD := Rect(X,Y,X + 32,Y + 48);
  MakeBmap.Canvas.CopyRect(RectD,DigitBmap.Canvas,RectS);
  if (Duse[Dt] and 1) = 0 then       //水漫填充函数
    MakeBmap.Canvas.FloodFill(X + 4,Y + 12,clWhite,fsBorder);
  if (Duse[Dt] and 2) = 0 then
    MakeBmap.Canvas.FloodFill(X + 4,y + 36,clWhite,fsBorder);
  if (Duse[Dt] and 4) = 0 then
    MakeBmap.Canvas.FloodFill(X + 16,Y + 4,clWhite,fsBorder);
  if (Duse[Dt] and 8) = 0 then
    MakeBmap.Canvas.FloodFill(X + 16,Y + 24,clWhite,fsBorder);
  if (Duse[Dt] and 16) = 0 then
    MakeBmap.Canvas.FloodFill(X + 16,y + 44,clWhite,fsBorder);
  if (Duse[Dt] and 32) = 0 then
    MakeBmap.Canvas.FloodFill(X + 28,Y + 12,clWhite,fsBorder);
  if (Duse[Dt] and 64) = 0 then
    MakeBmap.Canvas.FloodFill(X + 28,Y + 36,clWhite,fsBorder);

end;

procedure TRei25.FormClose(Sender: TObject; var Action: TCloseAction);
begin
  DigitBmap.Free;
  MakeBmap.Free;
end;

procedure TRei25.Timer1Timer(Sender: TObject);
var
  H,M,S ,MS: Word;
begin
  MakeBmap.Canvas.Brush.Color := clWhite;
  MakeBmap.Canvas.CopyMode := cmSrcCopy;
  RectD := Rect(10,18,34,50);
  MakeBmap.Canvas.FillRect(RectD);
  DecodeTime(Time,H,M,S,MS);   //Time 返回现在的时间的函数， DecodeTimel类型转换函数
  if H >= 12 then
  begin
    H := H - 12;
    RectS := Rect(0,24,24,40);
    RectD := Rect(10,34,34,50);
  end
  else begin
    RectS := Rect(0,8,24,24);
    RectD := Rect(10,18,34,34);
  end;

  MakeBmap.Canvas.CopyRect(RectD,DigitBmap.Canvas,RectS);
  if H >= 10 then         //10需要写1
  begin
    H := H - 10;
    DpDgt(1,34,10);
  end
  else begin
    RectD := Rect(50,10,66,58);     //覆盖掉十位
    MakeBmap.Canvas.FillRect(RectD);
  end;
  DpDgt(H,74,10);
  DpDgt(M div 10,122,10);
  DpDgt(M mod 10,162,10);
  DpDgt(S div 10,218,10);
  DpDgt(S mod 10,258,10);
  DpDgt(MS div 100,314,10);
  MS := MS mod 100;
  DpDgt(MS div 10,354,10);
  DpDgt(MS mod 10,394,10);

  RectS := Rect(0,0,440,70);
  RectD := Rect(Bevel1.Left + 3,Bevel1.Top + 3,
                Bevel1.Left + 440,Bevel1.Top + 70);
  Rei25.Canvas.CopyRect(RectD,MakeBmap.Canvas,RectS);

end;

end.

1，程序结构在 TIMER中调用时间，绘图。

2，FLOODFILL 函数

3，DecodeTime(Time,H,M,S,MS); 函数

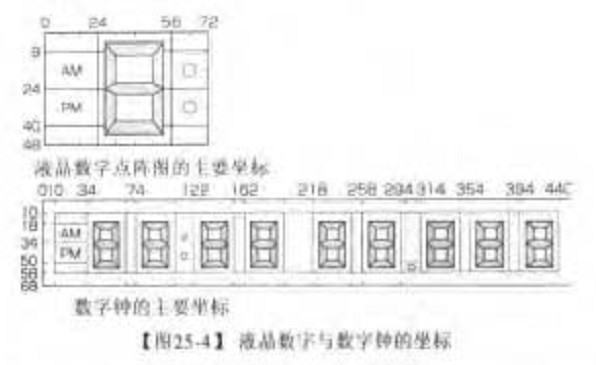

4，理解该程序，需要看时钟界面设计图，Digit.bmp图形，这些坐标是固定的
