整合SSM

1.新建maven项目

2.导入依赖

　　
<dependencies>
   <!--Junit-->
   <dependency>
       <groupId>junit</groupId>
       <artifactId>junit</artifactId>
       <version>4.12</version>
   </dependency>
   <!--数据库驱动-->
   <dependency>
       <groupId>mysql</groupId>
       <artifactId>mysql-connector-java</artifactId>
       <version>5.1.47</version>
   </dependency>
   <!-- 数据库连接池 -->
   <dependency>
       <groupId>com.mchange</groupId>
       <artifactId>c3p0</artifactId>
       <version>0.9.5.2</version>
   </dependency>

   <!--Servlet - JSP -->
   <dependency>
       <groupId>javax.servlet</groupId>
       <artifactId>servlet-api</artifactId>
       <version>2.5</version>
   </dependency>
   <dependency>
       <groupId>javax.servlet.jsp</groupId>
       <artifactId>jsp-api</artifactId>
       <version>2.2</version>
   </dependency>
   <dependency>
       <groupId>javax.servlet</groupId>
       <artifactId>jstl</artifactId>
       <version>1.2</version>
   </dependency>

   <!--Mybatis-->
   <dependency>
       <groupId>org.mybatis</groupId>
       <artifactId>mybatis</artifactId>
       <version>3.5.2</version>
   </dependency>
   <dependency>
       <groupId>org.mybatis</groupId>
       <artifactId>mybatis-spring</artifactId>
       <version>2.0.2</version>
   </dependency>

   <!--Spring-->
   <dependency>
       <groupId>org.springframework</groupId>
       <artifactId>spring-webmvc</artifactId>
       <version>5.1.9.RELEASE</version>
   </dependency>
   <dependency>
       <groupId>org.springframework</groupId>
       <artifactId>spring-jdbc</artifactId>
       <version>5.1.9.RELEASE</version>
   </dependency>
</dependencies>
maven依赖

3.maven的资源过滤设置

　　
<build>
   <resources>
       <resource>
           <directory>src/main/java</directory>
           <includes>
               <include>**/*.properties</include>
               <include>**/*.xml</include>
           </includes>
           <filtering>false</filtering>
       </resource>
       <resource>
           <directory>src/main/resources</directory>
           <includes>
               <include>**/*.properties</include>
               <include>**/*.xml</include>
           </includes>
           <filtering>false</filtering>
       </resource>
   </resources>
</build>
maven资源过滤

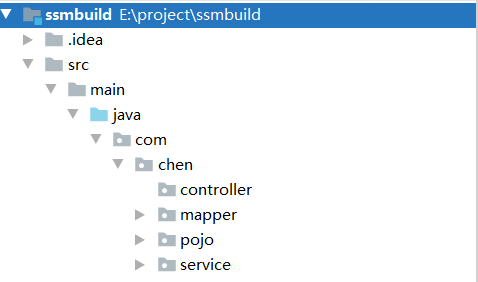

4.建立基本框架以及mybaits的配置和spring的配置

　　

　　
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
       PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

</configuration>
mybaits基本配置
　　
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd">

</beans>
Spring基本配置

5.mybaits的配置，spring整合mybaits

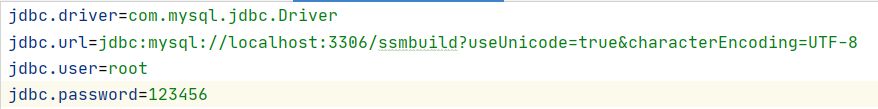

　　配置文件中最好用jdbc.xxx

　　另外不要用username，数据源配置中也注意！！

　　

　　
driver=com.mysql.jdbc.Driver
url=jdbc:mysql://localhost:3306/mybaits?useUnicode=true&characterEncoding=UTF-8
username=root
password=123456
数据源配置文件

 　　mybaits核心配置：别名和关联mapper.xml。数据源交给spring来做

　　
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
       PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>

   <typeAliases>
       <package name="com.kuang.pojo"/>
   </typeAliases>
   <mappers>
       <mapper resource="com/kuang/dao/BookMapper.xml"/>
   </mappers>

</configuration>
mybaits核心配置

　　编写实体类和mapper接口,注意接口中跟数据库中字段不一样时候要用@Param()注解实现

　　　　例如：int deleteBookById(@Param("bookID") int id);

　　
package com.kuang.pojo;

import lombok.AllArgsConstructor;
import lombok.Data;
import lombok.NoArgsConstructor;

@Data
@AllArgsConstructor
@NoArgsConstructor
public class Books {

   private int bookID;
   private String bookName;
   private int bookCounts;
   private String detail;

}
实体类
　　
package com.kuang.dao;

import com.kuang.pojo.Books;
import java.util.List;

public interface BookMapper {

   //增加一个Book
   int addBook(Books book);

   //根据id删除一个Book
   int deleteBookById(int id);

   //更新Book
   int updateBook(Books books);

   //根据id查询,返回一个Book
   Books queryBookById(int id);

   //查询全部Book,返回list集合
   List<Books> queryAllBook();

}
mapper接口

　　编写mapper接口的mybaits配置文件

　　
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
       PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
       "http://mybatis.org/dtd/mybatis-3-mapper.dtd">

<mapper namespace="com.kuang.dao.BookMapper">

   <!--增加一个Book-->
   <insert id="addBook" parameterType="Books">
      insert into ssmbuild.books(bookName,bookCounts,detail)
      values (#{bookName}, #{bookCounts}, #{detail})
   </insert>

   <!--根据id删除一个Book-->
   <delete id="deleteBookById" parameterType="int">
      delete from ssmbuild.books where bookID=#{bookID}
   </delete>

   <!--更新Book-->
   <update id="updateBook" parameterType="Books">
      update ssmbuild.books
      set bookName = #{bookName},bookCounts = #{bookCounts},detail = #{detail}
      where bookID = #{bookID}
   </update>

   <!--根据id查询,返回一个Book-->
   <select id="queryBookById" resultType="Books">
      select * from ssmbuild.books
      where bookID = #{bookID}
   </select>

   <!--查询全部Book-->
   <select id="queryAllBook" resultType="Books">
      SELECT * from ssmbuild.books
   </select>

</mapper>
BookMapper.xml

6.service层的接口和实现类

　　接口：

　　
package com.kuang.service;

import com.kuang.pojo.Books;

import java.util.List;

//BookService:底下需要去实现,调用dao层
public interface BookService {
   //增加一个Book
   int addBook(Books book);
   //根据id删除一个Book
   int deleteBookById(int id);
   //更新Book
   int updateBook(Books books);
   //根据id查询,返回一个Book
   Books queryBookById(int id);
   //查询全部Book,返回list集合
   List<Books> queryAllBook();
}
service层接口

　　实现类：定义mapper私有属性，并设置set方法。方便spring的管理

　　
package com.kuang.service;

import com.kuang.dao.BookMapper;
import com.kuang.pojo.Books;
import java.util.List;

public class BookServiceImpl implements BookService {

   //调用dao层的操作，设置一个set接口，方便Spring管理
   private BookMapper bookMapper;

   public void setBookMapper(BookMapper bookMapper) {
       this.bookMapper = bookMapper;
  }

   public int addBook(Books book) {
       return bookMapper.addBook(book);
  }

   public int deleteBookById(int id) {
       return bookMapper.deleteBookById(id);
  }

   public int updateBook(Books books) {
       return bookMapper.updateBook(books);
  }

   public Books queryBookById(int id) {
       return bookMapper.queryBookById(id);
  }

   public List<Books> queryAllBook() {
       return bookMapper.queryAllBook();
  }
}
service实现类

7.Spring整合mybaits。注意数据源配置要用classpath：

　　注意配置文件中  不要用username  要用user

　　
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xmlns:context="http://www.springframework.org/schema/context"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
       http://www.springframework.org/schema/beans/spring-beans.xsd
       http://www.springframework.org/schema/context
       https://www.springframework.org/schema/context/spring-context.xsd">

   <!-- 配置整合mybatis -->
   <!-- 1.关联数据库文件 -->
   <context:property-placeholder location="classpath:database.properties"/>

   <!-- 2.数据库连接池 -->
   <!--数据库连接池
       dbcp 半自动化操作 不能自动连接
       c3p0 自动化操作（自动的加载配置文件 并且设置到对象里面）
   -->
   <bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource">
       <!-- 配置连接池属性 -->
       <property name="driverClass" value="${jdbc.driver}"/>
       <property name="jdbcUrl" value="${jdbc.url}"/>
       <property name="user" value="${jdbc.username}"/>
       <property name="password" value="${jdbc.password}"/>

       <!-- c3p0连接池的私有属性 -->
       <property name="maxPoolSize" value="30"/>
       <property name="minPoolSize" value="10"/>
       <!-- 关闭连接后不自动commit -->
       <property name="autoCommitOnClose" value="false"/>
       <!-- 获取连接超时时间 -->
       <property name="checkoutTimeout" value="10000"/>
       <!-- 当获取连接失败重试次数 -->
       <property name="acquireRetryAttempts" value="2"/>
   </bean>

   <!-- 3.配置SqlSessionFactory对象 -->
   <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
       <!-- 注入数据库连接池 -->
       <property name="dataSource" ref="dataSource"/>
       <!-- 配置MyBaties全局配置文件:mybatis-config.xml -->
       <property name="configLocation" value="classpath:mybatis-config.xml"/>
   </bean>

   <!-- 4.配置扫描Dao接口包，动态实现Dao接口注入到spring容器中 -->
    <!--之前需要到mapper接口实现类（现在不写了）里面手动写SqlSessionTemplate现在自动注入了-->
   <!--解释 ：https://www.cnblogs.com/jpfss/p/7799806.html-->
   <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
       <!-- 注入sqlSessionFactory -->
       <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory"/>
       <!-- 给出需要扫描Dao接口包 -->
       <property name="basePackage" value="com.kuang.dao"/>
   </bean>

</beans>
Spring整合mybaits

===================================以上spring-dao层结束===========================

8.Spring-service层

　　
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xmlns:context="http://www.springframework.org/schema/context"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd">

   <!-- 扫描service相关的bean -->
   <context:component-scan base-package="com.kuang.service" />

   <!--BookServiceImpl注入到IOC容器中-->
   <bean id="BookServiceImpl" class="com.kuang.service.BookServiceImpl">
       <property name="bookMapper" ref="bookMapper"/>
   </bean>

   <!-- 配置事务管理器 -->
   <bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
       <!-- 注入数据库连接池 -->
       <property name="dataSource" ref="dataSource" />
   </bean>

</beans>
Spring-service层配置

===================================以上spring-service层结束=========================

9.Spring-mvc层

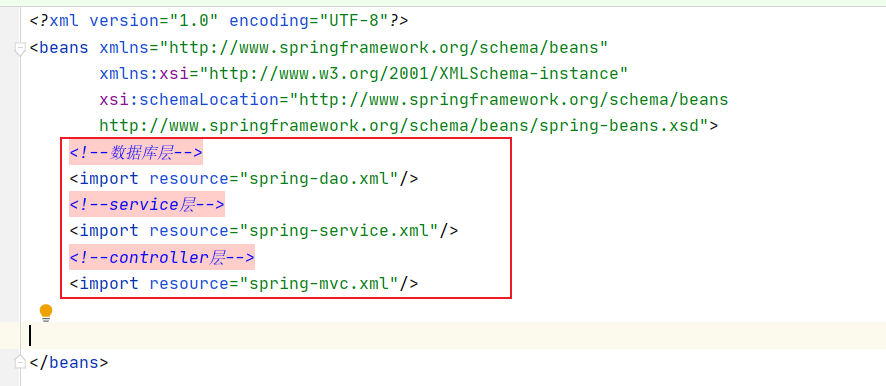

　　9.1web项目:注意这里的DispatcherServlet配置中的spring配置文件是总的配置文件applicationContext.xml

　　
<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
        xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
        xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd"
        version="4.0">

   <!--DispatcherServlet-->
   <servlet>
       <servlet-name>DispatcherServlet</servlet-name>
       <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
       <init-param>
           <param-name>contextConfigLocation</param-name>
           <!--一定要注意:我们这里加载的是总的配置文件，之前被这里坑了！-->
           <param-value>classpath:applicationContext.xml</param-value>
       </init-param>
       <load-on-startup>1</load-on-startup>
   </servlet>
   <servlet-mapping>
       <servlet-name>DispatcherServlet</servlet-name>
       <url-pattern>/</url-pattern>
   </servlet-mapping>

   <!--encodingFilter-->
   <filter>
       <filter-name>encodingFilter</filter-name>
       <filter-class>
          org.springframework.web.filter.CharacterEncodingFilter
       </filter-class>
       <init-param>
           <param-name>encoding</param-name>
           <param-value>utf-8</param-value>
       </init-param>
   </filter>
   <filter-mapping>
       <filter-name>encodingFilter</filter-name>
       <url-pattern>/*</url-pattern>
   </filter-mapping>

   <!--Session过期时间-->
   <session-config>
       <session-timeout>15</session-timeout>
   </session-config>

</web-app>
web.xml配置

　　9.2spring-mvc.xml

　　
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
      xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
      xmlns:context="http://www.springframework.org/schema/context"
      xmlns:mvc="http://www.springframework.org/schema/mvc"
      xsi:schemaLocation="http://www.springframework.org/schema/beans
   http://www.springframework.org/schema/beans/spring-beans.xsd
   http://www.springframework.org/schema/context
   http://www.springframework.org/schema/context/spring-context.xsd
   http://www.springframework.org/schema/mvc
   https://www.springframework.org/schema/mvc/spring-mvc.xsd">

   <!-- 配置SpringMVC -->
   <!-- 1.开启SpringMVC注解驱动 -->
   <mvc:annotation-driven />
   <!-- 2.静态资源默认servlet配置-->
   <mvc:default-servlet-handler/>

   <!-- 3.配置jsp 显示ViewResolver视图解析器 -->
   <bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
       <property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
       <property name="prefix" value="/WEB-INF/jsp/" />
       <property name="suffix" value=".jsp" />
   </bean>

   <!-- 4.扫描web相关的bean -->
   <context:component-scan base-package="com.kuang.controller" />

</beans>
spring-mvc.xml

　　三层架构很明显　　

　　

 　　后续功能只需要写前台跟后台的controller即可

　　

package com.chen.controller;

import com.chen.pojo.Books;
import com.chen.service.BookService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.stereotype.Controller;
import org.springframework.ui.Model;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.RequestMapping;


import java.util.List;

@Controller
@RequestMapping("/book")
public class BookController {
    //controller调用service层
    @Autowired
    @Qualifier("BookServiceImpl")
    private BookService bookService;

    @RequestMapping("/allBook")
    private String books(Model model){
        List<Books> lists = bookService.queryAllBook();
        model.addAttribute(lists);
        for (Books list : lists) {
            System.out.println(list);
        }
        return "allBooks";
    }
    //跳到新增数据页面
    @RequestMapping("/upbookpage")
    private String upbookpage(){
        return "upbookpage";
    }

    //新增书籍页面提交后，处理完毕后重定向到全部书籍页面
    @RequestMapping("/addBook")
    private String addBook(Books books){
        System.out.println(books);
        bookService.addBook(books);
        return "redirect:/book/allBook";
    }

    //跳到修改页面
    @RequestMapping("/updatebookpage/{bookID}")
    private String updatebookpage(Model model, @PathVariable int bookID ){
        System.out.println("1");
        Books books = bookService.queryBookById(bookID);
        System.out.println(books);
        model.addAttribute("upbook",books );
        return "updatebookpage";
    }

    //修改页面提交
    @RequestMapping("/updateBooks")
    private String upbook(Books books,Model model){

        bookService.updateBook(books);
        return "redirect:/book/allBook";
    }
}



posted @ 2021-12-11 18:01  qwedfrgh  阅读(31)  评论(0)    收藏  举报
