实验3：OpenFlow协议分析实践
SDN实验三：OpenFlow协议分析实践
实验目的
- 能够运用 wireshark 对 OpenFlow 协议数据交互过程进行抓包
- 能够借助包解析工具，分析与解释 OpenFlow协议的数据包交互过程与机制
实验要求
（一）基本要求
- 搭建下图所示拓扑，完成相关 IP 配置，并实现主机与主机之间的 IP 通信。用抓包软件获取控制器与交换机之间的通信数据包
![]()
用miniedit配置好相关ip以及网段后，将拓扑文件保存至lab3
使用sudo wireshark启动wireshark后，选择any模式

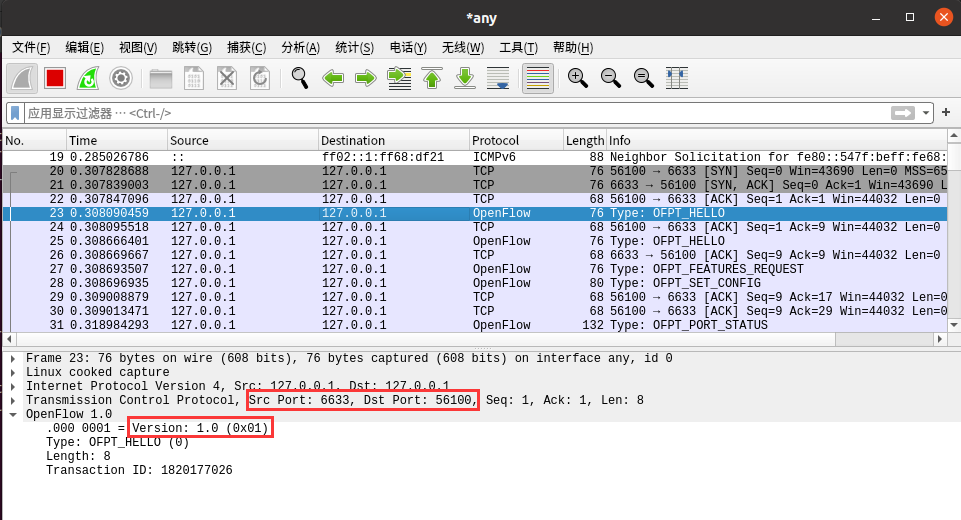

hello

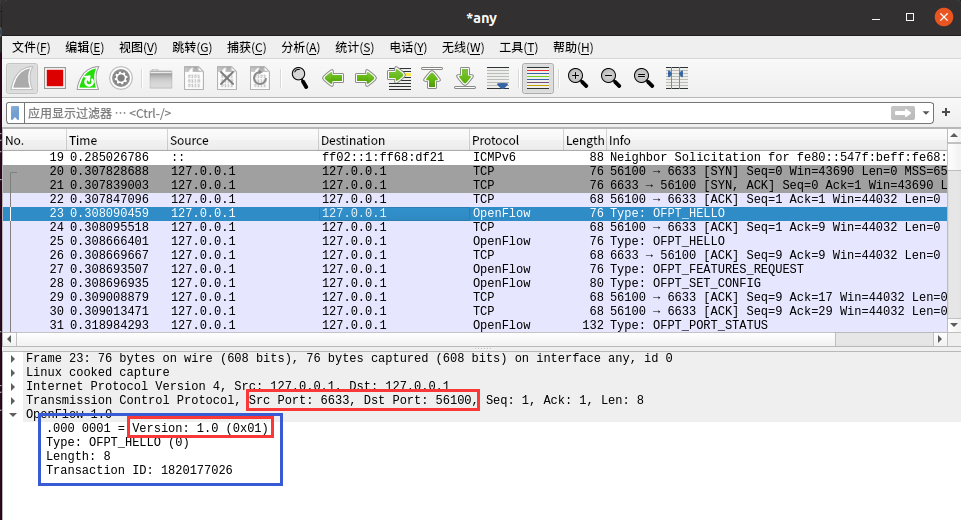

控制器6633端口（我最高能支持OpenFlow 1.0）-->交换机56100端口

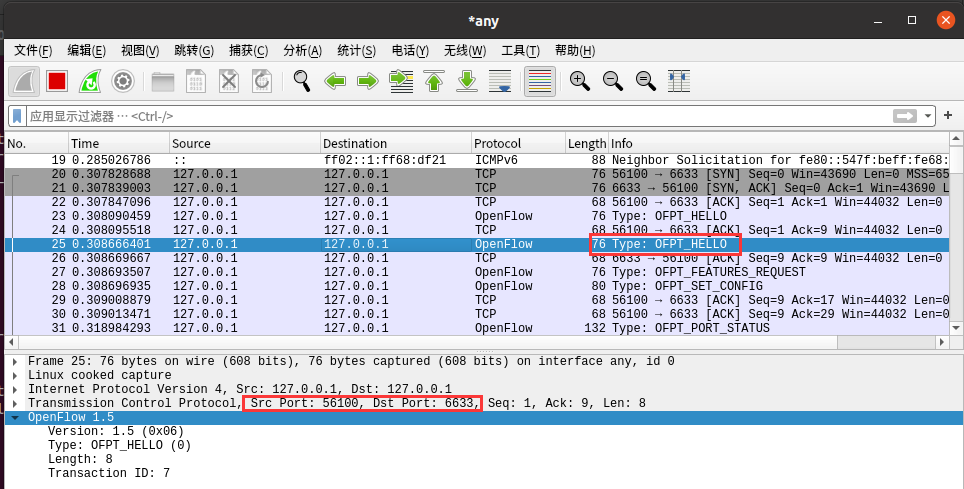

交换机56100端口（我最高能支持OpenFlow 1.5）-->控制器6633端口

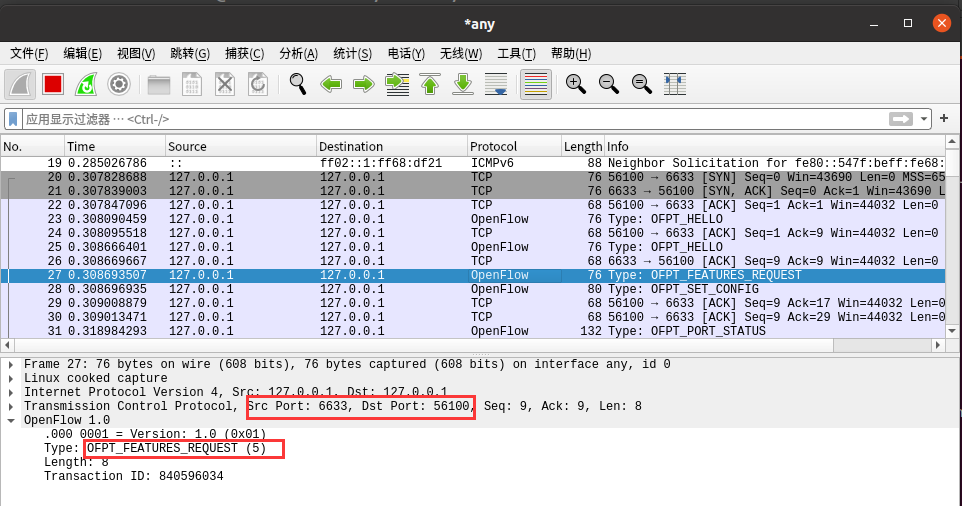

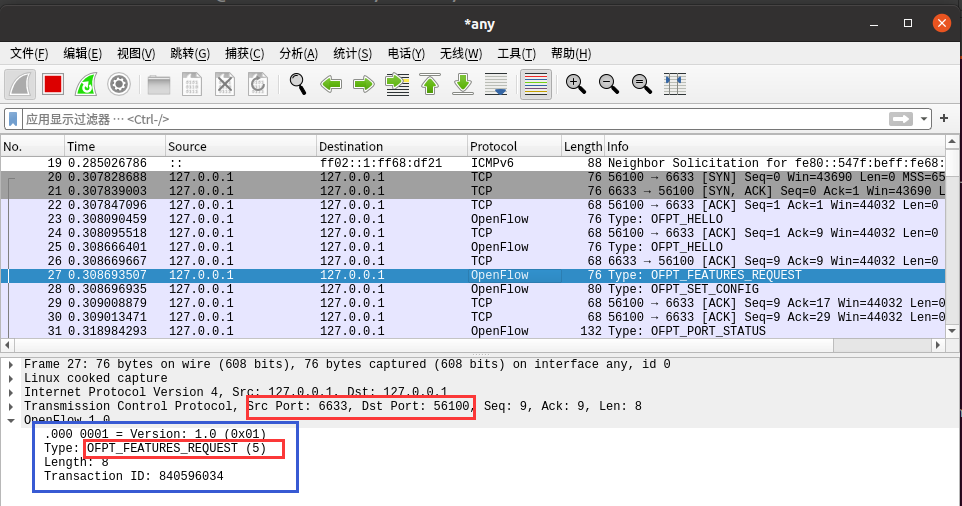

Features Request / Set Conig
控制器6633端口（我需要你的特征信息） --> 交换机56100端口

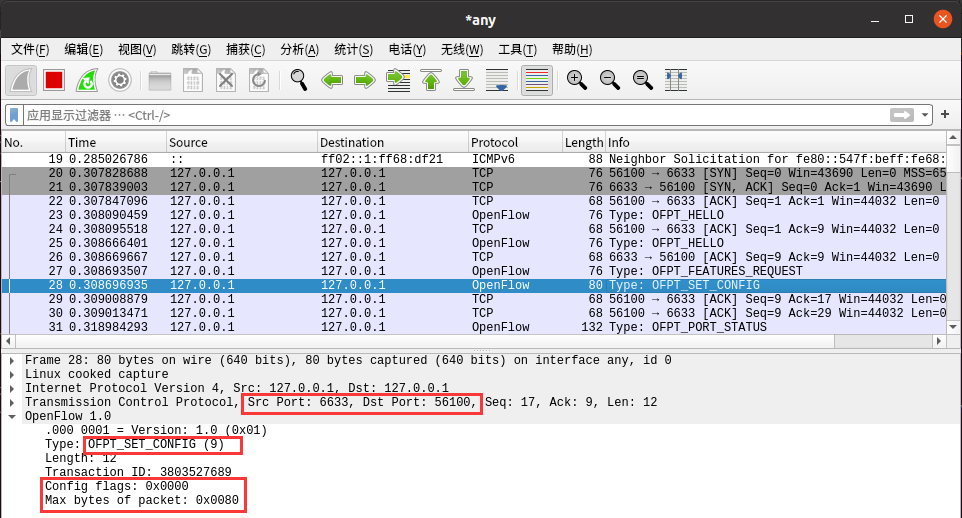

控制器6633端口（请按照我给你的flag和max bytes of packet进行配置）--> 交换机56100端口

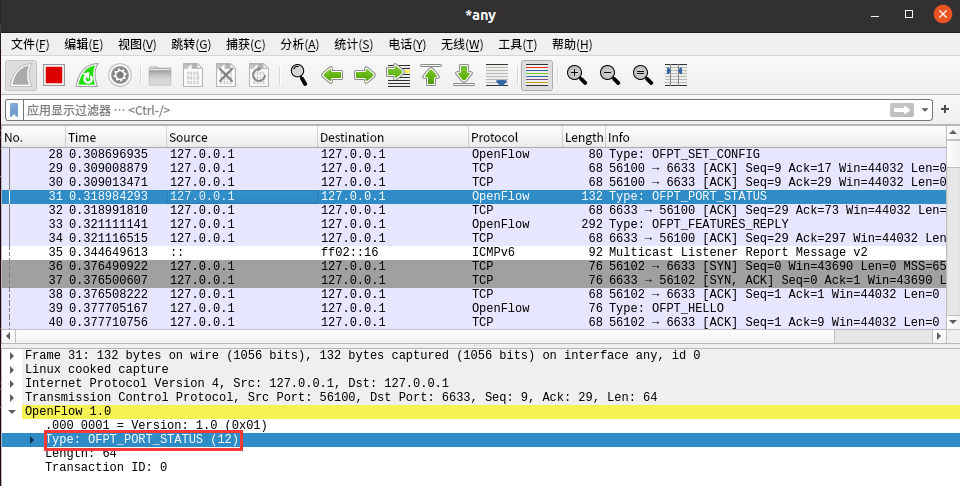

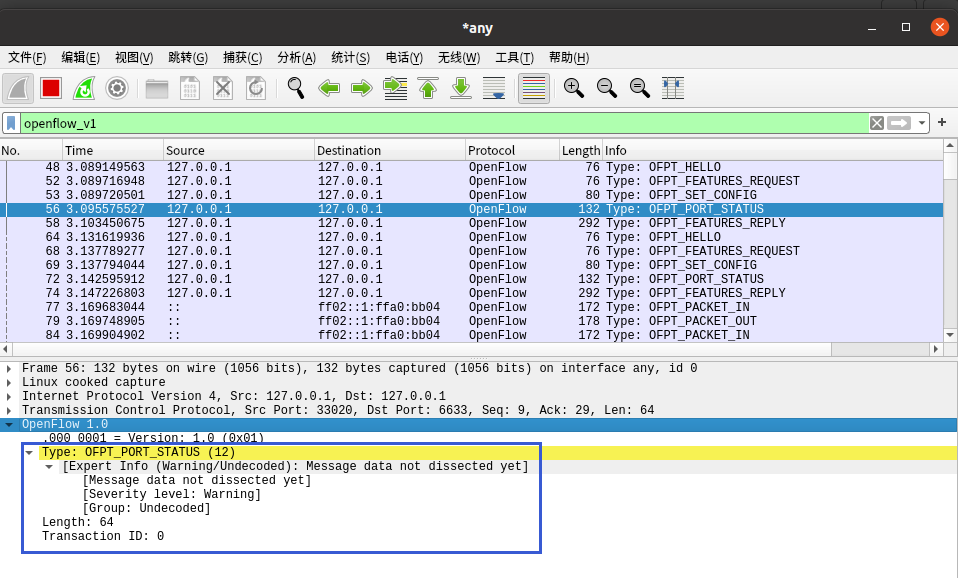

Port_Status
交换机端口56100告知控制器相应的端口状态

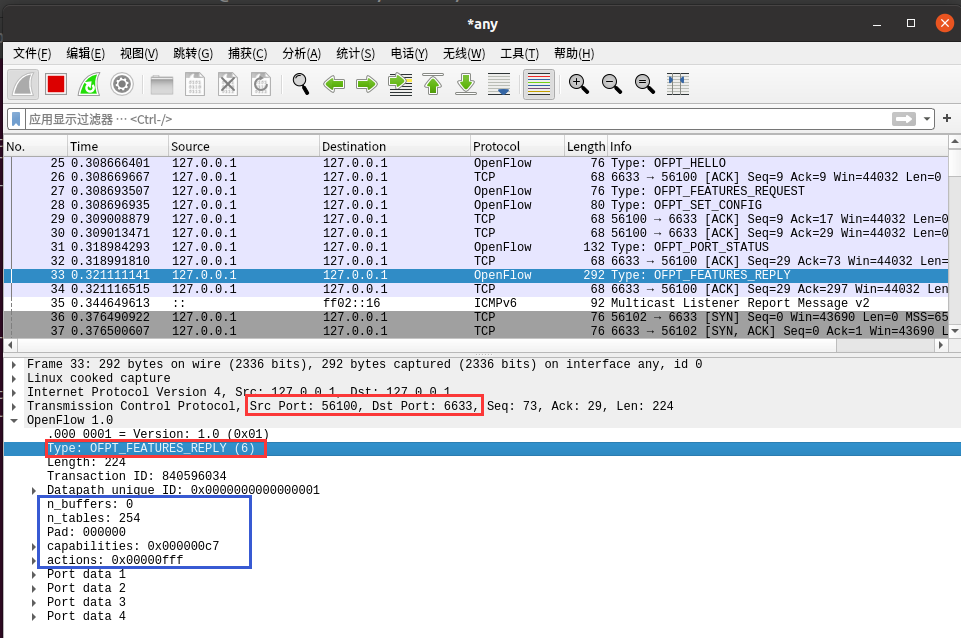

Features Reply

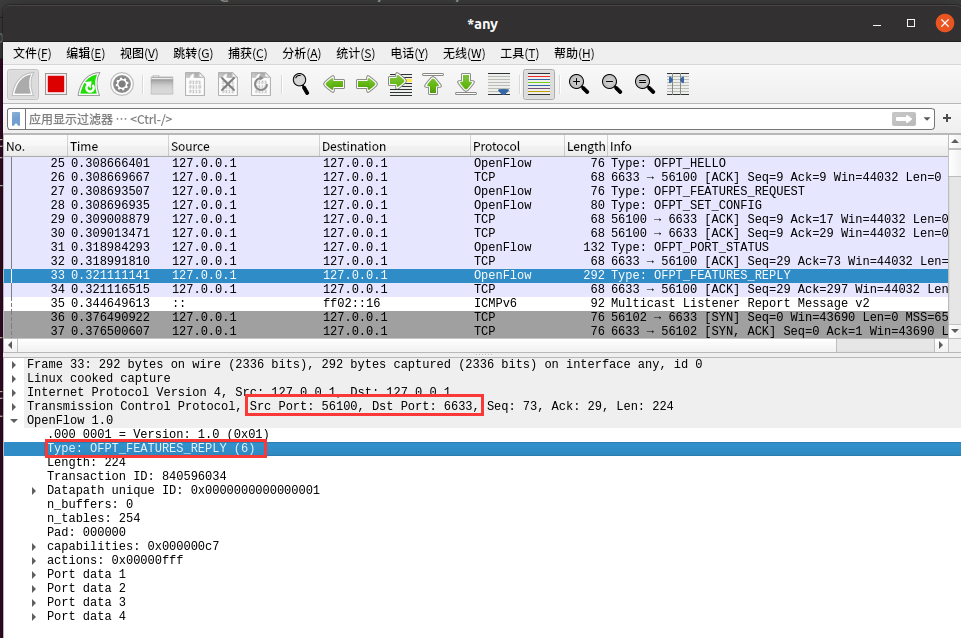

交换机56100端口（这是我的特征信息，请查收）--> 控制器6633端口

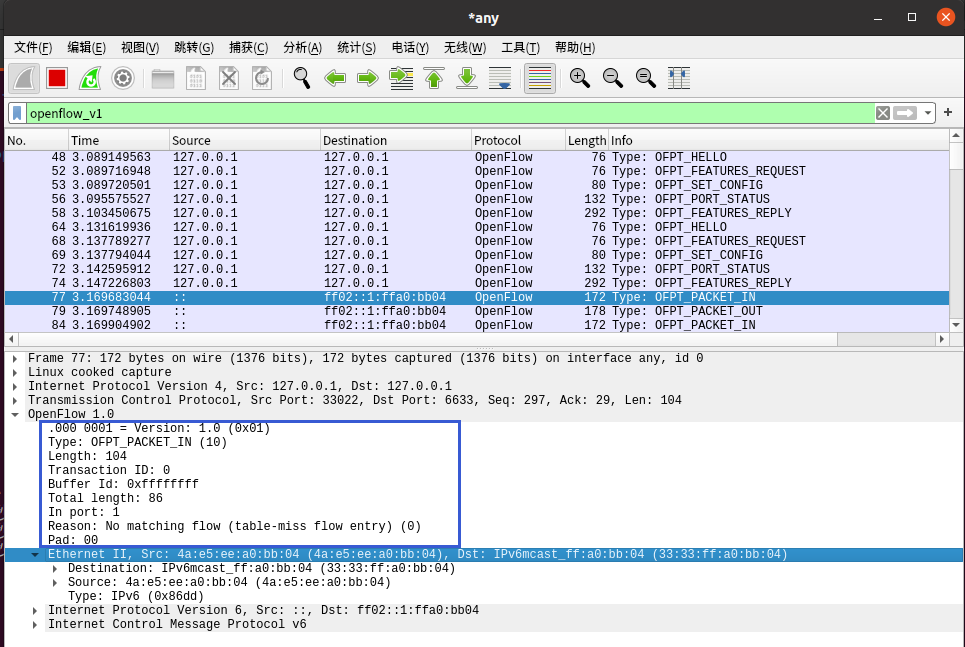

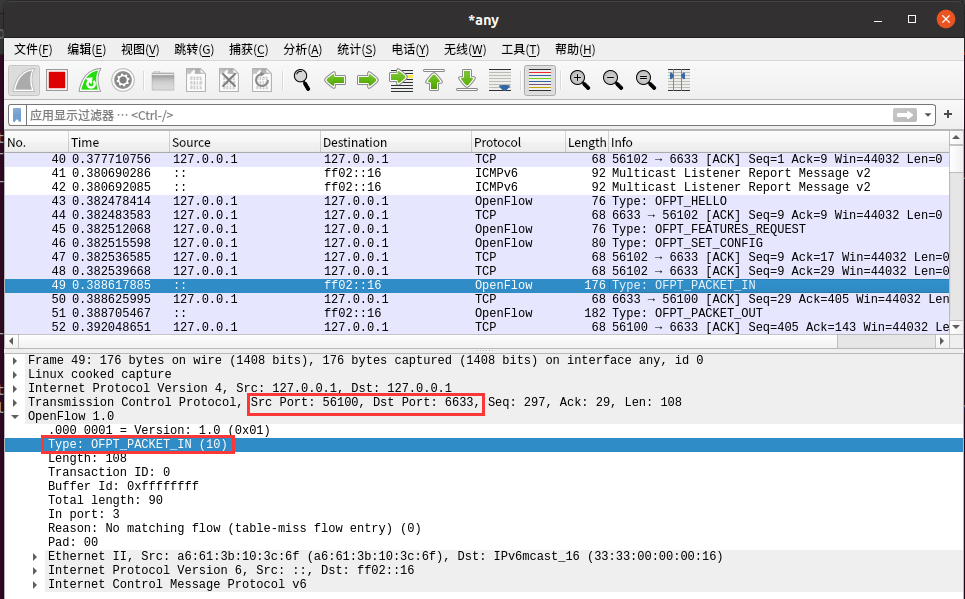

Packet_in
交换机56100端口（有数据包进来，请指示）--> 控制器6633端口

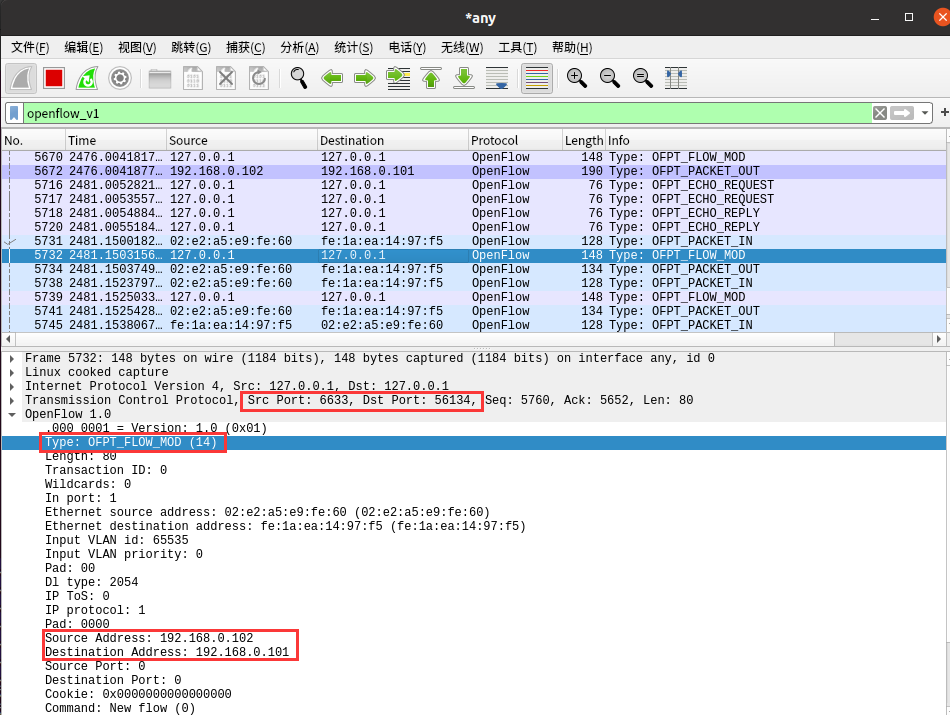

Flow_mod
控制器通过6633端口向交换机56134端口下发流表项，指导数据的转发处理

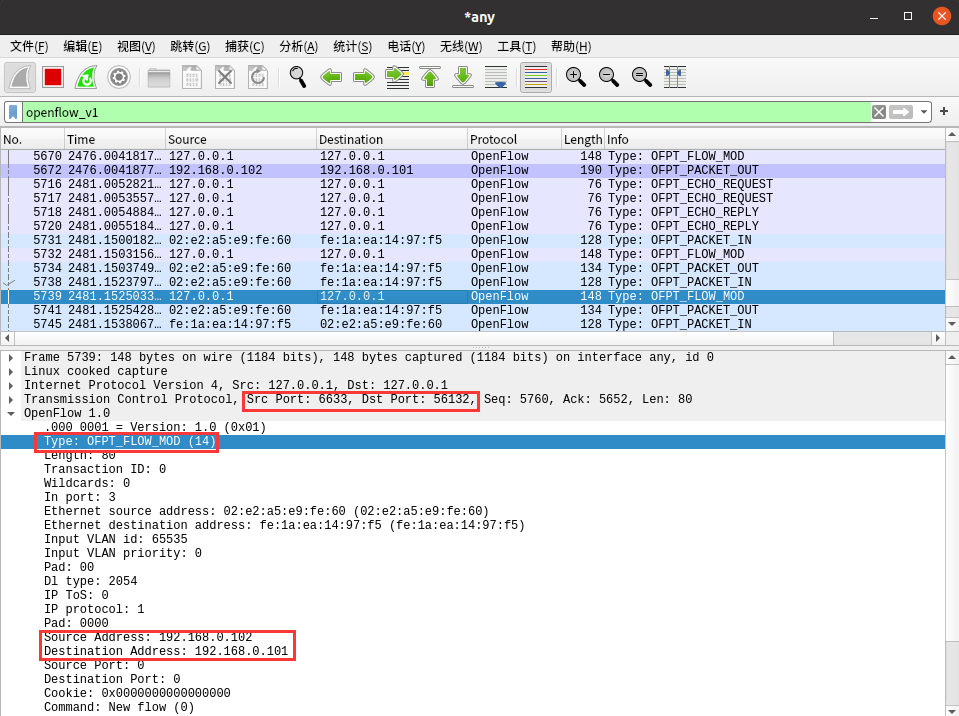

控制器通过6633端口向交换机56132端口下发流表项
Packet_out

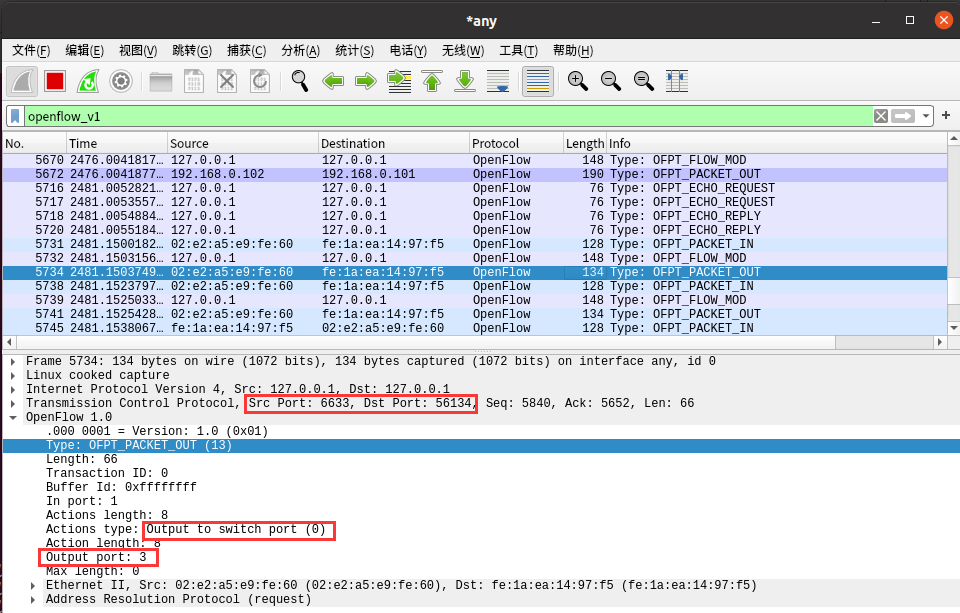

控制器6633端口（请按照我给你的action进行处理） --> 交换机56134端口
-

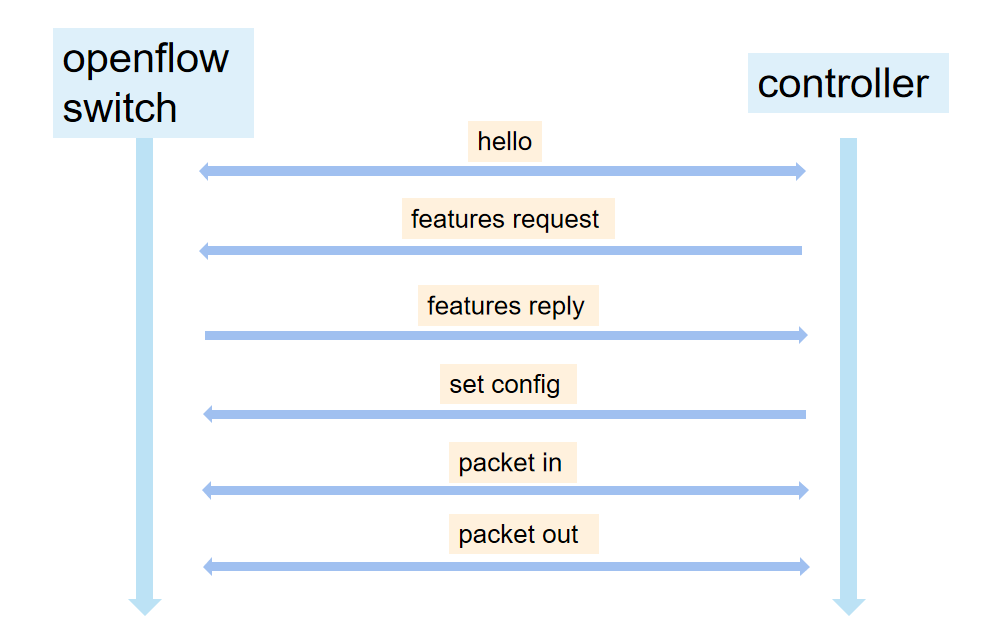

查看抓包结果，分析OpenFlow协议中交换机与控制器的消息交互过程，画出相关交互图或流程图
![]()
-
回答问题：交换机与控制器建立通信时是使用TCP协议还是UDP协议？
- 交换机与控制器建立通信时使用TCP协议，在抓包时可以看到
进阶要求
- 将抓包结果对照OpenFlow源码，了解OpenFlow主要消息类型对应的数据结构定义
hello
源码：
struct ofp_header {
uint8_t version; /* OFP_VERSION. */
uint8_t type; /* One of the OFPT_ constants. */
uint16_t length; /* Length including this ofp_header. */
uint32_t xid; /* Transaction id associated with this packet.
Replies use the same id as was in the request
to facilitate pairing. */
};
struct ofp_hello {
struct ofp_header header;
};
对应的参数：
features_request
格式和ofp_header中的相同
features_reply
源码：
struct ofp_switch_features {
struct ofp_header header;
uint64_t datapath_id; /* Datapath unique ID. The lower 48-bits are for
a MAC address, while the upper 16-bits are
implementer-defined. */
uint32_t n_buffers; /* Max packets buffered at once. */
uint8_t n_tables; /* Number of tables supported by datapath. */
uint8_t pad[3]; /* Align to 64-bits. */
/* Features. */
uint32_t capabilities; /* Bitmap of support "ofp_capabilities". */
uint32_t actions; /* Bitmap of supported "ofp_action_type"s. */
/* Port info.*/
struct ofp_phy_port ports[0]; /* Port definitions. The number of ports
is inferred from the length field in
the header. */
};
/* Description of a physical port */
struct ofp_phy_port {
uint16_t port_no;
uint8_t hw_addr[OFP_ETH_ALEN];
char name[OFP_MAX_PORT_NAME_LEN]; /* Null-terminated */
uint32_t config; /* Bitmap of OFPPC_* flags. */
uint32_t state; /* Bitmap of OFPPS_* flags. */
/* Bitmaps of OFPPF_* that describe features. All bits zeroed if
* unsupported or unavailable. */
uint32_t curr; /* Current features. */
uint32_t advertised; /* Features being advertised by the port. */
uint32_t supported; /* Features supported by the port. */
uint32_t peer; /* Features advertised by peer. */
};
可以找到对应关系：
set_config
源码：
/* Switch configuration. */
struct ofp_switch_config {
struct ofp_header header;
uint16_t flags; /* OFPC_* flags. */
uint16_t miss_send_len; /* Max bytes of new flow that datapath should
send to the controller. */
};
可以看到有ofp_header的结构加上flags和miss_send_len
post_status
源码：
/* A physical port has changed in the datapath */
struct ofp_port_status {
struct ofp_header header;
uint8_t reason; /* One of OFPPR_*. */
uint8_t pad[7]; /* Align to 64-bits. */
struct ofp_phy_port desc;
};
packet_in
源码：（有匹配条目但是对应的action是OUTPUT=CONTROLLER时）
struct ofp_packet_in {
struct ofp_header header;
uint32_t buffer_id; /* ID assigned by datapath. */
uint16_t total_len; /* Full length of frame. */
uint16_t in_port; /* Port on which frame was received. */
uint8_t reason; /* Reason packet is being sent (one of OFPR_*) */
uint8_t pad;
uint8_t data[0]; /* Ethernet frame, halfway through 32-bit word,
so the IP header is 32-bit aligned. The
amount of data is inferred from the length
field in the header. Because of padding,
offsetof(struct ofp_packet_in, data) ==
sizeof(struct ofp_packet_in) - 2. */
};
源码：（交换机查找流表，发现没有匹配条目时）
enum ofp_packet_in_reason {
OFPR_NO_MATCH, /* No matching flow. */
OFPR_ACTION /* Action explicitly output to controller. */
};

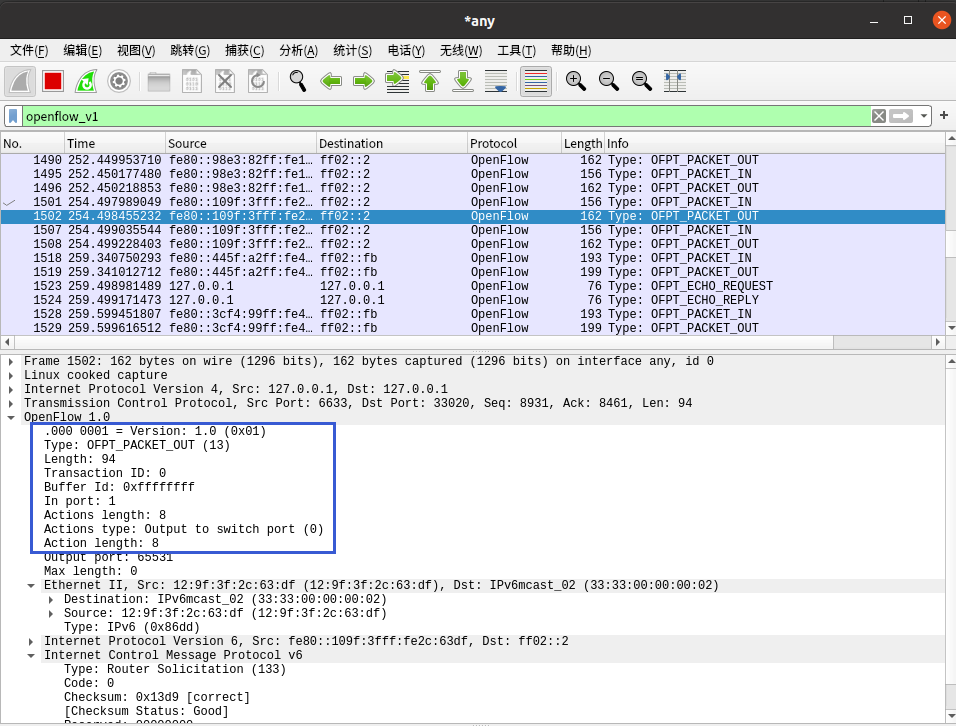

packet_out
源码：
struct ofp_packet_out {
struct ofp_header header;
uint32_t buffer_id; /* ID assigned by datapath (-1 if none). */
uint16_t in_port; /* Packet's input port (OFPP_NONE if none). */
uint16_t actions_len; /* Size of action array in bytes. */
struct ofp_action_header actions[0]; /* Actions. */
/* uint8_t data[0]; */ /* Packet data. The length is inferred
from the length field in the header.
(Only meaningful if buffer_id == -1.) */
};

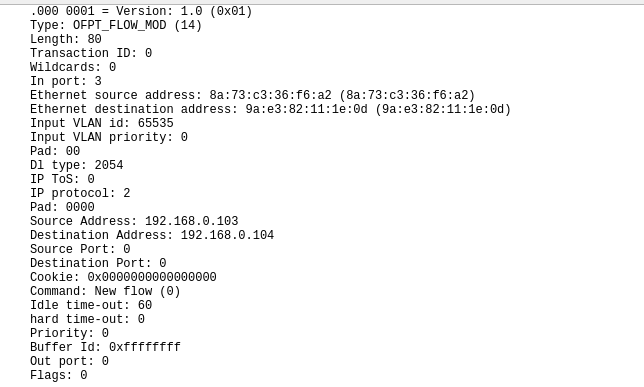

flow_mod
源码：
struct ofp_flow_mod {
struct ofp_header header;
struct ofp_match match; /* Fields to match */
uint64_t cookie; /* Opaque controller-issued identifier. */
/* Flow actions. */
uint16_t command; /* One of OFPFC_*. */
uint16_t idle_timeout; /* Idle time before discarding (seconds). */
uint16_t hard_timeout; /* Max time before discarding (seconds). */
uint16_t priority; /* Priority level of flow entry. */
uint32_t buffer_id; /* Buffered packet to apply to (or -1).
Not meaningful for OFPFC_DELETE*. */
uint16_t out_port; /* For OFPFC_DELETE* commands, require
matching entries to include this as an
output port. A value of OFPP_NONE
indicates no restriction. */
uint16_t flags; /* One of OFPFF_*. */
struct ofp_action_header actions[0]; /* The action length is inferred
from the length field in the
header. */
};
struct ofp_action_header {
uint16_t type; /* One of OFPAT_*. */
uint16_t len; /* Length of action, including this
header. This is the length of action,
including any padding to make it
64-bit aligned. */
uint8_t pad[4];
};
个人总结
遇到的问题和解决方法

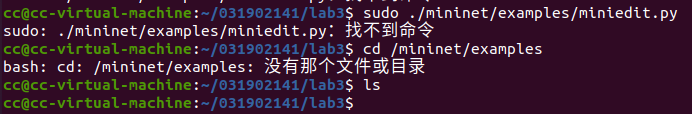

- 一开始直接进入lab3里打算执行miniedit，会出现报错
![]()
解决方法：回退到上一级目录即可
2.交换机采用的openflow协议版本为1.5，不是资料中的1.3
一开始以为是实验出了问题，但应该并不是
个人感想
这次的进阶要求中需要阅读openflow的源码（位置在openflow/include/openflow/openflow.h），需要能理清楚其中的思路，并和实际抓到的包的详细信息对应起来，从而理解openflow协议的数据包交互过程；同时对wireshark中过滤器等工具的使用也有了更多的了解。之后还可以构造一些场景，触发packet in中交换机查找流表，发现没有匹配条目的情况，从而抓到对应的数据包。
