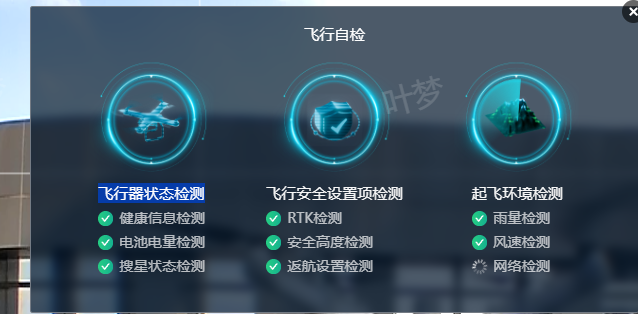

动态效果



<script setup lang="ts">
import useMqttStore from '@/stores/modules/mqtt';
import imganimation1 from '@/assets/images/fly_test_01.png';
import imganimation2 from '@/assets/images/fly_test_02.png';
import imganimation3 from '@/assets/images/fly_test_03.png';
import imgstatic1 from '@/assets/images/fly_test_static_01.png';
import imgstatic2 from '@/assets/images/fly_test_static_02.png';
import imgstatic3 from '@/assets/images/fly_test_static_03.png';

defineOptions({
  name: 'FlySelfTest',
});
const mqttStore = useMqttStore();

const styleObj = reactive({
  width: '40rem',
  top: '20%',
  left: '40%',
});

const title = ref('飞行自检');
const flySelfTestRef = ref();
const isSuccess = ref(false);

// 获取当前飞机的实时信息
const uavData = computed(() => {
  return mqttStore.CURRENT_INFO?.uav;
});

const interval = ref(null) as any;

const allStatus = ref({
  status1: 'pedding',
  status2: 'pedding',
  status3: 'pedding',
  status4: 'pedding',
  status5: 'pedding',
  status6: 'pedding',
  status7: 'pedding',
  status8: 'pedding',
  status9: 'pedding',
}) as any;

const tests = ref([
  {
    category: '飞行器状态检测',
    items: [
      { name: '健康信息检测', statusKey: 'status1' },
      { name: '电池电量检测', statusKey: 'status2' },
      { name: '搜星状态检测', statusKey: 'status3' },
    ],
    success: false,
    imgUrl: imganimation1,
    imgUrlStatic: imgstatic1,
  },
  {
    category: '飞行安全设置项检测',
    items: [
      { name: 'RTK检测', statusKey: 'status4' },
      { name: '安全高度检测', statusKey: 'status5' },
      { name: '返航设置检测', statusKey: 'status6' },
    ],
    success: false,
    imgUrl: imganimation2,
    imgUrlStatic: imgstatic2,
  },
  {
    category: '起飞环境检测',
    items: [
      { name: '雨量检测', statusKey: 'status7' },
      { name: '风速检测', statusKey: 'status8' },
      { name: '网络检测', statusKey: 'status9' },
    ],
    success: false,
    imgUrl: imganimation3,
    imgUrlStatic: imgstatic3,
  },
]);

// 检查所有类别的状态，若每个类别内的项都为 'success'，则更新该类别的 success 状态
function checkCategorySuccess() {
  tests.value.forEach((test) => {
    // 检查当前类别下的所有项的状态
    const allItemsSuccess = test.items.every(item => allStatus.value[item.statusKey] === 'success');
    test.success = allItemsSuccess;
  });
}

function changeStyle() {
  if (isSuccess.value) {
    styleObj.width = '20rem';
    styleObj.top = '20%';
    styleObj.left = '45%';
    return;
  }
  styleObj.width = '40rem';
  styleObj.top = '20%';
  styleObj.left = '40%';
}

function initData() {
  isSuccess.value = false;
  title.value = '飞行自检';
  changeStyle();
  for (const key in allStatus.value) {
    allStatus.value[key] = 'pedding';
  }
  checkCategorySuccess();
}

function openDialog() {
  initData();
  flySelfTestRef.value.open();
  startTesting();
}

function startTesting() {
  const statusKeys = Object.keys(allStatus.value);
  let index = 0;

  interval.value = setInterval(() => {
    // if (interval.value) {
    //   clearInterval(interval.value);
    // }

    if (index === statusKeys.length - 1 && (uavData.value?.modeCode === undefined || uavData.value?.modeCode === 0)) {
      return;
    }
    if (index < statusKeys.length) {
      const key = statusKeys[index];
      allStatus.value[key] = 'success';
      index++;

      checkCategorySuccess();
    }
    else {
      clearInterval(interval.value);
      const key = statusKeys[index];
      allStatus.value[key] = 'success';
      title.value = '';
      isSuccess.value = true;
      changeStyle();
      checkCategorySuccess();
      setTimeout(() => {
        flySelfTestRef.value?.close();
      }, 2000);
    }
  }, 6 * 1000);

  watch(() => uavData.value, (newVal) => {
    if (newVal?.modeCode === 1) {
      title.value = '';
      // 所有状态都为成功
      for (const key in allStatus.value) {
        allStatus.value[key] = 'success';
      }
      clearInterval(interval.value);
      checkCategorySuccess();
      setTimeout(() => {
        changeStyle();
        isSuccess.value = true;
      }, 100);
      setTimeout(() => {
        flySelfTestRef.value?.close();
      }, 2000);
    }
  }, { immediate: true, deep: true });
}

function closeDialog(bool?: boolean) {
  initData();
  clearInterval(interval.value);
  if (!bool) {
    flySelfTestRef.value?.close();
  }
}

// onMounted(() => {
//   setTimeout(() => {
//     uavData.value.modeCode = 1;
//   }, 8000);
// })

defineExpose({
  openDialog,
  closeDialog,
});
</script>

<template>
  <Dialog
    ref="flySelfTestRef"
    :footer="false"
    :title="title"
    :dialog-style="{ width: styleObj.width, top: styleObj.top, left: styleObj.left }"
    :is-close="true"
    @close="closeDialog(true)"
  >
    <div class="w-full f-full">
      <div v-if="!isSuccess" class="flex items-center justify-between pl-10 pr-10">
        <div v-for="test in tests" :key="test.category" class="flex flex-col gap-[0.5rem] justify-center items-center">
          <div class="img">
            <img v-if="!test.success" :src="test.imgUrl" alt="">
            <img v-else :src="test.imgUrlStatic" alt="">
            <div v-if="!test.success" class="loading-bg" />
            <div class="inner-bg" />
          </div>
          <div class="inline-flex flex-col gap-[0.5rem]">
            <div class="title">
              <span>{{ test.category }}</span>
            </div>
            <div v-for="item in test.items" :key="item.name" class="flex items-center gap-[0.4rem]">
              <div v-if="allStatus[item.statusKey] === 'pedding'" class="loading" />
              <div v-else class="flex items-center">
                <PubSvgIcon name="fly_test_succ" size="1rem" />
              </div>
              <span class="content">{{ item.name }}</span>
            </div>
          </div>
        </div>
      </div>
      <div v-else class="flex items-center">
        <PubSvgIcon name="fly_test_success" size="1.5rem" class="mr-2" />
        <span style="font-size: 1rem;">一切正常，准备起飞</span>
      </div>
    </div>
  </Dialog>
</template>

<style lang="less" scoped>
.success-img {
  width: 18px;
  height: 18px;
  margin-right: 3px;
  background: url(@/assets/images/fly_test_success.png) no-repeat;
  background-size: 100% 100%;
}
.title {
  font-size: 16px;
  font-weight: 500;
  color: #f7f7f7;
}
.content {
  font-size: 15px;
  font-weight: 400;
  color: #ffffffb3;
}
.img {
  position: relative;
  display: flex;
  align-items: center;
  justify-content: center;
  width: 133px;
  height: 121px;
  img {
    position: absolute;
    top: 50%;
    left: 50%;
    width: 88px;
    height: 88px;
    transform: translate(-50%, -50%);
  }
  .loading-bg {
    z-index: 1;
    width: 88px;
    height: 88px;
    background: url(@/assets/images/fly_test_outer.png) no-repeat;
    background-size: 100% 100%;
    animation: spin 3s linear infinite;
  }
  .inner-bg {
    position: absolute;
    top: 50%;
    left: 50%;
    width: 100%;
    height: 100%;
    background: url(@/assets/images/fly_test_inner.png) no-repeat;
    background-size: 100% 100%;
    transform: translate(-50%, -50%);
  }
}
.loading {
  width: 16px;
  height: 16px;
  background: url(@/assets/images/fly_test_loading.png) no-repeat;
  background-size: 100% 100%;
  animation: spin 2s linear infinite;
}

@keyframes spin {
  0% { transform: rotate(0deg); }
  100% { transform: rotate(360deg); }
}
</style>
