1 Windows Phone 7 使用本地数据库

终于在Wp7.1中加入了数据库，使保存、查找、插入数据不再痛苦。在WP7中如果要做到这些，要么使用XML自已实现，要么使用第三方数据库，但是第三方数据库要么性能不好，要么占用空间太大，要么收费，现在总算有原生的本地数据库了。

1．  架构

这个本地数据库，不能直接支持Transact-SQL，需要通过LINQ to SQL 对象模型作为Proxy来操作数据库，为此引入了一个新的类System.Data.Linq.DataContext。这与windows mobile上的SQL CE有了很大的差别。



2．  LINQ to SQL

在Windows phone中，LINQ to SQL既不能直接支持执行Data Definition Language(DDL)也不支持Data Modeling Language(DML)，另外也不能直接访问ADO.NET。只能支持Microsoft SQL Server Compact Edition (SQL CE)的数据类型。并且需要通过DataContext方式来操来数据库。



3．  支持的数据类型

数据类型	描述
bigint	Integer (whole number) data from –2^63 (–9,223,372,036,854,775,808) through 2^63–1 (9,223,372,036,854,775,807). Storage size is 8 bytes.
integer	Integer (whole number) data from –2^31 (–2,147,483,648) through 2^31–1 (2,147,483,647). Storage size is 4 bytes.
smallint	Integer data from –32,768 to 32,767. Storage size is 2 bytes.
tinyint	Integer data from 0 to 255. Storage size is 1 byte.
bit	Integer data with a value of either 1 or 0. Storage size is 1 bit.
numeric (p, s) Synonyms: decimal(p,s) and dec (p,s)	Fixed-precision and scale-numeric data from –10^38+1 through 10^38–1. The p variable specifies precision and can vary between 1 and 38. The s variable specifies scale and can vary between 0 and p. Storage size is 19 bytes.
money	Monetary data values from (–2^63/10000) (–922,337,203,685,477.5808) through 2^63–1 (922,337,203,685,477.5807), with accuracy to a ten-thousandth of a monetary unit. Storage size is 8 bytes.
float	Floating point number data from –1.79E +308 through 1.79E+308 Storage size is 8 bytes.
real	Floating precision number data from –3.40E+38 through 3.40E+38. Storage size is 4 bytes.
datetime	Date and time data from January 1, 1753, to December 31, 9999, with an accuracy of one three-hundredth second, or 3.33 milliseconds. Values are rounded to increments of .000, .003, or .007 milliseconds. Stored as two 4-byte integers. The first 4 bytes store the number of days before or after the base date, January 1, 1900. The base date is the system's reference date. Values for datetime earlier than January 1, 1753, are not permitted. The other 4 bytes store the time of day represented as the number of milliseconds after midnight. Seconds have a valid range of 0–59. Format Example yyyy/mm/dd hh:mm:ss 1947/08/15 03:33:20 mm/dd/yyyy hh:mm:ss 04/15/1947 03:33:20 dd mmm yyyy hh:mm:ss 15 Jan 1947 03:33:20 dd mmmm yyyy h:mm:ss 15 January 1947 03:33:20
national character(n) Synonym:nchar(n)	Fixed-length Unicode data with a maximum length of 4000 characters. Default length = 1. Storage size, in bytes, is two times the number of characters entered.
national character varying(n) Synonym:nvarchar(n)	Variable-length Unicode data with a length of 1 to 4000 characters. Default length = 1. Storage size, in bytes, is two times the number of characters entered.
ntext⊃1;	Variable-length Unicode data with a maximum length of (2^30–2)/2 (536,870,911) characters. Storage size, in bytes, is two times the number of characters entered. Note ntext is no longer supported in string functions.
nchar	Fixed-length Unicode character data of n characters. n must be a value from 1 through 4,000. The storage size is two times n bytes.
binary(n)	Fixed-length binary data with a maximum length of 8000 bytes. Default length = 1. Storage size is fixed, which is the length in bytes declared in the type.
varbinary(n)	Variable-length binary data with a maximum length of 8000 bytes. Default length = 1. Storage size varies. It is the length of the value in bytes.
image⊃1;	Variable-length binary data with a maximum length of 2^30–1 (1,073,741,823) bytes. Storage is the length of the value in bytes.
uniqueidentifier	A globally unique identifier (GUID). Storage size is 16 bytes.
IDENTITY [(s, i)]	This is a property of a data column, not a distinct data type. Only data columns of the integer data types can be used for identity columns. A table can have only one identity column. A seed and increment can be specified and the column cannot be updated. s (seed) = starting value i(increment) = increment value
ROWGUIDCOL	This is a property of a data column, not a distinct data type. It is a column in a table that is defined by using the uniqueidentifier data type. A table can have only one ROWGUIDCOL column.
Timestamp/rowversion	This is an automatically generated unique binary number. Storage size is 8 bytes.

⊃1;在SQL Server Compact 4.0中，当Ntext 和 image 数据超过256 bytes 时将会保存到一个新的数据页。这会影响到数据库的密度，因为SQL Server Compact 4.0 数据库是按页方式面不是按字节方式来压缩的。

4．  创建工程

新建一个Windows Phone工程，最好是MVVM工程，也就是选择新建工程中的Windows Phone Databound Application 模板直接生成或者手工创建MVVM工程。创建好后，将System.Data.Linq命名空间引入到工程。这个命名空间所在位置\Program Files\Reference Assemblies\Microsoft\Framework\Silverlight\v4.0\Profile\WindowsPhone71中。

5．  创建数据库

新建一个类继承System.Data.Linq.DataContext类，这样就可以用这个类来控制数据库了。

01    public class MyDataContext : DataContext
02
03    {
04
05    public const string ConnectionStr = "Data Source=isostore:/MyDB.sdf";
06
07    public Table<MyTable> Rows;
08
09    public MyDataContext()
10
11    : base(ConnectionStr)
12
13    {
14
15
16    }
17
18    }

类中同时创建数据库表类。

01
[Table]
002

003
    public class MyTable : INotifyPropertyChanged, INotifyPropertyChanging
004

005
    {
006

007
        private int _index;
008

009
        [Column(IsPrimaryKey = true, CanBeNull = false, IsDbGenerated = true, DbType = "INT NOT NULL Identity", AutoSync=AutoSync.OnInsert)]
010

011
        public int Index
012

013
        {
014

015
            get
016

017
            {
018

019
                return _index;
020

021
            }
022

023
            set
024

025
            {
026

027
                if (_index != value)
028

029
                {
030

031
                    NotifyPropertyChanging("Index");
032

033
                    _index = value;
034

035
                    NotifyPropertyChanged("Index");
036

037
                }
038

039

040

041
            }
042

043
        }
044

045

046

047
        private string _name;
048

049
        [Column]
050

051
        public string Name
052

053
        {
054

055
            get
056

057
            {
058

059
                return _name;
060

061
            }
062

063
            set
064

065
            {
066

067
                NotifyPropertyChanging("Name");
068

069
                _name = value;
070

071
                NotifyPropertyChanged("Name");
072

073
            }
074

075
        }
076

077

078

079
        private String _gen;
080

081
        [Column]
082

083
        public String Gen
084

085
        {
086

087
            get
088

089
            {
090

091
                return _gen;
092

093
            }
094

095
            set
096

097
            {
098

099
                NotifyPropertyChanging("Gen");
100

101
                _gen = value;
102

103
                NotifyPropertyChanged("Gen");
104

105
            }
106

107
        }
108

109

110

111
        private int _age;
112

113
        [Column]
114

115
        public int Age
116

117
        {
118

119
            get
120

121
            {
122

123
                return _age;
124

125
            }
126

127
            set
128

129
            {
130

131
                NotifyPropertyChanging("Age");
132

133
                _age = value;
134

135
                NotifyPropertyChanged("Age");
136

137
            }
138

139
        }
140

141

142

143
        #region INotifyPropertyChanged Members
144

145

146

147
        public event PropertyChangedEventHandler PropertyChanged;
148

149

150

151
        private void NotifyPropertyChanged(string propertyName)
152

153
        {
154

155
            if (PropertyChanged != null)
156

157
            {
158

159
                PropertyChanged(this, new PropertyChangedEventArgs(propertyName));
160

161
            }
162

163
        }
164

165

166

167
        #endregion
168

169

170

171
        #region INotifyPropertyChanging Members
172

173

174

175
        public event PropertyChangingEventHandler PropertyChanging;
176

177

178

179
        private void NotifyPropertyChanging(string propertyName)
180

181
        {
182

183
            if (PropertyChanging != null)
184

185
            {
186

187
                PropertyChanging(this, new PropertyChangingEventArgs(propertyName));
188

189
            }
190

191
        }
192

193

194

195
        #endregion
196

197
    }

　　

6．  操作数据库

新建一个ViewModel类，在这个类中实现数据库的操作。在这个类中实现了对数据的选择、保存、更新和删除。在对数据库的操作因为不能直接使用Transact_SQL,所以操作都是通过LINQ来完成的。

1
MyDataContext _DB;
02

03
public void SelectData()
04
        {
05
            if (IsAddedToDB)
06
            {
07
                if (_DB.DatabaseExists())
08
                {
09
                    IEnumerator<MyTable> enumerator = _DB.Rows.GetEnumerator();
10
                    while (enumerator.MoveNext())
11
                    {
12
                        this.Items.Add(enumerator.Current);
13
                    }
14
                    IsAddedToDB = false;
15
                }
16
            }
17
        }
18
        public bool SaveData(MyTable table)
19
        {
20
            try
21
            {
22
                this.Items.Add(table);
23
                _DB.Rows.InsertOnSubmit(table);
24
                _DB.SubmitChanges();
25
            }
26
            catch (Exception e)
27
            {
28
                return false;
29
            }
30
            return true;
31
        }
32

33
        public bool DeleteData(MyTable table)
34
        {
35
            try
36
            {
37
                if (_DB.DatabaseExists())
38
                {
39
                    _DB.Rows.DeleteOnSubmit(table);
40
                    _DB.SubmitChanges();
41
                    this.Items.Remove(table);
42
                }
43
            }
44
            catch (Exception e)
45
            {
46
                return false;
47
            }
48
            return true;
49

50
        }
51

52

53

54
        public bool UpdateData(MyTable source, MyTable dest)
55
        {
56
            try
57
            {
58
                var tables = from item in this.Items where (int)item.Index == source.Index select item;
59

60
                foreach (MyTable mt in tables)
61
                {
62
                    mt.Name = dest.Name;
63
                    mt.Age = dest.Age;
64
                    mt.Gen = dest.Gen;
65

66
                    break;
67

68
                }
69

70
                MyTable table = _DB.Rows.GetOriginalEntityState(source);
71
                table.Name = dest.Name;
72
                table.Age = dest.Age;
73
                table.Gen = dest.Gen;
74
                _DB.SubmitChanges();
75
            }
76
            catch (Exception e)
77
            {
78
                return false;
79
            }
80

81
            return true;
82
        }

　　

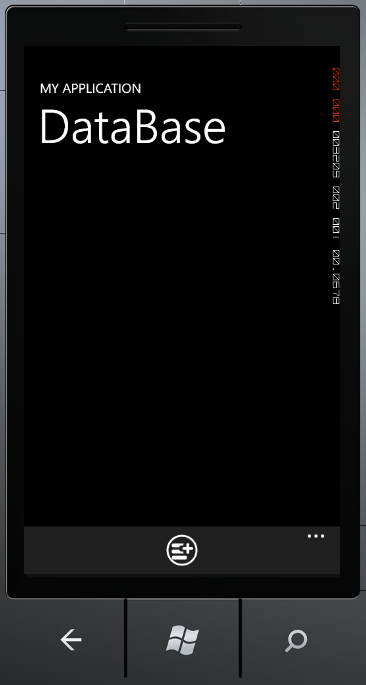

以下是运行效果：
