用VB.Net编写地锚容许抗拔力计算程序

用VB.Net用编写地锚容许抗拔力计算程序

1.理论计算模型

程序的理论计算模型如下：

地锚的容许抗拔力\(P\)按下式计算：

\[\begin{align*} P &\le \frac{0.00981V_b \gamma_0}{K\sin\alpha} \\ V_b&= \left[dl+(d+l)h\tan\phi_1+\frac{4}{3}h^2\tan\phi_1 \right]h \\ \end{align*} \]

\[\begin{array}{l} V_b \to\text{地锚抗拔的土壤体积,}m^{3} \text{；}\\ l\to\text{地锚的长度，}m\text{；}\\ d\to\text{地锚的宽度或圆地锚的直径，}m\text{；}\\ h\to\text{地锚的埋置深度，}m\text{；} \\ \phi_1\to\text{土壤的计算抗拔角，按下表选用，}kg/m \text{；} \\ \alpha\to \text{地锚的受力方向与地面的夹角，°；}\\ K\to地锚的抗拔安全系数，一般取2.0\text{。} \end{array} \]

项目	特坚土	坚土	次坚土	普通土	软土
密度\(\gamma_0(kg/m^3)\)	1900	1800	1700	1600	1500
计算抗拔角\(\phi_1(°)\)	30	25	20	15	10

2.程序主界面

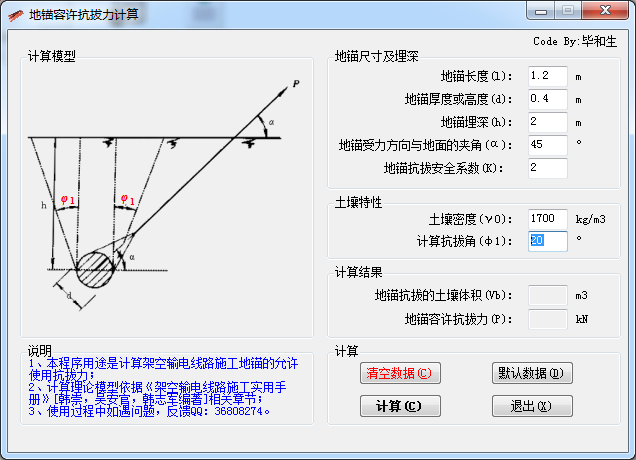

程序已编译完毕，运行界面如下：

有以下功能：

• [√] 内置常用数据，并可一键恢复为默认数据
• [√] 有输入提示
• [√] 非数字的输入，程序会纠错
• [√] 输入数据时，示意图上对应的参数会变红提示

3.程序源代码

源代码共9个文件，只列出核心部分代码，其他的懒得提供了

FrmMain.vb

Public Class FrmMain
    Private Sub BtnCalc_Click(sender As Object, e As EventArgs) Handles BtnCalc.Click
        On Error Resume Next
        If Txt_d.Text = "" Or Txt_l.Text = "" Or Txt_h.Text = "" Or Txt_Alpha.Text = "" Or Txt_phi1.Text = "" Or Txt_Gamma.Text = "" Or Txt_K.Text = "" Then
            MsgBox("数据不完整！" & vbCrLf & "请检查输入数据，确保每个数据完整有效。" & vbCrLf & vbCrLf & "程序将使用默认数据。", vbExclamation, "警告")
            Txt_l.Text = 1.2
            Txt_d.Text = 0.4
            Txt_h.Text = 2
            Txt_Alpha.Text = 45
            Txt_phi1.Text = 20
            Txt_Gamma.Text = 1700
            Txt_K.Text = 2
        End If
        Dim d, l, h, α, Vb, φ1, γ0, P, Vb_2, P_2 As Double
        Dim K As Single
        d = Txt_d.Text
        l = Txt_l.Text
        h = Txt_h.Text
        α = Txt_Alpha.Text
        φ1 = Txt_phi1.Text
        γ0 = Txt_Gamma.Text
        K = Txt_K.Text
        Vb = (d * l + (d + l) * h * System.Math.Tan(φ1 / 180 * System.Math.PI) + 4 / 3 * h ^ 2 * System.Math.Tan(φ1 / 180 * System.Math.PI)) * h
        P = 0.00981 * Vb * γ0 / K / System.Math.Sin(α / 180 * System.Math.PI)
        Vb_2 = Math.Round(Vb, 1)
        P_2 = Math.Round(P, 1)
        Txt_Vb.Text = Vb_2
        Txt_Out.Text = P_2
        Cmt_P.Show()
    End Sub
    Private Sub CmdExit_Click(sender As Object, e As EventArgs) Handles CmdExit.Click
        Me.Close()
    End Sub
    Private Sub Btn_Default_Click(sender As Object, e As EventArgs) Handles Btn_Default.Click
        Txt_l.Text = 1.2
        Txt_d.Text = 0.4
        Txt_h.Text = 2
        Txt_Alpha.Text = 45
        Txt_phi1.Text = 20
        Txt_Gamma.Text = 1700
        Txt_K.Text = 2
    End Sub


    Private Sub Btn_Clear_Click(sender As Object, e As EventArgs) Handles Btn_Clear.Click
        If MsgBox("您确定要清空数据吗？", vbYesNo + vbQuestion, "询问") = MsgBoxResult.Yes Then
            Txt_l.Text = ""
            Txt_d.Text = ""
            Txt_h.Text = ""
            Txt_Alpha.Text = ""
            Txt_K.Text = ""
            Txt_Gamma.Text = ""
            Txt_phi1.Text = ""
            Txt_Vb.Text = ""
            Txt_Out.Text = ""
            Cmt_P.Hide()
        Else
            Exit Sub
        End If
    End Sub

    Private Sub FrmMain_Load(sender As Object, e As EventArgs) Handles MyBase.Load
        Cmt_d.Hide()
        Cmt_h.Hide()
        Cmt_Alpha_1.Hide()
        Cmt_Alpha_2.Hide()
        Cmt_Phi1_1.Hide()
        Cmt_1.Hide()
        Cmt_Phi1_2.Hide()
        Cmt_2.Hide()
        Cmt_P.Hide()
        Txt_Vb.ReadOnly = True
        Txt_Out.ReadOnly = True
    End Sub

    Private Sub Txt_d_GotFocus(sender As Object, e As EventArgs) Handles Txt_d.GotFocus
        Cmt_d.Show()
    End Sub

    Private Sub Txt_d_LostFocus(sender As Object, e As EventArgs) Handles Txt_d.LostFocus
        If IsNumeric(Txt_d.Text) = False Then
            MsgBox("程序检测到：地锚宽度数据为无效数据！" & vbCrLf & "请输入有效的数据。", MsgBoxStyle.Critical, "数据出错")
        End If
        Cmt_d.Hide()
    End Sub

    Private Sub Txt_Alpha_LostFocus(sender As Object, e As EventArgs) Handles Txt_Alpha.LostFocus
        If IsNumeric(Txt_Alpha.Text) = False Then
            MsgBox("程序检测到：地锚受力方向与地面夹角数据为无效数据！" & vbCrLf & "请输入有效的数据。", MsgBoxStyle.Critical, "数据出错")
        End If
        Cmt_Alpha_1.Hide()
        Cmt_Alpha_2.Hide()
    End Sub

    Private Sub Txt_Alpha_GotFocus(sender As Object, e As EventArgs) Handles Txt_Alpha.GotFocus
        Cmt_Alpha_1.Show()
        Cmt_Alpha_2.Show()
    End Sub

    Private Sub Txt_h_GotFocus(sender As Object, e As EventArgs) Handles Txt_h.GotFocus
        Cmt_h.Show()
    End Sub

    Private Sub Txt_h_LostFocus(sender As Object, e As EventArgs) Handles Txt_h.LostFocus
        Cmt_h.Hide()
        If IsNumeric(Txt_h.Text) = False Then
            MsgBox("程序检测到：地锚埋深数据为无效数据！" & vbCrLf & "请输入有效的数据。", MsgBoxStyle.Critical, "数据出错")
        End If
    End Sub

    Private Sub Txt_phi1_GotFocus(sender As Object, e As EventArgs) Handles Txt_phi1.GotFocus
        Cmt_Phi1_1.Show()
        Cmt_1.Show()
        Cmt_Phi1_2.Show()
        Cmt_2.Show()
        Cmt_h.Hide()
    End Sub

    Private Sub Txt_phi1_LostFocus(sender As Object, e As EventArgs) Handles Txt_phi1.LostFocus
        Cmt_Phi1_1.Hide()
        Cmt_1.Hide()
        Cmt_Phi1_2.Hide()
        Cmt_2.Hide()
        If IsNumeric(Txt_phi1.Text) = False Then
            MsgBox("程序检测到：土壤计算抗拔角数据为无效数据！" & vbCrLf & "请输入有效的数据。", MsgBoxStyle.Critical, "数据出错")
        End If
    End Sub

    Private Sub Txt_l_LostFocus(sender As Object, e As EventArgs) Handles Txt_l.LostFocus
        If IsNumeric(Txt_l.Text) = False Then
            MsgBox("程序检测到：地锚长度数据为无效数据！" & vbCrLf & "请输入有效的数据。", MsgBoxStyle.Critical, "数据出错")
        End If
    End Sub

    Private Sub Txt_K_LostFocus(sender As Object, e As EventArgs) Handles Txt_K.LostFocus
        If IsNumeric(Txt_K.Text) = False Then
            MsgBox("程序检测到：地锚抗拔安全系数为无效数据！" & vbCrLf & "请输入有效的数据。", MsgBoxStyle.Critical, "数据出错")
        End If
    End Sub

    Private Sub Txt_Gamma_LostFocus(sender As Object, e As EventArgs) Handles Txt_Gamma.LostFocus
        If IsNumeric(Txt_Gamma.Text) = False Then
            MsgBox("程序检测到：土壤密度数据为无效数据！" & vbCrLf & "请输入有效的数据。", MsgBoxStyle.Critical, "数据出错")
        End If
    End Sub
End Class
