2021/3/16《VRRP综合实验》









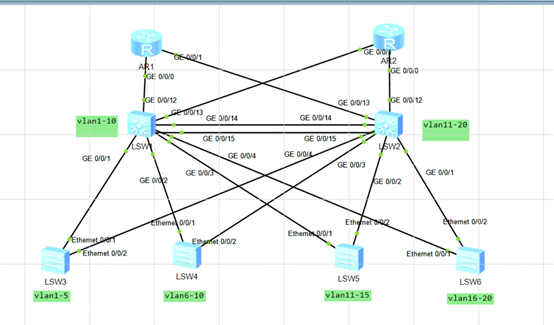

### 实例配置
stp enable
stp mode mstp
stp region-configuration
region-name simp
instance 1 vlan 1 to 5
instance 2 vlan 6 to 10
instance 3 vlan 11 to 15
instance 4 vlan 16 to 20
active region-configuration
quit

stp instance 1 root primary
stp instance 2 root primary
stp instance 3 root secondary
stp instance 4 root secondary

## 三层配置
### vlanif 接口
interface vlanif 1
ip address 192.168.1.100 24
interface vlanif 2
ip address 192.168.2.100 24
interface vlanif 3
ip address 192.168.3.100 24
interface vlanif 4
ip address 192.168.4.100 24
interface vlanif 5
ip address 192.168.5.100 24
interface vlanif 6
ip address 192.168.6.100 24
interface vlanif 7
ip address 192.168.7.100 24
interface vlanif 8
ip address 192.168.8.100 24
interface vlanif 9
ip address 192.168.9.100 24
interface vlanif 10
ip address 192.168.10.100 24

### vlanif 11-20的IP地址
interface vlanif 11
ip address 192.168.11.99 24
interface vlanif 12
ip address 192.168.12.99 24
interface vlanif 13
ip address 192.168.13.99 24
interface vlanif 14
ip address 192.168.14.99 24
interface vlanif 15
ip address 192.168.15.99 24
interface vlanif 16
ip address 192.168.16.99 24
interface vlanif 17
ip address 192.168.17.99 24
interface vlanif 18
ip address 192.168.18.99 24
interface vlanif 19
ip address 192.168.19.99 24
interface vlanif 20
ip address 192.168.20.99 24



### 路由
#### 路由准备工作

vlan batch 101 201

int vlanif 101
ip add 11.1.1.1 24
quit
int vlanif 201
ip add 21.1.1.1 24
quit

interface G0/0/12
port link-type access
port default vlan 101

interface G0/0/13
port link-type access
port default vlan 201

#### 路由
ip route-static 1.1.1.0 24 vlanif 101 11.1.1.2
ip route-static 2.2.2.0 24 vlanif 201 21.1.1.2

#### 备份路由
ip route-static 1.1.1.0 24 vlanif 1 192.168.1.99

### VRRP
interface Vlanif 1
vrrp vrid 1 virtual-ip 192.168.1.100
vrrp vrid 1 priority 120
vrrp vrid 1 preempt-mode timer delay 20

interface Vlanif 2
vrrp vrid 2 virtual-ip 192.168.2.100
vrrp vrid 2 priority 120
vrrp vrid 2 preempt-mode timer delay 20

interface Vlanif 3
vrrp vrid 3 virtual-ip 192.168.3.100
vrrp vrid 3 priority 120
vrrp vrid 3 preempt-mode timer delay 20

interface Vlanif 4
vrrp vrid 4 virtual-ip 192.168.4.100
vrrp vrid 4 priority 120
vrrp vrid 4 preempt-mode timer delay 20

interface Vlanif 5
vrrp vrid 5 virtual-ip 192.168.5.100
vrrp vrid 5 priority 120
vrrp vrid 5 preempt-mode timer delay 20

interface Vlanif 6
vrrp vrid 6 virtual-ip 192.168.6.100
vrrp vrid 6 priority 120
vrrp vrid 6 preempt-mode timer delay 20

interface Vlanif 7
vrrp vrid 7 virtual-ip 192.168.7.100
vrrp vrid 7 priority 120
vrrp vrid 7 preempt-mode timer delay 20

interface Vlanif 8
vrrp vrid 8 virtual-ip 192.168.8.100
vrrp vrid 8 priority 120
vrrp vrid 8 preempt-mode timer delay 20

interface Vlanif 9
vrrp vrid 9 virtual-ip 192.168.9.100
vrrp vrid 9 priority 120
vrrp vrid 9 preempt-mode timer delay 20

interface Vlanif 10
vrrp vrid 10 virtual-ip 192.168.10.100
vrrp vrid 10 priority 120
vrrp vrid 10 preempt-mode timer delay 20

interface Vlanif 11
vrrp vrid 11 virtual-ip 192.168.11.100
interface Vlanif 12
vrrp vrid 12 virtual-ip 192.168.12.100
interface Vlanif 13
vrrp vrid 13 virtual-ip 192.168.13.100
interface Vlanif 14
vrrp vrid 14 virtual-ip 192.168.14.100
interface Vlanif 15
vrrp vrid 15 virtual-ip 192.168.15.100
interface Vlanif 16
vrrp vrid 16 virtual-ip 192.168.16.100
interface Vlanif 17
vrrp vrid 17 virtual-ip 192.168.17.100
interface Vlanif 18
vrrp vrid 18 virtual-ip 192.168.18.100
interface Vlanif 19
vrrp vrid 19 virtual-ip 192.168.19.100
interface Vlanif 20
vrrp vrid 20 virtual-ip 192.168.20.100

SW2————————————————————————————————————————————

## 二层
### vlan 11-20
vlan batch 11 to 20
### vlan 1-10
vlan batch 1 to 10

### trunk
interface G0/0/1
port link-type trunk
port trunk allow-pass vlan 16 to 20
quit

interface G0/0/2
port link-type trunk
port trunk allow-pass vlan 11 to 15
quit


interface G0/0/3
port link-type trunk
port trunk allow-pass vlan 6 to 10
quit

interface G0/0/4
port link-type trunk
port trunk allow-pass vlan 1 to 5
quit

### Eth-trunk
interface Eth-Trunk 1
trunkport GigabitEthernet 0/0/14 to 0/0/15
port link-type trunk
port trunk allow-pass vlan 1 to 20

### 实例配置
### 实例配置
stp enable
stp mode mstp
stp region-configuration
region-name simp
instance 1 vlan 1 to 5
instance 2 vlan 6 to 10
instance 3 vlan 11 to 15
instance 4 vlan 16 to 20
active region-configuration
quit

stp instance 3 root primary
stp instance 4 root primary
stp instance 1 root secondary
stp instance 2 root secondary

## 三层
### vlanif 接口
interface vlanif 11
ip address 192.168.11.100 24
interface vlanif 12
ip address 192.168.12.100 24
interface vlanif 13
ip address 192.168.13.100 24
interface vlanif 14
ip address 192.168.14.100 24
interface vlanif 15
ip address 192.168.15.100 24
interface vlanif 16
ip address 192.168.16.100 24
interface vlanif 17
ip address 192.168.17.100 24
interface vlanif 18
ip address 192.168.18.100 24
interface vlanif 19
ip address 192.168.19.100 24
interface vlanif 20
ip address 192.168.20.100 24


### vlanif 1-10
interface vlanif 1
ip address 192.168.1.99 24
interface vlanif 2
ip address 192.168.2.99 24
interface vlanif 3
ip address 192.168.3.99 24
interface vlanif 4
ip address 192.168.4.99 24
interface vlanif 5
ip address 192.168.5.99 24
interface vlanif 6
ip address 192.168.6.99 24
interface vlanif 7
ip address 192.168.7.99 24
interface vlanif 8
ip address 192.168.8.99 24
interface vlanif 9
ip address 192.168.9.99 24
interface vlanif 10
ip address 192.168.10.99 24

### 路由
ip route-static 1.1.1.0 24 vlanif 102 12.1.1.2

#### 路由准备
vlan 102
quit
interface vlanif 102
ip add 12.1.1.1 24
quit

int G0/0/13
port link-type access
port default vlan 102

### VRRP
interface Vlanif 11
vrrp vrid 11 virtual-ip 192.168.11.100
vrrp vrid 11 priority 120
vrrp vrid 11 preempt-mode timer delay 20
vrrp vrid 11 track

interface Vlanif 12
vrrp vrid 12 virtual-ip 192.168.12.100
vrrp vrid 12 priority 120
vrrp vrid 12 preempt-mode timer delay 20

interface Vlanif 13
vrrp vrid 13 virtual-ip 192.168.13.100
vrrp vrid 13 priority 120
vrrp vrid 13 preempt-mode timer delay 20

interface Vlanif 14
vrrp vrid 14 virtual-ip 192.168.4.100
vrrp vrid 14 priority 120
vrrp vrid 14 preempt-mode timer delay 20

interface Vlanif 15
vrrp vrid 15 virtual-ip 192.168.5.100
vrrp vrid 15 priority 120
vrrp vrid 15 preempt-mode timer delay 20

interface Vlanif 16
vrrp vrid 16 virtual-ip 192.168.16.100
vrrp vrid 16 priority 120
vrrp vrid 16 preempt-mode timer delay 20

interface Vlanif 17
vrrp vrid 17 virtual-ip 192.168.17.100
vrrp vrid 17 priority 120
vrrp vrid 17 preempt-mode timer delay 20

interface Vlanif 18
vrrp vrid 18 virtual-ip 192.168.18.100
vrrp vrid 18 priority 120
vrrp vrid 18 preempt-mode timer delay 20

interface Vlanif 19
vrrp vrid 19 virtual-ip 192.168.19.100
vrrp vrid 19 priority 120
vrrp vrid 19 preempt-mode timer delay 20

interface Vlanif 20
vrrp vrid 20 virtual-ip 192.168.20.100
vrrp vrid 20 priority 120
vrrp vrid 20 preempt-mode timer delay 20

interface Vlanif 1
vrrp vrid 1 virtual-ip 192.168.1.100
interface Vlanif 2
vrrp vrid 2 virtual-ip 192.168.2.100
interface Vlanif 3
vrrp vrid 3 virtual-ip 192.168.3.100
interface Vlanif 4
vrrp vrid 4 virtual-ip 192.168.4.100
interface Vlanif 5
vrrp vrid 5 virtual-ip 192.168.5.100
interface Vlanif 6
vrrp vrid 6 virtual-ip 192.168.6.100
interface Vlanif 7
vrrp vrid 7 virtual-ip 192.168.7.100
interface Vlanif 8
vrrp vrid 8 virtual-ip 192.168.8.100
interface Vlanif 9
vrrp vrid 9 virtual-ip 192.168.9.100
interface Vlanif 10
vrrp vrid 10 virtual-ip 192.168.20.100

SW3配置————————————————————————————————————————

## vlan
vlan batch 1 to 5

## trunk
int g0/0/1
port link-type trunk
port trunk allow-pass vlan 1 to 5
quit

int g0/0/2
port link-type trunk
port trunk allow-pass vlan 1 to 5
quit


## MSTP
stp enable
stp mode mstp
stp region-configuration
region-name simp
instance 1 vlan 1 to 5
active region-configuration

# SW4
## vlan
vlan batch 6 to 10

## trunk
int g0/0/1
port link-type trunk
port trunk allow-pass vlan 6 to 10
quit

int g0/0/2
port link-type trunk
port trunk allow-pass vlan 6 to 10
quit

## MSTP
stp enable
stp mode mstp
stp region-configuration
region-name simp
instance 2 vlan 6 to 10
active region-configuration

# SW5
## vlan
vlan batch 11 to 15

## trunk
int g0/0/1
port link-type trunk
port trunk allow-pass vlan 11 to 15
quit

int g0/0/2
port link-type trunk
port trunk allow-pass vlan 11 to 15
quit
## MSTP
stp enable
stp mode mstp
stp region-configuration
region-name simp
instance 3 vlan 11 to 15
active region-configuration

# SW6
## vlan
vlan batch 16 to 20

## trunk
int g0/0/1
port link-type trunk
port trunk allow-pass vlan 16 to 20
quit

int g0/0/2
port link-type trunk
port trunk allow-pass vlan 16 to 20
quit

## MSTP
stp enable
stp mode mstp
stp region-configuration
region-name simp
instance 4 vlan 16 to 20
active region-configuration


# R1
## 接口
### G0/0/0
int g0/0/0
ip add 11.1.1.2 24
### loopback0
interface LoopBack 0
ip add 1.1.1.1 24


int G0/0/1
ip add 12.1.1.2 24



## 路由
ip route-static 192.168.0.0 20 G0/0/0 11.1.1.1
### 备份路由 去往192.168.1.0 - 192.168.10.0
ip route-static 192.168.0.0 20 G0/0/1 12.1.1.1
