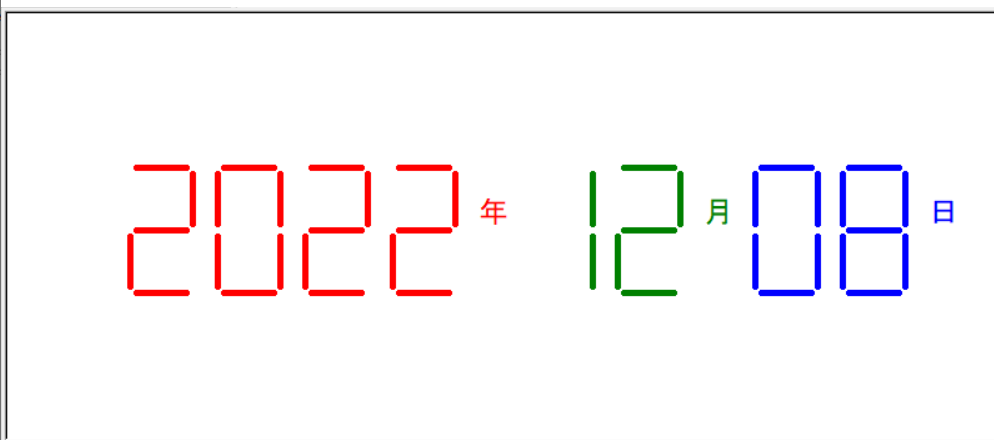

第五次作业数码管绘制

# NixieTube.py
import turtle, time
def drawGap():
    turtle.penup()
    turtle.fd(5)
def drawLine(draw):      #绘制单段数码管
    drawGap()
    turtle.pendown() if draw else turtle.penup()    #如果draw为真值则画，如果不是则抬起画笔移动
    turtle.fd(40)     #向该方向行进40像素
    drawGap()
    turtle.right(90)  #转向90度
def drawDigit(digit):    #根据数字绘制七段数码管
    drawLine(True) if digit in [2,3,4,5,6,8,9] else drawLine(False)
    drawLine(True) if digit in [0,1,3,4,5,6,7,8,9] else drawLine(False)
    drawLine(True) if digit in [0,2,3,5,6,8,9] else drawLine(False)
    drawLine(True) if digit in [0,2,6,8] else drawLine(False)
    turtle.left(90)
    drawLine(True) if digit in [0,4,5,6,8,9] else drawLine(False)
    drawLine(True) if digit in [0,2,3,5,6,7,8,9] else drawLine(False)
    drawLine(True) if digit in [0,1,2,3,4,7,8,9] else drawLine(False)
    turtle.left(180)
    turtle.penup()    #为绘制后续数字确定位置
    turtle.fd(20)     #...
def drawDate(date):   #获得要输出的数字，日期格式为：'%Y-%m=%d+'
    turtle.pencolor("red")
    for i in date:
        if i == '-':
            turtle.write('年',font=("Arial",18,"normal"))
            turtle.pencolor("green")
            turtle.fd(40)
        elif i == '=':
            turtle.write('月',font=("Arial",18,"normal"))
            turtle.pencolor("blue")
            turtle.fd(40)
        elif i == '+':
            turtle.write('日',font=("Arial",18,"normal"))
            turtle.pencolor("black")
            turtle.fd(40)
        elif i== '$':
            turtle.write('时',font=("Arial",18,"normal"))
        else:
            drawDigit(eval(i))   #通过eval()函数将数字变为整数
def main():
    turtle.setup(800, 350, 200, 200)     #设置画布大小
    turtle.penup()
    turtle.fd(-300)      #当前画笔初始绘制所在位置
    turtle.pensize(5)
    drawDate(time.strftime('%Y-%m=%d+',time.gmtime()))   #调用函数
    turtle.hideturtle()
    turtle.done()
main()
