BGP-前缀列表修改本地LP属性

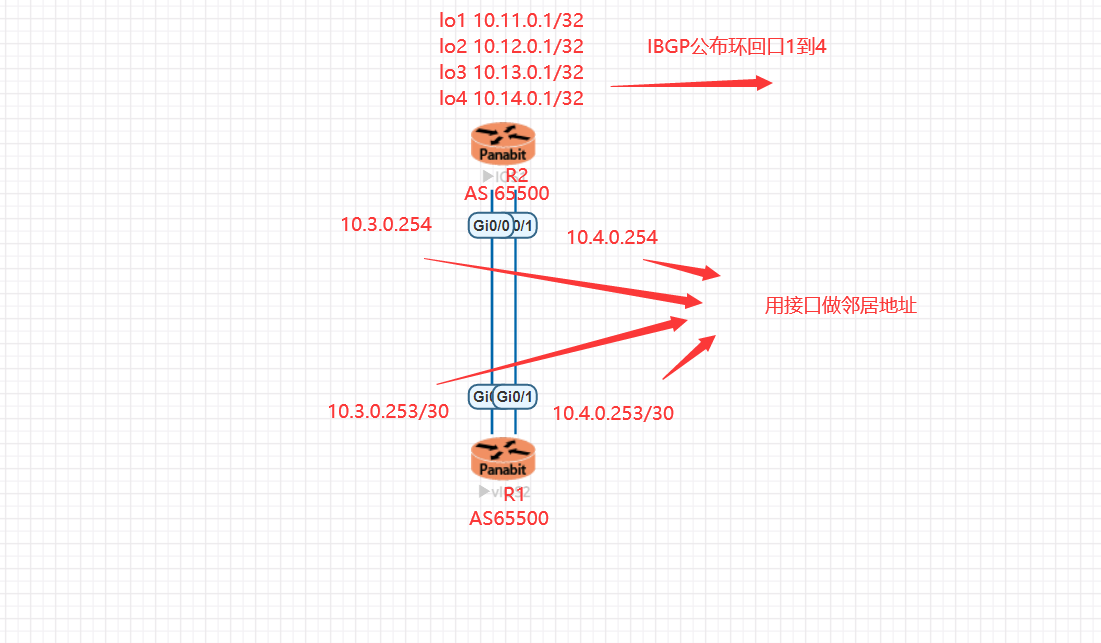

实例图：

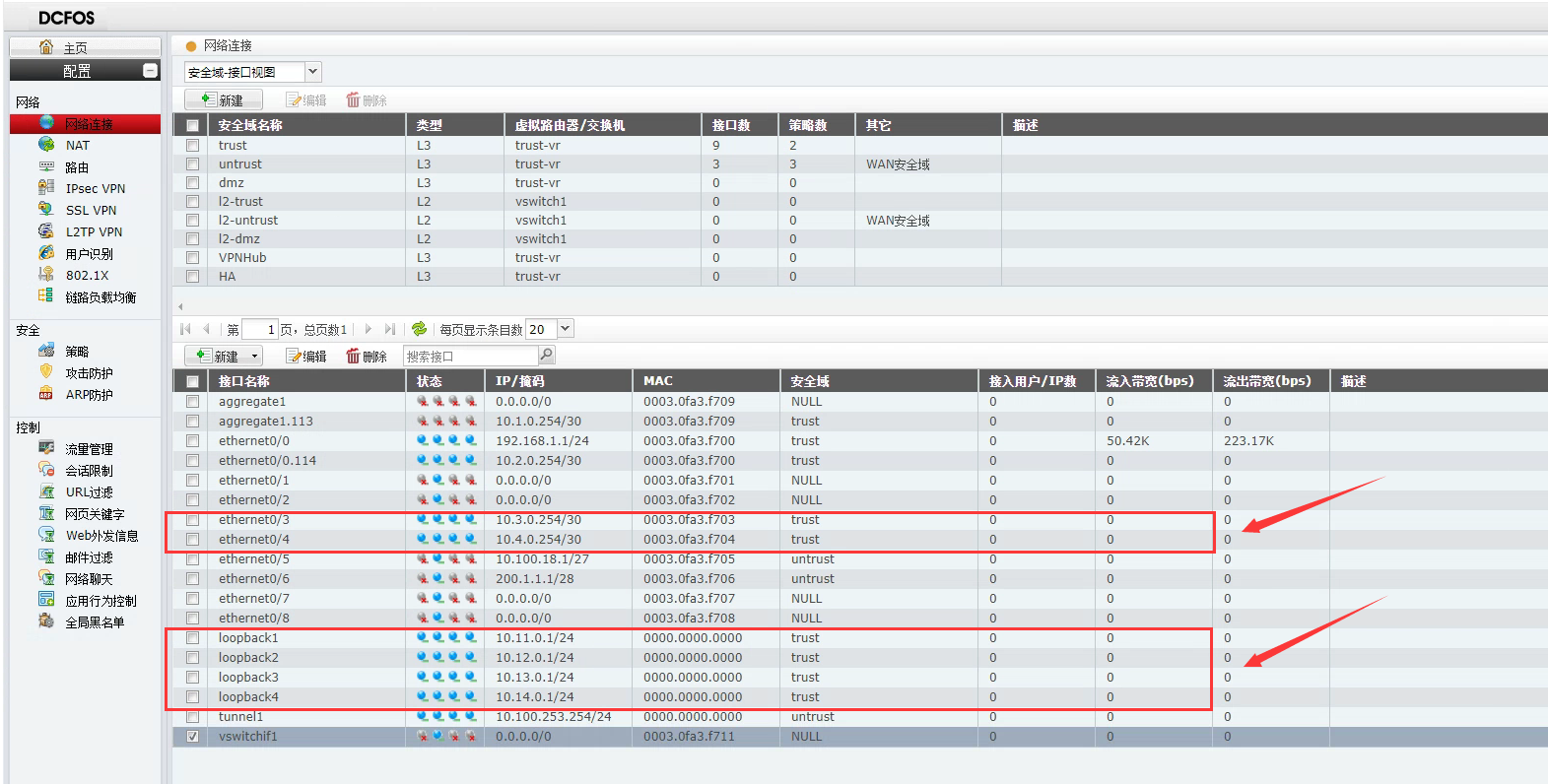

这个是FW的配置图片，由于代码不太好看我写在了这个上面

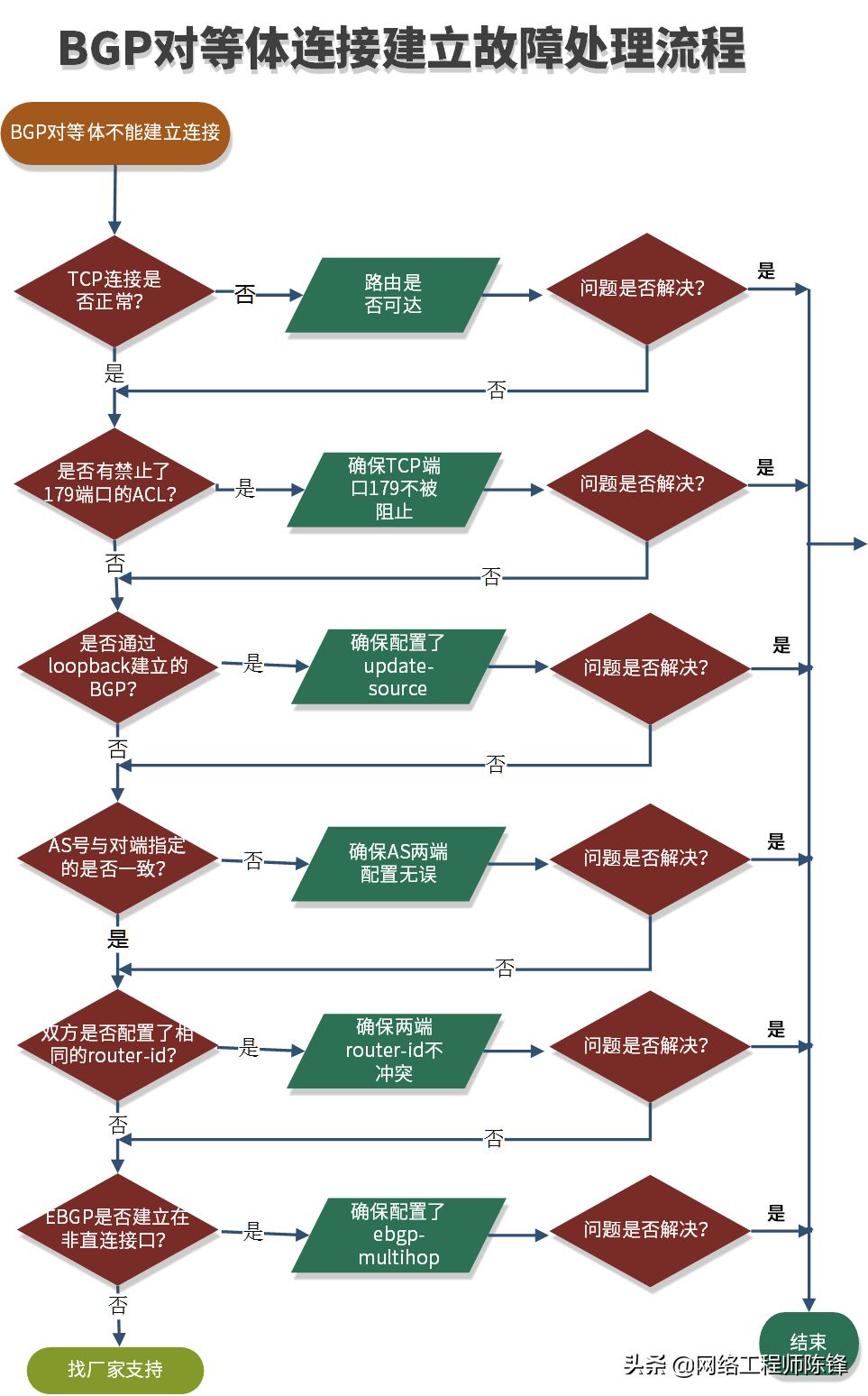

BGP排错实例图

注释代码

一、CS配置

port-group 1
!
Interface Ethernet1/0/1
 switchport mode trunk
 switchport trunk allowed vlan 113-114
 port-group 1 mode active
!
Interface Ethernet1/0/2
 switchport mode trunk
 switchport trunk allowed vlan 113-114
 port-group 1 mode active
!
Interface Ethernet1/0/17
 switchport access vlan 117
!
Interface Ethernet1/0/18
 switchport access vlan 118
!
interface Vlan40
 ip address 172.16.40.62 255.255.255.192
!
interface Vlan113
 ip address 10.1.0.253 255.255.255.252
!
interface Vlan114
 ip address 10.2.0.253 255.255.255.252
!
interface Vlan117
 ip address 10.3.0.253 255.255.255.252
!
interface Vlan118
 ip address 10.4.0.253 255.255.255.252
!
router ospf 10
 network 10.1.0.252/30 area 0
 network 10.2.0.252/30 area 0
 network 172.16.40.0/26 area 0
!
router bgp 65500
 neighbor 10.3.0.254 remote-as 65500
 neighbor 10.3.0.254 update-source 10.3.0.253
 neighbor 10.3.0.254 route-map test in
 neighbor 10.4.0.254 remote-as 65500
 neighbor 10.4.0.254 update-source 10.4.0.253
!
ip prefix-list test seq 5 permit 10.8.0.0/13 le 24
!
route-map test permit 10
 match ip address prefix-list test
 set local-preference 500
!
route-map test permit 20
!

二、FW配置

router bgp 65500      //创建一个BGP的AS号为65500
    neighbor 10.3.0.253 remote-as 65500    //公布邻居
    neighbor 10.3.0.253 update-source ethernet0/3        //更新邻居为本地
    neighbor 10.4.0.253 remote-as 65500
    neighbor 10.4.0.253 update-source ethernet0/4
    network 10.11.0.0/24              //公布BGP的网络
    network 10.12.0.0/24
    network 10.13.0.0/24
    network 10.14.0.0/24
