接口限流

     背景为要做一个景区预约小程序，需要控制单设备的预约次数，防止恶意申请操作，并且根据评估目前设备只支持最多200并发预约，需要进行限流操作。采用 redis + lua脚本 + spring boot实现。

部分maven依赖

       <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>21.0</version>
        </dependency>

        <!--redis-->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-redis</artifactId>
        </dependency>

        <!-- lettuce pool 缓存连接池-->
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-pool2</artifactId>
        </dependency>

1. 定义注解参数

import java.lang.annotation.*;

@Target(ElementType.METHOD)
@Retention(RetentionPolicy.RUNTIME)
public @interface RateLimiter {

    // 资源名称，用于描述接口功能
    String name() default "";

    // 资源 key
    String key() default "";

    // key prefix
    String prefix() default "";

    // 时间的，单位秒
    int period();

    // 限制访问次数
    int count();

    // 限制类型
    LimitType limitType() default LimitType.CUSTOMER;

}

2. 定义限流类型

public enum LimitType {

    // 默认
    CUSTOMER,

    //  by ip addr
    IP;
}

3. 限流逻辑实现

import com.google.common.collect.ImmutableList;
import lombok.extern.slf4j.Slf4j;
import org.apache.commons.lang3.StringUtils;
import org.aspectj.lang.ProceedingJoinPoint;
import org.aspectj.lang.annotation.Around;
import org.aspectj.lang.annotation.Aspect;
import org.aspectj.lang.annotation.Pointcut;
import org.aspectj.lang.reflect.MethodSignature;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.data.redis.core.RedisTemplate;
import org.springframework.data.redis.core.script.DefaultRedisScript;
import org.springframework.stereotype.Component;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;

import javax.servlet.http.HttpServletRequest;
import java.lang.reflect.Method;


/**
 * @ClassName RateLimiterAspect
 * @Description   限流
 * @DATE 2024/1/17 11:29
 */
@Slf4j
@Aspect
@Component
public class RateLimiterAspect {

   // 是否开启限流
    @Value("${rate.isLimiter}")
    private String isLimiter;

    private final RedisTemplate<Object, Object> redisTemplate;

    public RateLimiterAspect(RedisTemplate<Object, Object> redisTemplate) {
        this.redisTemplate = redisTemplate;
    }

    @Pointcut("@annotation(com.hikvision.sprs.rateLimit.RateLimiter)")
    public void pointcut() {
    }

    @Around("pointcut()")
    public Object around(ProceedingJoinPoint joinPoint) throws Throwable {
        if("0".equals(isLimiter)){    //不开启
            return joinPoint.proceed();   //可以继续
        }
        ServletRequestAttributes attributes = (ServletRequestAttributes) RequestContextHolder.getRequestAttributes();
        if(attributes == null){
           //抛出全局异常
            throw new GlobalException(CommonErrorCode.ERR_LIMIT);
        }
        HttpServletRequest request = attributes.getRequest();
        MethodSignature signature = (MethodSignature) joinPoint.getSignature();
        Method signatureMethod = signature.getMethod();
        RateLimiter limit = signatureMethod.getAnnotation(RateLimiter.class);
        LimitType limitType = limit.limitType();
        String key = limit.key();
        int limitCount = limit.count();
        int limitPeriod = limit.period();
        if (StringUtils.isEmpty(key)) {
            if (limitType == LimitType.IP) {
                 //获取请求方ip
                key = Utils.getIpAddress(request);
            } else {
                key = signatureMethod.getName();
            }
        }
        ImmutableList<Object> keys = ImmutableList.of(StringUtils.join(limit.prefix(), "_", key, "_", request.getRequestURI().replace("/", "_")));
        DefaultRedisScript<Long> defaultRedisScript = LuaUtils.getScript(Constant.LIMIT_PATH,Long.class);
         // Constant.LIMIT_PATH = "lua/limit.lua"   为lua脚本位置
        Long count = redisTemplate.execute(defaultRedisScript, keys, limitCount, limitPeriod);
        if (null != count && count.intValue() <= limit.count()) {
            log.info("第{}次访问key为 {}，描述为 [{}] 的接口", count, keys, limit.name());
            return joinPoint.proceed();
        } else {
            throw new GlobalException(CommonErrorCode.ERR_LIMIT);
        }
    }
}

4. lua脚本执行

import org.springframework.core.io.ClassPathResource;
import org.springframework.data.redis.core.script.DefaultRedisScript;
import org.springframework.scripting.support.ResourceScriptSource;

/**
 * @ClassName LuaUtils
 * @Description 脚本执行
 * @DATE 2024/1/18 13:43
 */
public class LuaUtils {

    public static DefaultRedisScript getScript(String filePath,Class tClass) {
        DefaultRedisScript redisScript = new DefaultRedisScript<>();
        redisScript.setScriptSource(new ResourceScriptSource(new ClassPathResource(filePath)));
        redisScript.setResultType(tClass);
        return redisScript;
    }
}

5. 限流lua脚本

local c
c = redis.call('get',KEYS[1])
if c and tonumber(c) > tonumber(ARGV[1]) then
    return c;
end
c = redis.call('incr',KEYS[1])
if tonumber(c) == 1 then
    redis.call('expire',KEYS[1],ARGV[2])
end
return c;

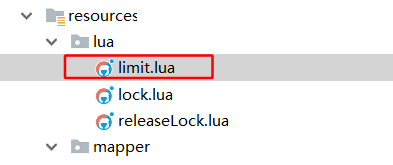

6. 脚本位置与获取请求方ip方法

 /**
     * 获取请求ip
     * @param request
     * @return
     */
    public static String getIpAddress(HttpServletRequest request){
        String clientIP = request.getHeader("X-Forwarded-For");
        if (clientIP == null) {
            clientIP = request.getRemoteAddr();
        }
        return clientIP;
    }



7.具体使用，分别对应默认限流（接口配置时间的请求次数）与请求地址限流（单ip配置时间最多可调用次数）

 @ApiOperation("预约接口")
    @PostMapping("/reservationTest")
    @RateLimiter(period = 60, count = 30000, name = "reservation", prefix = "reservation")
    public BaseResponse reservationTest(@RequestBody SprsOptInfo sprsOptInfo){
        return sprsOptInfoService.reservation(sprsOptInfo);
    }

    @ApiOperation("历史记录查询")
    @PostMapping("/historyTest")
    @RateLimiter(period = 10, count = 5, name = "history", prefix = "history",limitType = LimitType.IP)
    public BaseResponse historyTest(@RequestBody HistoryParam historyParam) {
        return sprsOptInfoService.history(historyParam);
    }
