nexus3部署及istio域名解析及istio acl

• 部署环境

aws eks环境 sc是gp2

• 部署文件

---
apiVersion: apps/v1
kind: Deployment
metadata:
  namespace: saas
  name: nexus3
  labels:
    app: nexus3
spec:
  replicas: 1
  selector:
    matchLabels:
      app: nexus3
  template:
    metadata:
      labels:
        app: nexus3
    spec:
      containers:
      - name: nexus3
        image: sonatype/nexus3:3.32.0
        imagePullPolicy: IfNotPresent
#        command: ["/bin/bash", "-c","sleep 20000000000"]
        ports:
          - containerPort: 8081
            name: web
            protocol: TCP
        livenessProbe:
          httpGet:
            path: /
            port: 8081
          initialDelaySeconds: 100
          periodSeconds: 30
          failureThreshold: 6
        readinessProbe:
          httpGet:
            path: /
            port: 8081
          initialDelaySeconds: 100
          periodSeconds: 30
          failureThreshold: 6
        resources:
          limits:
            cpu: 4000m
            memory: 2Gi
          requests:
            cpu: 500m
            memory: 512Mi
        volumeMounts:
        - name: nexus-data
          mountPath: /nexus-data
      securityContext:
        fsGroup: 0
      volumes:
        - name: nexus-data
          persistentVolumeClaim:
            claimName: nexus-data-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: nexus-data-pvc
  namespace: saas
spec:
  accessModes:
#    - ReadWriteMany
  - ReadWriteOnce
  # 指定 storageClass 的名字，这里使用aws默认的 gp2
  storageClassName: "gp2"
  resources:
    requests:
      storage: 500Gi
---
apiVersion: v1
kind: Service
metadata:
  name: nexus3
  namespace: saas
  labels:
    app: nexus3
spec:
  selector:
    app: nexus3
  type: ClusterIP
  ports:
    - name: web
      protocol: TCP
      port: 8081
      targetPort: 8081



• istio域名解析

apiVersion: networking.istio.io/v1alpha3
kind: Gateway
metadata:
  name: nexus3-tenant
  namespace: saas
spec:
  selector:
    istio: ingressgateway # use istio default controller
  servers:
  - port:
      number: 80
      name: http
      protocol: HTTP
    hosts:
    - "nexus.xxxx.com"
---
apiVersion: networking.istio.io/v1alpha3
kind: VirtualService
metadata:
  name: nexus3-tenant
  namespace: saas
spec:
  hosts:
  - "nexus.xxxx.com"
  gateways:
  - nexus3-tenant
  http:
  - match:
    - uri:
        prefix: /
    route:
    - destination:
        host: nexus3
        port:
          number: 8081

• istio-acl

apiVersion: security.istio.io/v1beta1
kind: AuthorizationPolicy
metadata:
  name: nexus-acl
  namespace: istio-system
spec:
  selector:
    matchLabels:
      app: istio-ingressgateway
  action: DENY
  rules:
  - from:
    - source:
       notIpBlocks: ["ip地址", "ip地址", "ip地址"]
    to:
    - operation:
        hosts:  ["nexus.xxxx.com"]

• 踩坑

执行部署nexus yaml文件部署时出现没有权限创建nexus-data目录

查看容器权限有问题，没有root权限

增加一下参数即可创建目录

      securityContext:
        fsGroup: 0

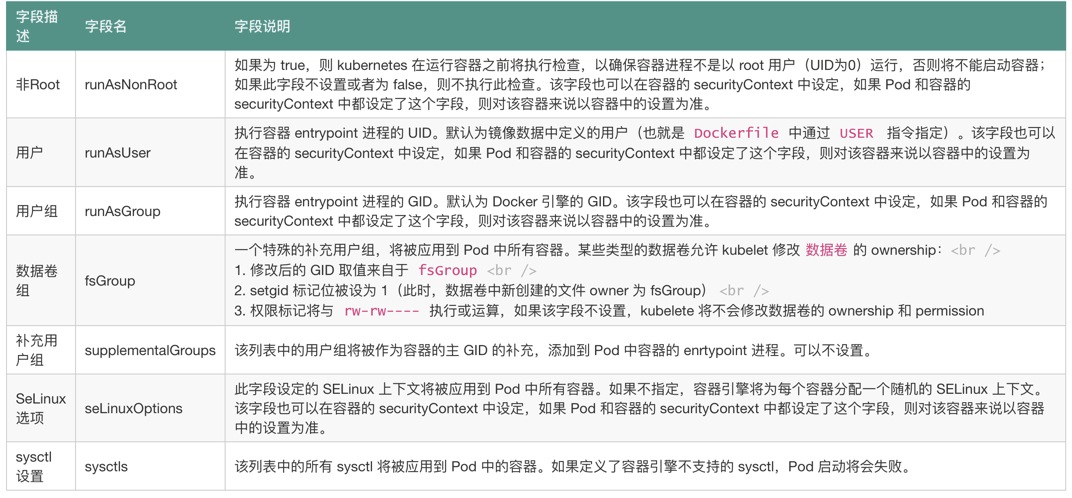

参数解析

我们只需要在 Pod 定义的资源清单文件中添加 securityContext 字段，就可以为 Pod 指定安全上下文相关的设定，通过该字段指定的内容将会对当前 Pod 中的所有容器生效。

在当前资源清单文件中我们在 Pod 下面添加了 securityContext 字段，其中：

runAsUser 字段指定了该 Pod 中所有容器的进程都以 UID 1000 的身份运行
runAsGroup 字段指定了该 Pod 中所有容器的进程都以 GID 3000 的身份运行
如果省略该字段，容器进程的 GID 为 root(0)
容器中创建的文件，其所有者为 userID 1000，groupID 3000
fsGroup 字段指定了该 Pod 的 fsGroup 为 2000
数据卷 （对应挂载点 /pod/demo 的数据卷为 sec-ctx-demo） 的所有者以及在该数据卷下创建的任何文件，其 GID 都为 2000







参考文献：https://blog.csdn.net/weixin_39246554/article/details/121734279
