dev 交叉报表绑定数据源为实体类的方式

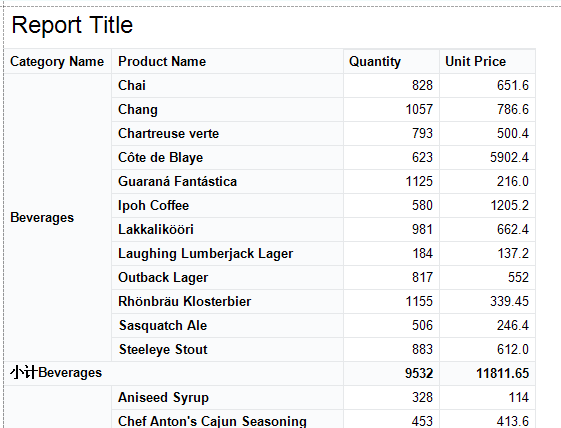

 带小计 ,分组的 都给自动画出来了.不得不说牛啊,要自己拼出来上边的样子,估计头都要大了.本来想自己堆出来, 要很熟悉画行 ,单元格 ....最后找到了以往的例子. 复盘了一次,又进一步

感慨交叉报表真的太方便了.

交叉表设计参考地址

https://docs.devexpress.com/XtraReports/4226/create-reports/create-a-cross-tab-report

数据源为对象的那个类的写法参考地址(大多数例程数据源是数据库.对于动态生成报表,比如带查询功能页面的生成报表要求是不友好的.)

https://docs.devexpress.com/XtraReports/400316/create-reports/create-a-vertical-report

using System;
using System.Collections.Generic;

namespace XtraReportsDemos.ProfitAndLossReport {
    public class Data {
        static List<Data> currentData;

        public DateTime Month { get; set; }

        public decimal ConstructionIncome { get; set; }
        public decimal SalesIncome { get; set; }

        public decimal CostOfGoodsSold { get; set; }
        public decimal JobExpenses { get; set; }

        public decimal Automobile { get; set; }
        public decimal BankServiceCharges { get; set; }
        public decimal Insurance { get; set; }
        public decimal PayrollExpenses { get; set; }
        public decimal Repairs { get; set; }
        public decimal ToolsAndMachinery { get; set; }

        public static List<Data> GetData() {
            if(currentData == null)
                currentData = CreateData();
            return currentData;
        }
        static List<Data> CreateData() {
            List<Data> result = new List<Data>();
            for(int i = 1; i <= 12; i++)
                result.Add(CreateItem(2018, i));
            return result;
        }
        static Data CreateItem(int year, int month) {
            Random rnd = new Random(month);
            return new Data() {
                Month = new DateTime(year, month, DateTime.DaysInMonth(year, month)),
                ConstructionIncome = rnd.Next(75000, 125000) + (decimal)rnd.Next(100) / 100,
                SalesIncome = rnd.Next(0, 1000),

                CostOfGoodsSold = rnd.Next(0, 3500) + (decimal)rnd.Next(100) / 100,
                JobExpenses = rnd.Next(5000, 35000) + (decimal)rnd.Next(100) / 100,

                Automobile = rnd.Next(300, 900) + (decimal)rnd.Next(100) / 100,
                BankServiceCharges = rnd.Next(10, 80),
                Insurance = rnd.Next(1000, 5000),
                PayrollExpenses = rnd.Next(9000, 18000),
                Repairs = rnd.Next(0, 400),
                ToolsAndMachinery = rnd.Next(0, 1000),
            };
        }
    }
}

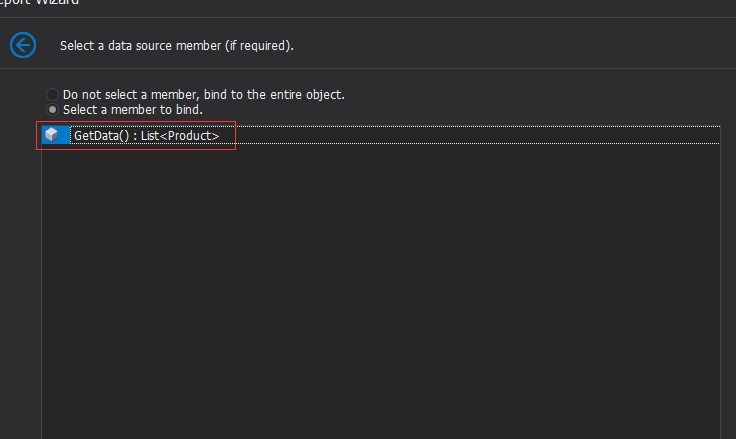

在设计交叉表的时候 要道道getdata相关字样的那个页面





交叉报表 很适合有小计  分组的 需求
