4. CAT-服务端

源码分析流程

入口

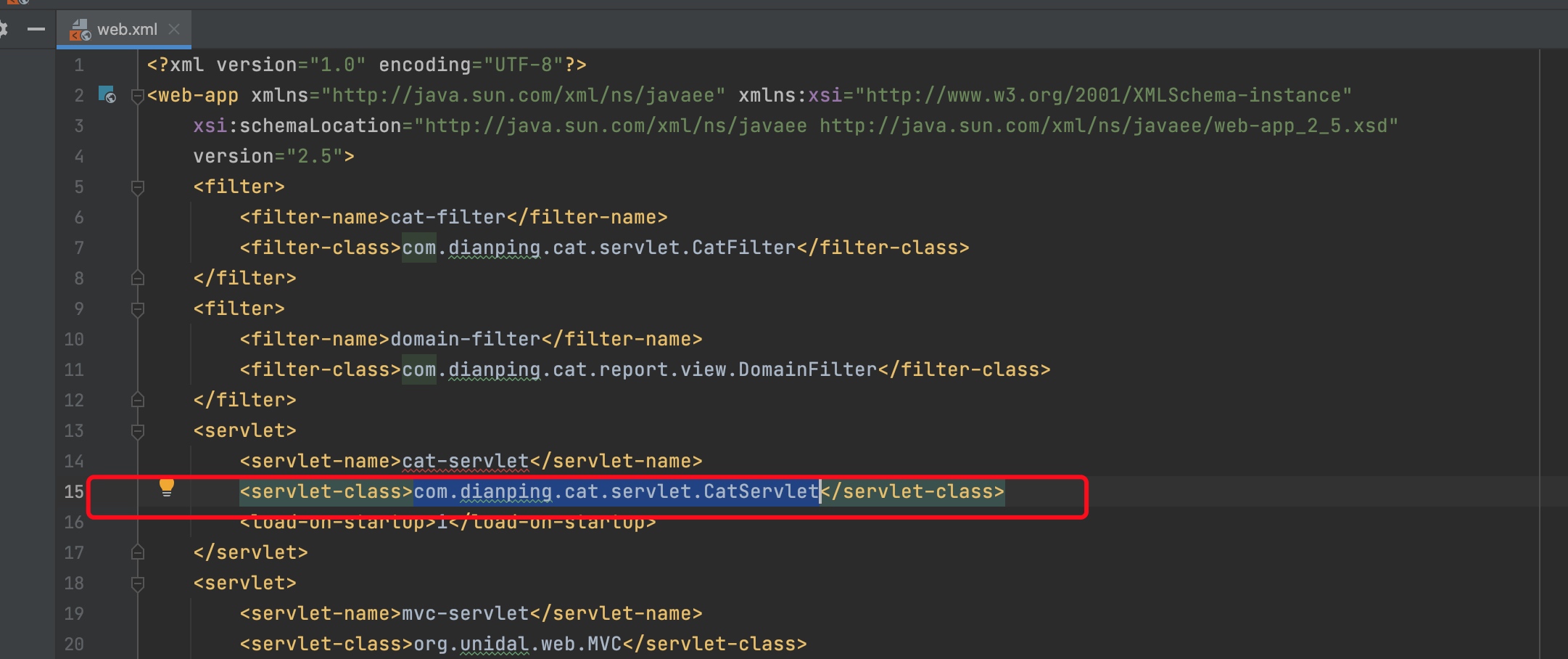

web.xml

com.dianping.cat.servlet.CatServlet

这是web应用初始化加载的类，目的初始化应用的ServletContext

CatServlet extends AbstractContainerServlet

在init方法中调用 抽象初始化方法

protected abstract void initComponents(ServletConfig config) throws Exception

实现类 CatServlet 中实现 init 方法

    @Override
    protected void initComponents(ServletConfig servletConfig) throws ServletException {
        try {
            ModuleContext ctx = new DefaultModuleContext(getContainer());
            ModuleInitializer initializer = ctx.lookup(ModuleInitializer.class);
            File clientXmlFile = getConfigFile(servletConfig, "cat-client-xml", "client.xml");
            File serverXmlFile = getConfigFile(servletConfig, "cat-server-xml", "server.xml");

            ctx.setAttribute("cat-client-config-file", clientXmlFile);
            ctx.setAttribute("cat-server-config-file", serverXmlFile);
            initializer.execute(ctx);
        } catch (Exception e) {
            m_exception = e;
            System.err.println(e);
            throw new ServletException(e);
        }
    }

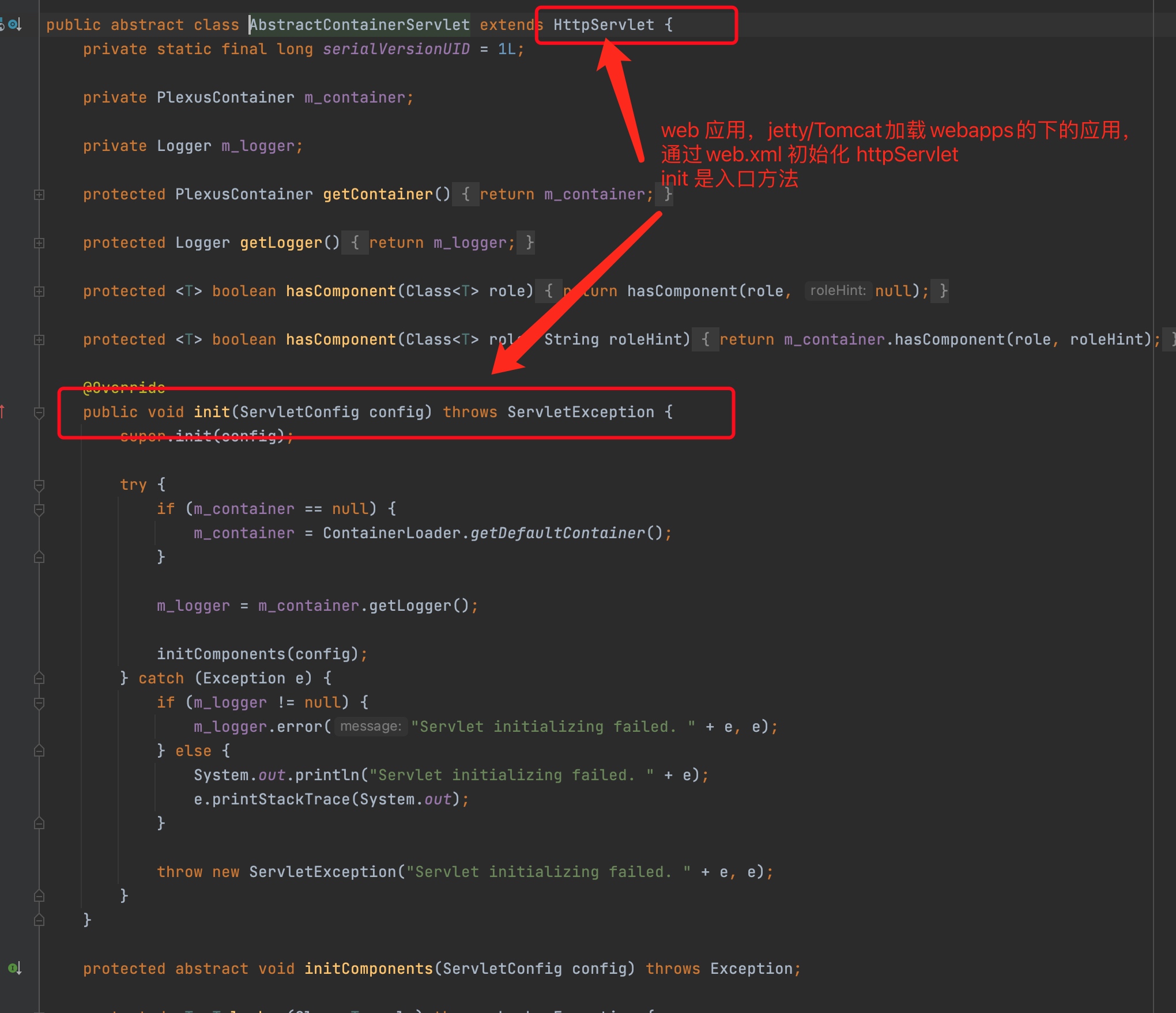

AbstractContainerServlet 服务基类

封装HttpServlet的处理，实现容器的初始化

Container 初始化

public abstract class AbstractContainerServlet extends HttpServlet {
    private static final long serialVersionUID = 1L;

    private PlexusContainer m_container;

    private Logger m_logger;

    protected PlexusContainer getContainer() {
        return m_container;
    }
   ....

    @Override
    public void init(ServletConfig config) throws ServletException {
        super.init(config);

        try {
            if (m_container == null) {
                m_container = ContainerLoader.getDefaultContainer();
            }

            m_logger = m_container.getLogger();

            initComponents(config);
        } catch (Exception e) {
            if (m_logger != null) {
                m_logger.error("Servlet initializing failed. " + e, e);
            } else {
                System.out.println("Servlet initializing failed. " + e);
                e.printStackTrace(System.out);
            }

            throw new ServletException("Servlet initializing failed. " + e, e);
        }
    }

m_container = ContainerLoader.getDefaultContainer() 的初始化

public class ContainerLoader {
   private static volatile PlexusContainer s_container;

   public static void destroy() {
      if (s_container != null) {
         s_container.dispose();
         s_container = null;
      }
   }

   public static PlexusContainer getDefaultContainer() {
      return getDefaultContainer(null);
   }

    public static PlexusContainer getDefaultContainer(String configuration) {
        if (s_container == null) {
            synchronized (ContainerLoader.class) {
                if (s_container == null) {
                    try {
                        if (configuration != null) {
                            InputStream in = ContainerLoader.class.getClassLoader().getResourceAsStream(configuration);

                            s_container = new MyPlexusContainer(in);
                        } else {
                            s_container = new MyPlexusContainer();
                        }
                    } catch (Exception e) {
                        throw new RuntimeException("Unable to create Plexus container!", e);
                    }
                }
            }
        }

        return s_container;
    }

通过 MyPlexusContainer 实例化

public class MyPlexusContainer implements PlexusContainer {
    private ComponentManager m_manager;

    private Map<String, Object> m_context = new HashMap<String, Object>();

    public MyPlexusContainer() throws Exception {
        this(null);
    }

    public MyPlexusContainer(InputStream in) throws Exception {
        m_manager = new ComponentManager(this, in);
        m_context.put("plexus", this);
    }

注意变量

• m_manager 和 容器面板 m_context

  public class ComponentManager {
      // component cache

      // role => map (role hint => component)

      private Map<String, ComponentBox<?>> m_components = new HashMap<String, ComponentBox<?>>();

      private PlexusContainer m_container;

      private ComponentLifecycle m_lifecycle;

      private ComponentModelManager m_modelManager;

      private LoggerManager m_loggerManager;

      public ComponentManager(PlexusContainer container, InputStream in) throws Exception {

          m_container = container;

          m_modelManager = new ComponentModelManager();

          m_lifecycle = new ComponentLifecycle(this);

          if (in != null) {

              m_modelManager.loadComponents(in);

          }

          m_modelManager.loadComponentsFromClasspath();

          // keep it at last

          m_loggerManager = lookup(new ComponentKey(LoggerManager.class, null));

          register(new ComponentKey(PlexusContainer.class, null), container);

          register(new ComponentKey(Logger.class, null), m_loggerManager.getLoggerForComponent(""));

     }


  • ComponentModelManager 的实例化 m_modelManager = new ComponentModelManager()
  • m_lifecycle = new ComponentLifecycle(this)
  • m_modelManager.loadComponentsFromClasspath()

  public void loadComponentsFromClasspath() throws Exception {
      List<URL> urls = scanComponents();

          for (URL url : urls) {

              loadCompoents(url);

          }

  }


  通过 loadCompoents(url) 进入如下代码，加载配置文件

  package org.unidal.lookup.container;
  public class ComponentModelManager {

  private List<PlexusModel> m_models = new ArrayList<PlexusModel>();

  // for test purpose

  private PlexusModel m_model = new PlexusModel();

  ......

  private void loadCompoents(URL url) throws IOException, SAXException {

      // ignore internals components.xml files within official plexus-container-default.jar

      if (url.getPath().contains("/plexus-container-default/")) {

          return;

      }

      InputStream in = url.openStream();

      String xml = Files.forIO().readFrom(in, "utf-8");

      // to be compatible with plexus.xml

      if (xml != null && xml.contains("<component-set>")) {

          xml = xml.replace("<component-set>", "<plexus>");

          xml = xml.replace("</component-set>", "</plexus>");

      }

      try {

          PlexusModel model = DefaultSaxParser.parse(xml);

          m_models.add(model);

      } catch (SAXException e) {

          System.err.println(String.format("Bad plexus resource(%s): ", url) + xml);

          throw e;

      }

  }

  public void loadComponents(InputStream in) throws Exception {

      if (in != null) {

          try {

              PlexusModel model = DefaultSaxParser.parse(in);

              m_models.add(model);

          } finally {

              in.close();

          }

      }

  }

  public void loadComponentsFromClasspath() throws Exception {

      List<URL> urls = scanComponents();

      for (URL url : urls) {

          loadCompoents(url);

      }

  }

  public void reset() {

      m_model.getComponents().clear();

  }

  // 需要扫描文件

  // META-INF/plexus/plexus.xml|components.xml|components-*.xml

  List<URL> scanComponents() throws IOException {

      final List<URL> components = new ArrayList<URL>();

      Scanners.forResource().scan("META-INF/plexus/", new ResourceMatcher() {

          @Override

          public Direction matches(URL url, String path) {

              if (!path.endsWith(".xml")) {

                  return Direction.DOWN;

              }

              // ignore configuration from official plexus-container-default.jar

              if (path.contains("/plexus-container-default/")) {

                  return Direction.NEXT;

              }

              if (path.equals("plexus.xml")) {

                  components.add(url);

              } else if (path.equals("components.xml") || path.startsWith("components-")) {

                  components.add(url);

              }

              return Direction.DOWN;

          }

      });

      return components;

  }

文章的剩余部分，由于博客园发布不成功，请阅读 https://keke3394.wordpress.com/2021/01/30/cat-yuan-ma-fen-xi-zheng-li/
