01. CAT环境的搭建&效果
由于工作的需要接触到美团的CAT监控中间件。有幸CAT的发展历程。
进入正题，细说本章内容
1. CAT 背景
历史
CAT 是在大众点评被美团收购&兼并之前的中间件中最出彩产品，作为大众点评的公司内部项目与公司的基础框架融合非常好，这样也就出现要适当的学习大众点评的其他基础框架。
为了解决什么问题
CAT主要为了解决微服务环境中，系统的调用关系链错综复杂，线上问题排查难的问题。
能力规划
实时处理：信息的价值会随时间锐减，尤其是事故处理过程中
全量数据：全量采集指标数据，便于深度分析故障案例
高可用：故障的还原与问题定位，需要高可用监控来支撑
故障容忍：故障不影响业务正常运转、对业务透明
高吞吐：海量监控数据的收集，需要高吞吐能力做保证
可扩展：支持分布式、跨 IDC 部署，横向扩展的监控系统
这写能力，引用官方的说法
2. CAT 本地环境搭建
作为研究CAT源码同学，迫不及待的想看一下 CAT的是如何实现。是如何如何实现它所说的这些能力。
2.1 maven 环境准备
源代码构建需要下载大众点评的nexus下jar。需要在maven中进行配置。所谓，磨刀不误砍柴工。
maven的环境
个人电脑是MAC。配置如下
# JDK
JAVA_HOME=/Library/Java/JavaVirtualMachines/jdk1.8.0_271.jdk/Contents/Home
#JAVA_HOME=/Library/Java/JavaVirtualMachines/jdk1.8.0_131.jdk/Contents/Home
#JAVA_HOME=/Library/Java/JavaVirtualMachines/jdk1.7.0_79.jdk/Contents/Home
CLASSPATH=.:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jar
export JAVA_HOME
export CLASSPATH
export PATH=$JAVA_HOME/bin:$PATH
# Maven
MAVEN_HOME=/Users/{mac账户用户名}/Works/soft/maven
export MAVEN_HOME
export PATH=$MAVEN_HOME/bin:$PATH
maven的setting.xml配置
<?xml version="1.0" encoding="UTF-8"?>
<settings xmlns="http://maven.apache.org/SETTINGS/1.0.0"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://maven.apache.org/SETTINGS/1.0.0 http://maven.apache.org/xsd/settings-1.0.0.xsd">
<!--localRepository必须是个绝对路径，否则项目构建时会在项目根目录下出现 ~ 文件夹形式 -->
<localRepository>/Users/{mac账户用户名}/.m2/repository</localRepository>
<servers>
<server>
<id>nexus-releases</id>
<username>{nexus账户名}</username>
<password>{nexus账户密码}</password>
</server>
<server>
<id>nexus-snapshot</id>
<username>{nexus账户名}</username>
<password>{nexus账户密码}</password>
</server>
</servers>
<mirrors>
<!--配置udial的nexus的镜像-->
<mirror>
<id>unidal</id>
<mirrorOf>unidal</mirrorOf>
<name>nexus repository for all Mirror.</name>
<url>http://unidal.org/nexus/content/repositories/releases/</url>
</mirror>
<mirror>
<id>company</id>
<mirrorOf>*,!unidal</mirrorOf>
<name>nexus repository for all Mirror.</name>
<url>http://{公司的nexus地址}/nexus/content/groups/public</url>
</mirror>
</mirrors>
<profiles>
<profile>
<id>nexus</id>
<repositories>
<repository>
<id>central</id>
<url>http://central</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
<updatePolicy>always</updatePolicy>
</snapshots>
</repository>
</repositories>
<pluginRepositories>
<pluginRepository>
<id>central</id>
<url>http://central</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
</snapshots>
</pluginRepository>
</pluginRepositories>
</profile>
<!-- 大众点评 -->
<profile>
<id>unidal</id>
<repositories>
<repository>
<id>unidal</id>
<url>http://unidal.org/nexus/content/repositories/releases/</url>
<releases>
<enabled>true</enabled>
</releases>
<snapshots>
<enabled>true</enabled>
<updatePolicy>always</updatePolicy>
</snapshots>
</repository>
</repositories>
</profile>
<profile>
<id>jdk-1.8</id>
<activation>
<activeByDefault>true</activeByDefault>
<jdk>1.8</jdk>
</activation>
<properties>
<maven.compiler.source>1.8</maven.compiler.source>
<maven.compiler.target>1.8</maven.compiler.target>
<maven.compiler.compilerVersion>1.8</maven.compiler.compilerVersion>
</properties>
</profile>
</profiles>
<activeProfiles>
<activeProfile>nexus</activeProfile>
<activeProfile>unidal</activeProfile>
</activeProfiles>
</settings>
关注
mirrors中unidal和company的配置；可以搜索一下maven如何配置多个镜像
2.2 db环境准备
CAT的运行环境的DB是MySQL，5.7版本即可。
使用客户端连接上服务器
先创建一个数据库实例
执行源码中的SQL脚本即可，SQL脚本的位置在 `cat/script/Cat.sql`
2.3 源代码下载
源代码github地址是 https://github.com/dianping/cat.git
本人研读的代码版本是 ==2.0.0==
2.4 配置
涉及到配有有,存放路径 /data/appdatas/cat/*.xml
- client.xml
- server.xml
- datasource.xml
<?xml version="1.0" encoding="utf-8"?>
<!-- Configuration for development environment-->
<config local-mode="true" hdfs-machine="false" job-machine="false" alert-machine="false">
<storage local-base-dir="/data/appdatas/cat/bucket/" max-hdfs-storage-time="15" local-report-storage-time="7" local-logivew-storage-time="7">
</storage>
<console default-domain="Cat" show-cat-domain="true">
<remote-servers>192.168.1.1:8080</remote-servers>
</console>
<!--
<ldap ldapUrl="ldap://192.168.50.11:389/DC=dianpingoa,DC=com"/>
-->
</config>
<!-- Configuration for production environment -->
<!-- Note: -->
<!-- 1. Set local-mode false to activate remote mode. -->
<!-- 2. If machine is job-machine, set job-machine true, you just need config only one machine. Job is offline for report aggreation, statistics report.-->
<!-- 3. If machine is alert-machine, set alert-machine true, you just need config only one machine. -->
<!-- 4. Cat can run without hdfs, you just config hdfs-machine false. If you have hdfs, you can config hdfs info for saving the logview info. -->
<!-- 5. If you don't need hdfs, the logview will be stored in local disk. You can config max local-logivew-storage-time for cleaning up old logview, the unit is day. -->
<!-- 6. Please set hadoop environment accordingly. -->
<!-- 7. Please set ldap info for login the system. -->
<!-- 8. Please config remote-server if you have many cat servers. -->
<!--
<config local-mode="false" hdfs-machine="false" job-machine="false" alert-machine="false">
<storage local-base-dir="/data/appdatas/cat/bucket/" max-hdfs-storage-time="15" local-report-storage-time="7" local-logivew-storage-time="7">
<hdfs id="logview" max-size="128M" server-uri="hdfs://10.1.77.86/user/cat" base-dir="logview"/>
<hdfs id="dump" max-size="128M" server-uri="hdfs://10.1.77.86/user/cat" base-dir="dump"/>
<hdfs id="remote" max-size="128M" server-uri="hdfs://10.1.77.86/user/cat" base-dir="remote"/>
</storage>
<console default-domain="Cat" show-cat-domain="true">
<remote-servers>192.168.0.1:2281,192.168.0.2:2281</remote-servers>
</console>
<ldap ldapUrl="ldap://192.168.50.11:389/DC=dianpingoa,DC=com"/>
</config>
<?xml version="1.0" encoding="utf-8"?>
<data-sources>
<data-source id="cat">
<maximum-pool-size>3</maximum-pool-size>
<connection-timeout>1s</connection-timeout>
<idle-timeout>10m</idle-timeout>
<statement-cache-size>1000</statement-cache-size>
<properties>
<driver>com.mysql.jdbc.Driver</driver>
<url><![CDATA[jdbc:mysql://10.104.122.1:3306/cat_local]]></url>
<user>root</user>
<password>123456</password>
<connectionProperties><![CDATA[useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&socketTimeout=120000]]></connectionProperties>
</properties>
</data-source>
<data-source id="app">
<maximum-pool-size>3</maximum-pool-size>
<connection-timeout>1s</connection-timeout>
<idle-timeout>10m</idle-timeout>
<statement-cache-size>1000</statement-cache-size>
<properties>
<driver>com.mysql.jdbc.Driver</driver>
<url><![CDATA[jdbc:mysql://10.104.122.1:3306/cat_local]]></url>
<user>root</user>
<password>123456</password>
<connectionProperties><![CDATA[useUnicode=true&characterEncoding=UTF-8&autoReconnect=true&socketTimeout=120000]]></connectionProperties>
</properties>
</data-source>
</data-sources>
<?xml version="1.0" encoding="utf-8"?>
<config mode="client" xmlns:xsi="http://www.w3.org/2001/XMLSchema" xsi:noNamespaceSchemaLocation="config.xsd">
<servers>
<!-- Local mode for development -->
<server ip="127.0.0.1" port="2280" http-port="8080" />
<!-- If under production environment, put actual server address as list. -->
<!--
<server ip="192.168.7.71" port="2280" />
<server ip="192.168.7.72" port="2280" />
-->
</servers>
</config>

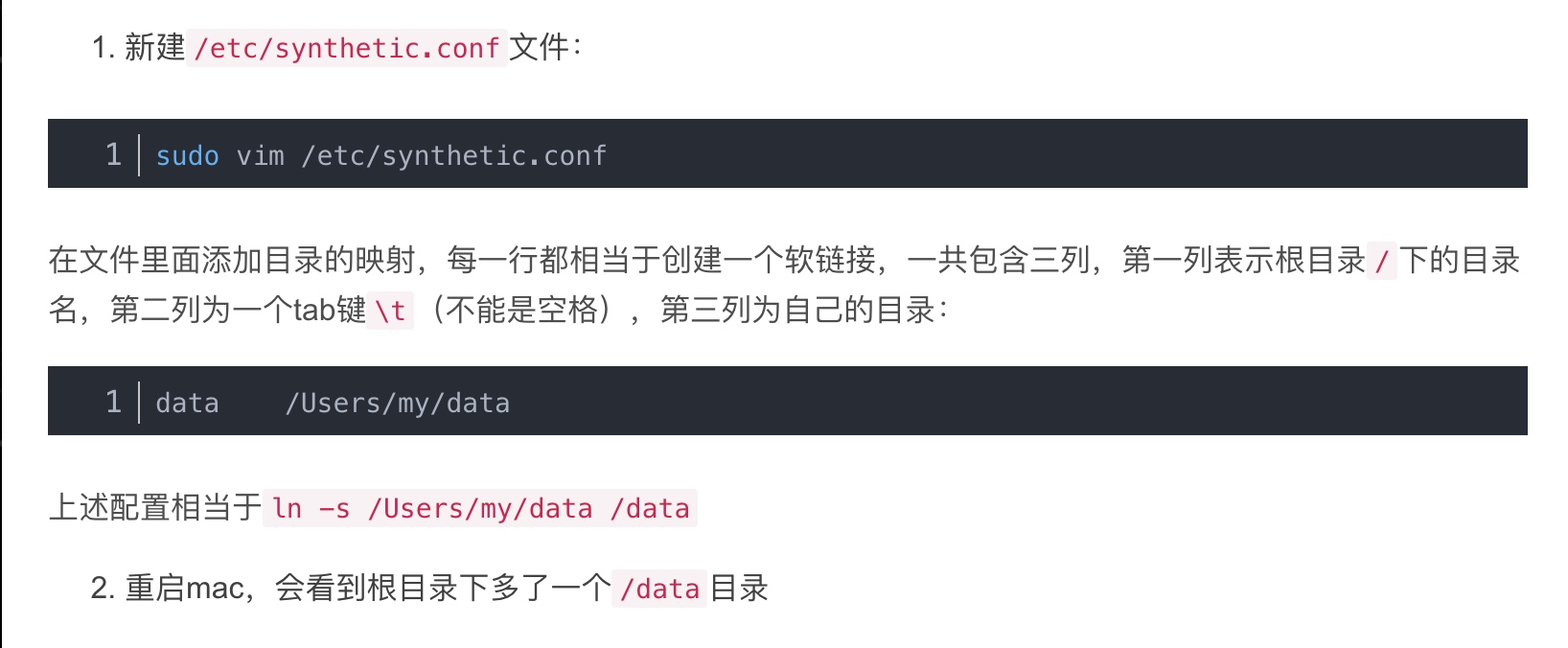

2.5 mac环境特殊说明
mac特说的原因是 MAC os引入了系统完整性保护（SIP）机制，无法在/、/usr 目录下新建文件
处理方案是
2.5 环境运行效果

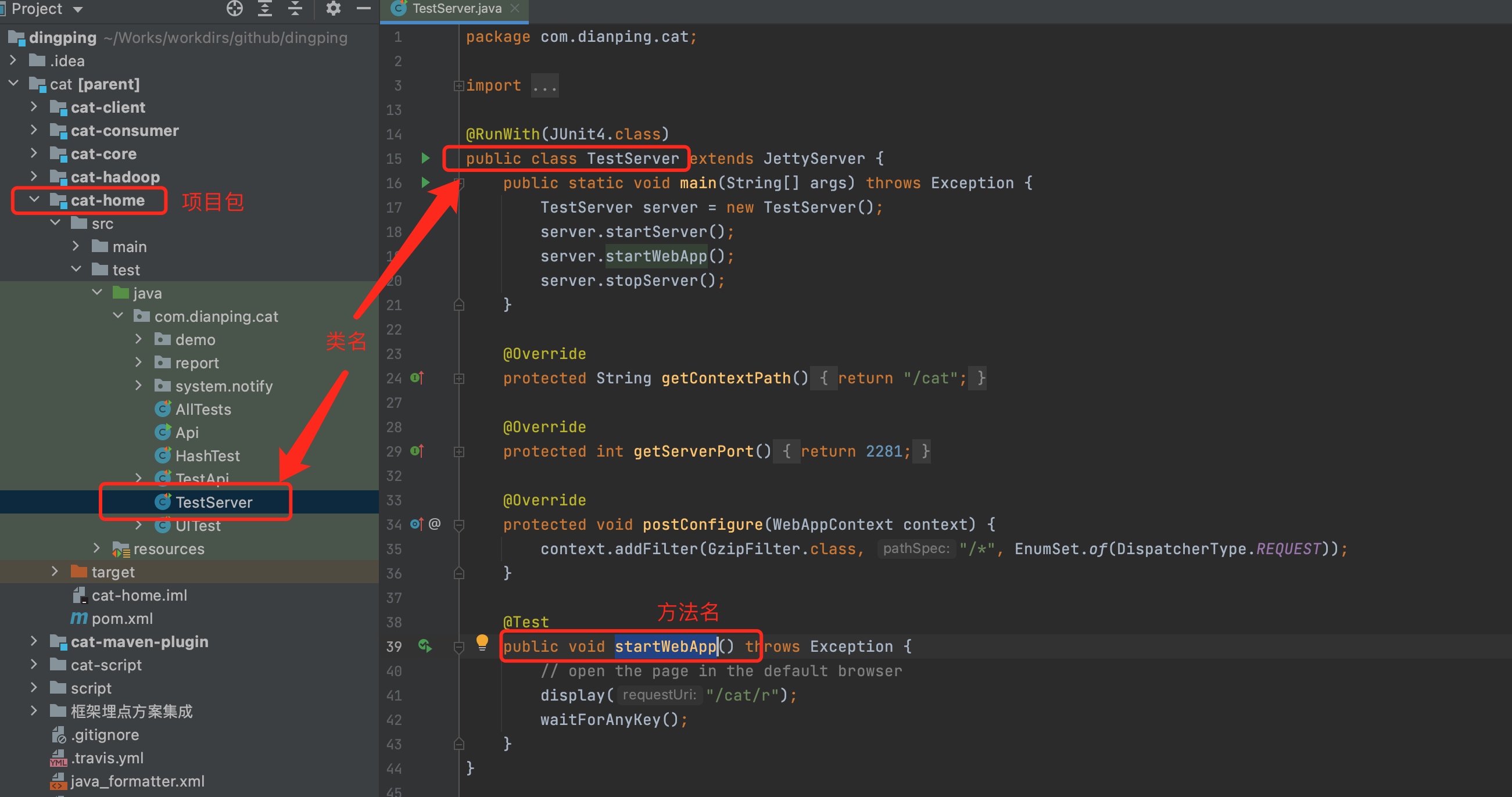

项目启动 com.dianping.cat.TestServer.startWebApp

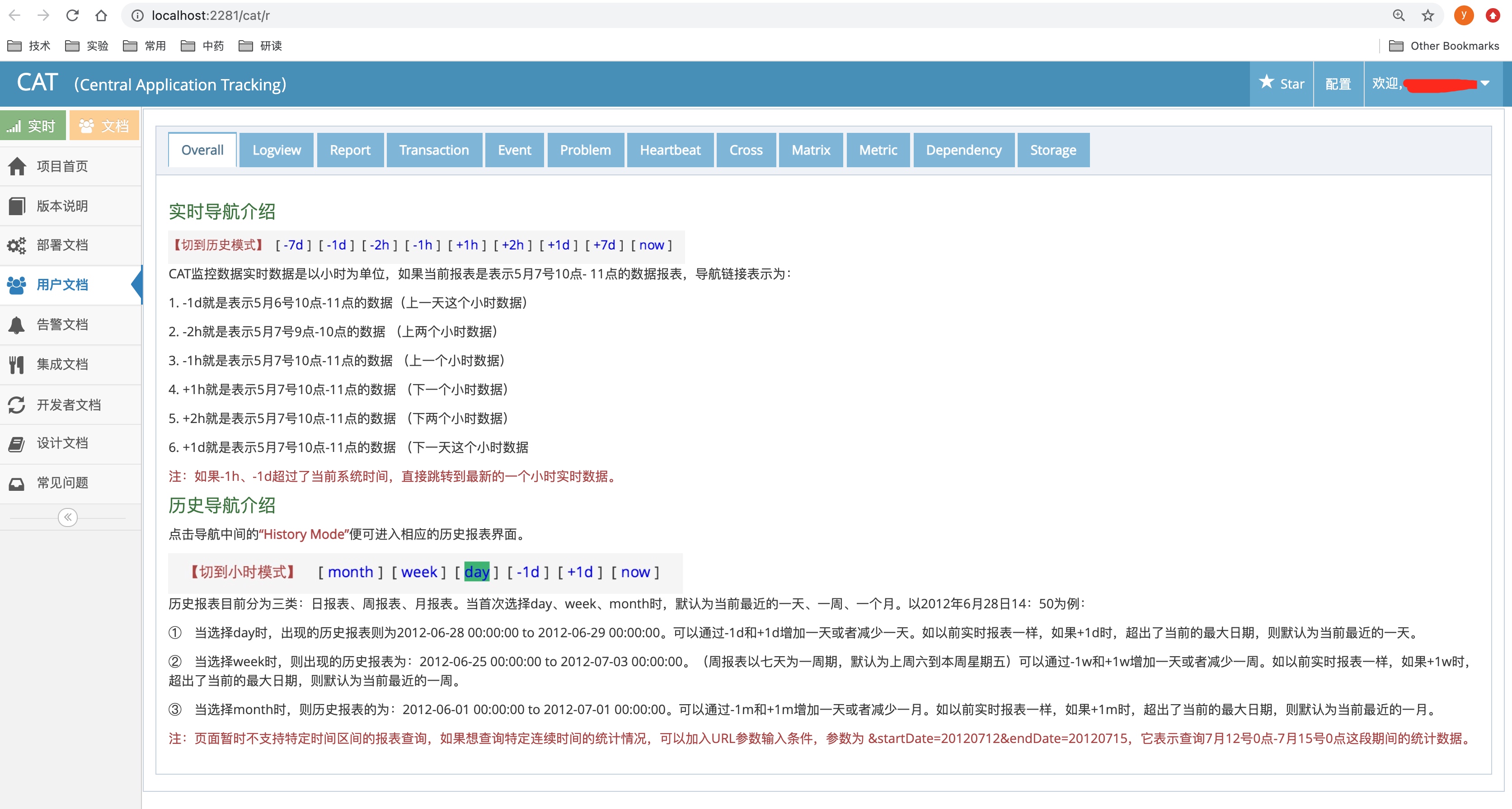

2.5.1 界面展示
2.5.2 日志目录说明
data
├── appdatas
│ └── cat
│ ├── bucket
│ │ ├── dump
│ │ │ ├── 20210207
│ │ │ └── 20210209
│ │ └── report
│ │ ├── 20210127
│ │ ├── 20210201
│ │ ├── 20210202
│ │ ├── 20210207
│ │ └── 20210209
│ ├── cat-UNKNOWN.mark
│ ├── cat-cat.mark
│ ├── client.xml
│ ├── datasources.xml
│ └── server.xml
└── applogs
