实验7：基于REST API的SDN北向应用实践

一、实验目的

能够编写程序调用OpenDaylight REST API实现特定网络功能；
能够编写程序调用Ryu REST API实现特定网络功能。

二、实验环境

下载虚拟机软件Oracle VisualBox或VMware；
在虚拟机中安装Ubuntu 20.04 Desktop amd64，并完整安装Mininet、OpenDaylight（Carbon版本）、Postman和Ryu；

三、实验要求

（一）基本要求

编写Python程序，调用OpenDaylight的北向接口实现以下功能

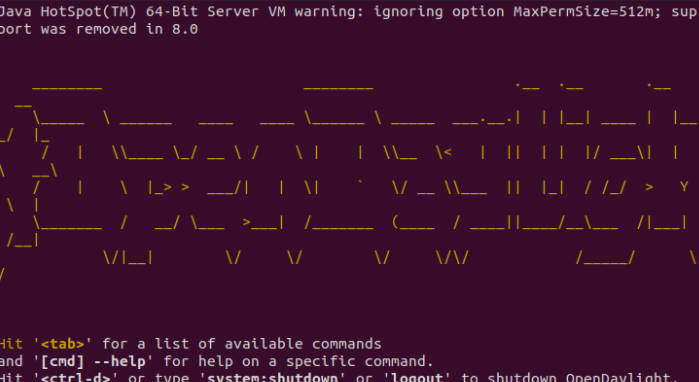

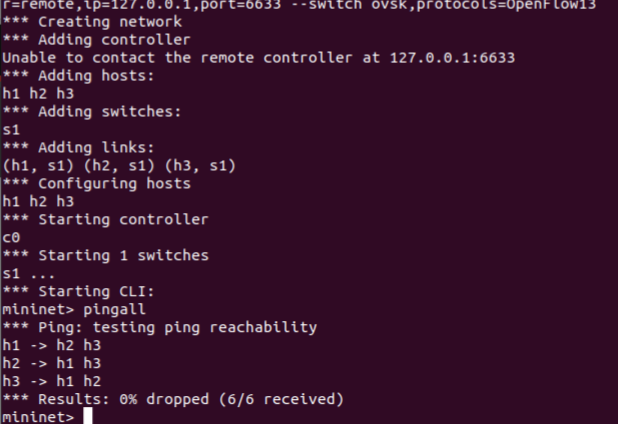

（1）利用Mininet平台搭建下图所示网络拓扑，并连接OpenDaylight；

（2）下发指令删除s1上的流表数据。

#!/usr/bin/python
import requests
from requests.auth import HTTPBasicAuth
if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/'
    headers = {'Content-Type': 'application/json'}
    res = requests.delete(url, headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

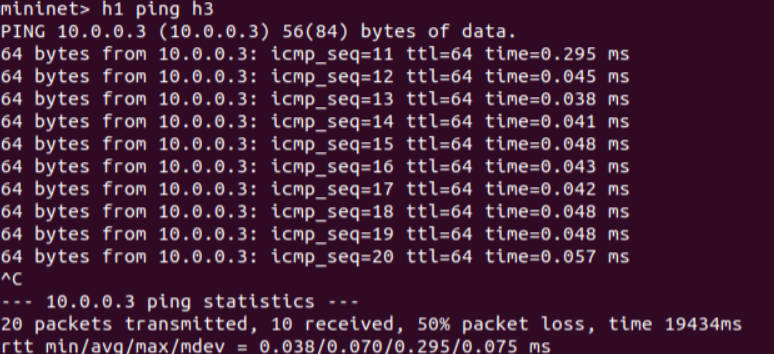

（3）下发硬超时流表，实现拓扑内主机h1和h3网络中断20s。

timeOut.py

# timeout.py
import requests
from requests.auth import HTTPBasicAuth
if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/config/opendaylight-inventory:nodes/node/openflow:1/flow-node-inventory:table/0/flow/1'
    with open("./timeOut.json") as file:
        str = file.read()
    headers = {'Content-Type': 'application/json'}
    res = requests.put(url, str, headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

timeOut.json

# timeout.json
{
    "flow": [
      {
        "id": "1",
        "match": {
          "in-port": "1",
          "ethernet-match": {
            "ethernet-type": {
              "type": "0x0800"
            }
          },
          "ipv4-destination": "10.0.0.3/32"
        },
        "instructions": {
          "instruction": [
            {
              "order": "0",
              "apply-actions": {
                "action": [
                  {
                    "order": "0",
                    "drop-action": {}
                  }
                ]
              }
            }
          ]
        },
        "flow-name": "flow",
        "priority": "65535",
        "hard-timeout": "20",
        "cookie": "2",
        "table_id": "0"
      }
    ]
  }

（4）获取s1上活动的流表数。

getflow.py

# getflow.py
import requests
from requests.auth import HTTPBasicAuth
if __name__ == "__main__":
    url = 'http://127.0.0.1:8181/restconf/operational/opendaylight-inventory:nodes/node/openflow:1/flow-node-inventory:table/0/opendaylight-flow-table-statistics:flow-table-statistics'
    headers = {'Content-Type': 'application/json'}
    res = requests.get(url,headers=headers, auth=HTTPBasicAuth('admin', 'admin'))
    print (res.content)

编写Python程序，调用Ryu的北向接口实现以下功能

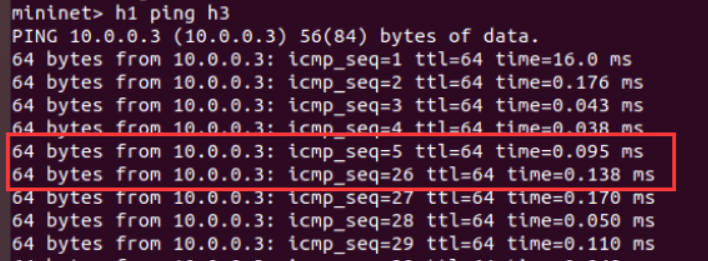

（1）实现上述OpenDaylight实验拓扑上相同的硬超时流表下发。

ryu_timeOut.py

# ryu_timeout.py
import requests
if __name__ == "__main__":
    url = 'http://127.0.0.1:8080/stats/flowentry/add'
    with open("./ryu_timeOut.json") as file:
        str = file.read()
    headers = {'Content-Type': 'application/json'}
    res = requests.post(url, str, headers=headers)
    print (res.content)

ryu_timeOut.json

# ryu_timeout.json
{
    "dpid": 1,
    "cookie": 1,
    "cookie_mask": 1,
    "table_id": 0,
    "hard_timeout": 20,
    "priority": 65535,
    "flags": 1,
    "match":{
        "in_port":1
    },
    "actions":[

    ]
 }

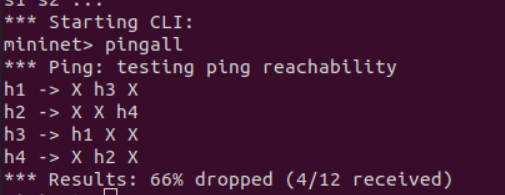

（2）参考Ryu REST API的文档，基于VLAN实验的网络拓扑，编程实现相同的VLAN配置。
提示：拓扑生成后需连接Ryu，且Ryu应能够提供REST API服务

VLAN_ID	Hosts
0	h1 h3
1	h2 h4

拓扑代码topo.py

#!/usr/bin/env python
from mininet.topo import Topo

class MyTopo(Topo):
    def __init__(self):
        # initilaize topology
        Topo.__init__(self)

        self.addSwitch("s1")
        self.addSwitch("s2")

        self.addHost("h1")
        self.addHost("h2")
        self.addHost("h3")
        self.addHost("h4")

        self.addLink("s1", "h1")
        self.addLink("s1", "h2")
        self.addLink("s2", "h3")
        self.addLink("s2", "h4")
        self.addLink("s1", "s2")

topos = {'mytopo': (lambda: MyTopo())}

#####删除流表：
curl -X DELETE http://localhost:8080/stats/flowentry/clear/1
curl -X DELETE http://localhost:8080/stats/flowentry/clear/2

shell.sh脚本

curl -X POST -d '{
    "dpid": 1,
    "priority": 1,
    "match":{
        "in_port": 1
    },
    "actions":[
        {
            "type": "PUSH_VLAN",     # Push a new VLAN tag if a input frame is non-VLAN-tagged
            "ethertype": 33024       # Ethertype 0x8100(=33024): IEEE 802.1Q VLAN-tagged frame
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",     # Set VLAN ID
            "value": 4096            # Describe sum of vlan_id(e.g. 6) | OFPVID_PRESENT(0x1000=4096)
        },
        {
            "type": "OUTPUT",
            "port": 3
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 1,
    "priority": 1,
    "match":{
        "in_port": 2
    },
    "actions":[
        {
            "type": "PUSH_VLAN",     # Push a new VLAN tag if a input frame is non-VLAN-tagged
            "ethertype": 33024       # Ethertype 0x8100(=33024): IEEE 802.1Q VLAN-tagged frame
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",     # Set VLAN ID
            "value": 4097            # Describe sum of vlan_id(e.g. 6) | OFPVID_PRESENT(0x1000=4096)
        },
        {
            "type": "OUTPUT",
            "port": 3
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 1,
    "priority": 1,
    "match":{
        "vlan_vid": 0
    },
    "actions":[
        {
            "type": "POP_VLAN",     # Push a new VLAN tag if a input frame is non-VLAN-tagged
            "ethertype": 33024       # Ethertype 0x8100(=33024): IEEE 802.1Q VLAN-tagged frame
        },
        {
            "type": "OUTPUT",
            "port": 1
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 1,
    "priority": 1,
    "match":{
        "vlan_vid": 1
    },
    "actions":[
        {
            "type": "POP_VLAN",     # Push a new VLAN tag if a input frame is non-VLAN-tagged
            "ethertype": 33024       # Ethertype 0x8100(=33024): IEEE 802.1Q VLAN-tagged frame
        },
        {
            "type": "OUTPUT",
            "port": 2
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 2,
    "priority": 1,
    "match":{
        "in_port": 1
    },
    "actions":[
        {
            "type": "PUSH_VLAN",     # Push a new VLAN tag if a input frame is non-VLAN-tagged
            "ethertype": 33024       # Ethertype 0x8100(=33024): IEEE 802.1Q VLAN-tagged frame
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",     # Set VLAN ID
            "value": 4096            # Describe sum of vlan_id(e.g. 6) | OFPVID_PRESENT(0x1000=4096)
        },
        {
            "type": "OUTPUT",
            "port": 3
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 2,
    "priority": 1,
    "match":{
        "in_port": 2
    },
    "actions":[
        {
            "type": "PUSH_VLAN",     # Push a new VLAN tag if a input frame is non-VLAN-tagged
            "ethertype": 33024       # Ethertype 0x8100(=33024): IEEE 802.1Q VLAN-tagged frame
        },
        {
            "type": "SET_FIELD",
            "field": "vlan_vid",     # Set VLAN ID
            "value": 4097            # Describe sum of vlan_id(e.g. 6) | OFPVID_PRESENT(0x1000=4096)
        },
        {
            "type": "OUTPUT",
            "port": 3
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 2,
    "priority": 1,
    "match":{
        "vlan_vid": 0
    },
    "actions":[
        {
            "type": "POP_VLAN",     # Push a new VLAN tag if a input frame is non-VLAN-tagged
            "ethertype": 33024       # Ethertype 0x8100(=33024): IEEE 802.1Q VLAN-tagged frame
        },
        {
            "type": "OUTPUT",
            "port": 1
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

 curl -X POST -d '{
    "dpid": 2,
    "priority": 1,
    "match":{
        "vlan_vid": 1
    },
    "actions":[
        {
            "type": "POP_VLAN",     # Push a new VLAN tag if a input frame is non-VLAN-tagged
            "ethertype": 33024       # Ethertype 0x8100(=33024): IEEE 802.1Q VLAN-tagged frame
        },
        {
            "type": "OUTPUT",
            "port": 2
        }
    ]
 }' http://localhost:8080/stats/flowentry/add

（二）进阶要求

OpenDaylight或Ryu任选其一，编程实现查看前序VLAN实验拓扑中所有节点（含交换机、主机）的名称，以及显示每台交换机的所有流表项。

（三）实验总结

这次实验利用python来调用API,使用OpenDaylight和Ryu的REST API实现特定网络功能,学习了OpenDaylight和ryu，并且区分理解了两者的区别所在。
