模拟银行业务办理-java
模拟银行业务办理
一、题目要求
1.模拟客户可以随机办理银行提供的8种业务中的一种;期中办理时间规划为:(基准时间每个同学自行指定) 完成
业务 | 业务序号 | 办理时间 * benchMarkTime |
---|---|---|
存款 | 1 | 0.5-1.5 |
取款 | 2 | 0.5-1.5 |
缴纳罚款 | 3 | 1.2-2.0 |
开通网银 | 4 | 5.0-8.0 |
交水电费 | 5 | 1.5-2.0 |
购买基金 | 6 | 2.0-3.0 |
转账汇款 | 7 | 3.0-4.0 |
个贷还款 | 8 | 2.0-4.0 |
2.程序模拟多个窗口服务,窗口服务具有一定的差异化,现在窗口的开放情况如下 完成
窗口来信 | 能办理业务类型 | 说明 | 数量 |
---|---|---|---|
A类窗口 | 1,2,3,4,5,6,7,8 | 所有客户可以办理 | 1 |
B类窗口 | 1,2,4,5,7 | 所有客户可以办理 | 2 |
V类窗口 | 1,2,3,4,5,6,7,8 | vip客户优先 | 1 |
3.顾客模拟要求: 完成
- 3.1 顾客分为普通客户和VIP客户,普通用户和VIP客户比例自行确定
- 3.2 顾客到达随机模拟
4.模拟程序模拟一天的营业情况,在完成当天的营业(模拟为上午8:00-下午17:00)后打印出客户列表,包括: 完成
- 客户名称
- 客户到达时间
- 客户办理业务类型
- 客户所用时间
5.统计出以下数据: 完成
- 5.1 当天的所有顾客平均办理时间(从到达到办理完成时间定义为顾客办理时间)
- 5.2 不同业务在所有办理业务中所占的比例
6.仿真(*需要评定优秀的同学需要提供此部分实现):
- 6.1 程序能够参数化设定当天到达客户办理不同业务的比例(比如业务1占20%等) 完成
- 6.2 程序能够模拟回答以下问题:如果基准日开放的窗口情况为: 未完成
A类:1个
B类:2个
V类:1个
那么针对营业日B的情况,在相同顾客数量的情况下,要如何开发窗口才能得到和基准日基本一致的顾客平均服务时间;
业务 | 基准日A | 基准日B |
---|---|---|
存款 | 20% | 10% |
取款 | 20% | 10% |
缴纳罚款 | 10% | 5% |
开通网银 | 10% | 5% |
交水电费 | 5% | 5% |
购买基金 | 15% | 40% |
转账汇款 | 10% | 5% |
个贷还款 | 10% | 20% |
二、类的划分
Customer
private String name;//顾客名字
private boolean ifVIP;//是否为vip(具体的vip分配看bank类(main))
private AWindows aWindows;//办理业务的A类窗口
private BWindows bWindows;//办理业务的B类窗口
private VWindows vipWindows;//办理业务的V类窗口
private String WindowsName;//本顾客对应的窗口名字
private Task task;//本顾客对应的业务类型
private Service service;//对应的enum
private long birthTime;//顾客到达时间
private long endTime;//顾客离开时间
Service
//enum Service
Deposit(1),DrawMoney(2),Forfeit(3),EBank(4),WaterEle(5),Fund(6),TransAccount(7),RepayLoan(8);
public int index;//通过下标寻找具体办理业务
public double minTime;//最短办理时间
public double maxTime;//最长办理时间
public static final double benchMarkTime = 10 ;//基准时间为10分钟 “单位:分”
Task
private SimpleDateFormat dateFormat =new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");//时间格式定义
private int costTime;// 业务需要消耗的时间
private Calendar birthTime;// 业务生成时间
private Calendar startTime;// 业务开始时间
private Calendar endTime;// 业务结束时间
private Integer TaskID;//业务序号
AWindows(BWindows / VWindows)三个类放在一起介绍
//extends Thread
public String name;//窗口名字
protected ArrayList<BlockingQueue<Customer>> CustomerQueue = null;// 客户队列容器,每个窗口至少有一个客户队列
private BlockingQueue<Customer> BlockingQueue;//A有三个队列 B与V只有一个
private BlockingQueue<Customer> BlockingQueue1;
private BlockingQueue<Customer> BlockingQueue2;
MathRandomTask(实现分配各业务的概率)
public static double rate1 = 0.20;//1出现的概率为%20
public static double rate2 = 0.20;//2出现的概率为%20
public static double rate3 = 0.10;//3出现的概率为%10
public static double rate4 = 0.10;//4出现的概率为%10
public static double rate5 = 0.05;//5出现的概率为%5
public static double rate6 = 0.15;//6出现的概率为%15
public static double rate7 = 0.10;//7出现的概率为%10
public static double rate8 = 0.10;//8出现的概率为%10
bank(main函数)
public static int count = 1;//银行单子序号
public static int Minute =10; //多少分钟来一个顾客
public static int Time = (17-8)*60;//每天营业时间
static SimpleDateFormat format = new SimpleDateFormat("yyyy-mm-dd HH:mm:ss");
public static long millis;//开门时间
public static long closeDoor;//关门时间
public static Calendar calendar;//银行开门的时间/ 开始执行项目的具体时间
public static int aNUM=0;//A类窗口服务人数
public static int bNUM=0;//B类窗口服务人数
public static int vNUM=0;//V类窗口服务人数
static BlockingQueue<Customer> Queue = new ArrayBlockingQueue<Customer>(200);
static BlockingQueue<Customer> Queue1 = new ArrayBlockingQueue<Customer>(200);
三、核心代码
Customer、Task(都是Getter and Setter)
Service
通过下标index值 找到具体业务(返回Service)
public static Service getServiceByIndex(int index){
for (Service s : values()){
if( s.getIndex() == index){
return s;
}
}
return null;
}
在maxTime与minTime之间随机生成一个时间成为本业务所耗费时间
public static int needSeconds(Service service){
return (int)(new Random().nextInt((int)service.maxTime)%(service.maxTime-service.minTime+1) + service.minTime);
}
当确定enum的具体值时,自动生成maxTime与minTime
Service(int index){
this.index = index;
switch (index){
case 1:
case 2:
this.minTime = 0.5 * 50 * benchMarkTime/Minute;
this.maxTime = 1.5 * 50 * benchMarkTime/Minute;
break;
case 3:
this.minTime = 1.2 * 50 * benchMarkTime/Minute;
this.maxTime = 2.0 * 50 * benchMarkTime/Minute;
break;
case 4:
this.minTime = 5 * 50 * benchMarkTime/Minute;
this.maxTime = 8 * 50 * benchMarkTime/Minute;
break;
case 5:
this.minTime = 1.5 * 50 * benchMarkTime/Minute;
this.maxTime = 2.0 * 50 * benchMarkTime/Minute;
break;
case 6:
this.minTime = 2.0 * 50 * benchMarkTime/Minute;
this.maxTime = 3.0 * 50 * benchMarkTime/Minute;
break;
case 7:
this.minTime = 3.0 * 50 * benchMarkTime/Minute;
this.maxTime = 4.0 * 50 * benchMarkTime/Minute;
break;
case 8:
this.minTime = 2.0 * 50 * benchMarkTime/Minute;
this.maxTime = 4.0 * 50 * benchMarkTime/Minute;
break;
}
}
MathRandomTask(实现分配各业务的概率)
Math.random()产生一个double型的随机数,判断一下。例如1出现的概率为%20,则介于0到0.20中间的返回1
public int PercentageRandom()
{
double randomNumber;
randomNumber = Math.random();
if (randomNumber >= 0 && randomNumber <= rate1)
{
return 1;
}
else if (randomNumber >= rate1 && randomNumber <= rate1 + rate2)
{
return 2;
}
else if (randomNumber >= rate1 + rate2
&& randomNumber <= rate1 + rate2 + rate3)
{
return 3;
}
else if (randomNumber >= rate1 + rate2 + rate3
&& randomNumber <= rate1 + rate2 + rate3 + rate4)
{
return 4;
}
else if (randomNumber >= rate1 + rate2 + rate3 + rate4
&& randomNumber <= rate1 + rate2 + rate3 + rate4 + rate5)
{
return 5;
}
else if (randomNumber >= rate1 + rate2 + rate3 + rate4 + rate5
&& randomNumber <= rate1 + rate2 + rate3 + rate4 + rate5 + rate6)
{
return 6;
}
else if (randomNumber >= rate1 + rate2 + rate3 + rate4 + rate5 + rate6
&& randomNumber <= rate1 + rate2 + rate3 + rate4 + rate5 + rate6 + rate7)
{
return 7;
}
else if (randomNumber >= rate1 + rate2 + rate3 + rate4 + rate5 + rate6 + rate7
&& randomNumber <= rate1 + rate2 + rate3 + rate4 + rate5 + rate6 + rate7 + rate8)
{
return 8;
}
return -1;
}
AWindows(BWindows / VWindows)三个类放在一起介绍
把顾客加入到该窗口的队列中
public void addCustomerQueue(BlockingQueue<Customer> bQueue) {
if (CustomerQueue == null){
CustomerQueue = new ArrayList<BlockingQueue<Customer>>();
}
CustomerQueue.add(bQueue);
}
从自己的一个或三个窗口队列中获取顾客,并将其从自己的窗口队列中删除
protected Customer getCustomer() throws InterruptedException {
if (CustomerQueue==null){
return null;
}
if (CustomerQueue.get(0).isEmpty() || CustomerQueue.size() == 1) {// 当自己的客户队列空,或者本本窗口只有属于自己的任务
return CustomerQueue.get(0).take();// 从对头取出客户,如果客户队列空,则阻塞线程
}
// for (int i = 1; i < CustomerQueue.size(); i++) {
// if (!CustomerQueue.get(i).isEmpty()) {// 存在非空的客户队列,取出客户处理
// return CustomerQueue.get(i).remove();
// }
// }
return null;
}
多线程的重写 对从窗口队列中获取的顾客进行操作
@Override
public void run(){
BlockingQueue = CustomerQueue.get(0);
super.run();
while (true){
Customer customer2 = null;
try {
synchronized (BlockingQueue) {
while ((customer2 = getCustomer()) == null) {
Thread.sleep(10);
}
}
customer2.setbWindows(this);
customer2.getTask().setStartTime(Calendar.getInstance());//业务开始的时间
sleep(customer2.getTask().getCostTime());//处理业务 所以线程暂停时间为业务所花时间
customer2.getTask().setEndTime(Calendar.getInstance());//结束业务的时间
customer2.setWindowsName(this.name);
long birthTime=customer2.getTask().getBirthTime().getTimeInMillis()-calendar.getTimeInMilli();//顾客开始到窗口办理业务
long endTime = customer2.getTask().getEndTime().getTimeInMillis()-calendar.getTimeInMillis();//顾客离开窗口
customer2.setBirthTime(birthTime*Minute*60*1000/50+millis);
customer2.setEndTime(endTime*Minute*60*1000/50+millis);
aNUM++;//或者bNUM++。或者vNUM++。
} catch (InterruptedException e) {
e.printStackTrace();
}
}
}
bank

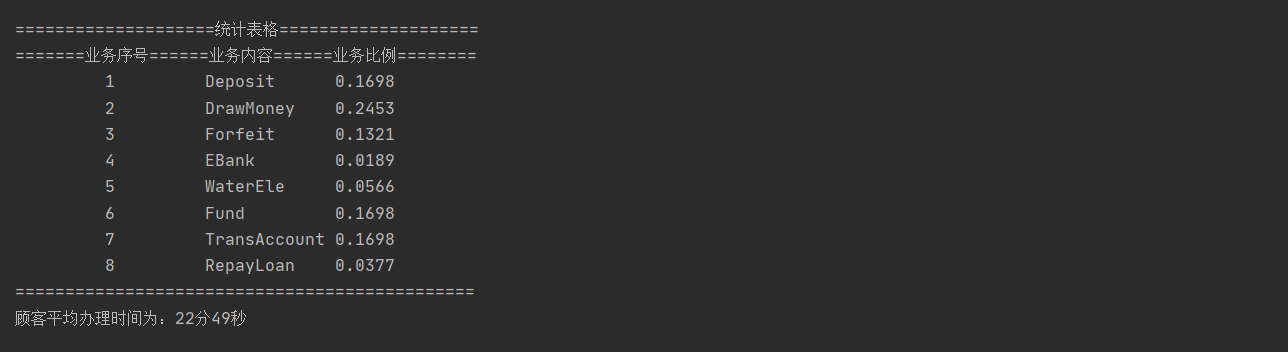

统计表格的输出(要求第五点)
private static void resultPrint(BlockingQueue<Customer> Queue1) {
Customer customer = new Customer();
int Sum = Queue1.size();
int num1 = 0 ,num2 = 0,num3 = 0,num4 = 0,num5 = 0,num6 = 0,num7 = 0,num8 = 0;
long time=0;
while (!Queue1.isEmpty()){
customer= Queue1.remove();
time = time + customer.getTask().getCostTime()*72/5;
switch (customer.getTask().getTaskID()){
case 1 :
num1++;break;
case 2 :
num2++;break;
case 3 :
num3++;break;
case 4 :
num4++;break;
case 5 :
num5++;break;
case 6 :
num6++;break;
case 7 :
num7++;break;
case 8 :
num8++;break;
}
}
long x = (int)(time/Sum);
DecimalFormat decimalFormat=new DecimalFormat("0.0000");
System.out.println(" ");
System.out.println("====================统计表格====================");
System.out.println("=======业务序号======业务内容======业务比例========");
System.out.println(" 1 Deposit "+decimalFormat.format((float)num1/(float)Sum));
System.out.println(" 2 DrawMoney "+decimalFormat.format((float)num2/(float)Sum));
System.out.println(" 3 Forfeit "+decimalFormat.format((float)num3/(float)Sum));
System.out.println(" 4 EBank "+decimalFormat.format((float)num4/(float)Sum));
System.out.println(" 5 WaterEle "+decimalFormat.format((float)num5/(float)Sum));
System.out.println(" 6 Fund "+decimalFormat.format((float)num6/(float)Sum));
System.out.println(" 7 TransAccount "+decimalFormat.format((float)num7/(float)Sum));
System.out.println(" 8 RepayLoan "+decimalFormat.format((float)num8/(float)Sum));
System.out.println("==============================================");
System.out.println("顾客平均办理时间为:"+x/60+"分"+x%60+"秒");
}
模拟一天的客户列表情况
private static void myPrint(BlockingQueue<Customer> Queue) {
Customer customer = new Customer();
long starttime = 0;
long endtime = 0;
while (!Queue.isEmpty()){
customer= Queue.remove();
if (customer.getWindowsName()==null){
System.out.println(customer.getName()+"于"+longToDate(starttime)+"到达,在["+"A类窗口"
+"]办理了业务序号["+customer.getTask().getTaskID()+"]的"+customer.getService()+"业务。" +"持续"+
(customer.getTask().getCostTime()*72/5)/60+"分"+(customer.getTask().getCostTime()*72/5)%60+
"秒,顾客离开时间为"+longToDate(endtime));
}
else{
System.out.println(customer.getName()+"于"+longToDate(customer.getBirthTime())+"到达,在["+customer.getWindowsName()
+"]办理了业务序号["+customer.getTask().getTaskID()+"]的"+customer.getService()+"业务。" +"持续"+
(customer.getTask().getCostTime()*72/5)/60+"分"+(customer.getTask().getCostTime()*72/5)%60+
"秒,顾客离开时间为"+longToDate(customer.getEndTime()));
starttime = customer.getEndTime();
endtime = customer.getEndTime()+customer.getTask().getCostTime();
}
}
}
银行开门
private void excute() {
/**
* 创建窗口
*/
AWindows aWindows = new AWindows("A类窗口");
BWindows bWindows1 = new BWindows("B类1号窗口");
BWindows bWindows2 = new BWindows("B类2号窗口");
VWindows vipWindows = new VWindows("VIP窗口");
/**
* vip窗口队列
*/
BlockingQueue<Customer> VIPQueue = new ArrayBlockingQueue<Customer>(100);
/**
* A窗口队列
*/
BlockingQueue<Customer> AQueue = new ArrayBlockingQueue<Customer>(100);
/**
* B窗口队列
*/
BlockingQueue<Customer> BQueue = new ArrayBlockingQueue<Customer>(100);
/**
* 添加处于本窗口管理的客户队列
*/
aWindows.addCustomerQueue(AQueue);
bWindows1.addCustomerQueue(BQueue);
bWindows2.addCustomerQueue(BQueue);
vipWindows.addCustomerQueue(VIPQueue);
/**
* 给vip窗口和a窗口添加b类窗口的客户队列
*/
aWindows.addCustomerQueue(VIPQueue);
aWindows.addCustomerQueue(BQueue);
aWindows.start();
bWindows1.start();
bWindows2.start();
vipWindows.start();
while (true){
try {
Customer customer = new Customer();
customer = InitCustomer();//初始化顾客(随机生成vip及业务序号)
if (customer.isIfVIP())
VIPQueue.add(customer);
else if (customer.getTask().getTaskID()==3||customer.getTask().getTaskID()==6||customer.getTask().getTaskID()==8)
AQueue.add(customer);
else
BQueue.add(customer);
sleep(50);
Queue.add(customer);
Queue1.add(customer);
if (closeDoor<customer.getEndTime()){
break;
}
} catch (InterruptedException e) {
e.printStackTrace();
}
}
try {
sleep(1000);
} catch (InterruptedException e) {
e.printStackTrace();
}
}
long转date
public static String longToDate(long lo){
Date date = new Date(lo);
SimpleDateFormat sd = new SimpleDateFormat("yyyy-MM-dd HH:mm:ss");
return sd.format(date);
}
顾客初始化
public Customer InitCustomer() {//vip概率为0.3
Customer customer = new Customer();
Task task = new Task();
if (new Random().nextInt(100)<30)//vip概率为0.3由此确定
customer.setIfVIP(true);
else
customer.setIfVIP(false);
MathRandomTask a = new MathRandomTask();//随机生成业务序号
int x =a.PercentageRandom();//得到具体数字
Service service = Service.getServiceByIndex(x);
task.setBirthTime(Calendar.getInstance());//生成业务的时间
task.setTaskID(x);//业务序号x
customer.setTask(task);//衔接Task和Customer
customer.setService(service);//衔接Service和Customer
customer.setName("客户"+count);
customer.getTask().setCostTime(needSeconds(customer.getService()));//把service中预测的时间存入task的costtime中
count++;
return customer;
}
总结
整体思路
首先,我将整个银行的模拟从8:00-17:00 九个小时等比例缩放成几秒,跑完整个代码的同时记录下各个时间节点与时间段,例如三十分钟与100毫秒等价,通过以下的函数
Calendar.getInstance()//获取时间点
sleep()//处理业务,暂停时间即为业务所花费时间
来获取时间。整个银行模拟在几秒内跑完,再等比例放大到九个小时,实现模拟。
结果
客户列表
