Flink入门

https://blog.csdn.net/wugenqiang/article/details/81738939

环境

Ubuntu18.04

JDK：8

kafka版本：kafka_2.11-2.3.1    官网文档：https://kafka.apache.org/documentation/

Flink+kafka实现Wordcount实时计算

原文地址：https://www.cnblogs.com/jiashengmei/p/9025535.html

完整代码

配置flink和flink-kafka需要的依赖pom文件

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <flink.version>1.9.0</flink.version>
        <java.version>1.8</java.version>
        <scala.binary.version>2.11</scala.binary.version>
        <maven.compiler.source>${java.version}</maven.compiler.source>
        <maven.compiler.target>${java.version}</maven.compiler.target>
    </properties>
    <dependencies>
        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-clients -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-clients_2.11</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-streaming-java -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-streaming-java_2.11</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <!-- https://mvnrepository.com/artifact/org.apache.flink/flink-java -->
        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-java</artifactId>
            <version>${flink.version}</version>
        </dependency>

        <dependency>
            <groupId>org.apache.flink</groupId>
            <artifactId>flink-connector-kafka_2.11</artifactId>
            <version>${flink.version}</version>
        </dependency>
        <dependency>
            <groupId>org.slf4j</groupId>
            <artifactId>slf4j-log4j12</artifactId>
            <version>1.7.7</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>log4j</groupId>
            <artifactId>log4j</artifactId>
            <version>1.2.17</version>
            <scope>runtime</scope>
        </dependency>
    </dependencies>

日志文件src/main/resources/log4j.properties

log4j.rootLogger=INFO, console

log4j.appender.console=org.apache.log4j.ConsoleAppender
log4j.appender.console.layout=org.apache.log4j.PatternLayout
log4j.appender.console.layout.ConversionPattern=%d{HH:mm:ss,SSS} %-5p %-60c %x - %m%n

主函数

import java.util.Properties;
import org.apache.flink.api.common.functions.FlatMapFunction;
import org.apache.flink.api.java.tuple.Tuple2;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.connectors.kafka.FlinkKafkaConsumer;
import org.apache.flink.streaming.util.serialization.SimpleStringSchema;
import org.apache.flink.util.Collector;

public class FilnkCostKafka {
    public static void main(String[] args) throws Exception {
        final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.enableCheckpointing(1000);

        Properties properties = new Properties();
        properties.setProperty("bootstrap.servers", "192.168.1.252:9092");
        properties.setProperty("zookeeper.connect", "192.168.1.252:2181");
        properties.setProperty("group.id", "test");

        FlinkKafkaConsumer<String> myConsumer = new FlinkKafkaConsumer<String>("test", new SimpleStringSchema(),properties);

        DataStream<String> stream = env.addSource(myConsumer);

        DataStream<Tuple2<String, Integer>> counts = stream.flatMap(new LineSplitter()).keyBy(0).sum(1);

        counts.print();

        env.execute("WordCount from Kafka data");
    }

    public static final class LineSplitter implements FlatMapFunction<String, Tuple2<String, Integer>> {
        private static final long serialVersionUID = 1L;

        public void flatMap(String value, Collector<Tuple2<String, Integer>> out) {
            String[] tokens = value.toLowerCase().split("\\W+");
            for (String token : tokens) {
                if (token.length() > 0) {
                    out.collect(new Tuple2<String, Integer>(token, 1));
                }
            }
        }
    }

}

启动顺序

cd /opt/kafka_2.11-2.3.1
sudo bin/zookeeper-server-start.sh config/zookeeper.properties  # 启动Zookeeper服务器
sudo bin/kafka-server-start.sh config/server.properties  # 启动Kafka服务器
bin/kafka-topics.sh --create --bootstrap-server localhost:9092 --replication-factor 1 --partitions 1 --topic test  # 创建主题
bin/kafka-console-producer.sh --broker-list localhost:9092 --topic test  # Kafka控制台生产者
bin/kafka-console-consumer.sh --bootstrap-server localhost:9092 --topic test --from-beginning  # Kafka控制台消费者

Kafka 生产消息

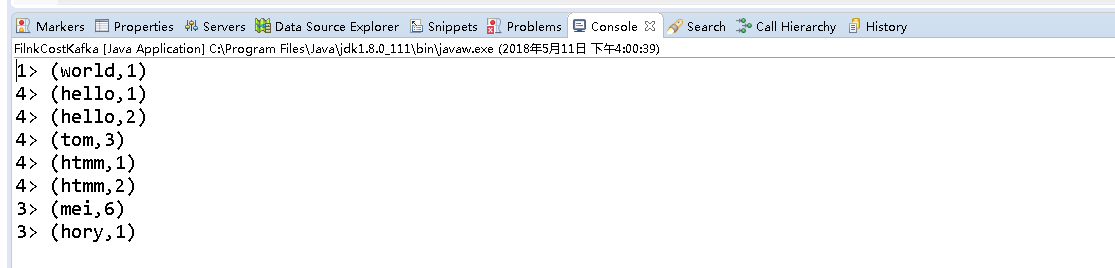

Flink客户端
