Springboot + Swagger

原文地址：https://www.javainuse.com/spring/boot_swagger





In the Maven we need the swagger dependency.Maven will be as follows-

<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
    xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.javainuse</groupId>
    <artifactId>springboot-swagger-test</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <packaging>jar</packaging>
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>1.4.1.RELEASE</version>
    </parent>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.4.0</version>
        </dependency>

        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.4.0</version>
        </dependency>

    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
            </plugin>
        </plugins>
    </build>
</project>

Note- Previously was using 2.2.2 version for springfox-swagger2 maven dependencies. But this version has issues. If overloaded methods are used for exposing REST API it will not work properly.

Only for one of the overloaded methods the swagger documentation can be seen and not for the other.

Create the Application.java as below-

package com.javainuse.swaggertest;

import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;

@SpringBootApplication
public class Application {

    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }
}

@RequestMapping maps /api/javainuse request to sayHello() method.

package com.javainuse.swaggertest;

import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.RestController;

@RestController
public class HelloController {

    @RequestMapping(method = RequestMethod.GET, value = "/api/javainuse")
    public String sayHello() {
        return "Swagger Hello World";
    }
}

To enable the Swagger 2 we use the annotation @EnableSwagger2.
A Docket bean is defined and using its select() method we get an instance of ApiSelectorBuilder. ApiSelectorBuilder we configure the endpoints exposed by Swagger.
After the Docket bean is defined, its select() method returns an instance of ApiSelectorBuilder, which provides a way to control the endpoints exposed by Swagger.
Using the RequestHandlerSelectors and PathSelectors we configure the predicates for selection of RequestHandlers.

package com.zd.modules.config;

import java.util.ArrayList;
import java.util.List;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.servlet.config.annotation.ResourceHandlerRegistry;
import org.springframework.web.servlet.config.annotation.WebMvcConfigurer;
import com.github.xiaoymin.swaggerbootstrapui.annotations.EnableSwaggerBootstrapUI;
import io.swagger.annotations.ApiOperation;
import springfox.documentation.service.Parameter;
import lombok.extern.slf4j.Slf4j;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.ParameterBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.schema.ModelRef;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;
import com.google.common.base.Function;
import com.google.common.base.Optional;
import com.google.common.base.Predicate;
import springfox.documentation.RequestHandler;



@Slf4j
@Configuration
@EnableSwagger2
@EnableSwaggerBootstrapUI
public class Swagger2Config implements WebMvcConfigurer {

    /**
     *
     * 显示swagger-ui.html文档展示页，还必须注入swagger资源：
     *
     * @param registry
     */
    @Override
    public void addResourceHandlers(ResourceHandlerRegistry registry) {
        registry.addResourceHandler("swagger-ui.html").addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("doc.html").addResourceLocations("classpath:/META-INF/resources/");
        registry.addResourceHandler("/webjars/**").addResourceLocations("classpath:/META-INF/resources/webjars/");
    }

    /**
     * swagger2的配置文件，这里可以配置swagger2的一些基本的内容，比如扫描的包等等
     *
     * @return Docket
     */
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .select()
                //此包路径下的类，才生成接口文档
                .apis(Swagger2Config.basePackage("com.zd.modules"))
                //加了ApiOperation注解的类，才生成接口文档
                .apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .paths(PathSelectors.any())
                .build()
                .globalOperationParameters(setHeaderToken());
    }

    /**
     * JWT token
     * @return
     */
    private List<Parameter> setHeaderToken() {
        ParameterBuilder tokenPar = new ParameterBuilder();
        List<Parameter> pars = new ArrayList<>();
        tokenPar.name("X-Access-Token").description("token").modelRef(new ModelRef("string")).parameterType("header").required(false).build();
        pars.add(tokenPar.build());
        return pars;
    }

    /**
     * api文档的详细信息函数,注意这里的注解引用的是哪个
     *
     * @return
     */
    private ApiInfo apiInfo() {
        return new ApiInfoBuilder()
                // //大标题
                .title("xxx后台服务API接口文档")
                // 版本号
                .version("1.0")
//                .termsOfServiceUrl("NO terms of service")
                // 描述
                .description("restful 风格接口")
                // 作者
//                .contact(new Contact("scott", "http://jeecg.org", "jeecgos@163.com"))
//                .license("The Apache License, Version 2.0")
//                .licenseUrl("http://www.apache.org/licenses/LICENSE-2.0.html")
                .build();
    }

    /**
     * Predicate that matches RequestHandler with given base package name for the class of the handler method.
     * This predicate includes all request handlers matching the provided basePackage
     *
     * @param basePackage - base package of the classes
     * @return this
     */
    public static Predicate<RequestHandler> basePackage(final String basePackage) {
        return new Predicate<RequestHandler>() {

            @Override
            public boolean apply(RequestHandler input) {
                return declaringClass(input).transform(handlerPackage(basePackage)).or(true);
            }
        };
    }

    /**
     * 处理包路径配置规则,支持多路径扫描匹配以逗号隔开
     *
     * @param basePackage 扫描包路径
     * @return Function
     */
    private static Function<Class<?>, Boolean> handlerPackage(final String basePackage) {
        return new Function<Class<?>, Boolean>() {

            @Override
            public Boolean apply(Class<?> input) {
                for (String strPackage : basePackage.split(",")) {
                    boolean isMatch = input.getPackage().getName().startsWith(strPackage);
                    if (isMatch) {
                        return true;
                    }
                }
                return false;
            }
        };
    }

    /**
     * @param input RequestHandler
     * @return Optional
     */
    private static Optional<? extends Class<?>> declaringClass(RequestHandler input) {
        return Optional.fromNullable(input.declaringClass());
    }
}

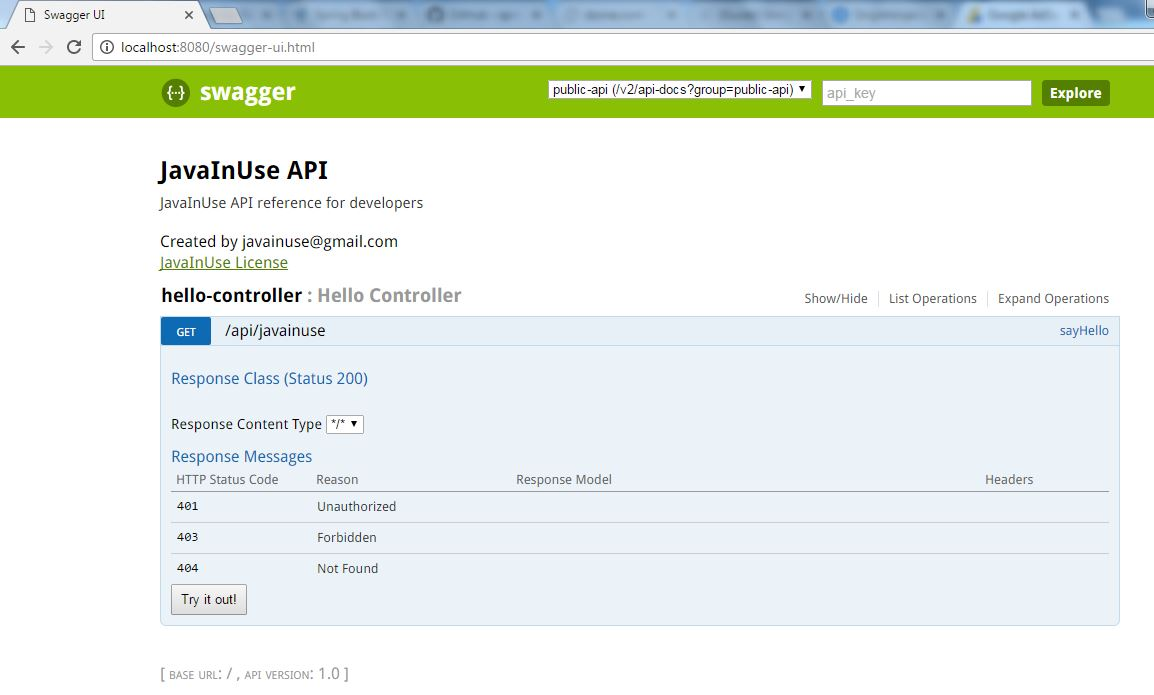

These are the only changes required. Now go to http://localhost:8080/swagger-ui.html.We will see the documentation for the exposed API as follows-

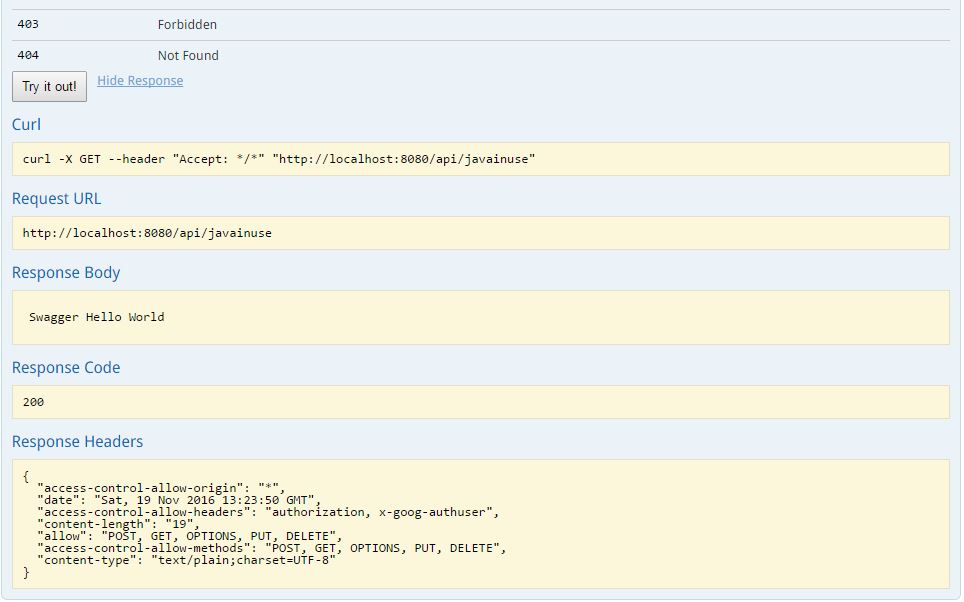

Using the Try it button we can also check if the service is up.

In the next post we see use of various swagger annotations using example

Download Source Code

Download it -Spring Boot + Swagger
