inspect_bottle_label_360_degree.hdev 案例

这是一个halcon实现4个瓶子侧面拼接成360°全景图的案例，在上面吃了大亏，特此记录一下。

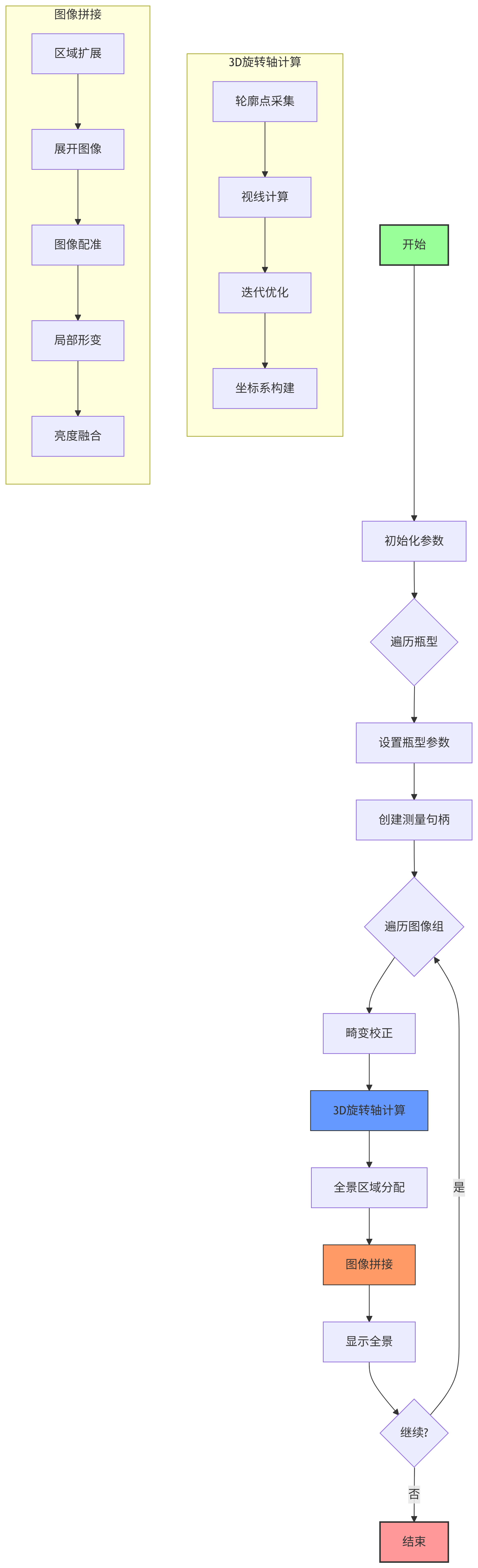

基本流程图



1. 主函数

* ============================== 主函数 ==============================
* 瓶子标签360度展开检测主程序
* 目标：生成瓶身标签的无缝全景展开图
* 核心步骤：1)瓶体位姿估计 2)图像校正 3)图像拼接
*
* 全局变量声明（用于中间结果可视化控制）
global def tuple DisplayIntermediateResults  * 控制中间结果显示的布尔值
global def tuple WindowWidthLimit          * 显示窗口最大宽度限制
global def tuple WindowHeightLimit         * 显示窗口最大高度限制

* ====================== 标准控制参数 ======================
PixelSizeInMM := 0.2           * 全景图的毫米级像素尺寸（决定输出图像分辨率）
ColorMosaic := true            * 是否生成彩色全景图（true=彩色，false=灰度）
HighImageQuality := true       * 高质量处理模式（true=双三次插值，false=双线性插值）
BackgroundMayContainTexture := false  * 背景是否可能包含纹理（影响轮廓提取策略）
InteractivelyDefineRegion := false    * 是否交互式定义标签区域（true=手动绘制，false=使用预设）
DisplayIntermediateResultsFor := 'first'  * 中间结果显示模式（'first'=仅首组，'all'=所有组）

* ====================== 精细调整参数 ======================
PerformFineAdjustment := true      * 是否执行精细调整（true=启用图像配准）
FineAdjustmentMatchingWidth := 30  * 配准区域宽度（像素，影响匹配精度）
FineAdjustmentMaxShift := 30       * 最大允许偏移量（像素，限制调整范围）
BlendingSeam := 10                 * 图像融合接缝宽度（像素，影响过渡平滑度）

* ====================== 轮廓提取参数 ======================
SilhouetteMeasureDistance := 10    * 测量点间距（像素，控制轮廓采样密度）
SilhouetteMeasureLength2 := 30     * 测量区域半长度（像素，决定边缘检测范围）
SilhouetteMeasureSigma := 0.5      * 高斯滤波Sigma值（影响边缘检测抗噪性）
SilhouetteMeasureThreshold := 5    * 边缘检测阈值（值越小灵敏度越高）
SilhouetteMaxTilt := rad(10)       * 瓶子最大倾斜角度（弧度制，影响姿态估计容错）

* 初始化显示设置
WindowWidthLimit := 800  * 窗口宽度上限
WindowHeightLimit := 600 * 窗口高度上限
dev_update_off ()        * 关闭图形更新加速处理

* 验证中间结果显示模式参数
if (DisplayIntermediateResultsFor != 'first' and DisplayIntermediateResultsFor != 'all')
    * 参数值错误处理
    throw ('DisplayIntermediateResultsFor参数错误（必须为first或all）')
endif
DisplayIntermediateResults := true  * 初始启用中间结果展示

* ====================== 数据准备阶段 ======================
* 设置数据路径
PathCsm := 'inspect_bottle_camera_setup_model.csm'  * 相机标定模型文件路径
PathImg := 'bottle_label'                           * 图像文件夹路径

* 读取图像获取尺寸信息
list_image_files (PathImg, 'default', [], ImageFiles)  * 获取文件夹内所有图像路径
* 筛选特定命名模式的图像（四组相机拍摄）
RegExpression := '(freixenet|got2b|jever|wala)_0[1-2]_cam_[1-4].*'
tuple_regexp_select (ImageFiles, RegExpression, ImageFiles)  * 正则筛选图像
read_image (Image, ImageFiles[0])  * 读取第一张图像
get_image_size (Image, Width, Height)  * 获取图像宽高

* 创建显示窗口
dev_close_window ()  * 关闭现有窗口
* 创建适应图像尺寸的窗口（受限于WindowWidthLimit/HeightLimit）
dev_open_window_fit_image (Image, 0, 0, WindowWidthLimit, WindowHeightLimit, WindowHandle)
set_display_font (WindowHandle, 16, 'mono', 'true', 'false')  * 设置等宽字体

* 读取相机标定模型
read_camera_setup_model (PathCsm, CameraSetupModel)  * 加载相机参数

* 设置相机模型原点为相机0投影中心
get_camera_setup_param (CameraSetupModel, 0, 'pose', CamPose0)  * 获取相机0位姿
set_camera_setup_param (CameraSetupModel, 'general', 'coord_transf_pose', CamPose0)  * 设置坐标系原点

* ====================== 主处理循环 ======================
* 遍历不同瓶子类型（jever, freixenet, got2b, wala）
Objects := ['jever', 'freixenet', 'got2b', 'wala']  * 瓶型列表
for Obj := 0 to |Objects| - 1 by 1
    Object := Objects[Obj]  * 当前瓶型

    * 根据瓶型设置参数
    LabelMinCol := -1  * 标签区域左边界初始化
    LabelMaxCol := -1  * 标签区域右边界初始化
    if (Object == 'jever')
        CylinderRadiusInMM := 30.04  * 瓶子半径(mm)
        LabelMinCol := 100           * 标签左边界(像素)
        LabelMaxCol := 1250          * 标签右边界(像素)
    elseif (Object == 'freixenet')
        CylinderRadiusInMM := 31.3
        LabelMinCol := 600
        LabelMaxCol := 1150
    elseif (Object == 'got2b')
        CylinderRadiusInMM := 24.935
        LabelMinCol := 375
        LabelMaxCol := 1025
    elseif (Object == 'wala')
        CylinderRadiusInMM := 15.35
        LabelMinCol := 660
        LabelMaxCol := 1160
    endif

    * 单位转换（毫米→米）
    PixelSize := 0.001 * PixelSizeInMM        * 像素尺寸(米)
    CylinderRadius := 0.001 * CylinderRadiusInMM  * 瓶子半径(米)

    * 解析图像集信息
    PathExpression := Object + '_'  * 构建瓶型匹配模式
    tuple_regexp_select (ImageFiles, PathExpression, ImageSelection)  * 筛选当前瓶型图像
    LastTuple := split(ImageSelection[|ImageSelection| - 1],'/')  * 分割路径
    LastTupleParts := split(LastTuple,'_')         * 分割文件名
    NumSetsStr := LastTupleParts[|LastTupleParts| - 3]  * 提取图像组数字符串
    NumCamsStr := split(LastTupleParts[|LastTupleParts| - 1],'.')[0]  * 提取相机数字符串
    * 移除前导零（避免八进制解释）
    remove_leading_zeros (chr(ords(NumSetsStr)), NumSets)  * 转换图像组数
    remove_leading_zeros (chr(ords(NumCamsStr)), NumCams)  * 转换相机数量

    * ============== 交互式区域定义（可选） ==============
    if (InteractivelyDefineRegion)
        read_image (FirstImage, ImageSelection[0])  * 读取首张图像
        * 调整窗口显示
        dev_resize_window_fit_image (FirstImage, 0, 0, WindowWidthLimit, WindowHeightLimit)
        dev_display (FirstImage)  * 显示图像
        * 显示操作提示
        disp_message (WindowHandle, ['定义需要展开的瓶子区域', '注意：仅使用矩形的左右边界'], 'window', 12, 12, 'black', 'true')
        * 绘制矩形区域
        if (min([LabelMinCol,LabelMaxCol]) < 0)
            draw_rectangle1 (WindowHandle, Row1, LabelMinCol, Row2, LabelMaxCol)  * 全新绘制
        else
            * 在预设基础上调整
            draw_rectangle1_mod (WindowHandle, 100, LabelMinCol, Height - 101, LabelMaxCol, Row1, LabelMinCol, Row2, LabelMaxCol)
        endif
        * 约束边界在图像范围内
        LabelMinCol := max([0,LabelMinCol])
        LabelMaxCol := min([Width - 1,LabelMaxCol])
    endif
    * 计算有效边界
    BorderLeft := LabelMinCol         * 左边界(像素)
    BorderRight := Width - 1 - LabelMaxCol  * 右边界(像素)

    * ============== 创建轮廓测量句柄 ==============
    MeasureHandles := []  * 初始化测量句柄数组
    * 沿标签宽度方向创建垂直测量区域
    for Col := LabelMinCol to LabelMaxCol by SilhouetteMeasureDistance
        * 创建垂直测量矩形（90度方向）
        gen_measure_rectangle2 (Height / 2, Col, rad(90), Height / 2, SilhouetteMeasureLength2, Width, Height, 'nearest_neighbor', MeasureHandle)
        MeasureHandles := [MeasureHandles,MeasureHandle]  * 添加到数组
    endfor

    * ============== 相机模型准备 ==============
    * 创建畸变校正映射
    prepare_distortion_removal (RectificationMaps, CameraSetupModel, CameraSetupModelZeroDist, NumCameras)

    * 估算瓶子初始位姿（假设位于相机中心）
    determine_approximate_cylinder_pose_in_center_of_cameras (CameraSetupModelZeroDist, NumCameras, PoseCylinderApprox, HomMat3DCylinderApprox)

    * 计算圆柱模型所需高度范围
    determine_required_cylinder_model_extent (BorderLeft, BorderRight, Width, Height, CameraSetupModelZeroDist, NumCameras, HomMat3DCylinderApprox, PixelSize, MinZ, MaxZ)

    * 计算轮廓间距范围
    determine_min_max_silhouette_distance (CameraSetupModelZeroDist, NumCameras, PoseCylinderApprox, CylinderRadius, MinZ, MaxZ, Height, MinPairDist, MaxPairDist)

    * 生成圆柱3D模型
    gen_cylinder_model (PixelSize, CylinderRadius, MinZ, MaxZ, NumSlices, NumPointsPerSlice, MinZI, MaxZI, ActualPixelSize, CylinderPointsX, CylinderPointsY, CylinderPointsZ)
    ActualPixelSizeInMM := 1000.0 * ActualPixelSize  * 实际像素尺寸(mm)
    * 确定全景图尺寸
    MosaicHeight := NumSlices       * 高度=切片数
    MosaicWidth := NumPointsPerSlice  * 宽度=每片点数

    * ============== 图像组处理循环 ==============
    for Set := 1 to NumSets by 1
        * 读取当前图像组
        tuple_regexp_select (ImageSelection, '_' + Set$'02d' + '_cam', ImageSet)  * 筛选当前组图像
        * 验证图像数量
        if (|ImageSet| != NumCams)
            throw ('图像集' + Set$'02d' + '中的图像数量与相机数量不符')
        endif
        read_image (Images, ImageSet)  * 读取图像组

        * 开始计时
        count_seconds (Seconds1)

        * 检查彩色处理可行性
        if (ColorMosaic)
            select_obj (Images, ObjectSelected, 1)  * 选择首张图像
            count_channels (ObjectSelected, Channels)  * 检查通道数
            if (Channels == 1)
                ColorMosaic := false  * 单通道图像强制灰度模式
            elseif (Channels != 3)
                stop ()  * 通道数异常终止（必须1或3）
            endif
        endif

        * 消除镜头畸变
        eliminate_radial_distortions (Images, RectificationMaps, ImagesRectified, ImagesGrayRectified, NumCameras)

        * 核心算法1：计算3D旋转轴
        determine_rotation_axis_3d (ImagesRectified, ImagesGrayRectified, CylinderRadius, BackgroundMayContainTexture, MeasureHandles, Width, Height, CameraSetupModelZeroDist, NumCameras, MinPairDist, MaxPairDist, SilhouetteMeasureSigma, SilhouetteMeasureThreshold, SilhouetteMaxTilt, 0.1 * PixelSize, PoseCylinder, Quality, CameraSetupModelZeroDistInCylinderOrigin, RadiusEstimated)

        * 分配相机负责区域
        determine_source_cameras_for_mosaic_parts (Regions, CameraSetupModelZeroDistInCylinderOrigin, NumCameras, CylinderPointsX, CylinderPointsY, CylinderPointsZ, NumPointsPerSlice, MinZI, MosaicWidth, MosaicHeight)

        * 核心算法2：图像拼接
        stitch_images (Regions, ImagesRectified, ImagesGrayRectified, FinalMosaic, WindowHandle, ColorMosaic, HighImageQuality, PerformFineAdjustment, FineAdjustmentMaxShift, FineAdjustmentMatchingWidth, BlendingSeam, CameraSetupModelZeroDistInCylinderOrigin, NumCameras, MosaicWidth, MosaicHeight, CylinderPointsX, CylinderPointsY, CylinderPointsZ, NumSlices, NumPointsPerSlice, CylinderRadius, LabelMinCol, LabelMaxCol)

        * 结束计时
        count_seconds (Seconds2)
        TimeMS := (Seconds2 - Seconds1) * 1000.0  * 计算耗时(ms)

        * 显示最终全景图
        dev_resize_window_fit_image (FinalMosaic, 0, 0, WindowWidthLimit, WindowHeightLimit)
        dev_display (FinalMosaic)  * 显示全景图
        Message := '360度全景图'  * 状态消息
        if (not DisplayIntermediateResults)
            Message[1] := '耗时: ' + TimeMS$'.0f' + 'ms'  * 添加耗时信息
        endif
        disp_message (WindowHandle, Message, 'window', 12, 12, 'black', 'true')  * 显示消息

        * 显示继续提示（非最后一组时）
        if (Obj < |Objects| - 1 or Set < NumSets)
            disp_continue_message (WindowHandle, 'black', 'true')
        endif

        * 更新中间结果显示状态
        if (DisplayIntermediateResultsFor == 'first')
            DisplayIntermediateResults := false  * 后续组不显示中间结果
        endif
        stop ()  * 暂停查看结果
    endfor
endfor

2.3D旋转轴计算 (determine_rotation_axis_3d)

* ====================== 3D旋转轴计算函数 ======================
* 功能：精确计算瓶体旋转轴心
* 输入：
*   ImagesRectified - 校正后图像
*   ImagesGrayRectified - 校正后灰度图像
*   CylinderRadius - 瓶子半径(米)
*   ... [其他参数]
* 输出：
*   CameraSetupModelZeroDistInCylinderOrigin - 以瓶体为中心的相机模型

* 确定圆柱模型上需要使用的部分（根据标签区域）
* 生成采样点索引（每个切片的起始点）
Indices := [0,cumul(gen_tuple_const(NumSlices - 1,NumPointsPerSlice))]
* 提取采样点3D坐标
SamplePX := CylinderPointsX[Indices]
SamplePY := CylinderPointsY[Indices]
SamplePZ := CylinderPointsZ[Indices]

* 获取相机0参数
get_camera_setup_param (CameraSetupModelZeroDistInCylinderOrigin, 0, 'params', CamParam0)
get_camera_setup_param (CameraSetupModelZeroDistInCylinderOrigin, 0, 'pose', CamPose0)

* 坐标转换：3D点→相机坐标系→2D投影
pose_to_hom_mat3d (CamPose0, HomMat3D0)  * 位姿→变换矩阵
hom_mat3d_invert (HomMat3D0, HomMat3D0Invert)  * 求逆变换
affine_trans_point_3d (HomMat3D0Invert, SamplePX, SamplePY, SamplePZ, Qx, Qy, Qz)  * 坐标转换
project_3d_point (Qx, Qy, Qz, CamParam0, ImageSampleRow, ImageSampleColumn)  * 3D→2D投影

* 计算有效切片范围（基于标签区域）
MinSlice := max([find(sgn(ImageSampleColumn - LabelMinCol),1)[0],0])  * 起始切片
MaxSlice := min([find(sgn(ImageSampleColumn - LabelMaxCol),1)[0],NumSlices - 1])  * 结束切片

* 更新全景图高度和3D点云
MosaicHeight := MaxSlice - MinSlice + 1  * 新高度
* 裁剪点云数据
CylinderPointsX := CylinderPointsX[MinSlice * NumPointsPerSlice : MaxSlice * NumPointsPerSlice + NumPointsPerSlice - 1]
CylinderPointsY := CylinderPointsY[MinSlice * NumPointsPerSlice : MaxSlice * NumPointsPerSlice + NumPointsPerSlice - 1]
CylinderPointsZ := CylinderPointsZ[MinSlice * NumPointsPerSlice : MaxSlice * NumPointsPerSlice + NumPointsPerSlice - 1]

* ============== 无精细调整模式 ==============
if (not PerformFineAdjustment)
    * 创建空全景图像
    if (ColorMosaic)
        * 彩色模式：分别创建RGB通道
        gen_image_const (ImageMosaicR, 'byte', MosaicWidth, MosaicHeight)
        gen_image_const (ImageMosaicG, 'byte', MosaicWidth, MosaicHeight)
        gen_image_const (ImageMosaicB, 'byte', MosaicWidth, MosaicHeight)
        compose3 (ImageMosaicR, ImageMosaicG, ImageMosaicB, ImageMosaic)  * 合并为彩色
    else
        * 灰度模式：创建单通道
        gen_image_const (ImageMosaic, 'byte', MosaicWidth, MosaicHeight)
    endif

    * 裁剪区域到全景图尺寸
    clip_region (Regions, Regions, 0, 0, MosaicHeight - 1, MosaicWidth - 1)

    * 遍历每个相机填充全景图
    for Cam := 0 to NumCameras - 1 by 1
        * 获取相机参数
        get_camera_setup_param (CameraSetupModelZeroDistInCylinderOrigin, Cam, 'params', CamParam)
        get_cam_par_data (CamParam, 'image_width', ImageWidth)   * 图像宽度
        get_cam_par_data (CamParam, 'image_height', ImageHeight) * 图像高度
        get_camera_setup_param (CameraSetupModelZeroDistInCylinderOrigin, Cam, 'pose', CamPose)

        * 坐标转换：世界坐标→相机坐标
        pose_to_hom_mat3d (CamPose, HomMat3D)
        hom_mat3d_invert (HomMat3D, HomMat3DInvert)  * 求逆变换

        * 获取当前相机负责区域
        select_obj (Regions, Region, Cam + 1)
        get_region_points (Region, Rows, Columns)  * 获取区域点坐标

        * 线性坐标计算（将2D网格映射到1D索引）
        LinCoord := Rows * NumPointsPerSlice + Columns

        * 3D点投影到2D图像
        affine_trans_point_3d (HomMat3DInvert, subset(CylinderPointsX,LinCoord), subset(CylinderPointsY,LinCoord), subset(CylinderPointsZ,LinCoord), Qx, Qy, Qz)
        project_3d_point (Qx, Qy, Qz, CamParam, ImageRow, ImageColumn)

        * 创建有效点掩膜（在图像范围内）
        Mask := ImageRow [>=] 0 and ImageRow [<=] ImageHeight - 1 and ImageColumn [>=] 0 and ImageColumn [<=] ImageWidth - 1
        ImageRowSub := select_mask(ImageRow,Mask)  * 筛选有效行坐标
        ImageColumnSub := select_mask(ImageColumn,Mask)  * 筛选有效列坐标

        * 根据颜色模式处理
        if (ColorMosaic)
            select_obj (ImagesRectified, ObjectSelected, Cam + 1)  * 选择当前相机图像
            decompose3 (ObjectSelected, ImageR, ImageG, ImageB)  * 分解RGB通道

            if (HighImageQuality)
                * 高质量模式：双三次插值
                if (BicubicInterpolation)
                    get_grayval_interpolated (ImageR, ImageRowSub, ImageColumnSub, 'bicubic', Grayval)
                    set_grayval (ImageMosaicR, select_mask(Rows,Mask), select_mask(Columns,Mask), Grayval)
                    * 重复处理G/B通道...
                else
                    * 双线性插值
                    get_grayval_interpolated (ImageR, ImageRowSub, ImageColumnSub, 'bilinear', Grayval)
                    set_grayval (ImageMosaicR, select_mask(Rows,Mask), select_mask(Columns,Mask), Grayval)
                    * 重复处理G/B通道...
                endif
            else
                * 低质量模式：直接采样
                get_grayval (ObjectSelected, ImageRowSub, ImageColumnSub, Grayval1)
                set_grayval (ImageMosaic, select_mask(Rows,Mask), select_mask(Columns,Mask), Grayval1)
            endif
        else
            * 灰度图像处理
            select_obj (ImagesGrayRectified, ImageGray, Cam + 1)
            if (HighImageQuality)
                get_grayval_interpolated (ImageGray, ImageRowSub, ImageColumnSub, 'bilinear', Grayval)
                set_grayval (ImageMosaic, select_mask(Rows,Mask), select_mask(Columns,Mask), Grayval)
            else
                get_grayval (ImageGray, ImageRowSub, ImageColumnSub, Grayval1)
                set_grayval (ImageMosaic, select_mask(Rows,Mask), select_mask(Columns,Mask), Grayval1)
            endif
        endif
    endfor
    copy_image (ImageMosaic, FinalMosaic)  * 复制最终结果

* ============== 精细调整模式 ==============
else
    * 扩展区域以创建重叠（用于配准）
    DilWidth := max([FineAdjustmentMatchingWidth + 2 * FineAdjustmentMaxShift, BlendingSeam + FineAdjustmentMaxShift]) / 2 * 2 + 1
    dilation_rectangle1 (Regions, RegionsDilation, DilWidth, 1)  * 矩形膨胀
    clip_region (RegionsDilation, RegionsDilation, 0, 0, MosaicHeight - 1, MosaicWidth - 1)  * 裁剪到边界

    * 创建空对象存储展开图像
    gen_empty_obj (UnrolledImages)

    * 遍历相机生成展开图像
    for Cam := 0 to NumCameras - 1 by 1
        * 创建空展开图像
        if (ColorMosaic)
            * 彩色模式：分别创建RGB通道
            gen_image_const (ImageUnrolledR, 'byte', MosaicWidth, MosaicHeight)
            gen_image_const (ImageUnrolledG, 'byte', MosaicWidth, MosaicHeight)
            gen_image_const (ImageUnrolledB, 'byte', MosaicWidth, MosaicHeight)
        else
            * 灰度模式：创建单通道
            gen_image_const (ImageUnrolled, 'byte', MosaicWidth, MosaicHeight)
        endif

        * 获取相机参数（同上）
        ...

        * 坐标转换和投影（同上）
        ...

        * 可视化：显示即将展开的区域
        if (DisplayIntermediateResults)
            * 生成平滑区域用于显示
            for ClosingRad := 1.5 to 15.5 by 1
                closing_circle (Region, RegionTrans, ClosingRad)  * 闭运算平滑边界
                connection (RegionTrans, ConnectedRegions)  * 连接区域
                count_obj (ConnectedRegions, Number)
                if (Number == 1) break  * 直到形成单一区域
            endfor
            * 准备显示图像
            select_obj (ImagesRectified, Image, Cam + 1)
            copy_image (Image, ImagePart)
            reduce_domain (ImagePart, RegionTrans, ImageReduced)  * 裁剪关注区域
            scale_image (ImageReduced, ImageScaled, 0.25, 150)  * 缩放增强对比度
            copy_image (Image, ImageDisp)
            overpaint_gray (ImageDisp, ImageScaled)  * 叠加显示
            rotate_image (ImageDisp, ImageRotate, -90, 'constant')  * 旋转便于查看
            * 显示结果
            dev_resize_window_fit_image (ImageRotate, 0, 0, WindowWidthLimit, WindowHeightLimit)
            dev_display (ImageRotate)
            disp_message (WindowHandle, ['相机 ' + (Cam + 1) + ':', '即将展开的图像区域'], 'window', 12, 12, 'black', 'true')
            stop ()
        endif

        * 填充展开图像（类似无调整模式）
        ...

        * 可视化：显示展开结果
        if (DisplayIntermediateResults)
            * 创建掩膜并填充背景
            gen_region_points (RegionMaskOut, select_mask(Rows,Mask), select_mask(Columns,Mask))
            get_domain (UnrolledOut, DomainUnrolledOut)
            difference (DomainUnrolledOut, RegionMaskOut, RegionDifference)
            * 设置背景色（彩色/灰度）
            if (ColorMosaic) FillColor := [255, 255, 255] else FillColor := 255
            overpaint_region (UnrolledOut, RegionDifference, FillColor, 'fill')  * 填充背景
            * 显示结果
            dev_resize_window_fit_image (UnrolledOut, 0, 0, WindowWidthLimit, WindowHeightLimit)
            dev_display (UnrolledOut)
            disp_message (WindowHandle, ['相机 ' + (Cam + 1) + ':', '展开后的图像'], 'window', 12, 12, 'black', 'true')
            stop ()
        endif
    endfor

    * ============== 图像配准与融合 ==============
    * 确定图像重叠顺序（从左到右）
    smallest_rectangle1 (RegionsDilation, RowBB1, ColumnBB1, RowBB2, ColumnBB2)  * 获取区域边界
    From := sort_index(ColumnBB1)  * 按左边界排序
    To := [From[1:|From| - 1],From[0]]  * 创建配对关系（当前→下一张）

    * 初始化配准变量
    gen_empty_obj (UnrolledImagesShifted)  * 存储配准后图像
    ShiftAccumulated := 0  * 累计偏移量
    hom_mat2d_identity (HomMat2DAccumulated)  * 初始化单位变换矩阵

    * 配准处理循环
    for FT := 0 to |From| - 1 by 1
        F := From[FT]  * 当前图像索引
        T := To[FT]    * 目标图像索引

        * 特殊处理最后一张图像（仅保留右侧）
        if (FT == |From| - 1)
            connection (RegionTo, ConnectedRegions)
            if (count_obj(ConnectedRegions) > 1)
                sort_region (ConnectedRegions, SortedRegions, 'character', 'true', 'column')
                select_obj (SortedRegions, RegionTo, 2)  * 选择右侧区域
                * 将非负责区域涂黑
                get_domain (ImageTo, Domain)
                difference (Domain, RegionTo, RegionBlack)
                overpaint_region (ImageTo, RegionBlack, [0, 0, 0], 'fill')
            endif
        endif

        * 图像预处理（转换到实数类型）
        if (Channels == 3)
            rgb1_to_gray (ImageFrom, GrayFrom)  * 彩色转灰度
            convert_image_type (GrayFrom, ImageFrom, 'real')  * 转实数
            * 同样处理目标图像...
        else
            convert_image_type (ImageFrom, ImageFrom, 'real')
            * 同样处理目标图像...
        endif

        * 创建NCC配准模板
        intersection (RegionFrom, RegionTo, RegionIntersection)  * 获取重叠区域
        smallest_rectangle1 (RegionIntersection, RowInters1, ColumnInters1, RowInters2, ColumnInters2)
        ColumnCut := (ColumnInters1 + ColumnInters2) / 2  * 中心列

        * 定义旋转角度范围
        Angles := [-3, 3]  * ±3度
        PaddingTopBottom := 20  * 上下边距

        * 创建模板区域
        gen_rectangle1 (Rectangle, PaddingTopBottom, ColumnCut - FineAdjustmentMatchingWidth / 2, MosaicHeight - 1 - PaddingTopBottom, ColumnCut + FineAdjustmentMatchingWidth / 2)
        convert_image_type (ImageFrom, ImageFromB, 'byte')  * 转字节类型
        reduce_domain (ImageFromB, Rectangle, ImageModel)  * 裁剪模板区域
        * 创建NCC模型
        create_ncc_model (ImageModel, 1, rad(Angles[0]), rad(Angles[1] - Angles[0]), 'auto', 'use_polarity', ModelID)
        region_features (ImageModel, ['row', 'column', 'width'], Values)  * 获取模板位置

        * 创建搜索区域
        gen_rectangle2 (RoiSearch, Values[0], Values[1], 0, FineAdjustmentMaxShift, 1)  * 矩形区域
        convert_image_type (ImageTo, ImageToB, 'byte')
        reduce_domain (ImageToB, RoiSearch, ImageSearch)  * 裁剪搜索区域

        * 执行NCC配准
        find_ncc_model (ImageSearch, ModelID, rad(Angles[0]), rad(Angles[1] - Angles[0]), 0.3, 1, 1.0, 'true', 0, Row, Column, Angle, Score)
        if (|Score| == 0)  * 匹配失败处理
            Row := Values[0]
            Column := Values[1]
            Angle := 0
            Score := 0
        endif

        * 计算累计偏移
        ShiftAccumulated := ShiftAccumulated + (Values[1] - Column)

        * 计算变换矩阵
        vector_angle_to_rigid (Row, Column, Angle, Values[0], Values[1], 0, HomMat2DI)  * 完整变换
        * 分解变换（平移+剩余）
        vector_angle_to_rigid (0, Column, 0, 0, Values[1], 0, HomMat2DITrans)  * 纯平移
        hom_mat2d_invert (HomMat2DITrans, HomMat2DITransInvert)  * 平移逆变换
        hom_mat2d_compose (HomMat2DI, HomMat2DITransInvert, HomMat2DRemainder)  * 剩余变换

        * 应用剩余变换（局部形变）
        * 计算变换前后的列差异
        DCol := ColOrig - ColTrans
        * 创建渐变向量场
        Ramp := [gen_tuple_const(MorphingExtLeft,2.0), inverse(cumul(gen_tuple_const(MorphingWidth2 - 1,2.0 / MorphingWidth2))),0]
        * 应用矢量场变形
        real_to_vector_field (ImageWR, ImageWC, VectorField, 'vector_field_relative')
        * 执行图像变形
        if (Channels == 3)
            decompose3 (ImagePart, Image1, Image2, Image3)  * 分解RGB
            unwarp_image_vector_field (Image1, VectorField, ImageUnwarped1)  * 变形通道1
            * 同样处理其他通道...
            compose3 (...)  * 重新组合
        else
            unwarp_image_vector_field (ImagePart, VectorField, ImageUnwarped)  * 灰度图像变形
        endif

        * 应用平移变换
        hom_mat2d_compose (HomMat2DAccumulated, HomMat2DITrans, HomMat2DAccumulated)  * 更新累计变换
        affine_trans_image (MorphedImage, ImageToShift, HomMat2DAccumulated, 'constant', 'false')  * 应用变换

        * 处理最后一张图像的特殊情况
        if (FT == |From| - 1)
            get_image_size (ImageToShift, MosaicWidthExt, MosaicHeightExt)  * 获取最终尺寸
        endif

        * 存储配准后图像
        reduce_domain (ImageToShift, RegionToShift, ImageToShiftReduced)
        concat_obj (UnrolledImagesShifted, ImageToShiftReduced, UnrolledImagesShifted)
    endfor

    * ============== 亮度融合 ==============
    * 确定融合中心点
    for I := 1 to NumberUnrolledImages - 1 by 1
        * 计算相邻图像重叠区域中心
        smallest_rectangle1 (RegionIntersection, RowI1, ColumnI1, RowI2, ColumnI2)
        ColumnBlendingCenter[I - 1] := int(round(0.5 * (ColumnI1 + ColumnI2)))
    endfor

    * 创建融合蒙版
    gen_empty_obj (BlendingMasks)
    * 计算融合参数
    BSEven := BlendingSeam / 2 * 2  * 确保偶数
    if (BSEven > BlendingSeam) BSEven := BSEven + 2
    BS2 := BSEven / 2  * 半宽
    if (BSEven >= 2)
        BSStep := 1.0 / BSEven  * 渐变步长
        BSLeft := cumul(gen_tuple_const(BSEven,BSStep))  * 左渐变
        BSRight := 1.0 + BSStep - BSLeft  * 右渐变
    endif

    * 生成融合蒙版
    * 首张图像蒙版
    MaskOneLine := [gen_tuple_const(ColumnBlendingCenter[0] - BS2,1),BSRight]
    gen_image_const (ImageM1, 'real', MosaicWidthExt, 1)
    set_grayval (ImageM1, ..., MaskOneLine)  * 设置渐变值
    zoom_image_size (ImageM1, ImageM, MosaicWidthExt, MosaicHeight, 'nearest_neighbor')  * 缩放
    concat_obj (BlendingMasks, ImageM, BlendingMasks)

    * 中间图像蒙版（类似处理）
    ...

    * 最后图像蒙版
    ...

    * 应用融合
    for I := 1 to NumberUnrolledImages by 1
        * 图像对齐
        if (I < NumberUnrolledImages)
            tile_images_offset (...)  * 普通对齐
        else
            tile_images_offset (...)  * 末张特殊对齐
        endif

        * 应用蒙版
        if (Channels == 3)
            compose3 (Mas, Mas, Mas, MultiChannelMask)  * 彩色蒙版
            mult_image (ImgReal, MultiChannelMask, ImageForStitching, 1, 0)  * 相乘
        else
            mult_image (ImgReal, Mas, ImageForStitching, 1, 0)  * 灰度蒙版
        endif

        * 累加到全景图
        add_image (ImageMosaic, ImageForStitching, ImageMosaic, 1, 0)
    endfor

    * 裁剪最终全景图
    tile_images_offset (ImageMosaic, FinalMosaic, 0, 0, 0, 0, MosaicHeight - 1, RightBorder, RightBorder + 1, MosaicHeight)
endif
return ()

3. 图像拼接 (stitch_images)

* ====================== 图像拼接函数 ======================
* 功能：精确计算瓶体旋转轴心
* 输入：相机位置、轮廓点云等
* 输出：瓶体姿态(PoseCylinder)

* 收集相机位置
for Cam := 0 to NumCameras - 1 by 1
    get_camera_setup_param (CameraSetupModelZeroDist, Cam, 'pose', CamPose)
    XCam[Cam] := CamPose[0]  * X坐标
    YCam[Cam] := CamPose[1]  * Y坐标
    ZCam[Cam] := CamPose[2]  * Z坐标
endfor

* 计算瓶体初始位置（相机位置均值）
CylinderPointApprox := [mean(XCam),mean(YCam),mean(ZCam)]
LenI := 1.0 / sqrt(sum(CylinderPointApprox * CylinderPointApprox))  * 归一化因子
CylinderXTmp := CylinderPointApprox * LenI  * X方向

* 拟合平面（估算瓶体方向）
fit_plane (XCam, YCam, ZCam, NX, NY, NZ, C)  * 拟合相机位置平面
CylinderZTmp := [NX,NY,NZ]  * 法线方向为Z轴

* 调整坐标系方向
get_camera_setup_param (CameraSetupModelZeroDist, 0, 'pose', CamPose)
pose_to_hom_mat3d (CamPose, HomMat3DCamPose0)
DirTest := sum(CylinderZTmp * HomMat3DCamPose0[[0, 4, 7]])  * 方向测试
if (DirTest > 0)  * 确保方向一致
    CylinderZTmp := -CylinderZTmp
endif

* 构建坐标系
cross_product (CylinderZTmp, CylinderXTmp, CylinderYTmp)  * 叉积计算Y轴
* 创建齐次变换矩阵
HomMat3DCylinderApprox := [CylinderXTmp[0],CylinderYTmp[0],CylinderZTmp[0],CylinderPointApprox[0],
                           CylinderXTmp[1],CylinderYTmp[1],CylinderZTmp[1],CylinderPointApprox[1],
                           CylinderXTmp[2],CylinderYTmp[2],CylinderZTmp[2],CylinderPointApprox[2]]
hom_mat3d_to_pose (HomMat3DCylinderApprox, PoseCylinderApprox)  * 矩阵→位姿

* 创建以瓶体为中心的相机模型
serialize_camera_setup_model (CameraSetupModelZeroDist, SerializedItemHandle)  * 序列化
deserialize_camera_setup_model (SerializedItemHandle, CameraSetupModelZeroDistCylApprox)  * 反序列化
set_camera_setup_param (CameraSetupModelZeroDistCylApprox, 'general', 'coord_transf_pose', PoseCylinderApprox)  * 设置原点

* ============== 轮廓点采集 ==============
* 初始化存储变量
A2x := []; A2y := []; A2z := []  * 视线起点
B2x := []; B2y := []; B2z := []  * 视线方向
SilhRow := []; SilhCol := []; SilhCam := []  * 图像坐标和相机索引

* 遍历每个相机采集轮廓点
for Cam := 0 to NumCameras - 1 by 1
    * 获取当前相机图像和参数
    select_obj (ImagesRectified, ImageRectified, Cam + 1)
    select_obj (ImagesGrayRectified, GrayImage, Cam + 1)
    get_camera_setup_param (CameraSetupModelZeroDistCylApprox, Cam, 'params', CamParam)
    get_camera_setup_param (CameraSetupModelZeroDistCylApprox, Cam, 'pose', CamPose)

    * 创建模糊函数（用于边缘对提取）
    create_funct_1d_pairs ([MinPairDist[Cam] - 10,MinPairDist[Cam],MaxPairDist[Cam] / cos(SilhouetteMaxTilt),MaxPairDist[Cam] / cos(SilhouetteMaxTilt) + 10],
                          [0, 1, 1, 0], FuzzyFunction)

    * 遍历测量句柄提取边缘
    Row := []; Column := []  * 存储边缘点
    for I := 0 to |MeasureHandles| - 1 by 1
        set_fuzzy_measure (MeasureHandles[I], 'size', FuzzyFunction)  * 设置模糊函数
        * 提取边缘对
        fuzzy_measure_pairing (GrayImage, MeasureHandles[I], SilhouetteMeasureSigma, SilhouetteMeasureThreshold, 0.5, 'all', 'no_restriction', 0,
                              RowEdgeFirst, ColumnEdgeFirst, AmplitudeFirst,
                              RowEdgeSecond, ColumnEdgeSecond, AmplitudeSecond,
                              RowPairCenter, ColumnPairCenter, FuzzyScore, IntraDistance)

        * 根据背景特性选择点
        if (BackgroundMayContainTexture)
            * 纹理背景：使用所有边缘点
            Row := [Row,RowEdgeFirst,RowEdgeSecond]
            Column := [Column,ColumnEdgeFirst,ColumnEdgeSecond]
        else
            * 纯色背景：仅使用首尾边缘点
            if (|RowEdgeFirst| > 0)
                SIF := sort_index(-RowEdgeFirst)[0]  * 最高点
                SIS := sort_index(RowEdgeSecond)[0]  * 最低点
                Row := [Row,RowEdgeFirst[SIF],RowEdgeSecond[SIS]]
                Column := [Column,ColumnEdgeFirst[SIF],ColumnEdgeSecond[SIS]]
            endif
        endif
    endfor

    * 可视化：显示轮廓点
    if (DisplayIntermediateResults)
        * 准备显示窗口
        get_image_size (GrayImage, ImgWidth, ImgHeight)
        dev_resize_window_fit_size (0, 0, ImgWidth, ImgHeight + 300, WindowWidthLimit, WindowHeightLimit)
        dev_set_part (-300, 0, ImgHeight, ImgWidth)  * 扩展显示区域

        * 创建十字标记
        gen_cross_contour_xld (Cross, Row, Column, 6, 0.785398)
        dev_clear_window ()
        dev_display (GrayImage)
        dev_display (Cross)  * 显示轮廓点

        * 显示说明信息
        Message := '用于瓶体位姿估计的轮廓点（必须位于瓶体轮廓上）'
        MessageWrapped := regexp_replace(Message + ' ',['(.{0,45})\\s', 'replace_all'],'$1\n')
        disp_message (WindowHandle, ['相机 ' + (Cam + 1) + ':',MessageWrapped], 'window', 12, 12, 'black', 'true')
        stop ()  * 暂停查看
    endif

    * 存储点信息
    SilhRow := [SilhRow,Row]    * 行坐标
    SilhCol := [SilhCol,Column] * 列坐标
    SilhCam := [SilhCam,gen_tuple_const(|Row|,Cam)]  * 相机索引

    * 视线计算：2D点→3D射线
    get_line_of_sight (Row, Column, CamParam, PX, PY, PZ, QX, QY, QZ)  * 获取视线向量
    pose_to_hom_mat3d (CamPose, HomMat3D)  * 位姿→变换矩阵
    * 提取相机位置
    PX0 := HomMat3D[3]
    PY0 := HomMat3D[7]
    PZ0 := HomMat3D[11]
    * 转换视线方向到世界坐标系
    affine_trans_point_3d (HomMat3D, QX, QY, QZ, QX0, QY0, QZ0)
    * 存储视线数据
    A2x := [A2x,gen_tuple_const(|Row|,PX0)]  * 起点X
    A2y := [A2y,gen_tuple_const(|Row|,PY0)]  * 起点Y
    A2z := [A2z,gen_tuple_const(|Row|,PZ0)]  * 起点Z
    B2x := [B2x,QX0 - PX0]  * 方向向量X
    B2y := [B2y,QY0 - PY0]  * 方向向量Y
    B2z := [B2z,QZ0 - PZ0]  * 方向向量Z
endfor

* ============== 迭代优化旋转轴 ==============
* 初始化轴心参数
A1x := 0.0; A1y := 0.0; A1z := 0  * 轴心起点
B1x := 0.0; B1y := 0.0; B1z := 1  * 轴心方向
* 优化控制参数
Dx := 99999  * 初始误差
ErrorLog := []  * 误差记录
Iter := 0; IterInter := 0  * 迭代计数器
MaxIter := 100; MaxIterInter := 5  * 最大迭代次数
LastError := 99999  * 上次误差
SDevFactor := 5.0  * 异常点剔除因子

* 主优化循环
while (Iter < MaxIter)
    * 计算当前轴心与所有轮廓视线的距离
    distance_skew_lines (A1x, A1y, A1z, B1x, B1y, B1z, A2x, A2y, A2z, B2x, B2y, B2z, Dist)
    * 计算与瓶体半径的误差
    E := CylinderRadius - Dist
    ErrorLog := [ErrorLog,mean(E)]  * 记录平均误差

    * 数值微分计算梯度
    Delta := 0.001  * 微分步长
    * 对A1x的偏导
    distance_skew_lines (A1x + Delta, A1y, A1z, B1x, B1y, B1z, A2x, A2y, A2z, B2x, B2y, B2z, DistTmp)
    DistDAx := (DistTmp - Dist) / Delta
    * 对A1y的偏导（类似）
    ...
    * 对B1x的偏导（类似）
    ...
    * 对B1y的偏导（类似）
    ...

    * 构建雅可比矩阵
    create_matrix (|A2x|, 4, 0, A)  * 创建空矩阵
    SeqR := [0:|A2x| - 1]  * 行索引
    SeqC := gen_tuple_const(|A2x|,0)  * 列索引
    * 填充偏导数值
    set_value_matrix (A, SeqR, SeqC, DistDAx)      * 第0列：dDist/dA1x
    set_value_matrix (A, SeqR, SeqC + 1, DistDAy)  * 第1列：dDist/dA1y
    set_value_matrix (A, SeqR, SeqC + 2, DistDBx)  * 第2列：dDist/dB1x
    set_value_matrix (A, SeqR, SeqC + 3, DistDBy)  * 第3列：dDist/dB1y

    * 构建误差向量
    create_matrix (|A2x|, 1, 0, y)
    set_value_matrix (y, SeqR, SeqC, CylinderRadius - Dist)  * 误差值

    * 求解最小二乘问题：(A^T A) x = A^T y
    solve_matrix (A, 'general', 0, y, X)
    get_full_matrix (X, Values)  * 获取解向量

    * 更新参数
    A1x := A1x + Values[0]  * 更新A1x
    A1y := A1y + Values[1]  * 更新A1y
    B1x := B1x + Values[2]  * 更新B1x
    B1y := B1y + Values[3]  * 更新B1y

    * 更新迭代计数
    Iter := Iter + 1
    IterInter := IterInter + 1

    * 异常点剔除（每5次迭代或收敛时）
    if (|ErrorLog| > 3)
        if (deviation(ErrorLog[|ErrorLog| - 3:|ErrorLog| - 1]) < 1e-5 or IterInter >= MaxIterInter)
            IterInter := 0  * 重置计数器
            * 检查收敛条件
            if (fabs(ErrorLog[|ErrorLog| - 1]) < MaxError and fabs(LastError - ErrorLog[|ErrorLog| - 1]) < 1e-5 and SDevFactor <= 3.0)
                MaxIter := -1  * 标记收敛
                continue
            endif
            LastError := ErrorLog[|ErrorLog| - 1]  * 记录当前误差

            * 计算误差标准差
            SDevE := deviation(fabs(E))
            SDevFactor := max([3.0,SDevFactor - 0.5])  * 更新剔除因子
            MaskUse := fabs(E) [<] SDevFactor * SDevE  * 创建有效点掩膜

            * 确保有足够点被剔除
            while (min(MaskUse) == 1 and SDevFactor > 3.0)
                SDevFactor := max([3.0,SDevFactor - 0.1])  * 增大剔除范围
                MaskUse := fabs(E) [<] SDevFactor * SDevE
            endwhile

            * 检查各相机剩余点数
            SilhCamTmp := select_mask(SilhCam,MaskUse)
            for CamI := 0 to NumCameras - 1 by 1
                NumPointsRemaining[CamI] := sum(find(SilhCamTmp,CamI) [!=] -1)
            endfor
            * 确保至少三个相机有30%以上的点
            if (sum(NumPointsRemaining / real(NumPoints) [>=] 0.3) <= 3)
                MaxIter := -1  * 点分布不理想，终止
                continue
            endif

            * 更新数据（剔除异常点）
            A2x := select_mask(A2x,MaskUse)
            A2y := select_mask(A2y,MaskUse)
            ... [其他坐标类似] ...
            * 更新可视化数据
            SilhRowElim := [SilhRowElim,select_mask(SilhRow,1 - MaskUse)]  * 被剔除点
            ... [类似更新其他] ...
            SilhRow := select_mask(SilhRow,MaskUse)  * 更新有效点
            ... [类似更新其他] ...
        endif
    endif
endwhile

* ============== 最终位姿计算 ==============
* 计算坐标系
get_camera_setup_param (CameraSetupModelZeroDistCylApprox, 0, 'pose', CamPose0)
* 计算瓶体轴心到相机0的垂足
point_to_line_perpendicular_foot (CamPose0[0:2], [A1x,A1y,A1z], [B1x,B1y,B1z], Foot)
* 计算X轴（垂足到相机0的向量）
XAxis := Foot - CamPose0[0:2]
XAxis := XAxis / sqrt(sum(XAxis * XAxis))  * 归一化
* 计算Z轴（瓶体方向）
ZAxis := [B1x,B1y,B1z]
ZAxis := ZAxis / sqrt(sum(ZAxis * ZAxis))  * 归一化
* 计算Y轴（叉积）
cross_product (ZAxis, XAxis, YAxis)

* 构建变换矩阵
HomMat3DCylinderEst := [XAxis[0],YAxis[0],ZAxis[0],A1x,
                        XAxis[1],YAxis[1],ZAxis[1],A1y,
                        XAxis[2],YAxis[2],ZAxis[2],A1z]
* 转换为位姿
hom_mat3d_to_pose (HomMat3DCylinderEst, PoseCylinderEst)

* 创建以瓶体为中心的相机模型
pose_compose (PoseCylinderEst, [0, 0, 0, 0, 0, 0, 0], PoseCylinder)  * 组合位姿
serialize_camera_setup_model (CameraSetupModelZeroDistCylApprox, SerializedItemHandle)
deserialize_camera_setup_model (SerializedItemHandle, CameraSetupModelZeroDistInCylinderOrigin)
set_camera_setup_param (CameraSetupModelZeroDistInCylinderOrigin, 'general', 'coord_transf_pose', PoseCylinder)  * 设置原点

* ============== 可视化验证 ==============
if (DisplayIntermediateResults)
    * 创建圆柱3D模型
    gen_cylinder_object_model_3d ([0, 0, 0, 0, 0, 0, 0], CylinderRadius, -0.1, 0.1, ObjectModel3DCylinder)

    * 为每个相机创建显示窗口
    for Cam := 0 to NumCameras - 1 by 1
        * 准备窗口
        dev_open_window_fit_image (GrayImage, Cam / 2 * (300 + 63), Cam % 2 * (400 + 12), 400, 300, WindowHandleI)
        set_display_font (WindowHandleI, 16, 'mono', 'true', 'false')
        WH[Cam] := WindowHandleI  * 存储窗口句柄

        * 投影圆柱到图像
        get_camera_setup_param (CameraSetupModelZeroDistInCylinderOrigin, Cam, 'params', CamParam)
        get_camera_setup_param (CameraSetupModelZeroDistInCylinderOrigin, Cam, 'pose', CamPose)
        pose_invert (CamPose, PoseInvert)  * 求逆位姿
        render_object_model_3d (ImageCyl, ObjectModel3DCylinder, CamParam, PoseInvert, [], [])  * 渲染

        * 提取轮廓
        threshold (ImageCyl, Region, 0, 0)  * 阈值处理
        gen_contour_region_xld (Region, Contours, 'border')  * 生成轮廓

        * 显示结果
        dev_display (Image)  * 显示原图
        dev_set_color ('blue')  * 轮廓颜色
        dev_display (Contours)  * 显示投影轮廓

        * 标记接受/拒绝的点
        UsedId := find(SilhCam,Cam)  * 接受点索引
        if (UsedId != -1)
            dev_set_color ('green')  * 接受点=绿色
            gen_cross_contour_xld (CrossUsed, subset(SilhRow,UsedId), subset(SilhCol,UsedId), 6, 0.785398)
            dev_display (CrossUsed)
        endif
        RejectedId := find(SilhCamElim,Cam)  * 拒绝点索引
        if (RejectedId != -1)
            dev_set_color ('red')  * 拒绝点=红色
            gen_cross_contour_xld (CrossUsed, subset(SilhRowElim,RejectedId), subset(SilhColElim,RejectedId), 6, 0.785398)
            dev_display (CrossUsed)
        endif

        * 显示标题
        disp_message (WindowHandleI, '相机 ' + (Cam + 1) + ':', 'window', 12, 12, 'black', 'true')
    endfor

    * 创建图例窗口
    dev_open_window (0, 2 * (400 + 12), 400, 300, 'black', WindowHandleI)
    set_display_font (WindowHandleI, 16, 'mono', 'true', 'false')
    * 显示图例说明
    disp_message (WindowHandleI, [
        '绿色: 接受点（位于瓶体轮廓）',
        '红色: 拒绝点',
        '蓝色: 估计轮廓'],
        'window', 12, 12, ['green', 'red', 'blue'], 'false')
    stop ()  * 暂停查看

    * 关闭临时窗口
    for Cam := 0 to NumCameras - 1 by 1
        dev_set_window (WH[Cam])
        dev_close_window ()
    endfor
    dev_set_window (WindowHandleI)
    dev_close_window ()
endif
return ()
