Grpc 实现终极(三) 重新提取公共项目

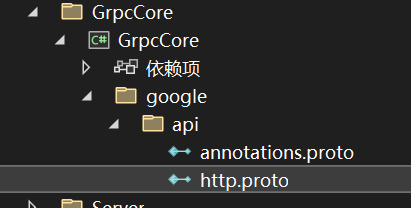

由于 annotations.proto http.proto 两个文件服务端和客户端都需要我这里尝试提取到公共项目中去

看看会遇到哪些问题下面是公共项目

公共项目引用

<Project Sdk="Microsoft.NET.Sdk">

  <PropertyGroup>
    <TargetFramework>net8.0</TargetFramework>
    <ImplicitUsings>enable</ImplicitUsings>
    <Nullable>enable</Nullable>
  </PropertyGroup>
  <ItemGroup>
    <PackageReference Include="Grpc.AspNetCore" Version="2.70.0" />
  </ItemGroup>
</Project>

类库项目应用公共项目其实这样不好因为实际项目有仓储所以这样达不到灵活

syntax = "proto3";
option csharp_namespace = "StudentGrpc";
package studentgrpcwebapi;

import "google/api/annotations.proto";
///学生服务grpc
service StudentService {
    //获取学生
     rpc GetStudent (DataRequest) returns (DataResponse)
    {
         option (google.api.http) = {
         get: "/v1/WebApi/{name}"
         };
    }
}
//学生服务
message DataRequest {
    string name = 1;
}

message DataResponse {
    repeated Student students =1;
}

message Student{
  string Id =1;
  string name =2;
}

实现类

using Google.Protobuf;
using Grpc.Core;
using StudentGrpc;
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace TestGrpc
{

    /// <summary>
    /// 学生 grpc service
    /// </summary>
    public class StudentServiceImp : StudentGrpc.StudentService.StudentServiceBase
    {
        private static List<StudentGrpc.Student> students = new List<StudentGrpc.Student>() { new StudentGrpc.Student { Id = "001", Name = "小明" }, new StudentGrpc.Student { Id = "002", Name = "小李" } };
        /// <summary>
        /// 获取 学生 by name
        /// </summary>
        /// <param name="request"></param>
        /// <param name="context"></param>
        /// <returns></returns>
        public override Task<DataResponse> GetStudent(DataRequest request, ServerCallContext context)
        {
            List<StudentGrpc.Student> list = students.Where(item => item.Name.Contains(request.Name)).ToList();
            var data = new DataResponse();
            data.Students.AddRange(list);
            return Task.FromResult(data);
        }
    }

}

下面标红必须引用否则报错

<Project Sdk="Microsoft.NET.Sdk">

  <PropertyGroup>
    <TargetFramework>net8.0</TargetFramework>
    <ImplicitUsings>enable</ImplicitUsings>
    <Nullable>enable</Nullable>
    <GenerateDocumentationFile>True</GenerateDocumentationFile>
  </PropertyGroup>

  <ItemGroup>
    <None Remove="StudentGrpcServer.proto" />
  </ItemGroup>

  <ItemGroup>
    <PackageReference Include="Grpc.AspNetCore" Version="2.70.0" />
    <PackageReference Include="Google.Api.CommonProtos" Version="2.16.0" />
    <PackageReference Include="Google.Protobuf" Version="3.30.2" />
    <PackageReference Include="Microsoft.AspNetCore.Grpc.JsonTranscoding" Version="8.0.3" />
  </ItemGroup>

  <ItemGroup>
    <ProjectReference Include="..\..\GrpcCore\GrpcCore\GrpcCore.csproj" />
  </ItemGroup>

  <ItemGroup>
    <Protobuf Include="StudentGrpcServer.proto">
      <AdditionalImportDirs>../../GrpcCore/GrpcCore</AdditionalImportDirs>
    </Protobuf>
  </ItemGroup>
</Project>

webapi 服务项目

UseHttps(); 隐式开启了 http2

using StudentGrpc;
using System.Reflection;
using TestGrpc;

namespace TestWebAPiGrpc
{
    public class Program
    {
        public static void Main(string[] args)
        {
            var builder = WebApplication.CreateBuilder(args);

            // Add services to the container.

            builder.Services.AddControllers();
            // Learn more about configuring Swagger/OpenAPI at https://aka.ms/aspnetcore/swashbuckle
            builder.Services.AddEndpointsApiExplorer();
            builder.Services.AddSwaggerGen(p =>
            {
                string basePath = AppDomain.CurrentDomain.BaseDirectory;
                string xmlFileName = Assembly.GetEntryAssembly().GetName().Name + ".xml";
                string xmlPath = Path.Combine(basePath, xmlFileName);
                string grpcXmlPath = Path.Combine(basePath, "TestGrpc.xml");
                p.IncludeXmlComments(xmlPath, true);
                p.IncludeGrpcXmlComments(grpcXmlPath, true);

                p.SwaggerDoc("v1", new Microsoft.OpenApi.Models.OpenApiInfo
                {
                    Title = "grpc Test",
                    Description = "grpc Test",
                    Version = "v1",
                });
            }).AddGrpcSwagger();
            // builder.Services.AddSwaggerGen().AddGrpcSwagger();
            builder.Services.AddGrpc();

            builder.WebHost.ConfigureKestrel(p =>
            {
                //http
                p.ListenAnyIP(5134);
                //http
                p.ListenAnyIP(5135);
                //https
                p.ListenAnyIP(7069, k =>
                {
                    k.UseHttps();
                });

            });

            var app = builder.Build();
            app.MapGrpcService<StudentServiceImp>();
            // Configure the HTTP request pipeline.
            if (app.Environment.IsDevelopment())
            {
                app.UseSwagger();
                app.UseSwaggerUI(p =>
                {
                    p.SwaggerEndpoint("/swagger/v1/swagger.json", "v1");

                });
            }

            // app.UseHttpsRedirection();

            app.UseAuthorization();


            app.MapControllers();

            app.Run();
        }
    }
}

webapi引用

<Project Sdk="Microsoft.NET.Sdk.Web">

  <PropertyGroup>
    <TargetFramework>net8.0</TargetFramework>
    <Nullable>enable</Nullable>
    <ImplicitUsings>enable</ImplicitUsings>
    <GenerateDocumentationFile>True</GenerateDocumentationFile>
  </PropertyGroup>

  <ItemGroup>
    <PackageReference Include="Microsoft.AspNetCore.Grpc.Swagger" Version="0.8.0" />
    <PackageReference Include="Swashbuckle.AspNetCore" Version="6.4.0" />
  </ItemGroup>

  <ItemGroup>
    <ProjectReference Include="..\TestGrpc\TestGrpc.csproj" />
  </ItemGroup>

</Project>

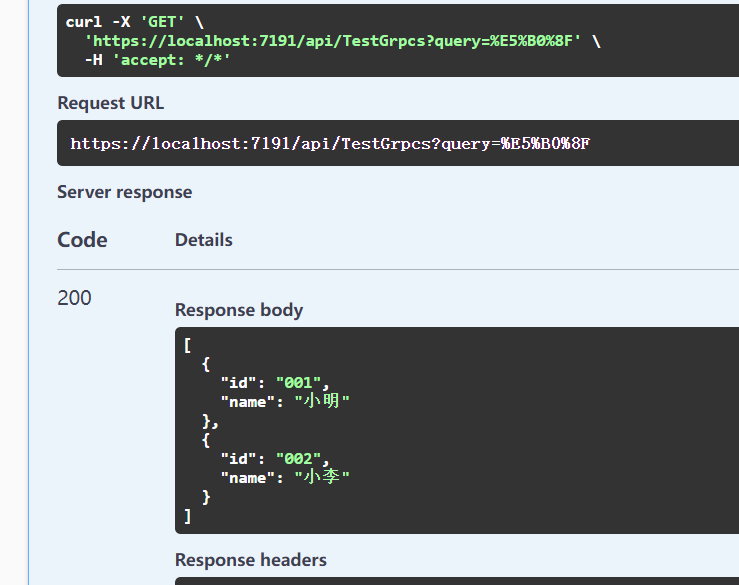

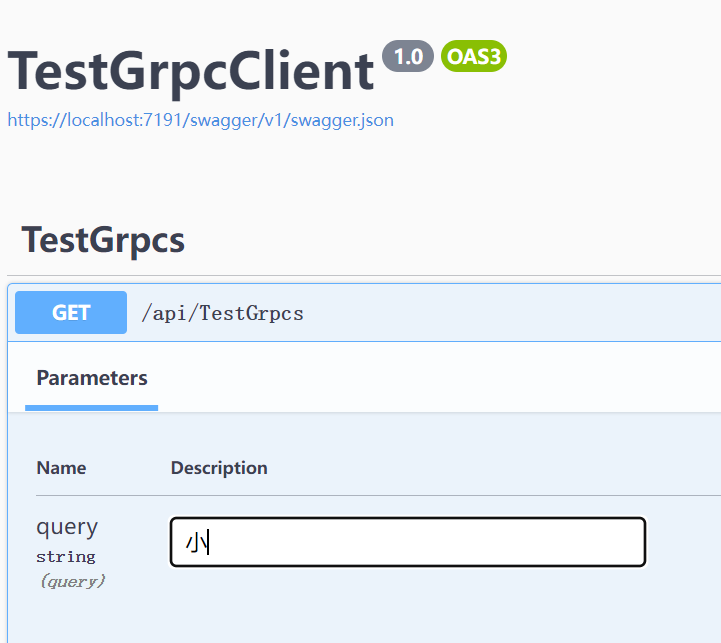

客户端

using Grpc.Net.Client;
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using StudentGrpc;

namespace TestGrpcClient.Controllers
{
    [Route("api/[controller]")]
    [ApiController]
    public class TestGrpcsController : ControllerBase
    {
        [HttpGet]
        public IActionResult Get([FromQuery] string query)
        {
            GrpcChannel grpcChannel = GrpcChannel.ForAddress(new Uri("https://localhost:7069"));
            StudentGrpc.StudentService.StudentServiceClient client = new StudentGrpc.StudentService.StudentServiceClient(grpcChannel);
            DataRequest request = new DataRequest { Name = query };
           var student =  client.GetStudent(request)?.Students;
            return Ok(student);
        }
    }
}

客户端引用

这句重点是引用公共项目中的两个文件

 <AdditionalImportDirs>../../GrpcCore/GrpcCore</AdditionalImportDirs>

<Project Sdk="Microsoft.NET.Sdk.Web">

  <PropertyGroup>
    <TargetFramework>net8.0</TargetFramework>
    <Nullable>enable</Nullable>
    <ImplicitUsings>enable</ImplicitUsings>
  </PropertyGroup>

  <ItemGroup>
    <None Remove="StudentGrpcServer.proto" />
  </ItemGroup>

  <ItemGroup>
    <PackageReference Include="Swashbuckle.AspNetCore" Version="6.4.0" />
  </ItemGroup>

  <ItemGroup>
    <ProjectReference Include="..\TestGrpc\TestGrpc.csproj" />
  </ItemGroup>

  <ItemGroup>
    <Protobuf Include="StudentGrpcServer.proto" GrpcServices="Client">
      <AdditionalImportDirs>../../GrpcCore/GrpcCore</AdditionalImportDirs>
    </Protobuf>
  </ItemGroup>

</Project>
