本文承接上篇对ResNet的分析与复现:Deep Residual Network学习(一)

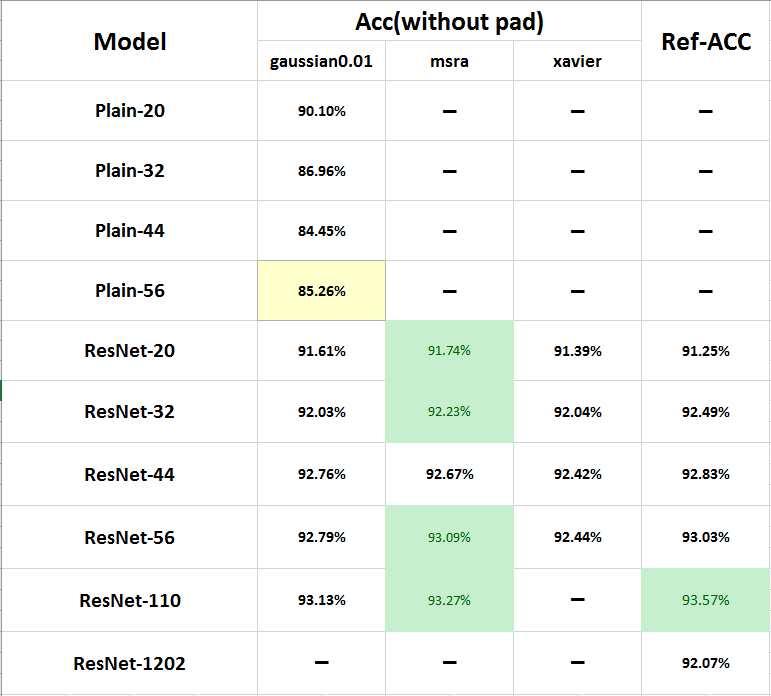

通过上次在Cifar10上复现ResNet的结果,我们得到了上表,最后一栏是论文中的结果,可以看到已经最好的初始化方法(MSRA)已经和论文中的结果非常接近了!今天我们完全按照论文中的实验环境,复现一下ResNet论文中的结果。
上次的论文复现主要和原文中有两点不同:
1.Data Augmentation
Cifar10中的图像都是32X32的,论文中对测试集中的每张图在每边都扩展了4个像素,得到40X40的图像,在训练时随机crop出32X32的图像进行训练,而对测试集不做任何操作
import lmdb import cv2 import caffe from caffe.proto import caffe_pb2 env1=lmdb.open('cifar10_train_lmdb') txn1=env1.begin() cursor=txn1.cursor() datum=caffe_pb2.Datum() env2=lmdb.open('cifar10_pad4_train_lmdb',map_size=50000*1000*10) txn2=env2.begin(write=True) count=0 for key,value in cursor: datum.ParseFromString(value) label=datum.label data=caffe.io.datum_to_array(datum) img=data.transpose(1,2,0) pad=cv2.copyMakeBorder(img,4,4,4,4,cv2.BORDER_REFLECT) array=pad.transpose(2,0,1) datum1=caffe.io.array_to_datum(array,label) str_id='{:08}'.format(count) txn2.put(str_id,datum1.SerializeToString()) count+=1 if count%1000 ==0: print('already handled with {} pictures'.format(count)) txn2.commit() txn2=env2.begin(write=True) txn2.commit() env2.close() env1.close()
程序很容易理解,最关键的是这句:
pad=cv2.copyMakeBorder(img,4,4,4,4,cv2.BORDER_REFLECT)
使用cv2的makeBorder函数扩展4个像素,运行后本地就会得到cifar10_pad4_train_lmdb了,注意,均值文件也需要重新生成,用于训练集数据
2.Different Shortcut Structure

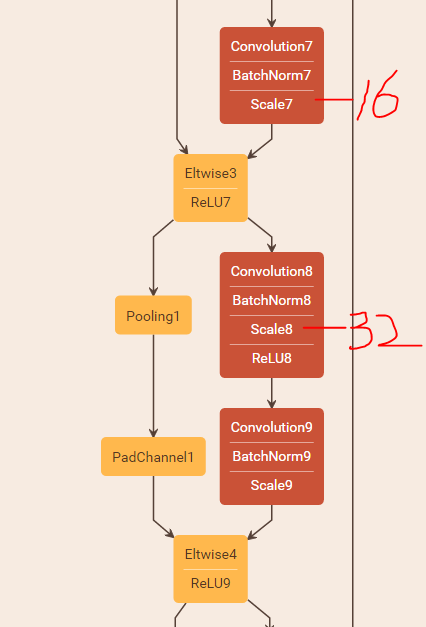

这是将网络结构借助ethereon绘制出来的部分截图,上面的红字代表这一层的卷积过滤器的数量,可以看到在filter数量加倍之后,shortcut结构没法直接相加了,所以原文中采用了PadChannel的结构,将多余的Channel全部补零,主要结构就是上图所示,先用一个average pooling层将feature map的size减半,再使用PadChannel增加16层的零filter层,我们将这种方法称为zero-padding法(亦即论文中的option A),这种方法的优点是接近于恒等层,不会引入新的参数。但是caffe目前不支持这种zero-padding的方法,所以我们需要向caffe中添加PadChannel层:

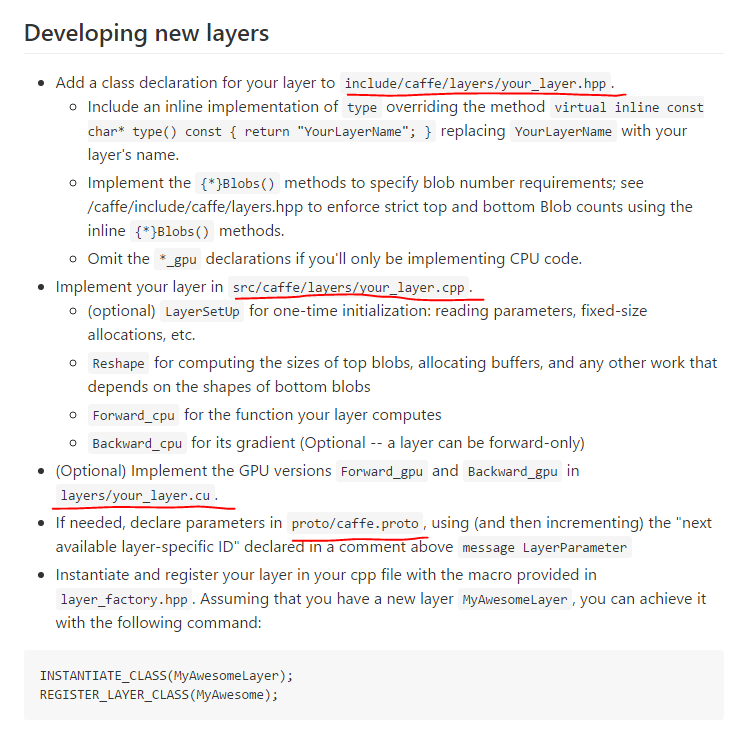

看一下官方关于添加新层的说明,主要是以下四个文件:
1.pad_channel_layer.hpp添加到include/caffe/layers:
#ifndef CAFFE_PAD_CHANNEL_LAYER_HPP_ #define CAFFE_PAD_CHANNEL_LAYER_HPP_ #include "caffe/blob.hpp" #include "caffe/layer.hpp" #include "caffe/proto/caffe.pb.h" namespace caffe { /* * @brief zero-padding channel to extend number of channels * * Note: Back-propagate just drop the pad derivatives */ template <typename Dtype> class PadChannelLayer : public Layer<Dtype> { public: explicit PadChannelLayer(const LayerParameter& param) : Layer<Dtype>(param) {} virtual void LayerSetUp(const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top); virtual void Reshape(const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top); virtual inline const char* type() const { return "PadChannel"; } virtual inline int ExactNumBottomBlobs() const { return 1; } virtual inline int ExactNumTopBlobs() const { return 1; } protected: virtual void Forward_cpu(const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top); virtual void Backward_cpu(const vector<Blob<Dtype>*>& top, const vector<bool>& propagate_down, const vector<Blob<Dtype>*>& bottom); virtual void Forward_gpu(const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top); virtual void Backward_gpu(const vector<Blob<Dtype>*>& top, const vector<bool>& propagate_down, const vector<Blob<Dtype>*>& bottom); int num_channels_to_pad_; }; } // namespace caffe #endif // CAFFE_PAD_CHANNEL_LAYER_HPP_
2.pad_channel_layer.cpp添加到src/caffe/layers
#include "caffe/layers/pad_channel_layer.hpp" namespace caffe { template <typename Dtype> void PadChannelLayer<Dtype>::LayerSetUp(const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top) { CHECK_NE(top[0], bottom[0]) << this->type() << " Layer does not " "allow in-place computation."; num_channels_to_pad_ = this->layer_param_.pad_channel_param().num_channels_to_pad(); CHECK_GT(num_channels_to_pad_, 0) << "num channels to pad must greater than 0!"; } template <typename Dtype> void PadChannelLayer<Dtype>::Reshape(const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top) { vector<int> top_shape = bottom[0]->shape(); top_shape[1] += num_channels_to_pad_; top[0]->Reshape(top_shape); } template <typename Dtype> void PadChannelLayer<Dtype>::Forward_cpu(const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top) { const Dtype* bottom_data = bottom[0]->cpu_data(); Dtype* top_data = top[0]->mutable_cpu_data(); int num = bottom[0]->num(); int channels = bottom[0]->channels(); int dim = bottom[0]->height() * bottom[0]->width(); int channel_by_dim = channels * dim; for (int n = 0; n < num; n++){ caffe_copy(channel_by_dim, bottom_data, top_data); bottom_data += channel_by_dim; top_data += channel_by_dim; caffe_set(num_channels_to_pad_ * dim, Dtype(0), top_data); top_data += num_channels_to_pad_ * dim; } } template <typename Dtype> void PadChannelLayer<Dtype>::Backward_cpu(const vector<Blob<Dtype>*>& bottom, const vector<bool>& propagate_down, const vector<Blob<Dtype>*>& top) { const Dtype* top_diff = top[0]->cpu_diff(); Dtype* bottom_diff = bottom[0]->mutable_cpu_diff(); int num = bottom[0]->num(); int channels = bottom[0]->channels(); int dim = bottom[0]->height() * bottom[0]->width(); int channel_by_dim = channels * dim; for (int n = 0; n < num; n++){ // just drop the padding derivatives part. caffe_copy(channel_by_dim, top_diff, bottom_diff); top_diff += (channels + num_channels_to_pad_) * dim; bottom_diff += channel_by_dim; } } INSTANTIATE_CLASS(PadChannelLayer); REGISTER_LAYER_CLASS(PadChannel); } // namespace caffe
3.pad_channel_layer.cu添加到src/caffe/layers:
#include "caffe/layers/pad_channel_layer.hpp" namespace caffe { // Copy (one line per thread) from one array to another, with arbitrary // strides in the last two dimensions. template <typename Dtype> __global__ void pad_forward_kernel(const int dst_count, const int src_channels, const int dst_channels, const int dim, const Dtype* src, Dtype* dst){ CUDA_KERNEL_LOOP(index, dst_count) { int num = index / (dim * dst_channels); int dst_c = index / dim % dst_channels; int pixel_pos = index % dim; if (dst_c < src_channels) dst[index] = src[num * src_channels * dim + dst_c * dim + pixel_pos]; else dst[index] = Dtype(0); } } template <typename Dtype> void PadChannelLayer<Dtype>::Forward_gpu(const vector<Blob<Dtype>*>& bottom, const vector<Blob<Dtype>*>& top){ const Dtype* bottom_data = bottom[0]->gpu_data(); Dtype* top_data = top[0]->mutable_gpu_data(); int src_channels = bottom[0]->channels(); int dim = bottom[0]->height() * bottom[0]->width(); int dst_channels = src_channels + num_channels_to_pad_; const int dst_count = top[0]->count(); pad_forward_kernel<Dtype> << <CAFFE_GET_BLOCKS(dst_count), CAFFE_CUDA_NUM_THREADS >> >( dst_count, src_channels, dst_channels, dim, bottom_data, top_data); CUDA_POST_KERNEL_CHECK; } template <typename Dtype> __global__ void pad_backward_kernel(const int bottom_count, const int bottom_channels, const int top_channels, const int dim, const Dtype* top, Dtype* bottom) { CUDA_KERNEL_LOOP(index, bottom_count) { int num = index / (dim * bottom_channels); int bottom_c = index / dim % bottom_channels; int pixel_pos = index % dim; bottom[index] = top[num * top_channels * dim + bottom_c * dim + pixel_pos]; } } template <typename Dtype> void PadChannelLayer<Dtype>::Backward_gpu(const vector<Blob<Dtype>*>& top, const vector<bool>& propagate_down, const vector<Blob<Dtype>*>& bottom) { const Dtype* top_diff = top[0]->gpu_diff(); Dtype* bottom_diff = bottom[0]->mutable_gpu_diff(); int bottom_count = bottom[0]->count(); int bottom_channels = bottom[0]->channels(); int dim = bottom[0]->height() * bottom[0]->width(); int top_channels = bottom_channels + num_channels_to_pad_; pad_backward_kernel<Dtype> << <CAFFE_GET_BLOCKS(bottom_count), CAFFE_CUDA_NUM_THREADS >> >( bottom_count, bottom_channels, top_channels, dim, top_diff, bottom_diff); CUDA_POST_KERNEL_CHECK; } INSTANTIATE_LAYER_GPU_FUNCS(PadChannelLayer); } // namespace caffe

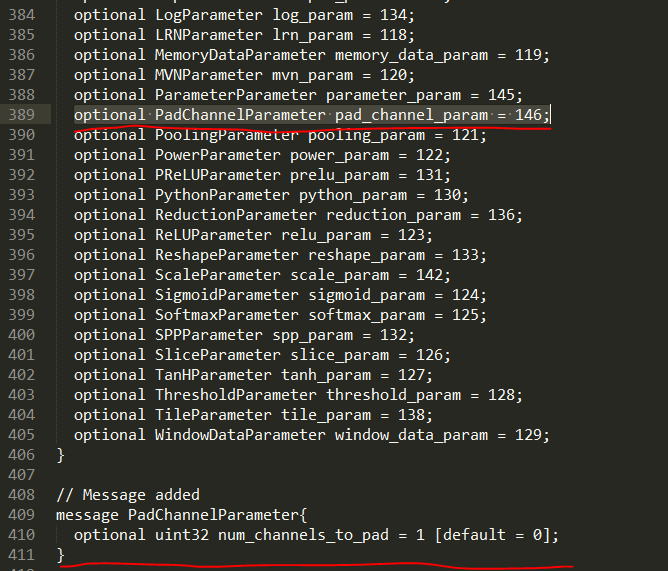

4.向caffe.proto中添加对应的message:
好的,重新编译一次caffe之后,我们就可以使用PadChannel层了!
下面我们看一下另外一种shortcut结构:

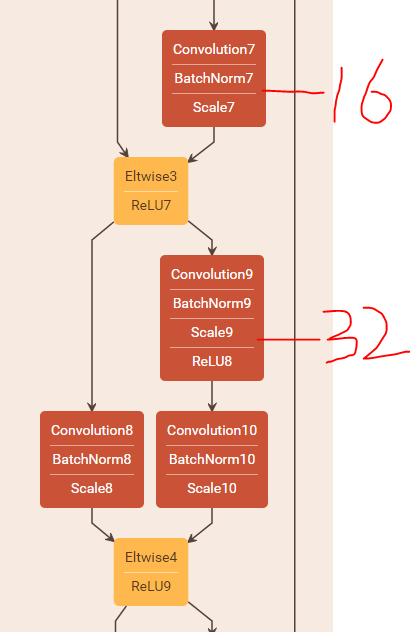

论文中将这种结构称为projection(亦即option B),使用1x1的卷积核来增加维度,这种方法会引入额外的参数!
3.复现实验
好的,现在一切准备就绪,我们开始完整复现ResNet在Cifar10上的实验结果:
以下是一些参数设置:
weight_decay=0.0001 momentum=0.9
batch_size=128
learning_rate=0.1,0.01/32k,0.001/48k
max_iter=64k
当层数达到110层时,为加快收敛,我们先将learning_rate设置为0.01,迭代400次之后,再将learning_rate设置回0.1,正常进行训练

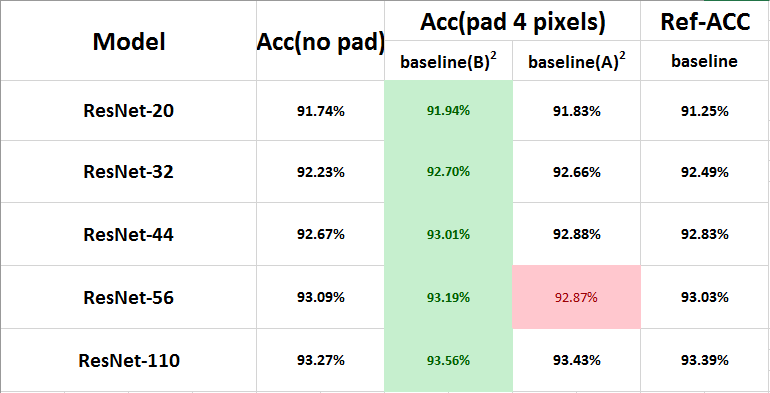

A代表zero-padding,B代表projection,可以看出,Option A得到的结果和论文中基本一致,因为论文中采用的就是这种方法,而Option B却是所有结果中最好的,可以看出projection的方法是要优于zero_padding的方法的!
接下来放几张训练的结果图:

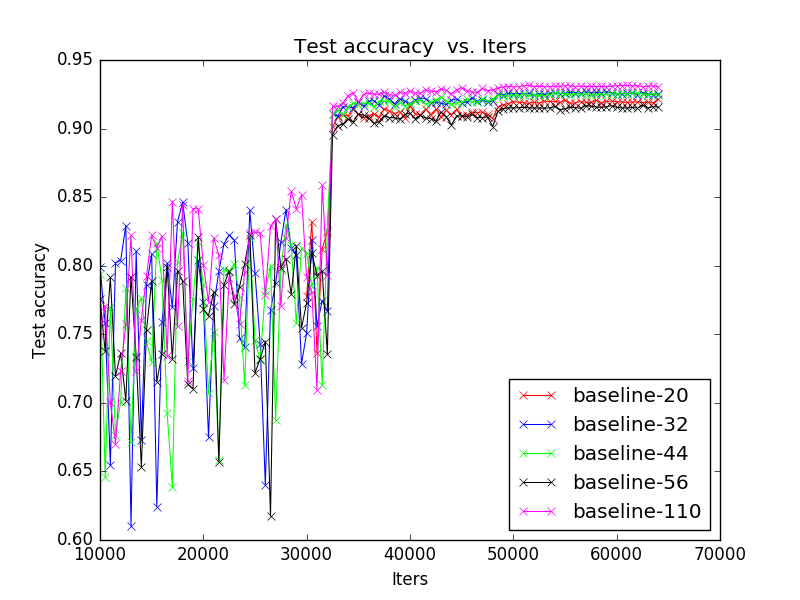

首先是zero_padding:

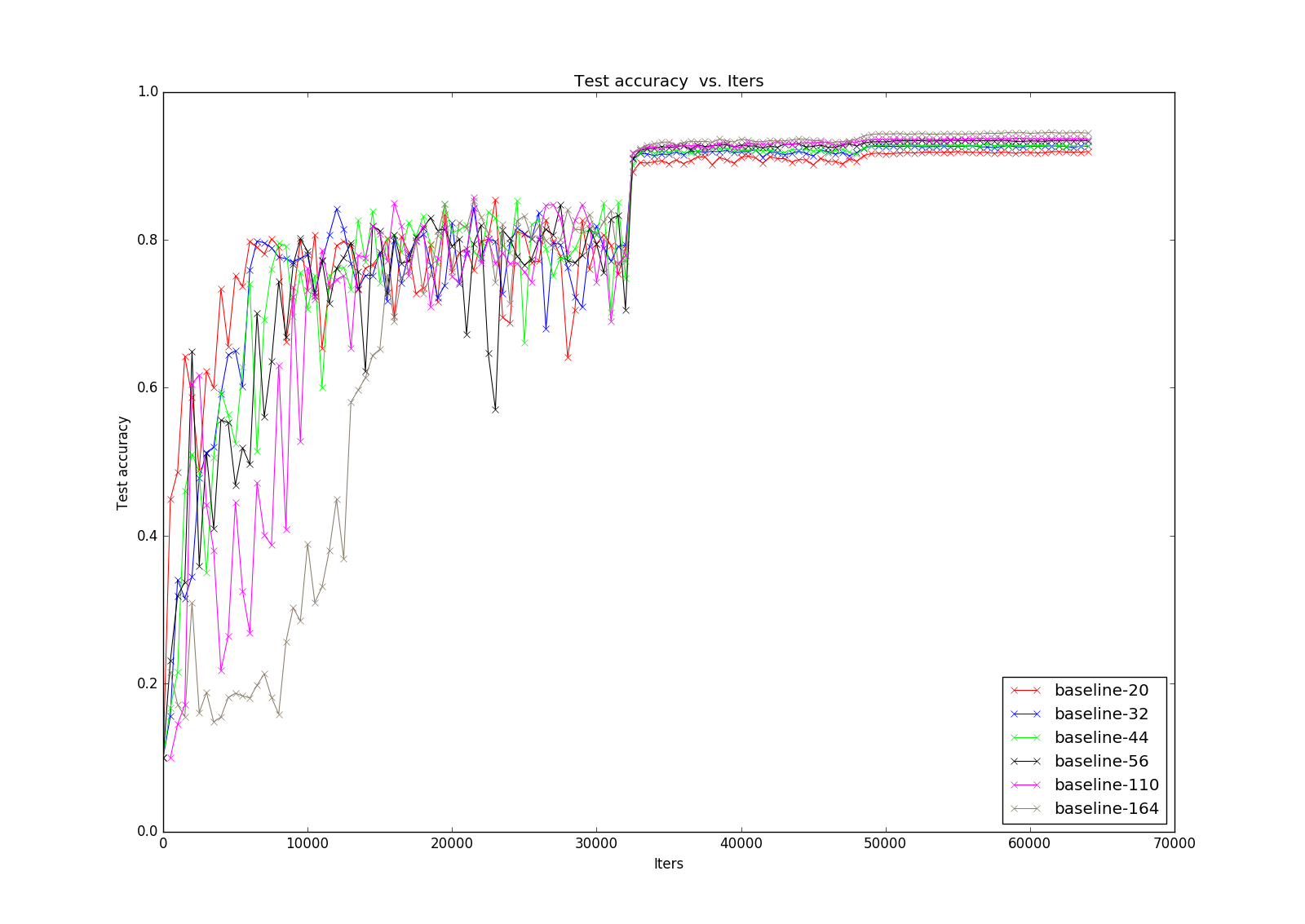

接下来是projection:
(这里暂时先忽略164的结果)
4.总结
至此,ResNet在cifar10的复现实验已经全部完成,我们完美复现了论文中的结果,甚至还得到了比论文中更好的结果!
