设计模式七（工厂方法模式）

1.工厂方法模式主要是解决简单工厂模式中违背开放关闭原则而设置的，解除了在工厂中的switch语句，但是当建立一个对象的时候要为其建立一个对象工厂，所以看起来也比较臃肿，我这里大概说一下怎样实现的：需要创建的对象先建立一个抽象类或者抽象接口，然后其他类都继承这个接口。同时工厂也建立一个抽象类或者接口，在这个里面有一个抽象的方法它是返回抽象类的，然后其他工厂都继承这个工厂，返回相应的对象。由于五路是对象还是工厂都是依赖于抽象，所以在客户端创建工厂的时候一致，工厂创建出来的对象对于客户端也是一致

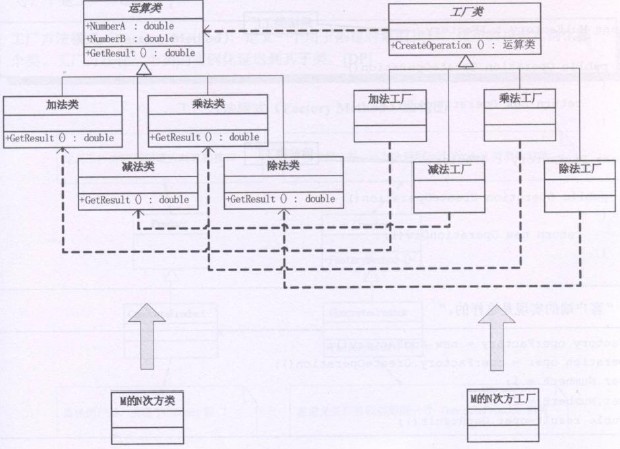

2.看设计图



3.基础代码



    /// <summary>
    /// 运算类
    /// </summary>
    class Operation
    {
        private double _numberA = 0;
        private double _numberB = 0;

        public double NumberA
        {
            get { return _numberA; }
            set { _numberA = value; }
        }

        public double NumberB
        {
            get { return _numberB; }
            set { _numberB = value; }
        }

        /// <summary>
        /// 得到运算结果
        /// </summary>
        /// <returns></returns>
        public virtual double GetResult()
        {
            double result = 0;
            return result;
        }
    }

    /// <summary>
    /// 加法类
    /// </summary>
    class OperationAdd : Operation
    {
        public override double GetResult()
        {
            double result = 0;
            result = NumberA + NumberB;
            return result;
        }
    }

    /// <summary>
    /// 减法类
    /// </summary>
    class OperationSub : Operation
    {
        public override double GetResult()
        {
            double result = 0;
            result = NumberA - NumberB;
            return result;
        }
    }
    /// <summary>
    /// 乘法类
    /// </summary>
    class OperationMul : Operation
    {
        public override double GetResult()
        {
            double result = 0;
            result = NumberA * NumberB;
            return result;
        }
    }
    /// <summary>
    /// 除法类
    /// </summary>
    class OperationDiv : Operation
    {
        public override double GetResult()
        {
            double result = 0;
            if (NumberB == 0)
                throw new Exception("除数不能为0。");
            result = NumberA / NumberB;
            return result;
        }
    }

    /// <summary>
    /// 工厂方法
    /// </summary>
    interface IFactory
    {
        Operation CreateOperation();
    }

    /// <summary>
    /// 专门负责生产“+”的工厂
    /// </summary>
    class AddFactory : IFactory
    {
        public Operation CreateOperation()
        {
            return new OperationAdd();
        }
    }

    /// <summary>
    /// 专门负责生产“-”的工厂
    /// </summary>
    class SubFactory : IFactory
    {
        public Operation CreateOperation()
        {
            return new OperationSub();
        }
    }

    /// <summary>
    /// 专门负责生产“*”的工厂
    /// </summary>
    class MulFactory : IFactory
    {
        public Operation CreateOperation()
        {
            return new OperationMul();
        }
    }

    /// <summary>
    /// 专门负责生产“/”的工厂
    /// </summary>
    class DivFactory : IFactory
    {
        public Operation CreateOperation()
        {
            return new OperationDiv();
        }
    }





客户端调用方法



            IFactory operFactory = new AddFactory();
            Operation oper = operFactory.CreateOperation();
            oper.NumberA = 1;
            oper.NumberB = 2;
            double result=oper.GetResult();

            Console.WriteLine(result);
