k8s

Kubeadm一次安装即成功原则

二进制一次安装即成功原则

两种安装方式的区别

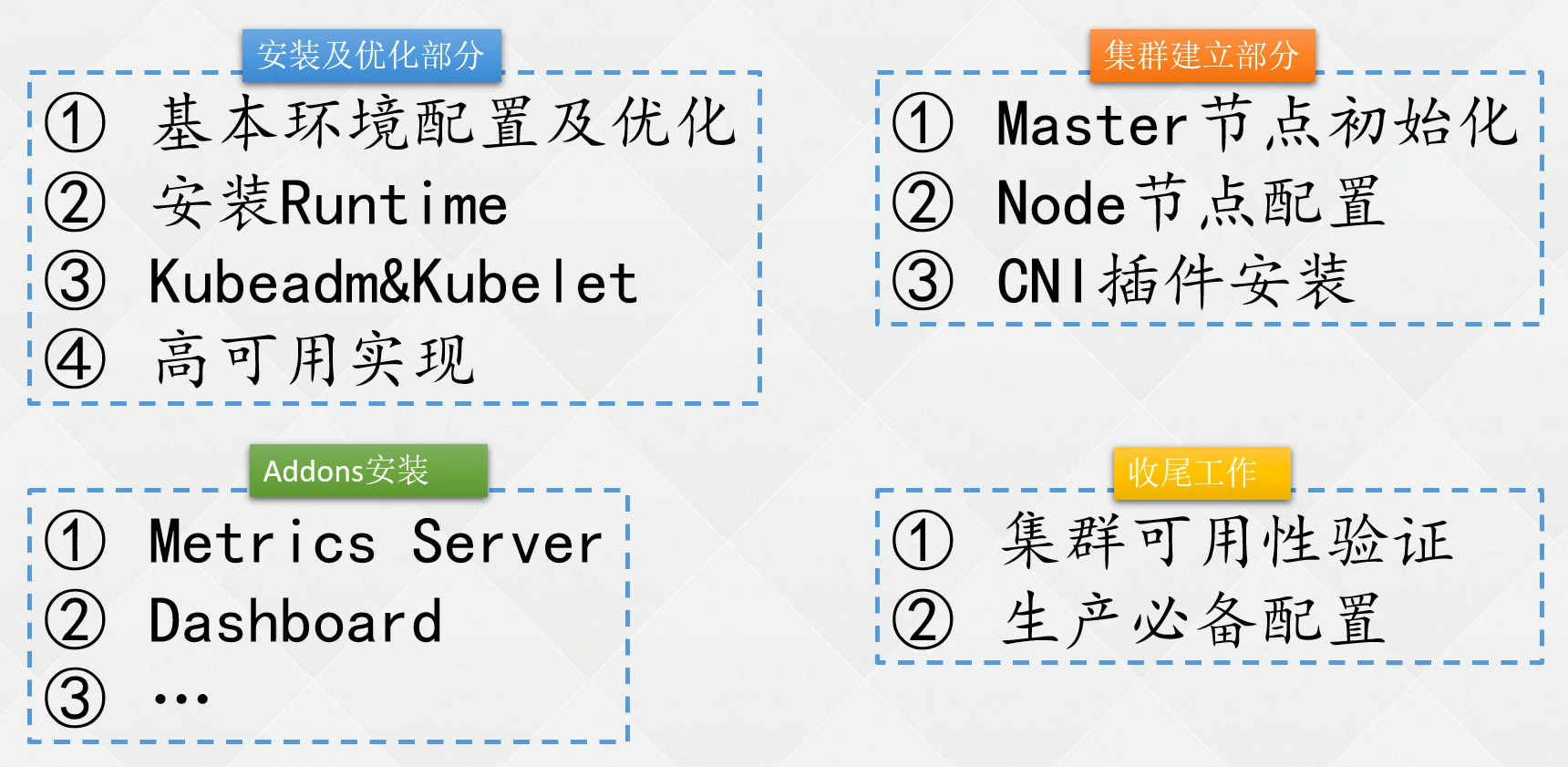

Kubeadm是采用Pod的方式管理核心组件

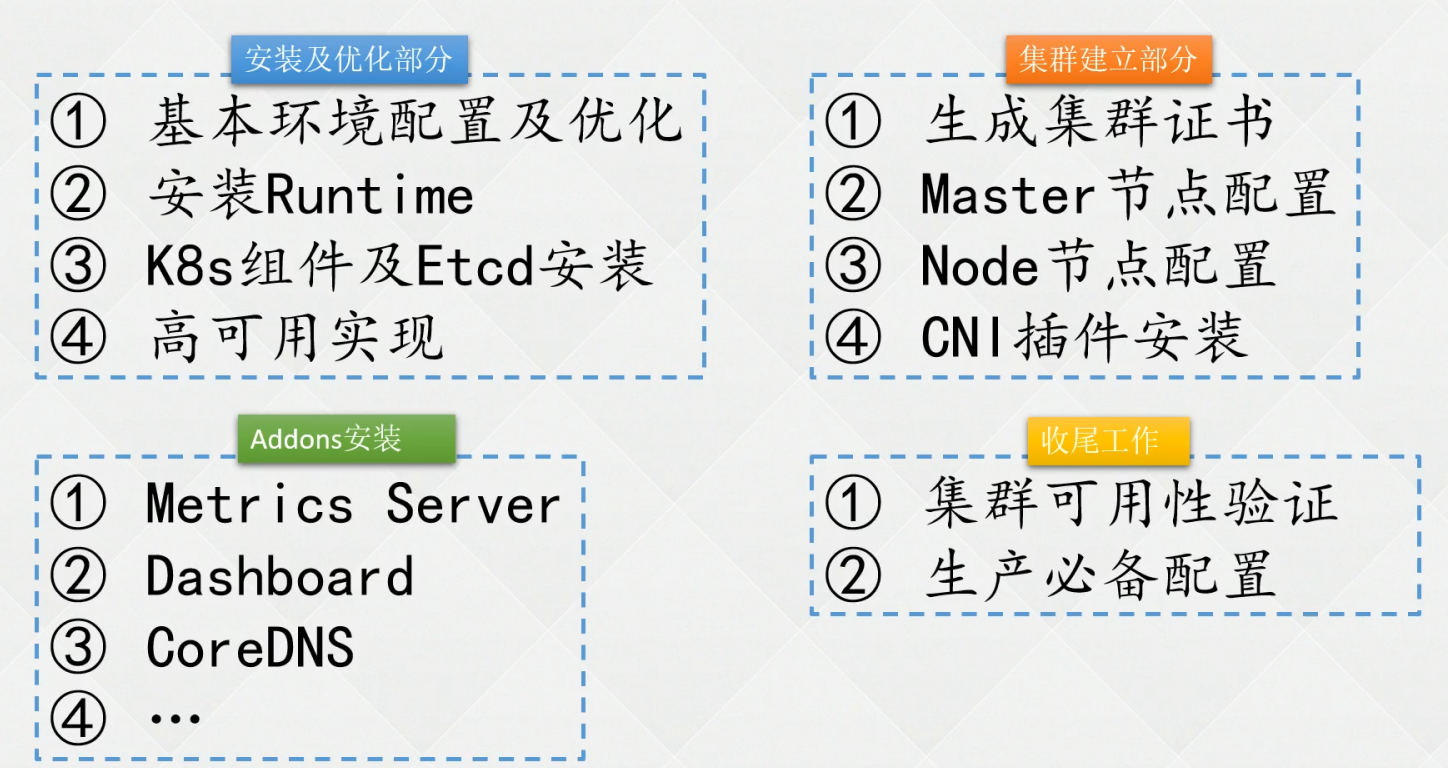

二进制是采用守护进程的方式管理核心组件



集群网段划分



创建的虚拟机不要克隆

使用英文

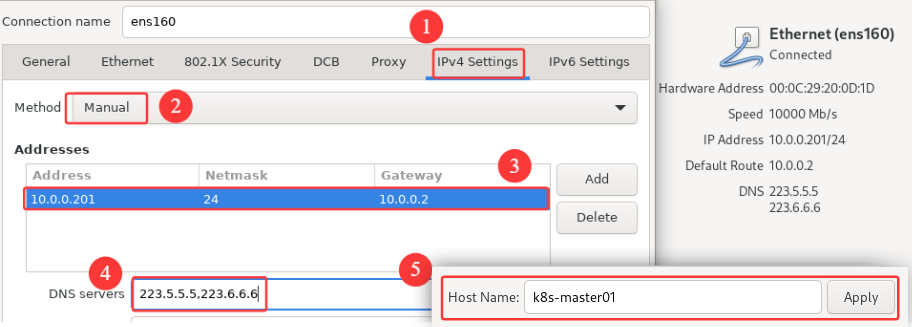

所有节点更改主机名（其它节点按需修改）：

[root@k8s-master01 ~]# hostnamectl set-hostname k8s-master01

所有节点配置hosts

[root@k8s-master01 ~]# cat /etc/hosts
127.0.0.1   localhost localhost.localdomain localhost4 localhost4.localdomain4
::1         localhost localhost.localdomain localhost6 localhost6.localdomain6
10.0.0.201 k8s-master01
10.0.0.202 k8s-master02
10.0.0.203 k8s-master03
10.0.0.236 k8s-master-lb  # 如果不是高可用集群，该IP为Master01的IP



所有节点配置yum源

sed -e 's|^mirrorlist=|#mirrorlist=|g' \
-e 's|^#baseurl=http://dl.rockylinux.org/$contentdir|baseurl=https://mirrors.aliyun.com/rockylinux|g' \
-i.bak \
/etc/yum.repos.d/rocky-*.repo

dnf makecache



vim /root/kubeadm-config.yaml
apiVersion: kubeadm.k8s.io/v1beta3
bootstrapTokens:
- groups:
  - system:bootstrappers:kubeadm:default-node-token
  token: 7t2weq.bjbawausm0jaxury
  ttl: 24h0m0s
  usages:
  - signing
  - authentication
kind: InitConfiguration
localAPIEndpoint:
  advertiseAddress: 10.0.0.201
  bindPort: 6443
nodeRegistration:
  criSocket: unix:///var/run/containerd/containerd.sock
  name: k8s-master01
  taints:
  - effect: NoSchedule
    key: node-role.kubernetes.io/control-plane
---
apiServer:
  certSANs:
  - 10.0.0.223
  timeoutForControlPlane: 4m0s
apiVersion: kubeadm.k8s.io/v1beta3
certificatesDir: /etc/kubernetes/pki
clusterName: kubernetes
controlPlaneEndpoint: 10.0.0.223:16443
controllerManager: {}
etcd:
  local:
    dataDir: /var/lib/etcd
imageRepository: registry.cn-hangzhou.aliyuncs.com/google_containers
kind: ClusterConfiguration
kubernetesVersion: v1.31.0
networking:
  dnsDomain: cluster.local
  podSubnet: 172.16.0.0/16
  serviceSubnet: 192.168.0.0/16
scheduler: {}
