实验3：OpenFlow协议分析实践

实验3：OpenFlow协议分析实践

一、基础要求

1. 拓扑文件

#!/usr/bin/env python

from mininet.net import Mininet
from mininet.node import Controller, RemoteController, OVSController
from mininet.node import CPULimitedHost, Host, Node
from mininet.node import OVSKernelSwitch, UserSwitch
from mininet.node import IVSSwitch
from mininet.cli import CLI
from mininet.log import setLogLevel, info
from mininet.link import TCLink, Intf
from subprocess import call

def myNetwork():

    net = Mininet( topo=None,
                   build=False,
                   ipBase='192.168.0.0/24')

    info( '*** Adding controller\n' )
    c0=net.addController(name='c0',
                      controller=Controller,
                      protocol='tcp',
                      port=6633)

    info( '*** Add switches\n')
    s1 = net.addSwitch('s1', cls=OVSKernelSwitch)
    s2 = net.addSwitch('s2', cls=OVSKernelSwitch)

    info( '*** Add hosts\n')
    h1 = net.addHost('h1', cls=Host, ip='192.168.0.101/24', defaultRoute=None)
    h2 = net.addHost('h2', cls=Host, ip='192.168.0.102/24', defaultRoute=None)
    h3 = net.addHost('h3', cls=Host, ip='192.168.0.103/24', defaultRoute=None)
    h4 = net.addHost('h4', cls=Host, ip='192.168.0.104/24', defaultRoute=None)

    info( '*** Add links\n')
    net.addLink(h1, s1)
    net.addLink(s1, h3)
    net.addLink(s1, s2)
    net.addLink(s2, h2)
    net.addLink(s2, h4)

    info( '*** Starting network\n')
    net.build()
    info( '*** Starting controllers\n')
    for controller in net.controllers:
        controller.start()

    info( '*** Starting switches\n')
    net.get('s1').start([c0])
    net.get('s2').start([c0])

    info( '*** Post configure switches and hosts\n')

    CLI(net)
    net.stop()

if __name__ == '__main__':
    setLogLevel( 'info' )
    myNetwork()

2. wireshark抓包

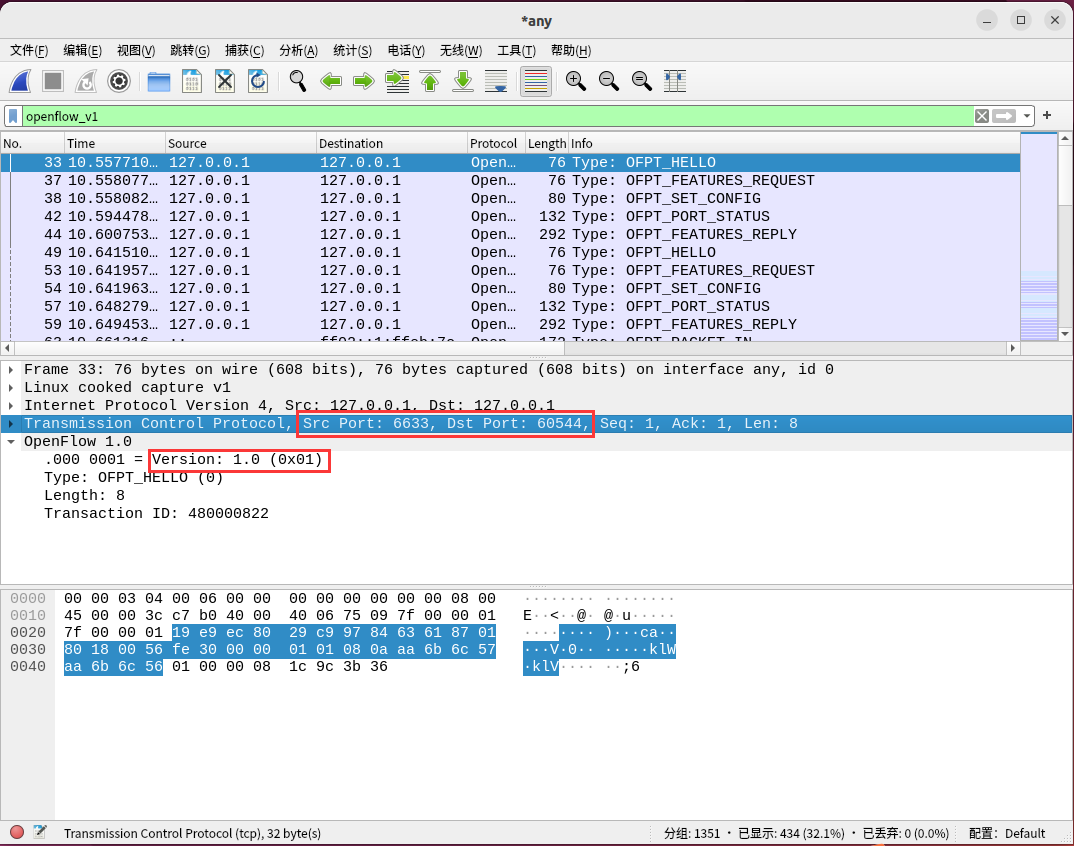

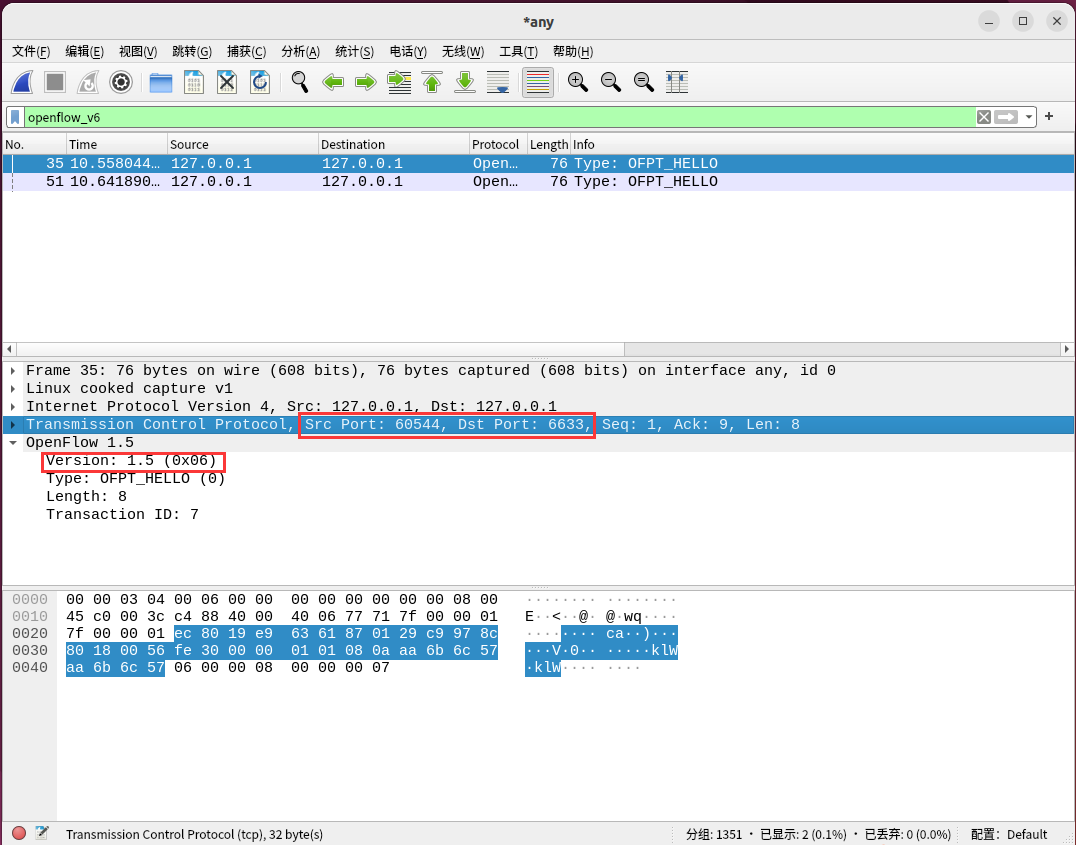

• Hello
  控制器6633端口（我最高能支持OpenFlow 1.0） ---> 交换机60544端口

  交换机60544端口（我最高能支持OpenFlow 1.5） ---> 控制器6633端口

  于是双方建立连接，并使用OpenFlow 1.0

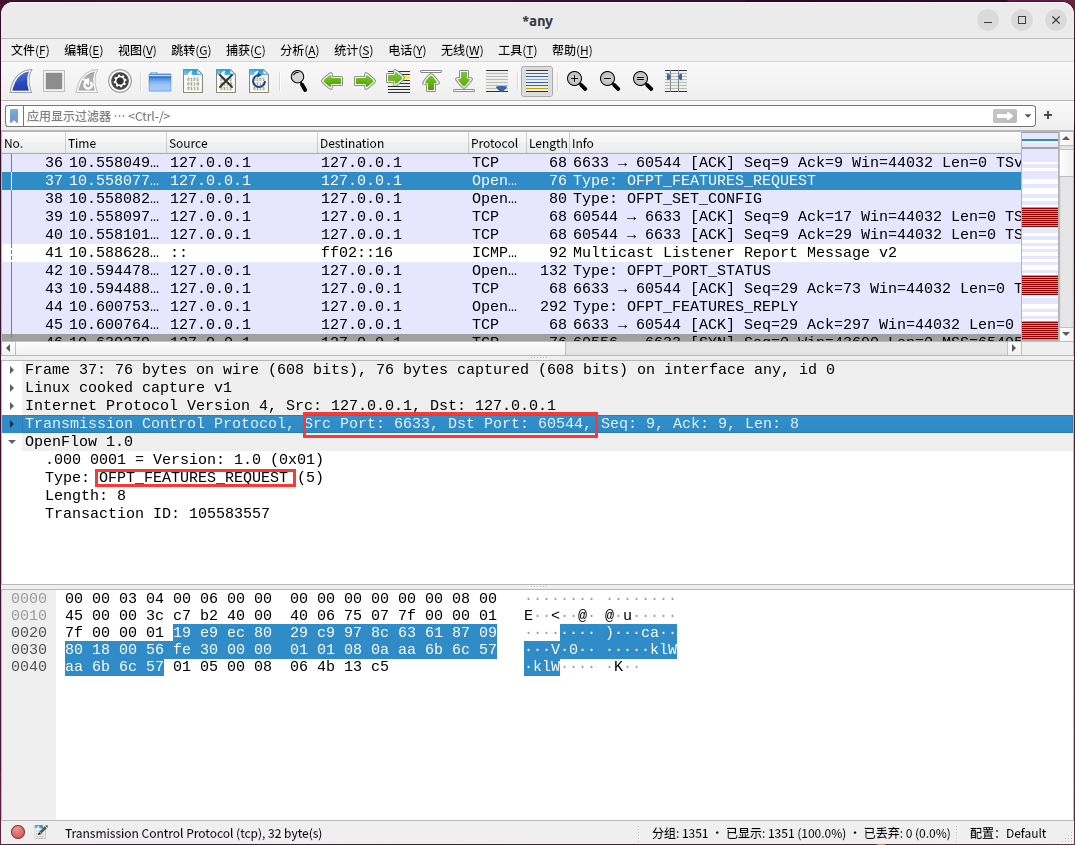

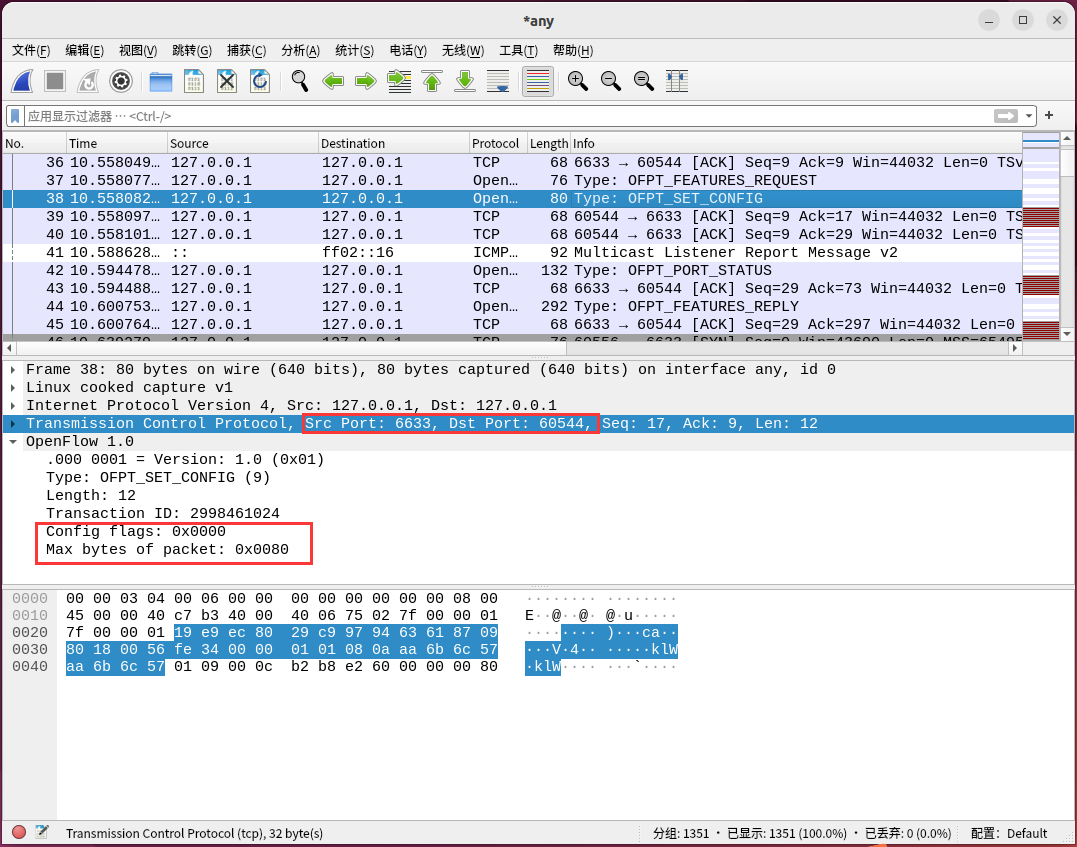

• Features Request/Set Config
  控制器6633端口（我需要你的特征信息） ---> 交换机60544端口

  控制器6633端口（请按照我给你的flag和max bytes of packet进行配置） ---> 交换机60544端口

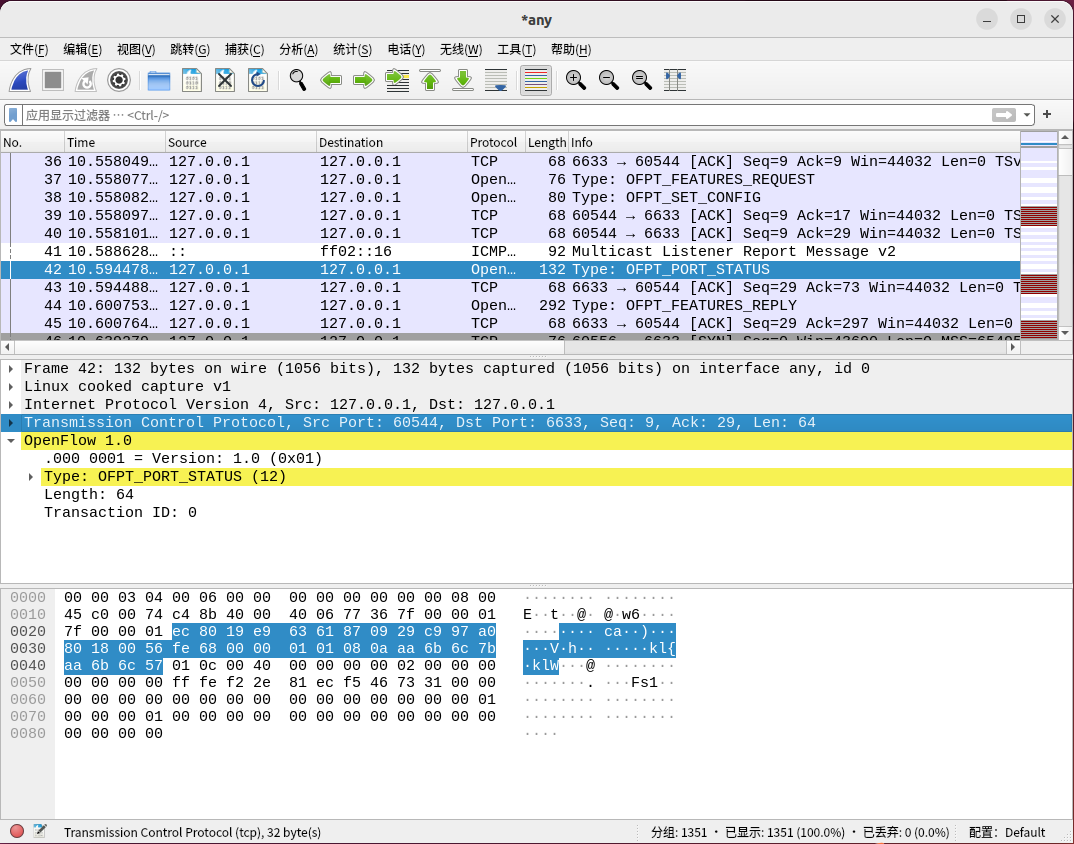

• Port_Status
  当交换机端口发生变化时，告知控制器相应的端口状态。

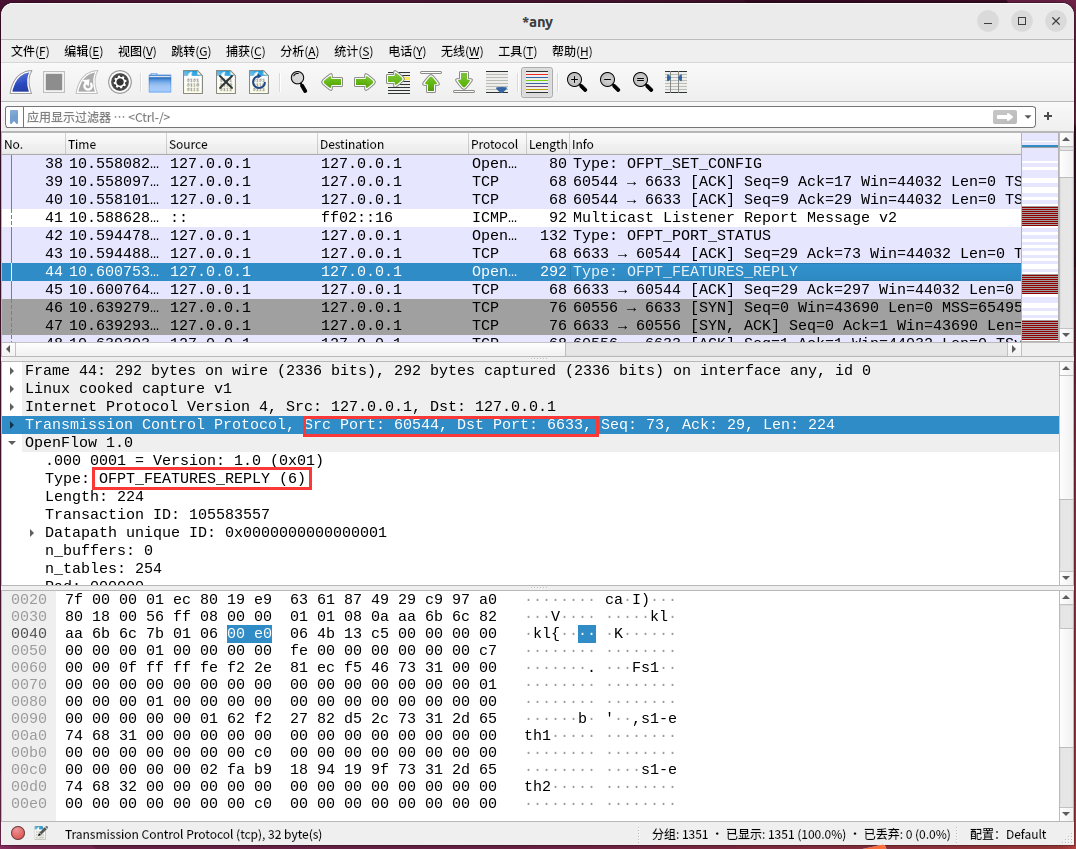

• Features Reply
  交换机60544端口（这是我的特征信息，请查收） ---> 控制器6633端口

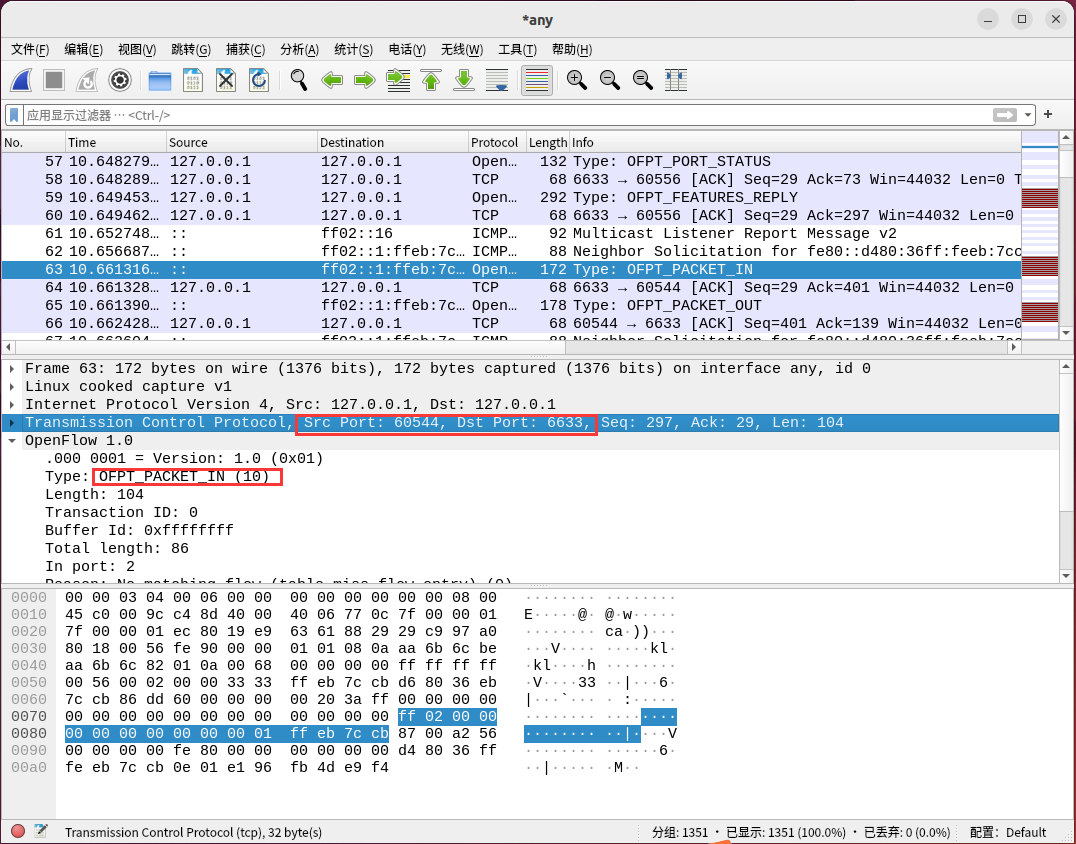

• Packet_in
  • 有两种情况：
  • 交换机查找流表，发现没有匹配条目时
  • 有匹配条目但是对应的action是OUTPUT=CONTROLLER时
  交换机60544端口（有数据包进来，请指示）--- 控制器6633端口

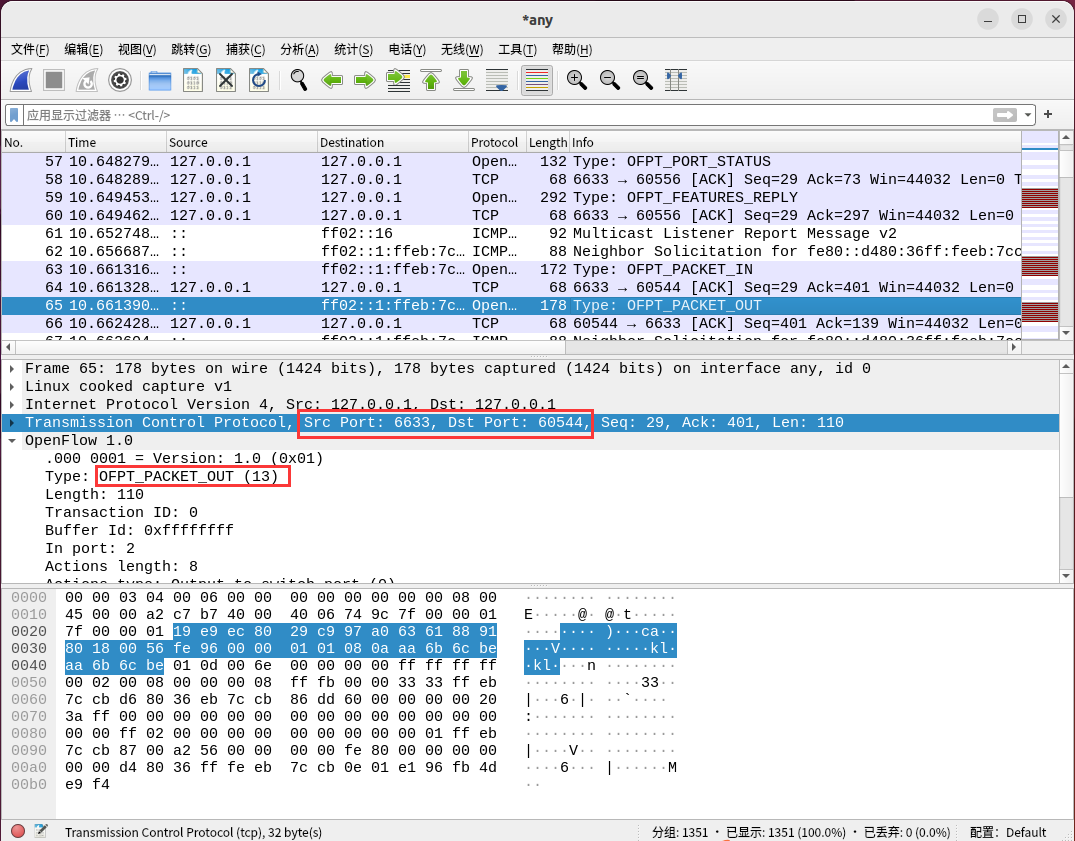

• Packet_out
  控制器6633端口（请按照我给你的action进行处理） ---> 交换机60544端口

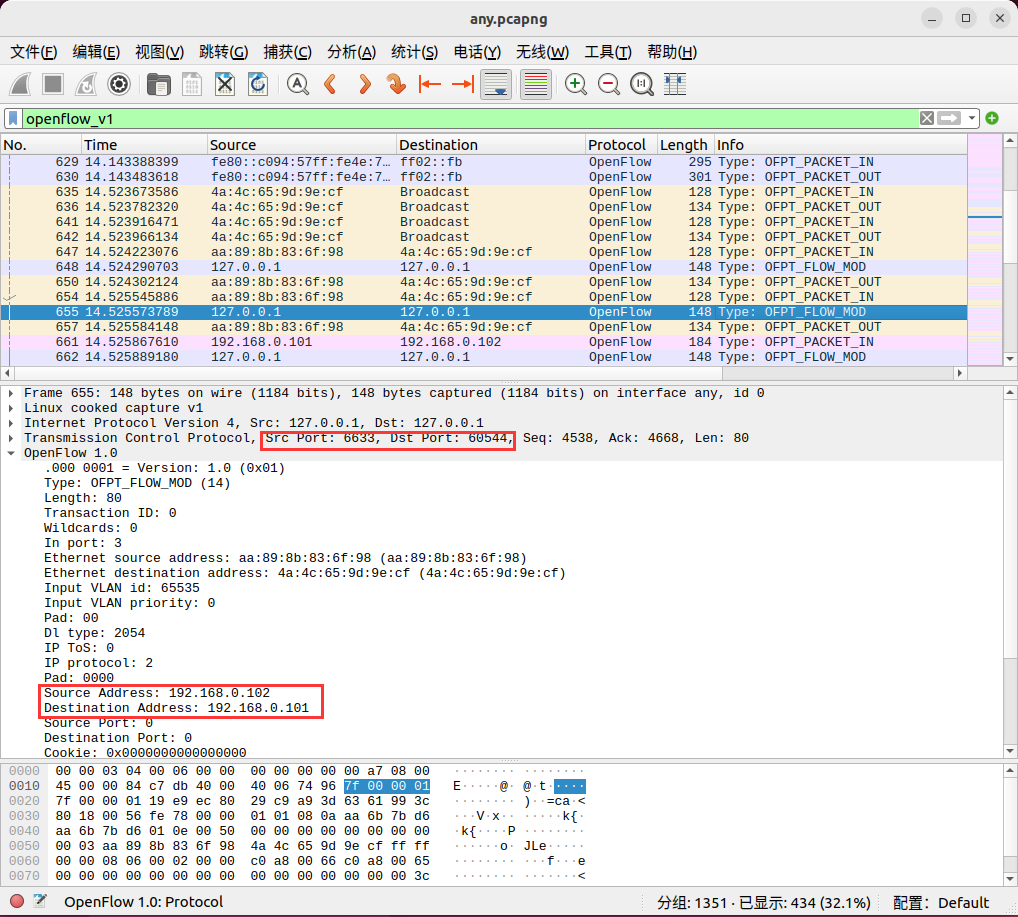

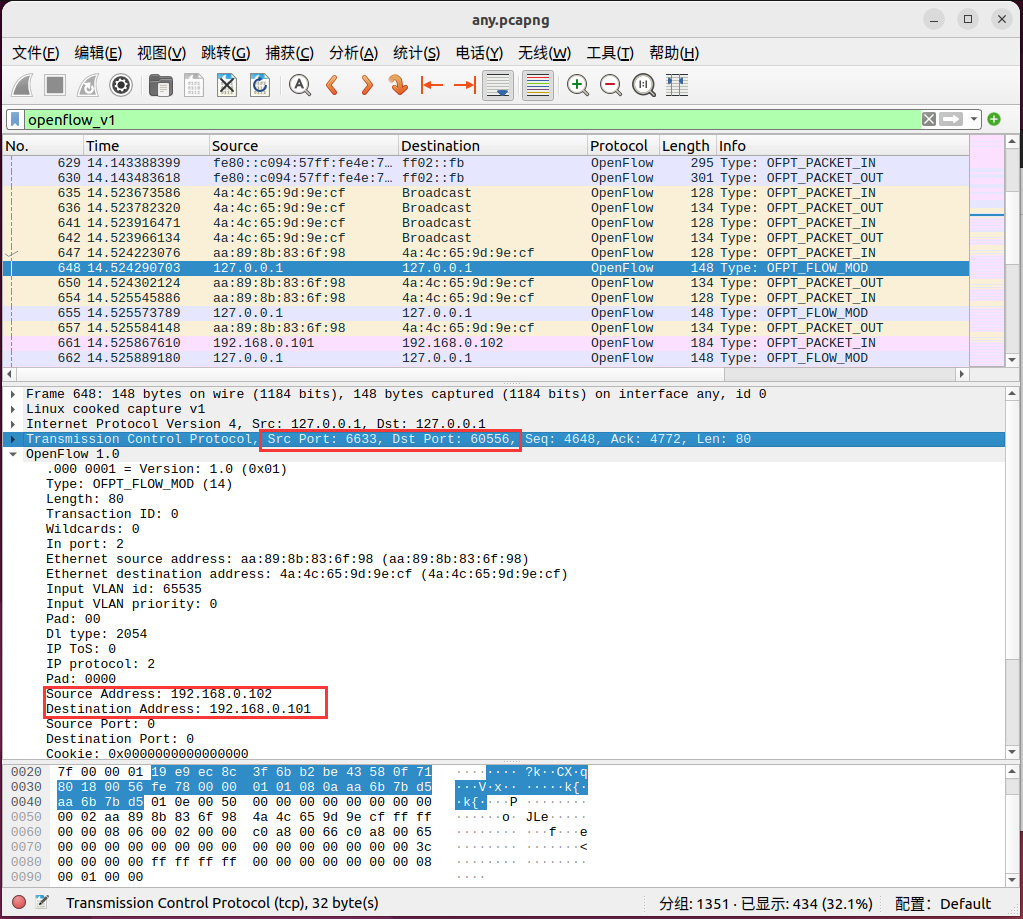

• Flow_mod
  分析抓取的flow_mod数据包，控制器通过6633端口向交换机60544端口、交换机60556端口
  下发流表项，指导数据的转发处理

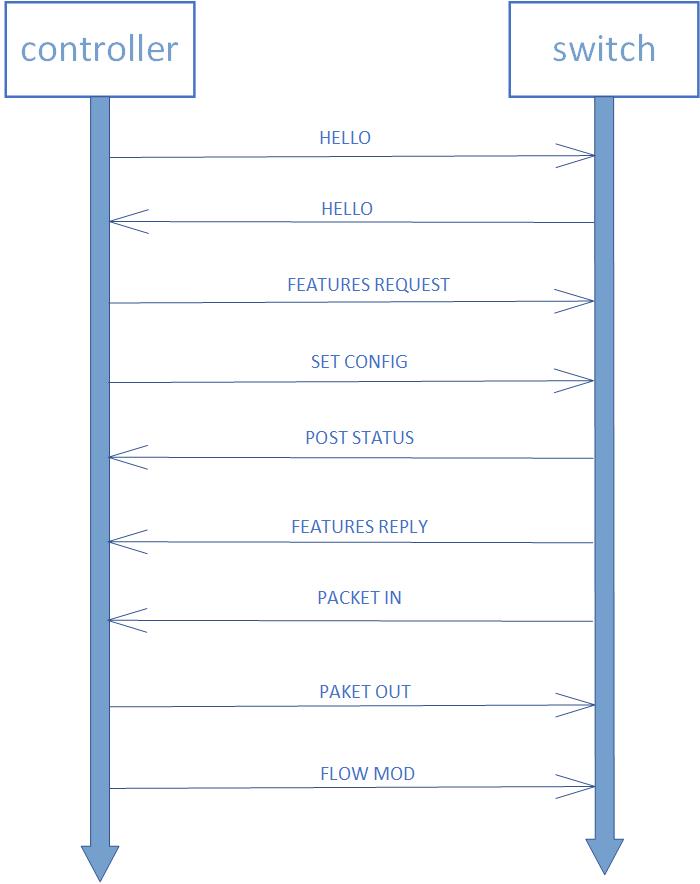

3. 流程图

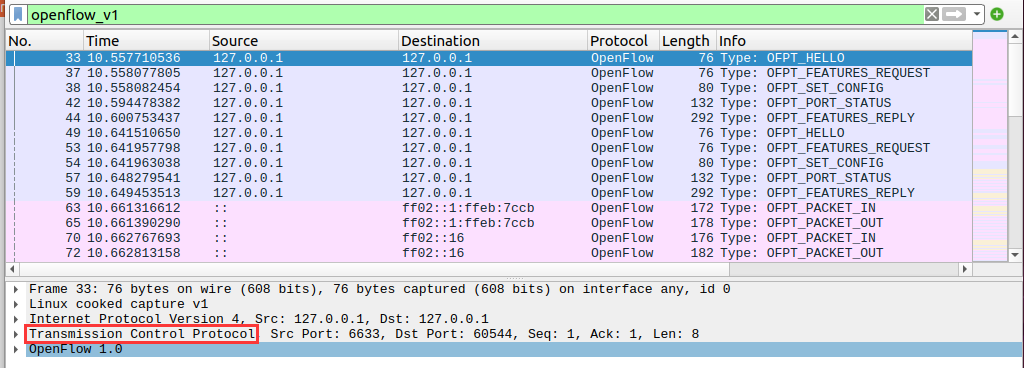

4. 回答问题：交换机与控制器建立通信时是使用TCP协议还是UDP协议？

使用TCP协议

二、进阶要求

• 通用字段

/* Header on all OpenFlow packets. */
struct ofp_header {
    uint8_t version;    /* OFP_VERSION. */
    uint8_t type;       /* One of the OFPT_ constants. */
    uint16_t length;    /* Length including this ofp_header. */
    uint32_t xid;       /* Transaction id associated with this packet.
                           Replies use the same id as was in the request
                           to facilitate pairing. */
};

OpenFlow数据包头的通用字段，分别是版本号，消息类型，长度，ID

• Hello


struct ofp_hello {
    struct ofp_header header;
};

HELLO报文用于协商协议，双方发送本方支持的最高版本的协议。最终会使用双方都支持的最低版本协议建立连接。type处会被置为OFPT_HELLO

• Features Request


struct ofp_hello {
    struct ofp_header header;
};

结构与HELLO一致。

• Set Config


/* Switch configuration. */
struct ofp_switch_config {
    struct ofp_header header;
    uint16_t flags;             /* OFPC_* flags. */
    uint16_t miss_send_len;     /* Max bytes of new flow that datapath should
                                   send to the controller. */
};

除了通用的数据包头字段外，还有：
flags:告知交换机如何处理IP分片数据包
miss_send_len:一个交换机无法处理的数据包到达时，将数据包发给控制器的最大字节数

• Port_Status


struct ofp_port_status {
    struct ofp_header header;
    uint8_t reason;          /* One of OFPPR_*. */
    uint8_t pad[7];          /* Align to 64-bits. */
    struct ofp_phy_port desc;
};

当交换机端口发生变化时，告知控制器相应的端口状态。

• Features Reply


struct ofp_phy_port {
    uint16_t port_no;
    uint8_t hw_addr[OFP_ETH_ALEN];
    char name[OFP_MAX_PORT_NAME_LEN]; /* Null-terminated */

    uint32_t config;        /* Bitmap of OFPPC_* flags. */
    uint32_t state;         /* Bitmap of OFPPS_* flags. */

    /* Bitmaps of OFPPF_* that describe features.  All bits zeroed if
     * unsupported or unavailable. */
    uint32_t curr;          /* Current features. */
    uint32_t advertised;    /* Features being advertised by the port. */
    uint32_t supported;     /* Features supported by the port. */
    uint32_t peer;          /* Features advertised by peer. */
};
OFP_ASSERT(sizeof(struct ofp_phy_port) == 48);

/* Switch features. */
struct ofp_switch_features {
    struct ofp_header header;
    uint64_t datapath_id;   /* Datapath unique ID.  The lower 48-bits are for
                               a MAC address, while the upper 16-bits are
                               implementer-defined. */

    uint32_t n_buffers;     /* Max packets buffered at once. */

    uint8_t n_tables;       /* Number of tables supported by datapath. */
    uint8_t pad[3];         /* Align to 64-bits. */

    /* Features. */
    uint32_t capabilities;  /* Bitmap of support "ofp_capabilities". */
    uint32_t actions;       /* Bitmap of supported "ofp_action_type"s. */

    /* Port info.*/
    struct ofp_phy_port ports[0];  /* Port definitions.  The number of ports
                                      is inferred from the length field in
                                      the header. */
};

除了通用头文件，还多了：

datapath_id：唯一标识符；
n_buffers：交换机缓冲区可以
缓存的最大数据包个数；
n_tables：流表数量；
pad：可以理解为填充值；
capabilities：支持的特殊功能；
actions：支持的动作；
port data：物理端口描述列表。

• Packet_in


enum ofp_packet_in_reason {
    OFPR_NO_MATCH,          /* No matching flow. */
    OFPR_ACTION             /* Action explicitly output to controller. */
};

/* Packet received on port (datapath -> controller). */
struct ofp_packet_in {
    struct ofp_header header;
    uint32_t buffer_id;     /* ID assigned by datapath. */
    uint16_t total_len;     /* Full length of frame. */
    uint16_t in_port;       /* Port on which frame was received. */
    uint8_t reason;         /* Reason packet is being sent (one of OFPR_*) */
    uint8_t pad;
    uint8_t data[0];        /* Ethernet frame, halfway through 32-bit word,
                               so the IP header is 32-bit aligned.  The
                               amount of data is inferred from the length
                               field in the header.  Because of padding,
                               offsetof(struct ofp_packet_in, data) ==
                               sizeof(struct ofp_packet_in) - 2. */
};

当1.不存在与流表项一致的项目时（table-miss）
2.匹配的流表项中记载的行动为“发送至Openflow控制器”会触发packet_in消息

• Packet_out


struct ofp_action_header {
    uint16_t type;                  /* One of OFPAT_*. */
    uint16_t len;                   /* Length of action, including this
                                       header.  This is the length of action,
                                       including any padding to make it
                                       64-bit aligned. */
    uint8_t pad[4];
};
OFP_ASSERT(sizeof(struct ofp_action_header) == 8);

/* Send packet (controller -> datapath). */
struct ofp_packet_out {
    struct ofp_header header;
    uint32_t buffer_id;           /* ID assigned by datapath (-1 if none). */
    uint16_t in_port;             /* Packet's input port (OFPP_NONE if none). */
    uint16_t actions_len;         /* Size of action array in bytes. */
    struct ofp_action_header actions[0]; /* Actions. */
    /* uint8_t data[0]; */        /* Packet data.  The length is inferred
                                     from the length field in the header.
                                     (Only meaningful if buffer_id == -1.) */
};

除通用头文件，还包括动作列表、缓冲区ID，进入的端口。

• Flow_mod


struct ofp_match {
    uint32_t wildcards;        /* Wildcard fields. */
    uint16_t in_port;          /* Input switch port. */
    uint8_t dl_src[OFP_ETH_ALEN]; /* Ethernet source address. */
    uint8_t dl_dst[OFP_ETH_ALEN]; /* Ethernet destination address. */
    uint16_t dl_vlan;          /* Input VLAN id. */
    uint8_t dl_vlan_pcp;       /* Input VLAN priority. */
    uint8_t pad1[1];           /* Align to 64-bits */
    uint16_t dl_type;          /* Ethernet frame type. */
    uint8_t nw_tos;            /* IP ToS (actually DSCP field, 6 bits). */
    uint8_t nw_proto;          /* IP protocol or lower 8 bits of
                                * ARP opcode. */
    uint8_t pad2[2];           /* Align to 64-bits */
    uint32_t nw_src;           /* IP source address. */
    uint32_t nw_dst;           /* IP destination address. */
    uint16_t tp_src;           /* TCP/UDP source port. */
    uint16_t tp_dst;           /* TCP/UDP destination port. */
};

/* Flow setup and teardown (controller -> datapath). */
struct ofp_flow_mod {
    struct ofp_header header;
    struct ofp_match match;      /* Fields to match */
    uint64_t cookie;             /* Opaque controller-issued identifier. */

    /* Flow actions. */
    uint16_t command;             /* One of OFPFC_*. */
    uint16_t idle_timeout;        /* Idle time before discarding (seconds). */
    uint16_t hard_timeout;        /* Max time before discarding (seconds). */
    uint16_t priority;            /* Priority level of flow entry. */
    uint32_t buffer_id;           /* Buffered packet to apply to (or -1).
                                     Not meaningful for OFPFC_DELETE*. */
    uint16_t out_port;            /* For OFPFC_DELETE* commands, require
                                     matching entries to include this as an
                                     output port.  A value of OFPP_NONE
                                     indicates no restriction. */
    uint16_t flags;               /* One of OFPFF_*. */
    struct ofp_action_header actions[0]; /* The action length is inferred
                                            from the length field in the
                                            header. */
};

包含一些cookie，命令（command有0-4五种操作）。

三、个人总结

本次实验难度不大，按照PDF一步一步做下来都能顺利完成。
保存抓包后的抓包文件不可读，需要在终端执行sudo chmod ugo+r any.pcapng，将其修改为只读模式。运行拓扑文件后，需要pingall。在
通过本次实验我学会用wireshark抓包，以及如何使用过滤器，了解了OpenFlow协议的数据包交互过程与机制。
hello：双方选取Hello消息中最低版本的协议作为通信协议如果有一方不支持Openflow协议版本，应发送Error消息后断开连接。如果双方Openflow版本可以兼容，则Openflow连接建立成功。
OpenFlow交换机把传统网络中完全由交换机/路由器控制的报文转换为由交换机和控制器共同完成的数据转发操作，实现了数据转发与路由控制的分离。
控制器通过事先规定的Open Flow交换机中的流表进行数据转发。
