Traefik中间件middleware初体验

　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　　作者：尹正杰

版权声明：原创作品，谢绝转载！否则将追究法律责任。

目录

一.Traefik中间件概述

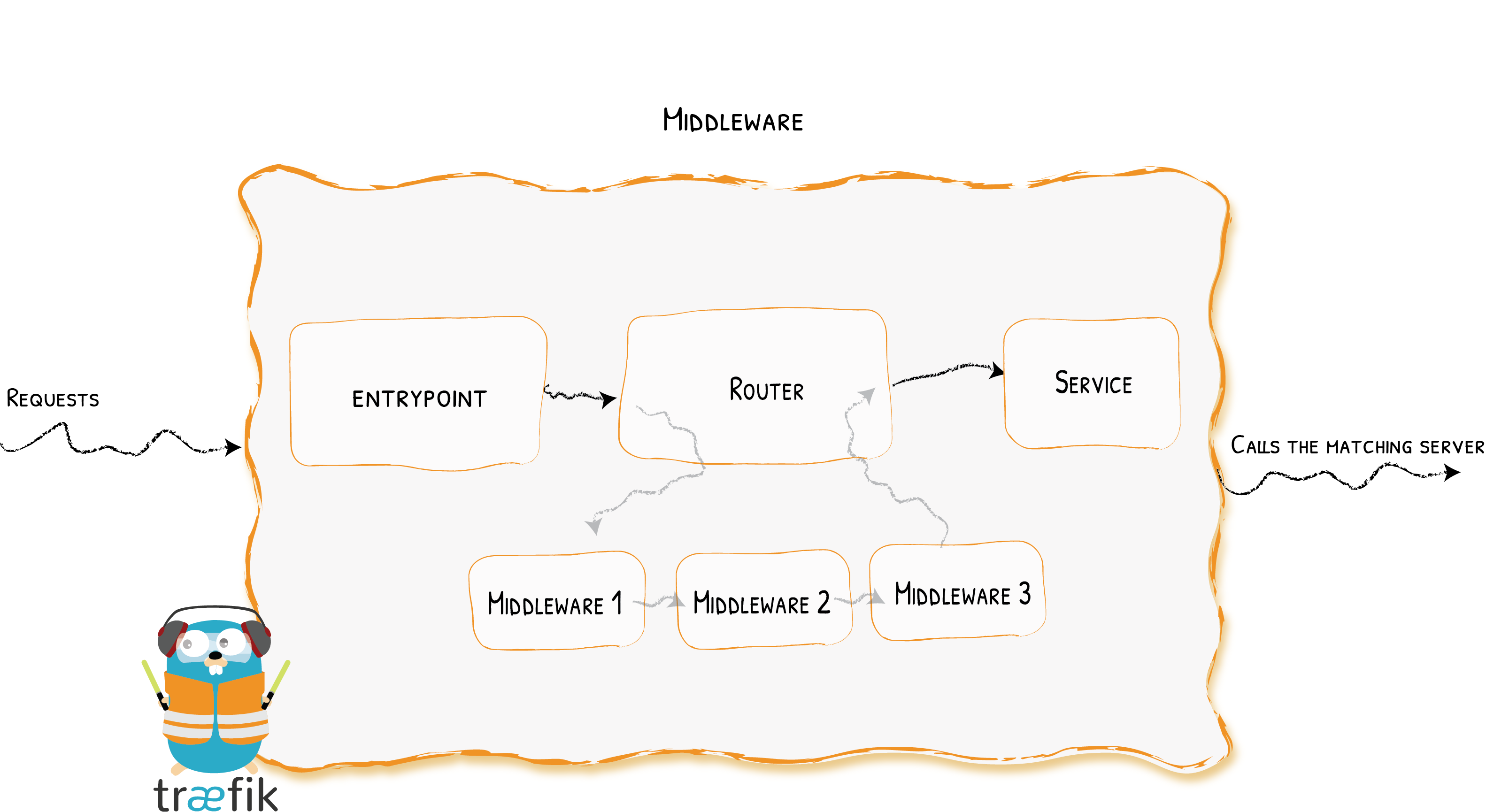

1.中间件在Traefik的位置

如上图所示，连接到路由器的中间件是在将请求发送到您的服务之前（或在将服务的答案发送到客户端之前）调整请求的一种手段。

Traefik中有几个可用的中间件，有些可以修改请求、标头，有些负责重定向，有些添加身份验证等等。

使用相同协议的中间件可以组合成链，以适应每种情况。官方支持HTTP和TCP两种中间件。


参考链接:
	https://doc.traefik.io/traefik/middlewares/overview/

2.HTTP中间件

Middleware(中间件) Purpose（作用） Area（用途）
AddPrefix Adds a Path Prefix Path Modifier
BasicAuth Adds Basic Authentication Security, Authentication
Buffering Buffers the request/response Request Lifecycle
Chain Combines multiple pieces of middleware Misc
CircuitBreaker Prevents calling unhealthy services Request Lifecycle
Compress Compresses the response Content Modifier
ContentType Handles Content-Type auto-detection Misc
DigestAuth Adds Digest Authentication Security, Authentication
Errors Defines custom error pages Request Lifecycle
ForwardAuth Delegates Authentication Security, Authentication
Headers Adds / Updates headers Security
IPAllowList Limits the allowed client IPs Security, Request lifecycle
InFlightReq Limits the number of simultaneous connections Security, Request lifecycle
PassTLSClientCert Adds Client Certificates in a Header Security
RateLimit Limits the call frequency Security, Request lifecycle
RedirectScheme Redirects based on scheme Request lifecycle
RedirectRegex Redirects based on regex Request lifecycle
ReplacePath Changes the path of the request Path Modifier
ReplacePathRegex Changes the path of the request Path Modifier
Retry Automatically retries in case of error Request lifecycle
StripPrefix Changes the path of the request Path Modifier
StripPrefixRegex Changes the path of the request Path Modifier
如上表所示，官方针对HTTPP协议的中间件有很多。

参考链接:
	https://doc.traefik.io/traefik/middlewares/http/overview/

3.TCP中间件

Middleware(中间件) Purpose（作用） Area（用途）
InFlightConn Limits the number of simultaneous connections. Security, Request lifecycle
IPAllowList Limit the allowed client IPs. Security, Request lifecycle
如上表所示，针对TCP协议的中间件相对较少。

参考链接:
	https://doc.traefik.io/traefik/middlewares/tcp/overview/

二.traefik中间件实战案例

1. 部署测试服务

1.1 编写资源清单

[root@master241 ingressroutes]# cat 12-deploy-xiuxian.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: deploy-xiuxian
spec:
  replicas: 1
  selector:
    matchLabels:
      apps: xiuxian
  template:
    metadata:
      labels:
        apps: xiuxian
    spec:
      containers:
      - image: registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v1
        name: c1
        ports:
        - containerPort: 80

---

apiVersion: v1
kind: Service
metadata:
  name: svc-xiuxian
spec:
  ports:
  - port: 80
  selector:
    apps: xiuxian
[root@master241 ingressroutes]#

1.2 创建资源

[root@master241 ingressroutes]# kubectl apply -f 12-deploy-xiuxian.yaml
deployment.apps/deploy-xiuxian created
service/svc-xiuxian created
[root@master241 ingressroutes]#
[root@master241 ingressroutes]# kubectl get deploy,svc,po -o wide
NAME                             READY   UP-TO-DATE   AVAILABLE   AGE   CONTAINERS   IMAGES                                                      SELECTOR
deployment.apps/deploy-xiuxian   1/1     1            1           8s    c1           registry.cn-hangzhou.aliyuncs.com/yinzhengjie-k8s/apps:v1   apps=xiuxian

NAME                  TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE   SELECTOR
service/kubernetes    ClusterIP   10.192.0.1    <none>        443/TCP   13s   <none>
service/svc-xiuxian   ClusterIP   10.194.9.32   <none>        80/TCP    8s    apps=xiuxian

NAME                                  READY   STATUS    RESTARTS   AGE   IP              NODE        NOMINATED NODE   READINESS GATES
pod/deploy-xiuxian-55f8cbccd9-xdsgs   1/1     Running   0          8s    10.100.207.44   worker243   <none>           <none>
[root@master241 ingressroutes]#

1.3 访问测试

[root@master241 ingressroutes]# curl 10.194.9.32
<!DOCTYPE html>
<html>
  <head>
    <meta charset="utf-8"/>
    <title>yinzhengjie apps v1</title>
    <style>
       div img {
          width: 900px;
          height: 600px;
          margin: 0;
       }
    </style>
  </head>

  <body>
    <h1 style="color: green">凡人修仙传 v1 </h1>
    <div>
      <img src="1.jpg">
    <div>
  </body>

</html>
[root@master241 ingressroutes]#

2.ipWhiteList|ipallowlist应用案例

2.1 ipWhiteList|ipallowlist中间件概述

在实际工作中，有一些URL并不希望对外暴露，比如prometheus、grafana等，我们就可以通过白名单IP来过到要求，可以使用Traefix中的ipWhiteList中间件来完成。

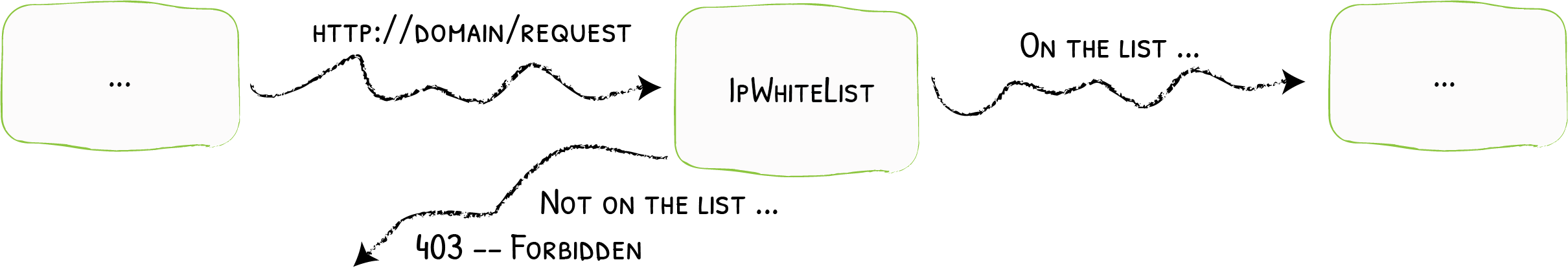

ipWhiteList组件可以限制客户端的IP地址是否可以进行访问，如果在白名单则允许访问，目前官方支持http和tcp两种配置方式。

值得注意的是，ipwhitelist官方已经弃用，推荐使用ipallowlist来替代。

参考链接:
	https://doc.traefik.io/traefik/middlewares/http/ipwhitelist/  # 已经弃用，推荐使用ipallowlist
	https://doc.traefik.io/traefik/middlewares/http/ipallowlist/
	https://doc.traefik.io/traefik/middlewares/tcp/ipwhitelist/  # 已经弃用，推荐使用ipallowlist
	https://doc.traefik.io/traefik/middlewares/tcp/ipallowlist/

2.2 编写资源清单

[root@master241 ingressroutes]# cat 13-ipAllowList-IngressRoute.yaml
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: xiuxian-ipallowlist
  namespace: default
spec:
  ipAllowList:
    sourceRange:
      - 127.0.0.1
      - 10.0.0.0/24

---

apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: ingressroute-xiuxian
spec:
  entryPoints:
  - web
  routes:
  - match: Host(`middleware.yinzhengjie.com`) && PathPrefix(`/`)
    kind: Rule
    services:
    - name: svc-xiuxian
      port: 80
    middlewares:
    - name: xiuxian-ipallowlist
      namespace: default
[root@master241 ingressroutes]#

2.3 创建资源

[root@master241 ingressroutes]# kubectl apply -f 13-ipAllowList-IngressRoute.yaml
middleware.traefik.io/xiuxian-ipallowlist created
ingressroute.traefik.io/ingressroute-xiuxian created
[root@master241 ingressroutes]#
[root@master241 ingressroutes]# kubectl describe -f 13-ipAllowList-IngressRoute.yaml
Name:         xiuxian-ipallowlist
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  traefik.io/v1alpha1
Kind:         Middleware
Metadata:
  Creation Timestamp:  2025-06-06T07:13:48Z
  Generation:          1
  Resource Version:    2185783
  UID:                 2a79b049-4a41-4fa8-8c17-c54fb823ca76
Spec:
  Ip Allow List:
    Source Range:
      127.0.0.1
      10.0.0.0/24
Events:  <none>


Name:         ingressroute-xiuxian
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  traefik.io/v1alpha1
Kind:         IngressRoute
Metadata:
  Creation Timestamp:  2025-06-06T07:13:48Z
  Generation:          1
  Resource Version:    2185784
  UID:                 84859639-4dd2-4806-9336-f70c2b7502c1
Spec:
  Entry Points:
    web
  Routes:
    Kind:   Rule
    Match:  Host(`middleware.yinzhengjie.com`) && PathPrefix(`/`)
    Middlewares:
      Name:       xiuxian-ipallowlist
      Namespace:  default
    Services:
      Name:  svc-xiuxian
      Port:  80
Events:      <none>
[root@master241 ingressroutes]#

2.4 访问测试

	1.访问测试
[root@worker242 ~]# echo 10.0.0.150 middleware.yinzhengjie.com >> /etc/hosts
[root@worker242 ~]# tail -1 /etc/hosts
10.0.0.150 middleware.yinzhengjie.com
[root@worker242 ~]#


	2.可以成功访问
[root@worker242 ~]# curl middleware.yinzhengjie.com
<!DOCTYPE html>
<html>
  <head>
    <meta charset="utf-8"/>
    <title>yinzhengjie apps v1</title>
    <style>
       div img {
          width: 900px;
          height: 600px;
          margin: 0;
       }
    </style>
  </head>

  <body>
    <h1 style="color: green">凡人修仙传 v1 </h1>
    <div>
      <img src="1.jpg">
    <div>
  </body>

</html>
[root@worker242 ~]#

2.5 将白名单的地址删除测试

	1.修改资源清单
[root@master241 ingressroutes]# cat 13-ipAllowList-IngressRoute.yaml
apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: xiuxian-ipallowlist
  namespace: default
spec:
  ipAllowList:
    sourceRange:
      - 127.0.0.1
      # - 10.0.0.0/24  # 将该行注释，目的是为了不让该网段的地址访问

---

apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: ingressroute-xiuxian
spec:
  entryPoints:
  - web
  routes:
  - match: Host(`middleware.yinzhengjie.com`) && PathPrefix(`/`)
    kind: Rule
    services:
    - name: svc-xiuxian
      port: 80
    middlewares:
    - name: xiuxian-ipallowlist
      namespace: default
[root@master241 ingressroutes]#



	2.查看资源是否生效
[root@master241 ingressroutes]# kubectl apply -f  13-ipAllowList-IngressRoute.yaml
middleware.traefik.io/xiuxian-ipallowlist configured
ingressroute.traefik.io/ingressroute-xiuxian unchanged
[root@master241 ingressroutes]#
[root@master241 ingressroutes]# kubectl describe middleware xiuxian-ipallowlist
Name:         xiuxian-ipallowlist
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  traefik.io/v1alpha1
Kind:         Middleware
Metadata:
  Creation Timestamp:  2025-06-06T07:13:48Z
  Generation:          2
  Resource Version:    2186500
  UID:                 2a79b049-4a41-4fa8-8c17-c54fb823ca76
Spec:
  Ip Allow List:
    Source Range:
      127.0.0.1
Events:  <none>
[root@master241 ingressroutes]#

2.6 再次访问测试

[root@worker242 ~]# curl middleware.yinzhengjie.com ;echo   # Duang~不难发现，访问被拒绝啦！！！
Forbidden
[root@worker242 ~]#

3.Traefik中间件BasicAuth应用案例

3.1 basicAuth中间件概述

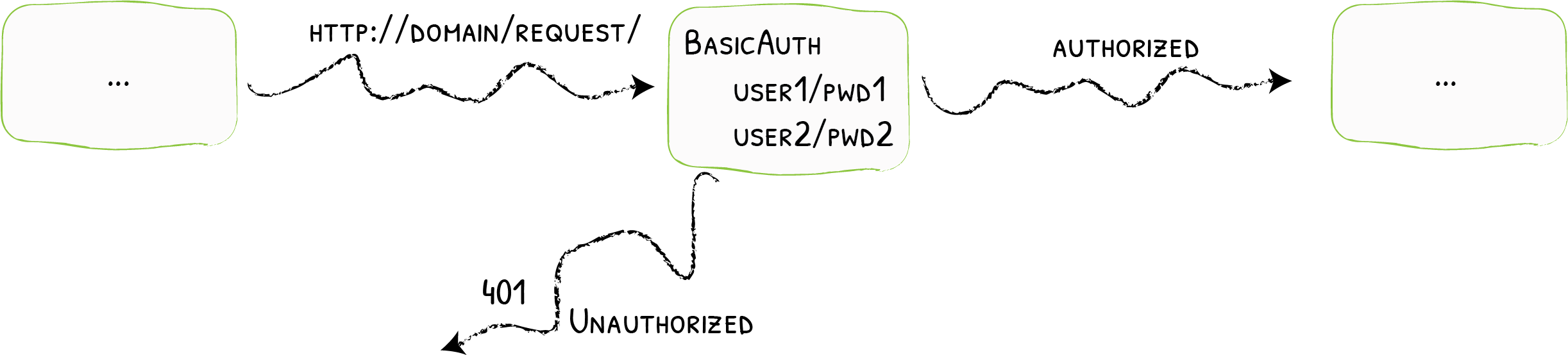

basicAuth中间件可以做基础的认证。

参考链接:
	https://doc.traefik.io/traefik/middlewares/http/basicauth/

3.2.编写资源清单

[root@master241 ingressroutes]# cat 14-basicAuth-secrets-IngressRoute.yaml
apiVersion: v1
kind: Secret
metadata:
  name: login-info
  namespace: default
type: kubernetes.io/basic-auth
stringData:
  username: JasonYin
  password: yinzhengjie

---

apiVersion: traefik.io/v1alpha1
kind: Middleware
metadata:
  name: login-auth
spec:
  basicAuth:
    secret: login-info

---
apiVersion: traefik.io/v1alpha1
kind: IngressRoute
metadata:
  name: ingressroute-xiuxian
spec:
  entryPoints:
  - web
  routes:
  - match: Host(`middleware.yinzhengjie.com`) && PathPrefix(`/`)
    kind: Rule
    services:
    - name: svc-xiuxian
      port: 80
    middlewares:
    - name: login-auth
      namespace: default
[root@master241 ingressroutes]#

3.3 创建并查看资源的状态

[root@master241 ingressroutes]# kubectl describe -f  14-basicAuth-secrets-IngressRoute.yaml
Name:         login-info
Namespace:    default
Labels:       <none>
Annotations:  <none>

Type:  kubernetes.io/basic-auth

Data
====
password:  11 bytes
username:  8 bytes


Name:         login-auth
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  traefik.io/v1alpha1
Kind:         Middleware
Metadata:
  Creation Timestamp:  2025-06-06T07:27:54Z
  Generation:          1
  Resource Version:    2187518
  UID:                 bfb38efe-b967-4680-b6ba-fdc6f6154a74
Spec:
  Basic Auth:
    Secret:  login-info
Events:      <none>


Name:         ingressroute-xiuxian
Namespace:    default
Labels:       <none>
Annotations:  <none>
API Version:  traefik.io/v1alpha1
Kind:         IngressRoute
Metadata:
  Creation Timestamp:  2025-06-06T07:27:54Z
  Generation:          1
  Resource Version:    2187519
  UID:                 29c5fe51-9074-469b-af53-36ecdd53a245
Spec:
  Entry Points:
    web
  Routes:
    Kind:   Rule
    Match:  Host(`middleware.yinzhengjie.com`) && PathPrefix(`/`)
    Middlewares:
      Name:       login-auth
      Namespace:  default
    Services:
      Name:  svc-xiuxian
      Port:  80
Events:      <none>
[root@master241 ingressroutes]#

3.4 测试验证

	1.不输入认证信息或者输入错误都会认证失败，报错401哟~
[root@worker242 ~]# curl middleware.yinzhengjie.com
401 Unauthorized
[root@worker242 ~]#
[root@worker242 ~]# curl -u admin:123 middleware.yinzhengjie.com
401 Unauthorized
[root@worker242 ~]#


	2.使用认证信息就可以正确使用
[root@worker242 ~]# curl -u JasonYin:yinzhengjie middleware.yinzhengjie.com
<!DOCTYPE html>
<html>
  <head>
    <meta charset="utf-8"/>
    <title>yinzhengjie apps v1</title>
    <style>
       div img {
          width: 900px;
          height: 600px;
          margin: 0;
       }
    </style>
  </head>

  <body>
    <h1 style="color: green">凡人修仙传 v1 </h1>
    <div>
      <img src="1.jpg">
    <div>
  </body>

</html>
[root@worker242 ~]#

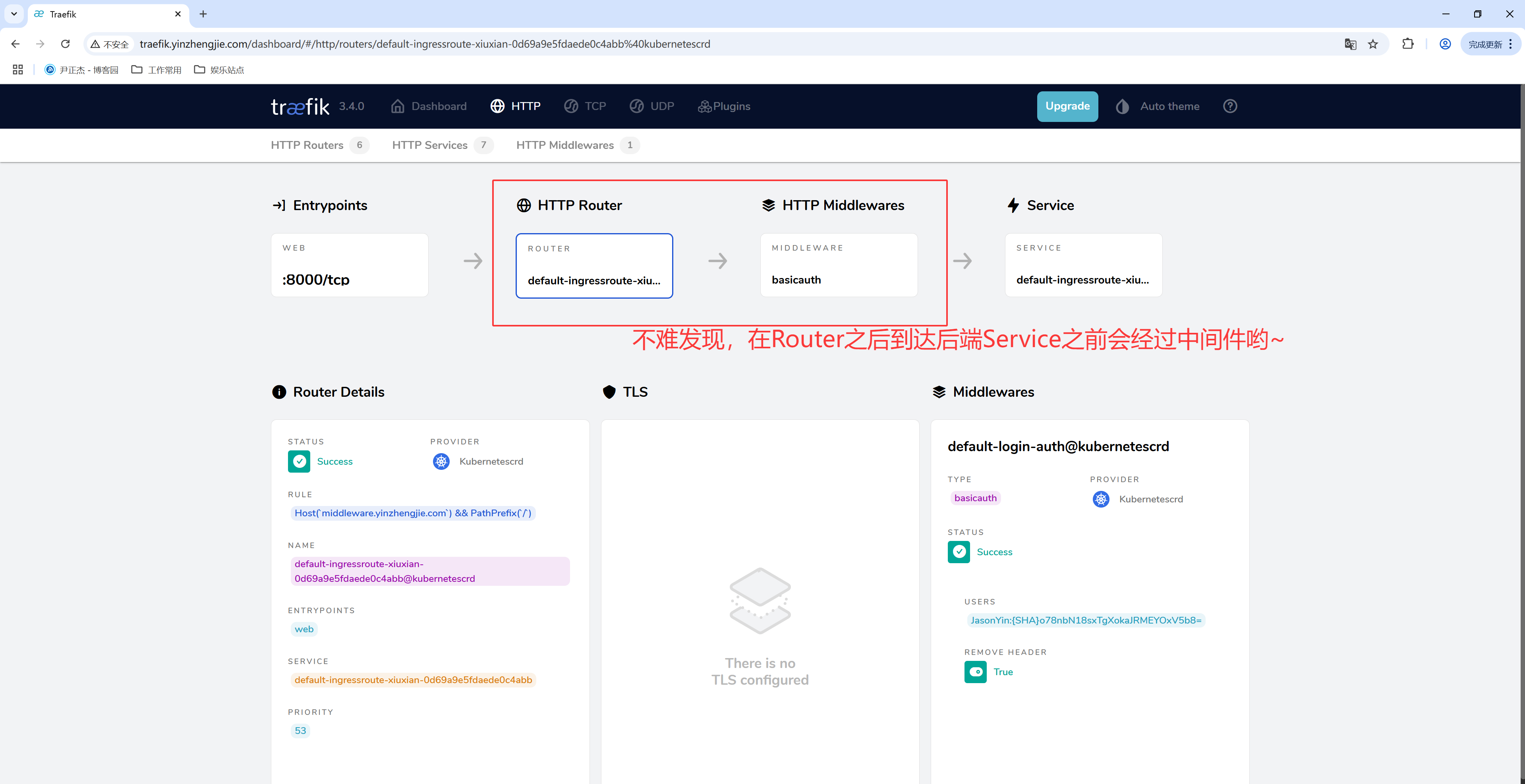

3.5 查看Traefik的WebUI

如上图所示，我们可以在Route配置中看到中间件的名称哟。


后记:
	更多中间间玩法大家可以自行解锁，前提是你对负载均衡器的深度有一定的了解，不然学习Traefik可能有点不太好理解。
	后续会陆续更新更多Traefik及Istio相关的课程笔记哟~欢迎各位道友一起探讨哈！
posted @ 2025-06-07 22:38  尹正杰  阅读(83)  评论(0)    收藏  举报
