sv实验3

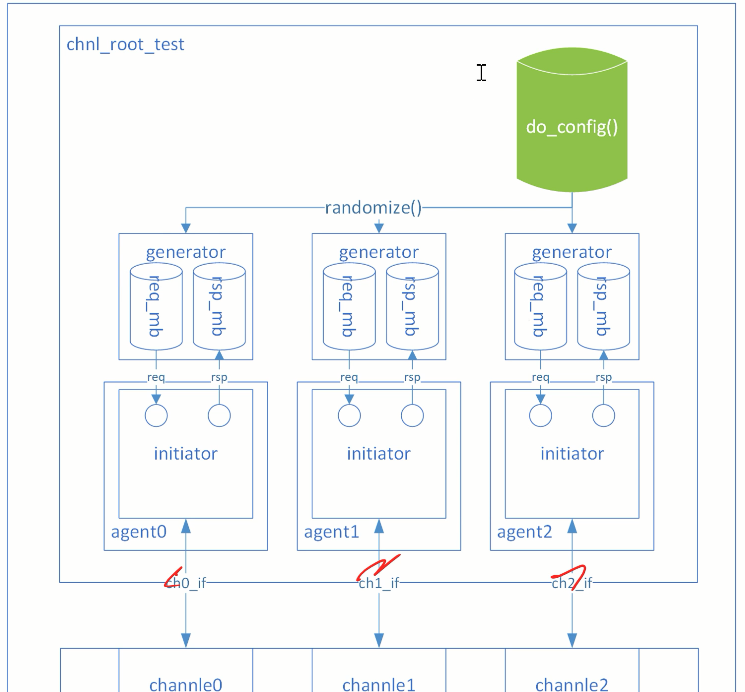

 验证结构







 随机约束

实验3相比实验2引入了随机约束，主要体现在chnl_trans类中。实验2中的数据内容由generator的get_trans函数产生，而实验3在chnl_trans类产生。

class chnl_trans;
    rand bit[31:0] data[];
    rand int ch_id;
    rand int pkt_id;
    rand int data_nidles;
    rand int pkt_nidles;
    bit rsp;
    local static int obj_id = 0;
    // USER TODO 1.1.
    // Specify constraint to match the chnl_basic_test request
    constraint cstr{
      data.size inside {[4:8]};
      foreach(data[i]) data[i] == 'hC000_0000 + (this.ch_id<<24) + (this.pkt_id<<8) + i;
      soft ch_id == 0;
      soft pkt_id == 0;
      data_nidles inside {[0:2]};
      pkt_nidles inside {[1:10]};
    };
...
...

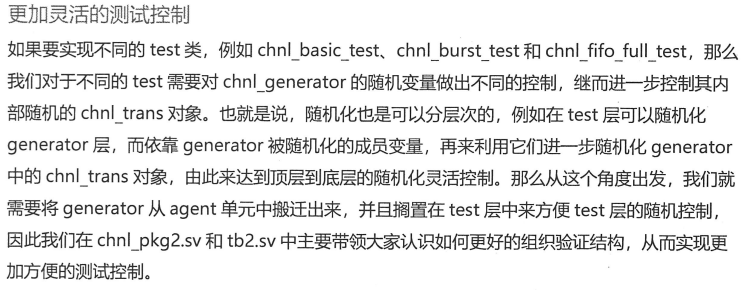

更加灵活的控制

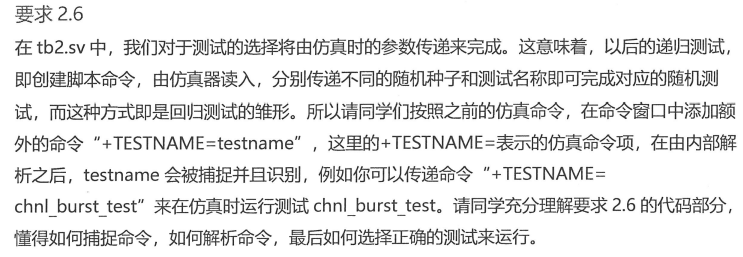

2.6



  initial begin
    basic_test = new();
    burst_test = new();
    fifo_full_test = new();
    tests["chnl_basic_test"] = basic_test;
    tests["chnl_burst_test"] = burst_test;
    tests["chnl_fifo_full_test"] = fifo_full_test;
    if($value$plusargs("TESTNAME=%s", name)) begin
      if(tests.exists(name)) begin
        tests[name].set_interface(chnl0_if, chnl1_if, chnl2_if);
        tests[name].run();
      end
      else begin
        $fatal($sformatf("[ERRTEST], test name %s is invalid, please specify a valid name!", name));
      end
    end
    else begin
      $display("NO runtime optiont TEST=[testname] is configured, and run default test chnl_basic_test");
      tests["chnl_basic_test"].set_interface(chnl0_if, chnl1_if, chnl2_if);
      tests["chnl_basic_test"].run();
    end
  end

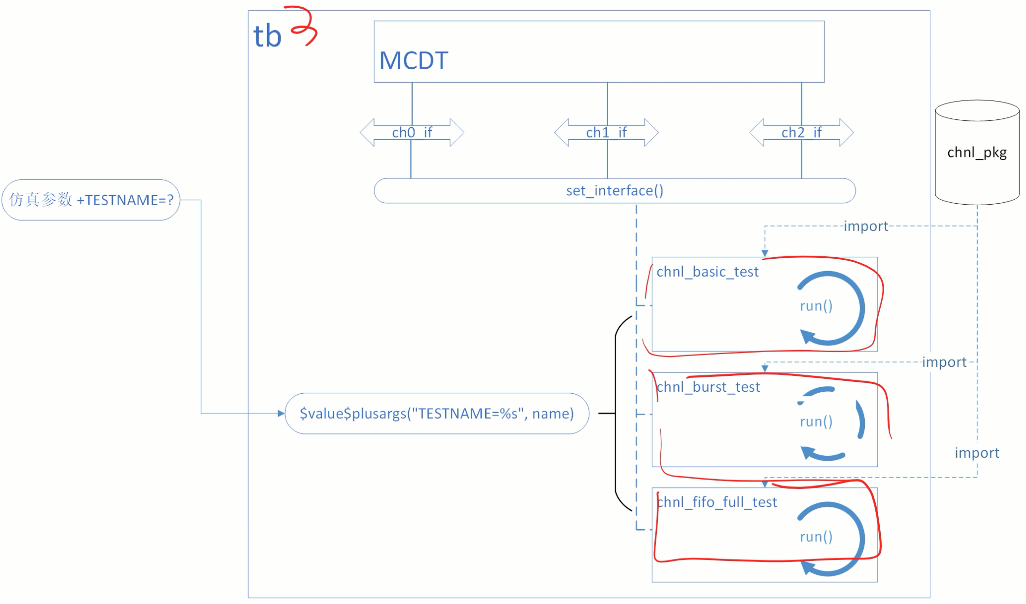

通过仿真窗口的命令灵活运行test，避免了重复编译。

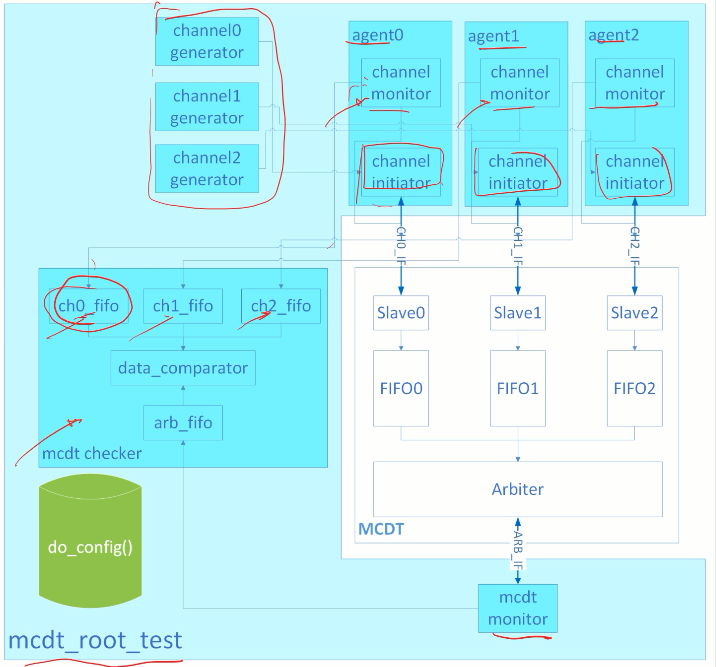

 测试平台的结构
