Skywalking之安装部署
1. 环境准备
Elasticsearch
JDK1.8
Skywalking9.3.0
wget https://archive.apache.org/dist/skywalking/9.3.0/apache-skywalking-apm-9.3.0.tar.gz
2. 安装Elasticsearch
在/etc/yum.repos.d目录下创建一个文件elasticsearch.repo，内容如下：
[elasticsearch] name=Elasticsearch repository for 8.x packages baseurl=https://artifacts.elastic.co/packages/8.x/yum gpgcheck=1 gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch enabled=0 autorefresh=1 type=rpm-md
yum install --enablerepo=elasticsearch elasticsearch
修改配置文件/etc/elasticsearch/elasticsearch.yml
network.host: 192.168.2.166
xpack.security.enabled: false
启动服务
3. 安装JDK
略
4. 安装Skywalking
tar -zxvf apache-skywalking-apm-9.3.0.tar.gz -C /usr/local/skywalking
修改配置文件/usr/local/skywalking/config/application.yml
storage:
selector: ${SW_STORAGE:elasticsearch}
elasticsearch:
namespace: ${SW_NAMESPACE:""}
clusterNodes: ${SW_STORAGE_ES_CLUSTER_NODES:192.168.2.166:9200}
启动服务：/usr/local/skywalking/bin/startup.sh
5. 访问地址
192.168.2.166:8080

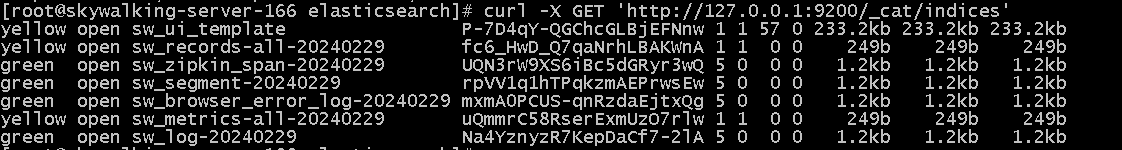

6. 查看elasticsearch是否有索引
7. Skywalking目录组成
config 配置文件目录，包含主配置文件application.yml，日志配置文件log4j2.xml,报警配置文件等
bin 启动脚本目录
licenses 项目许可文件
logs 日志路径
webapp UI部署的文件目录
oap-libs 后端模块运行所所需要的jar包目录
8. application.yml详解
1. 模块分类
1. 核心模块Core
core:
selector: ${SW_CORE:default}
default:
role: ${SW_CORE_ROLE:Mixed} # Mixed/Receiver/Aggregator
restHost: ${SW_CORE_REST_HOST:0.0.0.0}
restPort: ${SW_CORE_REST_PORT:12800}
restContextPath: ${SW_CORE_REST_CONTEXT_PATH:/}
restMaxThreads: ${SW_CORE_REST_MAX_THREADS:200}
restIdleTimeOut: ${SW_CORE_REST_IDLE_TIMEOUT:30000}
restAcceptQueueSize: ${SW_CORE_REST_QUEUE_SIZE:0}
httpMaxRequestHeaderSize: ${SW_CORE_HTTP_MAX_REQUEST_HEADER_SIZE:8192}
gRPCHost: ${SW_CORE_GRPC_HOST:0.0.0.0}
gRPCPort: ${SW_CORE_GRPC_PORT:11800}
maxConcurrentCallsPerConnection: ${SW_CORE_GRPC_MAX_CONCURRENT_CALL:0}
maxMessageSize: ${SW_CORE_GRPC_MAX_MESSAGE_SIZE:0}
gRPCThreadPoolQueueSize: ${SW_CORE_GRPC_POOL_QUEUE_SIZE:-1}
gRPCThreadPoolSize: ${SW_CORE_GRPC_THREAD_POOL_SIZE:-1}
gRPCSslEnabled: ${SW_CORE_GRPC_SSL_ENA:qBLED:false}
gRPCSslKeyPath: ${SW_CORE_GRPC_SSL_KEY_PATH:""}
gRPCSslCertChainPath: ${SW_CORE_GRPC_SSL_CERT_CHAIN_PATH:""}
gRPCSslTrustedCAPath: ${SW_CORE_GRPC_SSL_TRUSTED_CA_PATH:""}
角色分类：
Mixed
接收Agent端的数据
L1一级数据聚合
集群件通信(发送、接收)
L2二级数据聚合
数据持久化
报警
Receiver
接收Agent端的数据
L1一级数据聚合
将自身数据发送给集群其他节点处理
Aggregator
L2二级数据聚合
数据持久化
报警
2. 集群模块Cluster
cluster:
selector: ${SW_CLUSTER:standalone}
standalone:
zookeeper:
namespace: ${SW_NAMESPACE:""}
hostPort: ${SW_CLUSTER_ZK_HOST_PORT:localhost:2181}
baseSleepTimeMs: ${SW_CLUSTER_ZK_SLEEP_TIME:1000} # initial amount of time to wait between retries
maxRetries: ${SW_CLUSTER_ZK_MAX_RETRIES:3}
enableACL: ${SW_ZK_ENABLE_ACL:false} # disable ACL in default
schema: ${SW_ZK_SCHEMA:digest} # only support digest schema
expression: ${SW_ZK_EXPRESSION:skywalking:skywalking}
internalComHost: ${SW_CLUSTER_INTERNAL_COM_HOST:""}
internalComPort: ${SW_CLUSTER_INTERNAL_COM_PORT:-1}
kubernetes:
namespace: ${SW_CLUSTER_K8S_NAMESPACE:default}
labelSelector: ${SW_CLUSTER_K8S_LABEL:app=collector,release=skywalking}
uidEnvName: ${SW_CLUSTER_K8S_UID:SKYWALKING_COLLECTOR_UID}
consul:
serviceName: ${SW_SERVICE_NAME:"SkyWalking_OAP_Cluster"}
# Consul cluster nodes, example: 10.0.0.1:8500,10.0.0.2:8500,10.0.0.3:8500
hostPort: ${SW_CLUSTER_CONSUL_HOST_PORT:localhost:8500}
aclToken: ${SW_CLUSTER_CONSUL_ACLTOKEN:""}
internalComHost: ${SW_CLUSTER_INTERNAL_COM_HOST:""}
internalComPort: ${SW_CLUSTER_INTERNAL_COM_PORT:-1}
etcd:
# etcd cluster nodes, example: 10.0.0.1:2379,10.0.0.2:2379,10.0.0.3:2379
endpoints: ${SW_CLUSTER_ETCD_ENDPOINTS:localhost:2379}
namespace: ${SW_CLUSTER_ETCD_NAMESPACE:/skywalking}
serviceName: ${SW_CLUSTER_ETCD_SERVICE_NAME:"SkyWalking_OAP_Cluster"}
authentication: ${SW_CLUSTER_ETCD_AUTHENTICATION:false}
user: ${SW_CLUSTER_ETCD_USER:}
password: ${SW_CLUSTER_ETCD_PASSWORD:}
internalComHost: ${SW_CLUSTER_INTERNAL_COM_HOST:""}
nacos:
serviceName: ${SW_SERVICE_NAME:"SkyWalking_OAP_Cluster"}
hostPort: ${SW_CLUSTER_NACOS_HOST_PORT:localhost:8848}
# Nacos Configuration namespace
namespace: ${SW_CLUSTER_NACOS_NAMESPACE:"public"}
# Nacos auth username
username: ${SW_CLUSTER_NACOS_USERNAME:""}
password: ${SW_CLUSTER_NACOS_PASSWORD:""}
# Nacos auth accessKey
accessKey: ${SW_CLUSTER_NACOS_ACCESSKEY:""}
secretKey: ${SW_CLUSTER_NACOS_SECRETKEY:""}
internalComHost: ${SW_CLUSTER_INTERNAL_COM_HOST:""}
internalComPort: ${SW_CLUSTER_INTERNAL_COM_PORT:-1}
3. 存储模块Storage
storage:
selector: ${SW_STORAGE:elasticsearch}
elasticsearch:
namespace: ${SW_NAMESPACE:""}
clusterNodes: ${SW_STORAGE_ES_CLUSTER_NODES:192.168.2.166:9200}
protocol: ${SW_STORAGE_ES_HTTP_PROTOCOL:"http"}
connectTimeout: ${SW_STORAGE_ES_CONNECT_TIMEOUT:3000}
socketTimeout: ${SW_STORAGE_ES_SOCKET_TIMEOUT:30000}
responseTimeout: ${SW_STORAGE_ES_RESPONSE_TIMEOUT:15000}
numHttpClientThread: ${SW_STORAGE_ES_NUM_HTTP_CLIENT_THREAD:0}
user: ${SW_ES_USER:""}
password: ${SW_ES_PASSWORD:""}
trustStorePath: ${SW_STORAGE_ES_SSL_JKS_PATH:""}
trustStorePass: ${SW_STORAGE_ES_SSL_JKS_PASS:""}
secretsManagementFile: ${SW_ES_SECRETS_MANAGEMENT_FILE:""} # Secrets management file in the properties format includes the username, password, which are managed by 3rd party tool.
dayStep: ${SW_STORAGE_DAY_STEP:1} # Represent the number of days in the one minute/hour/day index.
indexShardsNumber: ${SW_STORAGE_ES_INDEX_SHARDS_NUMBER:1} # Shard number of new indexes
indexReplicasNumber: ${SW_STORAGE_ES_INDEX_REPLICAS_NUMBER:1}
specificIndexSettings: ${SW_STORAGE_ES_SPECIFIC_INDEX_SETTINGS:""}
superDatasetDayStep: ${SW_STORAGE_ES_SUPER_DATASET_DAY_STEP:-1} # Represent the number of days in the super size dataset record index, the default value is the same as dayStep when the value is less than 0
superDatasetIndexShardsFactor: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_SHARDS_FACTOR:5} # This factor provides more shards for the super data set, shards number = indexShardsNumber * superDatasetIndexShardsFactor. Also, this factor effects Zipkin traces.
superDatasetIndexReplicasNumber: ${SW_STORAGE_ES_SUPER_DATASET_INDEX_REPLICAS_NUMBER:0} # Represent the replicas number in the super size dataset record index, the default value is 0.
indexTemplateOrder: ${SW_STORAGE_ES_INDEX_TEMPLATE_ORDER:0} # the order of index template
bulkActions: ${SW_STORAGE_ES_BULK_ACTIONS:5000} # Execute the async bulk record data every ${SW_STORAGE_ES_BULK_ACTIONS} requests
flushInterval: ${SW_STORAGE_ES_FLUSH_INTERVAL:15}
concurrentRequests: ${SW_STORAGE_ES_CONCURRENT_REQUESTS:2} # the number of concurrent requests
resultWindowMaxSize: ${SW_STORAGE_ES_QUERY_MAX_WINDOW_SIZE:10000}
metadataQueryMaxSize: ${SW_STORAGE_ES_QUERY_MAX_SIZE:10000}
scrollingBatchSize: ${SW_STORAGE_ES_SCROLLING_BATCH_SIZE:5000}
segmentQueryMaxSize: ${SW_STORAGE_ES_QUERY_SEGMENT_SIZE:200}
profileTaskQueryMaxSize: ${SW_STORAGE_ES_QUERY_PROFILE_TASK_SIZE:200}
profileDataQueryBatchSize: ${SW_STORAGE_ES_QUERY_PROFILE_DATA_BATCH_SIZE:100}
oapAnalyzer: ${SW_STORAGE_ES_OAP_ANALYZER:"{\"analyzer\":{\"oap_analyzer\":{\"type\":\"stop\"}}}"} # the oap analyzer.
oapLogAnalyzer: ${SW_STORAGE_ES_OAP_LOG_ANALYZER:"{\"analyzer\":{\"oap_log_analyzer\":{\"type\":\"standard\"}}}"} # the oap log analyzer. It could be customized by the ES analyzer configuration to support more language log formats, such as Chinese log, Japanese log and etc.
advanced: ${SW_STORAGE_ES_ADVANCED:""}
logicSharding: ${SW_STORAGE_ES_LOGIC_SHARDING:false}
h2:
properties:
jdbcUrl: ${SW_STORAGE_H2_URL:jdbc:h2:mem:skywalking-oap-db;DB_CLOSE_DELAY=-1}
dataSource.user: ${SW_STORAGE_H2_USER:sa}
metadataQueryMaxSize: ${SW_STORAGE_H2_QUERY_MAX_SIZE:5000}
maxSizeOfBatchSql: ${SW_STORAGE_MAX_SIZE_OF_BATCH_SQL:100}
asyncBatchPersistentPoolSize: ${SW_STORAGE_ASYNC_BATCH_PERSISTENT_POOL_SIZE:1}
mysql:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:3306/swtest?rewriteBatchedStatements=true"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:root@1234}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfBatchSql: ${SW_STORAGE_MAX_SIZE_OF_BATCH_SQL:2000}
asyncBatchPersistentPoolSize: ${SW_STORAGE_ASYNC_BATCH_PERSISTENT_POOL_SIZE:4}
mysql-sharding:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:13307/swtest?rewriteBatchedStatements=true"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:root}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfBatchSql: ${SW_STORAGE_MAX_SIZE_OF_BATCH_SQL:2000}
asyncBatchPersistentPoolSize: ${SW_STORAGE_ASYNC_BATCH_PERSISTENT_POOL_SIZE:4}
dataSources: ${SW_JDBC_SHARDING_DATA_SOURCES:ds_0,ds_1}
tidb:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:mysql://localhost:4000/tidbswtest?rewriteBatchedStatements=true"}
dataSource.user: ${SW_DATA_SOURCE_USER:root}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:""}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
dataSource.useAffectedRows: ${SW_DATA_SOURCE_USE_AFFECTED_ROWS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfBatchSql: ${SW_STORAGE_MAX_SIZE_OF_BATCH_SQL:2000}
asyncBatchPersistentPoolSize: ${SW_STORAGE_ASYNC_BATCH_PERSISTENT_POOL_SIZE:4}
postgresql:
properties:
jdbcUrl: ${SW_JDBC_URL:"jdbc:postgresql://localhost:5432/skywalking"}
dataSource.user: ${SW_DATA_SOURCE_USER:postgres}
dataSource.password: ${SW_DATA_SOURCE_PASSWORD:123456}
dataSource.cachePrepStmts: ${SW_DATA_SOURCE_CACHE_PREP_STMTS:true}
dataSource.prepStmtCacheSize: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_SIZE:250}
dataSource.prepStmtCacheSqlLimit: ${SW_DATA_SOURCE_PREP_STMT_CACHE_SQL_LIMIT:2048}
dataSource.useServerPrepStmts: ${SW_DATA_SOURCE_USE_SERVER_PREP_STMTS:true}
metadataQueryMaxSize: ${SW_STORAGE_MYSQL_QUERY_MAX_SIZE:5000}
maxSizeOfBatchSql: ${SW_STORAGE_MAX_SIZE_OF_BATCH_SQL:2000}
asyncBatchPersistentPoolSize: ${SW_STORAGE_ASYNC_BATCH_PERSISTENT_POOL_SIZE:4}
banyandb:
host: ${SW_STORAGE_BANYANDB_HOST:127.0.0.1}
port: ${SW_STORAGE_BANYANDB_PORT:17912}
maxBulkSize: ${SW_STORAGE_BANYANDB_MAX_BULK_SIZE:5000}
flushInterval: ${SW_STORAGE_BANYANDB_FLUSH_INTERVAL:15}
metricsShardsNumber: ${SW_STORAGE_BANYANDB_METRICS_SHARDS_NUMBER:1}
recordShardsNumber: ${SW_STORAGE_BANYANDB_RECORD_SHARDS_NUMBER:1}
superDatasetShardsFactor: ${SW_STORAGE_BANYANDB_SUPERDATASET_SHARDS_FACTOR:2}
concurrentWriteThreads: ${SW_STORAGE_BANYANDB_CONCURRENT_WRITE_THREADS:15}
profileTaskQueryMaxSize: ${SW_STORAGE_BANYANDB_PROFILE_TASK_QUERY_MAX_SIZE:200} # the max number of fetch task in a request
streamBlockInterval: ${SW_STORAGE_BANYANDB_STREAM_BLOCK_INTERVAL:4} # Unit is hour
streamSegmentInterval: ${SW_STORAGE_BANYANDB_STREAM_SEGMENT_INTERVAL:24} # Unit is hour
measureBlockInterval: ${SW_STORAGE_BANYANDB_MEASURE_BLOCK_INTERVAL:4} # Unit is hour
measureSegmentInterval: ${SW_STORAGE_BANYANDB_MEASURE_SEGMENT_INTERVAL:24} # Unit is hour
4. 查询模块Query
query:
selector: ${SW_QUERY:graphql}
graphql:
enableLogTestTool: ${SW_QUERY_GRAPHQL_ENABLE_LOG_TEST_TOOL:false}
maxQueryComplexity: ${SW_QUERY_MAX_QUERY_COMPLEXITY:1000}
enableUpdateUITemplate: ${SW_ENABLE_UPDATE_UI_TEMPLATE:false}
enableOnDemandPodLog: ${SW_ENABLE_ON_DEMAND_POD_LOG:false}
