matplotlib散点图

matplotlib散点图

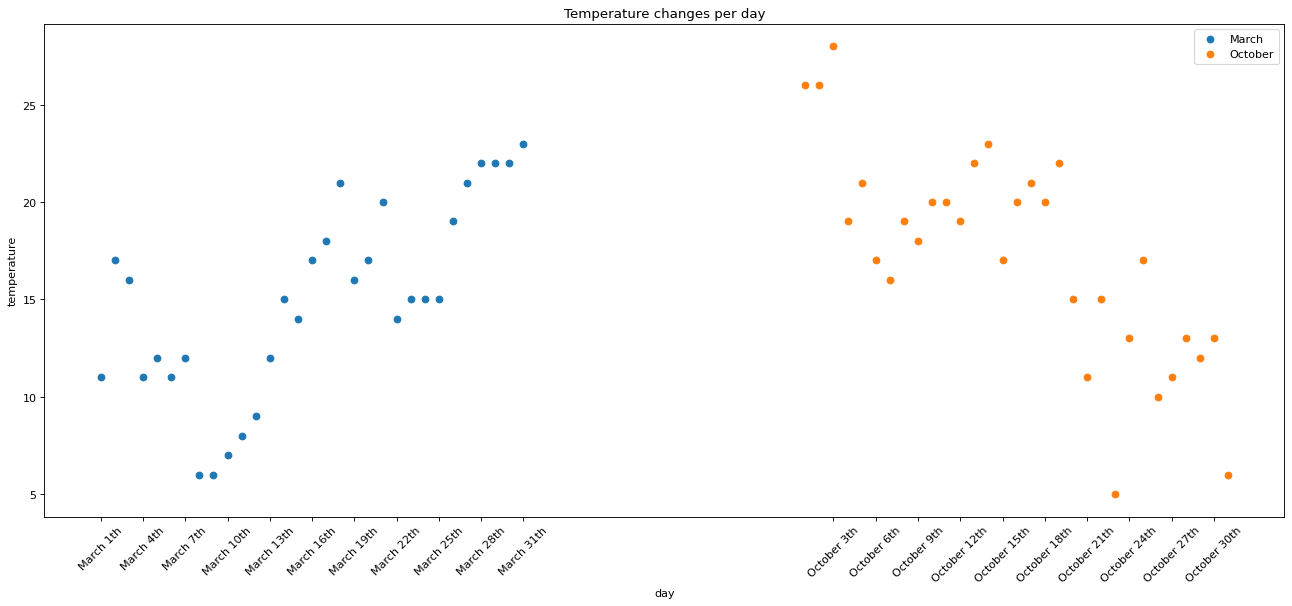

假设通过爬虫你获取到了北京2016年3, 10月份每天白天的最高气温(分别位于列表a, b), 那么此时如何寻找出气温和随时间(天)变化的某种规律?

from matplotlib import pyplot as plt

x_3 = range(1, 32)
x_10 = range(51, 82)

y_3 = [11,17,16,11,12,11,12,6,6,7,8,9,12,15,14,17,18,21,16,17,20,14,15,15,15,19,21,22,22,22,23]
y_10 = [26,26,28,19,21,17,16,19,18,20,20,19,22,23,17,20,21,20,22,15,11,15,5,13,17,10,11,13,12,13,6]

# 设置图形大小
plt.figure(figsize=(20, 8), dpi=80)

# 绘制散点
plt.scatter(x_3, y_3, label="March")
plt.scatter(x_10, y_10, label="October")

x = list(x_3) + list(x_10)
xtick_labels = ["March {}th".format(i) for i in x_3]
xtick_labels += ["October {}th".format(i-50) for i in x_10]
plt.xticks(x[::3], xtick_labels[::3], rotation=45)

# 添加图例及描述信息
plt.legend(loc="best")
plt.xlabel("day")
plt.ylabel("temperature")
plt.title("Temperature changes per day")

plt.show()
