✳驱动之ic_bus_type框架

•

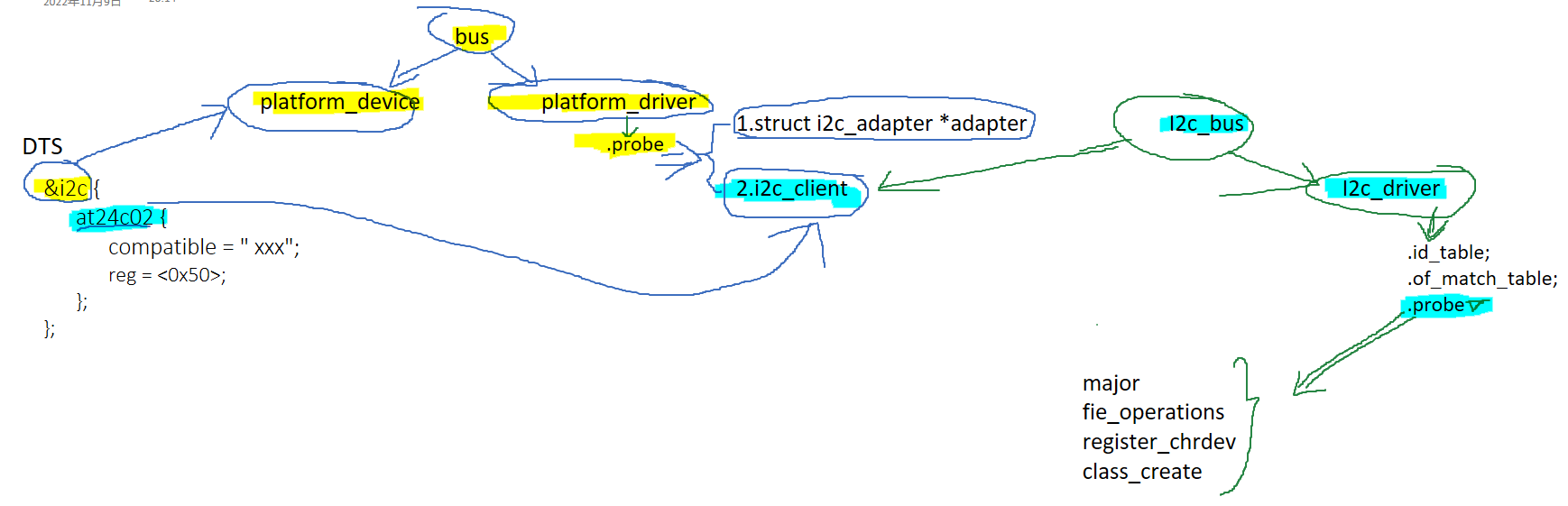

• DTS中的 i2c设备节点（子节点） (例如：AT24C02)被转化为i2c_client结构体，其所在的 i2c控制器节点（父节点）转化为platform_device 结构体，匹配到对应的 platform_driver 结构体，调用对应的 probe 函数，该函数中实现：①分配、设置、注册 i2c_adapter 结构体，i2c 控制器驱动实现 ；②解析字节点，分配、设置、注册 i2c_client 结构体，该结构体对应i2c_bus 总线框架，匹配到对应的 i2c_driver 驱动，调用其中的 probe 函数，实现major、file_operations、register_chrdev、class_create，入口出口等。
• 在实现file_operations中的read、write函数时，会使用 i2c_transfer() 函数，该函数本质是调用i2c_adapter结构体中的i2c_algorithm，此结构体包含 master_xfer()函数。

• struct i2c_adapter {
      struct module *owner;
      unsigned int class;          /* classes to allow probing for */
      const struct i2c_algorithm *algo; /* the algorithm to access the bus */
      void *algo_data;

      /* data fields that are valid for all devices    */
      const struct i2c_lock_operations *lock_ops;
      struct rt_mutex bus_lock;
      struct rt_mutex mux_lock;

      int timeout;            /* in jiffies */
      int retries;
      struct device dev;        /* the adapter device */

      int nr;
      char name[48];
      struct completion dev_released;

      struct mutex userspace_clients_lock;
      struct list_head userspace_clients;

      struct i2c_bus_recovery_info *bus_recovery_info;
      const struct i2c_adapter_quirks *quirks;
  };
  struct i2c_client {
      unsigned short flags;        /* div., see below        */
      unsigned short addr;        /* chip address - NOTE: 7bit    */
                      /* addresses are stored in the    */
                      /* _LOWER_ 7 bits        */
      char name[I2C_NAME_SIZE];
      struct i2c_adapter *adapter;    /* the adapter we sit on    */
      struct device dev;        /* the device structure        */
      int irq;            /* irq issued by device        */
      struct list_head detected;
  #if IS_ENABLED(CONFIG_I2C_SLAVE)
      i2c_slave_cb_t slave_cb;    /* callback for slave mode    */
  #endif
  };

  struct i2c_algorithm {
      /* If an adapter algorithm can't do I2C-level access, set master_xfer
         to NULL. If an adapter algorithm can do SMBus access, set
         smbus_xfer. If set to NULL, the SMBus protocol is simulated
         using common I2C messages */
      /* master_xfer should return the number of messages successfully
         processed, or a negative value on error */
      int (*master_xfer)(struct i2c_adapter *adap, struct i2c_msg *msgs,
                 int num);
      int (*smbus_xfer) (struct i2c_adapter *adap, u16 addr,
                 unsigned short flags, char read_write,
                 u8 command, int size, union i2c_smbus_data *data);

      /* To determine what the adapter supports */
      u32 (*functionality) (struct i2c_adapter *);

  #if IS_ENABLED(CONFIG_I2C_SLAVE)
      int (*reg_slave)(struct i2c_client *client);
      int (*unreg_slave)(struct i2c_client *client);
  #endif
  };

  struct i2c_client {
      unsigned short flags;        /* div., see below        */
      unsigned short addr;        /* chip address - NOTE: 7bit    */
                      /* addresses are stored in the    */
                      /* _LOWER_ 7 bits        */
      char name[I2C_NAME_SIZE];
      struct i2c_adapter *adapter;    /* the adapter we sit on    */
      struct device dev;        /* the device structure        */
      int irq;            /* irq issued by device        */
      struct list_head detected;
  #if IS_ENABLED(CONFIG_I2C_SLAVE)
      i2c_slave_cb_t slave_cb;    /* callback for slave mode    */
  #endif
  };



• probe中应用输入系统框架：

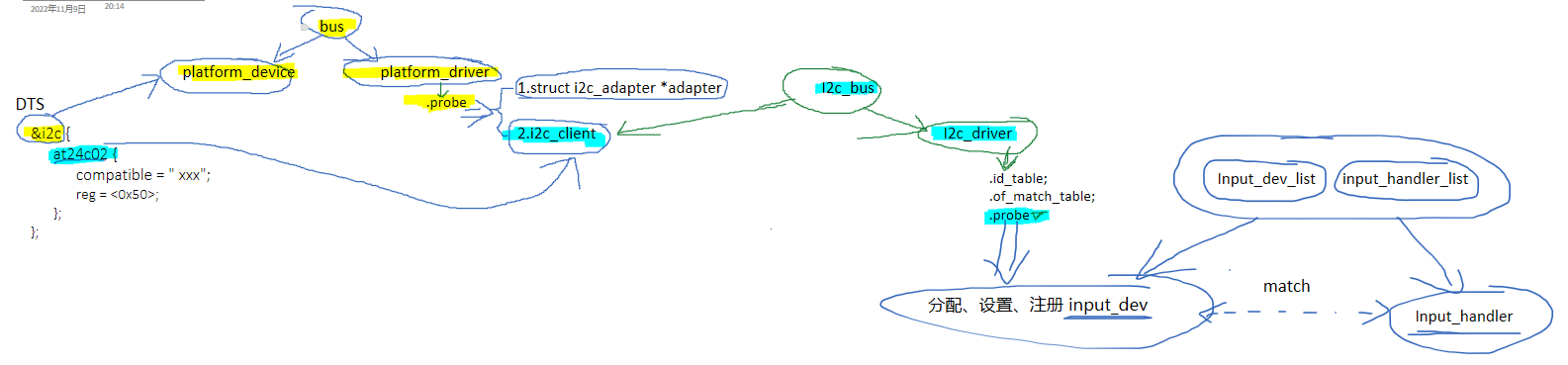

• 为了适配以前写好的应用程序，上述probe函数中 使用到了输入系统 input_dev；不再是实现 major 这些，因为以前的应用程序可能不会去open一个你创建的设备节点，现在要去适配以前的应用程序，所以用到输入系统。
•
• at24c02 应用

#define IO_READ 100;
#define IO_WRITE 101;

static struct i2c_client* at24c02_client;
static int major;
static struct class* at24c02_class;
static long at24c02_ioctl(struct file* file,unsigned int cmd,unsigned long arg){
    unsigned char data;
    unsigned char address;
    unsigned int ker_buf[2];
    unsigned int* user_buf = (unsigned int *)arg;
    copy_from_user(user_buf,ker_buf,8);
    struct i2c_msg msgs[2];
    address = ker_buf[1];
    unsigned int byte_buf[2];
    switch(cmd){
        case IO_READ:{
            msgs[0].addr = at24c02_client->addr;//设备地址
            msgs[0].flags = 0;//写地址
            msgs[0].len = 1;
            msgs[0].buf = &address;
            msgs[1].addr = at24c02_client->addr;
            msgs[1].flags = I2C_M_RD;
            msgs[1].len = 1;
            msgs[1].buf = &data;
            i2c_transfer(at24c02_client->adapter,msgs,2);
            ker_buf[1] = data;
            copy_to_user(ker_buf,user_buf,8);
            break;
        }
        case IO_WRITE:{
            byte_buf[0] = address;
            byte_buf[1] = ker_buf[1];
            msgs[0].addr = at24c02_client->addr;
            msgs[0].flags = 0;
            msgs[0].len = 2;
            msgs[0].buf = byte_buf;
            i2c_transfer(at24c02_client->adapter,msgs,1);
            mdelay(20);
            break;
        }
    }
}
static struct of_device_id gao_at24c02[] ={
    {.compatible = "gao,at24c02"},
    { },
};
static struct file_operations at24c02_fops = {
    .owner = THIS_MODULE,
    .unlocked_ioctl = at24c02_ioctl,
}
static int at24c02_probe(struct i2c_client* client,const struct i2c_device_id* id){
    at24c02_client = client;
    major = register_chrdev(0,"at24c02",&at24c02_fops);
    at24c02_class = class_create(THIS_MODULE,"at24c02_class");
    device_create(at24c02_class,NULL,MKDEV(major,0),NULL,"myat24c02");
    return 0;
}
static int at24c02_remove(struct i2c_client* client){
    device_destroy(at24c02_class,MKDEV(major,0));
    class_destroy(at24c02_class);
    unregister_chrdev(major,"at24c02");
    return 0;
}
static struct i2c_device_id at24c02_id[] ={
    {.name = "xxx",.driver_data = NULL},
    { },
};
static struct i2c_driver at24c02_driver = {
    .driver = {
        .name = "myat24c02",
        .of_match_table = gao_at24c02,
    },
    .probe = at24c02_probe,
    .remove = at24c02_remove,
    .id_table = at24c02_id,//即使不用也得提供。调试程序时发现的bug(韦东山驱动开发P128、129)
};
static int __init at24c02_init(void){
    return err;
    err = i2c_add_driver(&at24c02_driver);
}
static void __exit at24c02_exit(void){
    i2c_del_driver(&at24c02_driver);
}
module_init(at24c02_init);
module_exit(at24c02_exit);
MODULE_LICENSE("GPL");
