WinForm RadioButton、CheckBox、ComboBox控件的使用

参考

环境

软件/系统	版本	说明
Windows	windows 10 专业版 22H2 64 位操作系统, 基于 x64 的处理器
Microsoft Visual Studio	Community 2022 (64 位) - Current 版本 17.13.6
.NET Framework	4.8

注意

RadioButton 需要放入同一容器才可以实现分组唯一选择。
ComboBox 如果通过 DataSource 赋值 List 数据，并且 List 是自定义类泛型，那么这个类、类属性需要设置为 public，并且属性要设置 { get; set; } ，否则会报错 无法绑定到新的显示成员，参数名：newDisplayMember
获取一组控件的值可以通过 容器.Controls 进行遍历处理。

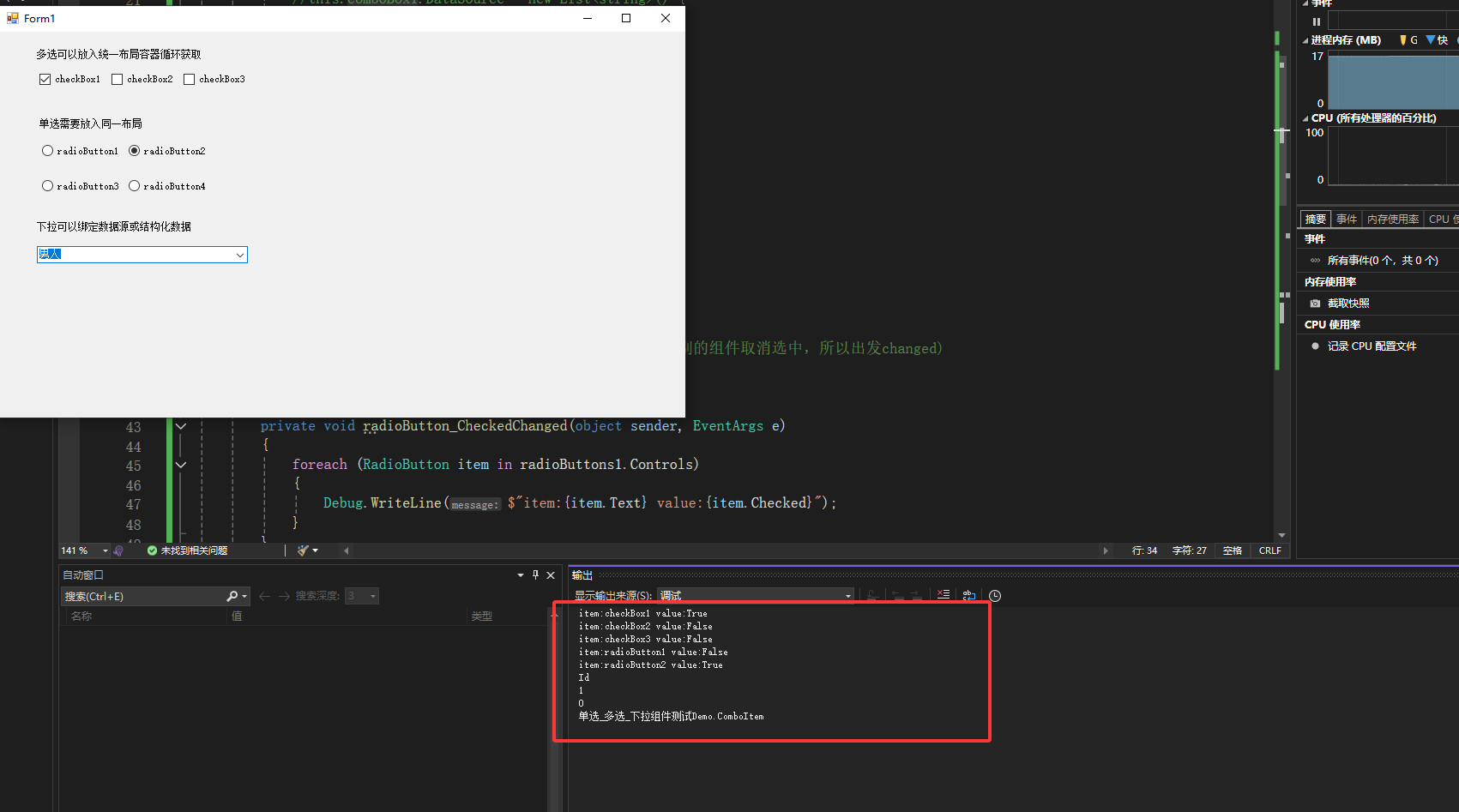

预览

代码

Form.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace 单选_多选_下拉组件测试Demo
{
	public partial class Form1 : Form
	{

		public Form1()
		{
			InitializeComponent();
			//// 列表赋值
			//this.comboBox1.DataSource = new List<string>() {
			//    "男人",
			//    "女人",
			//    "不告诉你",
			//};
			// 列表结构化数据赋值
			var data = new List<ComboItem>() {
				new ComboItem(){ Id=1, Text ="男人" },
				new ComboItem(){ Id=2, Text ="女人" },
				new ComboItem(){ Id=3, Text ="不告诉你" },

			};

			this.comboBox1.DataSource = data;
			this.comboBox1.DisplayMember = "Text";
			this.comboBox1.ValueMember = "Id";
		}
		/// <summary>
		/// 单选事件(这里会出现多选项时会调用多次，因为也会让别的组件取消选中，所以出发changed)
		/// </summary>
		/// <param name="sender"></param>
		/// <param name="e"></param>
		private void radioButton_CheckedChanged(object sender, EventArgs e)
		{
			foreach (RadioButton item in radioButtons1.Controls)
			{
				Debug.WriteLine($"item:{item.Text} value:{item.Checked}");
			}
		}
		/// <summary>
		/// 多选事件
		/// </summary>
		/// <param name="sender"></param>
		/// <param name="e"></param>
		private void checkBox_CheckedChanged(object sender, EventArgs e)
		{
			foreach (CheckBox item in checkBoxs.Controls)
			{
				Debug.WriteLine($"item:{item.Text} value:{item.Checked}");
			}
		}
		/// <summary>
		/// 下拉框调整
		/// </summary>
		/// <param name="sender"></param>
		/// <param name="e"></param>
		private void comboBox1_SelectedIndexChanged(object sender, EventArgs e)
		{
			Debug.WriteLine(this.comboBox1.ValueMember);
			Debug.WriteLine(this.comboBox1.SelectedValue);
			Debug.WriteLine(this.comboBox1.SelectedIndex);
			Debug.WriteLine(this.comboBox1.SelectedItem);
		}


	}
	public class ComboItem
	{
		public int Id { get; set; }
		public string Text { get; set; }
	}
}

Form1.Designer.cs

namespace 单选_多选_下拉组件测试Demo
{
	partial class Form1
	{
		/// <summary>
		/// 必需的设计器变量。
		/// </summary>
		private System.ComponentModel.IContainer components = null;

		/// <summary>
		/// 清理所有正在使用的资源。
		/// </summary>
		/// <param name="disposing">如果应释放托管资源，为 true；否则为 false。</param>
		protected override void Dispose(bool disposing)
		{
			if (disposing && (components != null))
			{
				components.Dispose();
			}
			base.Dispose(disposing);
		}

		#region Windows 窗体设计器生成的代码

		/// <summary>
		/// 设计器支持所需的方法 - 不要修改
		/// 使用代码编辑器修改此方法的内容。
		/// </summary>
		private void InitializeComponent()
		{
			this.checkBox1 = new System.Windows.Forms.CheckBox();
			this.checkBox2 = new System.Windows.Forms.CheckBox();
			this.checkBox3 = new System.Windows.Forms.CheckBox();
			this.comboBox1 = new System.Windows.Forms.ComboBox();
			this.radioButton1 = new System.Windows.Forms.RadioButton();
			this.radioButton2 = new System.Windows.Forms.RadioButton();
			this.radioButtons1 = new System.Windows.Forms.FlowLayoutPanel();
			this.radioButtons2 = new System.Windows.Forms.FlowLayoutPanel();
			this.radioButton3 = new System.Windows.Forms.RadioButton();
			this.radioButton4 = new System.Windows.Forms.RadioButton();
			this.label1 = new System.Windows.Forms.Label();
			this.label2 = new System.Windows.Forms.Label();
			this.checkBoxs = new System.Windows.Forms.FlowLayoutPanel();
			this.label3 = new System.Windows.Forms.Label();
			this.radioButtons1.SuspendLayout();
			this.radioButtons2.SuspendLayout();
			this.checkBoxs.SuspendLayout();
			this.SuspendLayout();
			//
			// checkBox1
			//
			this.checkBox1.AutoSize = true;
			this.checkBox1.Location = new System.Drawing.Point(3, 3);
			this.checkBox1.Name = "checkBox1";
			this.checkBox1.Size = new System.Drawing.Size(78, 16);
			this.checkBox1.TabIndex = 0;
			this.checkBox1.Text = "checkBox1";
			this.checkBox1.UseVisualStyleBackColor = true;
			this.checkBox1.CheckedChanged += new System.EventHandler(this.checkBox_CheckedChanged);
			//
			// checkBox2
			//
			this.checkBox2.AutoSize = true;
			this.checkBox2.Location = new System.Drawing.Point(87, 3);
			this.checkBox2.Name = "checkBox2";
			this.checkBox2.Size = new System.Drawing.Size(78, 16);
			this.checkBox2.TabIndex = 1;
			this.checkBox2.Text = "checkBox2";
			this.checkBox2.UseVisualStyleBackColor = true;
			this.checkBox2.CheckedChanged += new System.EventHandler(this.checkBox_CheckedChanged);
			//
			// checkBox3
			//
			this.checkBox3.AutoSize = true;
			this.checkBox3.Location = new System.Drawing.Point(171, 3);
			this.checkBox3.Name = "checkBox3";
			this.checkBox3.Size = new System.Drawing.Size(78, 16);
			this.checkBox3.TabIndex = 2;
			this.checkBox3.Text = "checkBox3";
			this.checkBox3.UseVisualStyleBackColor = true;
			this.checkBox3.CheckedChanged += new System.EventHandler(this.checkBox_CheckedChanged);
			//
			// comboBox1
			//
			this.comboBox1.FormattingEnabled = true;
			this.comboBox1.Items.AddRange(new object[] {
			"男人",
			"女人"});
			this.comboBox1.Location = new System.Drawing.Point(44, 250);
			this.comboBox1.Name = "comboBox1";
			this.comboBox1.Size = new System.Drawing.Size(246, 20);
			this.comboBox1.TabIndex = 3;
			this.comboBox1.SelectedIndexChanged += new System.EventHandler(this.comboBox1_SelectedIndexChanged);
			//
			// radioButton1
			//
			this.radioButton1.AutoSize = true;
			this.radioButton1.Location = new System.Drawing.Point(3, 3);
			this.radioButton1.Name = "radioButton1";
			this.radioButton1.Size = new System.Drawing.Size(95, 16);
			this.radioButton1.TabIndex = 4;
			this.radioButton1.TabStop = true;
			this.radioButton1.Text = "radioButton1";
			this.radioButton1.UseVisualStyleBackColor = true;
			this.radioButton1.CheckedChanged += new System.EventHandler(this.radioButton_CheckedChanged);
			//
			// radioButton2
			//
			this.radioButton2.AutoSize = true;
			this.radioButton2.Location = new System.Drawing.Point(104, 3);
			this.radioButton2.Name = "radioButton2";
			this.radioButton2.Size = new System.Drawing.Size(95, 16);
			this.radioButton2.TabIndex = 5;
			this.radioButton2.TabStop = true;
			this.radioButton2.Text = "radioButton2";
			this.radioButton2.UseVisualStyleBackColor = true;
			this.radioButton2.CheckedChanged += new System.EventHandler(this.radioButton_CheckedChanged);
			//
			// radioButtons1
			//
			this.radioButtons1.Controls.Add(this.radioButton1);
			this.radioButtons1.Controls.Add(this.radioButton2);
			this.radioButtons1.Location = new System.Drawing.Point(47, 128);
			this.radioButtons1.Name = "radioButtons1";
			this.radioButtons1.Size = new System.Drawing.Size(263, 25);
			this.radioButtons1.TabIndex = 7;
			//
			// radioButtons2
			//
			this.radioButtons2.Controls.Add(this.radioButton3);
			this.radioButtons2.Controls.Add(this.radioButton4);
			this.radioButtons2.Location = new System.Drawing.Point(47, 169);
			this.radioButtons2.Name = "radioButtons2";
			this.radioButtons2.Size = new System.Drawing.Size(263, 25);
			this.radioButtons2.TabIndex = 8;
			//
			// radioButton3
			//
			this.radioButton3.AutoSize = true;
			this.radioButton3.Location = new System.Drawing.Point(3, 3);
			this.radioButton3.Name = "radioButton3";
			this.radioButton3.Size = new System.Drawing.Size(95, 16);
			this.radioButton3.TabIndex = 4;
			this.radioButton3.TabStop = true;
			this.radioButton3.Text = "radioButton3";
			this.radioButton3.UseVisualStyleBackColor = true;
			//
			// radioButton4
			//
			this.radioButton4.AutoSize = true;
			this.radioButton4.Location = new System.Drawing.Point(104, 3);
			this.radioButton4.Name = "radioButton4";
			this.radioButton4.Size = new System.Drawing.Size(95, 16);
			this.radioButton4.TabIndex = 5;
			this.radioButton4.TabStop = true;
			this.radioButton4.Text = "radioButton4";
			this.radioButton4.UseVisualStyleBackColor = true;
			//
			// label1
			//
			this.label1.AutoSize = true;
			this.label1.Location = new System.Drawing.Point(45, 101);
			this.label1.Name = "label1";
			this.label1.Size = new System.Drawing.Size(125, 12);
			this.label1.TabIndex = 9;
			this.label1.Text = "单选需要放入同一布局";
			//
			// label2
			//
			this.label2.AutoSize = true;
			this.label2.Location = new System.Drawing.Point(42, 20);
			this.label2.Name = "label2";
			this.label2.Size = new System.Drawing.Size(197, 12);
			this.label2.TabIndex = 10;
			this.label2.Text = "多选可以放入统一布局容器循环获取";
			//
			// checkBoxs
			//
			this.checkBoxs.Controls.Add(this.checkBox1);
			this.checkBoxs.Controls.Add(this.checkBox2);
			this.checkBoxs.Controls.Add(this.checkBox3);
			this.checkBoxs.Location = new System.Drawing.Point(44, 45);
			this.checkBoxs.Name = "checkBoxs";
			this.checkBoxs.Size = new System.Drawing.Size(334, 31);
			this.checkBoxs.TabIndex = 11;
			//
			// label3
			//
			this.label3.AutoSize = true;
			this.label3.Location = new System.Drawing.Point(42, 221);
			this.label3.Name = "label3";
			this.label3.Size = new System.Drawing.Size(185, 12);
			this.label3.TabIndex = 12;
			this.label3.Text = "下拉可以绑定数据源或结构化数据";
			//
			// Form1
			//
			this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 12F);
			this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
			this.ClientSize = new System.Drawing.Size(800, 450);
			this.Controls.Add(this.label3);
			this.Controls.Add(this.checkBoxs);
			this.Controls.Add(this.label2);
			this.Controls.Add(this.label1);
			this.Controls.Add(this.radioButtons1);
			this.Controls.Add(this.radioButtons2);
			this.Controls.Add(this.comboBox1);
			this.Name = "Form1";
			this.Text = "Form1";
			this.radioButtons1.ResumeLayout(false);
			this.radioButtons1.PerformLayout();
			this.radioButtons2.ResumeLayout(false);
			this.radioButtons2.PerformLayout();
			this.checkBoxs.ResumeLayout(false);
			this.checkBoxs.PerformLayout();
			this.ResumeLayout(false);
			this.PerformLayout();

		}

		#endregion

		private System.Windows.Forms.CheckBox checkBox1;
		private System.Windows.Forms.CheckBox checkBox2;
		private System.Windows.Forms.CheckBox checkBox3;
		private System.Windows.Forms.ComboBox comboBox1;
		private System.Windows.Forms.RadioButton radioButton1;
		private System.Windows.Forms.RadioButton radioButton2;
		private System.Windows.Forms.FlowLayoutPanel radioButtons1;
		private System.Windows.Forms.FlowLayoutPanel radioButtons2;
		private System.Windows.Forms.RadioButton radioButton3;
		private System.Windows.Forms.RadioButton radioButton4;
		private System.Windows.Forms.Label label1;
		private System.Windows.Forms.Label label2;
		private System.Windows.Forms.FlowLayoutPanel checkBoxs;
		private System.Windows.Forms.Label label3;
	}
}
