WinForm DataGridView 的使用、与使用 ComboBox

参考

环境

软件/系统	版本	说明
Windows	windows 10 专业版 22H2 64 位操作系统, 基于 x64 的处理器
Microsoft Visual Studio	Community 2022 (64 位) - Current 版本 17.13.6
.NET Framework	4.8

使用场景

BindingSource 组件可以跨窗体共享绑定数据

基于本地数据库模式
定义顺序为：DataSet->BindingSource(绑定到DataSet的数据库和表)->DataGridView->BindingNavigator
基于前后端分离模式
定义顺序为: DataSet（可以不定义，通过手动指定的防止给 BindingSource 赋值 DataSource ）>BindingSource->DataGridView->BindingNavigator(绑定BindingSource组件)
基于api形式也可以这么说BindingSource（将结构化数据数据赋值给DataSource）->DataGridView->BindingNavigator

正文

基于本地数据库模式

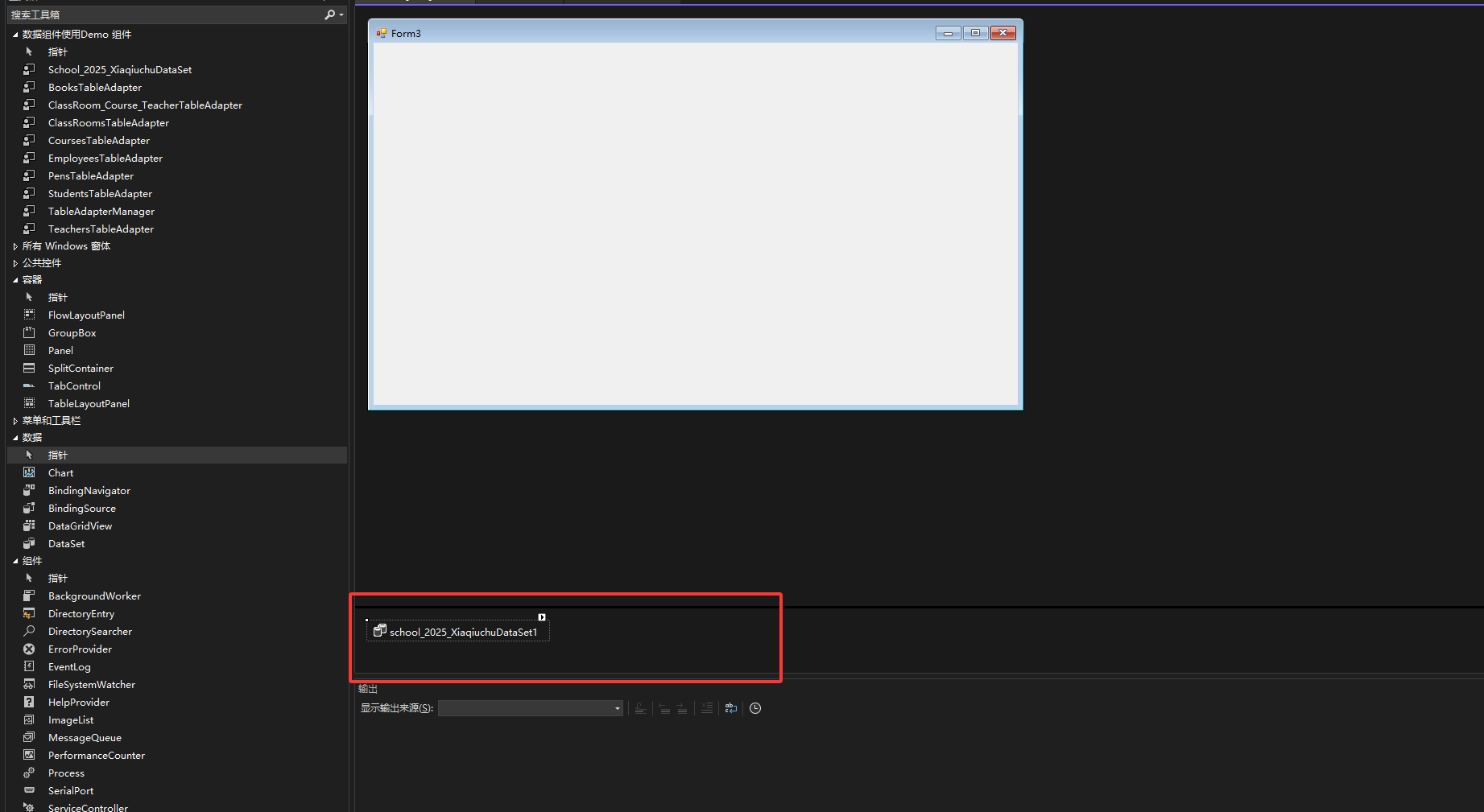

页面添加 DataSet 控件，添加时会提示选择添加类型化数据集（连接数据库）或非类型化数据集（不需要连接数据库），选择类型化数据集，然后添加对应的数据库连接即可，添加后会在控件页面底部位置出现一个你的数据库连接的DataSet。

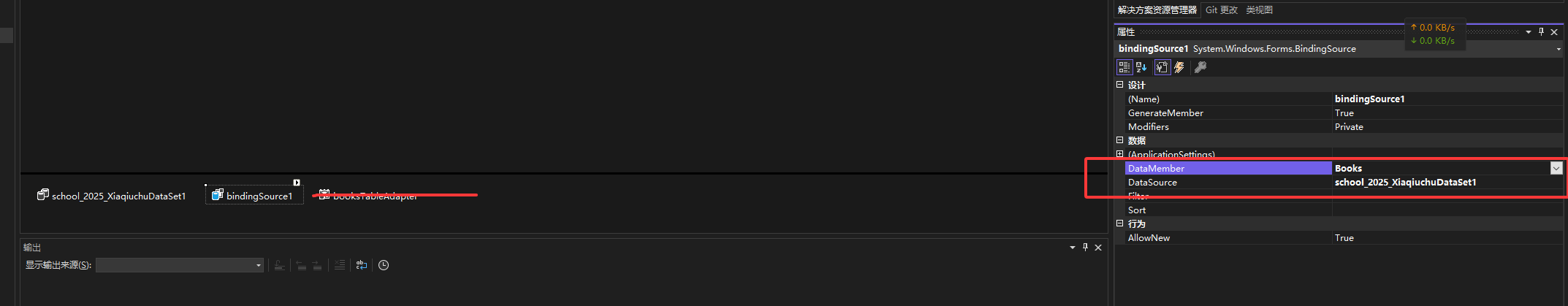

添加 BindingSource 组件。
1. 属性DataSource指定为已添加的DataSet
2. 属性DataMember指定为已添加DataSet内的数据表（指定后会自动添加一个对应数据表名TableAdapter控件）
添加 DataGridView 组件，并指定数据源为 BindingSource 组件（指定后字段自动填充，如果需要调整请点击组件的编辑列或添加列）
添加 BindingNavigator 组件
1. 属性 DataSource指定为已添加的 BindingSource

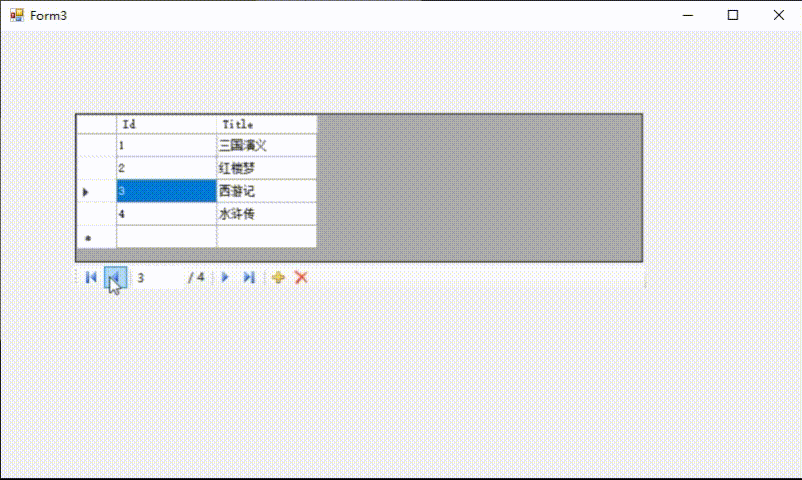

点击运行程序，即可正常运行，相关操作也可以正常关联使用，如：添加、删除、修改、上一条、下一条。。（注意：1.记得启动当前连接的数据库，否则窗体不显示; 2.数据操作并没有入库，需要手动添加事件处理）

基于前后端分离模式

基于前后端分离模式可以不添加DataSet 控件。
添加也没问题，添加类型为非类型化数据集，手动维护数据表名、数据表的字段。
然后用DataSet的来管理DataGridView显示的列。（如果添加了DataSet，记得给属性DataMember指定为已添加DataSet内的数据表）

添加 BindingSource 组件
添加 DataGridView 组件
1. 手动添加任意列，给每列设置DataPropertyName对应数据的字段名（不添加数据列会导致列表有数据也不显示）
2. 指定数据源为 BindingSource 组件
添加 BindingNavigator 组件，并指定数据源为 BindingSource 组件

代码中手动给BindingSource的DataSource属性赋值List类型数据

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace 数据组件使用Demo
{
	public partial class Form2 : Form
	{
		public Form2()
		{
			InitializeComponent();
			//this.bindingNavigator1.BindingSource = this.bindingSource1;
			this.bindingSource1.DataSource = users;
		}
		private List<UserModel> users = new List<UserModel>() {
			new UserModel()
			{
				Id = 1,
				UserName="张三",
				Sex=1,
				Age=18
			},
			new UserModel()
			{
				Id = 2,
				UserName="李四",
				Sex=2,
				Age=22
			},
			new UserModel()
			{
				Id =3,
				UserName="王五",
				Sex=2,
				Age=30
			},
			new UserModel()
			{
				Id = 4,
				UserName="赵六",
				Sex=1,
				Age=25
			},
		};

		private void dataGridView1_CellValueChanged(object sender, DataGridViewCellEventArgs e)
		{
			////e.ColumnIndex
			//if (this.dataSet1.Tables == null)
			//{
			//    Debug.WriteLine(this.dataSet1.Tables["Students"].GetChanges());
			//}


		}
	}
	public class UserModel
	{
		public int Id { get; set; }
		public string UserName { get; set; }
		public int Sex { get; set; }
		public int Age { get; set; }
	}
}

点击运行程序，即可正常运行，相关操作也可以正常关联使用，如：添加、删除、修改、上一条、下一条。。（注意：1.记得启动当前连接的数据库，否则窗体不显示; 2.数据操作并没有入库，需要手动添加事件处理）

扩展

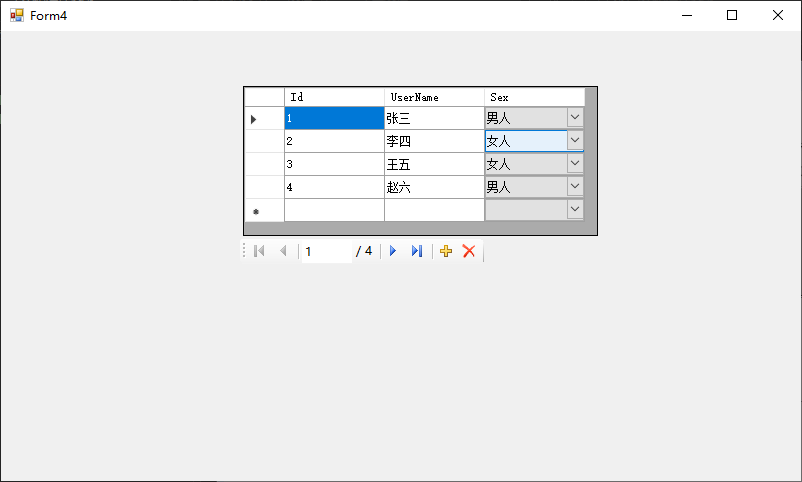

在 `DataGridView` 中使用 `ComboBox`

对应需要使用ComboBox的列，需要在 DataGridView->编辑列->Column修改为DataGridViewComboBoxColumn。

Form4.cs

using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Diagnostics;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace 数据组件使用Demo
{
	public partial class Form4 : Form
	{
		public class ComboItem
		{
			public int Id { get; set; }
			public string Text { get; set; }
		}
		private List<UserModel> users = new List<UserModel>() {
			new UserModel()
			{
				Id = 1,
				UserName="张三",
				Sex=1,
				Age=18
			},
			new UserModel()
			{
				Id = 2,
				UserName="李四",
				Sex=2,
				Age=22
			},
			new UserModel()
			{
				Id =3,
				UserName="王五",
				Sex=2,
				Age=30
			},
			new UserModel()
			{
				Id = 4,
				UserName="赵六",
				Sex=1,
				Age=25
			},
		};

		public Form4()
		{
			InitializeComponent();
			//
			this.bindingSource1.DataSource = users;
			DataGridViewComboBoxColumn column = (DataGridViewComboBoxColumn)this.dataGridView1.Columns[2];
			column.DataSource = new List<ComboItem>() {
				new ComboItem(){ Id=1, Text ="男人" },
				new ComboItem(){ Id=2, Text ="女人" },
				new ComboItem(){ Id=3, Text ="不告诉你" },

			};
			column.DisplayMember = "Text";
			column.ValueMember = "Id";
		}
	}
}

Form4.Designer.cs

namespace 数据组件使用Demo
{
	partial class Form4
	{
		/// <summary>
		/// Required designer variable.
		/// </summary>
		private System.ComponentModel.IContainer components = null;

		/// <summary>
		/// Clean up any resources being used.
		/// </summary>
		/// <param name="disposing">true if managed resources should be disposed; otherwise, false.</param>
		protected override void Dispose(bool disposing)
		{
			if (disposing && (components != null))
			{
				components.Dispose();
			}
			base.Dispose(disposing);
		}

		#region Windows Form Designer generated code

		/// <summary>
		/// Required method for Designer support - do not modify
		/// the contents of this method with the code editor.
		/// </summary>
		private void InitializeComponent()
		{
			this.components = new System.ComponentModel.Container();
			System.ComponentModel.ComponentResourceManager resources = new System.ComponentModel.ComponentResourceManager(typeof(Form4));
			this.bindingSource1 = new System.Windows.Forms.BindingSource(this.components);
			this.flowLayoutPanel1 = new System.Windows.Forms.FlowLayoutPanel();
			this.dataGridView1 = new System.Windows.Forms.DataGridView();
			this.bindingNavigator1 = new System.Windows.Forms.BindingNavigator(this.components);
			this.bindingNavigatorMoveFirstItem = new System.Windows.Forms.ToolStripButton();
			this.bindingNavigatorMovePreviousItem = new System.Windows.Forms.ToolStripButton();
			this.bindingNavigatorSeparator = new System.Windows.Forms.ToolStripSeparator();
			this.bindingNavigatorPositionItem = new System.Windows.Forms.ToolStripTextBox();
			this.bindingNavigatorCountItem = new System.Windows.Forms.ToolStripLabel();
			this.bindingNavigatorSeparator1 = new System.Windows.Forms.ToolStripSeparator();
			this.bindingNavigatorMoveNextItem = new System.Windows.Forms.ToolStripButton();
			this.bindingNavigatorMoveLastItem = new System.Windows.Forms.ToolStripButton();
			this.bindingNavigatorSeparator2 = new System.Windows.Forms.ToolStripSeparator();
			this.bindingNavigatorAddNewItem = new System.Windows.Forms.ToolStripButton();
			this.bindingNavigatorDeleteItem = new System.Windows.Forms.ToolStripButton();
			this.Id = new System.Windows.Forms.DataGridViewTextBoxColumn();
			this.UserName = new System.Windows.Forms.DataGridViewTextBoxColumn();
			this.Sex = new System.Windows.Forms.DataGridViewComboBoxColumn();
			this.printDocument1 = new System.Drawing.Printing.PrintDocument();
			((System.ComponentModel.ISupportInitialize)(this.bindingSource1)).BeginInit();
			this.flowLayoutPanel1.SuspendLayout();
			((System.ComponentModel.ISupportInitialize)(this.dataGridView1)).BeginInit();
			((System.ComponentModel.ISupportInitialize)(this.bindingNavigator1)).BeginInit();
			this.bindingNavigator1.SuspendLayout();
			this.SuspendLayout();
			//
			// flowLayoutPanel1
			//
			this.flowLayoutPanel1.Controls.Add(this.dataGridView1);
			this.flowLayoutPanel1.Controls.Add(this.bindingNavigator1);
			this.flowLayoutPanel1.Location = new System.Drawing.Point(239, 52);
			this.flowLayoutPanel1.Name = "flowLayoutPanel1";
			this.flowLayoutPanel1.Size = new System.Drawing.Size(358, 259);
			this.flowLayoutPanel1.TabIndex = 0;
			//
			// dataGridView1
			//
			this.dataGridView1.AutoGenerateColumns = false;
			this.dataGridView1.ColumnHeadersHeightSizeMode = System.Windows.Forms.DataGridViewColumnHeadersHeightSizeMode.AutoSize;
			this.dataGridView1.Columns.AddRange(new System.Windows.Forms.DataGridViewColumn[] {
			this.Id,
			this.UserName,
			this.Sex});
			this.dataGridView1.DataSource = this.bindingSource1;
			this.dataGridView1.Location = new System.Drawing.Point(3, 3);
			this.dataGridView1.Name = "dataGridView1";
			this.dataGridView1.RowTemplate.Height = 23;
			this.dataGridView1.Size = new System.Drawing.Size(355, 150);
			this.dataGridView1.TabIndex = 0;
			//
			// bindingNavigator1
			//
			this.bindingNavigator1.AddNewItem = this.bindingNavigatorAddNewItem;
			this.bindingNavigator1.BindingSource = this.bindingSource1;
			this.bindingNavigator1.CountItem = this.bindingNavigatorCountItem;
			this.bindingNavigator1.DeleteItem = this.bindingNavigatorDeleteItem;
			this.bindingNavigator1.Items.AddRange(new System.Windows.Forms.ToolStripItem[] {
			this.bindingNavigatorMoveFirstItem,
			this.bindingNavigatorMovePreviousItem,
			this.bindingNavigatorSeparator,
			this.bindingNavigatorPositionItem,
			this.bindingNavigatorCountItem,
			this.bindingNavigatorSeparator1,
			this.bindingNavigatorMoveNextItem,
			this.bindingNavigatorMoveLastItem,
			this.bindingNavigatorSeparator2,
			this.bindingNavigatorAddNewItem,
			this.bindingNavigatorDeleteItem});
			this.bindingNavigator1.Location = new System.Drawing.Point(0, 156);
			this.bindingNavigator1.MoveFirstItem = this.bindingNavigatorMoveFirstItem;
			this.bindingNavigator1.MoveLastItem = this.bindingNavigatorMoveLastItem;
			this.bindingNavigator1.MoveNextItem = this.bindingNavigatorMoveNextItem;
			this.bindingNavigator1.MovePreviousItem = this.bindingNavigatorMovePreviousItem;
			this.bindingNavigator1.Name = "bindingNavigator1";
			this.bindingNavigator1.PositionItem = this.bindingNavigatorPositionItem;
			this.bindingNavigator1.Size = new System.Drawing.Size(283, 25);
			this.bindingNavigator1.TabIndex = 1;
			this.bindingNavigator1.Text = "bindingNavigator1";
			//
			// bindingNavigatorMoveFirstItem
			//
			this.bindingNavigatorMoveFirstItem.DisplayStyle = System.Windows.Forms.ToolStripItemDisplayStyle.Image;
			this.bindingNavigatorMoveFirstItem.Image = ((System.Drawing.Image)(resources.GetObject("bindingNavigatorMoveFirstItem.Image")));
			this.bindingNavigatorMoveFirstItem.Name = "bindingNavigatorMoveFirstItem";
			this.bindingNavigatorMoveFirstItem.RightToLeftAutoMirrorImage = true;
			this.bindingNavigatorMoveFirstItem.Size = new System.Drawing.Size(23, 22);
			this.bindingNavigatorMoveFirstItem.Text = "移到第一条记录";
			//
			// bindingNavigatorMovePreviousItem
			//
			this.bindingNavigatorMovePreviousItem.DisplayStyle = System.Windows.Forms.ToolStripItemDisplayStyle.Image;
			this.bindingNavigatorMovePreviousItem.Image = ((System.Drawing.Image)(resources.GetObject("bindingNavigatorMovePreviousItem.Image")));
			this.bindingNavigatorMovePreviousItem.Name = "bindingNavigatorMovePreviousItem";
			this.bindingNavigatorMovePreviousItem.RightToLeftAutoMirrorImage = true;
			this.bindingNavigatorMovePreviousItem.Size = new System.Drawing.Size(23, 22);
			this.bindingNavigatorMovePreviousItem.Text = "移到上一条记录";
			//
			// bindingNavigatorSeparator
			//
			this.bindingNavigatorSeparator.Name = "bindingNavigatorSeparator";
			this.bindingNavigatorSeparator.Size = new System.Drawing.Size(6, 25);
			//
			// bindingNavigatorPositionItem
			//
			this.bindingNavigatorPositionItem.AccessibleName = "位置";
			this.bindingNavigatorPositionItem.AutoSize = false;
			this.bindingNavigatorPositionItem.Font = new System.Drawing.Font("Microsoft YaHei UI", 9F);
			this.bindingNavigatorPositionItem.Name = "bindingNavigatorPositionItem";
			this.bindingNavigatorPositionItem.Size = new System.Drawing.Size(50, 23);
			this.bindingNavigatorPositionItem.Text = "0";
			this.bindingNavigatorPositionItem.ToolTipText = "当前位置";
			//
			// bindingNavigatorCountItem
			//
			this.bindingNavigatorCountItem.Name = "bindingNavigatorCountItem";
			this.bindingNavigatorCountItem.Size = new System.Drawing.Size(32, 22);
			this.bindingNavigatorCountItem.Text = "/ {0}";
			this.bindingNavigatorCountItem.ToolTipText = "总项数";
			//
			// bindingNavigatorSeparator1
			//
			this.bindingNavigatorSeparator1.Name = "bindingNavigatorSeparator";
			this.bindingNavigatorSeparator1.Size = new System.Drawing.Size(6, 25);
			//
			// bindingNavigatorMoveNextItem
			//
			this.bindingNavigatorMoveNextItem.DisplayStyle = System.Windows.Forms.ToolStripItemDisplayStyle.Image;
			this.bindingNavigatorMoveNextItem.Image = ((System.Drawing.Image)(resources.GetObject("bindingNavigatorMoveNextItem.Image")));
			this.bindingNavigatorMoveNextItem.Name = "bindingNavigatorMoveNextItem";
			this.bindingNavigatorMoveNextItem.RightToLeftAutoMirrorImage = true;
			this.bindingNavigatorMoveNextItem.Size = new System.Drawing.Size(23, 22);
			this.bindingNavigatorMoveNextItem.Text = "移到下一条记录";
			//
			// bindingNavigatorMoveLastItem
			//
			this.bindingNavigatorMoveLastItem.DisplayStyle = System.Windows.Forms.ToolStripItemDisplayStyle.Image;
			this.bindingNavigatorMoveLastItem.Image = ((System.Drawing.Image)(resources.GetObject("bindingNavigatorMoveLastItem.Image")));
			this.bindingNavigatorMoveLastItem.Name = "bindingNavigatorMoveLastItem";
			this.bindingNavigatorMoveLastItem.RightToLeftAutoMirrorImage = true;
			this.bindingNavigatorMoveLastItem.Size = new System.Drawing.Size(23, 22);
			this.bindingNavigatorMoveLastItem.Text = "移到最后一条记录";
			//
			// bindingNavigatorSeparator2
			//
			this.bindingNavigatorSeparator2.Name = "bindingNavigatorSeparator";
			this.bindingNavigatorSeparator2.Size = new System.Drawing.Size(6, 25);
			//
			// bindingNavigatorAddNewItem
			//
			this.bindingNavigatorAddNewItem.DisplayStyle = System.Windows.Forms.ToolStripItemDisplayStyle.Image;
			this.bindingNavigatorAddNewItem.Image = ((System.Drawing.Image)(resources.GetObject("bindingNavigatorAddNewItem.Image")));
			this.bindingNavigatorAddNewItem.Name = "bindingNavigatorAddNewItem";
			this.bindingNavigatorAddNewItem.RightToLeftAutoMirrorImage = true;
			this.bindingNavigatorAddNewItem.Size = new System.Drawing.Size(23, 22);
			this.bindingNavigatorAddNewItem.Text = "新添";
			//
			// bindingNavigatorDeleteItem
			//
			this.bindingNavigatorDeleteItem.DisplayStyle = System.Windows.Forms.ToolStripItemDisplayStyle.Image;
			this.bindingNavigatorDeleteItem.Image = ((System.Drawing.Image)(resources.GetObject("bindingNavigatorDeleteItem.Image")));
			this.bindingNavigatorDeleteItem.Name = "bindingNavigatorDeleteItem";
			this.bindingNavigatorDeleteItem.RightToLeftAutoMirrorImage = true;
			this.bindingNavigatorDeleteItem.Size = new System.Drawing.Size(23, 22);
			this.bindingNavigatorDeleteItem.Text = "删除";
			//
			// Id
			//
			this.Id.DataPropertyName = "Id";
			this.Id.HeaderText = "Id";
			this.Id.Name = "Id";
			//
			// UserName
			//
			this.UserName.DataPropertyName = "UserName";
			this.UserName.HeaderText = "UserName";
			this.UserName.Name = "UserName";
			//
			// Sex
			//
			this.Sex.DataPropertyName = "Sex";
			this.Sex.HeaderText = "Sex";
			this.Sex.Name = "Sex";
			//
			// Form4
			//
			this.AutoScaleDimensions = new System.Drawing.SizeF(6F, 12F);
			this.AutoScaleMode = System.Windows.Forms.AutoScaleMode.Font;
			this.ClientSize = new System.Drawing.Size(800, 450);
			this.Controls.Add(this.flowLayoutPanel1);
			this.Name = "Form4";
			this.Text = "Form4";
			((System.ComponentModel.ISupportInitialize)(this.bindingSource1)).EndInit();
			this.flowLayoutPanel1.ResumeLayout(false);
			this.flowLayoutPanel1.PerformLayout();
			((System.ComponentModel.ISupportInitialize)(this.dataGridView1)).EndInit();
			((System.ComponentModel.ISupportInitialize)(this.bindingNavigator1)).EndInit();
			this.bindingNavigator1.ResumeLayout(false);
			this.bindingNavigator1.PerformLayout();
			this.ResumeLayout(false);

		}

		#endregion

		private System.Windows.Forms.BindingSource bindingSource1;
		private System.Windows.Forms.FlowLayoutPanel flowLayoutPanel1;
		private System.Windows.Forms.DataGridView dataGridView1;
		private System.Windows.Forms.BindingNavigator bindingNavigator1;
		private System.Windows.Forms.ToolStripButton bindingNavigatorAddNewItem;
		private System.Windows.Forms.ToolStripLabel bindingNavigatorCountItem;
		private System.Windows.Forms.ToolStripButton bindingNavigatorDeleteItem;
		private System.Windows.Forms.ToolStripButton bindingNavigatorMoveFirstItem;
		private System.Windows.Forms.ToolStripButton bindingNavigatorMovePreviousItem;
		private System.Windows.Forms.ToolStripSeparator bindingNavigatorSeparator;
		private System.Windows.Forms.ToolStripTextBox bindingNavigatorPositionItem;
		private System.Windows.Forms.ToolStripSeparator bindingNavigatorSeparator1;
		private System.Windows.Forms.ToolStripButton bindingNavigatorMoveNextItem;
		private System.Windows.Forms.ToolStripButton bindingNavigatorMoveLastItem;
		private System.Windows.Forms.ToolStripSeparator bindingNavigatorSeparator2;
		private System.Windows.Forms.DataGridViewTextBoxColumn Id;
		private System.Windows.Forms.DataGridViewTextBoxColumn UserName;
		private System.Windows.Forms.DataGridViewComboBoxColumn Sex;
		private System.Drawing.Printing.PrintDocument printDocument1;
	}
}

posted @ 2025-05-19 22:13 夏秋初阅读(204) 评论(0) 收藏举报

刷新页面返回顶部

夏秋初的学习笔记

夏末秋初遇见最美好

WinForm DataGridView 的使用、与使用 ComboBox

参考

环境

使用场景

正文

基于本地数据库模式

基于前后端分离模式

扩展

在 `DataGridView` 中使用 `ComboBox`

公告

夏秋初的学习笔记

夏末秋初遇见最美好

WinForm DataGridView 的使用、与使用 ComboBox

参考

环境

使用场景

正文

基于本地数据库模式

基于前后端分离模式

扩展

在 DataGridView 中使用 ComboBox

公告

在 `DataGridView` 中使用 `ComboBox`
