--环境信息：
namenodemaster.hadoop
公网：122.225.77.45
内网：192.168.1.45
yarnserver.hadoop
公网：122.225.77.46
内网：192.168.1.46
slave001.hadoop
公网：122.225.77.47
内网：192.168.1.47
slave002.hadoop
公网：122.225.77.48
内网：192.168.1.48
--安装所需的包：
ambari-2.7.4.0-centos7.tar.gz
HDP-3.1.4.0-centos7-rpm.tar.gz
HDP-GPL-3.1.4.0-centos7-gpl.tar.gz
HDP-UTILS-1.1.0.22-centos7.tar.gz
jdk-8u211-linux-x64.tar.gz
mysql57-community-release-el7-10.noarch.rpm
下载：
链接：https://pan.baidu.com/s/1TIk73wgNiRSO2OixEL5w_g
提取码：ke4e
下载链接：
HDP：http://public-repo-1.hortonworks.com/HDP/centos7/3.x/updates/3.1.4.0/HDP-3.1.4.0-centos7-rpm.tar.gz
HDP-UTILS：http://public-repo-1.hortonworks.com/HDP-UTILS-1.1.0.22/repos/centos7/HDP-UTILS-1.1.0.22-centos7.tar.gz
HDP-GPL：http://public-repo-1.hortonworks.com/HDP-GPL/centos7/3.x/updates/3.1.4.0/HDP-GPL-3.1.4.0-centos7-gpl.tar.gz
Ambari 2.7.4：http://public-repo-1.hortonworks.com/ambari/centos7/2.x/updates/2.7.4.0/ambari-2.7.4.0-centos7.tar.gz
提前准备：
1、四台服务器关闭防火墙、selinux
2、配置java环境
参考：https://www.cnblogs.com/xiaoyou2018/p/9945272.html
3、设置NTP
5、设置秘钥登录
参考：https://www.cnblogs.com/xiaoyou2018/p/9855908.html
6、修改四台服务器的hosts
7、修改yum源
8、安装数据库
参考：https://www.cnblogs.com/xiaoyou2018/p/9831272.html
配置NTP
以namenodemaster.hadoop为ntp校准服务器:
下载ntp
yum -y install ntp
依次输入以下命令
systemctl is-enabled ntpd
systemctl enable ntpd
systemctl start ntpd
master服务器配置
[root@namenodemaster opt]# vim /etc/ntp.conf
driftfile /var/lib/ntp/drift
restrict 192.168.1.0 mask 255.255.255.0 nomodify notrap
server 192.168.1.45
server 127.127.1.0
fudge 127.127.1.0 stratum 10
includefile /etc/ntp/crypto/pw
keys /etc/ntp/keys
disable monitor
其他节点配置如下
[root@yarnserver opt]# vim /etc/ntp.conf
driftfile /var/lib/ntp/drift
restrict default nomodify notrap nopeer noquery
restrict 127.0.0.1
restrict ::1
server namenodemaster.hadoop
includefile /etc/ntp/crypto/pw
keys /etc/ntp/keys
disable monitor
手动触发同步
[root@slave005 ~]# ntpdate namenodemaster
检查是否成功用“ntpstat”命令查看同步状态，出现以下状态代表启动成功
[root@namenodemaster opt]# ntpstat
如果是这个状态，就需要等很长时间，但是配置是对的
设置秘钥登录
需要注意
服务器端的 authorized_keys这个只能是600权限
在namenodemaster.hadoop上需要运行
cat id_rsa.pub >> authorized_keys
最终的结果是namenodemaster.hadoop、yarnserver.hadoop能相互使用秘钥登录，同时都能秘钥登录slave01 slave02
修改hosts
在四台服务器上分别运行
echo -e "192.168.1.45 namenodemaster.hadoop namenodemaster \n192.168.1.46 yarnserver.hadoop yarnserver \n192.168.1.47 slave001.hadoop slave001 \n192.168.1.48 slave002.hadoop slave002" >> /etc/hosts
主机名一定要配置正确。如何验证主机名(DQDN)配置是否OK，
输入命令hostname -f进行查看
修改yum源
四台服务器分别
1、备份本地yum源
mv /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo_bak
2.获取阿里yum源配置文件
wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo yum makecache
创建数据库
创建库ambari、hive、oozie、ranger、rangerkms
CREATE DATABASE ambari CHARACTER SET utf8 COLLATE utf8_general_ci;
use ambari;
CREATE USER 'ambari'@'%' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'ambari'@'%';
CREATE USER 'ambari'@'localhost' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'ambari'@'localhost';
CREATE USER 'ambari'@'master' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'ambari'@'master';
FLUSH PRIVILEGES;
source /var/lib/ambari-server/resources/Ambari-DDL-MySQL-CREATE.sql
show tables;
use mysql;
select Host User Password from user where user='ambari';
CREATE DATABASE hive CHARACTER SET utf8 COLLATE utf8_general_ci;
use hive;
CREATE USER 'hive'@'%' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'hive'@'%';
CREATE USER 'hive'@'localhost' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'hive'@'localhost';
CREATE USER 'hive'@'master' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'hive'@'master';
FLUSH PRIVILEGES;
CREATE DATABASE oozie CHARACTER SET utf8 COLLATE utf8_general_ci;
use oozie;
CREATE USER 'oozie'@'%' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'oozie'@'%';
CREATE USER 'oozie'@'localhost' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'oozie'@'localhost';
CREATE USER 'oozie'@'master' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'oozie'@'master';
FLUSH PRIVILEGES;
CREATE DATABASE ranger CHARACTER SET utf8 COLLATE utf8_general_ci;
use ranger;
CREATE USER 'rangeradmin'@'%' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'rangeradmin'@'%';
CREATE USER 'rangeradmin'@'localhost' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'rangeradmin'@'localhost';
CREATE USER 'rangeradmin'@'master' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'rangeradmin'@'master';
FLUSH PRIVILEGES;
CREATE DATABASE rangerkms CHARACTER SET utf8 COLLATE utf8_general_ci;
use rangerkms;
CREATE USER 'rangerkms'@'%' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'rangerkms'@'%';
CREATE USER 'rangerkms'@'localhost' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'rangerkms'@'localhost';
CREATE USER 'rangerkms'@'master' IDENTIFIED BY '123456ABcd';
GRANT ALL PRIVILEGES ON *.* TO 'rangerkms'@'master';
FLUSH PRIVILEGES;
配置mysql驱动
[root@master yum.repos.d]# yum install mysql-connector-java -y
[root@master yum.repos.d]# cd /usr/share/java
[root@master yum.repos.d]# chmod 644 mysql-connector-java.jar
[root@master yum.repos.d]# cp /usr/share/java/mysql-connector-java.jar /var/lib/ambari-server/resources/mysql-jdbc-driver.jar
[root@master yum.repos.d]# vim /etc/ambari-server/conf/ambari.properties
添加server.jdbc.driver.path=/usr/share/java/mysql-connector-java.jar
ambari-server setup --jdbc-db=mysql --jdbc-driver=/usr/share/java/mysql-connector-java.jar
离线安装ambari
1、安装httpd服务 - 主服务器
[root@namenodemaster opt]# yum -y install httpd
[root@namenodemaster opt]# systemctl start httpd
[root@namenodemaster opt]# systemctl enable httpd
2、上传ambari-2.7.4.0-centos7.tar.gz HDP-UTILS-1.1.0.22-centos7.tar.gz HDP-3.1.4.0-centos7-rpm.tar.gz 放到/var/www/html目录下 - 主服务器
安装完成后，会生成 /var/www/html目录（相当于Tomcat的webapps目录），进入到/var/www/html目录下，
创建ambari和hdp目录，用来存放安装文件.
[root@yum ~]# mkdir /var/www/html/ambari [root@yum ~]# mkdir /var/www/html/hdp
[root@yum ~]# mkdir /var/www/html/hdp/HDP-UTILS-1.1.0.22
[root@yum ~]# tar -zxvf ambari-2.7.4.0-centos7.tar.gz -C /var/www/html/ambari/
[root@yum ~]# tar -zxvf HDP-3.1.0.0-centos7-rpm.tar.gz -C /var/www/html/hdp/
[root@yum ~]# tar -zxvf HDP-UTILS-1.1.0.22-centos7.tar.gz -C /var/www/html/hdp/HDP-UTILS-1.1.0.22/

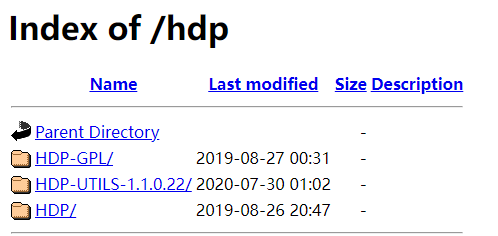

3、现在可以通过访问
http://122.225.77.45/ambari/
http://122.225.77.45/hdp/
4、制作本地源-主服务器
cd /etc/yum.repos.d/
vi -b ambari.repo
#VERSION_NUMBER=2.7.4.0-118 [ambari-2.7.4.0] #json.url = http://public-repo-1.hortonworks.com/HDP/hdp_urlinfo.json name=ambari Version - ambari-2.7.4.0 baseurl=http://122.226.77.45/ambari/ambari/centos7/2.7.4.0-118/ gpgcheck=1 gpgkey=http://122.226.77.45/ambari/ambari/centos7/2.7.4.0-118/RPM-GPG-KEY/RPM-GPG-KEY-Jenkins enabled=1 priority=1
vi -b hdp.repo
#VERSION_NUMBER=3.1.4.0-315 [HDP-3.1.4.0] name=HDP Version - HDP-3.1.4.0 baseurl=http://122.226.77.45/hdp/HDP/centos7/3.1.4.0-315/ gpgcheck=1 gpgkey=http://122.226.77.45/ambari/ambari/centos7/2.7.4.0-118/RPM-GPG-KEY/RPM-GPG-KEY-Jenkins enabled=1 priority=1
vi -b hdp-utils.repo
[HDP-UTILS-1.1.0.22] name=HDP-UTILS Version - HDP-UTILS-1.1.0.22 baseurl=http://122.226.77.45/hdp/HDP-UTILS-1.1.0.22/HDP-UTILS/centos7/1.1.0.22/ gpgcheck=1 gpgkey=http://122.226.77.45/hdp/HDP-UTILS-1.1.0.22/HDP-UTILS/centos7/1.1.0.22/RPM-GPG-KEY/RPM-GPG-KEY-Jenkins enabled=1 priority=1
vi -b hdp.gpl.repo
#VERSION_NUMBER=3.1.4.0-315 [HDP-3.1-GPL-repo-1] name=HDP-GPL Version - HDP-GPL-3.1.4.0 baseurl=http://122.226.77.45/hdp/HDP-GPL/centos7/3.1.4.0-315/ gpgcheck=1 gpgkey=http://122.226.77.45/hdp/HDP-GPL/centos7/3.1.4.0-315/RPM-GPG-KEY//RPM-GPG-KEY-Jenkins enabled=1 priority=1
清理一下yum缓存
[root@master ambari]# yum clean all
[root@master ambari]# yum makecache
[root@master ambari]# yum repolist
将创建好的文件拷贝到其他服务器
scp -P 10022 ambari.repo hdp.repo hdp-utils.repo root@yarnserver.hadoop:$PWD scp -P 10022 ambari.repo hdp.repo hdp-utils.repo root@slave001.hadoop:$PWD scp -P 10022 ambari.repo hdp.repo hdp-utils.repo root@slave002.hadoop:$PWD
初始化ambari-server
[root@master ~]# ambari-server setup
（1） 提示是否自定义设置。输入：y
Customize user account for ambari-server daemon [y/n] (n)? y
（2）ambari-server 账号。
Enter user account for ambari-server daemon (root):
如果直接回车就是默认选择root用户
如果输入已经创建的用户就会显示：
Enter user account for ambari-server daemon (root):ambari
Adjusting ambari-server permissions and ownership...
（3）检查防火墙是否关闭
Adjusting ambari-server permissions and ownership...
Checking firewall...
WARNING: iptables is running. Confirm the necessary Ambari ports are accessible. Refer to the Ambari documentation for more details on ports.
OK to continue [y/n] (y)?
直接回车
（4）设置JDK。输入：3
Checking JDK...
Do you want to change Oracle JDK [y/n] (n)? y
[1] Oracle JDK 1.8 + Java Cryptography Extension (JCE) Policy Files 8
[2] Oracle JDK 1.7 + Java Cryptography Extension (JCE) Policy Files 7
[3] Custom JDK
==============================================================================
Enter choice (1): 3
如果上面选择3自定义JDK,则需要设置JAVA_HOME。输入：/usr/local/java/
WARNING: JDK must be installed on all hosts and JAVA_HOME must be valid on all hosts.
WARNING: JCE Policy files are required for configuring Kerberos security. If you plan to use Kerberos,please make sure JCE Unlimited Strength Jurisdiction Policy Files are valid on all hosts.
Path to JAVA_HOME: /usr/java/jdk1.8.0_131
Validating JDK on Ambari Server...done.
Completing setup...
（5）数据库配置。选择：y
Configuring database...
Enter advanced database configuration [y/n] (n)? y
（6）选择数据库类型。输入：3
Configuring database...
==============================================================================
Choose one of the following options:
[1] - PostgreSQL (Embedded)
[2] - Oracle
[3] - MySQL
[4] - PostgreSQL
[5] - Microsoft SQL Server (Tech Preview)
[6] - SQL Anywhere
==============================================================================
Enter choice (3): 3
（7）设置数据库的具体配置信息，根据实际情况输入，如果和括号内相同，则可以直接回车。如果想重命名，就输入。
Hostname (localhost): namenodemaster.hadoop
Port (3306): 3306
Database name (ambari): ambari
Username (ambari): ambari
Enter Database Password (bigdata):ambari123
Re-Enter password: ambari123
（8）将Ambari数据库脚本导入到数据库
WARNING: Before starting Ambari Server, you must run the following DDL against the database to create the schema: /var/lib/ambari-server/resources/Ambari-DDL-MySQL-CREATE.sql
Proceed with configuring remote database connection properties [y/n] (y)? y
[root@master ~]# ambari-server start
错误处理：
如果出现错误，请注意查看日志，根据具体的错误内容进行处理，默认ambari-server的日志在/var/log/ambari-server/ambari-server.log里面。如果在处理日志的过程中或者后面安装的过程中出现一些莫名的错误，可以重置的安装。
手动将mysql里面创建的数据库进行删除，使用下面的代码重置ambari-server。
手动删除数据库
[root@master ~]# mysql -uroot -p
mysql> show databases;
+--------------------+
| Database |
+--------------------+
| information_schema |
| ambari |
| hive |
| oozie |
| performance_schema |
+--------------------+
rows in set (0.00 sec)
mysql> drop database ambari;
mysql> drop database hive;
mysql> drop database oozie;
重置ambari-server
[root@master ~]# ambari-server stop
[root@master ~]# ambari-server reset
[root@master ~]# ambari-server setup
安装部署HDP集群

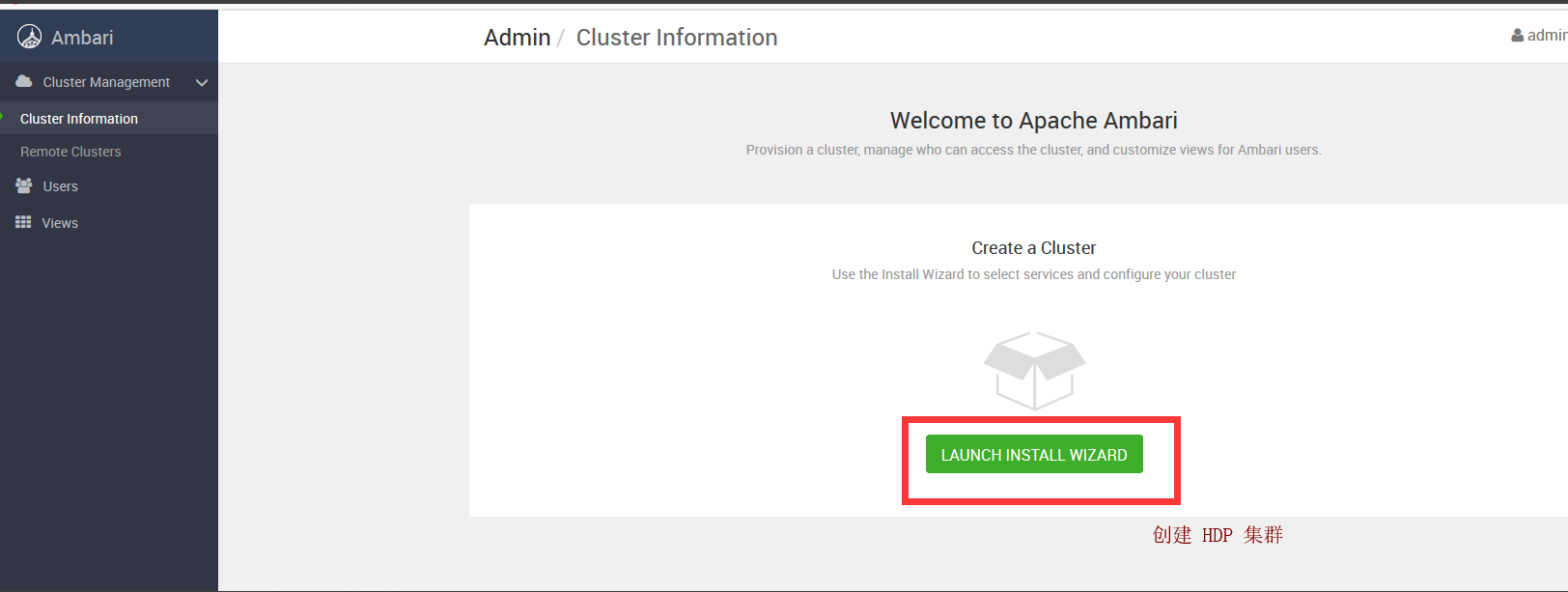

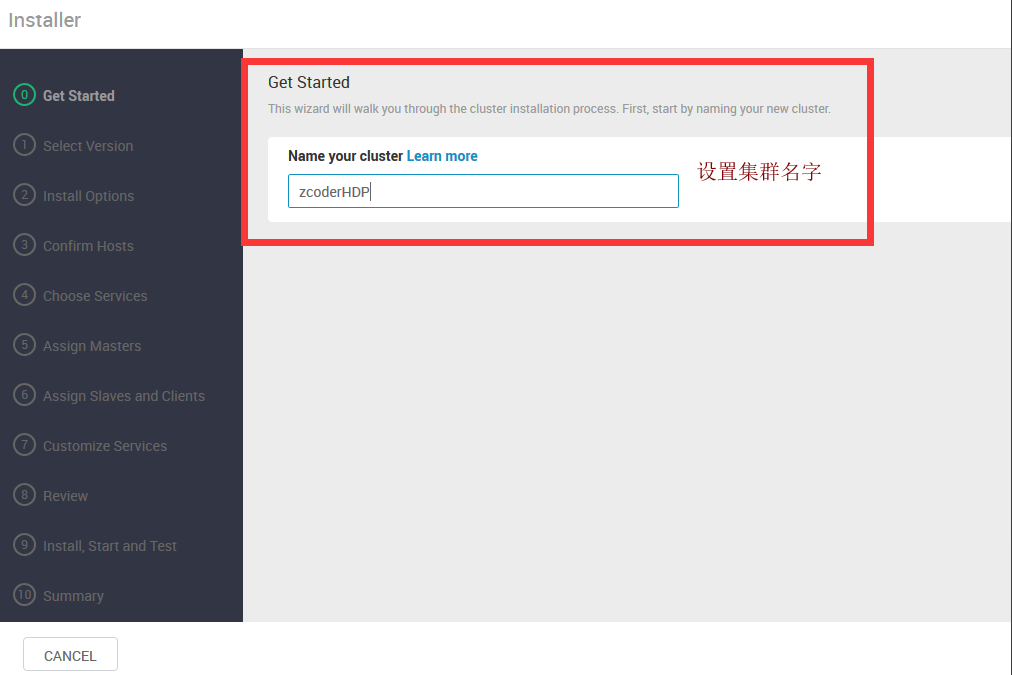

登录ambari界面
http://namenodemaster.hadoop:8080
账户密码默认 admin

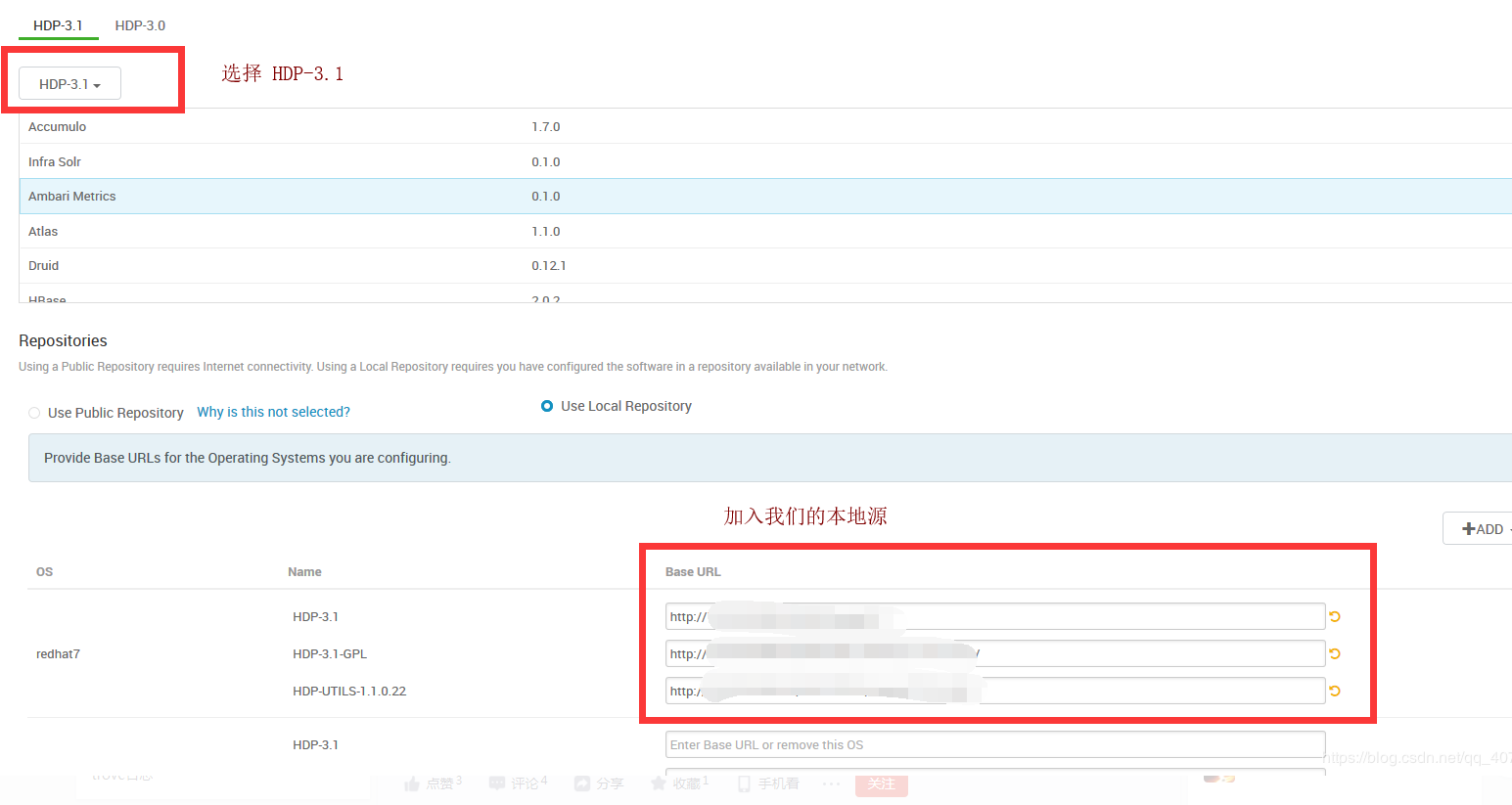

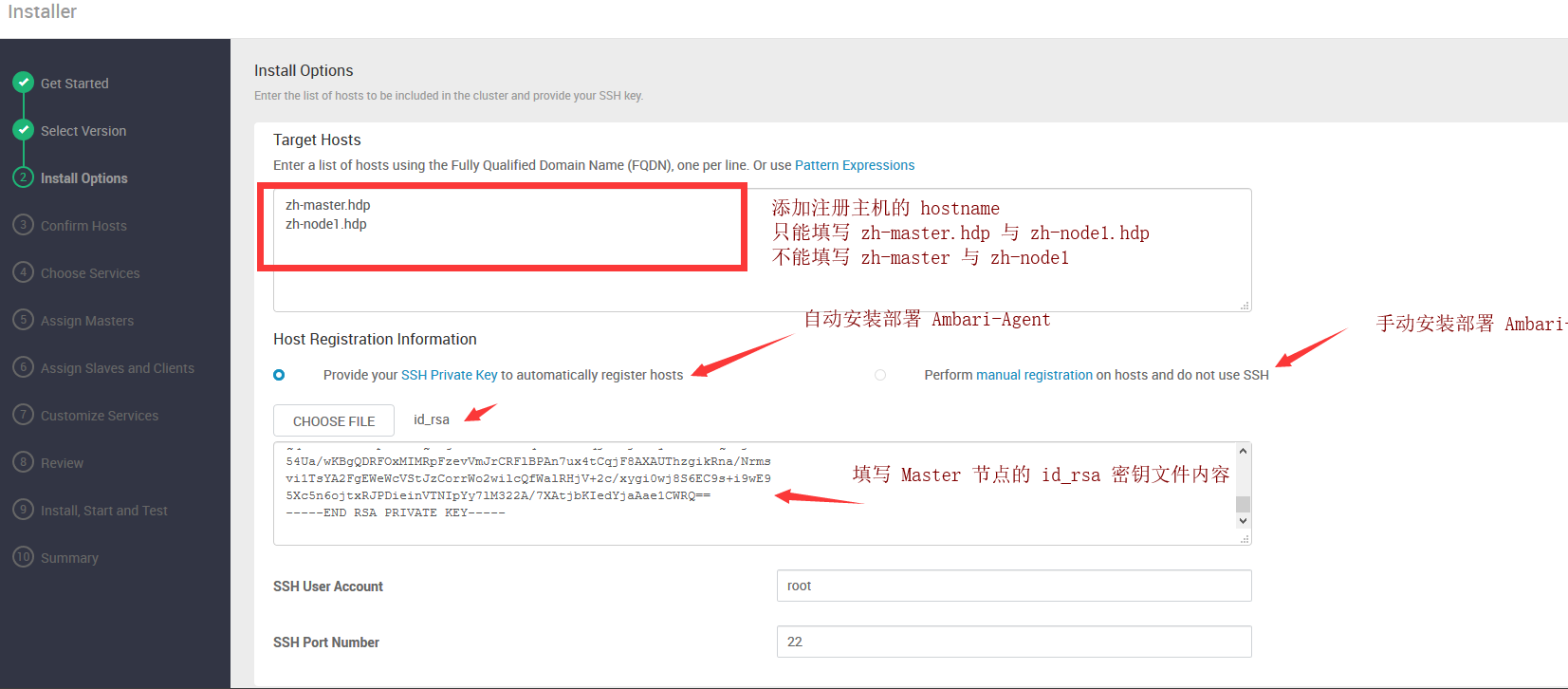

选择版本，加入本地源
http://122.225.77.45/hdp/HDP/centos7/3.1.4.0-315/ http://122.226.77.45/hdp/HDP-GPL/centos7/3.1.4.0-315/ http://122.225.77.45/hdp/HDP-UTILS-1.1.0.22/HDP-UTILS/centos7/1.1.0.22/

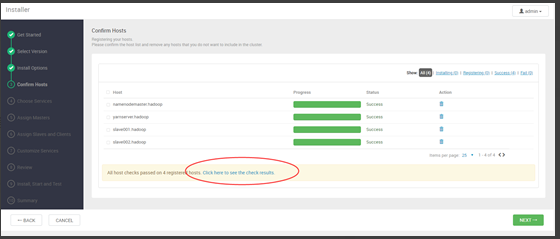

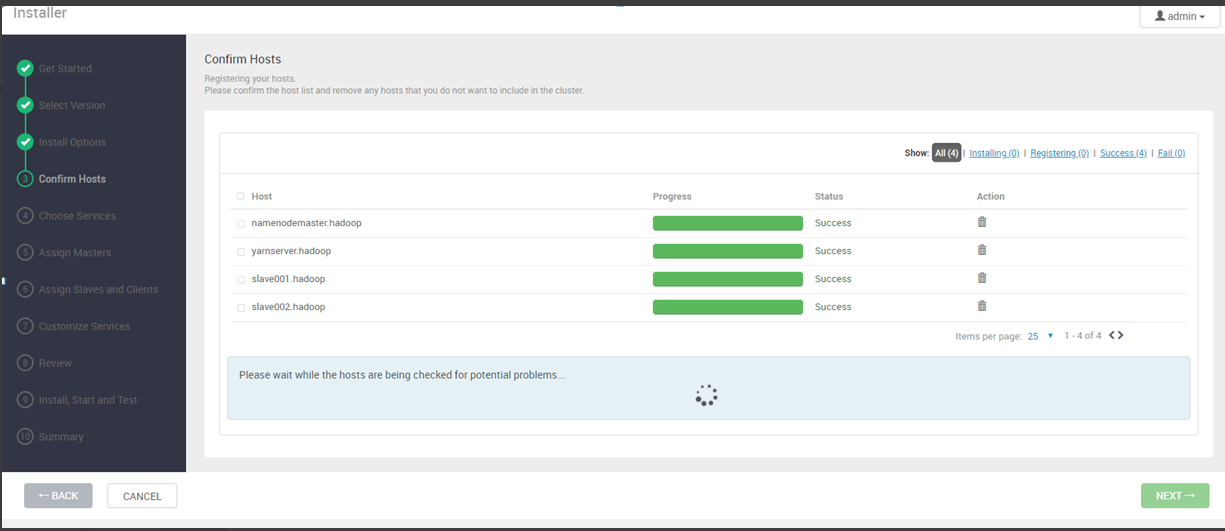

检查潜在的问题，可以通过这个查看有什么问题

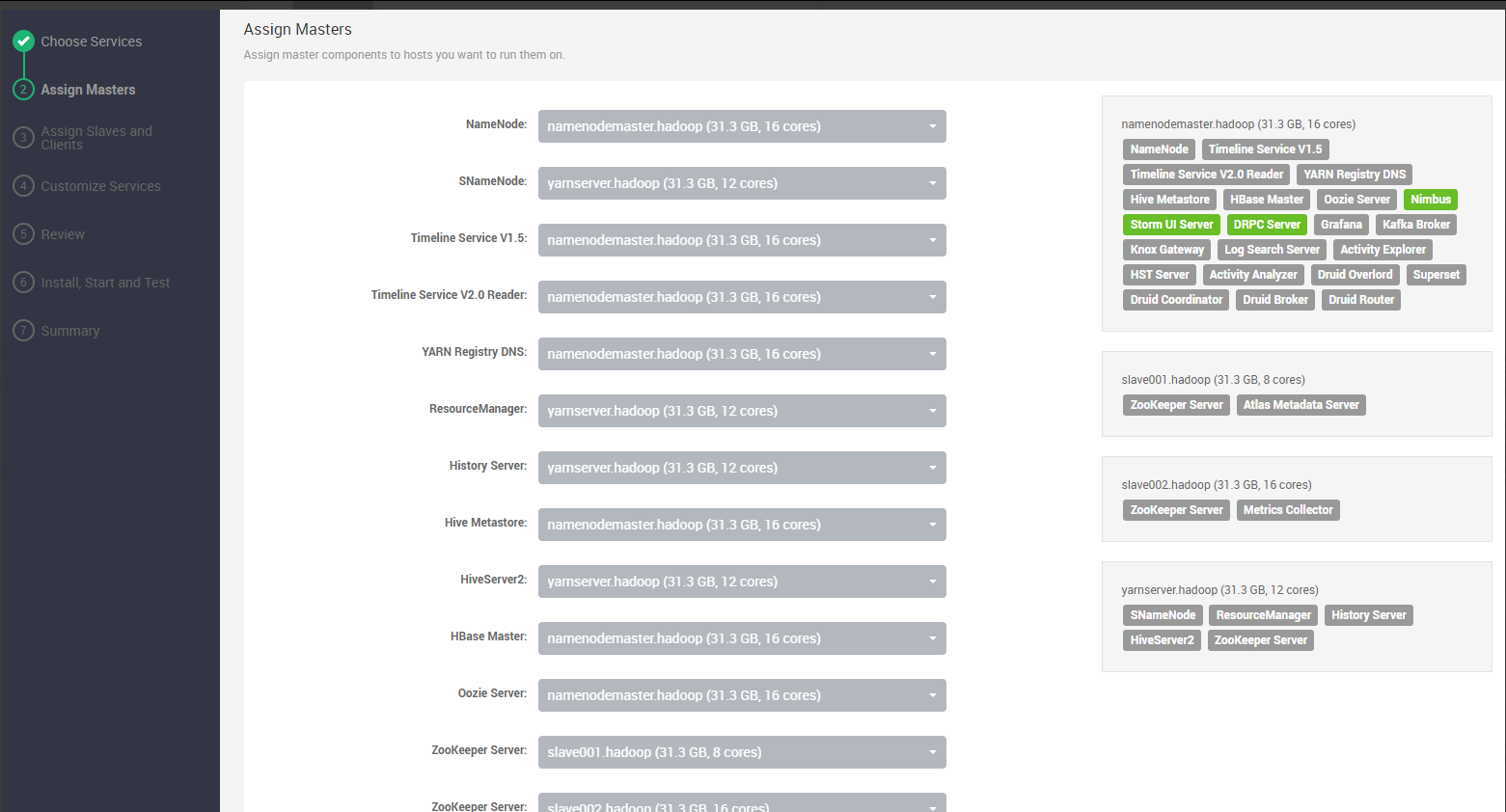

选择安装组件

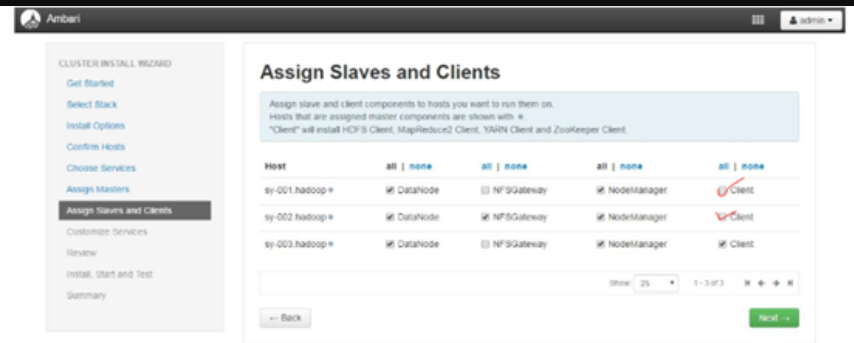

勾选DataNote、NameNode、Client
配置安全密码
红色的都要设置，原有的不用修改

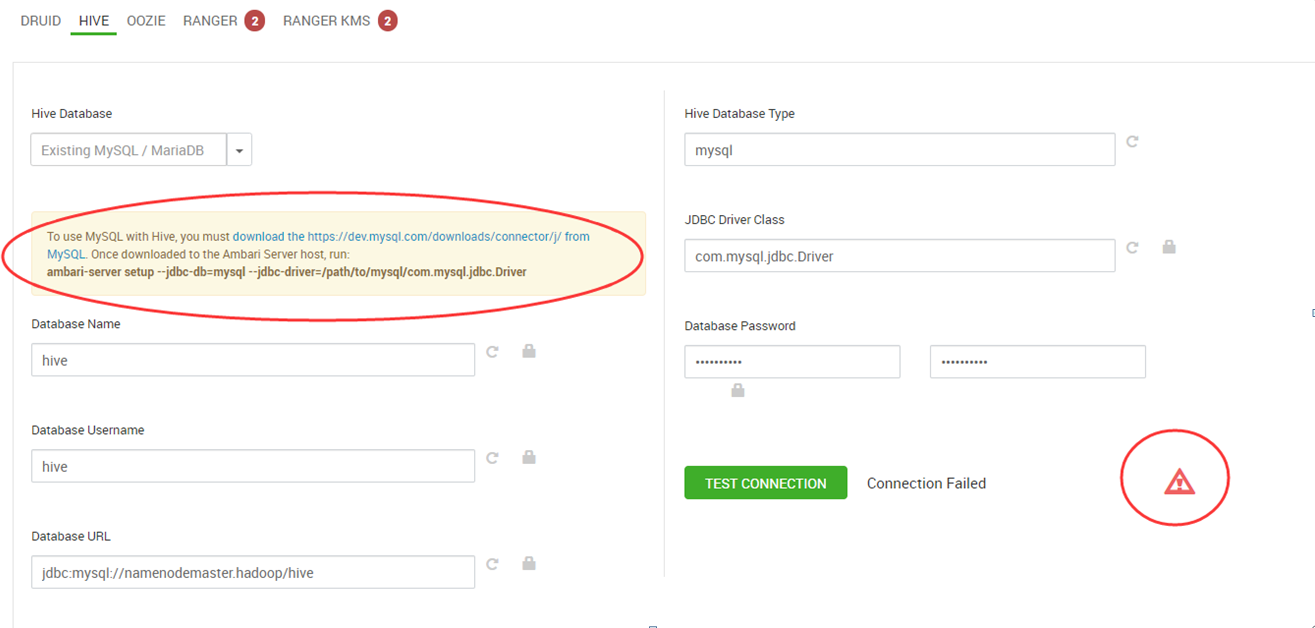

提示驱动问题的话
[root@namenodemaster java] ambari-server setup --jdbc-db=mysql --jdbc-driver=/usr/share/java/mysql-connector-java.jar
[root@namenodemaster java] ambari-server restart

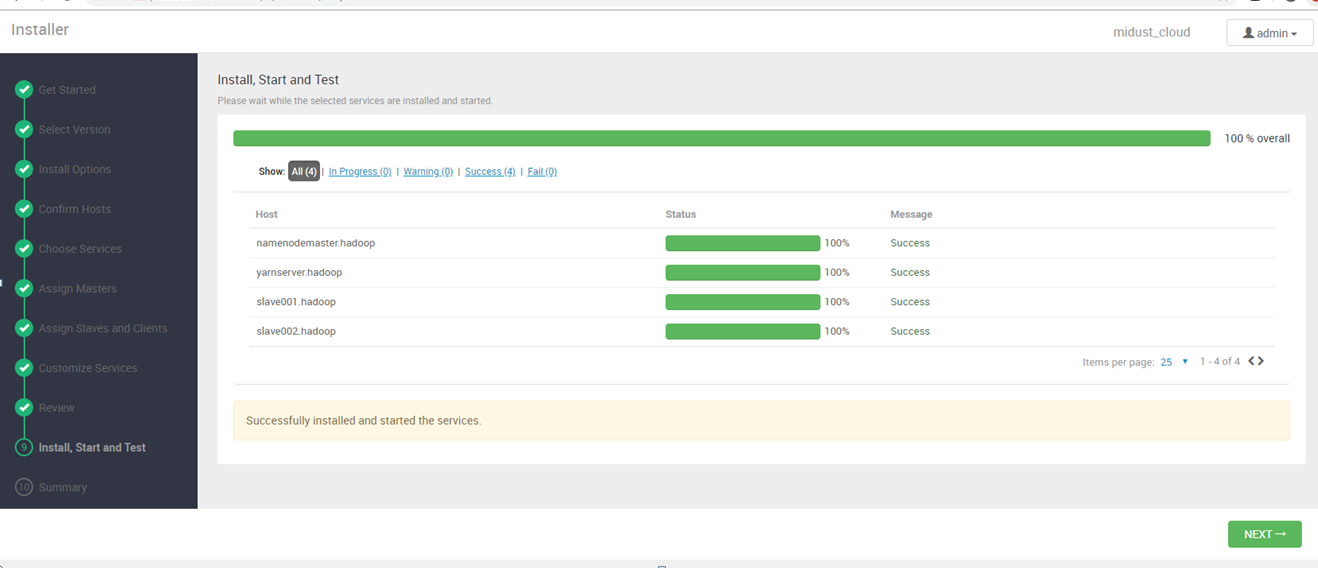

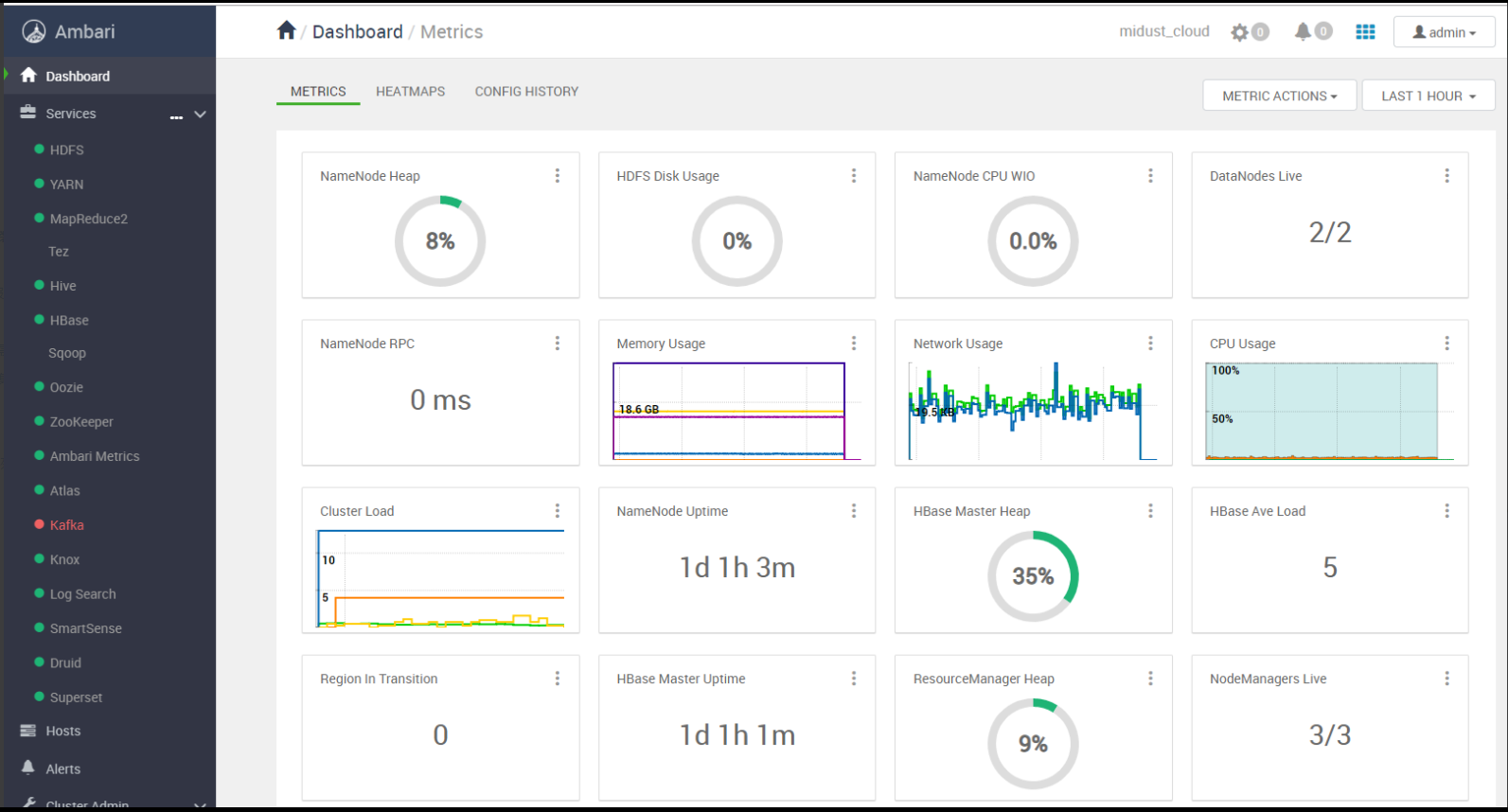

完成集群部署
安装组件的常见报错
|
问题 |
解决 |
|
failed connect to 192.168.10.151:80; Connection refused |
重启http服务 systemctl start httpd.service
|
|
Applying File['/usr/hdp/current/slider-client/lib/slider.tar.gz'] failed, parent directory /usr/hdp/current/slider-client/lib doesn't exist |
创建路径即可 |
|
fail("Cannot match package for regexp name {0}. Available packages: {1}".format(name, self.available_packages_in_repos)) resource_management.core.exceptions.Fail: Cannot match package for regexp name zookeeper_${stack_version}. Available packages
|
ln -s /usr/hdp/ 3.1.4.0-315 /slider /usr/hdp/current/slider-client |
|
resource_management.core.exceptions.ExecutionFailed: Execution of 'ambari-python-wrap /usr/bin/hdp-select set oozie-client 3.1.4.0-315' returned 1. symlink target /usr/hdp/current/oozie-client for oozie already exists and it is not a symlink. |
从其他机器上拷贝 /usr/hdp/ 3.1.4.0-315 /oozie #ln -s /usr/hdp/ 3.1.4.0-315 /oozie /usr/hdp/current/oozie-client # /usr/bin/hdp-select set oozie-client 3.1.4.0-315
|
|
resource_management.core.exceptions.Fail: Cannot create directory '/usr/hdp/current/slider-client/conf' as '/usr/hdp/current/slider-client' is a broken symlink |
mkdir /usr/hdp/3.1.4.0-315/slider/conf mkdir /usr/hdp/3.1.4.0-315/slider/lib
|
|
line 321: install-activity-analyzer.sh: command not found |
yum remove smartsense-hst rm -rf /var/log/smartsense/
|
|
HDP 2.6.1 Infra Solr Client Install fails "Source file /usr/lib/ambari-infra-solr-client/solrCloudCli.sh is not found" |
Query for ambari rpm: # rpm -qa | grep ambari Removed ambari-infra-solr-client yum remove ambari-infra-solr-client
|
|

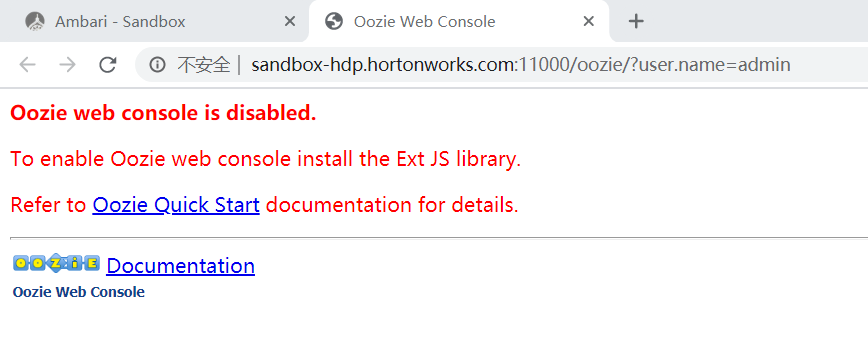

oozie web console is disabled. |
安装extjs2.2.zip |
|
Web UI failing with HTTP 503 service unavailable |
安装je.jar 参考： https://community.hortonworks.com/questions/77600/faclon-web-ui-failing-with-http-503-service-unavai.html
|
|
exception: java.lang.ClassNotFoundException: org.apache.hadoop.metrics2.sink.kafka.KafkaTimelineMetricsReporter |
yum reinstall ambari-metrics-hadoop-sink 参考： https://community.hortonworks.com/questions/135736/getting-exception-javalangclassnotfoundexception-o.html https://community.hortonworks.com/content/supportkb/49117/storm-worker-fails-with-javalangclassnotfoundexcep.html |
|
there are unfinished transactions remaining. You might consider running yum-complete-transaction first to finish them。 |
### yum 清除未完成的 1、安装 yum-complete-transaction 这是一个能发现未完成或被中断的yum事务的程序。 #yum -y install yum-utils 2、清除yum缓存 #yum clean all 3、执行清理未完成事务 #yum-complete-transaction --cleanup-only 参考：https://yq.aliyun.com/ziliao/65810
|
当集群突然断电之后，重启怎么办？
解决办法：
1、启动ntpd（时间同步）服务
有的系统管理员在测试集群上没有让ntpd开机启动，就要手动启动了，一般情况下，生产集群上是肯定开启的。
service ntpd start

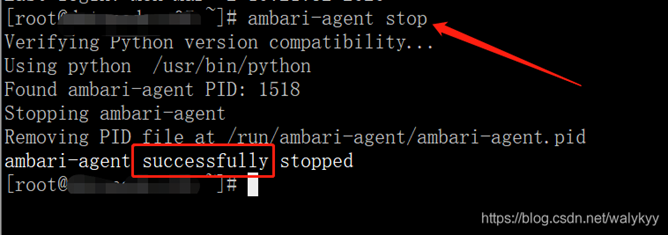

2、重启ambari服务和ambari代理
ambari-server restart（主节点）
ambari-agent restart（各个节点都要重启）
3、通过图形界面启动和管理各个服务
通过浏览器访问一下地址http://主机ip:8080进行管理即可

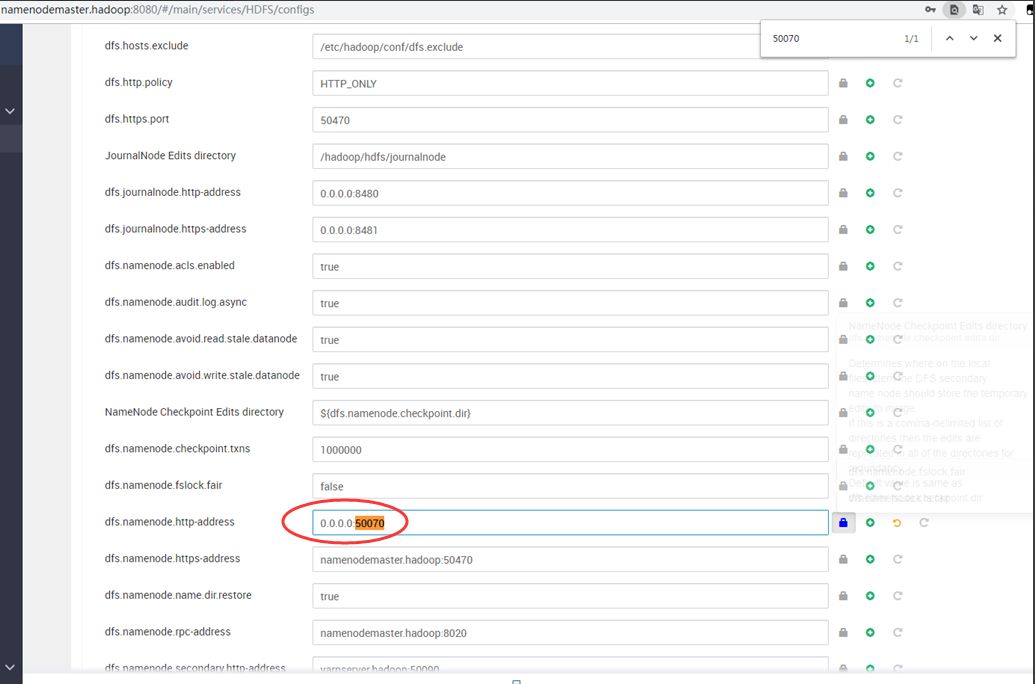

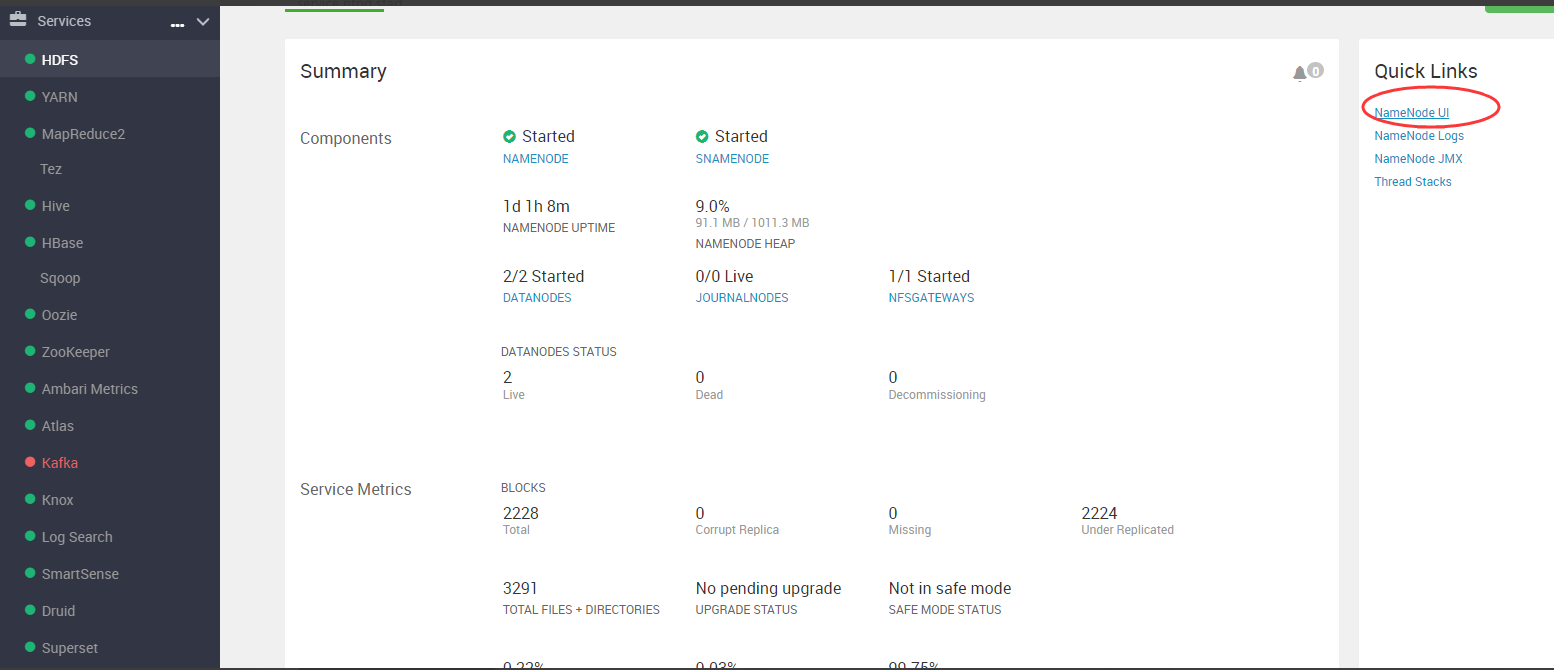

HDFS UI 无法打开
其实问题很简单，因为在CDH中hdfs-site.xml配置文件中WEB UI配置的是域名，而域名在Hosts又被解析成内网IP。
你使用netstat -apn | grep 50700看一下监听情况。
你会发现监听的是你的内网IP，而不是外网IP，所以HDFS的WEB UI就无法访问
需要更改50700绑定0.0.0.0
更改config配置
Oozie Web Console Is Disabled问题解决方法
1、登录至主服务器
2、手动下载extjs-2.2-1.noarch.rpm库，并安装
rpm -ivh extjs-2.2-1.noarch.rpm
3、删掉这个/usr/hdp/current/oozie-server/.prepare_war_cmd
rm /usr/hdp/current/oozie-server/.prepare_war_cmd
4、重启Oozie服务
重新登录
新增datenode服务器
1、修改主机名
主机名slave005.hadoop
2、修改yum源
(1)备份本地yum源
mv /etc/yum.repos.d/CentOS-Base.repo /etc/yum.repos.d/CentOS-Base.repo_bak
(2)获取阿里yum源配置文件
wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
yum makecache
3、修改hosts
slave005
echo -e "192.168.1.45 namenodemaster.hadoop namenodemaster \n192.168.1.46 yarnserver.hadoop yarnserver \n192.168.1.47 slave001.hadoop slave001 \n192.168.1.48 slave002.hadoop slave002\n192.168.1.44 slave003.hadoop slave003\n192.168.1.51 slave004.hadoop slave004" >> /etc/hosts
剩余各个节点
echo -e "192.168.1.211 slave005.hadoop slave005 " >> /etc/hosts
4、密钥登陆(master能秘钥登录新节点)
在新节点
mkdir -p /root/.ssh/
在namenodemaster.hadoop上运行
cd /root/.ssh/
ssh-copy-id -p 10022 -i /root/.ssh/id_rsa.pub root@slave005.hadoop
在新节点
cat id_rsa.pub >> authorized_keys
5、java
6、拷贝服务器上面的本地源配置文件到新增主机的/etc/yum.repos.d/ 目录
master服务器
cd /etc/yum.repos.d/
scp
-P 10022 ambari.repo hdp.repo hdp-utils.repo hdp.gpl.repo
root@slave005.hadoop:$PWD
新节点
清理一下yum缓存
yum
clean all && yum makecache
yum repolist
7、打开安全限制
vi –b /etc/security/limits.conf
文件末尾新增如下：
# End of file
* soft nofile 65536
* hard nofile 65536
* soft nproc 131072
* hard nproc 131072
8、安装NTP
yum -y install ntp
vim /etc/ntp.conf
systemctl start ntpd.service
systemctl enable ntpd.service
cat /etc/ntp.conf
driftfile /var/lib/ntp/drift
restrict default nomodify notrap nopeer noquery
restrict 127.0.0.1
restrict ::1
server namenodemaster.hadoop
includefile /etc/ntp/crypto/pw
keys /etc/ntp/keys
disable monitor

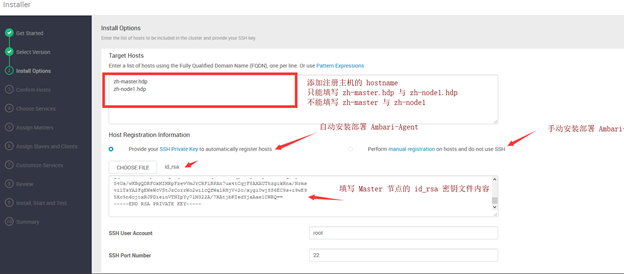

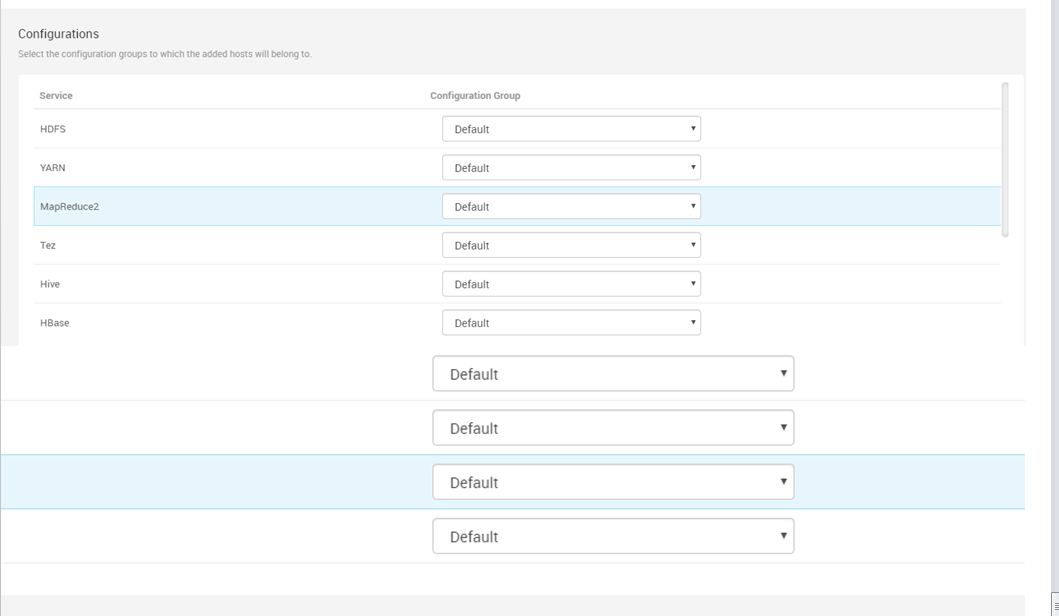

9、接入集群
创建/var/lib/ambari-agent/data目录
mkdir –p /var/lib/ambari-agent/data
默认的数据存放路径是 /usr/hdp
磁盘空间一定要够，不然安装报错
oozie报错，可以从报错很明显看到失败原因

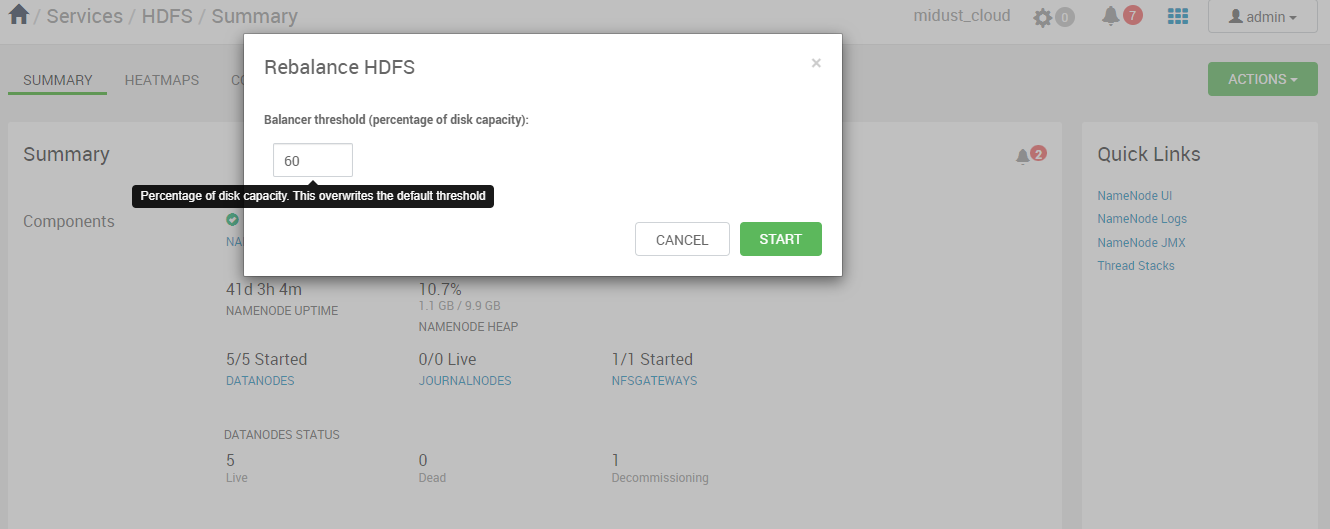

10、DataNode节点磁盘均衡(Rebalancing HDFS))
① 在 Ambari Web 中，浏览到 Services > HDFS > Summary
② 单击 Service Actions, 然后单击 Rebalance HDFS.
③ 输入 Balance Threshold 值作为磁盘容量到百分比
④ 单击 Start
可以通过打开 Background Operations 窗口监控或取消重均衡进程。

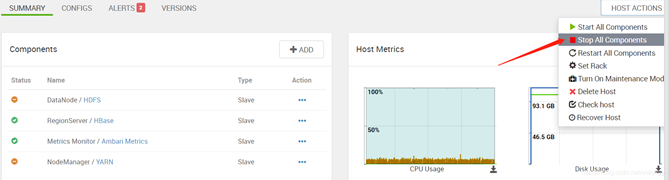

删除节点
通过ambari平台操作

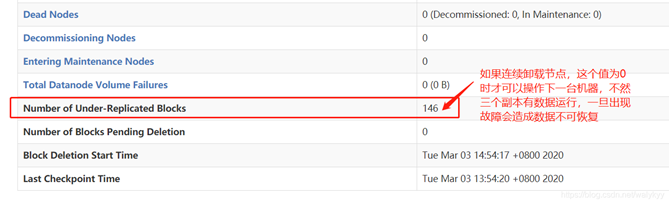

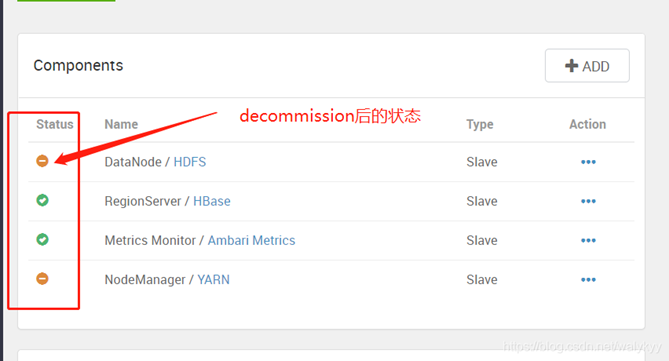

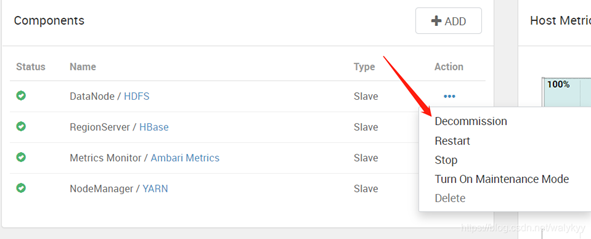

(1)设置slave001节点设置DataNode配置为Decommissioned，排空数据

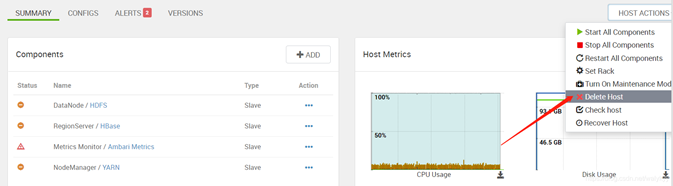

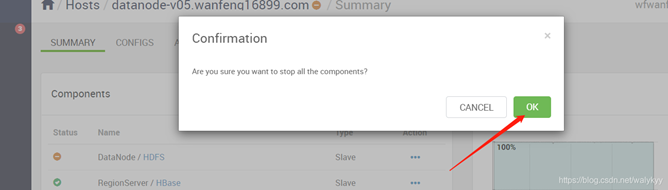

(2)数据排空后删除节点
