【MyBatis】关联映射和缓存机制

一、一对一查询

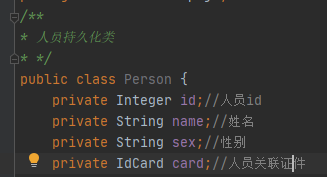

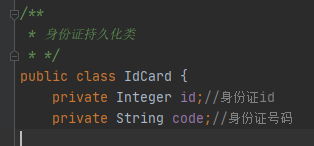

实体类IdCard和Person创建:



 IdMapeer.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.xiaobiti.pojo.IdCard">
    <!-- 根据id查询证件 -->
    <select id="findCodeById" parameterType="Integer" resultType="com.xiaobiti.pojo.IdCard">
        select * form tb_idcard where id=#{id}
    </select>
</mapper>

PersonMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.xiaobiti.pojo.Person">
    <!-- 嵌套查询：通过执行另一条语句返回结果 -->
    <select id="findById" parameterType="Integer" resultMap="idCardResult">
<!--        select * from tb_person where id=#{id}-->
        select * from tb_person a,tb_idcard b where a.card_id=b.id and a.id=#{id}

    </select>
    <!-- selectd的resultMap即为设置结果的键值 -->
    <resultMap id="idCardResult" type="com.xiaobiti.pojo.Person">
        <id property="id" column="id"/>
        <result property="sex" column="sex"/>
        <result property="name" column="name"/>
        <result property="age" column="age"/>

        <!-- 一对一关联，需要引入另外的sql语句 -->
<!--        <association property="card" column="card_id" javaType="com.xiaobiti.pojo.IdCard" select="com.xiaobiti.pojo.IdCard.findCodeById"/>-->
        <!-- com.xiaobiti.pojo.IdCard.findCodeById对应了另一个Mapper里面的select的,将findCodeById的结果对象对应输出card的键也对应是数据库中的列card_id -->

        <association property="card" column="card_id" javaType="com.xiaobiti.pojo.IdCard"/>

    </resultMap>
</mapper>

二、一对多查询

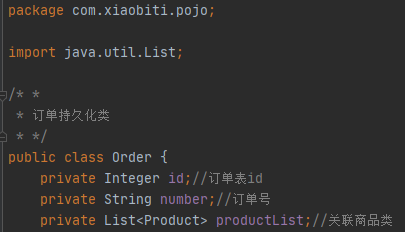

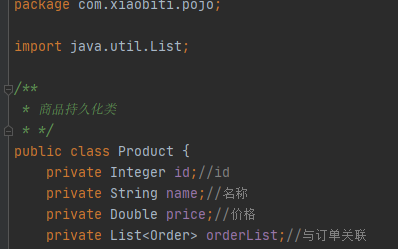

实体类Order和User创建:



 UserMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.xiaobiti.pojo.User">
<!-- 一对多查询 -->
    <select id="findUser" parameterType="Integer" resultMap="userMap">
        SELECT u.*,o.id as order_id,o.number FROM tb_order o,tb_user u where o.user_id = u.id and u.id =#{id}
    </select>
    <resultMap id="userMap" type="com.xiaobiti.pojo.User">
        <id property="id" column="id"/>
        <result property="username" column="username"/>
        <result property="address" column="address"/>
        <!-- 一对多 -->
        <collection property="orderList" ofType="com.xiaobiti.pojo.Order">
            <id property="id" column="order_id"/><!-- order表中id别名改为order_id,所以这里的column对应为order_id -->
            <result property="number" column="number"/>
        </collection>
    </resultMap>
</mapper>

OrderMapper.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<mapper namespace="com.xiaobiti.pojo.Order">
    <select id="findOrders" parameterType="Integer" resultMap="orderResult">
        SELECT o.*,p.id as product_id,p.name,p.price FROM tb_order o,tb_product p,orderitem oi where o.id = oi.order_id AND p.id = oi.product_id AND o.id = 1
    </select>
    <resultMap id="orderResult" type="com.xiaobiti.pojo.Order">
        <id property="id" column="id"/>
        <result property="number" column="number"/>
        <collection property="productList" ofType="com.xiaobiti.pojo.Product">
            <id property="id" column="product_id"/><!-- product表中id别名改为product_id,所以这里的column对应product_id -->
            <result property="name" column="name"/>
            <result property="price" column="price"/>
        </collection>
    </resultMap>
</mapper>

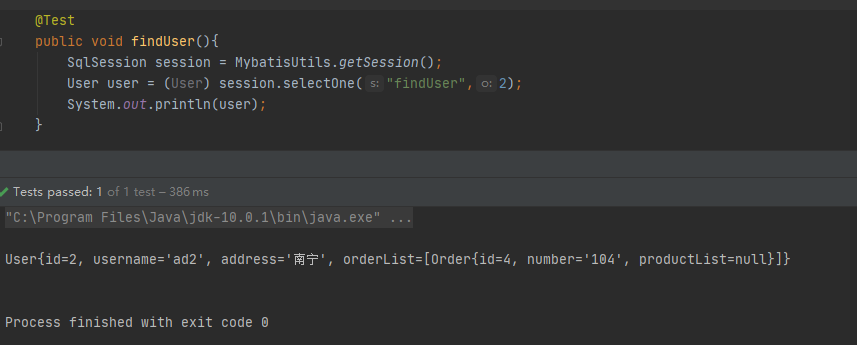

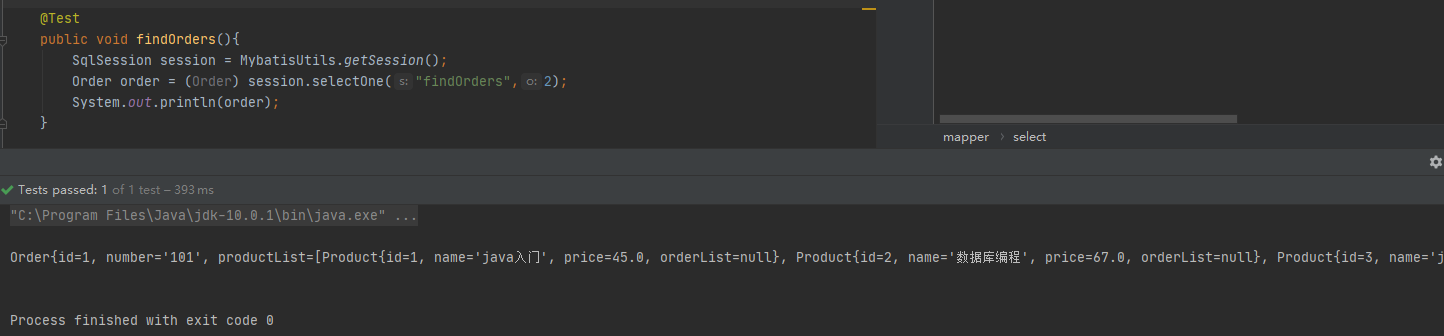

运行查询结果：



 需要将mapper文件配置到mybatis-config.xml中

三、一级缓存

添加依赖:

<dependency>
  <groupId>log4j</groupId>
  <artifactId>log4j</artifactId>
  <version>1.2.12</version>
</dependency>

在src/main/resources目录下创建log4j.properties文件

log4j.properties

#全局日志配置
log4j.rootLogger=DEBUG, Console
#控制台输出配置
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n
#日志输出级别，只展示了一个
log4j.logger.java.sql.PreparedStatement=DEBUG



四、二级缓存

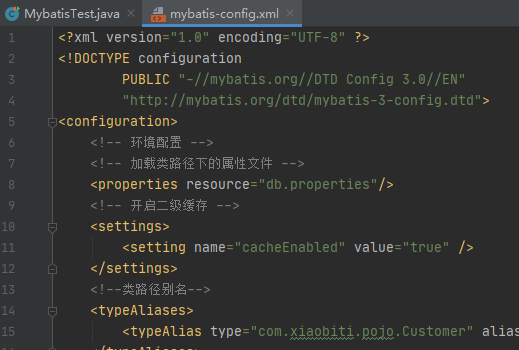

开启二级缓存需要在mybatis-config.xml中插入。。。需要在properties后面插入

<settings>
        <setting name="cacheEnabled" value="true" />
    </settings>



 然后再在对应的Mapper文件中加入。。。开启二级缓存





缓存总结：数据没有改变进行同样的查询时可以在缓存区中直接拿出查询数据。
