交换网络的构建与配置

交换网络的构建与配置

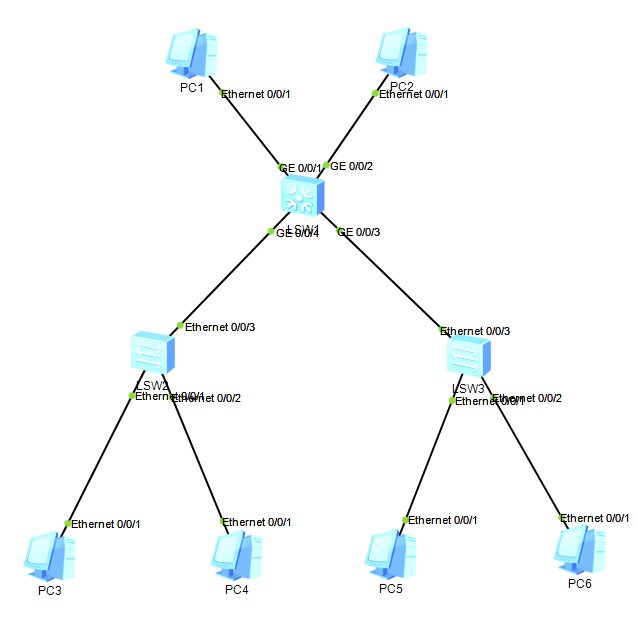

一·搭建拓扑图



二·配置PC地址

 1.配置PC1地址为192.168.1.1/24





  2.配置PC2的地址为192.168.2.2/24

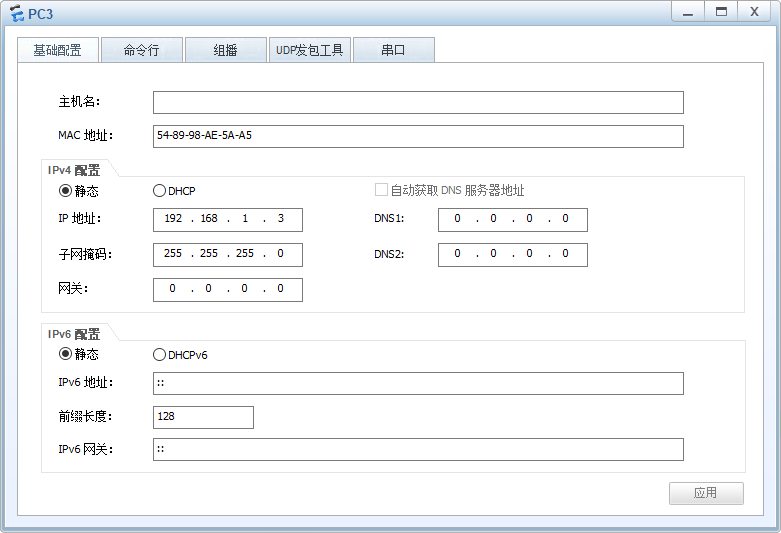

 3.配置PC3的地址为192.168.1.3/24











 4.配置PC4的地址为192.168.2.4/24









 5.配置PC5的地址为192.168.1.5/24









 6.配置PC6的地址为192.168.2.6/24





 三·配置设备





 1. S1配置步骤

<Huawei>system-view

[Huawei]sysname SW1

[SW1]vlan batch 10 20

[SW1]interface GigabitEthernet 0/0/1

[SW1-GigabitEthernet0/0/1]port link-type access

[SW1-GigabitEthernet0/0/1]port default vlan 10

[SW1-GigabitEthernet0/0/1]quit

[SW1]interface GigabitEthernet 0/0/2

[SW1-GigabitEthernet0/0/2]port link-type access

[SW1-GigabitEthernet0/0/2]port default vlan 20

[SW1-GigabitEthernet0/0/2]quit

[SW1]interface GigabitEthernet 0/0/3

[SW1-GigabitEthernet0/0/3]port link-type trunk

[SW1-GigabitEthernet0/0/3]port trunk allow-pass vlan 10 20

[SW1-GigabitEthernet0/0/3]quit

[SW1]interface GigabitEthernet 0/0/4

[SW1-GigabitEthernet0/0/4]port link-type trunk

[SW1-GigabitEthernet0/0/4]port trunk allow-pass vlan 10 20

[SW1-GigabitEthernet0/0/4]quit

2. S2配置步骤

<Huawei>system-view

[Huawei]sysname SW2

[SW2]vlan batch 10 20

[SW2]interface Ethernet 0/0/1

[SW2-Ethernet0/0/1]port link-type access

[SW2-Ethernet0/0/1]port default vlan 10

[SW2-Ethernet0/0/1]quit

[SW2]interface Ethernet0/0/2

[SW2-Ethernet0/0/2]port link-type access

[SW2-Ethernet0/0/2]port default vlan 20

[SW2-Ethernet0/0/2]quit

[SW2]interface Ethernet0/0/3

[SW2-Ethernet0/0/3]port link-type trunk

[SW2-Ethernet0/0/3]port trunk allow-pass vlan 10 20

[SW2-Ethernet0/0/3]quit

3. S3配置步骤



<Huawei>system-view



[Huawei]sysname SW3



[SW3]vlan batch 10 20



[SW3]interface Ethernet0/0/1



[SW3-Ethernet0/0/1]port link-type access



[SW3-Ethernet0/0/1]port default vlan 10



[SW3-Ethernet0/0/1]quit



[SW3]interface Ethernet0/0/2



[SW3-Ethernet0/0/2]port link-type access



[SW3-Ethernet0/0/2]port default vlan 20



[SW3-Ethernet0/0/2]quit



[SW3]interface Ethernet0/0/3



[SW3-Ethernet0/0/3]port link-type trunk



[SW3-Ethernet0/0/3]port trunk allow-pass vlan 10 20



[SW3-Ethernet0/0/3]quit



四·网络连通性测试



 1.PC1连通测试

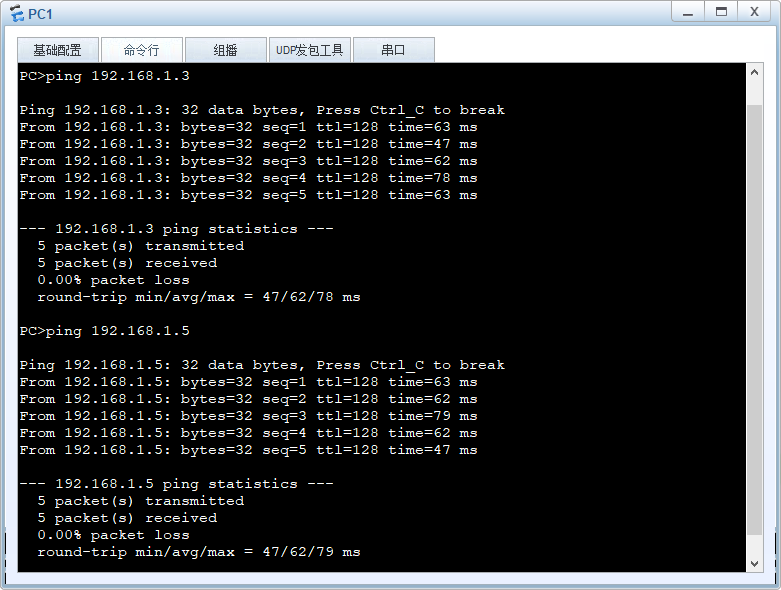

   打开PC1命令行模式，通过PIGN命令对PC3和PC5进行联通测试





     通过PING命令对PC2、PC4和PC6进行连通测试







 2.PC2连通测试

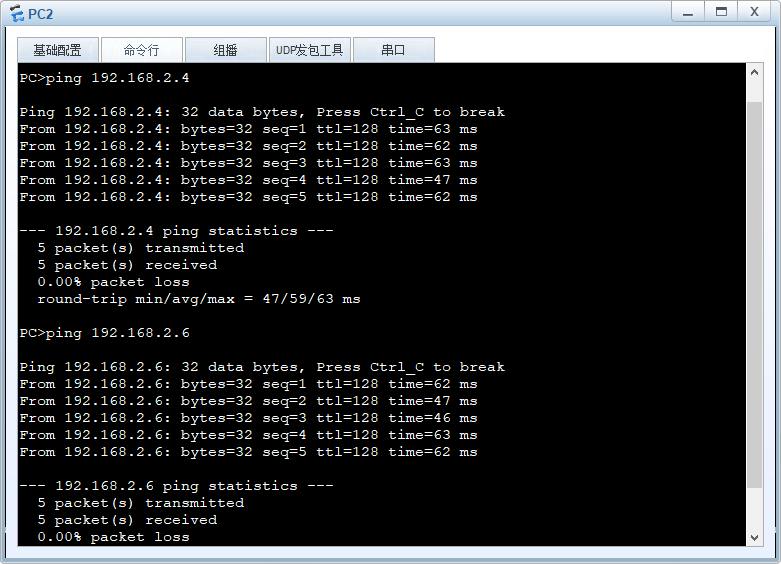

 打开PC2命令行模式，通过PING命令对PC4和PC6进行连通测试

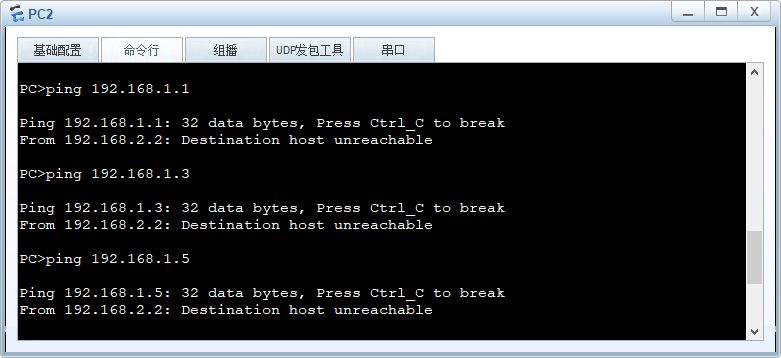

 通过PING命令对PC1、PC3和PC5进行连通测试
