springboot3.4.5 配置Knife4j 官方推荐使用

网址：

http://localhost:8080/doc.html#/home

一、注入依赖

<!-- SpringDoc OpenAPI UI -->

<dependency>
  <groupId>org.springdoc</groupId>
  <artifactId>springdoc-openapi-starter-webmvc-ui</artifactId>
  <version>2.7.0</version>
</dependency>



<dependency>
    <groupId>com.github.xiaoymin</groupId>
    <artifactId>knife4j-openapi3-jakarta-spring-boot-starter</artifactId>
    <version>4.5.0</version>
</dependency>

二、配置类

package com.wt.config;


import io.swagger.v3.oas.models.OpenAPI;
import io.swagger.v3.oas.models.info.Info;
import org.springdoc.core.models.GroupedOpenApi;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class Knife4jConfig {
    // 配置文档信息
    @Bean
    public OpenAPI openAPI(){
        return new OpenAPI().info(new Info()
                .title("文档标题")
                .version("1.0")
                .description("文档描述")
        );
    }

    // 配置功能分组，路由可以有多个
    @Bean
    public GroupedOpenApi typeAPI(){
        return GroupedOpenApi.builder().group("类型分组")
                .pathsToMatch("/type/**", "/test/**")
                .build();
    }
}

三、用法

1、实体类(描述返回值信息)

a、语法

@Schema(description = "返回值类型描述") 添加到 类或属性的注解

b、案例

package com.wt.pojo;

import com.baomidou.mybatisplus.annotation.*;

import java.io.Serializable;

import io.swagger.v3.oas.annotations.media.Schema;
import lombok.Data;

/**
 * @TableName news_type
 */
@TableName(value ="news_type")
@Data
@Schema(description = "类型实体类")
public class Type implements Serializable {
    @TableId
    @Schema(description = "类型id")
    private Integer tid;
    @Schema(description = "类型name")
    private String tname;
    @Schema(description = "类型乐观锁")
    @Version
    private Integer version;
    @Schema(description = "类型逻辑删除")
    @TableLogic
    private Integer isDeleted;

    private static final long serialVersionUID = 1L;
}

2、控制层

a、语法

@Tag(name = "分组(功能)描述")

@Operation(summary = "url描述")

@Parameter(description = "参数描述")

b、案例

package com.wt.controller;

import com.wt.pojo.Type;
import com.wt.service.TypeService;
import io.swagger.v3.oas.annotations.Operation;
import io.swagger.v3.oas.annotations.Parameter;
import io.swagger.v3.oas.annotations.tags.Tag;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;

@RestController
@RequestMapping("type")
// 分组描述，与swagger类似
@Tag(name = "类型管理")
public class TypeController {

    @Autowired
    private TypeService typeService;

    // url 路由 描述
    @Operation(summary = "获取数据")
    @GetMapping("get")
    // @Parameter 参数描述
    public Type get(@Parameter(description = "类型id") @RequestParam(name = "id", required = false) Integer id){
        Type type = typeService.getById(id);
        return type;
    }
}

 四、配置 展开参数的设置 yaml

springdoc:
  default-flat-param-object: true  # 平展参数

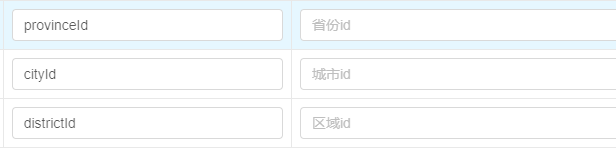

展开前

展开后
