haproxy

haproxy

安装haproxy

主机 IP
RS1 192.168.78.144
RS2 192.168.78.145
haproxy 192.168.78.146

RS1配置

//修改主机名
[root@localhost ~]# hostnamectl set-hostname RS1
[root@localhost ~]# bash
//关闭防火墙
[root@RS1 ~]# systemctl disable --now firewalld
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@RS1 ~]# setenforce 0
[root@RS1 ~]# vim /etc/selinux/config
SELINUX=disabled
//配置httpd
[root@RS1 ~]# yum -y install httpd    //安装过程省略
[root@RS1 ~]# systemctl enable --now httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
[root@RS1 ~]# echo 'RS1' > /var/www/html/index.html
[root@RS1 ~]# cat /var/www/html/index.html
RS1

网页测试

RS2配置

//修改主机名
[root@localhost ~]# hostnamectl set-hostname RS2
[root@localhost ~]# bash
//关闭防火墙
[root@RS2 ~]# systemctl disable --now firewalld
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@RS2 ~]# setenforce 0
[root@RS2 ~]# vim /etc/selinux/config
SELINUX=disabled
//配置httpd
[root@RS2 ~]# yum -y install httpd     //安装过程省略
[root@RS2 ~]# systemctl enable --now httpd
Created symlink /etc/systemd/system/multi-user.target.wants/httpd.service → /usr/lib/systemd/system/httpd.service.
[root@RS2 ~]# echo 'RS2' > /var/www/html/index.html
[root@RS2 ~]# cat /var/www/html/index.html
RS2

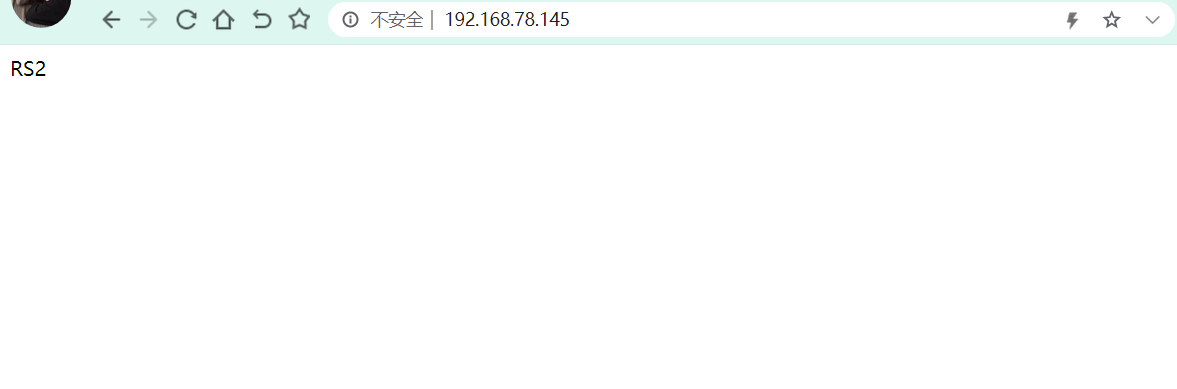

网页测试

部署haproxy

//关闭防火墙
[root@haproxy ~]# systemctl disable --now firewalld
Removed /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.
[root@haproxy ~]# setenforce 0
[root@haproxy ~]# vim /etc/selinux/config
SELINUX=disabled
//下载软件包
[root@haproxy ~]# wget https://github.com/haproxy/haproxy/archive/refs/tags/v2.6.0.tar.gz
[root@haproxy ~]# ls
anaconda-ks.cfg  v2.6.0.tar.gz
//安装依赖包
[root@haproxy ~]# yum install make gcc pcre-devel bzip2-devel openssl-devel systemd-devel -y
[root@haproxy ~]# useradd -r -M -s /sbin/nologin haproxy
//解压
[root@haproxy ~]# tar -xf v2.6.0.tar.gz
[root@haproxy ~]# ls
anaconda-ks.cfg  haproxy-2.6.0  v2.6.0.tar.gz
 //编译安装
[root@haproxy haproxy-2.6.0]# make -j $(grep 'processor' /proc/cpuinfo |wc -l)  \
> TARGET=linux-glibc  \
> USE_OPENSSL=1  \
> USE_ZLIB=1  \
> USE_PCRE=1  \
> USE_SYSTEMD=1
[root@haproxy haproxy-2.6.0]# make install PREFIX=/usr/local/haproxy
[root@haproxy haproxy-2.6.0]# cd /usr/local/
[root@haproxy local]# ls
bin  etc  games  haproxy  include  lib  lib64  libexec  sbin  share  src
[root@haproxy ~]# ln -s /usr/local/haproxy/sbin/haproxy /usr/sbin/
[root@haproxy ~]# which haproxy
/usr/sbin/haproxy

配置负载内核

[root@haproxy ~]# echo 'net.ipv4.ip_nonlocal_bind = 1' >>  /etc/sysctl.conf
[root@haproxy ~]# echo 'net.ipv4.ip_forward = 1' >> /etc/sysctl.conf
//-p 读取
[root@haproxy ~]# sysctl -p
net.ipv4.ip_nonlocal_bind = 1
net.ipv4.ip_forward = 1

修改配置文件

[root@haproxy ~]# cd /etc/haproxy/
[root@haproxy haproxy]# ls
[root@haproxy haproxy]# vim haproxy.cfg
[root@haproxy haproxy]# ls
haproxy.cfg
[root@haproxy haproxy]# cat haproxy.cfg
#--------------全局配置----------------
global
    log 127.0.0.1 local0  info
    #log loghost local0 info
    maxconn 20480
#chroot /usr/local/haproxy
    pidfile /var/run/haproxy.pid
    #maxconn 4000
    user haproxy
    group haproxy
    daemon
#---------------------------------------------------------------------
#common defaults that all the 'listen' and 'backend' sections will
#use if not designated in their block
#---------------------------------------------------------------------
defaults
    mode http
    log global
    option dontlognull
    option httpclose
    option httplog
    #option forwardfor
    option redispatch
    balance roundrobin
    timeout connect 10s
    timeout client 10s
    timeout server 10s
    timeout check 10s
    maxconn 60000
    retries 3
#--------------统计页面配置------------------
listen admin_stats
    bind 0.0.0.0:8189
    stats enable
    mode http
    log global
    stats uri /haproxy_stats
    stats realm Haproxy\ Statistics
    stats auth admin:admin
    #stats hide-version
    stats admin if TRUE
    stats refresh 30s
#---------------web设置-----------------------
listen webcluster
    bind 0.0.0.0:80
    mode http
    #option httpchk GET /index.html
    log global
    maxconn 3000
    balance roundrobin
    cookie SESSION_COOKIE insert indirect nocache
    server web01 192.168.78.144:80 check inter 2000 fall 5   //RS1
    server web02 192.168.78.145:80 check inter 2000 fall 5   //RS2
    #server web01 192.168.80.102:80 cookie web01 check inter 2000 fall 5

//配置haproxy.service文件
[root@haproxy ~]# vim /usr/lib/systemd/system/haproxy.service
[root@haproxy ~]# cat /usr/lib/systemd/system/haproxy.service
[Unit]
Description=HAProxy Load Balancer
After=syslog.target network.target

[Service]
ExecStartPre=/usr/local/haproxy/sbin/haproxy -f /etc/haproxy/haproxy.cfg   -c -q
ExecStart=/usr/local/haproxy/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg  -p /var/run/haproxy.pid
ExecReload=/bin/kill -USR2

[Install]
WantedBy=multi-user.target
//设置启用日志
[root@haproxy haproxy-2.6.0]# vim /etc/rsyslog.conf
# Save boot messages also to boot.log
local0.*        /var/log/haproxy.log    //加入这一行
local7.*        /var/log/boot.log

[root@haproxy ~]# systemctl enable --now  haproxy.service
[root@haproxy ~]# systemctl status haproxy.service
● haproxy.service - HAProxy Load Balancer
   Loaded: loaded (/usr/lib/systemd/system/haproxy.service; enabled; vendor preset: disabled)
   Active: active (running) since Mon 2022-08-15 09:41:35 EDT; 28s ago
 Main PID: 14621 (haproxy)
    Tasks: 3 (limit: 23458)
   Memory: 31.9M
   CGroup: /system.slice/haproxy.service
           ├─14621 /usr/local/haproxy/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/ru>
           └─14623 /usr/local/haproxy/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /var/ru>
//查看端口
[root@haproxy ~]# ss -antl        //能够看到80
State     Recv-Q    Send-Q         Local Address:Port         Peer Address:Port    Process
LISTEN    0         5                    0.0.0.0:873               0.0.0.0:*
LISTEN    0         128                  0.0.0.0:80                0.0.0.0:*
LISTEN    0         128                  0.0.0.0:22                0.0.0.0:*
LISTEN    0         128                  0.0.0.0:8189              0.0.0.0:*
LISTEN    0         128                     [::]:22                   [::]:*

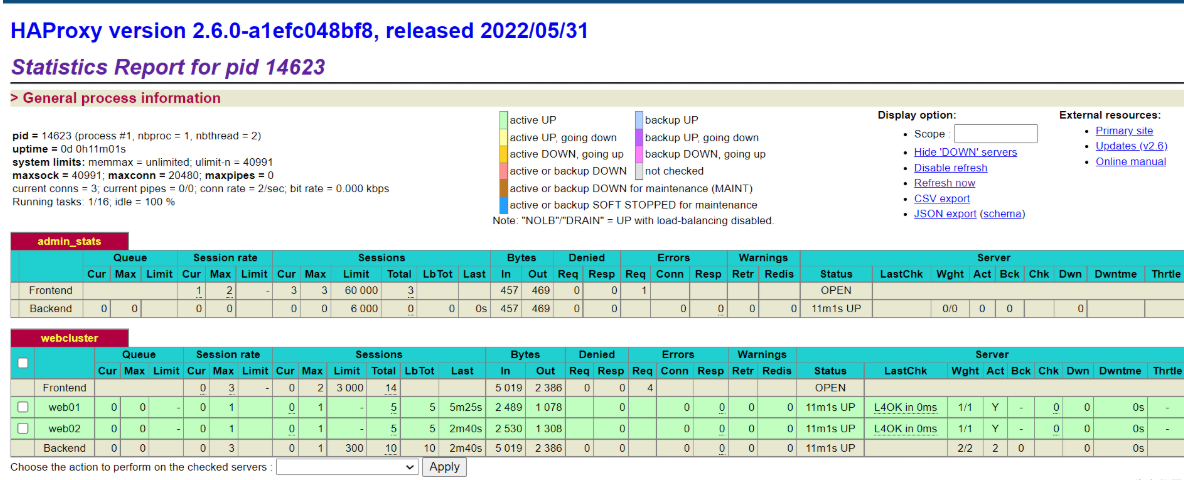

网页测试
