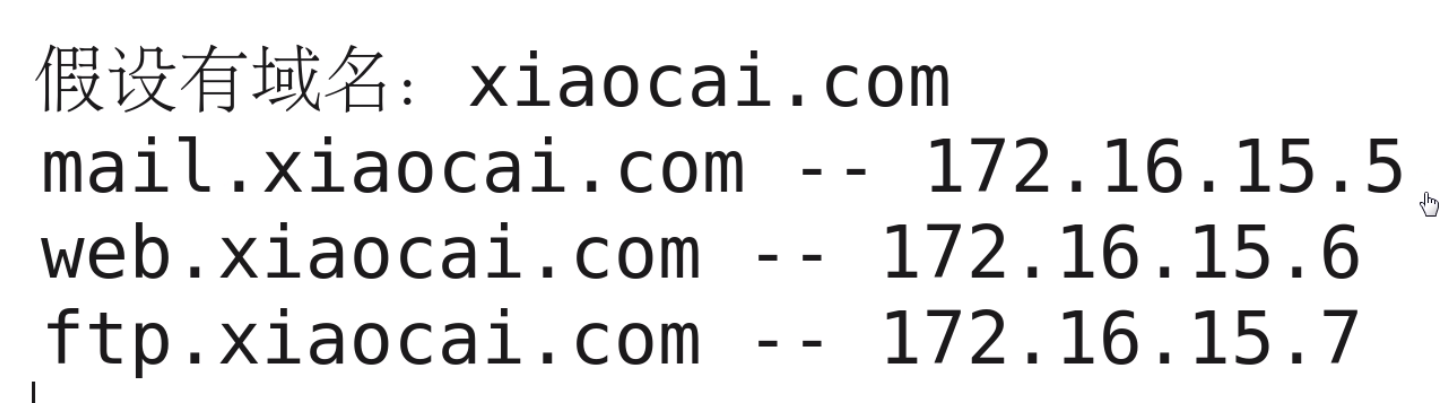

需求:





一、bind服务器软件安装

1.安装bind安装包

yum install bind-chroot -y



2.关闭防火墙

systemctl stop firewalld.service
(centos6 service iptables stop)



3.查看防火墙状态
service firewalld status

配置文件
cat /etc/named.conf
cat /etc/named.rfc1912.zones
cd /etc/named/自定义zone文件
自定义zone文件和named.rfc1912.zones文件名字要保持一致



二、修改配置

修改全局配置
检查配置是否正确

named-checkconf /etc/named.conf



//
// named.conf
//
// Provided by Red Hat bind package to configure the ISC BIND named(8) DNS
// server as a caching only nameserver (as a localhost DNS resolver only).
//
// See /usr/share/doc/bind*/sample/ for example named configuration files.
//
// See the BIND Administrator's Reference Manual (ARM) for details about the
// configuration located in /usr/share/doc/bind-{version}/Bv9ARM.html

options {
    listen-on port 53 { any; };
    listen-on-v6 port 53 { ::1; };
    directory     "/var/named";
    dump-file     "/var/named/data/cache_dump.db";
    statistics-file "/var/named/data/named_stats.txt";
    memstatistics-file "/var/named/data/named_mem_stats.txt";
    recursing-file  "/var/named/data/named.recursing";
    secroots-file   "/var/named/data/named.secroots";
    allow-query     { any; };

    /*
     - If you are building an AUTHORITATIVE DNS server, do NOT enable recursion.
     - If you are building a RECURSIVE (caching) DNS server, you need to enable
       recursion.
     - If your recursive DNS server has a public IP address, you MUST enable access
       control to limit queries to your legitimate users. Failing to do so will
       cause your server to become part of large scale DNS amplification
       attacks. Implementing BCP38 within your network would greatly
       reduce such attack surface
    */
    recursion yes;

    dnssec-enable yes;
    dnssec-validation yes;

    /* Path to ISC DLV key */
    bindkeys-file "/etc/named.root.key";

    managed-keys-directory "/var/named/dynamic";

    pid-file "/run/named/named.pid";
    session-keyfile "/run/named/session.key";
};

logging {
        channel default_debug {
                file "data/named.run";
                severity dynamic;
        };
};

zone "." IN {
    type hint;
    file "named.ca";
};

include "/etc/named.rfc1912.zones";
include "/etc/named.root.key";

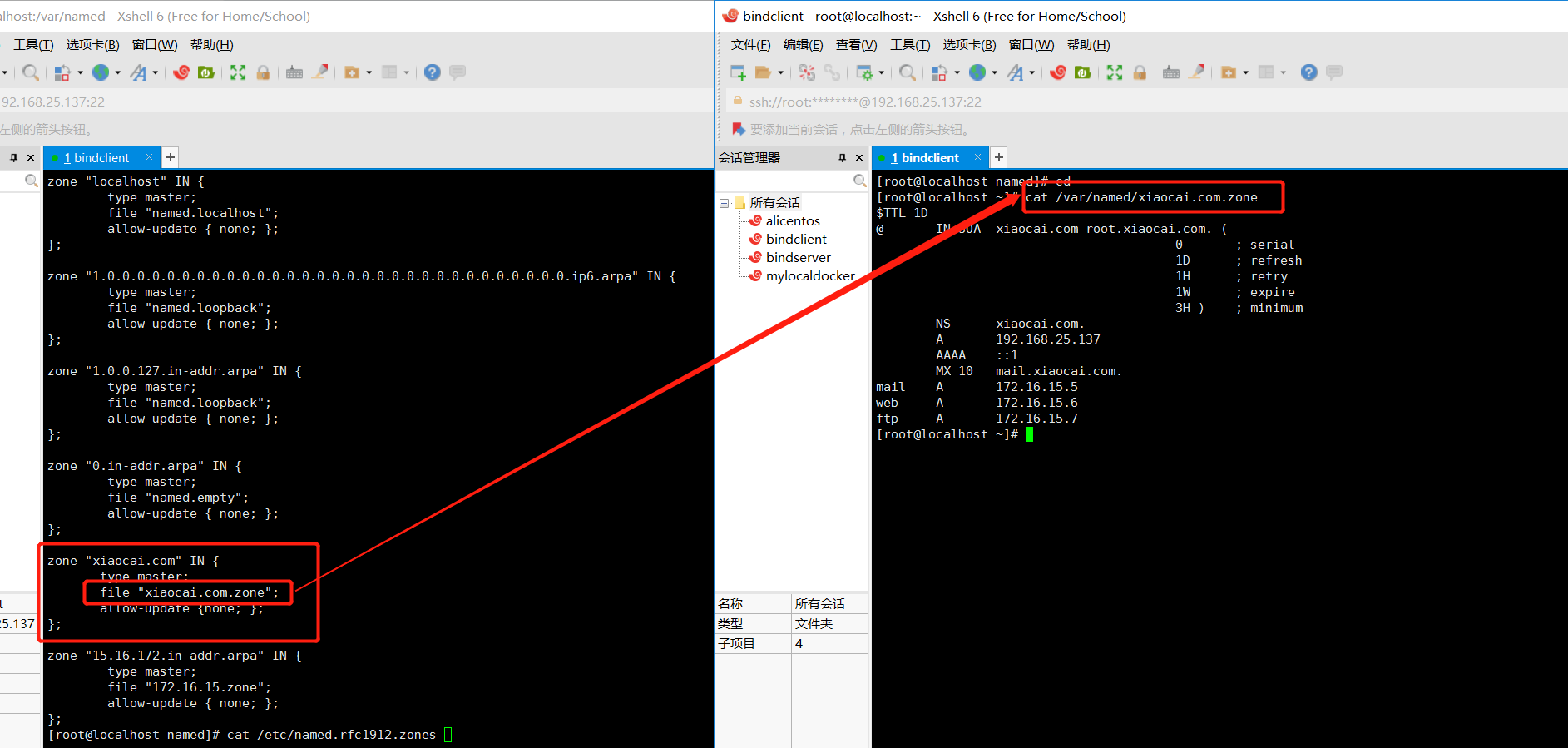

配置zone

vim /etc/named.rfc1912.zones

zone "xiaocai.com" IN {
       type master;
       file "xiaocai.com.zone";
       allow-update {none; };
};

file文件在/var/named/目录下要创建

cd /var/named/
目录下文件当作是模板

cp -a named.localhost xiaocai.com.zone







$TTL 1D
@    IN SOA    xiaocai.com root.xiaocai.com. (
                    0    ; serial
                    1D    ; refresh
                    1H    ; retry
                    1W    ; expire
                    3H )    ; minimum
    NS    xiaocai.com.
    A    192.168.25.137
    AAAA    ::1
    MX 10    mail.xiaocai.com.
mail    A    172.16.15.5
web    A    172.16.15.6
ftp    A    172.16.15.7

把@改成zone, rname.invalid.是邮箱地址

开启服务

service named start



修改DNS解析服务器

[root@localhost named]# cat /etc/resolv.conf
# Generated by NetworkManager
search localdomain
nameserver 192.168.25.137
#nameserver 192.168.25.2

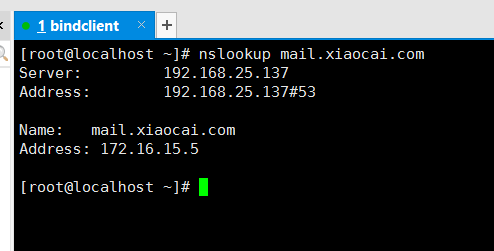

验证是否配置成功

nslookup mail.xiaocai.com







二、方向解析PTR

反向查找，通过ip查找域名

vim /etc/named.rfc1912.zones

zone "15.16.172.in-addr.arpa" IN {
    type master;
    file "172.16.15.zone";
    allow-update { none; };
};

在file文件在/var/named/目录下要文件file,172.16.15.zone

cd /var/named/
cp -a named.loopback 172.16.15.zone



$TTL 1D
@    IN SOA    xiaocai.com. root.xiaocai.com. (
                    0    ; serial
                    1D    ; refresh
                    1H    ; retry
                    1W    ; expire
                    3H )    ; minimum
    NS    xiaocai.com.
    A    192.168.25.137
    MX 10    mail.xiaocai.com
    AAAA    ::1
5    PTR    mail.xiaocai.com.
6    PTR    web.xiaocai.com.
7    PTR    ftp.xiaocai.com.

5,6,7数字代表的是网段

重启服务

service named restart

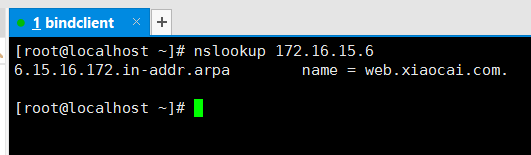

nslookup 172.16.15.6
