二进制部署k8s高可用版本

二进制安装k8s 1.18版本

注意：本文档适用于k8s 1.17 1.18 1.19，请不要使用带中文的服务器和克隆的虚拟机
本文将演示CentOS 7二进制方式安装高可用k8s 1.18.x，相对于其他版本，二进制安装方式并无太大区别。

集群规划

IP地址	主机名	备注
10.0.0.100	k8s-master01	k8s节点集群
10.0.0.101	k8s-master02	k8s节点集群
10.0.0.102	k8s-master03	k8s节点集群
10.0.0.103	k8s-node01	k8s节点集群
10.0.0.104	k8s-node02	k8s节点集群
10.0.0.222	keepalived	高可用虚拟VIP

注意：

服务器或者虚拟机配置均不少于2核2G不然集群起不来，pod网段和service网段不和主机在同一网段。

VIP（虚拟IP）不要和公司内网IP重复，首先去ping一下，不通才可用。VIP需要和主机在同一个局域网内！

配置信息	备注
系统版本	CentOS 7.9
Docker版本	19.03.x
Pod网段	172.168.0.0/12
Service网段	10.96.0.0/12

VIP（虚拟IP）不要和公司内网IP重复，首先去ping一下，不通才可用。VIP需要和主机在同一个局域网内！

公有云上搭建VIP是公有云的负载均衡的IP，比如阿里云的内网SLB的地址，腾讯云内网ELB的地址.

1.环境准备

#1.系统
[root@k8s-master01 ~]# cat /etc/redhat-release
CentOS Linux release 7.6.1810 (Core)

#2.所有节点配置hosts文件
[root@k8s-master01 ~]# cat /etc/hosts
10.0.0.100 k8s-master01
10.0.0.101 k8s-master02
10.0.0.102 k8s-master03
10.0.0.103 k8s-node01
10.0.0.104 k8s-node02
10.0.0.222 k8s-master-lb

#3.所有节点安装基本工具并关闭firewalld 、dnsmasq、selinux (CentOS7需要关闭NetworkManager，CentOS8不需要)

yum install wget jq psmisc vim net-tools yum-utils device-mapper-persistent-data lvm2 git  dnsmasq vim -y

systemctl disable --now firewalld
systemctl disable --now dnsmasq
systemctl disable --now NetworkManager    (如为centos8则不需要)
setenforce 0
sed -i 's#SELINUX=enforcing#SELINUX=disabled#g' /etc/sysconfig/selinux
sed -i 's#SELINUX=enforcing#SELINUX=disabled#g' /etc/selinux/config


#4.所有节点关闭swap分区，fstab注释swap
[root@k8s-master01 ~]# swapoff -a && sysctl -w vm.swappiness=0
vm.swappiness = 0
[root@k8s-master01 ~]# vi /etc/fstab
[root@k8s-master01 ~]# cat /etc/fstab
#
# /etc/fstab
# Created by anaconda on Fri Nov  1 23:02:53 2019
#
# Accessible filesystems, by reference, are maintained under '/dev/disk/'.
# See man pages fstab(5), findfs(8), mount(8) and/or blkid(8) for more info.
#
# After editing this file, run 'systemctl daemon-reload' to update systemd
# units generated from this file.
#
/dev/mapper/cl-root     /                       xfs     defaults        0 0
UUID=6897cd7b-9b3a-42b0-a827-57991141b297 /boot                   ext4    defaults        1 2
#/dev/mapper/cl-swap     swap                    swap    defaults        0 0

#5.安装ntpdate进行时间同步
rpm -ivh http://mirrors.wlnmp.com/centos/wlnmp-release-centos.noarch.rpm
yum install ntpdate -y

#6.所有节点同步时间。时间同步配置如下：
ln -sf /usr/share/zoneinfo/Asia/Shanghai /etc/localtime
echo 'Asia/Shanghai' >/etc/timezone
ntpdate time2.aliyun.com

# 加入到crontab
shell# vim /etc/crontab
*/5 * * * * /usr/sbin/ntpdate time2.aliyun.com

#7.所有节点配置limit：
ulimit -SHn 65535

vim /etc/security/limits.conf
# 末尾添加如下内容
* soft nofile 655360
* hard nofile 131072
* soft nproc 655350
* hard nproc 655350
* soft memlock unlimited
* hard memlock unlimited

Master01节点免密钥登录其他节点，安装过程中生成配置文件和证书均在Master01上操作，集群管理也在Master01上操作，阿里云或者AWS上需要单独一台kubectl服务器。密钥配置如下：

#分步执行
ssh-keygen -t rsa

for i in k8s-master01 k8s-master02 k8s-master03 k8s-node01 k8s-node02;do ssh-copy-id -i .ssh/id_rsa.pub $i;done

#Master01下载安装文件
cd /root/ ; git clone https://github.com/dotbalo/k8s-ha-install.git

#切换到1.18.x分支
cd k8s-ha-install && git checkout manual-installation-v1.18.x

#所有节点
CentOS 7安装yum源如下：
curl -o /etc/yum.repos.d/CentOS-Base.repo https://mirrors.aliyun.com/repo/Centos-7.repo
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

CentOS 8 安装源如下：
curl -o /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-8.repo
yum makecache
yum install -y yum-utils device-mapper-persistent-data lvm2
yum-config-manager --add-repo https://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo

基本组件安装

无论是CentOS7和CentOS8都需要升级--->所有节点

# yum update -y

内核升级-------如需内核升级，可以按需操作

# CentOS7必须升级内核
cd /root
wget http://193.49.22.109/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-devel-4.19.12-1.el7.elrepo.x86_64.rpm
wget http://193.49.22.109/elrepo/kernel/el7/x86_64/RPMS/kernel-ml-4.19.12-1.el7.elrepo.x86_64.rpm

#所有节点安装内核
[root@k8s-master01 ~]# scp -rp kernel-ml-* root@10.0.0.101:/root
[root@k8s-master01 ~]# scp -rp kernel-ml-* root@10.0.0.102:/root
[root@k8s-master01 ~]# scp -rp kernel-ml-* root@10.0.0.103:/root
[root@k8s-master01 ~]# scp -rp kernel-ml-* root@10.0.0.104:/root

cd /root && yum localinstall -y kernel-ml*
#所有节点更改内核启动顺序
grub2-set-default  0 && grub2-mkconfig -o /etc/grub2.cfg
grubby --args="user_namespace.enable=1" --update-kernel="$(grubby --default-kernel)"

#检查默认内核是不是4.19
[root@k8s-master02 ~]# grubby --default-kernel
/boot/vmlinuz-4.19.12-1.el7.elrepo.x86_64

所有节点安装ipvs

yum install ipvsadm ipset sysstat conntrack libseccomp -y
# 内核4.18以下nf_conntrack_ipv4，内核高于4.18 nf_conntrack

[root@k8s-master02 ~]# cat /etc/modules-load.d/ipvs.conf
ip_vs
ip_vs_lc
ip_vs_wlc
ip_vs_rr
ip_vs_wrr
ip_vs_lblc
ip_vs_lblcr
ip_vs_dh
ip_vs_sh
ip_vs_fo
ip_vs_nq
ip_vs_sed
ip_vs_ftp
ip_vs_sh
nf_conntrack_ipv4
ip_tables
ip_set
xt_set
ipt_set
ipt_rpfilter
ipt_REJECT
ipip

[root@k8s-master02 ~]# systemctl enable --now systemd-modules-load.service
####### 警告忽略

[root@k8s-master01 ~]# lsmod | grep --color=auto -e ip_vs -e nf_conntrack
nf_conntrack_ipv4      15053  0
nf_defrag_ipv4         12729  1 nf_conntrack_ipv4
ip_vs_ftp              13079  0
nf_nat                 26787  1 ip_vs_ftp
ip_vs_sed              12519  0
ip_vs_nq               12516  0
ip_vs_sh               12688  0
ip_vs_dh               12688  0
ip_vs_lblcr            12922  0
ip_vs_lblc             12819  0
ip_vs_wrr              12697  0
ip_vs_rr               12600  0
ip_vs_wlc              12519  0
ip_vs_lc               12516  0
ip_vs                 145497  22 ip_vs_dh,ip_vs_lc,ip_vs_nq,ip_vs_rr,ip_vs_sh,ip_vs_ftp,ip_vs_sed,ip_vs_wlc,ip_vs_wrr,ip_vs_lblcr,ip_vs_lblc
nf_conntrack          133095  3 ip_vs,nf_nat,nf_conntrack_ipv4
libcrc32c              12644  4 xfs,ip_vs,nf_nat,nf_conntrack



# 所有节点配置内核参数
cat <<EOF > /etc/sysctl.d/k8s.conf
net.ipv4.ip_forward = 1
net.bridge.bridge-nf-call-iptables = 1
fs.may_detach_mounts = 1
vm.overcommit_memory=1
vm.panic_on_oom=0
fs.inotify.max_user_watches=89100
fs.file-max=52706963
fs.nr_open=52706963
net.netfilter.nf_conntrack_max=2310720

net.ipv4.tcp_keepalive_time = 600
net.ipv4.tcp_keepalive_probes = 3
net.ipv4.tcp_keepalive_intvl =15
net.ipv4.tcp_max_tw_buckets = 36000
net.ipv4.tcp_tw_reuse = 1
net.ipv4.tcp_max_orphans = 327680
net.ipv4.tcp_orphan_retries = 3
net.ipv4.tcp_syncookies = 1
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.ip_conntrack_max = 65536
net.ipv4.tcp_max_syn_backlog = 16384
net.ipv4.tcp_timestamps = 0
net.core.somaxconn = 16384
EOF
sysctl --system

所有节点配置完内核后，重启服务器，保证重启后内核依旧加载

reboot
lsmod | grep --color=auto -e ip_vs -e nf_conntrack

所有节点安装新版containerd

#1.配置源
wget -O /etc/yum.repos.d/docker-ce.repo https://mirrors.ustc.edu.cn/docker-ce/linux/centos/docker-ce.repo

sed -i 's#download.docker.com#mirrors.tuna.tsinghua.edu.cn/docker-ce#g' /etc/yum.repos.d/docker-ce.repo

[root@k8s-master01 ~]# wget https://download.docker.com/linux/centos/7/x86_64/stable/Packages/containerd.io-1.2.13-3.2.el7.x86_64.rpm
[root@k8s-master01 ~]# yum install containerd.io-1.2.13-3.2.el7.x86_64.rpm -y
[root@k8s-master01 ~]# yum install docker-ce -y

#温馨提示：
由于新版kubelet建议使用systemd，所以可以把docker的CgroupDriver改成systemd

mkdir -p /etc/docker
cat > /etc/docker/daemon.json <<EOF
{
  "exec-opts": ["native.cgroupdriver=systemd"]
}
EOF

所有节点开启Docker并设置开机自启动

[root@k8s-master01 ~]# systemctl start docker.service
[root@k8s-master01 ~]# systemctl enable docker.service
#查看docker版本信息
[root@k8s-master01 ~]# docker info

k8s组件安装（下载慢的话可以使用迅雷下载）

#1.Master01下载kubernetes安装包
[root@k8s-master01 ~]# wget https://storage.googleapis.com/kubernetes-release/release/v1.18.8/kubernetes-server-linux-amd64.tar.gz

#2.下载etcd安装包
[root@k8s-master01 ~]# wget https://github.com/etcd-io/etcd/releases/download/v3.4.12/etcd-v3.4.12-linux-amd64.tar.gz

#3.解压kubernetes、etcd安装文件
[root@k8s-master01 ~]# tar -xf kubernetes-server-linux-amd64.tar.gz  --strip-components=3 -C /usr/local/bin
[root@k8s-master01 ~]#  tar -zxvf etcd-v3.4.12-linux-amd64.tar.gz --strip-components=1 -C /usr/local/bin etcd-v3.4.12-linux-amd64/etcd{,ctl}

#4.版本查看
[root@k8s-master01 ~]# kubectl version
Client Version: version.Info{Major:"1", Minor:"18", GitVersion:"v1.18.8",

[root@k8s-master01 ~]# etcdctl version
etcdctl version: 3.4.12
API version: 3.4

将组件推送到其它节点

#变量、
MasterNodes='k8s-master02 k8s-master03'
WorkNodes='k8s-node01 k8s-node02'

for NODE in $MasterNodes; do echo $NODE; scp /usr/local/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy} $NODE:/usr/local/bin/; scp /usr/local/bin/etcd* $NODE:/usr/local/bin/; done
for NODE in $WorkNodes; do scp /usr/local/bin/kube{let,-proxy} $NODE:/usr/local/bin/ ; done

所有节点创建/opt/cni/bin目录
mkdir -p /opt/cni/bin

生成证书

二进制安装最关键步骤，一步错误全盘皆输，一定要注意每个步骤都要是正确的

#1.下载生成证书工具
wget "https://pkg.cfssl.org/R1.2/cfssl_linux-amd64" -O /usr/local/bin/cfssl
wget "https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64" -O /usr/local/bin/cfssljson
chmod +x /usr/local/bin/cfssl /usr/local/bin/cfssljson

#2.所有Master节点创建etcd证书目录
mkdir /etc/etcd/ssl -p

#3.Master01节点生成etcd证书
[root@k8s-master01 ~]# cd /root/k8s-ha-install/pki
[root@k8s-master01 pki]# cfssl gencert -initca etcd-ca-csr.json | cfssljson -bare /etc/etcd/ssl/etcd-ca
2021/02/04 09:55:21 [INFO] generating a new CA key and certificate from CSR
2021/02/04 09:55:21 [INFO] generate received request
2021/02/04 09:55:21 [INFO] received CSR
2021/02/04 09:55:21 [INFO] generating key: rsa-2048
2021/02/04 09:55:23 [INFO] encoded CSR
2021/02/04 09:55:23 [INFO] signed certificate with serial number 532089522914216378905293228797136502101244087432

#注意更换ip地址为自己的
[root@k8s-master01 pki]# cfssl gencert    -ca=/etc/etcd/ssl/etcd-ca.pem    -ca-key=/etc/etcd/ssl/etcd-ca-key.pem    -config=ca-config.json    -hostname=127.0.0.1,k8s-master01,k8s-master02,k8s-master03,10.0.0.100,10.0.0.101,10.0.0.102    -profile=kubernetes    etcd-csr.json | cfssljson -bare /etc/etcd/ssl/etcd
2021/02/04 09:55:33 [INFO] generate received request
2021/02/04 09:55:33 [INFO] received CSR
2021/02/04 09:55:33 [INFO] generating key: rsa-2048
2021/02/04 09:55:34 [INFO] encoded CSR
2021/02/04 09:55:34 [INFO] signed certificate with serial number 376839864892428073884570446885125061123652661891

将证书复制到其他节点

[root@k8s-master01 pki]# MasterNodes='k8s-master02 k8s-master03'
[root@k8s-master01 pki]# WorkNodes='k8s-node01 k8s-node02'
[root@k8s-master01 pki]# for NODE in $MasterNodes; do
     ssh $NODE "mkdir -p /etc/etcd/ssl"
     for FILE in etcd-ca-key.pem  etcd-ca.pem  etcd-key.pem  etcd.pem; do
       scp /etc/etcd/ssl/${FILE} $NODE:/etc/etcd/ssl/${FILE}
     done
 done

生成kubernetes证书

# 所有节点创建kubernetes相关目录
mkdir -p /etc/kubernetes/pki

#以下只在k8s-master01执行，执行完毕后使用scp推送到对端主机
[root@k8s-master01 pki]# cfssl gencert -initca ca-csr.json | cfssljson -bare /etc/kubernetes/pki/ca

[root@k8s-master01 pki]# cfssl gencert -ca=/etc/kubernetes/pki/ca.pem -ca-key=/etc/kubernetes/pki/ca-key.pem   -config=ca-config.json   -hostname=10.96.0.1,10.0.0.222,127.0.0.1,kubernetes,kubernetes.default,kubernetes.default.svc,kubernetes.default.svc.cluster,kubernetes.default.svc.cluster.local,10.0.0.100,10.0.0.101,10.0.0.102   -profile=kubernetes   apiserver-csr.json | cfssljson -bare /etc/kubernetes/pki/apiserver

[root@k8s-master01 pki]# cfssl gencert   -initca front-proxy-ca-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-ca

[root@k8s-master01 pki]# cfssl gencert   -ca=/etc/kubernetes/pki/front-proxy-ca.pem   -ca-key=/etc/kubernetes/pki/front-proxy-ca-key.pem   -config=ca-config.json   -profile=kubernetes   front-proxy-client-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-client

[root@k8s-master01 pki]# cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   manager-csr.json | cfssljson -bare /etc/kubernetes/pki/controller-manager

[root@k8s-master01 pki]# kubectl config set-cluster kubernetes \
     --certificate-authority=/etc/kubernetes/pki/ca.pem \
     --embed-certs=true \
     --server=https://10.0.0.222:8443 \
     --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig


kubectl config set-context system:kube-controller-manager@kubernetes \
    --cluster=kubernetes \
    --user=system:kube-controller-manager \
    --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

kubectl config use-context system:kube-controller-manager@kubernetes \
    --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

[root@k8s-master01 pki]#
[root@k8s-master01 pki]# kubectl config set-credentials system:kube-controller-manager \
     --client-certificate=/etc/kubernetes/pki/controller-manager.pem \
     --client-key=/etc/kubernetes/pki/controller-manager-key.pem \
     --embed-certs=true \
     --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig

User "system:kube-controller-manager" set.
[root@k8s-master01 pki]#
[root@k8s-master01 pki]# kubectl config set-context system:kube-controller-manager@kubernetes \
     --cluster=kubernetes \
     --user=system:kube-controller-manager \
     --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig


Context "system:kube-controller-manager@kubernetes" created.
[root@k8s-master01 pki]#
[root@k8s-master01 pki]# kubectl config use-context system:kube-controller-manager@kubernetes \
     --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig


Switched to context "system:kube-controller-manager@kubernetes".

[root@k8s-master01 pki]# cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   scheduler-csr.json | cfssljson -bare /etc/kubernetes/pki/scheduler

[root@k8s-master01 pki]# kubectl config set-cluster kubernetes \
     --certificate-authority=/etc/kubernetes/pki/ca.pem \
     --embed-certs=true \
     --server=https://10.0.0.222:8443 \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig


Cluster "kubernetes" set.
[root@k8s-master01 pki]#
[root@k8s-master01 pki]# kubectl config set-credentials system:kube-scheduler \
     --client-certificate=/etc/kubernetes/pki/scheduler.pem \
     --client-key=/etc/kubernetes/pki/scheduler-key.pem \
     --embed-certs=true \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

User "system:kube-scheduler" set.
[root@k8s-master01 pki]#
[root@k8s-master01 pki]# kubectl config set-context system:kube-scheduler@kubernetes \
     --cluster=kubernetes \
     --user=system:kube-scheduler \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig


Context "system:kube-scheduler@kubernetes" created.
[root@k8s-master01 pki]#
[root@k8s-master01 pki]# kubectl config use-context system:kube-scheduler@kubernetes \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig


Switched to context "system:kube-scheduler@kubernetes".

[root@k8s-master01 pki]# cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   admin-csr.json | cfssljson -bare /etc/kubernetes/pki/admin


[root@k8s-master01 pki]# kubectl config set-cluster kubernetes     --certificate-authority=/etc/kubernetes/pki/ca.pem     --embed-certs=true     --server=https://10.0.0.222:8443     --kubeconfig=/etc/kubernetes/admin.kubeconfig

Cluster "kubernetes" set.
[root@k8s-master01 pki]#
[root@k8s-master01 pki]# kubectl config set-credentials kubernetes-admin     --client-certificate=/etc/kubernetes/pki/admin.pem     --client-key=/etc/kubernetes/pki/admin-key.pem     --embed-certs=true     --kubeconfig=/etc/kubernetes/admin.kubeconfig

User "kubernetes-admin" set.
[root@k8s-master01 pki]#
[root@k8s-master01 pki]# kubectl config set-context kubernetes-admin@kubernetes     --cluster=kubernetes     --user=kubernetes-admin     --kubeconfig=/etc/kubernetes/admin.kubeconfig

Context "kubernetes-admin@kubernetes" created.
[root@k8s-master01 pki]#
[root@k8s-master01 pki]# kubectl config use-context kubernetes-admin@kubernetes     --kubeconfig=/etc/kubernetes/admin.kubeconfig

Switched to context "kubernetes-admin@kubernetes".

创建ServiceAccount Key

[root@k8s-master01 pki]# openssl genrsa -out /etc/kubernetes/pki/sa.key 2048
[root@k8s-master01 pki]# openssl rsa -in /etc/kubernetes/pki/sa.key -pubout -out /etc/kubernetes/pki/sa.pub

[root@k8s-master01 pki]# for NODE in k8s-master02 k8s-master03; do
for FILE in $(ls /etc/kubernetes/pki | grep -v etcd); do
scp /etc/kubernetes/pki/${FILE} $NODE:/etc/kubernetes/pki/${FILE};
done;
for FILE in admin.kubeconfig controller-manager.kubeconfig scheduler.kubeconfig; do

Kubernetes系统组件配置

etcd配置大致相同，注意修改每个Master节点的etcd配置的主机名和IP地址，服务器多的话也可以将etcd分开配置

1、master01 etcd配置文件

[root@k8s-master01 ~]# vim /etc/etcd/etcd.config.yml
[root@k8s-master01 ~]# cat /etc/etcd/etcd.config.yml
name: 'k8s-master01'
data-dir: /var/lib/etcd
wal-dir: /var/lib/etcd/wal
snapshot-count: 5000
heartbeat-interval: 100
election-timeout: 1000
quota-backend-bytes: 0
listen-peer-urls: 'https://10.0.0.100:2380'
listen-client-urls: 'https://10.0.0.100:2379,http://127.0.0.1:2379'
max-snapshots: 3
max-wals: 5
cors:
initial-advertise-peer-urls: 'https://10.0.0.100:2380'
advertise-client-urls: 'https://10.0.0.100:2379'
discovery:
discovery-fallback: 'proxy'
discovery-proxy:
discovery-srv:
initial-cluster: 'k8s-master01=https://10.0.0.100:2380,k8s-master02=https://10.0.0.101:2380,k8s-master03=https://10.0.0.102:2380'
initial-cluster-token: 'etcd-k8s-cluster'
initial-cluster-state: 'new'
strict-reconfig-check: false
enable-v2: true
enable-pprof: true
proxy: 'off'
proxy-failure-wait: 5000
proxy-refresh-interval: 30000
proxy-dial-timeout: 1000
proxy-write-timeout: 5000
proxy-read-timeout: 0
client-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
peer-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  peer-client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
debug: false
log-package-levels:
log-outputs: [default]
force-new-cluster: false

2、master02 etcd配置文件

[root@k8s-master02 ~]# vim /etc/etcd/etcd.config.yml
[root@k8s-master02 ~]# cat /etc/etcd/etcd.config.yml
name: 'k8s-master02'
data-dir: /var/lib/etcd
wal-dir: /var/lib/etcd/wal
snapshot-count: 5000
heartbeat-interval: 100
election-timeout: 1000
quota-backend-bytes: 0
listen-peer-urls: 'https://10.0.0.101:2380'
listen-client-urls: 'https://10.0.0.101:2379,http://127.0.0.1:2379'
max-snapshots: 3
max-wals: 5
cors:
initial-advertise-peer-urls: 'https://10.0.0.101:2380'
advertise-client-urls: 'https://10.0.0.101:2379'
discovery:
discovery-fallback: 'proxy'
discovery-proxy:
discovery-srv:
initial-cluster: 'k8s-master01=https://10.0.0.100:2380,k8s-master02=https://10.0.0.101:2380,k8s-master03=https://10.0.0.102:2380'
initial-cluster-token: 'etcd-k8s-cluster'
initial-cluster-state: 'new'
strict-reconfig-check: false
enable-v2: true
enable-pprof: true
proxy: 'off'
proxy-failure-wait: 5000
proxy-refresh-interval: 30000
proxy-dial-timeout: 1000
proxy-write-timeout: 5000
proxy-read-timeout: 0
client-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
peer-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  peer-client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
debug: false
log-package-levels:
log-outputs: [default]
force-new-cluster: false

3、master03 etcd配置文件

[root@k8s-master03 ~]# vim /etc/etcd/etcd.config.yml
[root@k8s-master03 ~]# cat /etc/etcd/etcd.config.yml
name: 'k8s-master03'
data-dir: /var/lib/etcd
wal-dir: /var/lib/etcd/wal
snapshot-count: 5000
heartbeat-interval: 100
election-timeout: 1000
quota-backend-bytes: 0
listen-peer-urls: 'https://10.0.0.102:2380'
listen-client-urls: 'https://10.0.0.102:2379,http://127.0.0.1:2379'
max-snapshots: 3
max-wals: 5
cors:
initial-advertise-peer-urls: 'https://10.0.0.102:2380'
advertise-client-urls: 'https://10.0.0.102:2379'
discovery:
discovery-fallback: 'proxy'
discovery-proxy:
discovery-srv:
initial-cluster: 'k8s-master01=https://10.0.0.100:2380,k8s-master02=https://10.0.0.101:2380,k8s-master03=https://10.0.0.102:2380'
initial-cluster-token: 'etcd-k8s-cluster'
initial-cluster-state: 'new'
strict-reconfig-check: false
enable-v2: true
enable-pprof: true
proxy: 'off'
proxy-failure-wait: 5000
proxy-refresh-interval: 30000
proxy-dial-timeout: 1000
proxy-write-timeout: 5000
proxy-read-timeout: 0
client-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
peer-transport-security:
  cert-file: '/etc/kubernetes/pki/etcd/etcd.pem'
  key-file: '/etc/kubernetes/pki/etcd/etcd-key.pem'
  peer-client-cert-auth: true
  trusted-ca-file: '/etc/kubernetes/pki/etcd/etcd-ca.pem'
  auto-tls: true
debug: false
log-package-levels:
log-outputs: [default]
force-new-cluster: false

所有Master节点创建etcd service并启动

#以下操作在master01、master02、master03均执行
[root@k8s-master01 ~]# vim /usr/lib/systemd/system/etcd.service
[root@k8s-master01 ~]# cat /usr/lib/systemd/system/etcd.service
[Unit]
Description=Etcd Service
Documentation=https://coreos.com/etcd/docs/latest/
After=network.target

[Service]
Type=notify
ExecStart=/usr/local/bin/etcd --config-file=/etc/etcd/etcd.config.yml
Restart=on-failure
RestartSec=10
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
Alias=etcd3.service

[root@k8s-master01 ~]# mkdir /etc/kubernetes/pki/etcd
[root@k8s-master01 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
[root@k8s-master01 ~]# systemctl daemon-reload
[root@k8s-master01 ~]# systemctl enable --now etcd
Created symlink from /etc/systemd/system/etcd3.service to /usr/lib/systemd/system/etcd.service.
Created symlink from /etc/systemd/system/multi-user.target.wants/etcd.service to /usr/lib/systemd/system/etcd.service.

Etcd changelog：

https://github.com/etcd-io/etcd/blob/master/Documentation/upgrades/upgrade_3_4.md

高可用配置

所有Master节点安装keepalived和haproxy

yum install keepalived haproxy -y

# 所有Master配置HAProxy，配置一样
[root@k8s-master01 ~]# vim /etc/haproxy/haproxy.cfg
[root@k8s-master01 ~]# cat /etc/haproxy/haproxy.cfg
global
  maxconn  2000
  ulimit-n  16384
  log  127.0.0.1 local0 err
  stats timeout 30s

defaults
  log global
  mode  http
  option  httplog
  timeout connect 5000
  timeout client  50000
  timeout server  50000
  timeout http-request 15s
  timeout http-keep-alive 15s

frontend k8s-master
  bind 0.0.0.0:8443
  bind 127.0.0.1:8443
  mode tcp
  option tcplog
  tcp-request inspect-delay 5s
  default_backend k8s-master

backend k8s-master
  mode tcp
  option tcplog
  option tcp-check
  balance roundrobin
  default-server inter 10s downinter 5s rise 2 fall 2 slowstart 60s maxconn 250 maxqueue 256 weight 100
  server k8s-master01    10.0.0.100:6443  check
  server k8s-master02    10.0.0.101:6443  check
  server k8s-master03    10.0.0.102:6443  check

所有Master节点配置KeepAlived，配置不一样，注意区分

[root@k8s-master01 pki]# vim /etc/keepalived/keepalived.conf ，注意每个节点的IP和网卡（interface参数）

#master01配置
[root@k8s-master01 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {
    state MASTER
    interface ens33
    mcast_src_ip 10.0.0.100
    virtual_router_id 51
    priority 101
    nopreempt
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        10.0.0.222
    }
    track_script {
      chk_apiserver
} }

#master02配置
[root@k8s-master02 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    mcast_src_ip 10.0.0.101
    virtual_router_id 51
    priority 100
    nopreempt
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        10.0.0.222
    }
    track_script {
      chk_apiserver
} }

#master03配置
[root@k8s-master03 ~]# vim /etc/keepalived/keepalived.conf
! Configuration File for keepalived
global_defs {
    router_id LVS_DEVEL
}
vrrp_script chk_apiserver {
    script "/etc/keepalived/check_apiserver.sh"
    interval 5
    weight -5
    fall 2
    rise 1
}
vrrp_instance VI_1 {
    state BACKUP
    interface ens33
    mcast_src_ip 10.0.0.102
    virtual_router_id 51
    priority 100
    nopreempt
    advert_int 2
    authentication {
        auth_type PASS
        auth_pass K8SHA_KA_AUTH
    }
    virtual_ipaddress {
        10.0.0.222
    }
    track_script {
      chk_apiserver
} }

健康检查配置

[root@k8s-master01 keepalived]# vim /etc/keepalived/check_apiserver.sh
#!/bin/bash

err=0
for k in $(seq 1 3)
do
    check_code=$(pgrep haproxy)
    if [[ $check_code == "" ]]; then
        err=$(expr $err + 1)
        sleep 1
        continue
    else
        err=0
        break
    fi
done

if [[ $err != "0" ]]; then
    echo "systemctl stop keepalived"
    /usr/bin/systemctl stop keepalived
    exit 1
else
    exit 0
fi

[root@k8s-master01 keepalived]# chmod +x /etc/keepalived/check_apiserver.sh

启动haproxy和keepalived

[root@k8s-master01 keepalived]# systemctl daemon-reload
[root@k8s-master01 keepalived]# systemctl enable --now haproxy
[root@k8s-master01 keepalived]# systemctl enable --now keepalived

vip测试

[root@k8s-master01 ~]# ping 10.0.0.222
PING 10.0.0.222 (10.0.0.222) 56(84) bytes of data.
64 bytes from 10.0.0.222: icmp_seq=1 ttl=64 time=0.105 ms
64 bytes from 10.0.0.222: icmp_seq=2 ttl=64 time=0.045 ms
^C
--- 10.0.0.222 ping statistics ---
2 packets transmitted, 2 received, 0% packet loss, time 999ms
rtt min/avg/max/mdev = 0.045/0.075/0.105/0.030 ms

[root@k8s-master02 ~]# telnet 10.0.0.222 8443
Trying 10.0.0.222...
Connected to 10.0.0.222.
Escape character is '^]'.
Connection closed by foreign host.

重要：如果安装了keepalived和haproxy，需要测试keepalived是否是正常的

telnet 10.0.0.222 8443

如果ping不通且telnet没有出现 ]，则认为VIP不可以，不可在继续往下执行，需要排查keepalived的问题，比如防火墙和selinux，haproxy和keepalived的状态，监听端口等

所有节点查看防火墙状态必须为disable和inactive：systemctl status firewalld

所有节点查看selinux状态，必须为disable：getenforce

master节点查看haproxy和keepalived状态：systemctl status keepalived haproxy

master节点查看监听端口：netstat -lntp

Kubernetes组件配置

所有节点创建相关目录

[root@k8s-master01 pki]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

所有Master节点创建kube-apiserver service

[root@k8s-master01 pki]# cat /usr/lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --insecure-port=0  \
      --advertise-address=10.0.0.222 \
      --service-cluster-ip-range=10.96.0.0/12  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://10.0.0.100:2379,https://10.0.0.101:2379,https://10.0.0.102:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target

所有Master节点开启kube-apiserver

[root@k8s-master01 pki]# systemctl daemon-reload && systemctl enable --now kube-apiserver

#检测状态是否正常
[root@k8s-master01 pki]# systemctl status kube-apiserver
● kube-apiserver.service - Kubernetes API Server
   Loaded: loaded (/usr/lib/systemd/system/kube-apiserver.service; enabled; vendor preset: disabled)
   Active: active (running) since Thu 2021-02-04 11:42:05 CST; 812ms ago

所有Master节点配置kube-controller-manager service

[root@k8s-master01 pki]# cat /usr/lib/systemd/system/kube-controller-manager.service
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-controller-manager \
      --v=2 \
      --logtostderr=true \
      --address=127.0.0.1 \
      --root-ca-file=/etc/kubernetes/pki/ca.pem \
      --cluster-signing-cert-file=/etc/kubernetes/pki/ca.pem \
      --cluster-signing-key-file=/etc/kubernetes/pki/ca-key.pem \
      --service-account-private-key-file=/etc/kubernetes/pki/sa.key \
      --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig \
      --leader-elect=true \
      --use-service-account-credentials=true \
      --node-monitor-grace-period=40s \
      --node-monitor-period=5s \
      --pod-eviction-timeout=2m0s \
      --controllers=*,bootstrapsigner,tokencleaner \
      --allocate-node-cidrs=true \
      --cluster-cidr=10.244.0.0/16 \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem \
      --node-cidr-mask-size=24

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

所有Master节点启动kube-controller-manager

[root@k8s-master01 pki]# systemctl daemon-reload
[root@k8s-master01 pki]# systemctl enable --now kube-controller-manager
Created symlink /etc/systemd/system/multi-user.target.wants/kube-controller-manager.service → /usr/lib/systemd/system/kube-controller-manager.service.

所有Master节点配置kube-scheduler service

[root@k8s-master01 pki]# cat /usr/lib/systemd/system/kube-scheduler.service
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-scheduler \
      --v=2 \
      --logtostderr=true \
      --address=127.0.0.1 \
      --leader-elect=true \
      --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

[root@k8s-master01 pki]# systemctl daemon-reload
[root@k8s-master01 pki]# systemctl enable --now kube-scheduler
Created symlink /etc/systemd/system/multi-user.target.wants/kube-scheduler.service → /usr/lib/systemd/system/kube-scheduler.service.

TLS Bootstrapping配置

在Master01创建bootstrap

cd /root/k8s-ha-install/bootstrap
kubectl config set-cluster kubernetes     --certificate-authority=/etc/kubernetes/pki/ca.pem     --embed-certs=true     --server=https://10.0.0.222:8443     --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
kubectl config set-credentials tls-bootstrap-token-user     --token=c8ad9c.2e4d610cf3e7426e --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
kubectl config set-context tls-bootstrap-token-user@kubernetes     --cluster=kubernetes     --user=tls-bootstrap-token-user     --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
kubectl config use-context tls-bootstrap-token-user@kubernetes     --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig

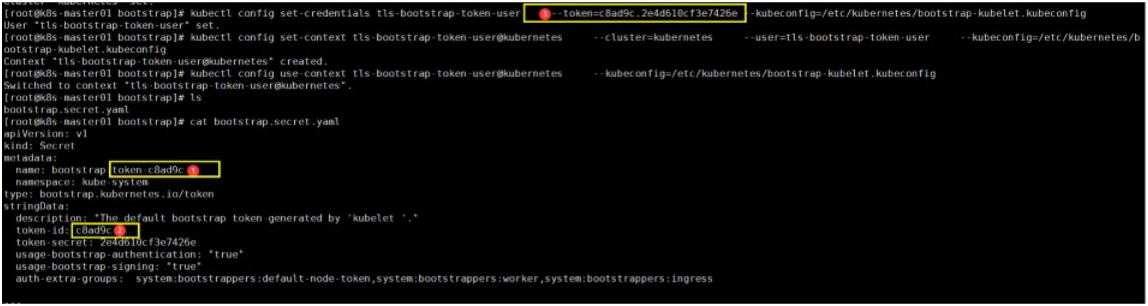

注意：如果要修改bootstrap.secret.yaml的token-id和token-secret，需要保证下图红圈内的字符串一致的，并且位数是一样的。还要保证上个命令的黄色字体：c8ad9c.2e4d610cf3e7426e与你修改的字符串要一致

[root@k8s-master01 bootstrap]# cp /etc/kubernetes/admin.kubeconfig /root/.kube/config
[root@k8s-master01 bootstrap]# kubectl create -f bootstrap.secret.yaml
secret/bootstrap-token-c8ad9c created
clusterrolebinding.rbac.authorization.k8s.io/kubelet-bootstrap created
clusterrolebinding.rbac.authorization.k8s.io/node-autoapprove-bootstrap created
clusterrolebinding.rbac.authorization.k8s.io/node-autoapprove-certificate-rotation created
clusterrole.rbac.authorization.k8s.io/system:kube-apiserver-to-kubelet created
clusterrolebinding.rbac.authorization.k8s.io/system:kube-apiserver created

Node节点配置

复制证书至Node节点

[root@k8s-master01 bootstrap]# for NODE in k8s-master02 k8s-master03 k8s-node01 k8s-node02; do
     ssh $NODE mkdir -p /etc/kubernetes/pki /etc/etcd/ssl /etc/etcd/ssl
     for FILE in etcd-ca.pem etcd.pem etcd-key.pem; do
       scp /etc/etcd/ssl/$FILE $NODE:/etc/etcd/ssl/
     done
     for FILE in pki/ca.pem pki/ca-key.pem pki/front-proxy-ca.pem bootstrap-kubelet.kubeconfig; do
       scp /etc/kubernetes/$FILE $NODE:/etc/kubernetes/${FILE}
 done
 done

mkdir -p /var/lib/kubelet /var/log/kubernetes /etc/systemd/system/kubelet.service.d /etc/kubernetes/manifests/

所有节点配置kubelet service（Master节点不部署Pod也可无需配置）

[root@k8s-master01 bootstrap]# vim  /usr/lib/systemd/system/kubelet.service

[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/kubernetes/kubernetes
After=docker.service
Requires=docker.service

[Service]
ExecStart=/usr/local/bin/kubelet

Restart=always
StartLimitInterval=0
RestartSec=10

[Install]
WantedBy=multi-user.target



[root@k8s-master01 bootstrap]# vim /etc/systemd/system/kubelet.service.d/10-kubelet.conf

[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--network-plugin=cni --cni-conf-dir=/etc/cni/net.d --cni-bin-dir=/opt/cni/bin"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml"
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node='' --pod-infra-container-image=registry.cn-hangzhou.aliyuncs.com/google_containers/pause-amd64:3.1"
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS



[root@k8s-master01 bootstrap]# vim /etc/kubernetes/kubelet-conf.yml

apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
cgroupDriver: systemd
cgroupsPerQOS: true
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
containerLogMaxFiles: 5
containerLogMaxSize: 10Mi
contentType: application/vnd.kubernetes.protobuf
cpuCFSQuota: true
cpuManagerPolicy: none
cpuManagerReconcilePeriod: 10s
enableControllerAttachDetach: true
enableDebuggingHandlers: true
enforceNodeAllocatable:
- pods
eventBurst: 10
eventRecordQPS: 5
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
evictionPressureTransitionPeriod: 5m0s
failSwapOn: true
fileCheckFrequency: 20s
hairpinMode: promiscuous-bridge
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 20s
imageGCHighThresholdPercent: 85
imageGCLowThresholdPercent: 80
imageMinimumGCAge: 2m0s
iptablesDropBit: 15
iptablesMasqueradeBit: 14
kubeAPIBurst: 10
kubeAPIQPS: 5
makeIPTablesUtilChains: true
maxOpenFiles: 1000000
maxPods: 110
nodeStatusUpdateFrequency: 10s
oomScoreAdj: -999
podPidsLimit: -1
registryBurst: 10
registryPullQPS: 5
resolvConf: /etc/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 2m0s
serializeImagePulls: true
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 4h0m0s
syncFrequency: 1m0s
volumeStatsAggPeriod: 1m0s

启动所有节点kubelet

systemctl daemon-reload
systemctl enable --now kubelet

此时系统日志cat /var/log/messages
Unable to update cni config: no networks found in /etc/cni/net.d 显示只有如下信息为正常

查看集群状态

[root@k8s-master01 bootstrap]# kubectl get node
NAME           STATUS     ROLES    AGE    VERSION
k8s-master01   NotReady   <none>   101s   v1.18.8
k8s-master02   NotReady   <none>   96s    v1.18.8
k8s-master03   NotReady   <none>   95s    v1.18.8
k8s-node01     NotReady   <none>   83s    v1.18.8
k8s-node2      NotReady   <none>   77s    v1.18.8

Kube-Proxy配置

cd /root/k8s-ha-install
kubectl -n kube-system create serviceaccount kube-proxy
kubectl create clusterrolebinding system:kube-proxy         --clusterrole system:node-proxier         --serviceaccount kube-system:kube-proxy
SECRET=$(kubectl -n kube-system get sa/kube-proxy \
    --output=jsonpath='{.secrets[0].name}')
JWT_TOKEN=$(kubectl -n kube-system get secret/$SECRET \
--output=jsonpath='{.data.token}' | base64 -d)
PKI_DIR=/etc/kubernetes/pki
K8S_DIR=/etc/kubernetes
kubectl config set-cluster kubernetes     --certificate-authority=/etc/kubernetes/pki/ca.pem     --embed-certs=true     --server=https://10.0.0.222:8443     --kubeconfig=${K8S_DIR}/kube-proxy.kubeconfig
kubectl config set-credentials kubernetes     --token=${JWT_TOKEN}     --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig
kubectl config set-context kubernetes     --cluster=kubernetes     --user=kubernetes     --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig
kubectl config use-context kubernetes     --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig

赋值Service文件

[root@k8s-master01 k8s-ha-install]# for NODE in k8s-master01 k8s-master02 k8s-master03; do
     scp ${K8S_DIR}/kube-proxy.kubeconfig $NODE:/etc/kubernetes/kube-proxy.kubeconfig
     scp kube-proxy/kube-proxy.conf $NODE:/etc/kubernetes/kube-proxy.conf
     scp kube-proxy/kube-proxy.service $NODE:/usr/lib/systemd/system/kube-proxy.service
 done


[root@k8s-master01 k8s-ha-install]#
[root@k8s-master01 k8s-ha-install]# for NODE in k8s-node01 k8s-node02; do
     scp /etc/kubernetes/kube-proxy.kubeconfig $NODE:/etc/kubernetes/kube-proxy.kubeconfig
     scp kube-proxy/kube-proxy.conf $NODE:/etc/kubernetes/kube-proxy.conf
     scp kube-proxy/kube-proxy.service $NODE:/usr/lib/systemd/system/kube-proxy.service
 done

所有节点启动kube-proxy

[root@k8s-master01 k8s-ha-install]# systemctl daemon-reload
[root@k8s-master01 k8s-ha-install]# systemctl enable --now kube-proxy
Created symlink /etc/systemd/system/multi-user.target.wants/kube-proxy.service → /usr/lib/systemd/system/kube-proxy.service.

安装calico(只在master01执行)

注意：如果国内用户下载Calico较慢，所有节点可以配置加速器(如果该文件有其他配置，别忘了加上去)

vim  /etc/docker/daemon.json
{
"exec-opts": ["native.cgroupdriver=systemd"],
  "registry-mirrors": [
    "https://registry.docker-cn.com",
    "http://hub-mirror.c.163.com",
    "https://docker.mirrors.ustc.edu.cn"
  ]
}

systemctl daemon-reload
systemctl restart docker

#安装最新版calico(master01)
[root@k8s-master01 k8s-ha-install]# kubectl create -f Calico/calico.yaml

#等待一段时间
#镜像下载速度可能会慢，使用kubectl get 查看po状态，系统Pod都在kube-system命名空间下
[root@k8s-master01 k8s-ha-install]# kubectl get pod -n kube-system -owide

如果容器状态异常可以使用kubectl describe 或者logs查看容器的日志

安装CoreDNS

安装CoreDNS

[root@k8s-master01 k8s-ha-install]# cd CoreDNS/
[root@k8s-master01 CoreDNS]# kubectl create -f coredns.yaml

#查看
[root@k8s-master01 CoreDNS]# kubectl get po -n kube-system -l k8s-app=kube-dns
NAME                       READY   STATUS    RESTARTS   AGE
coredns-5bf47f866c-qfghb   1/1     Running   0          2m11s

安装Metrics Server

[root@k8s-master01 k8s-ha-install]# kubectl create -f metrics-server-3.6.1/
查看状态
[root@k8s-master01 k8s-ha-install]# kubectl get po -n kube-system -l k8s-app=metrics-server
NAME                              READY   STATUS    RESTARTS   AGE
metrics-server-6986c8fc67-n9krv   1/1     Running   0          90s

集群验证

#安装busybox
cat<<EOF | kubectl apply -f -
apiVersion: v1
kind: Pod
metadata:
  name: busybox
  namespace: default
spec:
  containers:
  - name: busybox
    image: busybox:1.28
    command:
      - sleep
      - "3600"
    imagePullPolicy: IfNotPresent
  restartPolicy: Always
EOF

[root@k8s-master01 k8s-ha-install]# kubectl exec  busybox -n default -- nslookup kubernetes
Server:    10.96.0.10
Address 1: 10.96.0.10 kube-dns.kube-system.svc.cluster.local

Name:      kubernetes
Address 1: 10.96.0.1 kubernetes.default.svc.cluster.local

安装dashboard

[root@k8s-master01 k8s-ha-install]# kubectl create -f dashboard/

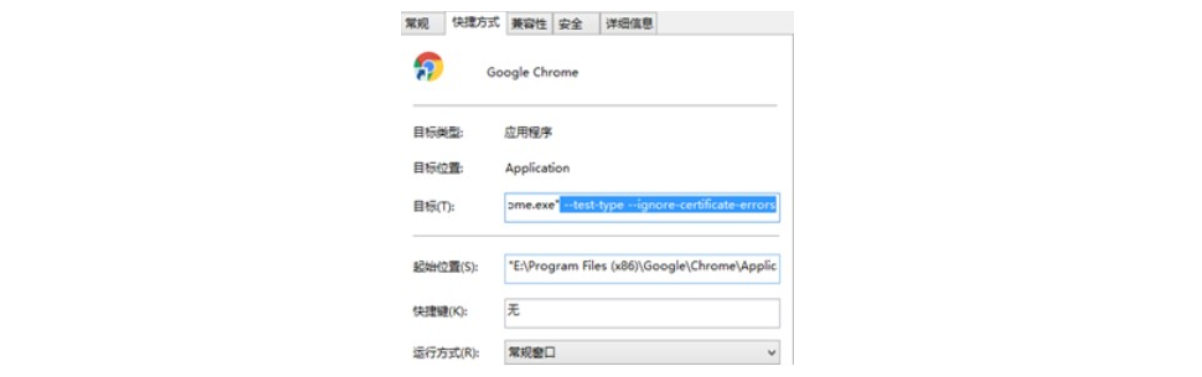

在谷歌浏览器（Chrome）启动文件中加入启动参数，用于解决无法访问Dashboard的问题，参考下图：

--test-type --ignore-certificate-errors

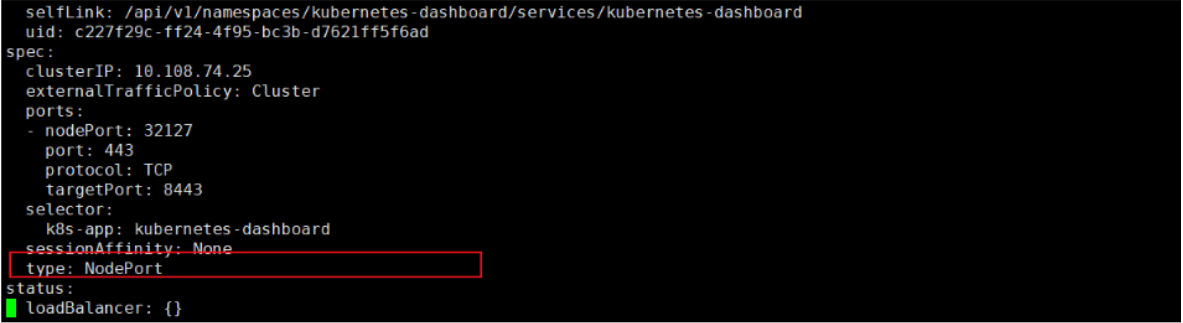

更改dashboard的svc为NodePort：
kubectl edit svc kubernetes-dashboard -n kubernetes-dashboard

将ClusterIP更改为NodePort（如果已经为NodePort忽略此步骤）：

[root@k8s-master01 k8s-ha-install]# kubectl get svc kubernetes-dashboard -n kubernetes-dashboard
NAME                   TYPE       CLUSTER-IP     EXTERNAL-IP   PORT(S)         AGE
kubernetes-dashboard   NodePort   10.108.74.25   <none>        443:32127/TCP   3m15s

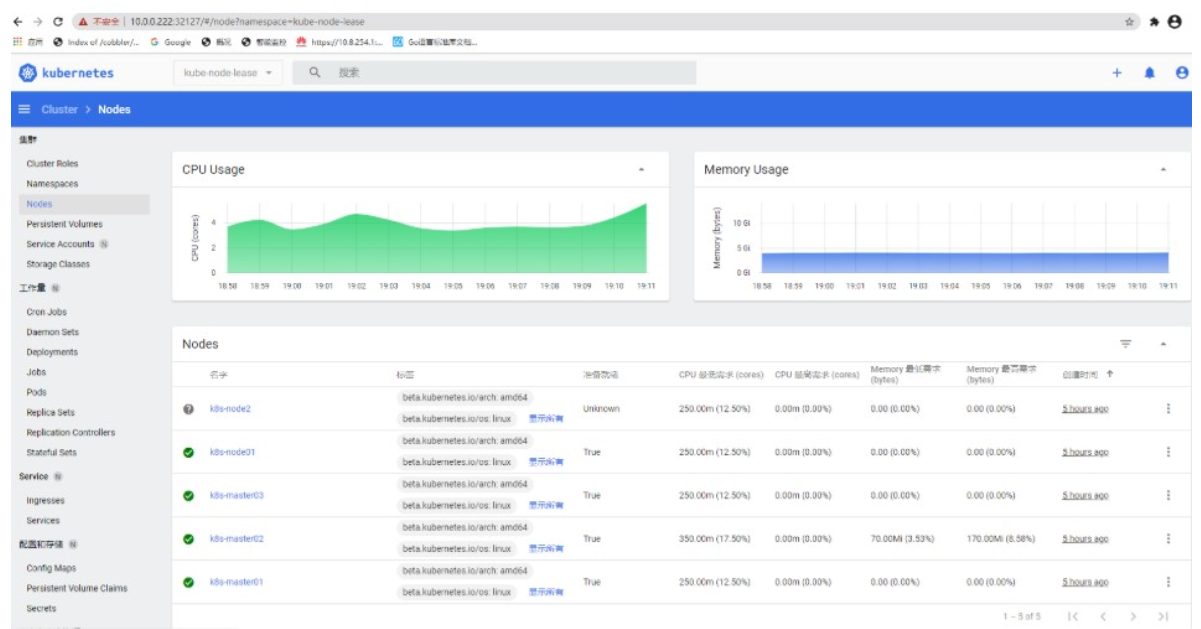

根据自己的实例端口号，通过任意安装了kube-proxy的宿主机或者VIP的IP+端口即可访问到dashboard：

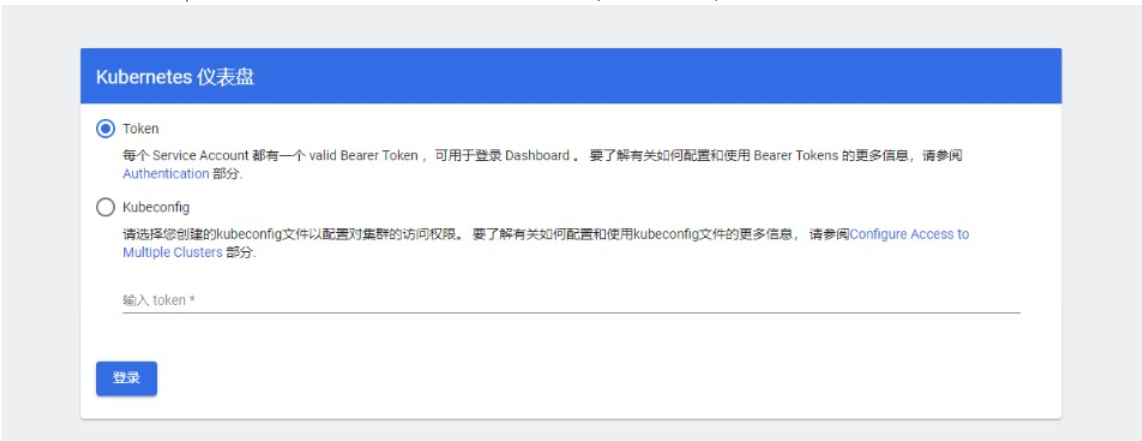

访问Dashboard：https://10.0.0.222:32127，选择登录方式为令牌（即token方式），参考图1-2

#创建管理员用户
[root@k8s-master01 k8s-ha-install]# cd dashboard/
[root@k8s-master01 dashboard]# vim admin.yaml
[root@k8s-master01 dashboard]# cat admin.yaml
apiVersion: v1
kind: ServiceAccount
metadata:
  name: admin-user
  namespace: kube-system
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: admin-user
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: cluster-admin
subjects:
- kind: ServiceAccount
  name: admin-user
  namespace: kube-system

[root@k8s-master01 dashboard]# kubectl create -f admin.yaml -n kube-system

查看token值

[root@k8s-master01 dashboard]# kubectl -n kube-system describe secret $(kubectl -n kube-system get secret | grep admin-user | awk '{print $1}')
Name:         admin-user-token-plbpc
Namespace:    kube-system
Labels:       <none>
Annotations:  kubernetes.io/service-account.name: admin-user
              kubernetes.io/service-account.uid: ba8ce4ac-2164-4374-83e9-a994417f2ea0

Type:  kubernetes.io/service-account-token

Data
====
ca.crt:     1359 bytes
namespace:  11 bytes
token:      eyJhbGciOiJSUzI1NiIsImtpZCI6ImZsY0dRRVpLYU14SUpPWEg2ME1pZmFnMEliVVNhRUQ1U0FSS1BaR0lqc0UifQ.eyJpc3MiOiJrdWJlcm5ldGVzL3NlcnZpY2VhY2NvdW50Iiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9uYW1lc3BhY2UiOiJrdWJlLXN5c3RlbSIsImt1YmVybmV0ZXMuaW8vc2VydmljZWFjY291bnQvc2VjcmV0Lm5hbWUiOiJhZG1pbi11c2VyLXRva2VuLXBsYnBjIiwia3ViZXJuZXRlcy5pby9zZXJ2aWNlYWNjb3VudC9zZXJ2aWNlLWFjY291bnQubmFtZSI6ImFkbWluLXVzZXIiLCJrdWJlcm5ldGVzLmlvL3NlcnZpY2VhY2NvdW50L3NlcnZpY2UtYWNjb3VudC51aWQiOiJiYThjZTRhYy0yMTY0LTQzNzQtODNlOS1hOTk0NDE3ZjJlYTAiLCJzdWIiOiJzeXN0ZW06c2VydmljZWFjY291bnQ6a3ViZS1zeXN0ZW06YWRtaW4tdXNlciJ9.F4iFj_w5fzLLecFxlmmXdqR_3Xohtn6RwvJlGOR1nY0VG9IjbzR2uMmPh1uizcuA6ToG-ASjJUTU6vlizE9YBTd-GgO2Xtx9Z2dfapyuRTn2edpicnPQ5r8JcX7QqJUCiGRww6PfVUL0x_mT0hxfhDt3VPXvJm_gCny3ZtCRIGU58EOK-RcY8bUMdJ1mkAhZJwgGKrMH16mPe3PvI5XuKsCAs4_ku9SLdmG-Nuyyh_Tk1hzgjS7qaqgkTAJPKUGrPurKnlYNEpYOTC2Q8slUeAv1Gl8oWT9qkh_Nb9rh4SmPkPr8NR0VjhOWgC0QuQIUyPwIwVFT4N_YWOxXqeCKHw

老王：自动化专业运维人员，k8s高级运维工程师，专注解决运维疑难杂症。。。分享使我快乐。。。

posted @ 2021-09-03 18:04 老王教你学Linux 阅读(692) 评论(0) 收藏举报

刷新页面返回顶部

老王教你学Linux

吃水不忘挖井人，走路不忘领路者！！！文档配视频效果更佳哦：https://edu.51cto.com/lecturer/14390454.html

二进制部署k8s高可用版本

二进制安装k8s 1.18版本

集群规划

注意：

1.环境准备

基本组件安装

所有节点安装新版containerd

所有节点开启Docker并设置开机自启动

k8s组件安装（下载慢的话可以使用迅雷下载）

将组件推送到其它节点

生成证书

将证书复制到其他节点

生成kubernetes证书

创建ServiceAccount Key

Kubernetes系统组件配置

1、master01 etcd配置文件

2、master02 etcd配置文件

3、master03 etcd配置文件

所有Master节点创建etcd service并启动

高可用配置

健康检查配置

启动haproxy和keepalived

vip测试

Kubernetes组件配置

所有Master节点配置kube-controller-manager service

所有Master节点启动kube-controller-manager

所有Master节点配置kube-scheduler service

TLS Bootstrapping配置

Node节点配置

Kube-Proxy配置

安装calico(只在master01执行)

安装CoreDNS

安装Metrics Server

集群验证

安装dashboard

查看token值

公告

老王教你学Linux

吃水不忘挖井人，走路不忘领路者！！！ 文档配视频效果更佳哦：https://edu.51cto.com/lecturer/14390454.html

二进制部署k8s高可用版本

二进制安装k8s 1.18版本

集群规划

注意：

1.环境准备

基本组件安装

所有节点安装新版containerd

所有节点开启Docker并设置开机自启动

k8s组件安装（下载慢的话可以使用迅雷下载）

将组件推送到其它节点

生成证书

将证书复制到其他节点

生成kubernetes证书

创建ServiceAccount Key

Kubernetes系统组件配置

1、master01 etcd配置文件

2、master02 etcd配置文件

3、master03 etcd配置文件

所有Master节点创建etcd service并启动

高可用配置

健康检查配置

启动haproxy和keepalived

vip测试

Kubernetes组件配置

所有Master节点配置kube-controller-manager service

所有Master节点启动kube-controller-manager

所有Master节点配置kube-scheduler service

TLS Bootstrapping配置

Node节点配置

Kube-Proxy配置

安装calico(只在master01执行)

安装CoreDNS

安装Metrics Server

集群验证

安装dashboard

查看token值

公告

吃水不忘挖井人，走路不忘领路者！！！文档配视频效果更佳哦：https://edu.51cto.com/lecturer/14390454.html
