噪波纹理分析（1）：噪波函数

一、伪随机函数

随机函数用于生成随机值，通常希望给定同样的随机种子得到相同的随机值，称为伪随机函数。

1.1 1D噪声

输入1D参数生成1D的伪随机值

#define rot(x, k) (((x) << (k)) | ((x) >> (32 - (k))))
#define mix(a, b, c) \
  { \
    a -= c; \
    a ^= rot(c, 4); \
    c += b; \
    b -= a; \
    b ^= rot(a, 6); \
    a += c; \
    c -= b; \
    c ^= rot(b, 8); \
    b += a; \
    a -= c; \
    a ^= rot(c, 16); \
    c += b; \
    b -= a; \
    b ^= rot(a, 19); \
    a += c; \
    c -= b; \
    c ^= rot(b, 4); \
    b += a; \
  }

#define final(a, b, c) \
  { \
    c ^= b; \
    c -= rot(b, 14); \
    a ^= c; \
    a -= rot(c, 11); \
    b ^= a; \
    b -= rot(a, 25); \
    c ^= b; \
    c -= rot(b, 16); \
    a ^= c; \
    a -= rot(c, 4); \
    b ^= a; \
    b -= rot(a, 14); \
    c ^= b; \
    c -= rot(b, 24); \
  }

uint hash_uint(uint kx)
{
  uint a, b, c;
  a = b = c = 0xdeadbeefu + (1u << 2u) + 13u;

  a += kx;
  final(a, b, c);
  return c;
}

float hash_uint_to_float(uint kx)
{
  return float(hash_uint(kx)) / float(0xFFFFFFFFu);
}

输入2D参数生成1D的伪随机值

uint hash_uint2(uint kx, uint ky)
{
  uint a, b, c;
  a = b = c = 0xdeadbeefu + (2u << 2u) + 13u;

  b += ky;
  a += kx;
  final(a, b, c);

  return c;
}

float hash_uint2_to_float(uint kx, uint ky)
{
  return float(hash_uint2(kx, ky)) / float(0xFFFFFFFFu);
}

输入3D参数生成1D的伪随机值

uint hash_uint3(uint kx, uint ky, uint kz)
{
  uint a, b, c;
  a = b = c = 0xdeadbeefu + (3u << 2u) + 13u;

  c += kz;
  b += ky;
  a += kx;
  final(a, b, c);

  return c;
}

float hash_uint3_to_float(uint kx, uint ky, uint kz)
{
  return float(hash_uint3(kx, ky, kz)) / float(0xFFFFFFFFu);
}

1.2 2D噪声

输入1D参数生成2D的伪随机值

float hash_float_to_float(float k)
{
  return hash_uint_to_float(floatBitsToUint(k));
}

float hash_vec2_to_float(float2 k)
{
  return hash_uint2_to_float(floatBitsToUint(k.x), floatBitsToUint(k.y));
}

vector2 hash_float_to_vector2(float k)
{
  return vector2(hash_float_to_float(k), hash_vector2_to_float(vector2(k, 1.0)));
}

输入2D参数生成2D的伪随机值

vector2 hash_int2_to_vector2(int2 k)
{
  int2 v = k * 1664525 + 1013904223;
  v.x += v.y * 1664525;
  v.y += v.x * 1664525;
  v = v ^ (v >> 16);
  v.x += v.y * 1664525;
  v.y += v.x * 1664525;
  vector2 f = int2_to_vec2(v & 0x7FFFFFFF);
  return f * (1.0 / (float)0x7FFFFFFF);
}

float hash_vec3_to_float(float3 k)
{
  return hash_uint3_to_float(floatBitsToUint(k.x), floatBitsToUint(k.y), floatBitsToUint(k.z));
}

vector2 hash_vector2_to_vector2(vector2 k)
{
  return vector2(hash_vector2_to_float(k), hash_vector3_to_float(vector3(k.x, k.y, 1.0)));
}

输入3D参数生成2D的伪随机值

vector2 hash_vector3_to_vector2(vector3 k)
{
  return vector2(hash_vector3_to_float(vector3(k.x, k.y, k.z)),
                 hash_vector3_to_float(vector3(k.z, k.x, k.y)));
}

1.3 3D噪声

输入1D参数生成3D的伪随机值

vector3 hash_float_to_vector3(float k)
{
  return vector3(hash_float_to_float(k),
                 hash_vector2_to_float(vector2(k, 1.0)),
                 hash_vector2_to_float(vector2(k, 2.0)));
}

输入2D参数生成3D的伪随机值

vector3 hash_vector2_to_vector3(vector2 k)
{
  return vector3(hash_vector2_to_float(k),
                 hash_vector3_to_float(vector3(k.x, k.y, 1.0)),
                 hash_vector3_to_float(vector3(k.x, k.y, 2.0)));
}

输入3D参数生成3D的伪随机值

vector3 hash_int3_to_vector3(int3 k)
{
  int3 v = k * 1664525 + 1013904223;
  v.x += v.y * v.z;
  v.y += v.z * v.x;
  v.z += v.x * v.y;
  v = v ^ (v >> 16);
  v.x += v.y * v.z;
  v.y += v.z * v.x;
  v.z += v.x * v.y;
  vector3 f = int3_to_vec3(v & 0x7FFFFFFF);
  return f * (1.0 / (float)0x7FFFFFFF);
}

vector3 hash_vector3_to_vector3(vector3 k)
{
  return vector3(hash_vector3_to_float(k),
                 hash_vector4_to_float(vector4(k[0], k[1], k[2], 1.0)),
                 hash_vector4_to_float(vector4(k[0], k[1], k[2], 2.0)));
}

二、噪声函数

自然界存在各种各样的噪声，因此渲染材质中添加噪声会使得模型表现得更加自然、更加柔和。噪声函数可以分为两类：一是基于晶格的方法，包括梯度噪声、值噪声；二是基于点的方法，包括worley噪声。

2.1 Perlin噪声

Perlin噪声属于梯度噪声的一种。梯度噪声可能是生成噪声（一种主要能量集中在低频的随机平滑信号）最便捷的方法，适用于程序化纹理/着色、建模和动画。它比数值噪声更平滑，质量更高，但当然成本也略高。其原理是在整个平面上创建一个虚拟网格/格子，并为网格中的每个顶点分配一个随机向量。当在平面上的任意一点查询/请求噪声值时，将确定执行查询的网格单元，确定网格的四个顶点，并获取它们的随机向量。然后，用该顶点的随机向量对当前评估点相对于每个顶点的位置进行点缀（投影），并使用平滑插值对结果进行双线性插值。

2.1.1 1D Perlin噪声

输入1D参数，输出噪声值

#define FLOORFRAC(x, x_int, x_fract) { float x_floor = floor(x); x_int = int(x_floor); x_fract = x - x_floor; }
float bi_mix(float v0, float v1, float v2, float v3, float x, float y)
{
  float x1 = 1.0f - x;
  return (1.0f - y) * (v0 * x1 + v1 * x) + y * (v2 * x1 + v3 * x);
}
float negate_if(float value, uint condition)
{
  return (condition != 0u) ? -value : value;
}
float fade(float t)
{
  return t * t * t * (t * (t * 6.0f - 15.0f) + 10.0f);
}
float noise_grad(uint hash, float x)
{
  uint h = hash & 15u;
  float g = 1u + (h & 7u);
  return negate_if(g, h & 8u) * x;
}
float noise_perlin(float2 vec)
{
  int X, Y;
  float fx, fy;

  FLOORFRAC(vec.x, X, fx);
  FLOORFRAC(vec.y, Y, fy);

  float u = fade(fx);
  float v = fade(fy);

  float r = bi_mix(noise_grad(hash_int2(X, Y), fx, fy),
                   noise_grad(hash_int2(X + 1, Y), fx - 1.0f, fy),
                   noise_grad(hash_int2(X, Y + 1), fx, fy - 1.0f),
                   noise_grad(hash_int2(X + 1, Y + 1), fx - 1.0f, fy - 1.0f),
                   u,
                   v);

  return r;
}

2.1.2 2D Perlin噪声

输入2D参数，输出噪声值

float noise_grad(uint hash, float x, float y)
{
  uint h = hash & 7u;
  float u = h < 4u ? x : y;
  float v = 2.0f * (h < 4u ? y : x);
  return negate_if(u, h & 1u) + negate_if(v, h & 2u);
}
float noise_perlin(float2 vec)
{
  int X, Y;
  float fx, fy;

  FLOORFRAC(vec.x, X, fx);
  FLOORFRAC(vec.y, Y, fy);

  float u = fade(fx);
  float v = fade(fy);

  float r = bi_mix(noise_grad(hash_int2(X, Y), fx, fy),
                   noise_grad(hash_int2(X + 1, Y), fx - 1.0f, fy),
                   noise_grad(hash_int2(X, Y + 1), fx, fy - 1.0f),
                   noise_grad(hash_int2(X + 1, Y + 1), fx - 1.0f, fy - 1.0f),
                   u,
                   v);

  return r;
}

perlin2d

2.1.3 3D Perlin噪声

输入3D参数，输出噪声值

float tri_mix(float v0,
              float v1,
              float v2,
              float v3,
              float v4,
              float v5,
              float v6,
              float v7,
              float x,
              float y,
              float z)
{
  float x1 = 1.0f - x;
  float y1 = 1.0f - y;
  float z1 = 1.0f - z;
  return z1 * (y1 * (v0 * x1 + v1 * x) + y * (v2 * x1 + v3 * x)) +
         z * (y1 * (v4 * x1 + v5 * x) + y * (v6 * x1 + v7 * x));
}

float noise_perlin(float3 vec)
{
  int X, Y, Z;
  float fx, fy, fz;

  FLOORFRAC(vec.x, X, fx);
  FLOORFRAC(vec.y, Y, fy);
  FLOORFRAC(vec.z, Z, fz);

  float u = fade(fx);
  float v = fade(fy);
  float w = fade(fz);

  float r = tri_mix(noise_grad(hash_int3(X, Y, Z), fx, fy, fz),
                    noise_grad(hash_int3(X + 1, Y, Z), fx - 1, fy, fz),
                    noise_grad(hash_int3(X, Y + 1, Z), fx, fy - 1, fz),
                    noise_grad(hash_int3(X + 1, Y + 1, Z), fx - 1, fy - 1, fz),
                    noise_grad(hash_int3(X, Y, Z + 1), fx, fy, fz - 1),
                    noise_grad(hash_int3(X + 1, Y, Z + 1), fx - 1, fy, fz - 1),
                    noise_grad(hash_int3(X, Y + 1, Z + 1), fx, fy - 1, fz - 1),
                    noise_grad(hash_int3(X + 1, Y + 1, Z + 1), fx - 1, fy - 1, fz - 1),
                    u,
                    v,
                    w);

  return r;
}

2.2 Voronoi噪声

1996年，Worley在其论文中提出了一种基于点的噪波生成算法。首先将像素划分为相同大小的网格，然后在网格中布置随机位置的特征点，每个格子的像素点依次遍历周围9个格子的特征点计算得到最短距离，最后将最短距离根据网格大小归一化输出。

2.2.1 F1模式

算法原理：F1计算输入点到最近的特征点（即Voronoi种子点）的距离，并输出该距离值（Distance）、特征点的位置（Position）以及随机颜色（Color）。其核心是通过遍历所有种子点，找到距离输入点最近的一个，并计算欧几里得（或其他距离度量）距离。
数学表达：

F1(x)=minpi∈Pd(x,pi)，其中 P是种子点集合，d是距离函数（如欧几里得距离）。

应用场景：生成标准的Voronoi细胞结构，适用于模拟晶体、细胞等硬边界效果。

#define float4 vec4
#define int2 ivec2
#define int3 ivec3
#define FLT_MAX 1e20

struct VoronoiParams {
  float scale;
  float detail;
  float roughness;
  float lacunarity;
  float smoothness;
  float exponent;
  float randomness;
  float max_distance;
  bool normalize;
  int feature;
  int metric;
};

struct VoronoiOutput {
  float Distance;
  float3 Color;
  float4 Position;
};

float voronoi_distance(float2 a, float2 b, VoronoiParams params)
{
  if (params.metric==0) {
    return length(a- b);
  }
  else if (params.metric==1) {
    return abs(a.x - b.x) + abs(a.y - b.y);
  }
  else if (params.metric==2) {
    return max(abs(a.x - b.x), abs(a.y - b.y));
  }
  else if (params.metric==3) {
    return pow(pow(abs(a.x - b.x), params.exponent) + pow(abs(a.y - b.y), params.exponent),
               1.0f / params.exponent);
  }
  else {
    return 0.0f;
  }
}

int2 hash_pcg2d_i(int2 v)
{
  v = v * 1664525 + 1013904223;
  v.x += v.y * 1664525;
  v.y += v.x * 1664525;
  v = v ^ (v >> 16);
  v.x += v.y * 1664525;
  v.y += v.x * 1664525;
  return v;
}

float2 hash_int2_to_vec2(int2 k)
{
  int2 h = hash_pcg2d_i(k);
  return float2(h & 0x7fffffff) * (1.0 / float(0x7fffffff));
}

int3 hash_pcg3d_i(int3 v)
{
  v = v * 1664525 + 1013904223;
  v.x += v.y * v.z;
  v.y += v.z * v.x;
  v.z += v.x * v.y;
  v = v ^ (v >> 16);
  v.x += v.y * v.z;
  v.y += v.z * v.x;
  v.z += v.x * v.y;
  return v;
}


float3 hash_int3_to_vec3(int3 k)
{
  int3 h = hash_pcg3d_i(k);
  return float3(h & 0x7fffffff) * (1.0 / float(0x7fffffff));
}

float4 voronoi_position(float2 coord)
{
  return float4(coord.x, coord.y, 0.0f, 0.0f);
}

VoronoiOutput voronoi_f1(VoronoiParams params, float2 coord)
{
  float2 cellPosition_f = floor(coord);
  float2 localPosition = coord - cellPosition_f;
  int2 cellPosition = int2(cellPosition_f);

  float minDistance = FLT_MAX;
  int2 targetOffset = int2(0);
  float2 targetPosition = float2(0.0f);
  for (int j = -1; j <= 1; j++) {
    for (int i = -1; i <= 1; i++) {
      int2 cellOffset = int2(i, j);
      float2 pointPosition = float2(cellOffset) +
                             hash_int2_to_vec2(cellPosition + cellOffset) * params.randomness;
      float distanceToPoint = voronoi_distance(pointPosition, localPosition, params);
      if (distanceToPoint < minDistance) {
        targetOffset = cellOffset;
        minDistance = distanceToPoint;
        targetPosition = pointPosition;
      }
    }
  }

  VoronoiOutput octave;
  octave.Distance = minDistance;
  octave.Color = hash_int3_to_vec3(int3(cellPosition + targetOffset,0));
  octave.Position = voronoi_position(targetPosition + cellPosition_f);
  return octave;
}



void mainImage( out vec4 fragColor, in vec2 fragCoord )
{
    vec2 uv = fragCoord/iResolution.xy;

    VoronoiParams param1;
	param1.randomness=1.0;
	param1.scale=clamp(10.0,0.1,150.0);
    param1.detail=clamp(0.5,0.0,16.0);
    param1.roughness=clamp(0.5,0.0,1.0);
    param1.lacunarity=clamp(2.0,1.0,3.0);
    param1.max_distance=clamp(1.0,0.1,10.0);
    param1.normalize=false;
    param1.metric=0;
    float col=voronoi_f1(param1,uv*param1.scale).Distance;

    // Output to screen
    fragColor = vec4(vec3(col),1.0);
}

voronoiF1

2.2.2 F2模式

算法原理：F2计算输入点到第二近的特征点的距离，同时也会输出该点的位置和颜色。算法过程类似于F1，但需维护两个最小距离值，最终返回次小值。
数学表达：

F2(x)=minpi∈P∖{pF1}d(x,pi)，其中 pF1是F1模式找到的最近点。

应用场景：用于生成更复杂的纹理效果，如双重边缘或混合层次的结构。

VoronoiOutput voronoi_f2(VoronoiParams params, float2 coord)
{
  float2 cellPosition_f = floor(coord);
  float2 localPosition = coord - cellPosition_f;
  int2 cellPosition = int2(cellPosition_f);

  float distanceF1 = FLT_MAX;
  float distanceF2 = FLT_MAX;
  int2 offsetF1 = int2(0);
  float2 positionF1 = float2(0.0f);
  int2 offsetF2 = int2(0);
  float2 positionF2 = float2(0.0f);
  for (int j = -1; j <= 1; j++) {
    for (int i = -1; i <= 1; i++) {
      int2 cellOffset = int2(i, j);
      float2 pointPosition = float2(cellOffset) +
                             hash_int2_to_vec2(cellPosition + cellOffset) * params.randomness;
      float distanceToPoint = voronoi_distance(pointPosition, localPosition, params);
      if (distanceToPoint < distanceF1) {
        distanceF2 = distanceF1;
        distanceF1 = distanceToPoint;
        offsetF2 = offsetF1;
        offsetF1 = cellOffset;
        positionF2 = positionF1;
        positionF1 = pointPosition;
      }
      else if (distanceToPoint < distanceF2) {
        distanceF2 = distanceToPoint;
        offsetF2 = cellOffset;
        positionF2 = pointPosition;
      }
    }
  }

  VoronoiOutput octave;
  octave.Distance = distanceF2;
  octave.Color = hash_int2_to_vec3(cellPosition + offsetF2);
  octave.Position = voronoi_position(positionF2 + cellPosition_f);
  return octave;
}

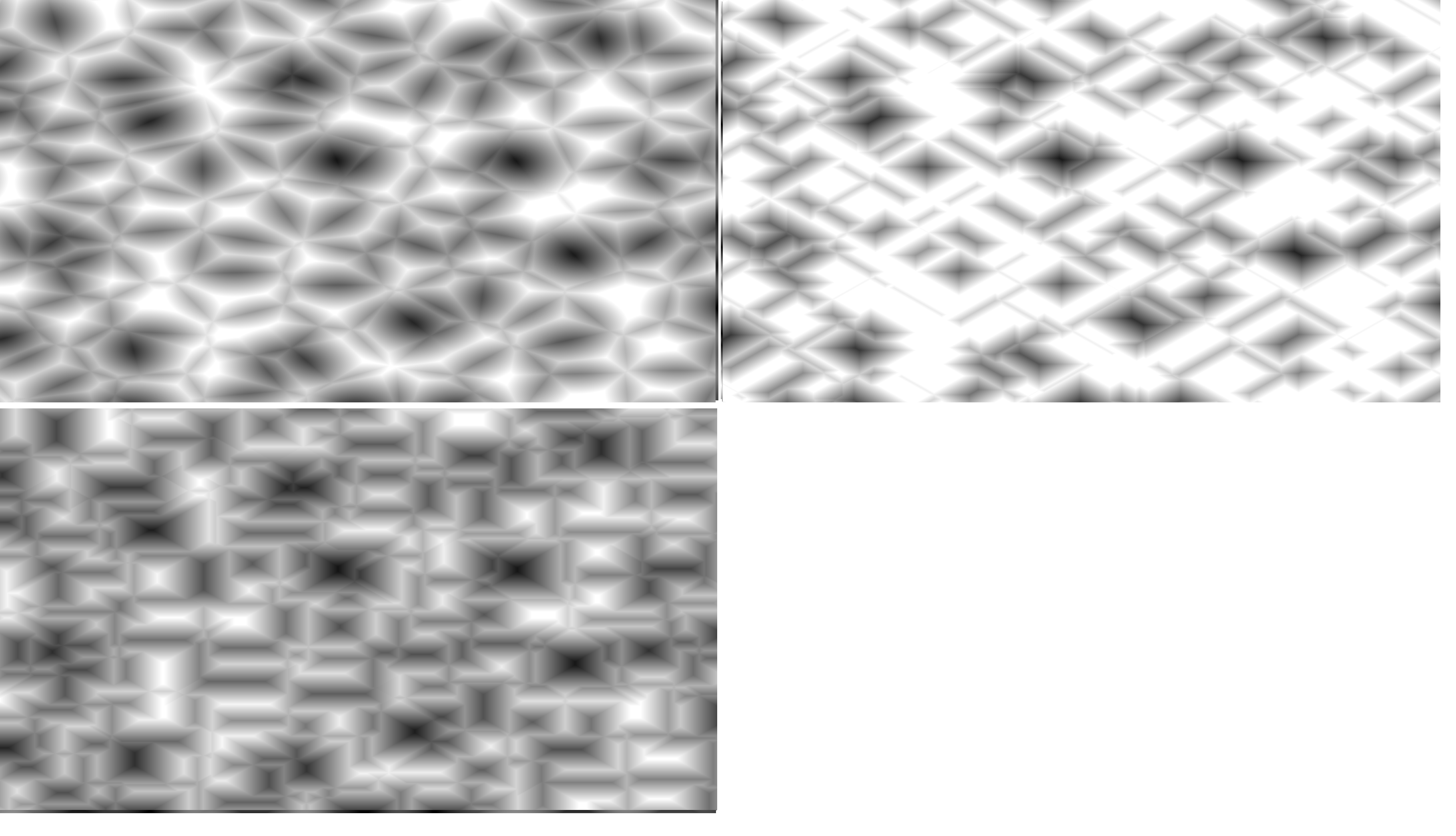

voronoiF2

2.2.3 Smooth F1模式

算法原理：Smooth F1是对F1的平滑化改进，通过加权平均多个邻近点的距离值，消除F1的硬边界不连续性。具体实现可能采用类似“平滑最小值”（smooth minimum）的函数（如指数或幂次加权），使得过渡更自然。
数学方法：

例如，使用指数衰减加权：

Smooth F1(x)=−k1log∑pi∈Pe−k⋅d(x,pi)，其中 k控制平滑强度。

应用场景：适合需要柔和过渡的效果，如生物组织或流体模拟。

VoronoiOutput voronoi_smooth_f1(VoronoiParams params, float2 coord)
{
  float2 cellPosition_f = floor(coord);
  float2 localPosition = coord - cellPosition_f;
  int2 cellPosition = int2(cellPosition_f);

  float smoothDistance = 0.0f;
  float3 smoothColor = float3(0.0f);
  float2 smoothPosition = float2(0.0f);
  float h = -1.0f;
  for (int j = -2; j <= 2; j++) {
    for (int i = -2; i <= 2; i++) {
      int2 cellOffset = int2(i, j);
      float2 pointPosition = float2(cellOffset) +
                             hash_int2_to_vec2(cellPosition + cellOffset) * params.randomness;
      float distanceToPoint = voronoi_distance(pointPosition, localPosition, params);
      h = h == -1.0f ?
              1.0f :
              smoothstep(0.0f,
                         1.0f,
                         0.5f + 0.5f * (smoothDistance - distanceToPoint) / params.smoothness);
      float correctionFactor = params.smoothness * h * (1.0f - h);
      smoothDistance = mix(smoothDistance, distanceToPoint, h) - correctionFactor;
      correctionFactor /= 1.0f + 3.0f * params.smoothness;
      float3 cellColor = hash_int3_to_vec3(int3(cellPosition + cellOffset,0));
      smoothColor = mix(smoothColor, cellColor, h) - correctionFactor;
      smoothPosition = mix(smoothPosition, pointPosition, h) - correctionFactor;
    }
  }

  VoronoiOutput octave;
  octave.Distance = smoothDistance;
  octave.Color = smoothColor;
  octave.Position = voronoi_position(cellPosition_f + smoothPosition);
  return octave;
}

voronoiSmoothF1

2.2.4 Distance to Edge模式

算法原理：计算输入点到Voronoi细胞边界的最近距离。算法需先找到最近（F1）和第二近（F2）的种子点，然后计算到两者中垂线（即Voronoi边）的距离。对于欧几里得距离，公式为：

Distance to Edge(x)=2d(x,pF1)−d(x,pF2)。

特性：结果为正值表示点在细胞内部，负值表示超出边界（需结合绝对值使用）。

应用场景：用于生成边缘高光或描边效果，如金属锤击纹理或卡通水面的波纹。

float voronoi_distance_to_edge(VoronoiParams params, float2 coord)
{
  float2 cellPosition_f = floor(coord);
  float2 localPosition = coord - cellPosition_f;
  int2 cellPosition = int2(cellPosition_f);

  float2 vectorToClosest = float2(0.0f);
  float minDistance = FLT_MAX;
  for (int j = -1; j <= 1; j++) {
    for (int i = -1; i <= 1; i++) {
      int2 cellOffset = int2(i, j);
      float2 vectorToPoint = float2(cellOffset) +
                             hash_int2_to_vec2(cellPosition + cellOffset) * params.randomness -
                             localPosition;
      float distanceToPoint = dot(vectorToPoint, vectorToPoint);
      if (distanceToPoint < minDistance) {
        minDistance = distanceToPoint;
        vectorToClosest = vectorToPoint;
      }
    }
  }

  minDistance = FLT_MAX;
  for (int j = -1; j <= 1; j++) {
    for (int i = -1; i <= 1; i++) {
      int2 cellOffset = int2(i, j);
      float2 vectorToPoint = float2(cellOffset) +
                             hash_int2_to_vec2(cellPosition + cellOffset) * params.randomness -
                             localPosition;
      float2 perpendicularToEdge = vectorToPoint - vectorToClosest;
      if (dot(perpendicularToEdge, perpendicularToEdge) > 0.0001f) {
        float distanceToEdge = dot((vectorToClosest + vectorToPoint) / 2.0f,
                                   normalize(perpendicularToEdge));
        minDistance = min(minDistance, distanceToEdge);
      }
    }
  }

  return minDistance;
}

voronoiDistance

2.2.4 N-Sphere Radius模式

算法原理：N-Sphere Radius表示Voronoi单元内可容纳的最大n维球体的半径。对于3D空间，它是一个内切球体；对于2D空间，则是一个内切圆。

该半径等于最近种子点（F1）与次近种子点（F2）之间距离的一半，即：

sphere_radius=2d(pF1,pF2)，其中 pF1和 pF2分别是输入点的最近和第二近的Voronoi种子点。

特性：该值描述了Voronoi单元的“紧密程度”，半径越大，说明单元内部空间越宽松。。
应用场景：通过N-Sphere Radius可以生成紧密排列的球体或气泡状纹理，适用于模拟生物细胞、泡沫或金属颗粒等结构。

float voronoi_n_sphere_radius(VoronoiParams params, float2 coord)
{
  float2 cellPosition_f = floor(coord);
  float2 localPosition = coord - cellPosition_f;
  int2 cellPosition = int2(cellPosition_f);

  float2 closestPoint = float2(0.0f);
  int2 closestPointOffset = int2(0);
  float minDistance = FLT_MAX;
  for (int j = -1; j <= 1; j++) {
    for (int i = -1; i <= 1; i++) {
      int2 cellOffset = int2(i, j);
      float2 pointPosition = float2(cellOffset) +
                             hash_int2_to_vec2(cellPosition + cellOffset) * params.randomness;
      float distanceToPoint = distance(pointPosition, localPosition);
      if (distanceToPoint < minDistance) {
        minDistance = distanceToPoint;
        closestPoint = pointPosition;
        closestPointOffset = cellOffset;
      }
    }
  }

  minDistance = FLT_MAX;
  float2 closestPointToClosestPoint = float2(0.0f);
  for (int j = -1; j <= 1; j++) {
    for (int i = -1; i <= 1; i++) {
      if (i == 0 && j == 0) {
        continue;
      }
      int2 cellOffset = int2(i, j) + closestPointOffset;
      float2 pointPosition = float2(cellOffset) +
                             hash_int2_to_vec2(cellPosition + cellOffset) * params.randomness;
      float distanceToPoint = distance(closestPoint, pointPosition);
      if (distanceToPoint < minDistance) {
        minDistance = distanceToPoint;
        closestPointToClosestPoint = pointPosition;
      }
    }
  }

  return distance(closestPointToClosestPoint, closestPoint) / 2.0f;
}

voronoiNSphere

posted @ 2025-08-18 16:50 王小于的啦阅读(57) 评论(0) 收藏举报

刷新页面返回顶部

wangxydela
